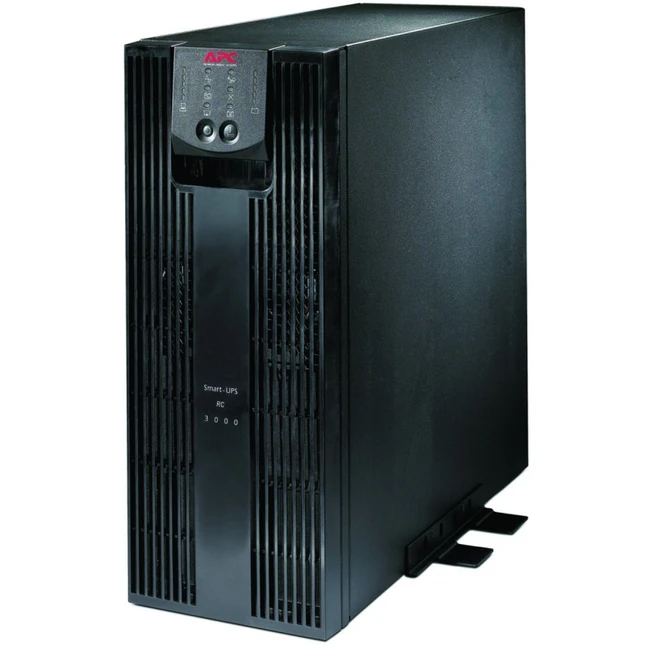

Источник бесперебойного питания APC Smart-UPS RC 3000 SRC3000XLI Двойное преобразование (On-Line), Напольный (Tower), 3000 ВА, 2100 Вт

ИБП APC Smart-UPS RC (3000ВА/2100Вт) 230В

Характеристики:

Выход:
Выходная мощность: 2.1 KВатт / 3.0 kВА
Максимальная задаваемая мощность(Вт): 2.1 KВатт / 3.0 kВА
Номинальное выходное напряжение: 230V
Output Voltage Note: Configurable for 220 or 230V nominal output voltage
Efficiency at Full Load: 89.0 %
Output Voltage Distortion: Less than 3%
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages: 220
Load Crest Factor: 3 : 1
Topology: Double Conversion Online
Waveform type: Sine wave
Output Connections:
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
Bypass: Built-in Bypass

Input:
Nominal Input Voltage: 230V
Input frequency: 50/60 Hz +/- 5 Hz (auto sensing)Input
Connections: IEC-320 C20
Cord Length: 2.44 meters
Input voltage range for main operations: 160 - 280V
Input voltage adjustable range for mains operation: 100 - 280V
Efficiency at Full Load: 89.0 %
Other Input Voltages: 220

Batteries & Runtime:
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproofInc
luded Battery Modules: 1
Typical recharge time: 2hour(s)
Battery Slots Empty: 1
Expected Battery Life (years): 3 - 5
Дополнительные батареи: SRC96XLBP2S

Communications & Management:
Interface Port(s): DB-9 RS-232 , SmartSlot
Control panel: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO): Optional
Available SmartSlot™ Interface Quantity: 1

Surge Protection and Filtering:
Surge energy rating: 420 Joules
Data Line Protection: RJ-45 Modem/Fax protection (four wire dual line)
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical:
Maximum Height: 17.5cm
Maximum Width: 43.2cm
Maximum Depth: 45.7cm
Rack Height: 4U
Net Weight: 34.0kg
Shipping weight: 37.7kg
Shipping Height: 33.7cm
Shipping Width: 62.2cm
Shipping Depth: 59.7cm
Color: Black

Environmental:

Operating Environment: 0 - 40 °C
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0-3000 meters
Storage Temperature: -20 - 50 °C
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0-15000 meters
Audible noise at 1 meter from surface of unit: 45.0dBA
Online thermal dissipation: 652.0BTU/hr
Conformance

Гарантия:
Стандартная гарантия 2 года на ремонт или замену

Комплект поставки: CD with software , Smart UPS signalling RS-232 cable , User Manual
