Lines (Directory Numbers)
|
Up to 3 lines with up to 8 concurrent calls per line
|
|
Display
|
256x116 pixel backlit grayscale graphical LCD;
LED backlight with custom intensity control;
Message Waiting Indicator (MWI) LED
|
|
Feature Keys
|
4 context-sensitive “soft” keys;
17 dedicated “hard” keys;
3 line keys with bi-color (red/green) LED;
3 feature keys;
5 display/menu navigation keys;
2 volume control keys;
Mute, headset and hands-free speakerphone keys;
Dedicated hold key
|
|
Headset And Hearing Aid Compatibility
|
Dedicated RJ-9 headset port;
Amplified headsets are recommended;
Compliant with ADA Section 508 Recommendations:
Subpart B 1194.23 (all);
Hearing Aid Compatible (HAC) handset for magnetic coupling to approved HAC hearing aids;
Compatible with commercially-available TTY adapter equipment
|
|
Audio Features
|
Polycom HD Voice technology delivers life-like voice quality for each audio path — the handset, the hands-free speakerphone, and the optional headset1;
Full-duplex hands-free speakerphone;
Type 1 compliant with IEEE 1329 full duplex standards;
Frequency response — 150Hz — 7kHz for handset, optional headset1 and hands-free speakerphone modes;
Codecs:
G.722 (wideband),
G.711 /A,G.729A (Annex B) and iLBC;
Individual volume settings with visual feedback for each audio path;
Voice activity detection;
Comfort noise fill;
DTMF tone generation/DTMF event RTP payload;
Low-delay audio packet transmission;
Adaptive jitter buffers;
Packet loss concealment;
Acoustic echo cancellation;
Background noise suppression
|
|
Call Handling Features
|
Shared call/bridged line appearance;
Flexible line appearance (one or more line keys can be assigned for each line extension);
Busy Lamp Field (BLF);
Distinctive incoming call treatment/call waiting;
Call timer;
Call transfer, hold, divert (forward), pickup;
Local three-way conferencing;
Called, calling, connected party information;
One-touch speed dial, redial;
Call waiting;
Remote missed call notification;
Intercom;
Automatic off-hook call placement;
Do not disturb function
|
|
Other Features
|
Integration with Microsoft LCS 2005 for telephone and presence3;
Compatibility with Microsoft Office Communicator and Windows® Messenger 5.1 Clients;
Enabled for Polycom Productivity Suite;
Local feature-rich GUI; Time and date display;
User-configurable contact directory and call history (missed, placed, and received);
Customizable call progress tones;
Wave file support for call progress tones;
Unicode UTF-8 character support.
Multilingual user interface encompassing Chinese, Danish, Dutch, English(Canada/US/UK), French, German,Italian, Japanese, Korean, Norwegian,Polish, Portuguese, Russian, Slovenian,Spanish, Swedish
|
|
Protocol Support
|
IETF SIP (RFC 3261 and companion RFCs)
|
|
Network And Provisioning
|
Two-port Ethernet Switch;
10/100Base-TX across LAN and PC ports;
Manual or dynamic host configuration protocol (DHCP) network setup;
Time and date synchronization using SNTP;
FTP/TFTP/HTTP/HTTPS4 server-based central provisioning for mass deployments;
Provisioning and call server redundancy supported;
QoS Support — IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DSCP;
Web portal for individual unit configuration;
Network Address Translation (NAT) support — static;
RTCP support (RFC 1889);
Event logging;
Local digit map;
Hardware diagnostics;
Status and statistics
|
|
Security
|
Transport Layer Security (TLS)3;
Secure Real-time Transport Protocol (SRTP);
Shipped with X.509 certificate installed;
Encrypted configuration files3;
Password login;
Digest authentication; Support for URL syntax with password for boot server4;
HTTPS secure provisioning4;
Support for signed software executables
|
|
Power
|
Built-in, auto-sensing IEEE 802.3af Power over Ethernet (Class 2);
External Universal AC adapter (24VDC/12W)
|
|
Approvals
|
FCC Part 15 (CFR 47) Class B;
ICES-003 Class B;
EN55022 Class B;
CISPR22 Class B;
AS/NZS CISPR 22 Class B;
VCCI Class B;
EN55024;
EN61000-3-2;
EN61000-3-3;
NZ Telepermit;
ROHS compliant;
GOST-R
|
|
Safety
|
UL 60950-1;
CE Mark;
CAN/CSA-C22.2 No. 60950-1-03;
EN 60950-1;
IEC 60950-1;
AS/NZS 60950-1
|
|
Operating Conditions
|
Temperature: 0 to 40°C (+32 to 104°F);
Relative Humidity: 5% to 95%, noncondensing
|
|
Storage Temperature
|
-40 to +70°C
|
|

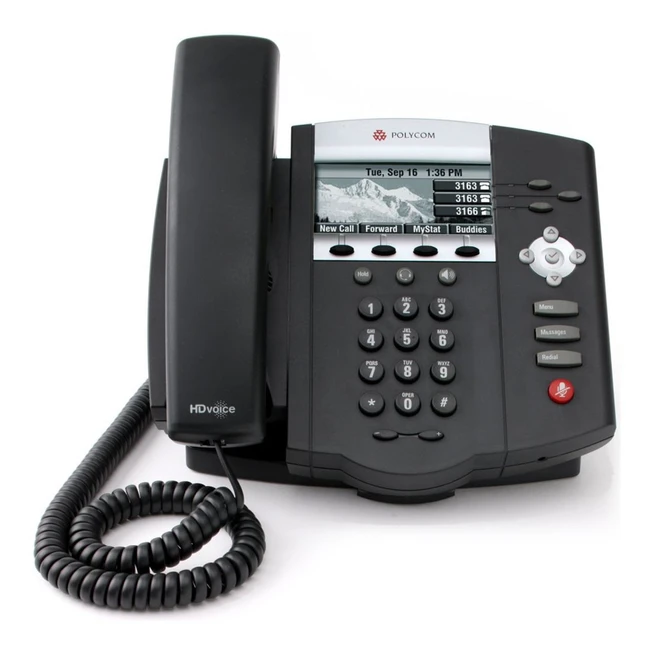

Soundpoint Ip 450 Comes With:
|
SoundPoint IP 450 console;
Handset with handset cord;
Base stand;
Network (LAN) cable;
Universal Power Adapter (including country specific cord kit)5;
Quick Start Guide;
Product registration card
|
|
Size
|
21.5 cm x 15 cm x 16.5?6.5 cm
|
