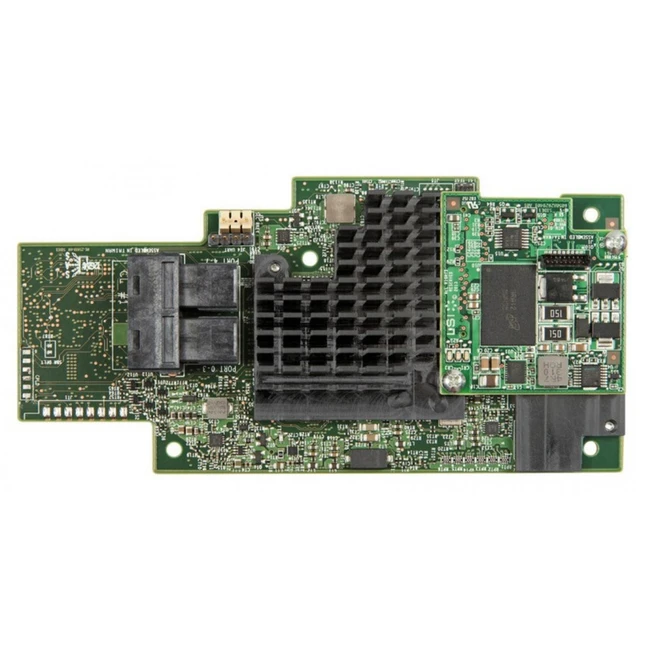

RAID-контроллер Intel RMS3CC040 RMS3CC040 932473

Code Name

Coffee Canyon

Status

Launched

Launch Date

Q3'14

Expected Discontinuance

2H'20

Target Market

Mainstream

Board Form Factor

Storage Connector Module

Data Transfer Rate

12 Gb/s

Supported Devices

SAS/SATA

Supported Operating Systems

Windows, Linux, Solaris, VMware

Compatible Cache Backup Options

AXXRMFBU5

RAID Level Supported

0, 1, 10, 5, 50, 6, 60

JBOD Mode

No

# of Ports Internal

4

# of Devices Supported

128

Embedded Memory

1GB

PCIe Host Interface

PCIe x8 Gen3

IO Processor Model

LSI3108

Keying

SIOM Connector

Connector Orientation

Side

Extended Warranty Available for Purchase (Select Countries)

Yes

   Additional Extended Warranty Details

Intel® RAID Extended Warranty

Additional Features

Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys.

Included Items

   (1) Intel® Integrated RAID Module RMS3CC040, (4) standoffs, and (4) standoff locking pins

Description

12Gb/s (SAS 3.0) 4 internal port SAS/SATA mezzanine card built with PCIe 3.0 dual core RAID-On-Chip (ROC), RAID levels 0/1/10/5/50/6/60, and support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys.
