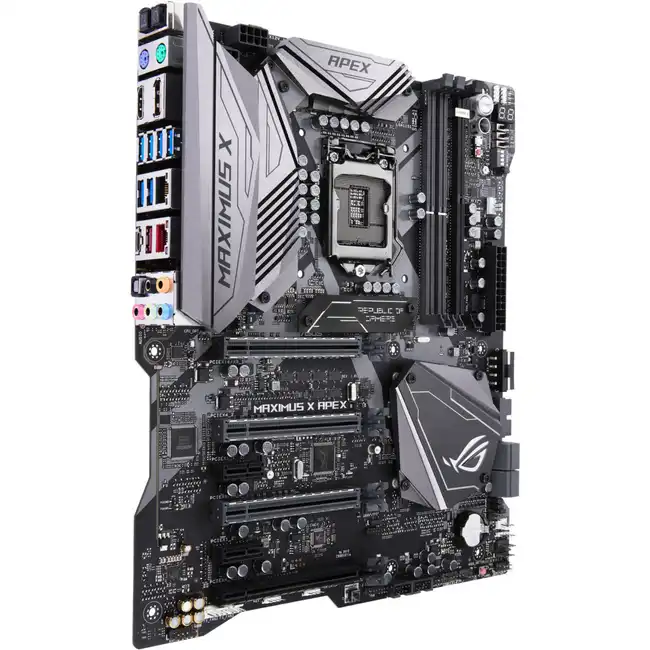

Материнская плата Asus ROG MAXIMUS X APEX (ATX, LGA 1151)

Intel® Socket 1151 for 8^th Generation Core^™ Processors

Intel® Z370

2 x DIMM, Max. 32 ГБ, DDR4 4500(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB

Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 4-Way CrossFireX Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology

3 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4)
1 x PCIe 3.0 x16 (max at x4 mode)
2 x PCIe 3.0/2.0 x1

1 x ROG DIMM.2 Module support(PCH_DIMM.2), with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x ROG DIMM.2 Module support(PCH_DIMM.2), with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology

Intel® Optane™ Memory Ready

Intel® I219V,

ROG SupremeFX 8-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB and 113 dB SNR recording input
Audio Feature :
- SupremeFX Shielding™ Technology
- Gold-plated jacks

Intel® Z370 Chipset :
8 x USB 3.1 Gen 1 port(s) (6 at back panel, (Blue))
Intel® Z370 Chipset :
6 x USB 2.0 port(s)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-C^TM, Reversible)

Condensation detection
Clear CMOS button
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
MemOK! Button
Slow Mode
Overwolf
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- NexFET™ Power Block MOSFET
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- ReTry button
- Safe Boot button
- Start button
- Reset button
- Slow Mode
- LN2 Mode
- PCIe x16 Lane Switch
- EZ Plug
Double Power :
- Dual 8 -pin CPU
ProbeIt
UEFI BIOS features :
- O.C. Profile
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
USB BIOS Flashback
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
ASUS Exclusive Features :
- AI Suite 3
- Anti-Surge
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Gaming Aesthetics :
- 3D printing friendly
- AURA-RGB Lighting

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
5 x Gold-plated audio jacks
6 x USB 3.1 Gen 1 (blue)
1 x USB 3.1 Gen 2 (red)Type-A
1 x USB 3.1 (black)USB Type-C^TM
1 x 5G LAN(RJ45) port(s)

1 x Q_Code
1 x AAFP connector
4 x Aura RGB Strip Headers
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x 4-pin EZ_PLUG Power connector(s)
1 x MemOK! button(s)
1 x Slow Mode switch(es)
9 x ProbeIt Measurement Points
2 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x BIOS Switch button(s)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x Safe Boot button
1 x ReTry button
1 x 14-1 pin TPM connector
1 x PCIe x16 lane switch
1 x 3D Mount screw port(s)
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
3 x 4-pin Full Speed Fan connectors
3 x onboard LED ON/OFF jumper(s)
1 x PAUSE Switch
1 x RSVD Switch

User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG DIMM.2 Fan Stand Pack (s)
1 x SLI HB BRIDGE(2-WAY-L)
1 x ROG big sticker
2 x M.2 screw kit (short screw and mount)
1 x DIMM.2 extension card with 2 x M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x Q-connector(s) (10 in 1)
1 x Extension Cable for RGB strips (80 cm)
1 x ROG coaster(s)
1 x Customizable Name Plate Accessory Pack
1 x ROG OC fan bracket Pack

2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.

Windows® 10 64-bit

Extended ATX Form Factor
12 inch x 10.7 inch ( 30.5 cm x 27.2 cm ) X-SHAPED PCB
