Feature
|
Description
|
|
Chassis
|
One rack-unit (1RU) chassis
|
|
Central Processor
|
Up to two CPUs from the Intel Xeon Processor Scalable Family. This includes CPUs from the following series:
- Intel Xeon Bronze 3XXX Processors
- Intel Xeon Silver 4XXX Processors
- Intel Xeon Gold 5XXX Processors
- Intel Xeon Gold 6XXX Processors
- Intel Xeon Platinum 8XXX Processors
|
|
Memory
|
24 DDR4 DIMM sockets on the motherboard (12 each CPU)
|
|
Multi-bit error protection
|
Multi-bit error protection is supported
|
|
Baseboard management
|
BMC, running Cisco Integrated Management Controller (Cisco IMC) firmware.
Depending on your Cisco IMC settings, Cisco IMC can be accessed through the 1-Gb dedicated management port, the 1-Gb/10-Gb Ethernet LAN ports, or a Cisco virtual interface card.
|
|
Network and management I/O
|
Rear panel:
- One 1-Gb Ethernet dedicated management port (RJ-45 connector)
- Two 1-Gb/10-Gb BASE-T Ethernet LAN ports (RJ-45 connectors)
- The dual LAN ports can support 1 Gbps and 10 Gbps, depending on the link partner capability.
- One RS-232 serial port (RJ-45 connector)
- One VGA video connector port (DB-15 connector)
- Two USB 3.0 ports
Front panel:
- One front-panel keyboard/video/mouse (KVM) connector that is used with the KVM cable, which provides two USB 2.0, one VGA, and one DB-9 serial connector.
|
|
Modular LOM
|
One dedicated socket (x16 PCIe lane) that can be used to add an mLOM card for additional rear-panel connectivity.
|
|
WoL
|
The two 1-Gb/10-Gb BASE-T Ethernet LAN ports support the wake-on-LAN (WoL) standard.
|
|
Power
|
Two power supplies, redundant as 1+1:
- AC power supplies 770 W AC each
- AC power supplies 1050 W AC each
- AC power supplies 1600 W AC each
- DC power supplies 1050 W DC each
|
|
ACPI
|
The advanced configuration and power interface (ACPI) 4.0 standard is supported.
|
|
Cooling
|
Seven hot-swappable fan modules for front-to-rear cooling.
|
|
PCIe I/O
|
Two horizontal PCIe expansion slots on a PCIe riser assembly.
See PCIe Slot Specifications for specifications of the slots.
|
|
InfiniBand
|
The PCIe bus slots in this server support the InfiniBand architecture.
|
|
Storage, front-panel
|

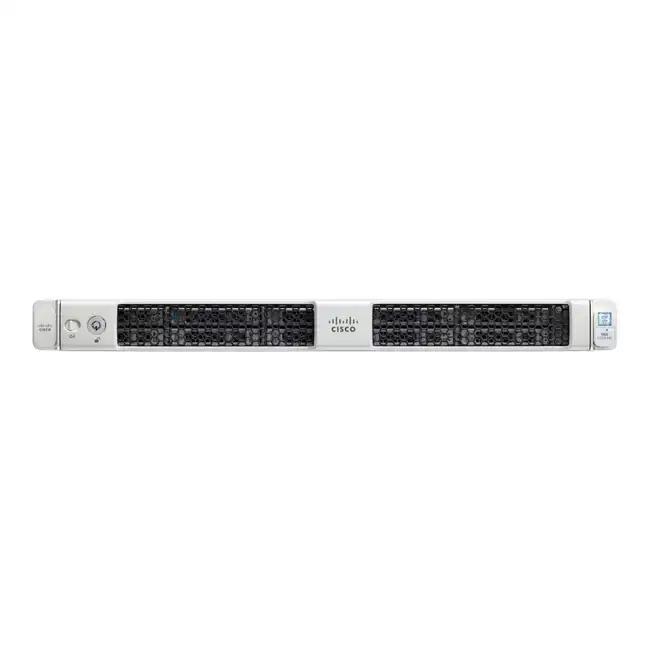

The server is orderable in three different versions, each with a different front panel/drive-backplane configuration.
- Cisco UCS C220 M5 (UCSC-220-M5SX)—Small form-factor (SFF) drives, with 10-drive backplane. Supports up to 10 2.5-inch SAS/SATA drives. Drive bays 1 and 2 support NVMe SSDs.
- Cisco UCS C220 M5 (UCSC-220-M5SN)—SFF drives, with 10-drive backplane. Supports up to 10 2.5-inch NVMe-only SSDs in drive bays 1-10.
- Cisco UCS C220 M5 (UCSC-220-M5L)—Large form-factor (LFF) drives, with four-drive backplane. Supports up to four 3.5-inch SAS/SATA drives. Drive bays 1 and 2 support NVMe SSDs. A size-converter drive sled is required to hold 2.5-inch SSDs.
|
|
Storage, internal
|
The server has these internal storage options:
- One USB port on the motherboard.
- Mini-storage module socket, optionally with either:
- SD card module. Supports up to two SD cards.
- M.2 SSD module. Supports either two SATA M.2 SSDs or two NVMe M.2 SSDs.
- One micro-SD card socket on PCIe riser 1.
|
|
Storage management
|
The server has a dedicated internal mRAID riser that supports one of the following storage-controller options:
- A PCIe-style Cisco modular RAID controller card (SAS/SATA).
- A PCIe-style interposer card for the server’s embedded SATA RAID controller.
|
|
RAID backup
|
The server has a mounting bracket near the cooling fans for the supercap unit that is used with the Cisco modular RAID controller card.
|
|
Integrated video
|
Integrated VGA video.
|
