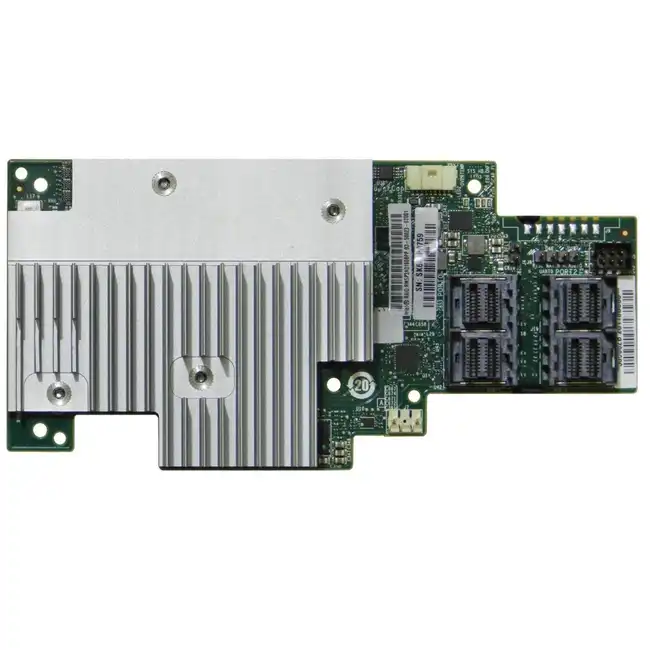

RAID-контроллер Intel RAID Module RMSP3CD080F RMSP3CD080F 954489

Intel® RAID Module RMSP3CD080F Tri-mode PCIe/SAS/SATA Full-Featured RAID Mezzanine Module, SAS3508, 8 int. ports PCIe/SAS/SATA, RAID 0, 1, 10, 5, 50, 6, 60 +JBOD, Cache 4GB, SIOM PCIe x8 Gen3

The Intel® RAID Module RMSP3CD080F is designed for use in content and web hosting appliances, security appliances, financial institutions, cloud service providers, and enterprise IT. Its mezzanine form factor is designed for the 2U Intel® Server Board S2600WF product family to enable storage flexibility without using a PCIe* slot. It supports RAID levels 0/1/10/5/50/6/60 and optional maintenance-free cache backup with 4 GB DDR4. With eight internal ports, the Intel® RAID Module RMSP3CD080F enables NVMe, SAS, and SATA performance and scalability. It provides high uptime for mass storage, with maximum reliability for high-intensity workloads.

• Supports RAID levels 0/1/1/0/5/50/6/60
• Supports NVMe* over PCIe 3.0, 12 Gb/s SAS over PCIe 3.0, and 6 Gb/s SATA
• Utilizes Avago* SAS3516 ROC I/O processor
• 4 GB 2133 MT/s DDR4 cache memory
• Two internal mini-SAS-HD (SFF8643) connectors
• SuperCapacitor kit enables maintenance-free cache backup, reducing maintenance costs due to regular battery replacement
• Optional: Self-encrypting drive support enables hardware disk encryption services on capable drives
