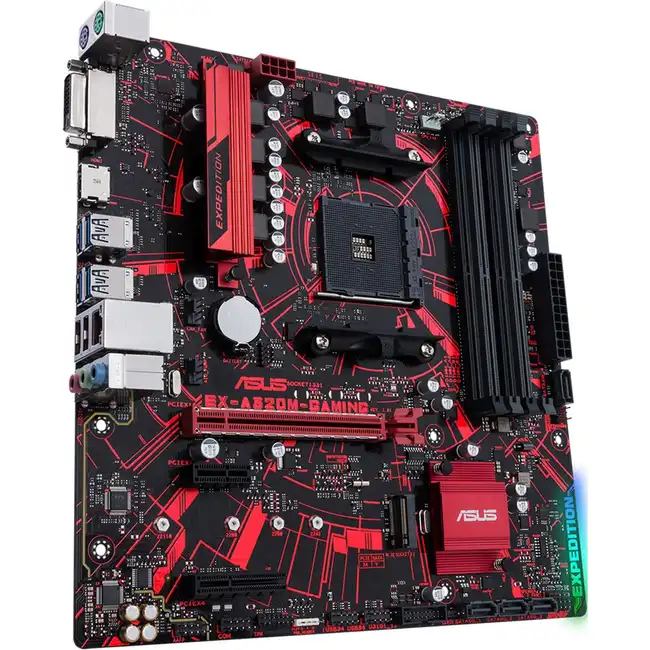

Материнская плата Asus EX-A320M-GAMING (micro-ATX, AMD AM4)

• CPU

AMD AM4 Socket for AMD Ryzen™/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7^th Generation A-series/Athlon X4/Athlon™ Processors
Supports CPU up to 8 cores

• Chipset

AMD A320

• Memory

AMD Ryzen™ Processors
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz ECC, Non-ECC, Un-buffered Memory
AMD Ryzen™/7th Generation A-series/Athlon™ Processors
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz ECC, Non-ECC, Un-buffered Memory

• Graphic

Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB (for iGPU exclusively)

• Expansion Slots

AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD 7th Generation A-series/Athlon™ Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD A320 chipset
1 x PCIe 2.0 x4 (x2 mode)
1 x PCIe x1

• Storage

AMD Ryzen™ Processors :
1 x M.2 x4 Socket 3(SATA 6Gb/s & PCI-E Gen3 x4 link),
AMD 7th Generation A-series/Athlon™ Processors :
1 x M.2 Socket 3,
AMD A320 chipset :
4 x SATA 6Gb/s port(s),

• LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

• Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs

• USB Ports

AMD A320 chipset :
6 x USB 3.0 port(s) (4 at back panel, , 2 at mid-board)
AMD A320 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

• Special Features

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
Non-stop Durability :
- Anti-moisture coating - Outstanding protection against moisture and corrosion
- USBGuard- 120% higher voltage tolerance
Non-stop Gaming :
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Non-stop Challenger :
- ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Digi+VRM

• Operating System Support

Windows® 10 64-bit

• Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) ,
2 x USB 2.0
3 x Audio jack(s)

• Internal I/O Ports

1 x AAFP connector
1 x RGB Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x AIO PUMP Header

• Accessories

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

• BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

• Form Factor

mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
