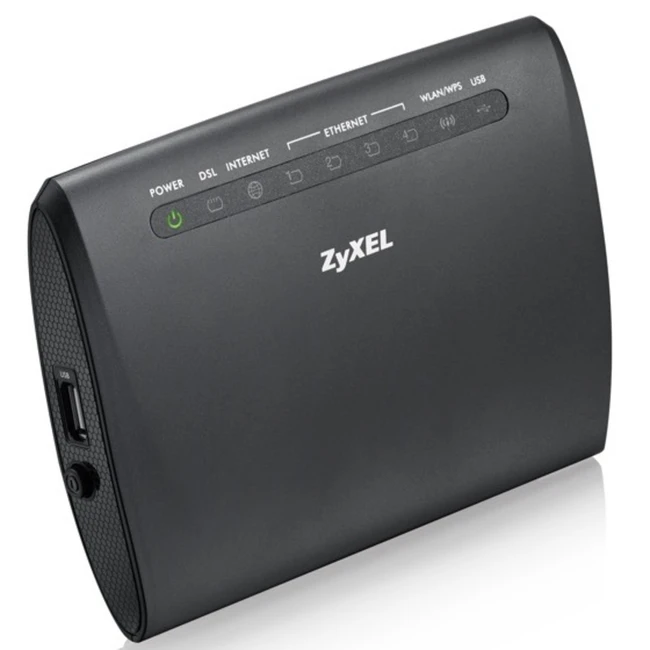

Маршрутизатор для дома Zyxel VMG1312-B10D VMG1312-B10D-EU02V1F

ZYXEL VMG1312-B10D Wireless N VDSL2 4-port Gateway with USB VDSL2 profile 17a over POTS Gateway, 4FE LAN ports, 1 USB Port WiFi N300, EU+UK STD version

VDSL Compliance

• ITU-T G.993.2 VDSL2, band plan 997, 998
• Support VDSL profile: 8a/b/c/d, 12a/b, and 17a
• G.994.1 (G.hs) Handshake
• Rate adaption
• UPBO (Upstream power back-off )
• Seamless Rate Adaption (SRA)
• VDSL OAM communication channels
• INP: up to 16 symbols
• PTM mode
• G.INP
• G.vector (G.993.5)
• PhyR configurable

ADSL Compliance

• ITU-T G.992.1 (G.dmt) compliant
• ITU-T G.992.2 (G.lite) compliant
• ANSI T1.413 compliant
• ITU-T G.992.3 (ADSL2) compliant
• ITU-T G.992.5 (ADSL2+) compliant
• Reach-Extended ADSL (RE ADSL)
• Seamless Rate Adaption (SRA)
• Support VC-based and LLC-based multiplexing

WLAN

• IEEE 802.11 b/g/n compliance
• Frequency: 2.4 GHz
• Data rate: 300 Mbps
• WPA/WPA-PSK, WPA2/WPA2-PSK
• WEP data encryption 64/128 bit
• Wireless Protected Setup (WPS)
• Multi SSID (up to 4) and hidden SSID support

USB

• File sharing
• 3G/4G* dongle access  support

Bridge/Router

• PPPoE (RFC2516)
• PPPoA (RFC2364)
• DHCP client/server/relay
• DNS proxy
• DHCP option 60/ 61/125

VLAN/QoS

• Support flexible Packet Classification by:
• From Interface
• TCP / UDP Port Range
• ETH TYPE (IP/ARP/PPPoE/802.1Q)
• Source MAC Address
• Source MAC Mask
• Destination MAC Address
• Destination MAC Mask
• Source IP Address/ Mask
• Destination IP Address/ Mask
• Predefine Service
• IP Protocol (TCP, UDP, ICMP, IGMP, User Defined)
• DHCP option 60/77
• Packet Length
• 6-bit DiffServ Code Point (DSCP, RFC 2474)
• 802.1P 3-bit Class of Service (CoS)
• 802.1Q 12-bit VLAN ID
• TCP ACK

Firewall/Security

• 802.1x Authentication (EAP-TLS)
• PAP / CHAP
• MS-CHAPv1 and v2
• Stateful Packet Inspection (SPI)
• Parental control: Protocol Packet Filter/URL keyword blocking, scheduled filtering policy based on time of day.
• ACL Rule support: (32 ACL rules)
• DoS Protection
• Report and logs via SysLog, GUI, email daemon
