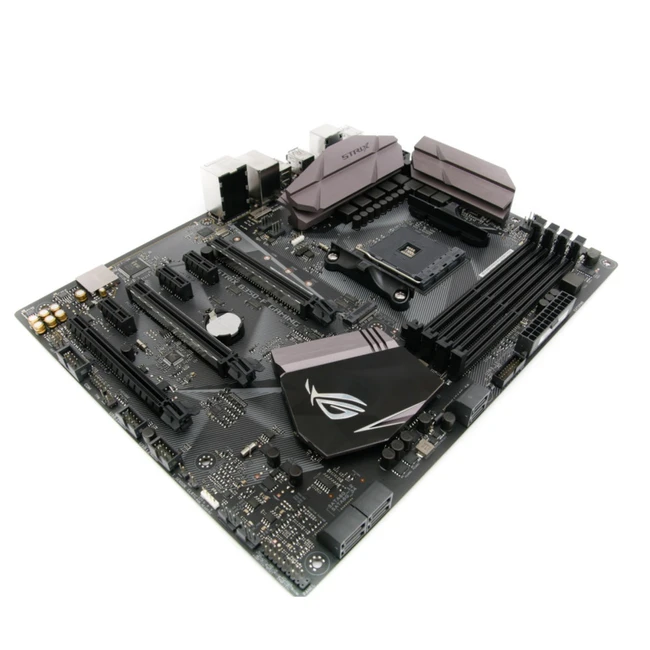

Материнская плата Asus ROG STRIX B350-F GAMING (ATX, AMD AM4)

AMD AM4 Socket for AMD Ryzen™/7^th Generation A-series/Athlon™ Processors

AMD B350

AMD Ryzen™ Processors
4 x DIMM, Max. 64Гб, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *
AMD 7th Generation A-series/Athlon™ Processors
4 x DIMM, Max. 64Гб, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture

Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Maximum shared memory of 2048 MB

Supports AMD 3-Way CrossFireX™ Technology

AMD Ryzen™ Processors
2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)
AMD 7th Generation A-series/Athlon™ Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B350 chipset
1 x PCIe 2.0 x16 (max at x4 mode) *1
3 x PCIe 2.0 x1

AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*5
2 x SATA 6Gb/s port(s),
AMD 7th Generation A-series/Athlon™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 2 mode)*6
AMD B350 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst Technology

ROG SupremeFX 8-Channel High Definition Audio CODEC
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III

AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, (Blue))
AMD B350 chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, (Red))
AMD B350 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B350 chipset :
6 x USB 2.0 port(s) (2 at back panel, (Black), 4 at mid-board)

ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV

5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- AURA-RGB Lighting
Digi+VRM

1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A
4 x USB 3.1 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

2 x RGB Header(s)
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x TPM connector(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector

User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x 10-in-1 ROG cable label
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80 cm)
1 x ROG coaster(s)

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0 ACPI 6.1, Multi-language BIOS,ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

WfM 2.0, DMI 3.0, WOL by PME, PXE

Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

Windows® 10 64-bit

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
