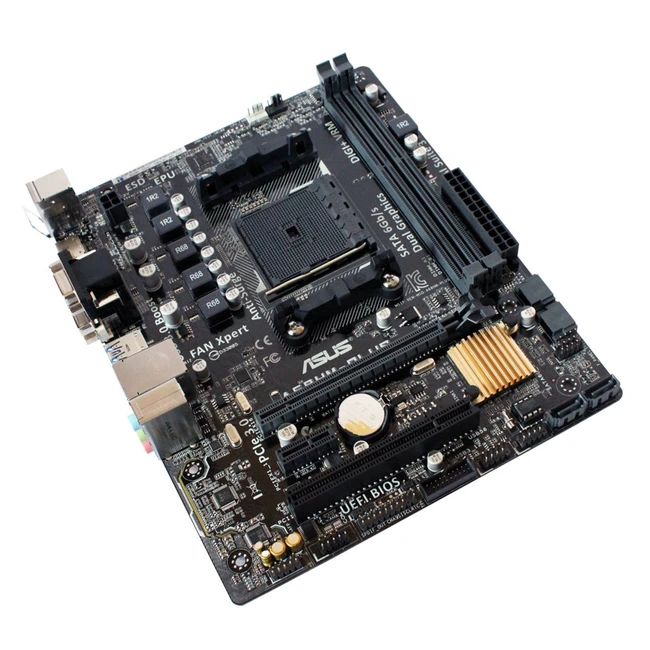

Материнская плата Asus A68HM-PLUS

AMD Socket FM2+ Athlon™/A- Series Processors
Supports CPU up to 4 cores
Supports AMD® Turbo Core 3.0 Technology

AMD A68H FCH (Bolton D2H)

2 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Integrated AMD Radeon™ R/HD8000/HD7000 Series Graphics in the A-Series  APU
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Maximum shared memory of 2048 MB
AMD® Dual Graphics technology support *1

1 x PCIe 3.0/2.0 x16 *2
1 x PCIe 2.0 x1
1 x PCI

AMD A68H FCH (Bolton D2H) chipset :
4 x SATA 6Gb/s port(s), (Gray)
Support Raid 0, 1, 10, JBOD

Realtek® 8111GR, 1 x Gigabit LAN Controller(s)

Realtek® ALC887-VD 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

ASMedia® ASM1042 controller :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, (Blue))
AMD A68H FCH (Bolton D2H) chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
AMD A68H FCH (Bolton D2H) chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)

ASUS 5X Protection :
- ASUS DIGI+ VRM - 3 + 2 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot

Windows 7 32bit/64bit
Windows 8 32bit/64bit
Windows® 8.1 32bit/64bit
Windows XP 32bit

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1
2 x USB 2.0
3 x Audio jack(s)

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)

mATX Form Factor
8.9 inch x 7.2 inch ( 22.6 cm x 18.3 cm )
