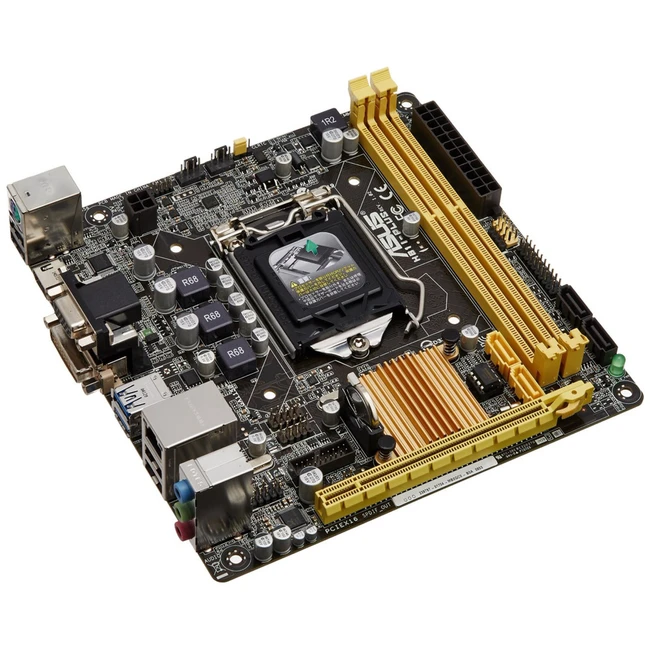

Материнская плата Asus H81I-PLUS

Intel® Socket 1150 for 4^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Intel® H81

2 x U-DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Integrated Graphics Processor
- Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB

1 x PCIe 2.0 x16

Intel® H81 chipset :
2 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s),
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1

Realtek® RTL8111G, 1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

Intel® H81 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
Intel® H81 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)

ASUS EPU :
- EPU
ASUS Digital Power Design :
- ASUS DIGI+ VRM Utility
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- Anti-Surge
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
100% All High-quality Conductive Polymer Capacitors

Windows 7
Windows 8

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1
4 x USB 2.0
3 x Audio jack(s)

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)

64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a

WOL by PME, PXE

Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)

Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
