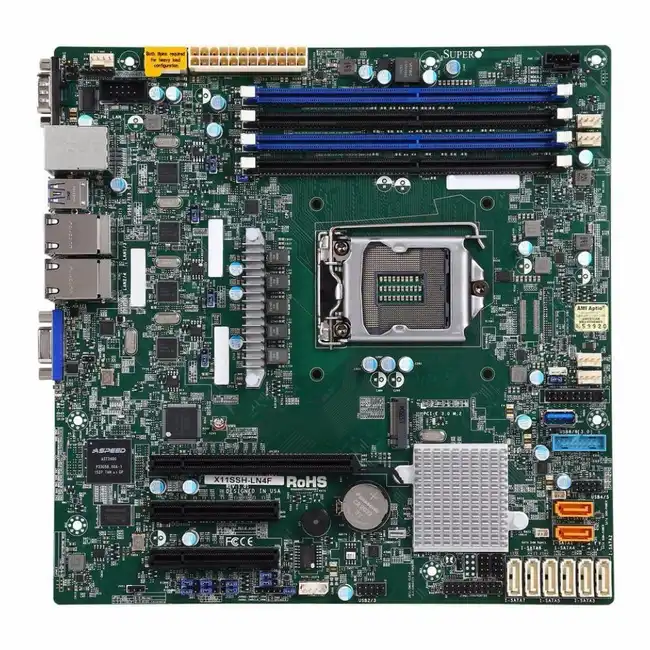

Серверная материнская плата Supermicro Motherboard X11SSH-LN4F-O MBD-X11SSH-LN4F-O

Supermicro Motherboard 1xCPU X11SSH-LN4F-O E3-1200 v5, 6thGeni3, Pent, Celeron/ UpTo4UDIMMnonECC/ 8x SATA3/ C236 RAID 0/1/5/10/ 4xGE/ 1xPCIx8(in x16), 1xPCIx8, 1xPCIx4(in x8) (9.6" x 9.6")

1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
4. Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
5. Quad GbE LAN with Intel® i210-AT
6. 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
7. I/O: 1 VGA, 2 COM, TPM header
8. 2 SuperDOM with built-in power
9. 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))
10. M.2 NGFF connector
11. Support Intel® VHD with selected CPU
