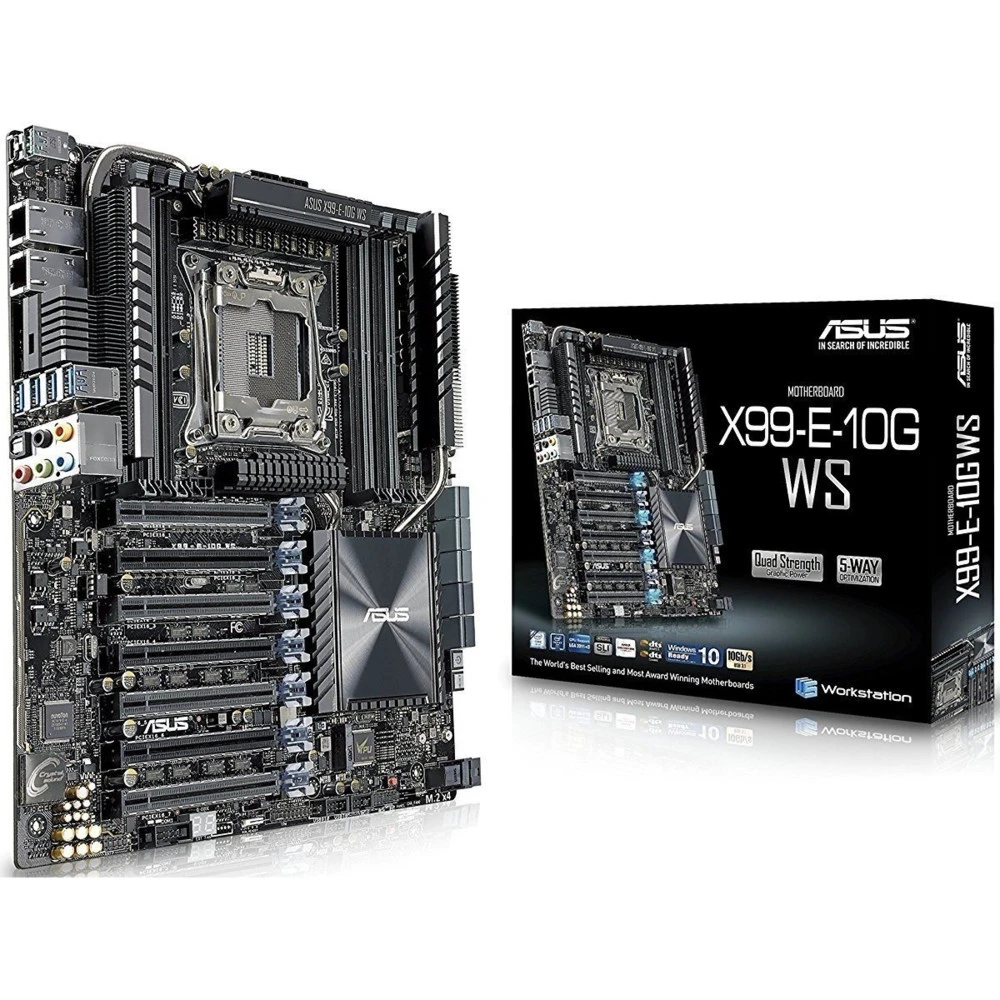

Материнская плата Asus X99-E

Материнская плата Asus X99-E

• Процессор

  Intel® Socket 2011-v3 Core™ i7 Processors

• Чипсет

  Intel® X99

• Оперативная память

  8 x DIMM, Max. 128Гб, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
  Четырехканальная Memory Architecture

• Поддержка технологий Multi-GPU

  Supports NVIDIA® Quad-GPU SLI™ Technology
  Supports NVIDIA® 3-Way SLI™ Technology
  Supports AMD Quad-GPU CrossFireX™ Technology
  Supports AMD 3-Way CrossFireX™ Technology

• Слоты расширения

  40-Lane CPU-
  3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) *1
  2 x PCIe 2.0 x1
  28-Lane CPU-
  3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4) *1
  2 x PCIe 2.0 x1

• Хранилище данных

  New Intel® Core™ i7 Processors :
  1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)*1
  Intel® X99 chipset :
  1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports
  8 x SATA 6Gb/s port(s)*2,
  Support Raid 0, 1, 5, 10
  Intel® Rapid Storage Technology 14 support*2
  Supports Intel® Smart Response Technology*3

• Локальная сеть

  Intel® I218V, 1 x Gigabit LAN Controller(s),
  Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance
  ASUS Turbo LAN Utility
  ASUS LAN Guard

• Аудио

  Realtek® ALC1150 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
  Audio Feature :
  - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
  - DTS Connect
  - Optical S/PDIF out port(s) at back panel
  - BD Audio Layer Content Protection
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Audio amplifier: Provides the highest-quality sound for headphone and speakers
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
  - Top notch audio sensation delivers according to the audio configuration
  - Power pre-regulator: Reduces power input noise to ensure consistent performance
  Separate layer for left and right track, ensuring both sound deliver equal quality

• Порты USB

  Intel® X99 chipset :
  5 x USB 3.1 Gen 1 port(s) (1 at back panel, , 4 at mid-board)
  Intel® X99 chipset :
  8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
  ASMedia® USB 3.1 controller :
  1 x USB 3.1 Gen 2 port(s) (1 at back panel, , USB Type-C^TM, 0 at mid-board)
  ASMedia® USB 3.0 controller :
  3 x USB 3.1 Gen 1 port(s) (3 at back panel, )

• Эксклюзивные особенности

  5-Way Optimization by Dual Intelligent Processors 5
  - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
  ASUS 5X Protection II :
  - ASUS LANGuard - 2.5X higher surge tolerance
  - ASUS Overvoltage Protection - World-class circuit-protecting power design
  - ASUS DIGI+ VRM - Phase digital power design
  - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
  - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
  ASUS EPU :

  ASUS Exclusive Features :
  - Remote GO!
  - MemOK!
  - AI Suite 3
  - Ai Charger+
  - M.2 & SATA Express
  - Anti-Surge
  - USB 3.1 Boost
  - Disk Unlocker
  - Turbo LAN
  - Crystal Sound 3
  - EZ XMP ASUS Exclusive Features
  - Mobo Connect
  - PC Cleaner
  Remote Entertainment
  - Media Streamer
  - HyStream
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert 4
  ASUS EZ DIY :
  - DirectKey
  - Precision Tweaker 2
  - ASUS CrashFree BIOS
  - ASUS EZ Flash 3
  - ASUS MyLogo 2
  - ASUS UEFI BIOS EZ Mode
  - Multi-language BIOS
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector
  Special Memory O.C. Design
  Media Streamer
  AURA: RGB Lighting Control

• Поддержка операционной системы

  Windows 7 32-битная/64-битная
  Windows® 10 64-битная
  Windows® 8.1 32-битная/64-битная

• Разъемы на задней панели

  1 x PS/2 keyboard/mouse combo port(s)
  1 x LAN (RJ45) port(s)
  1 x USB 3.1 Gen 2 ((Black))USB Type-C^TM
  4 x USB 3.1 Gen 1 ((Blue))
  4 x USB 2.0
  1 x Optical S/PDIF out
  5 x Audio jack(s)

• Разъeмы на плате

  1 x AAFP connector
  2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
  1 x TPM connector(s)
  8 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x Thunderbolt header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x EZ XMP switch
  1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
  1 x DRCT header(s)
  1 x MemOK! button(s)
  1 x Thermal sensor connector(s)
  1 x CPU/DRAM overvoltage jumper(s)
  1 x Clear CMOS jumper(s)
  1 x 5-pin EXT_FAN(Extension Fan) connector
  1 x Water Pump header (4-pin)
  1 x COM port header
  1 x High AMP Fan header (4-pin)

• Аксессуары

  User's manual
  ASUS Q-Shield
  1 x 2-Way SLI bridge(s)
  4 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x Q-connector(s) (1 in 1)

• BIOS

  128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.

• Администрированиe

  WfM 2.0, WOL by PME, PXE

• Диск с драйверами

  Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)

• Форм-фактор

  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
