Lenovo 42U and 48U Heavy Duty Rack Cabinets: технические характеристики и документация

Lenovo Heavy Duty Rack Cabinets are industry-standard 19-inch datacenter cabinets that are designed for high performance and high availability server and storage environments. They are optimized to help maximize floor space utilization, expedite installation, simplify cable management, and increase accessibility for improved serviceability while providing market leading configuration flexibility.

The rack cabinets are available in both 42U and 48U rack units heights designed to affordably, safely, and securely handle shipping fully loaded configurations up to 3500 lb (1588 kg) and 4000 lb (1814 kg) respectively. This enables you to receive your most capable and highest performing Lenovo solutions fully installed and integrated in the rack and ready to instantly deploy into your data center.

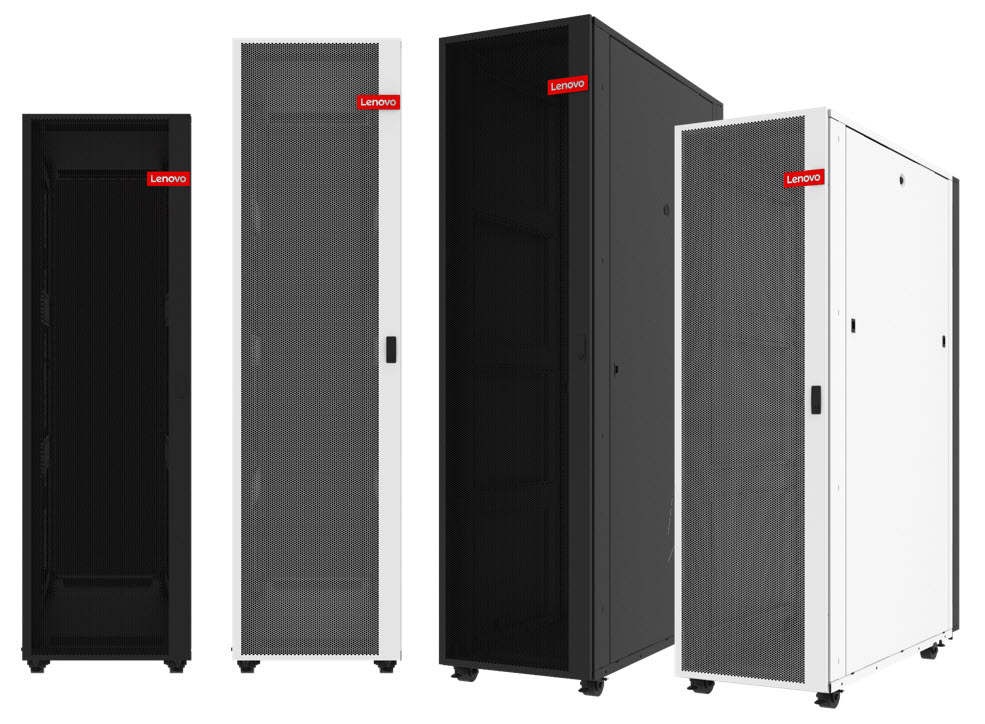

Figure 1. Lenovo 42U and 48U Heavy Duty Rack Cabinets in Pearl-White and Onyx-Black

Lenovo Heavy Duty Rack Cabinets support a variety of Lenovo Neptune™ liquid cooling solutions. You can equip them with passive Rear Door Heat Exchangers to remove up to 35kW (42U) and 45kW (48U) into 16°C cold water at 25°C ambient temperature or go up to 50°C hot-water cooling when integrating Lenovo ThinkSystem SD650 V2 and ThinkSystem SD650-N V2 for leading performance density.

The features of the Heavy Duty Rack Cabinets include:

• Designed for high performance and high availability environments
  • 600mm x 1200mm industry standard footprint both in 42U and in 48U EIA capacity.
  • Four easily adjustable leveling pads ensure stability and prevent rolling on casters.
  • Compliance with the EIA-310-E industry standard for 19-inch, type A rack cabinets.
  • Lockable doors and side panels provide a more secure environment for equipment and data.
• Highly customizable to your environment and preferences
  • Choice of beautiful Onyx (black) and Pearl (white) color for the most stunning datacenters in the world.
  • Choice of perforated rear door for ambient air cooling or Rear Door Heat Exchanger for room neutral liquid cooling.
  • Choice of side panels for standalone or isolated use-cases or side-by-side in row-configuration.
  • Choice of extension kits for the front to support thermally optimal and easily serviceable cabling and the rear to provide additional space for manifold or 0U components.
• Supporting the densest and most component-rich solutions
  • Support shipping ready for instant deployment fully integrated solutions up to 4000 lb (1814 kg).
  • Robust frame, mounting rails, and shock re-usable packaging to protect the heaviest loads in transit.
  • Integrated outriggers for dynamic tilt stability and safety at maximum loads.
  • Supports Lenovo Neptune Direct-Water Cooled solutions with rack level manifolds.
• Provides full configurability for all the power you need
  • Up to six (42U) or eight (48U) sidewall compartments to support installation of 1U PDUs without unnecessarily taking up valuable rack space.
  • Up to four mounting points for 0U PDUs conserves valuable EIA space for IT equipment, simplifies cable management, reduces installation time and increases accessibility.

The Heavy Duty Rack Cabinets are delivered on a reusable shock-resistant pallet ready for transport. The following figure shows the features of the Heavy Duty Rack Cabinets including the outriggers that aid the stability of the rack during movement, especially when the racks are fully loaded.

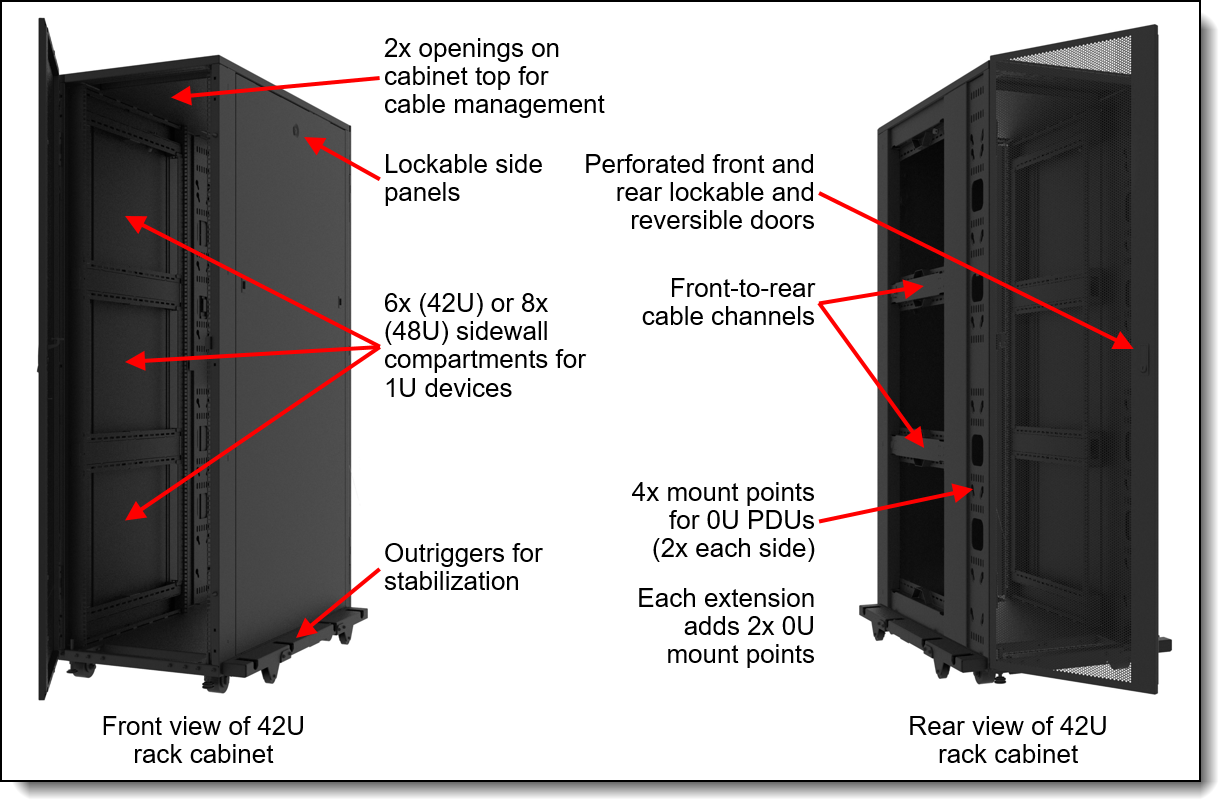

Figure 2. Front and rear views of the Heavy Duty Rack Cabinets

The following table compares the specifications of the racks.

For additional dimensions and weights, see the Physical specifications section.

Models of the Heavy Duty Rack Cabinets can be configured by using the Lenovo Data Center Solution Configurator (DCSC).

Configure-to-order (CTO) models are used to create models with factory-integrated server customizations. For CTO models, three base machine types are available for the Heavy Duty Rack Cabinet as listed in the following table, 7D6D, 7D6E and 1410:

• The 7D6D (42U) and 7D6E (48U) base machine types are for general business and is selectable by choosing General Purpose or HPC & AI ThinkSystem Hardware mode in DCSC.
• The 1410 base machine type is intended for Lenovo Scalable Infrastructure (LeSI) configurations and is enabled using the HPC & AI LeSI Solutions mode in DCSC. 1410 configurations can also be built using System x and Cluster Solutions Configurator (x-config).

The following table lists the base CTO models of the Heavy Duty Rack Cabinet.

The following table lists the pre-configured models of the Heavy Duty Rack Cabinet. Listed in the table are standalone rack cabinets as well as rack cabinets without side panels that are intended to be attached to an existing rack cabinent as an expansion cabinet.

The Heavy Duty Rack Cabinets can be customized for your preferences and specific use case or deployment scenario.

• 180mm Standard Extensions
• 180mm Advanced Extensions
• 85mm Slim Extensions
• 100mm Slim Extensions for RDHX
• Rear doors
• Side Panels
• Cable management options

180mm Standard Extensions

The 1200mm standard depth of the rack cabinets can be extended by 180mm both in the front and the rear. The front extension can provide additional space for optimal front cabling, which can be beneficial both from a servicing point of view and from a thermal point of view. The rear extension can provide additional space for additional 0U PDUs (one on each side) or deeper than usual systems within the rack cabinet.

Ordering information is listed in the following table.

All extensions come with four (42U) or five (48U) 178mm by 89mm openings to allow for inter-rack cabling without having to leave the rack through the top to overhead trays or through the bottom into a raised floor. Each side has eight hook-and-loop straps to aid with cable management. The following figure shows the contents of the rack extension part numbers. As well as the two sides [1] and [2], the kit includes one top cover [3], two front covers [4] and necessary screws to attach the extension to the rack cabinet [5], [6] and [7].

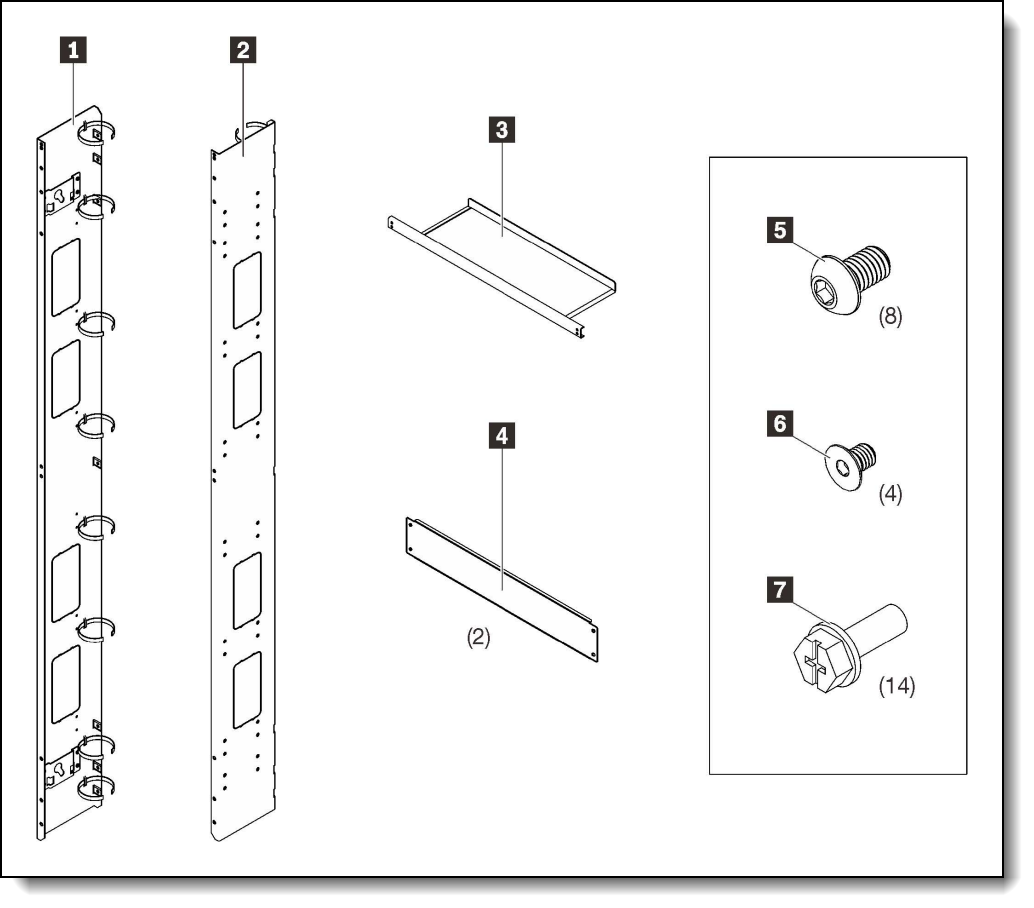

Figure 3. Contents of 180mm Advanced Rack Extension Kit (42U extension shown)

180mm Advanced Extensions

An alternative to the Standard Extensions listed in the previous section are the 180mm Advanced Extensions, which are also supported front and rear. The front extension can provide additional space for optimal front cabling, which can be beneficial both from a servicing point of view and from a thermal point of view. The rear extension can provide additional space for additional 0U PDUs (two on each side), or water manifolds, or deeper than usual systems, within the rack cabinet.

Key differences compared to the Standard Extension Kit are listed in the following table.

Ordering information is listed in the following table.

All extensions come with five (42U) or six (48U) openings, with removable fillers, to allow for inter-rack cabling without having to leave the rack through the top to overhead trays or through the bottom into a raised floor. Each side has 22 (42U) or 24 (48U) hook-and-loop straps to aid with cable management. The following figure shows the contents of the rack extension part numbers. As well as the two sides [1] and [2], the kit includes one top cover [3], and three horizontally mounted cable brackets [4], and necessary screws to attach the extension to the rack cabinet [5] to [9], and three grounding wires [10].

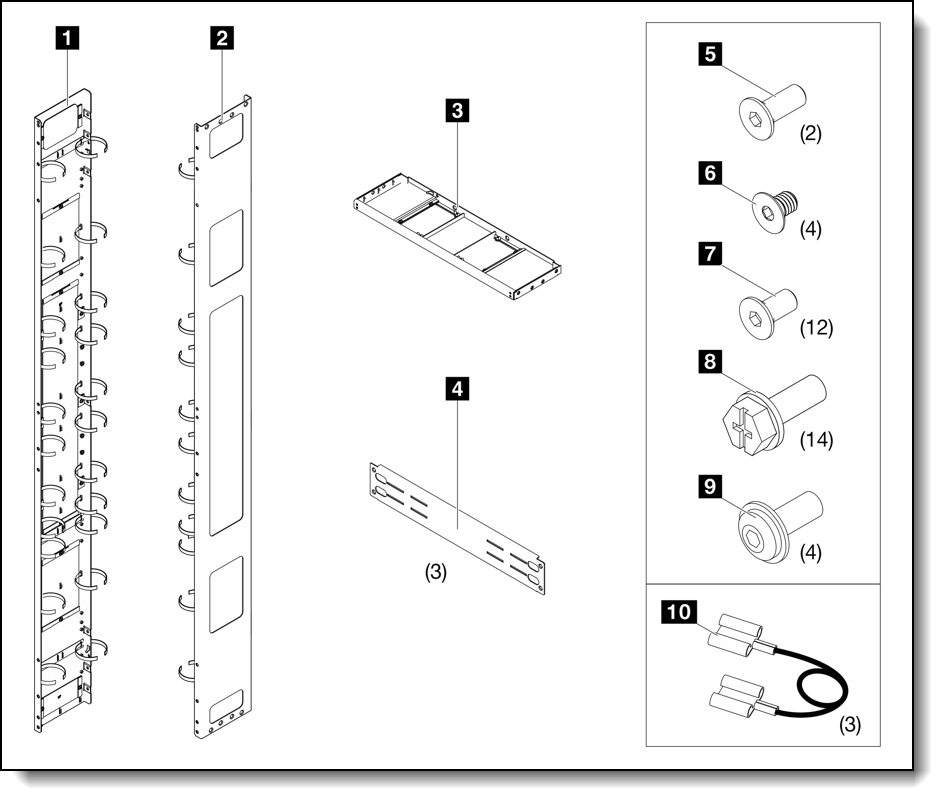

Figure 4. 180mm Advanced Rack Extensions

For more information, see the following Lenovo Pubs pages:
42U kit: https://pubs.lenovo.com/hdc_rackcabinet/options_42u_advanced_extension_module
48U kit: https://pubs.lenovo.com/hdc_rackcabinet/options_48u_advanced_extension_module

The Rear Door Heat Exchanger Support Kit is used to attach the RDHX to a rear-mounted 180mm Advanced Rack Extension. It contains the following components:

• RDHX upper hinge
• RDHX bottom hinge
• RDHX Door Latch

For more information, see the following Lenovo Pubs page:
https://pubs.lenovo.com/hdc_rackcabinet/options_48u_rdhx

85mm Slim Extensions

As an alternative to the 180mm rack extensions, the 42U Onyx racks also support an 85mm slim extension. The slim extension can be installed at the front or rear of the cabinet (or both front and rear).

100mm Slim Extensions for RDHX

As an alternative to the 180mm rack extension, the 42U Onyx rack also support an 100mm slim extension at the rear of the cabinet with the Rear Door Heat Exchanger (RDHX) attached. The 100mm Slim Extension is only supported on the rear of the cabinet.

Rear doors

Depending on the choice of cooling and preference of aesthetics the Heavy Duty Rack Cabinet can be ordered with a perforated rear door for ambient air cooling, a passive Rear Door Heat Exchanger leveraging Lenovo Neptune technology for liquid cooling or no rear door at all to, for example, show case a beautiful cabling job.

Ordering information is listed in the following table.

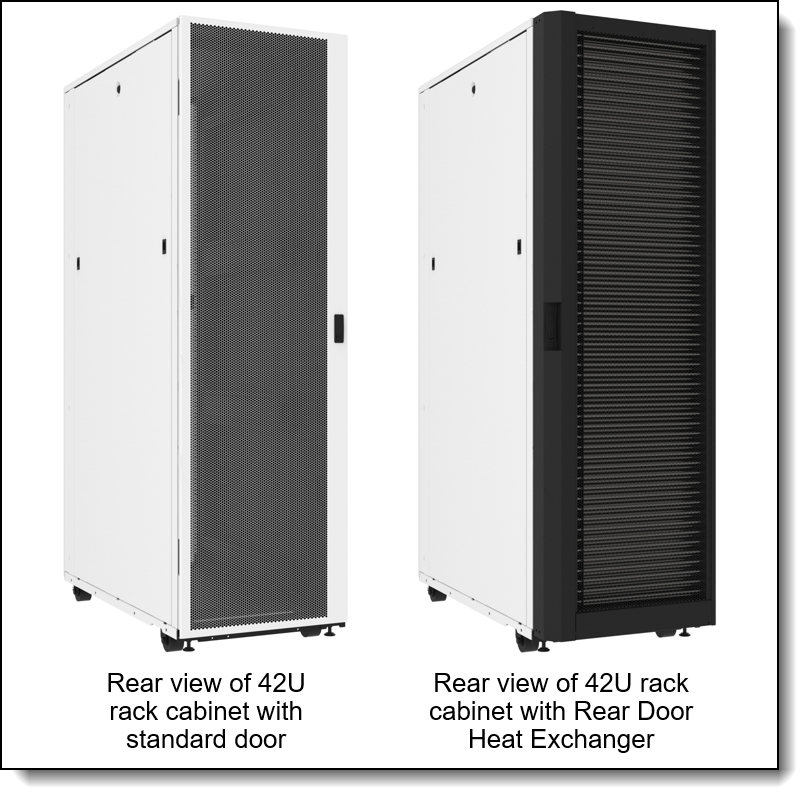

The following figure shows the standard rear door and the Rear Door Heat Exchanger, installed in 42U rack cabinets.

Figure 5. Standard rear door and the Rear Door Heat Exchanger

Side Panels

The Heavy Duty Rack Cabinets can be configured with and without side panels or even just one with the choice of side, to map exactly to your requirements. Choose both side panels if the rack cabinet will be placed standalone or you want to isolate airflow, choose one side panel with left or right placement for racks that are at the end of a rack row and leave them off for racks that are placed inside the row.

Attachment brackets to connect and secure adjacent racks together are included with all racks.

Cable management options

Proper cable management is a crucial part of a rack design to allow for optimal airflow and also easy serviceability of the populated rack cabinet. For that reason, the Heavy Duty Rack Cabinet comes by default equipped with rear cable management anchor points for a clean and beautiful cabling.

Additionally there is a choice for front cable management brackets to provide additional anchor points for front-cabled systems, and cable management brackets for use in the rear when 0U PDUs are installed.

The Heavy Duty Rack Cabinets support both 0U power distribution units (PDUs) mounted vertically in the rear as well as 1U PDUs that can be installed either within the horizontal rack space or the vertical rack side pockets.

The following table lists the power distribution units (PDUs) that are offered by Lenovo.

For more information, see the Lenovo Press documents in the PDU category:
https://lenovopress.com/servers/options/pdu

Lenovo Heavy Duty Rack Cabinets support water infrastructure used to cool the major components of the servers installed. The components of the water-cooled solution are as follows:

• Multi-port water manifold, installed in the rear of the rack cabinet

  Typical use:

  • 45-port manifold: 48U rack cabinet for 45x 1U or 23x 2U servers
  • 38-port manifold: 42U/48U rack cabinet for 38x 1U or 19x 2U servers
  • 24-port manifold: 42U/48U rack cabinet for 24x 1U or 12x 2U servers where one N1380 enclosure is installed at the bottom of the rack
  • 10-port manifold: 42U/48U rack cabinet for 10x 1U or 5x 2U servers where two N1380 enclosures is installed at the bottom of the rack

  The manifold provides quick-disconnect couplings that each server in the rack is connected to. Two 0U mounting points are required for the water manifolds, at the rear of the rack cabinet, one either side. Ordering information is in the table below.

• Coolant distribution unit (CDU), either in-rack or in-row:
  • In-rack CDUs are installed at the bottom of the rack cabinet. The supported in-rack CDU is the Lenovo Neptune DWC RM100 In-Rack CDU as described in the RM100 In-Rack Coolant Distribution Unit section.
  • In-row CDUs are separate cabinets that are typically installed at the end of a row of rack cabinets. Examples of suitable in-row CDUs include (but not limited to):
    • Vertiv Liebert XDU60 60KW CDU
• Hose kit to connect to the CDU to the manifold

  Ordering information is in the table below.

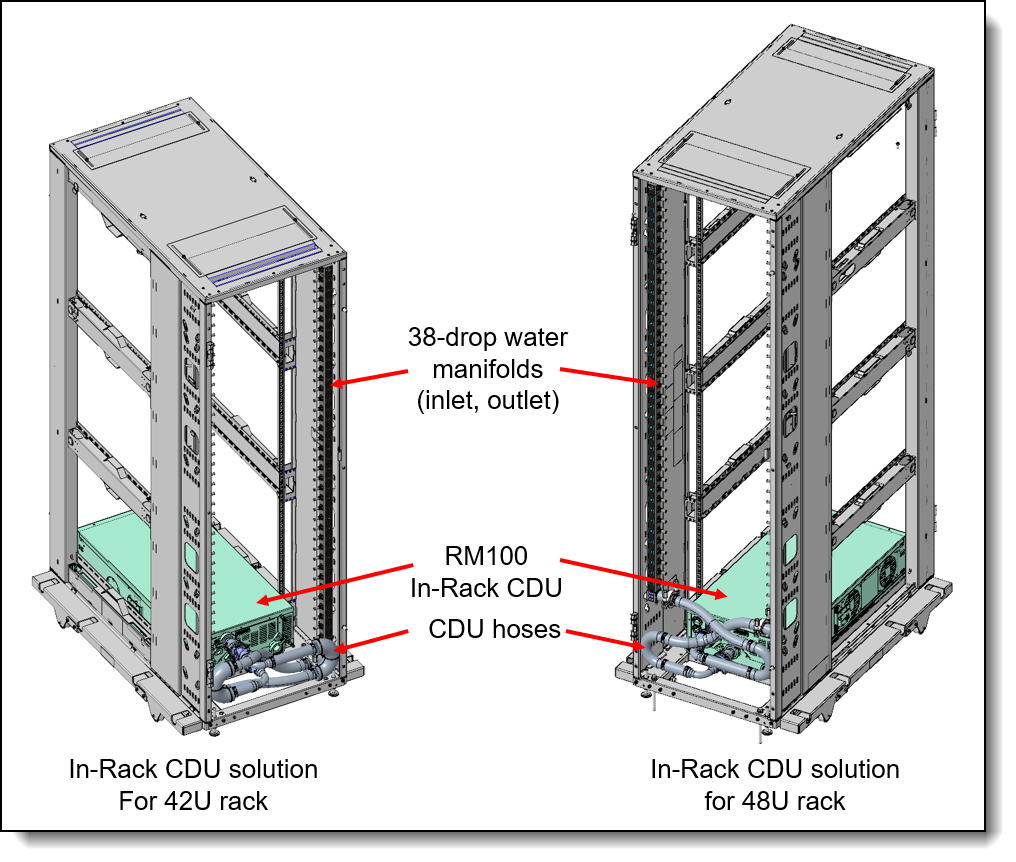

The following figure shows the 38-drop water manifold and in-rack CDU installed in either a 42U or 48U rack cabinet.

Figure 6. 38-drop water manifold and connections for an in-rack CDU

Ordering information for the water manifold and hoses is listed in the following table.

Expected performance of the 42U heat exchanger is illustrated in the following figure for a typical inlet air temperature of 27°C (80.6°F), with a fully populated rack, near uniform power dissipation, and a 30-40 kW heat load.

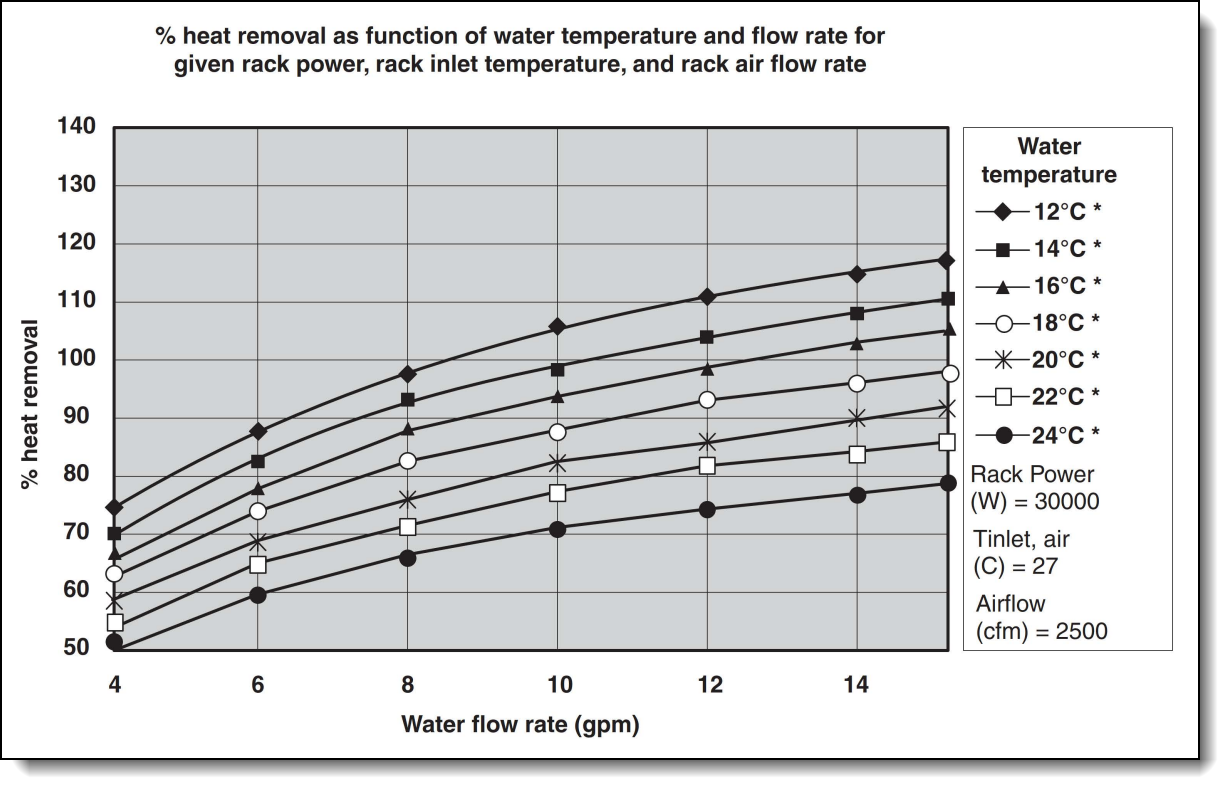

Figure 8. Typical performance of the 42U heat exchanger, 30 kW heat load

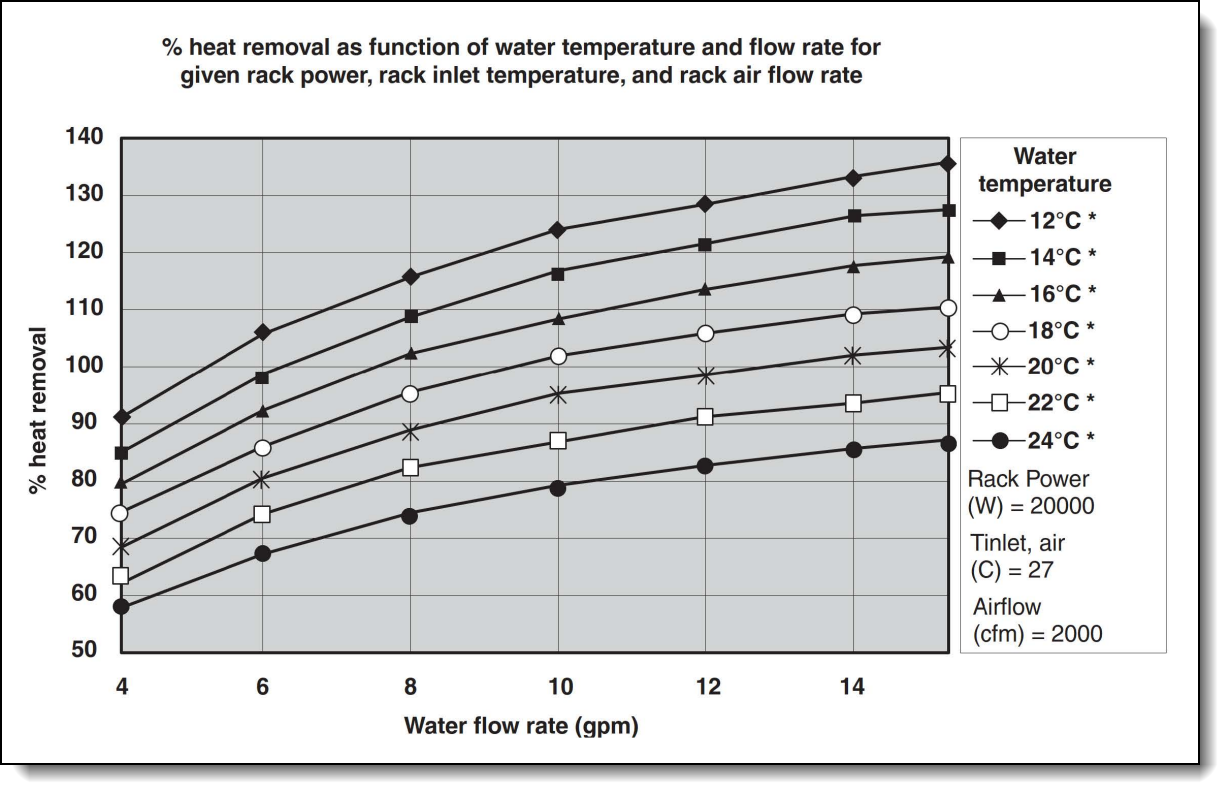

Performance data is shown in the following figure for a 20 kW heat load. Because of the lower heat load, a specific level of cooling can be achieved with warmer water, a lower flow rate, or both.

Figure 9. Typical performance of the 42U heat exchanger, 20 kW heat load

By selecting the correct water inlet temperature and water flow rate, you can achieve the necessary heat removal. A heat removal of 100% indicates that an amount of heat equivalent to that generated by the devices has been removed by the heat exchanger and the average air temperature leaving the heat exchanger is identical to that entering the rack (27°C /80.6°F in this example).

Heat removal in excess of 100% indicates that the heat exchanger not only removed all of the heat generated by the devices but further cooled the air so that the average air temperature leaving the rack is actually lower than that entering the rack.

A given water temperature may be used only if the system that is supplying the water is able to measure the room dew point and automatically adjust the water temperature accordingly. Otherwise, the water temperature must be above the maximum dew point that is allowed at that data center installation.

Customers should work with their Lenovo Sales Architects and Datacenter Infrastructure Specialists for an exact sizing for their project.

The following table lists the dimensions and weight of the rack cabinets.

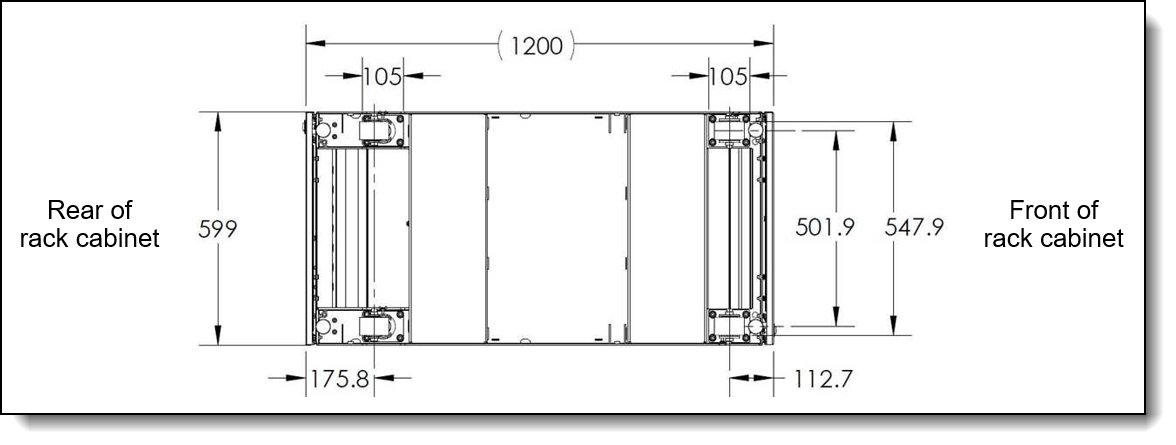

The following image shows the location of the casters (wheels) in relation to the overall dimensions of the rack cabinet.

Figure 10. Location of the casters (distances in millimeters)

The Heavy Duty Rack Cabinets have the following operating environment requirements:

RDHX water requirements

The water requirements for the Rear Door Heat Exchanger is as follows:

• Water Temperature:
  • Above dewpoint
  • 18°C / 64.4°F for ASHRAE Class 1 Environment
  • 22°C / 71.6°F for ASHRAE Class 2 Environment
• Water volume: 9 liters (2.4 gallons)
• Maximum pressure: 689.66 kPa (20psi) / 6.9 bars
• Minimum water flow rate: 22.7 liters (6 gallons) per minute
• Maximum water flow rate: 56.8 liters (15 gallons) per minute
• Water connections: 3/4 quick connect

Note: The water required to initially fill the system side cooling loop must be reasonably clean, bacteria- free water (<100 CFU/ml) such as de-mineralized water, reverse osmosis water, de-ionized water, or distilled water. The water must be treated with anti-biological and anti-corrosion measures. The water cannot originate from the primary chilled-water system for the building but must be supplied as part of a secondary, closed-loop system.

Important: Do not use glycol solutions, because they can adversely affect the cooling performance of the heat exchanger

Tilt, shock and vibration

The rack cabinets have the following tilt, vibration and shock limits:

• Tilt:
  • 42U cabinet: 12.5 degrees
  • 48U cabinet: 10 degrees
• Vibration: 0.8 G rms at 2 Hz to 200 Hz for 15 minutes
• Shock: See the following table

For additional information, see the Specifications section of the Setup Guide for the rack cabinet, available from the Lenovo ThinkSystem Information Center, https://pubs.lenovo.com/

The Heavy Duty Rack Cabinets conform to the following international standards:

• UL 2416
• China VOC (GB 30981-2020)

The Heavy Duty Rack Cabinets have a 3 year warranty:

• Lenovo ThinkSystem 42U Heavy Duty Rack Cabinet (7D6D) - 3 year warranty
• Lenovo ThinkSystem 48U Heavy Duty Rack Cabinet (7D6E) - 3 year warranty
• Lenovo EveryScale Heavy Duty Rack Cabinet (1410) - 3 year warranty
