Abstract
NVIDIA InfiniBand switching continues to set the standard for high-performance, low-latency interconnects in modern data centers, powering demanding workloads such as AI training, HPC simulations, and large-scale analytics. With successive generations, from HDR to NDR and now XDR, these switches deliver increasing bandwidth, radix, and efficiency while maintaining the performance and advanced in-network computing capabilities required for tightly coupled clusters.
This document introduces the switches and provides the Lenovo ordering information. It is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the NVIDIA InfiniBand Switches and consider their use in IT solutions.
Change History
Changes in the August 17, 2026 update:
- Added the equivalent NVIDIA part numbers to the tables in the following sections:
- Transceivers section
- Networking cables section
- Rack mount kit section
Introduction
NVIDIA InfiniBand switches deliver industry-leading, low-latency, high-bandwidth interconnects designed to power modern AI, high-performance computing (HPC), and data-intensive enterprise workloads. From HDR at 200 Gb/s to the latest Quantum NDR and XDR generations, these switches provide the scalable fabric foundation required for demanding applications such as large-scale AI training, real-time analytics, and scientific simulation. With advanced features such as adaptive routing, congestion control, and hardware-accelerated collective operations, NVIDIA InfiniBand ensures predictable performance and optimal resource utilization across clustered environments.
This product guide covers the following NVIDIA InfiniBand switch offerings, most available in both Port Side Exhaust (PSE) and opposite Port Side Exhaust (oPSE) airflow configurations:
- Mellanox QM8700 – 40-port managed HDR 200 Gb/s switch (PSE and oPSE variants)
- Mellanox QM8790 – 40-port unmanaged HDR 200 Gb/s switch (PSE and oPSE variants)
- NVIDIA QM9700 – 64-port managed Quantum NDR switch (PSE and oPSE variants)
- NVIDIA QM9790 – 64-port unmanaged Quantum NDR switch (PSE and oPSE variants)
- NVIDIA Q3200-RA – 72-port managed Quantum XDR switch (oPSE variant)
- NVIDIA Q3400-RA – 144-port managed Quantum XDR switch (oPSE variant)
Together, these switches span multiple generations of InfiniBand technology and management models, enabling customers to design fabrics that balance performance, scalability, and operational simplicity. Whether deploying edge-scale clusters or building exascale-class AI infrastructures, this portfolio provides the flexibility to meet a wide range of workload and data center requirements.

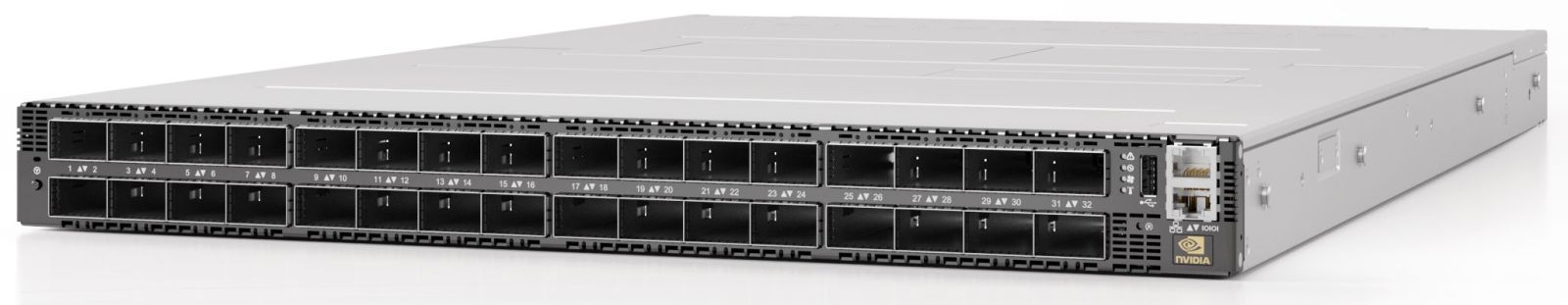

Figure 1. NVIDIA QM9700 64-Port Managed Quantum NDR InfiniBand Switch
Did you know?
NVIDIA InfiniBand switches do far more than just move data—they actively accelerate application performance through in‑network computing. Using technologies such as SHARP (Scalable Hierarchical Aggregation and Reduction Protocol), these switches can perform collective operations like reductions directly in the network fabric, significantly reducing the amount of data that must traverse the cluster and offloading work from CPUs and GPUs. This capability becomes increasingly important at scale, where communication overhead can dominate workload runtime; by processing data in transit and enabling advanced routing, congestion control, and self-healing behaviors, modern Quantum, Quantum‑2, and Quantum‑3 InfiniBand switches help deliver near-linear scalability for AI training and HPC workloads.
Ordering information
The following table lists the NVIDIA InfiniBand switches orderable from Lenovo.
| Part number | Description* | NVIDIA part number |
Managed | Airflow* |
|---|---|---|---|---|
| InfiniBand HDR - 200Gb/s | ||||
| 0724HD8 | Mellanox QM8700 40-Port Managed 200Gb/s HDR InfiniBand Switch (oPSE) | 920-9B110-27RH-0M2 | Managed | oPSE |
| 0724HD7 | Mellanox QM8700 40-Port Managed 200Gb/s HDR InfiniBand Switch (PSE) | 920-9B110-27FH-0M0 | Managed | PSE |
| 0724HEA | Mellanox QM8790 40-Port Unmanaged 200Gb/s HDR InfiniBand Switch (oPSE) | 920-9B110-27RH-0D2 | Unmanaged | oPSE |
| 0724HD9 | Mellanox QM8790 40-Port Unmanaged 200Gb/s HDR InfiniBand Switch (PSE) | 920-9B110-27FH-0D0 | Unmanaged | PSE |
| InfiniBand NDR - 400Gb/s | ||||
| 0724HEB | NVIDIA QM9700 64-Port Managed Quantum NDR InfiniBand Switch (oPSE) | 920-9B210-27RN-0M0 | Managed | oPSE |
| 0724HEC | NVIDIA QM9700 64-Port Managed Quantum NDR InfiniBand Switch (PSE) | 920-9B210-27FN-0M2 | Managed | PSE |
| 0724HED | NVIDIA QM9790 64-Port Unmanaged Quantum NDR InfiniBand Switch (oPSE) | 920-9B210-27FN-0D0 | Unmanaged | oPSE |
| 0724HEE | NVIDIA QM9790 64-Port Unmanaged Quantum NDR InfiniBand Switch (PSE) | 920-9B210-27FN-0D2 | Unmanaged | PSE |
| InfiniBand XDR - 800Gb/s | ||||
| 7DN0CTO1WW | NVIDIA Q3200-RA 72-Port Managed Quantum XDR InfiniBand Switch (oPSE) | 920-9B34F-00RX-FS0 | Managed | oPSE |
| 7DN0CTO2WW | NVIDIA Q3400-RA 144-Port Managed Quantum XDR InfiniBand Switch (oPSE) | 920-9B36F-00RX-8S0 | Managed | oPSE |
* PSE = Port Side Exhaust; oPSE = Opposite Port Side Exhaust
Lenovo EveryScale
Lenovo EveryScale is a framework for designing, manufacturing, integrating, and delivering data center solutions, with a focus on High Performance Computing (HPC), Technical Computing, and Artificial Intelligence (AI) environments.
With EveryScale, Lenovo pre-tests and validates a wide selection of Lenovo and third-party components, including NVIDIA InfiniBand switches, to create a "Best Recipe" of components and firmware levels that work seamlessly together as a solution. From this testing, customers can be confident that these best-practice solutions run optimally for their workloads and are tailored to their specific needs.
Lenovo EveryScale hardware is pre-integrated, pre-cabled, and pre-loaded, optionally with an OS image, and is tested at the rack level during manufacturing. This process ensures reliable delivery and minimizes installation time in the customer data center.
With EveryScale, customers can focus their efforts on maximizing business value instead of consuming valuable resources to design, optimize, install, and support the infrastructure required to meet business demands.
Learn more by reading the Lenovo EveryScale product guide.
Model summary
The NVIDIA switches offered by Lenovo are as follows:
- Mellanox QM8700 Managed HDR InfiniBand
- Mellanox QM8790 Unmanaged HDR InfiniBand
- NVIDIA QM9700 Managed NDR InfiniBand
- NVIDIA QM9790 Unmanaged NDR InfiniBand
- NVIDIA Q3200-RA Managed XDR InfiniBand
- NVIDIA Q3400-RA Managed XDR InfiniBand
Mellanox QM8700 Managed HDR InfiniBand
The Mellanox QM8700 is a 1U, 40-port managed HDR InfiniBand switch based on the NVIDIA Quantum architecture, delivering up to 200 Gb/s per port and 16 Tb/s of non-blocking throughput. Designed for top-of-rack or leaf deployments, it enables scalable AI and HPC fabrics with ultra-low latency and advanced in-network computing capabilities, including SHARP (Scalable Hierarchical Aggregation and Reduction Protocol) acceleration to offload collective operations from CPUs. Features such as adaptive routing, congestion control, and advanced topology support help ensure efficient fabric utilization and consistent application performance.

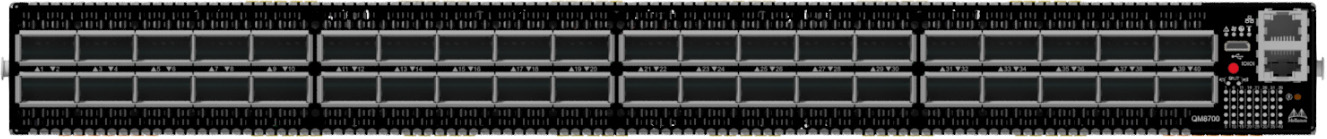

Figure 2. QM8700 front view

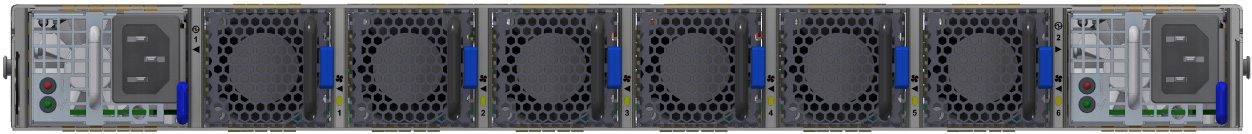

Figure 3. QM8700 rear view
For more information, see the NVIDIA QM8700 datasheet and QM8700 user manual.
Mellanox QM8790 Unmanaged HDR InfiniBand
The Mellanox QM8790 provides the same 40-port HDR 200 Gb/s performance and 16 Tb/s switching capacity as the QM8700, but in an externally managed (unmanaged) configuration. Built on the same Quantum switch silicon, it delivers ultra-low latency and high message rates optimized for large-scale AI and HPC clusters. With SHARP-based in-network computing, adaptive routing, and congestion management, the QM8790 ensures efficient communication across distributed workloads, making it ideal for environments where fabric management is handled externally or centrally.

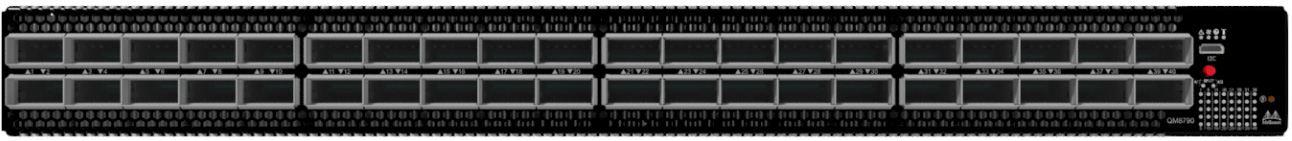

Figure 4. QM8790 front view
Figure 5. QM8790 rear view
For more information, see the NVIDIA QM8790 datasheet and QM8790 user manual.
NVIDIA QM9700 Managed NDR InfiniBand
The NVIDIA QM9700 is a 1U managed switch based on the Quantum-2 architecture, delivering 64 ports of NDR 400 Gb/s InfiniBand connectivity and up to 51.2 Tb/s of aggregated throughput. Designed for next-generation AI and exascale HPC environments, it integrates advanced features such as SHARPv3 in-network computing, adaptive routing, and self-healing fabric capabilities to maximize throughput and minimize latency. With high radix density and support for multiple topologies, the QM9700 enables efficient scale-out designs for large GPU clusters and data-intensive workloads.

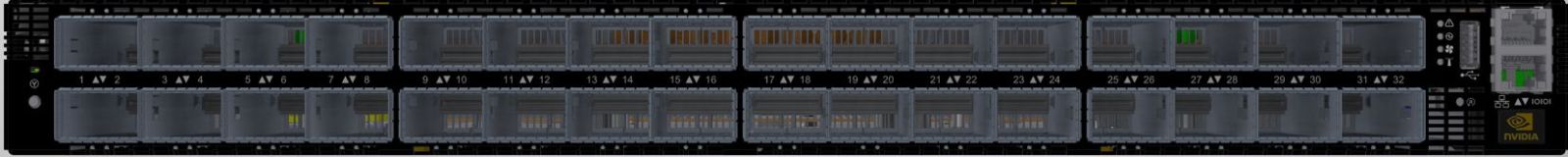

Figure 6. QM9700 front view

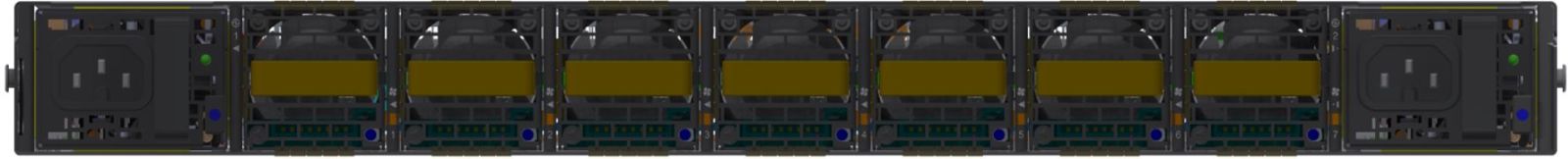

Figure 7. QM9700 rear view
For more information, see the NVIDIA QM9700 datasheet and QM9700 user manual.
NVIDIA QM9790 Unmanaged NDR InfiniBand
The NVIDIA QM9790 delivers the same Quantum-2 NDR 400 Gb/s performance as the QM9700, with 64 ports and 51.2 Tb/s switching capacity, but is designed for externally managed deployments. It retains all core architectural benefits, including SHARPv3 acceleration, RDMA support, adaptive routing, and congestion control, ensuring high efficiency and scalability for AI and HPC clusters. This model is well suited for environments that rely on centralized fabric management while still requiring state-of-the-art performance and scalability.
Figure 8. QM9790 front view
Figure 9. QM9790 rear view
For more information, see the NVIDIA QM9790 datasheet and QM9790 user manual.
NVIDIA Q3200-RA Managed XDR InfiniBand
The NVIDIA Q3200-RA is a Quantum-3–based XDR InfiniBand switch delivering up to 800 Gb/s per port in a high-density 2U design with 72 ports (across dual internally integrated switches). It is engineered for hyperscale AI and HPC environments, offering massive bandwidth, ultra-low latency, and advanced in-network computing capabilities, along with adaptive routing and telemetry-driven congestion control. This design enables efficient scaling of next-generation GPU clusters and supports very high port density for modern AI fabrics.

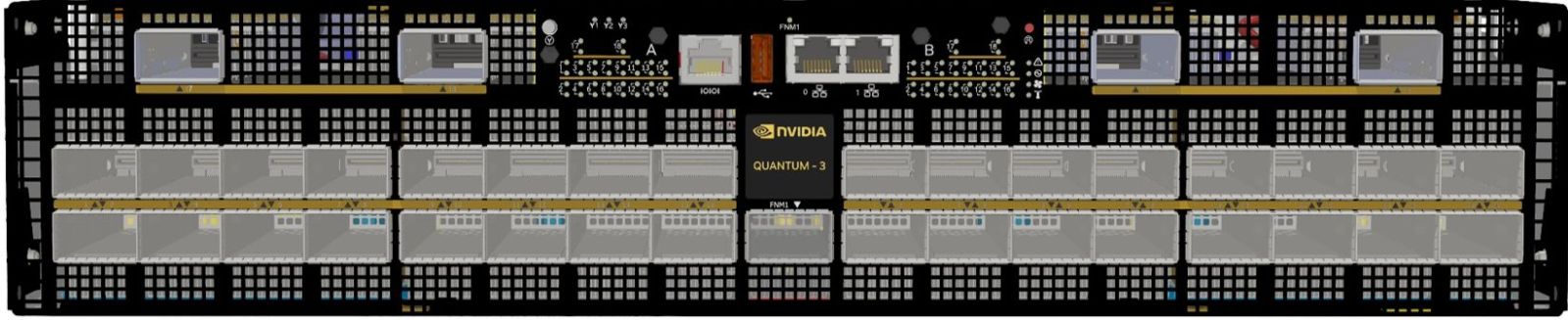

Figure 10. Q3200-RA front view

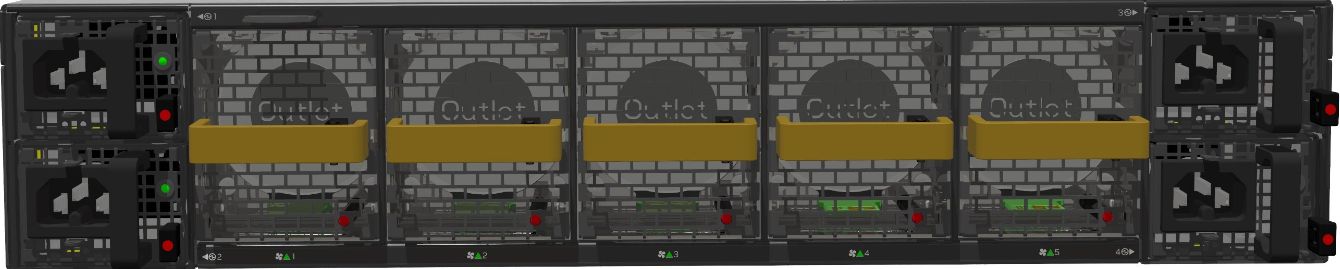

Figure 11. Q3200-RA rear view
For more information, see the NVIDIA Q3200-RA datasheet and Q3200-RA user manual.
NVIDIA Q3400-RA Managed XDR InfiniBand
The NVIDIA Q3400-RA is a flagship 4U Quantum-3 XDR InfiniBand switch that provides 144 ports of 800 Gb/s connectivity, delivering exceptional radix and scalability for the largest AI and HPC deployments. It incorporates next-generation in-network computing, adaptive routing, and self-healing capabilities to optimize large-scale distributed workloads. Its extremely high port density and throughput make it ideal for spine or core layers in exascale-class AI infrastructures.

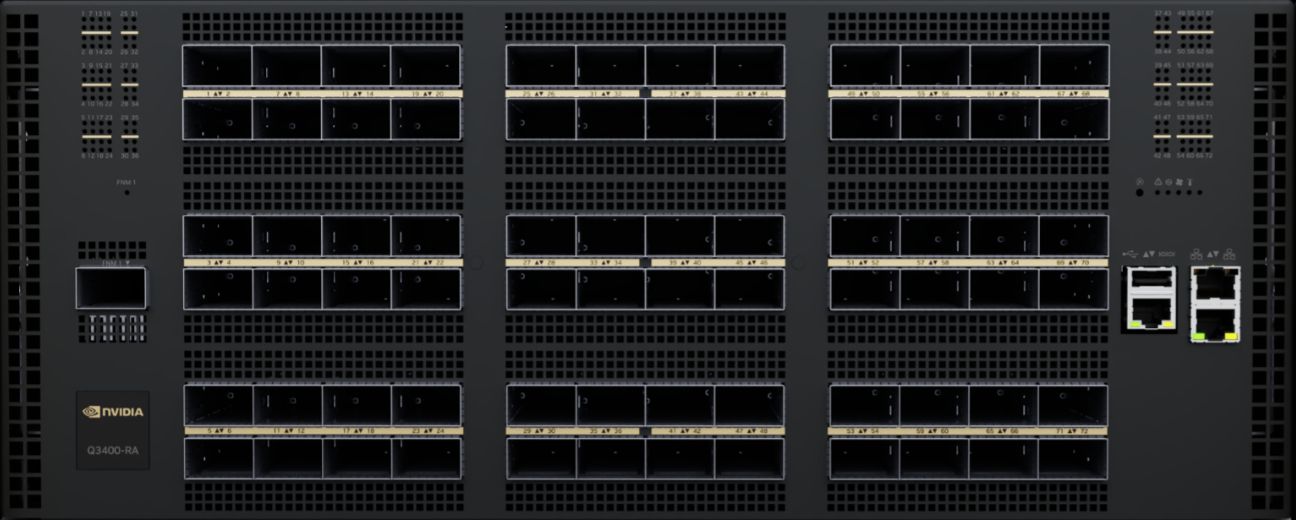

Figure 12. Q3400-RA front view

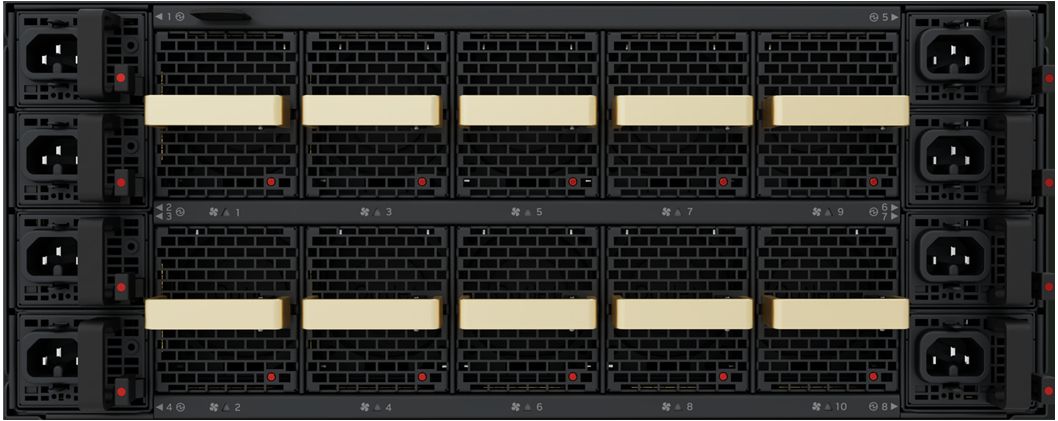

Figure 13. Q3400-RA rear view
For more information, see the NVIDIA Q3400-RA datasheet and Q3400-RA user manual.
Specifications
The following table shows the specifications of each switch. There are two variants for some switches:
- PSE (Port Side Exhaust): Airflow is Back-to-front - Air enters from power side and exits at port side
- oPSE (Opposite / reversed airflow): Airflow is Front-to-back - Air enters from port side and exits at power side
| Specification | QM8700 / QM8790 | QM9700 / QM9790 | Q3200-RA | Q3400-RA |
|---|---|---|---|---|
| Generation | Quantum | Quantum-2 | Quantum-3 | Quantum-3 |
| Typical use | HDR InfiniBand leaf / top-of-rack switch for AI and HPC fabrics | NDR InfiniBand switch for scale-out AI and HPC clusters | XDR InfiniBand switch for mid-scale Quantum-X800 fabrics | High-radix XDR InfiniBand switch for large-scale AI fabrics |
| Airflow | PSE or oPSE | PSE or oPSE | oPSE only | oPSE only |
| Form factor | 1U | 1U | 2U | 4U |
| Managed | QM8700: Yes QM8790: No* |
QM9700: Yes QM9790: No* |
Yes | Yes |
| Throughput (FD) | 16 Tb/s | 51.2 Tb/s | 57.6 Tb/s (2 independent 28.8Tb/s switches) |
115.2 Tb/s |
| Ports | 40x QSFP56 cages supporting 40x 200 Gb/s HDR ports | 32x OSFP cages supporting 64x 400 Gb/s NDR ports | 36x OSFP cages supporting 72x 800 Gb/s XDR ports | 72x OSFP cages supporting 144x 800 Gb/s XDR ports |
| Additional ports |
QM8700:
QM8790:
|
QM9700:
QM9790:
|
|
|
| Native speeds | 40, 56, 100, 200 Gb/s per port | 40, 56, 100, 200, 400 Gb/s per port | 40, 56, 100, 200, 400, 800Gb/s per port | 400, 800Gb/s per port |
| Subnet management** | Onboard fabric manager included; Optional external manager | Onboard fabric manager included; Optional external manager | Requires external manager | Requires external manager |
| Power supplies | 2x hot-swap redundant AC power supplies (C14 sockets) | 2x hot-swap redundant AC power supplies (C16 sockets) | 4x hot-swap N+N redundant AC power supplies (C16 sockets) | 8x hot-swap N+N redundant AC power supplies (C16 sockets) |
| Fans | 6x hot-swap N+1 redundant | 7x hot-swap N+1 redundant | 5x hot-swap N+1 redundant | 10x hot-swap N+1 redundant |
| Network OS | MLNX-OS (QM8700 only) | MLNX-OS (QM9700 only) | NVOS | NVOS |
| Dimensions (H x W x D) |
44mm x 433mm x 591mm 1.7" x 17.0" x 23.2" |
44mm x 438mm x 660mm 1.7" x 17.2" x 26.0" |
88mm x 438mm x 680mm 3.64" x 17.24" x 26.77" |
178mm x 438mm x 850mm 7.0" x 17.24" x 33.5" |
| Weight | 12.5 kg (27.5 lb) | 14.8 kg (32.6 lb) | 24 kg (52.9 lb) | 60 kg (132.2 lb) |
* QM8790 and QM9790 support external management
** See the Fabric Manager section
Transceivers
The following table lists the supported transceivers.
| Part number | Feature | Description | NVIDIA part number | Maximum supported | |||||
|---|---|---|---|---|---|---|---|---|---|
|
QM8700
|
QM8790
|
QM9700
|
QM9790
|
Q3200-RA
|
Q3400-RA
|
||||
| NDR transceivers | |||||||||
| None | BQJE | ThinkSystem NDRx2 OSFP800 IB Single Mode Twin-Transceiver | 980-9I30G-00NM00 | No | No | No | No | 37 | 73 |
| 4TC7A81740 | BQJD | ThinkSystem NDRx2 OSFP800 IB Multi Mode Twin-Transceiver | 980-9I510-00NS00 | No | No | 32 | 32 | 37 | 73 |
| XDR transceivers | |||||||||
| 4TC7B05745 | C98Q | Lenovo NVIDIA XDR OSFP Single Mode Twin-Transceiver (Generic) | 980-9IAH1-00XM00 | No | No | No | No | 37 | 73 |
Networking cables
The following table lists the supported cables.
In this section:
- Optical cables
- Copper cables
- RJ45 cables
Optical cables
| Part number | Feature | Description | NVIDIA part number | Maximum supported | |||||
|---|---|---|---|---|---|---|---|---|---|
|
QM8700
|
QM8790
|
QM9700
|
QM9790
|
Q3200-RA
|
Q3400-RA
|
||||
| QSFP56 HDR InfiniBand / 200 GbE Optical Cables | |||||||||
| 4Z57A14188 | B4QW | 3m Mellanox HDR IB Active Optical QSFP56 Cable | 980-9I457-00H003 | 40 | 40 | No | No | No | No |
| 4Z57A14189 | B4QX | 5m Mellanox HDR IB Active Optical QSFP56 Cable | 980-9I45D-00H005 | 40 | 40 | No | No | No | No |
| 4Z57A14190 | B4QY | 10m Mellanox HDR IB Active Optical QSFP56 Cable | 980-9I45J-00H010 | 40 | 40 | No | No | No | No |
| 4Z57A14191 | B4QZ | 15m Mellanox HDR IB Active Optical QSFP56 Cable | 980-9I45O-00H015 | 40 | 40 | No | No | No | No |
| 4Z57A14192 | B4R0 | 20m Mellanox HDR IB Active Optical QSFP56 Cable | 980-9I45T-00H020 | 40 | 40 | No | No | No | No |
| NVIDIA NDR Multi Mode Fibre Optical Cables | |||||||||
| 4X97A81748 | BQJN | Lenovo 3m NVIDIA NDR Multi Mode Optical Cable | 980-9I73U-000003 | No | No | 64 | 64 | 73 | 145 |
| 4X97A81749 | BQJP | Lenovo 5m NVIDIA NDR Multi Mode Optical Cable | 980-9I73V-000005 | No | No | 64 | 64 | 73 | 145 |
| 4X97A81750 | BQJQ | Lenovo 7m NVIDIA NDR Multi Mode MPO12 APC Optical Cable | 980-9I57W-000007 | No | No | 64 | 64 | 73 | 145 |
| 4X97A81751 | BQJR | Lenovo 10m NVIDIA NDR Multi Mode Optical Cable | 980-9I57X-00N010 | No | No | 64 | 64 | 73 | 145 |
| 4X97A81752 | BQJS | Lenovo 20m NVIDIA NDR Multi Mode Optical Cable | 980-9I57Z-000020 | No | No | 64 | 64 | 73 | 145 |
| 4X97A85349 | BSN6 | Lenovo 30M NVIDIA NDR Multi Mode MPO12 APC Optical Cable | 980-9I570-00N030 | No | No | 64 | 64 | 73 | 145 |
| NVIDIA NDR Multi Mode Fibre Optical Splitter Cables | |||||||||
| 4X97A81837 | BQK5 | Lenovo 5m NVIDIA NDR to 2x NDR200 Multi Mode Optical Cable | 980-9I572-00N005 | No | No | 64 | 64 | No | No |
| 4X97A81838 | BQK6 | Lenovo 7m NVIDIA NDR to 2x NDR200 Multi Mode MPO12 APC Optical Cable | 980-9I573-00N007 | No | No | 64 | 64 | No | No |
| 4X97A81839 | BQK7 | Lenovo 10m NVIDIA NDR to 2x NDR200 Multi Mode Optical Cable | 980-9I554-00N010 | No | No | 64 | 64 | No | No |
| 4X97A81840 | BQK8 | Lenovo 20m NVIDIA NDR to 2x NDR200 Multi Mode Optical Cable | 980-9I556-00N020 | No | No | 64 | 64 | No | No |
| NVIDIA XDR SM MPO12 APC Optical Cable | |||||||||
| 4X97B11375 | CCVD | Lenovo 3M NVIDIA SM MPO12 APC Optical Cable (Generic) | 980-9I55A-00N003 | No | No | No | No | 73 | 145 |
| 4X97B05747 | C98S | Lenovo 5M NVIDIA XDR SM MPO12 APC Optical Cable (Generic) | 980-9I55B-00N005 | No | No | No | No | 73 | 145 |
| 4X97B05748 | C98T | Lenovo 10M NVIDIA XDR SM MPO12 APC Optical Cable (Generic) | 980-9I58D-00N010 | No | No | No | No | 73 | 145 |
| 4X97B05750 | C98U | Lenovo 15M NVIDIA XDR SM MPO12 APC Optical Cable (Generic) | 980-9I58E-00N015 | No | No | No | No | 73 | 145 |
| 4X97B05751 | C98V | Lenovo 20M NVIDIA XDR SM MPO12 APC Optical Cable (Generic) | 980-9I58F-00N020 | No | No | No | No | 73 | 145 |
| 4X97B05752 | C98W | Lenovo 30M NVIDIA XDR SM MPO12 APC Optical Cable (Generic) | 980-9I58G-00N030 | No | No | No | No | 73 | 145 |
| 4X97B09056 | CB2T | Lenovo 50M NVIDIA SM MPO12 APC Optical Cable (Generic) | 980-9I58H-00N050 | No | No | No | No | 73 | 145 |
| NVIDIA NDR NDRx2 OSFP800 to 2x HDR QSFP56 Optical Splitter Cables | |||||||||
| 4X97A81844 | BQKC | Lenovo 5m NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Active Optical Splitter Cable | 980-9I11Z-00H005 | 40 | 40 | 32 | 32 | 36 | No |
| 4X97A81845 | BQKD | Lenovo 10m NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Active Optical Splitter Cable | 980-9I111-00H010 | 40 | 40 | 32 | 32 | 36 | No |
| 4X97A87753 | BVB8 | Lenovo 20M NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Active Optical Splitter Cable | 980-9I115-00H020 | 40 | 40 | 32 | 32 | 36 | No |
| 4X97A87754 | BVB9 | Lenovo 30M NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Active Optical Splitter Cable | 980-9I117-00H030 | 40 | 40 | 32 | 32 | 36 | No |
Copper cables
| Part number | Feature | Description | NVIDIA part number | Maximum supported | |||||
|---|---|---|---|---|---|---|---|---|---|
|
QM8700
|
QM8790
|
QM9700
|
QM9790
|
Q3200-RA
|
Q3400-RA
|
||||
| QSFP56 HDR InfiniBand / 200 GbE Passive DAC Cables | |||||||||
| 4Z57A14182 | B4QQ | 0.5m Mellanox HDR IB Passive Copper QSFP56 Cable | 980-9I54A-00H00A | 40 | 40 | No | No | No | No |
| 4Z57A14183 | B4QR | 1m Mellanox HDR IB Passive Copper QSFP56 Cable | 980-9I548-00H001 | 40 | 40 | No | No | No | No |
| 4Z57A14184 | B4QS | 1.5m Mellanox HDR IB Passive Copper QSFP56 Cable | 980-9I54B-00H01A | 40 | 40 | No | No | No | No |
| 4Z57A14185 | B4QT | 2m Mellanox HDR IB Passive Copper QSFP56 Cable | 980-9I549-00H002 | 40 | 40 | No | No | No | No |
| QSFP56 HDR InfiniBand to 2x HDR100 Passive DAC Splitter Cables | |||||||||
| 4Z57A14193 | B4R1 | 1m Mellanox HDR IB to 2x HDR100 Splitter Passive Copper QSFP56 Cable | 980-9I39E-00H001 | 40 | 40 | No | No | No | No |
| 4Z57A14194 | B4R2 | 1.5m Mellanox HDR IB to 2x HDR100 Splitter Passive Copper QSFP56 Cable | 980-9I98G-00H01A | 40 | 40 | No | No | No | No |
| 4Z57A11477 | B68L | 2m Mellanox HDR IB to 2x HDR100 Splitter Passive Copper QSFP56 Cable | 980-9I99F-00H002 | 40 | 40 | No | No | No | No |
| NVIDIA NDRx2 OSFP800 Finned to NDRx2 OSFP800 Flat Copper Cables | |||||||||
| 4X97A84581 | BRKC | Lenovo 1M NVIDIA NDRx2 OSFP800 Finned to NDRx2 OSFP800 Flat Top Passive Copper Cable | 980-9IA0H-00N001 | No | No | 32 | 32 | No | No |
| 4X97A84582 | BRKD | Lenovo 1.5M NVIDIA NDRx2 OSFP800 Finned to NDRx2 OSFP800 Flat Top Passive Copper Cable | 980-9IA0H-27N01A | No | No | 32 | 32 | No | No |
| 4X97A84583 | BRKE | Lenovo 2M NVIDIA NDRx2 OSFP800 Finned to NDRx2 OSFP800 Flat Top Passive Copper Cable | 980-9IA0H-27N002 | No | No | 32 | 32 | No | No |
| 4X97A84584 | BRKF | Lenovo 3M NVIDIA NDRx2 OSFP800 Finned to NDRx2 OSFP800 Flat Top Active Copper Cable | 980-9I601-00N003 | No | No | 32 | 32 | No | No |
| NVIDIA NDRx2 OSFP800 Finned to NDRx2 OSFP800 Finned Copper Cables | |||||||||
| 4X97A81744 | BQJF | Lenovo 0.5m NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Passive Copper Cable | 980-9IA0K-00N00A | No | No | 32 | 32 | 36 | No |
| 4X97A82957 | BQJG | Lenovo 1m NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Passive Copper Cable | 980-9IA0F-00N001 | No | No | 32 | 32 | 36 | No |
| 4X97A82958 | BQJH | Lenovo 1.5m NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Passive Copper Cable | 980-9IA0Q-00N01A | No | No | 32 | 32 | 36 | No |
| 4X97A82959 | BQJJ | Lenovo 2m NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Passive Copper Cable | 980-9IA0I-00N002 | No | No | 32 | 32 | 36 | No |
| 4X97A81747 | BQJK | Lenovo 3m NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Active Copper Cable | 980-9I60Z-00N003 | No | No | 32 | 32 | 36 | No |
| 4X97A82960 | BQJL | Lenovo 5M NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Active Copper Cable | 980-9I602-00N005 | No | No | 32 | 32 | 36 | No |
| NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Splitter Copper Cables | |||||||||
| 4X97A81827 | BQJV | Lenovo 1m NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Passive Copper Splitter Cable | 980-9I432-00N001 | No | No | 32 | 32 | 36 | 72 |
| 4X97A81828 | BQJW | Lenovo 1.5m NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Passive Copper Splitter Cable | 980-9I926-00N01A | No | No | 32 | 32 | 36 | 72 |
| 4X97A81829 | BQJX | Lenovo 2m NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Passive Copper Splitter Cable | 980-9I924-00N002 | No | No | 32 | 32 | 36 | 72 |
| 4X97A81830 | BQJY | Lenovo 3m NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Passive Copper Splitter Cable | 980-9I92N-00N003 | No | No | 32 | 32 | 36 | 72 |
| 4X97B08451 | CAGG | Lenovo 5M NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Active Copper Splitter Cable Generic | 980-9I949-00N005 | No | No | 32 | 32 | 36 | 72 |
| NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Splitter Copper Cables | |||||||||
| 4X97A81832 | BQK0 | Lenovo 1m NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable | 980-9I80B-00N001 | No | No | 32 | 32 | 36 | No |
| 4X97A81833 | BQK1 | Lenovo 1.5m NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable | 980-9I75D-00N01A | No | No | 32 | 32 | 36 | No |
| 4X97A81834 | BQK2 | Lenovo 2m NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable | 980-9I80C-00N002 | No | No | 32 | 32 | 36 | No |
| 4X97A81835 | BQK3 | Lenovo 3m NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable | 980-9I75R-00N003 | No | No | 32 | 32 | 36 | No |
| NVIDIA NDR NDRx2 OSFP800 to 2x HDR QSFP56 Copper Splitter Cables | |||||||||
| 4X97A81841 | BQK9 | Lenovo 1m NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Passive Copper Splitter Cable | 980-9I46K-00H001 | 40 | 40 | 32 | 32 | 36 | No |
| 4X97A81842 | BQKA | Lenovo 1.5m NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Passive Copper Splitter Cable | 980-9I93M-00H01A | 40 | 40 | 32 | 32 | 36 | No |
| 4X97A81843 | BQKB | Lenovo 2m NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Passive Copper Splitter Cable | 980-9I46L-00H002 | 40 | 40 | 32 | 32 | 36 | No |
| NVIDIA NDR NDRx2 OSFP800 to 4x HDR QSFP56 Copper Splitter Cables | |||||||||
| 4X97A81846 | BQKE | Lenovo 1m NVIDIA NDRx2 OSFP800 to 4x HDR100 QSFP56 Passive Copper Splitter Cable | 980-9I93N-00H001 | 40 | 40 | 32 | 32 | 36 | No |
| 4X97A81847 | BQKF | Lenovo 1.5m NVIDIA NDRx2 OSFP800 to 4x HDR100 QSFP56 Passive Copper Splitter Cable | 980-9I47P-00H01A | 40 | 40 | 32 | 32 | 36 | No |
| 4X97A81848 | BQKG | Lenovo 2m NVIDIA NDRx2 OSFP800 to 4x HDR100 QSFP56 Passive Copper Splitter Cable | 980-9I93O-00H002 | 40 | 40 | 32 | 32 | 36 | No |
| NVIDIA XDR OSFP to 2xOSFP Active Copper Splitter Cable | |||||||||
| 4X97B05741 | C98M | Lenovo 1m NVIDIA XDR OSFP to 2xOSFP Active Copper Splitter cable (Generic) | 980-9IAO5-00X001 | No | No | No | No | 36 | 72 |
| 4X97B05742 | C98N | Lenovo 1.5m NVIDIA XDR OSFP to 2xOSFP Active Copper Splitter cable (Generic) | 980-9IAO5-00X01A | No | No | No | No | 36 | 72 |
| 4X97B05743 | C98P | Lenovo 2m NVIDIA XDR OSFP to 2xOSFP Active Copper Splitter cable (Generic) | 980-9IAO5-00X002 | No | No | No | No | 36 | 72 |
| NVIDIA IB twin port XDR OSFP224 IHS Active Copper Cable | |||||||||
| 4X97B13359 | CE8R | Lenovo 1.1m NVIDIA IB twin port XDR OSFP224 IHS Active Copper Cable(Generic) | 980-9IAM5-00X001 | No | No | No | No | 36 | 72 |
| 4X97B13360 | CE8S | Lenovo 1.5m NVIDIA IB twin port XDR OSFP224 IHS Active Copper Cable(Generic) | 980-9IAM5-00X01A | No | No | No | No | 36 | 72 |
| 4X97B13356 | CE8N | Lenovo 2m NVIDIA IB twin port XDR OSFP224 IHS Active Copper Cable(Generic) | 980-9IAM3-00X002 | No | No | No | No | 36 | 72 |
| 4X97B13358 | CE8Q | Lenovo 2.5m NVIDIA IB twin port XDR OSFP224 IHS Active Copper Cable(Generic) | 980-9IAM3-00X02A | No | No | No | No | 36 | 72 |
| 4X97B13357 | CE8P | Lenovo 3m NVIDIA IB twin port XDR OSFP224 IHS Active Copper Cable(Generic) | 980-9IAM3-00X003 | No | No | No | No | 36 | 72 |
RJ45 cables
| Part number | Feature | Description | Maximum supported | |||||
|---|---|---|---|---|---|---|---|---|
|
QM8700
|
QM8790
|
QM9700
|
QM9790
|
Q3200-RA
|
Q3400-RA
|
|||
| CAT6 Green cables | ||||||||
| 00WE123 | AVFW | 0.75m Green Cat6 Cable | 1 | 1 | 1 | No | 2 | 2 |
| 00WE127 | AVFX | 1.0m Green Cat6 Cable | 1 | 1 | 1 | No | 2 | 2 |
| 00WE131 | AVFY | 1.25m Green Cat6 Cable | 1 | 1 | 1 | No | 2 | 2 |
| 00WE135 | AVFZ | 1.5m Green Cat6 Cable | 1 | 1 | 1 | No | 2 | 2 |
| 00WE139 | AVG0 | 3m Green Cat6 Cable | 1 | 1 | 1 | No | 2 | 2 |
| 90Y3718 | A1MT | 10m Green Cat6 Cable | 1 | 1 | 1 | No | 2 | 2 |
| 90Y3727 | A1MW | 25m Green Cat6 Cable | 1 | 1 | 1 | No | 2 | 2 |
| CAT6 Blue cables | ||||||||
| 90Y3721 | A1MU | 10m Blue Cat6 Cable | No | No | 1 | No | 2 | 2 |
| 90Y3730 | A1MX | 25m Blue Cat6 Cable | No | No | 1 | No | 2 | 2 |
| CAT6 Yellow cables | ||||||||
| 90Y3715 | A1MS | 10m Yellow Cat6 Cable | No | No | 1 | No | 2 | 2 |
| 90Y3724 | A1MV | 25m Yellow Cat6 Cable | No | No | 1 | No | 2 | 2 |
| CAT5e Blue Cables | ||||||||
| 40K5679 | 3801 | e1350 .6 Meter Blue Ethernet Cable | No | No | 1 | No | 2 | 2 |
| 00WE111 | AVFT | 0.75m Blue Cat5e Cable | 1 | 1 | No | No | No | No |
| 00WE115 | AVFU | 1.0m Blue Cat5e Cable | 1 | 1 | No | No | No | No |
| 00WE119 | AVFV | 1.25m Blue Cat5e Cable | 1 | 1 | No | No | No | No |
| 40K8785 | 3802 | 1.5 Meter Blue Ethernet Cable | 1 | 1 | 1 | No | 2 | 2 |
| 40K5581 | 3803 | 3m Blue Cat5e Cableupdate | 1 | 1 | 1 | No | 2 | 2 |
| 40K8927 | 3804 | e1350 10 Meter Blue Ethernet Cable | 1 | 1 | 1 | No | 2 | 2 |
| 40K8930 | 3805 | 25m Blue Cat5e Cable | 1 | 1 | 1 | No | 2 | 2 |
| CAT5e Green Cables | ||||||||
| 00WE099 | AVFQ | 0.75m Green Cat5e Cable | 1 | 1 | No | No | No | No |
| 00WE103 | AVFR | 1.0m Green Cat5e Cable | 1 | 1 | No | No | No | No |
| 00WE107 | AVFS | 1.25m Green Cat5e Cable | 1 | 1 | No | No | No | No |
| 40K5643 | 3797 | e1350 1.5 Meter Green Ethernet Cable | 1 | 1 | 1 | No | 2 | 2 |
| 40K5793 | 3798 | e1350 3 Meter Green Ethernet Cable | 1 | 1 | 1 | No | 2 | 2 |
| 40K5794 | 3799 | 10m Green Cat5e Cable | 1 | 1 | 1 | No | 2 | 2 |
| 40K8869 | 3800 | 25m Green Cat5e Cable | 1 | 1 | 1 | No | 2 | 2 |
| CAT5e Yellow Cables | ||||||||
| 40K8933 | 3791 | e1350 .6 Meter Yellow Ethernet Cable | No | No | 1 | No | 2 | 2 |
| 40K8951 | 3792 | e1350 1.5 Meter Yellow Ethernet Cable | No | No | 1 | No | 2 | 2 |
| 40K8801 | 3794 | 10 Meter Yellow Ethernet Cable | No | No | 1 | No | 2 | 2 |
| 40K8807 | 3795 | 25m Yellow Cat5e Cable | No | No | 1 | No | 2 | 2 |
Fabric Manager
For InfiniBand networks to operate, there must always be a Fabric Manager present on the network providing subnet management functionality. The QM8700 Managed HDR InfiniBand Switch and QM9700 Managed NDR InfiniBand Switch come with an on-board Fabric Manager that can be used for this purpose. For all other switches (and as an alternative for the QM8700 and QM9700), an external Fabric Manager will need to be installed on a server that is connected to the InfiniBand fabric using an InfiniBand adapter.
There are two software options available for the Fabric Manager:
- OpenSM
- NVIDIA Unified Fabric Manager
OpenSM is included with the NVIDIA DOCA software package. OpenSM discovers, initializes, and configures InfiniBand fabrics, managing routing paths and switch forwarding tables. It runs in the background to ensure continuous communication between servers and storage. For more information, see the NVIDA DOCA help center and search on OpenSM.
NVIDIA Unified Fabric Manager (UFM) is InfiniBand networking management software that combines enhanced, real-time network telemetry with fabric visibility and control to support scale-out InfiniBand data centers. The two UFM offerings are available from Lenovo:
- UFM Telemetry for Real-Time Monitoring
The UFM Telemetry platform provides network validation tools to monitor network performance and conditions, capturing and streaming rich real-time network telemetry information, application workload usage, and system configuration to an on-premises or cloud-based database for further analysis.
- UFM Enterprise for Fabric Visibility and Control
The UFM Enterprise platform combines the benefits of UFM Telemetry with enhanced network monitoring and management. It performs automated network discovery and provisioning, traffic monitoring, and congestion discovery. It also enables job schedule provisioning and integrates with industry-leading job schedulers and cloud and cluster managers, including Slurm and Platform Load Sharing Facility (LSF).
The following table lists the UFM subscription licenses available from Lenovo.
| Part number | Feature code (7S09CTO6WW) |
Description | NVIDIA part number |
|---|---|---|---|
| UFM Telemetry | |||
| 7S090011WW | S921 | NVIDIA UFM Tel Subscription SW with Business Critical for up to 1000 InfiniBand Adapters (HCAs), 1 Year | 797-YUFTMA+P3CMI12 |
| 7S090012WW | S922 | NVIDIA UFM Tel Subscription SW with Business Critical for up to 1000 InfiniBand Adapters (HCAs), 3 Year | 797-YUFTMA+P3CMI36 |
| 7S090013WW | S923 | NVIDIA UFM Tel Subscription SW with Business Critical for up to 1000 InfiniBand Adapters (HCAs), 5 Year | 797-YUFTMA+P3CMI60 |
| UFM Enterprise | |||
| 7S09000XWW | S91Y | NVIDIA UFM Ent Subscription SW with Business Critical for up to 1000 InfiniBand Adapters (HCAs), 1 Year | 797-YUFETA+P3CMI12 |
| 7S09000YWW | S91Z | NVIDIA UFM Ent Subscription SW with Business Critical for up to 1000 InfiniBand Adapters (HCAs), 3 Year | 797-YUFETA+P3CMI36 |
| 7S09000ZWW | S920 | NVIDIA UFM Ent Subscription SW with Business Critical for up to 1000 InfiniBand Adapters (HCAs), 5 Year | 797-YUFETA+P3CMI60 |
For more information on NVIDIA UFM, see the NVIDIA Unified Fabric Manager product page.
Rack mount kit
The following table lists the optional rack mount kit for the NVIDIA switches.
Tip: The Q3200-RA and Q3400-RA both include a rack mount kit as standard:
- Q3200-RA: Includes Rack mount kit 930-9SKIT-00L0-00C
- Q3400-RA: Includes Rack mount kit 930-9SKIT-00L0-00B
| Part number | Feature | Description | NVIDIA part number |
Maximum supported | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QM8700 oPSE
|
QM8700 PSE
|
QM8790 oPSE
|
QM8790 PSE
|
QM9700 oPSE
|
QM9700 PSE
|
QM9790 oPSE
|
QM9790 PSE
|
Q3200-RA oPSE
|
Q3400-RA oPSE
|
||||
| Rack mounting kits | |||||||||||||
| 4M27A16332 | B5RW | Mellanox QM87xx Enterprise RMK for Recessed Mounting | 930-9BRKT-00JJ-000 | 1 | No | 1 | No | No | No | No | No | No | No |
| 4M27A16331 | B5RV | Mellanox QM87xx Enterprise RMK w/Air Duct | 930-9BRKT-27B2-000 | No | 1 | No | 1 | No | No | No | No | No | No |
| None | BP66 | NVIDIA QM97xx Enterprise Rack Mount Kit | 930-9BRKT-27JM-000 | No | No | No | No | 1 | No | 1 | No | No | No |
| None | BRET | NVIDIA QM97xx Enterprise RMK w/Air Duct | 930-9BRKT-27YO-000 | No | No | No | No | No | 1 | No | 1 | No | No |
| Switch Sealing kit | |||||||||||||
| 00Y3001 | A4WX | Switch Seal Kit | - | 99 | No | 99 | No | No | No | No | No | No | No |
Power cables
The following table lists the power cables that can be ordered with the NVIDIA switches.
Tip: The QM8700 and QM8790 use C13 power cables; all other switches use C15 cables.
| Part number | Feature | Description | Maximum supported | |||||
|---|---|---|---|---|---|---|---|---|
|
QM8700
|
QM8790
|
QM9700
|
QM9790
|
Q3200-RA
|
Q3400-RA
|
|||
| C13 to C14 line cords | ||||||||
| None | BPHZ | 0.5m, 10A/100-250V, C13 to C14 Jumper Cord | 2 | 2 | No | No | No | No |
| 39Y7937 | 6201 | 1.5m, 10A/100-250V, C13 to C14 Jumper Cord | 2 | 2 | No | No | No | No |
| 4L67A08366 | 6311 | 2.8m, 10A/100-250V, C13 to C14 Jumper Cord | 2 | 2 | No | No | No | No |
| 39Y7932 | 6263 | 4.3m, 10A/100-250V, C13 to C14 Jumper Cord | 2 | 2 | No | No | No | No |
| C13 to C20 rack power cables | ||||||||
| 39Y7938 | 6204 | 2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable | 2 | 2 | No | No | No | No |
| C15 to C14 line cords | ||||||||
| 4L67A84863 | BRQ8 | 0.5m, 10A/100-250V, C15 to C14 Jumper Cord | No | No | 2 | 2 | 4 | 8 |
| 4L67A84862 | BRQ7 | 1.5m, 10A/100-250V, C15 to C14 Jumper Cord | No | No | 2 | 2 | 4 | 8 |
| 4L67A84861 | BRQ6 | 2.8m, 10A/100-250V, C15 to C14 Jumper Cord | No | No | 2 | 2 | 4 | 8 |
| 4L67A84860 | BRQ5 | 4.3m, 10A/100-250V, C15 to C14 Jumper Cord | No | No | No | No | 4 | 8 |
| C15 to C20 rack power cables | ||||||||
| 4L67A84859 | BRQ4 | 1.5m, 10A/100-250V, C15 to C20 Jumper Cord | No | No | 2 | 2 | 4 | 8 |
Operating environment
The NVIDIA switches have the following operating characteristics:
- Normal operating temperature range (sustained): 0°C to +40°C (32°F to +104°F)
- Shipping and storage temperature range: -40°C to +70°C (-40°F to +158°F)
- Normal operating humidity: 10% to 85%, non-condensing
- Non-operating humidity: 10% to 90%, non-condensing
Related product families
Product families related to this document are the following:
- InfiniBand Switches
Trademarks
Lenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at https://www.lenovo.com/us/en/legal/copytrade/.
The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo®
ThinkAgile®
ThinkSystem®
The following terms are trademarks of other companies:
Copilot® is a trademark of Microsoft Corporation in the United States, other countries, or both.
NVIDIA® and NVIDIA DOCA® are trademarks of NVIDIA Corporation.
Other company, product, or service names may be trademarks or service marks of others.
