Abstract
The NVIDIA Spectrum™ Ethernet switch portfolio delivers a scalable, high-performance networking foundation designed to support modern data center, enterprise, and edge environments. This product guide covers a range of NVIDIA managed switches, from the 1GbE SN2201 management switch and the versatile 25GbE SN3420, to the ultra-high-performance SN4700 400GbE, SN5400 400GbE, and SN5610 800GbE platforms. Together, these systems provide a consistent architecture that enables organizations to build efficient, low-latency networks optimized for cloud, AI, and high-performance computing (HPC) workloads.
This document introduces the switches and provides the Lenovo ordering information. It is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the NVIDIA Ethernet Switches and consider their use in IT solutions.
Change History
Changes in the September 15, 2026 update:
- Added the following transceiver:
- Lenovo NVIDIA 100GbE DR1 QSFP28 LC Single mode Transceiver (Generic), 4TC7B14550
- Added the following optical cables
- Lenovo Luxshare 5M Single Mode MPO12 APC to 4x LC Split Optical Cable, 4X97B14685
- Lenovo Luxshare 10M Single Mode MPO12 APC to 4x LC Split Optical Cable, 4X97B14686
- Lenovo Luxshare 20M Single Mode MPO12 APC to 4x LC Split Optical Cable, 4X97B14687
- Lenovo Luxshare 30M Single Mode MPO12 APC to 4x LC Split Optical Cable, 4X97B14688
- Lenovo 5M 400G QSFP-DD to 2x200G QSFP56 Active Optical Cable, 4X97B16862
- Lenovo 10M 400G QSFP-DD to 2x200G QSFP56 Active Optical Cable, 4X97B16863
- Lenovo 20M 400G QSFP-DD to 2x200G QSFP56 Active Optical Cable, 4X97B16864
- Lenovo 30M 400G QSFP-DD to 2x200G QSFP56 Active Optical Cable, 4X97B16865
- Lenovo 5M 400G QSFP-DD to 4x100G QSFP56 Active Optical Cable, 4X97B16866
- Lenovo 10M 400G QSFP-DD to 4x100G QSFP56 Active Optical Cable, 4X97B16867
- Lenovo 20M 400G QSFP-DD to 4x100G QSFP56 Active Optical Cable, 4X97B16868
- Lenovo 30M 400G QSFP-DD to 4x100G QSFP56 Active Optical Cable, 4X97B16869
- Added the following copper cables:
- Lenovo 1M 400GbE QSFP-DD to 2x 200GbE QSFP56 DAC Cable, 4X97B16870
- Lenovo 1.5M 400GbE QSFP-DD to 2x 200GbE QSFP56 DAC Cable, 4X97B16871
- Lenovo 1M 400GbE QSFP-DD to 4x100GbE QSFP56 DAC Cable, 4X97B16872
- Lenovo 1.5M 400GbE QSFP-DD to 4x100GbE QSFP56 DAC Cable, 4X97B16873
- Lenovo 2M 400GbE QSFP-DD to 4x100GbE QSFP56 DAC Cable, 4X97B16874
- Lenovo 3M 400GbE QSFP-DD to 4x100GbE QSFP56 DAC Cable, 4X97B16875
Introduction
The NVIDIA Spectrum Ethernet switch portfolio delivers a scalable, high-performance networking foundation designed to support modern data center, enterprise, and edge environments. This product guide covers the range of NVIDIA managed switches offered by Lenovo:
- NVIDIA SN2201 1GbE Managed Switch – an access-layer platform optimized for out-of-band (OOB) management for infrastructure control, monitoring, and dedicated management networks
- NVIDIA SN3420 25GbE Managed Switch – a versatile top-of-rack solution ideal for modern server and storage connectivity
- NVIDIA SN4700 400GbE Managed Switch – a high-performance 1U spine switch optimized for AI, HPC, and cloud-scale fabrics
- NVIDIA SN5400 400GbE Managed Switch - a high-performance 2U switch with double the ports of the SN4700
- NVIDIA SN5610 800GbE Managed Switch – an ultra-high-bandwidth platform enabling next-generation data center fabrics
Together, these systems provide a consistent architecture that enables organizations to build efficient, low-latency networks optimized for cloud, AI, and high-performance computing (HPC) workloads. With support for NVIDIA Cumulus Linux, these switches enable a Linux-based, open networking model that supports standards-based protocols and integrates seamlessly with existing automation frameworks and DevOps workflows.
By combining high throughput, low latency, and advanced telemetry with the operational simplicity of Linux-based networking, NVIDIA Spectrum switches empower IT teams to build agile, future-ready Ethernet fabrics that can efficiently support evolving application demands.

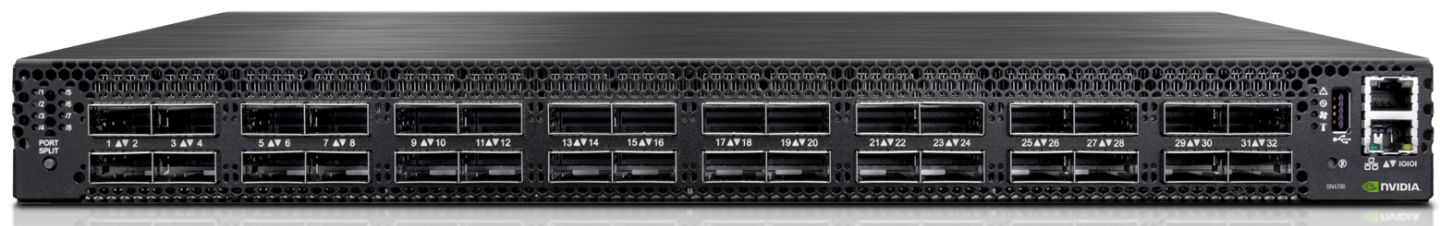

Figure 1. NVIDIA SN4700 400GbE Managed Switch
Did you know?
NVIDIA Spectrum Ethernet switches are not just high-performance networking platforms—they are engineered as part of a tightly integrated, end-to-end AI networking stack. NVIDIA Spectrum switches are designed in conjunction with NVIDIA SuperNICs, DPUs, and the Spectrum‑X architecture to optimize collective communication patterns common in AI and HPC workloads. This holistic approach enables more consistent latency, improved congestion control, and higher utilization across large-scale GPU clusters, helping organizations achieve faster time-to-insight and more predictable performance for distributed AI training and inference.
Ordering information
The following table lists the NVIDIA Ethernet switches orderable from Lenovo.
NVIDIA SN5600: The NVIDIA SN5600 800GbE switch is also currently available for ordering (model 7D5FCTONWW in oPSE airflow), however stock is limited. Contact your sales representative for more information. The SN5600 is not included in this product guide.
| Model | Description* | NVIDIA part number |
Rack Height |
Port summary |
|---|---|---|---|---|
| 7D5FCTOFWW | NVIDIA SN2201 1GbE Managed Switch with Cumulus (PSE) | 920-9N110-27F1-0C0 | 1U | 48x 1GbE 1GBASE‑T ports + 4x 100GbE QSFP28 uplink ports |
| 7D5FCTOGWW | NVIDIA SN2201 1GbE Managed Switch with Cumulus (oPSE) | 920-9N110-27R1-0C0 | ||
| 7D5FCTOKWW | NVIDIA SN3420 25GbE Managed Switch with Cumulus (PSE) | 920-9N213-27F7-0C0 | 1U | 48x SFP28 10/25GbE ports + 12x 100GbE QSFP28 uplink ports |
| 7D5FCTOLWW | NVIDIA SN3420 25GbE Managed Switch with Cumulus (oPSE) | 920-9N213-27R7-0C0 | ||
| 7D5FCTODWW | NVIDIA SN4700 400GbE Managed Switch with Cumulus (PSE) | 920-9N301-00FB-0C0 | 1U | 32x 400GbE QSFP‑DD ports |
| 7D5FCTOEWW | NVIDIA SN4700 400GbE Managed Switch with Cumulus (oPSE) | 920-9N301-00RB-0C0 | ||
| 7D5FCTOTWW | NVIDIA SN5400 400GbE Managed Switch with Cumulus (PSE) | 920-9N42C-00FB-7C0 | 2U | 64x 400GbE QSFP‑DD ports + 2x 25GbE SFP28 ports |
| 7D5FCTORWW | NVIDIA SN5400 400GbE Managed Switch with Cumulus (oPSE) | 920-9N42C-00RB-7C0 | ||
| 7D5FCTOOWW | NVIDIA SN5610 800GbE Managed Switch with Cumulus (oPSE) | 920-9N42F-00RI-3C1 | 2U | 64x 800GbE OSFP ports + 2x 25GbE SFP28 ports |
* PSE = Port Side Exhaust; oPSE = Opposite Port Side Exhaust
Lenovo EveryScale
Lenovo EveryScale is a framework for designing, manufacturing, integrating, and delivering data center solutions, with a focus on High Performance Computing (HPC), Technical Computing, and Artificial Intelligence (AI) environments.
With EveryScale, Lenovo pre-tests and validates a wide selection of Lenovo and third-party components, including NVIDIA Ethernet switches, to create a "Best Recipe" of components and firmware levels that work seamlessly together as a solution. From this testing, customers can be confident that these best-practice solutions run optimally for their workloads and are tailored to their specific needs.
Lenovo EveryScale hardware is pre-integrated, pre-cabled, and pre-loaded, optionally with an OS image, and is tested at the rack level during manufacturing. This process ensures reliable delivery and minimizes installation time in the customer data center.
With EveryScale, customers can focus their efforts on maximizing business value instead of consuming valuable resources to design, optimize, install, and support the infrastructure required to meet business demands.
Learn more by reading the Lenovo EveryScale product guide.
Model summary
The NVIDIA switches offered by Lenovo are as follows:
- NVIDIA SN2201 1GbE
- NVIDIA SN3420 25GbE
- NVIDIA SN4700 400GbE
- NVIDIA SN5400 400GbE
- NVIDIA SN5610 800GbE
NVIDIA SN2201 1GbE
The NVIDIA Spectrum SN2201 switch is a 1GbE top-of-rack (ToR) or out-of-band (OOB) management switch designed for cost-effective, high-density access connectivity in modern data centers. It offers up to 48x 1GBASE‑T ports for server or management connections, along with 4x QSFP28 uplinks supporting up to 100GbE for aggregation into leaf-spine fabrics. Powered by the NVIDIA Spectrum ASIC, the SN2201 delivers wire-speed Layer 2 and Layer 3 performance, low latency, and advanced telemetry features, making it well-suited for enterprise IT, cloud, and hyperconverged environments.

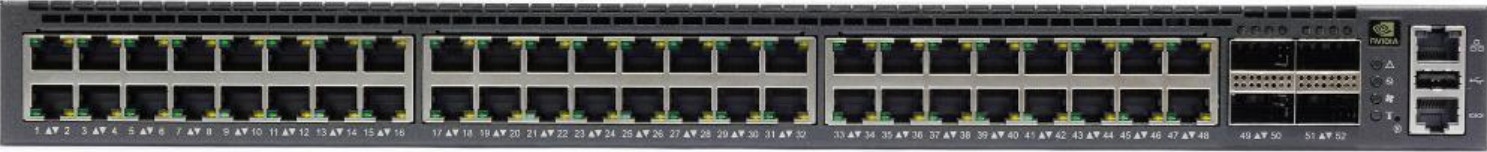

Figure 2. Front view of the NVIDIA SN2201

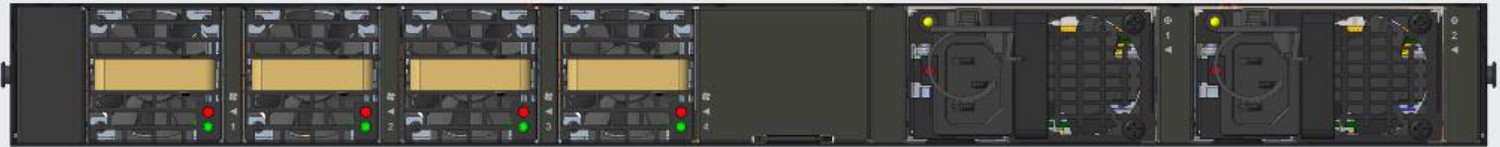

Figure 3. Rear view of the NVIDIA SN2201
For more information, see the SN2201 datasheet and SN2201 user guide.
NVIDIA SN3420 25GbE
The NVIDIA Spectrum‑2 SN3420 switch is a high-performance 1U Ethernet switch designed primarily for ToR deployments in enterprise and cloud data centers. It provides flexible 10/25GbE connectivity with 48x SFP28 ports for server access and 12x QSFP28 ports supporting up to 100GbE for uplinks and fabric connectivity. With non-blocking throughput, low latency, and support for advanced Layer 2/3 networking, RDMA over Converged Ethernet (RoCE), and telemetry features, the SN3420 enables efficient scaling of modern leaf-spine architectures.

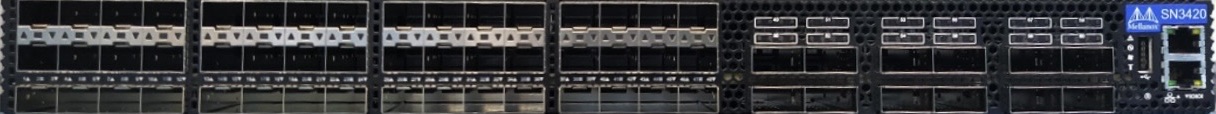

Figure 4. Front view of the NVIDIA SN3420

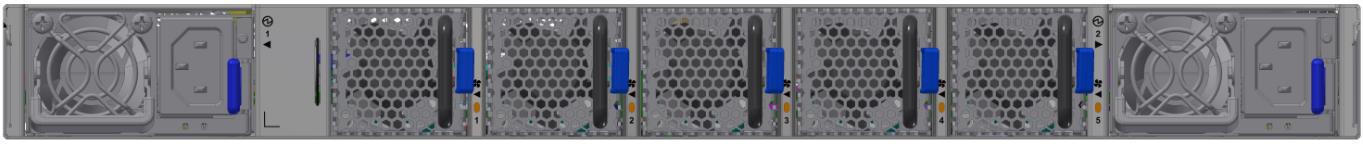

Figure 5. Rear view of the NVIDIA SN3420
For more information, see the SN3420 datasheet and SN3420 user guide.
NVIDIA SN4700 400GbE
The NVIDIA Spectrum‑3 SN4700 is a high-density 400GbE switch optimized for spine and super-spine layers in large-scale data center networks. It features 32x QSFP‑DD ports delivering up to 400GbE per port, enabling high-bandwidth, low-latency connectivity for AI, HPC, and cloud environments. Built on the Spectrum‑3 ASIC, the SN4700 provides up to 12.8 Tb/s of switching capacity along with advanced telemetry, congestion management, and support for open networking operating systems such as Cumulus Linux. It is designed to deliver predictable wire-speed performance and scalability across modern leaf-spine fabrics.

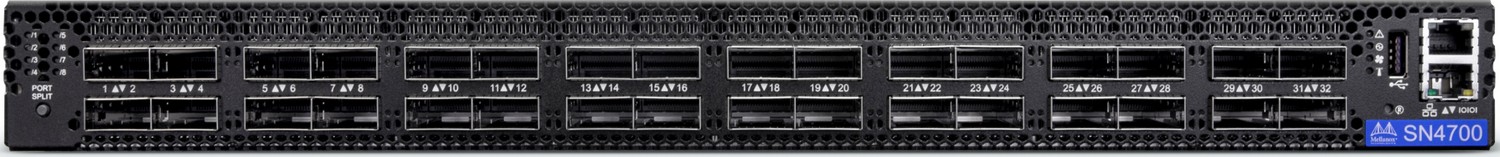

Figure 6. Front view of the NVIDIA SN4700
Figure 7. Rear view of the NVIDIA SN4700
For more information, see the SN4700 datasheet and SN4700 user guide.
NVIDIA SN5400 400GbE
The NVIDIA SN5400 is a high-speed, enterprise-grade Ethernet switch designed for massive data centers and AI clusters. It features 64 ports of 400GbE in a 2U rack-mount form factor, delivering 25.6Tb/s of throughput to handle the most demanding cloud and AI workloads. The switch uses the latest Spectrum-4 architecture, while enabling customers to deploy modern high-performance Ethernet fabrics without moving to 800GbE networking.

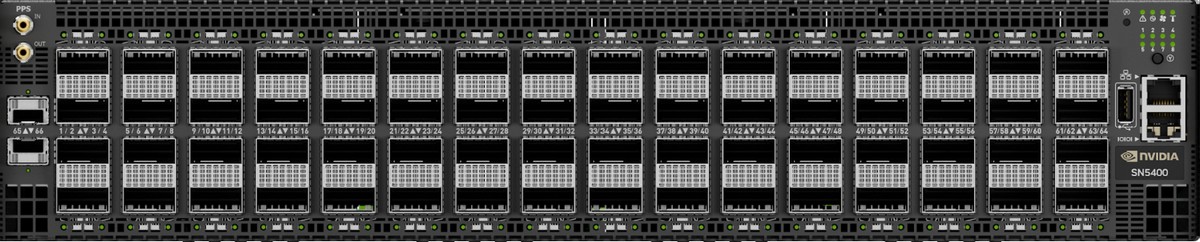

Figure 8. Front view of the NVIDIA SN5400

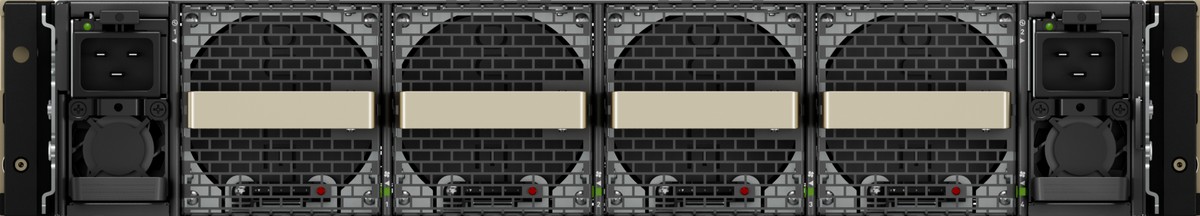

Figure 9. Rear view of the NVIDIA SN5400
For more information, see the SN5400 datasheet and SN5400 user guide.
NVIDIA SN5610 800GbE
The NVIDIA Spectrum‑4 SN5610 switch is an ultra-high-performance 800GbE platform designed for next-generation spine and AI fabric deployments. It delivers 64x OSFP ports supporting up to 800GbE, along with additional SFP28 ports for management connectivity, and can be split to support lower-speed Ethernet connections for flexible deployment. As part of the Spectrum‑4 SN5000 series, the SN5610 provides industry-leading throughput, low latency, and advanced telemetry capabilities, enabling efficient scaling of AI-driven and cloud-scale infrastructures. It is a key component of NVIDIA Spectrum‑X networking architectures for accelerated computing environments.

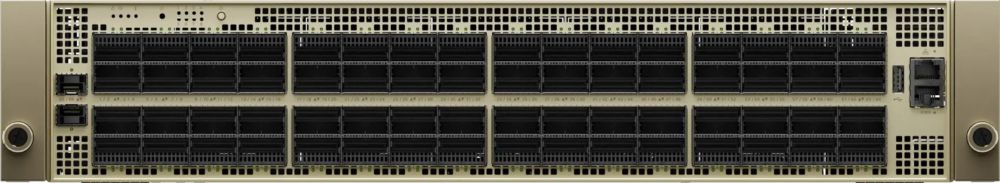

Figure 10. Front view of the NVIDIA SN5610

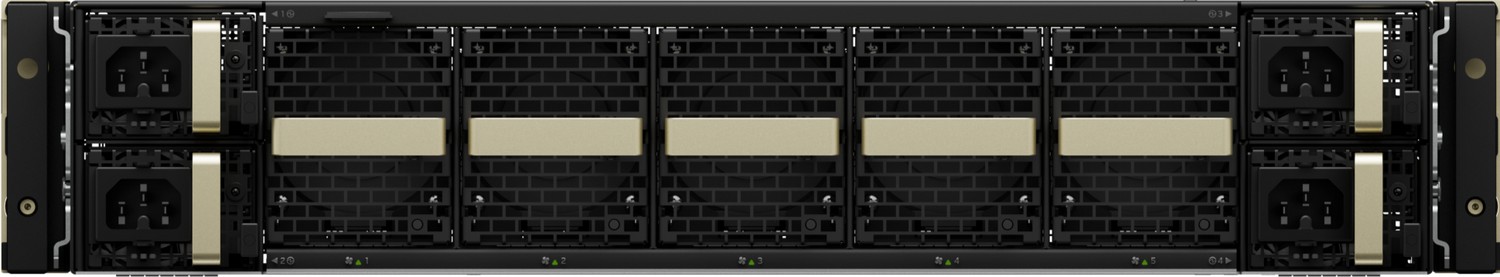

Figure 11. Rear view of the NVIDIA SN5610
For more information, see the SN5610 datasheet and SN5610 user guide.
Specifications
The following table shows the specifications of each switch. There are two variants for each switch:
- PSE (Port Side Exhaust): Airflow is Back-to-front - Air enters from power side and exits at port side
- oPSE (Opposite / reversed airflow): Airflow is Front-to-back - Air enters from port side and exits at power side
| Feature | SN2201 1GbE | SN3420 25GbE | SN4700 400GbE | SN5400 400GbE | SN5610 800GbE |
|---|---|---|---|---|---|
| Airflow | PSE or oPSE | PSE or oPSE | PSE or oPSE | PSE or oPSE | oPSE only |
| Typical use | OOB management / ToR | ToR / leaf | Spine / super‑spine | Spine / super‑spine | Spine / AI fabric |
| Form factor | 1U | 1U | 1U | 2U | 2U |
| Throughput (FD) | 448 Gb/s | 2.4 Tb/s | 12.8 Tb/s | 25.6 Tb/s | 51.2 Tb/s |
| Ports (with default speeds) |
|
|
|
|
|
| Additional ports |
|
|
|
|
|
| Native speeds supported | 1GbE to 100GbE | 10/25GbE, 40/50/100GbE | Up to 400GbE | Up to 400GbE | 10GbE to 800GbE |
| Breakout options | QSFP28 breakout supported | QSFP28 breakout supported | QSFP‑DD breakout supported | QSFP‑DD breakout supported | OSFP breakout to lower speeds |
| RoCEv2 support | No | Yes | Yes | Yes | Yes |
| Power supplies | 2x hot-swap redundant AC power supplies (C14 sockets) | 2x hot-swap redundant AC power supplies (C14 sockets) | 2x hot-swap redundant AC power supplies (C16 sockets) | 2x hot-swap redundant AC power supplies (C20 sockets) | 4x hot-swap N+N redundant AC power supplies (C16 sockets) |
| Fans | 4x hot-swap N+1 redundant | 5x hot-swap N+1 redundant | 6x hot-swap N+1 redundant | 4x hot-swap N+1 redundant | 5x hot-swap N+1 redundant |
| Network OS | NVIDIA Cumulus Linux | NVIDIA Cumulus Linux | NVIDIA Cumulus Linux | NVIDIA Cumulus Linux | NVIDIA Cumulus Linux |
| Dimensions (H x W x D) |
44mm x 428mm x 432mm 1.72" x 16.84" x 17" |
44mm x 438mm x 465mm 1.72" x 17.24" x 18.29" |
44mm x 428mm x 569mm 1.72" x 16.85" x 22.3" |
87mm x 438mm x 788mm 3.39" x 17.2" x 31" |
87mm x 438mm x 788mm 3.39" x 17.2" x 31" |
| Weight | 7.4 kg (16.3 lb) | 8.5 kg (18.7 lb) | 11.7 kg (25.8 lb) | 23.5 kg (51.8 lb) | 26.9 kg (59.3 lb) |
Transceivers
The following table lists the supported transceivers.
| Part number | Feature | Description | Maximum supported | ||||
|---|---|---|---|---|---|---|---|
|
NVIDIA SN2201
|
NVIDIA SN3420
|
NVIDIA SN4700
|
NVIDIA SN5400
|
NVIDIA SN5610
|
|||
| 1Gb Transceivers | |||||||
| 00FE333 | A5DL | SFP 1000Base-T (RJ-45) Transceiver | 4 | 60 | 32 | 66 | 2 |
| 10Gb Transceivers | |||||||
| 46C3447 | 5053 | SFP+ SR Transceiver | 4 | 60 | 32 | 66 | 2 |
| 25Gb Transceivers | |||||||
| 4TC7A69045 | BF10 | Lenovo Dual Rate 10G/25G SR SFP28 85C Transceiver | 4 | 60 | No | 2 | 2 |
| 7G17A03537 | AV1B | Lenovo Dual Rate 10G/25G SR SFP28 Transceiver | No | No | 32 | 66 | No |
| 4TC7A88638 | BYBJ | ThinkSystem Finisar Dual Rate 10G/25G SR SFP28 Transceiver | 4 | 60 | No | 2 | 2 |
| 40Gb Transceivers | |||||||
| 100Gb Transceivers | |||||||
| 4TC7B14550 | CFUH | Lenovo NVIDIA 100GbE DR1 QSFP28 LC Single mode Transceiver (Generic) | No | 4 | No | No | No |
| 4M27A67042 | BFH1 | Lenovo 100Gb SR4 QSFP28 Ethernet Transceiver | 4 | 12 | 32 | 64 | No |
| 4TC7A86257 | BVA4 | Lenovo 100GBase-SR4 QSFP28 Transceiver | 4 | 12 | 32 | 64 | No |
| 400Gb Transceivers | |||||||
| 4TC7B17311 | CJ77 | NVIDIA 400GbE DR4 QSFP-DD MPO-12 Single mode Transceiver (Generic) | No | No | 32 | 64 | No |
| 800Gb Transceivers with 2x 400Gb connections | |||||||
| 4TC7B09057 | CB2U | Lenovo NVIDIA MMA4Z00-NS-T Ethernet OSFP Multi Mode Twin-Transceiver (Generic) | No | No | No | No | 64 |
| 800Gb Transceivers | |||||||
| 4TC7A81740 | BQJD | ThinkSystem NDRx2 OSFP800 IB Multi Mode Twin-Transceiver | No | No | No | No | 64 |
| Converters/Adapters | |||||||
| 4G17A10853 | B306 | Mellanox 100G QSFP28 to 25G SFP28 Cable Adapter | 4 | 12 | 32 | 64 | No |
Networking cables
The following table lists the supported cables.
In this section:
- Optical cables
- Copper cables
- RJ45 cables
Optical cables
| Part number | Feature | Description | Maximum supported | ||||
|---|---|---|---|---|---|---|---|
|
NVIDIA SN2201
|
NVIDIA SN3420
|
NVIDIA SN4700
|
NVIDIA SN5400
|
NVIDIA SN5610
|
|||
| LC-LC OM3 Fiber Optic Cables (these cables require a 10 GbE SFP+ SR or 25 GbE SFP28 SR transceiver) | |||||||
| 00MN499 | ASR5 | Lenovo 0.5m LC-LC OM3 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| 00MN502 | ASR6 | Lenovo 1m LC-LC OM3 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| 00MN505 | ASR7 | Lenovo 3m LC-LC OM3 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| 00MN508 | ASR8 | Lenovo 5m LC-LC OM3 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| 00MN511 | ASR9 | Lenovo 10m LC-LC OM3 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| 00MN514 | ASRA | Lenovo 15m LC-LC OM3 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| 00MN517 | ASRB | Lenovo 25m LC-LC OM3 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| 00MN520 | ASRC | Lenovo 30m LC-LC OM3 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| MTP-4xLC OM3 MMF Breakout Cables (these cables require a transceiver) | |||||||
| 00FM412 | A5UA | Lenovo 1m MPO-4xLC OM3 MMF Breakout Cable | 4 | 60 | 32 | 66 | No |
| 00FM413 | A5UB | Lenovo 3m MPO-4xLC OM3 MMF Breakout Cable | No | No | 32 | 66 | No |
| 00FM414 | A5UC | Lenovo 5m MPO-4xLC OM3 MMF Breakout Cable | 4 | 60 | 32 | 66 | No |
| SFP+ 10Gb Active Optical Cables | |||||||
| 00YL634 | ATYX | Lenovo 1M SFP+ to SFP+ Active Optical Cable | 4 | 60 | 32 | 66 | 2 |
| 00YL637 | ATYY | Lenovo 3M SFP+ to SFP+ Active Optical Cable | 4 | 60 | 32 | 66 | 2 |
| 00YL640 | ATYZ | Lenovo 5M SFP+ to SFP+ Active Optical Cable | 4 | 60 | 32 | 66 | 2 |
| 00YL643 | ATZ0 | Lenovo 7M SFP+ to SFP+ Active Optical Cable | 4 | 60 | 32 | 66 | 2 |
| 00YL646 | ATZ1 | Lenovo 15M SFP+ to SFP+ Active Optical Cable | 4 | 60 | 32 | 66 | 2 |
| 00YL649 | ATZ2 | Lenovo 20M SFP+ to SFP+ Active Optical Cable | 4 | 60 | 32 | 66 | 2 |
| QSFP 40Gb Active Optical Cables | |||||||
| 00YL652 | ATZ3 | Lenovo 3m 40G QSFP+ to QSFP+ Active Optical Cable | No | No | 32 | 64 | No |
| 00YL655 | ATZ4 | Lenovo 5m 40G QSFP+ to QSFP+ Active Optical Cable | No | No | 32 | 64 | No |
| 00YL658 | ATZ5 | Lenovo 7m 40G QSFP+ to QSFP+ Active Optical Cable | No | No | 32 | 64 | No |
| 00YL661 | ATZ6 | Lenovo 15m 40G QSFP+ to QSFP+ Active Optical Cable | 4 | 12 | 32 | 64 | No |
| 00YL664 | ATZ7 | Lenovo 20m 40G QSFP+ to QSFP+ Active Optical Cable | 4 | 12 | 32 | 64 | No |
| QSFP 40Gb Breakout Active Optical Cables | |||||||
| 00YL667 | ATZ8 | Lenovo 1M QSFP+ to 4xSFP+ Active Optical Cable | No | No | 32 | 64 | No |
| 00YL670 | ATZ9 | Lenovo 3M QSFP+ to 4xSFP+ Active Optical Cable | No | No | 32 | 64 | No |
| 00YL673 | ATZA | Lenovo 5M QSFP+ to 4xSFP+ Active Optical Cable | No | No | 32 | 64 | No |
| QSFP OM3 Optical Cables (these cables require a transceiver) | |||||||
| 00VX003 | AT2U | Lenovo 10m QSFP+ MPO-MPO OM3 MMF Cable | 4 | 12 | 32 | 64 | No |
| 00VX005 | AT2V | Lenovo 30m QSFP+ MPO-MPO OM3 MMF Cable | No | No | 32 | 64 | No |
| SFP28 25Gb Active Optical Cables | |||||||
| 4X97A94008 | AV1F | Lenovo 3m 25G SFP28 Active Optical Cable | 4 | 60 | 32 | 66 | 2 |
| 4X97A94011 | AV1G | Lenovo 5m 25G SFP28 Active Optical Cable | 4 | 60 | 32 | 66 | 2 |
| 4X97A94012 | AV1H | Lenovo 10m 25G SFP28 Active Optical Cable | 4 | 60 | 32 | 66 | 2 |
| 4X97A94013 | AV1J | Lenovo 15m 25G SFP28 Active Optical Cable | 4 | 60 | 32 | 66 | 2 |
| 4X97A94702 | AV1K | Lenovo 20m 25G SFP28 Active Optical Cable | 4 | 60 | 32 | 66 | No |
| QSFP28 100Gb Ethernet Active Optical Cables | |||||||
| 4X97A94703 | B2UZ | Lenovo 1m 100G QSFP28 Active Optical Cable | 4 | 12 | 32 | 64 | No |
| 4X97A94014 | AV1L | Lenovo 3m 100G QSFP28 Active Optical Cable | 4 | 60 | 32 | 64 | No |
| 4X97A94015 | AV1M | Lenovo 5m 100G QSFP28 Active Optical Cable | 4 | 12 | 32 | 64 | No |
| 4X97A94016 | AV1N | Lenovo 10m 100G QSFP28 Active Optical Cable | 4 | 12 | 32 | 64 | No |
| 4X97A94704 | AV1P | Lenovo 15m 100G QSFP28 Active Optical Cable | 4 | 12 | 32 | 64 | No |
| 4X97A94705 | AV1Q | Lenovo 20m 100G QSFP28 Active Optical Cable | 4 | 12 | 32 | 64 | No |
| 100G MPO OM4 MMF Cables (these cables require a transceiver) | |||||||
| 7Z57A03567 | AV25 | Lenovo 5m MPO-MPO OM4 MMF Cable | 4 | 12 | 32 | 64 | No |
| 7Z57A03568 | AV26 | Lenovo 7m MPO-MPO OM4 MMF Cable | 4 | 12 | 32 | 64 | No |
| 7Z57A03569 | AV27 | Lenovo 10m MPO-MPO OM4 MMF Cable | 4 | 12 | 32 | 64 | No |
| 7Z57A03570 | AV28 | Lenovo 15m MPO-MPO OM4 MMF Cable | 4 | 12 | 32 | 64 | No |
| 7Z57A03571 | AV29 | Lenovo 20m MPO-MPO OM4 MMF Cable | 4 | 12 | 32 | 64 | No |
| 7Z57A03572 | AV2A | Lenovo 30m MPO-MPO OM4 MMF Cable | 4 | 12 | 32 | 64 | No |
| 100G Breakout OM4 MPO Cables (these cables require a transceiver) | |||||||
| 7Z57A03573 | AV2B | Lenovo 1m MPO to 4x LC Breakout OM4 MMF Cable | No | No | 32 | 64 | No |
| 7Z57A03574 | AV2C | Lenovo 3m MPO to 4x LC Breakout OM4 MMF Cable | No | No | 32 | 64 | No |
| 7Z57A03575 | AV2D | Lenovo 5m MPO to 4x LC Breakout OM4 MMF Cable | 4 | 12 | 32 | 64 | No |
| OM4 LC to LC Cables (these cables require a transceiver) | |||||||
| 4Z57A10845 | B2P9 | Lenovo 0.5m LC-LC OM4 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| 4Z57A10846 | B2PA | Lenovo 1m LC-LC OM4 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| 4Z57A10847 | B2PB | Lenovo 3m LC-LC OM4 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| 4Z57A10848 | B2PC | Lenovo 5m LC-LC OM4 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| 4Z57A10849 | B2PD | Lenovo 10m LC-LC OM4 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| 4Z57A10850 | B2PE | Lenovo 15m LC-LC OM4 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| 4Z57A10851 | B2PF | Lenovo 25m LC-LC OM4 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| 4Z57A10852 | B2PG | Lenovo 30m LC-LC OM4 MMF Cable | 4 | 60 | 32 | 66 | 2 |
| QSFP56 HDR InfiniBand / 200 GbE Optical Cables | |||||||
| 4Z57A14188 | B4QW | 3m Mellanox HDR IB Active Optical QSFP56 Cable | No | No | 32 | 64 | No |
| 4Z57A14189 | B4QX | 5m Mellanox HDR IB Active Optical QSFP56 Cable | No | No | 32 | 64 | No |
| 4Z57A14190 | B4QY | 10m Mellanox HDR IB Active Optical QSFP56 Cable | No | No | 32 | 64 | No |
| 4Z57A14191 | B4QZ | 15m Mellanox HDR IB Active Optical QSFP56 Cable | No | No | 32 | 64 | No |
| 4Z57A14192 | B4R0 | 20m Mellanox HDR IB Active Optical QSFP56 Cable | No | No | 32 | 64 | No |
| NVIDIA NDR Multi Mode Fibre Optical Cables | |||||||
| 4X97A81748 | BQJN | Lenovo 3m NVIDIA NDR Multi Mode Optical Cable | No | No | No | No | 128 |
| 4X97A81749 | BQJP | Lenovo 5m NVIDIA NDR Multi Mode Optical Cable | No | No | No | No | 128 |
| 4X97A81750 | BQJQ | Lenovo 7m NVIDIA NDR Multi Mode MPO12 APC Optical Cable | No | No | No | No | 128 |
| 4X97A81751 | BQJR | Lenovo 10m NVIDIA NDR Multi Mode Optical Cable | No | No | No | No | 128 |
| 4X97A81752 | BQJS | Lenovo 20m NVIDIA NDR Multi Mode Optical Cable | No | No | No | No | 128 |
| 4X97A85349 | BSN6 | Lenovo 30M NVIDIA NDR Multi Mode MPO12 APC Optical Cable | No | No | No | No | 128 |
| NVIDIA NDR Multi Mode Fibre Optical Splitter Cables | |||||||
| 4X97A81836 | BQK4 | Lenovo 3m NVIDIA NDR to 2x NDR200 Multi Mode Optical Cable | No | No | No | No | 128 |
| 4X97A81837 | BQK5 | Lenovo 5m NVIDIA NDR to 2x NDR200 Multi Mode Optical Cable | No | No | No | No | 128 |
| 4X97A81838 | BQK6 | Lenovo 7m NVIDIA NDR to 2x NDR200 Multi Mode MPO12 APC Optical Cable | No | No | No | No | 128 |
| 4X97A81839 | BQK7 | Lenovo 10m NVIDIA NDR to 2x NDR200 Multi Mode Optical Cable | No | No | No | No | 128 |
| 4X97A81840 | BQK8 | Lenovo 20m NVIDIA NDR to 2x NDR200 Multi Mode Optical Cable | No | No | No | No | 128 |
| NVIDIA XDR SM MPO12 APC Optical Cable | |||||||
| 4X97B11375 | CCVD | Lenovo 3M NVIDIA SM MPO12 APC Optical Cable (Generic) | No | No | 32 | 64 | No |
| 4X97B05747 | C98S | Lenovo 5M NVIDIA XDR SM MPO12 APC Optical Cable (Generic) | No | No | 32 | 64 | No |
| 4X97B05748 | C98T | Lenovo 10M NVIDIA XDR SM MPO12 APC Optical Cable (Generic) | No | No | 32 | 64 | No |
| 4X97B05750 | C98U | Lenovo 15M NVIDIA XDR SM MPO12 APC Optical Cable (Generic) | No | No | 32 | 64 | No |
| 4X97B05751 | C98V | Lenovo 20M NVIDIA XDR SM MPO12 APC Optical Cable (Generic) | No | No | 32 | 64 | No |
| 4X97B05752 | C98W | Lenovo 30M NVIDIA XDR SM MPO12 APC Optical Cable (Generic) | No | No | 32 | 64 | No |
| 4X97B09056 | CB2T | Lenovo 50M NVIDIA SM MPO12 APC Optical Cable (Generic) | No | No | 32 | 64 | No |
| NVIDIA NDR NDRx2 OSFP800 to 2x HDR QSFP56 Optical Splitter Cables | |||||||
| 4X97A81844 | BQKC | Lenovo 5m NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Active Optical Splitter Cable | No | No | No | No | 64 |
| 4X97A81845 | BQKD | Lenovo 10m NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Active Optical Splitter Cable | No | No | No | No | 64 |
| 4X97A87753 | BVB8 | Lenovo 20M NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Active Optical Splitter Cable | No | No | No | No | 64 |
| 4X97A87754 | BVB9 | Lenovo 30M NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Active Optical Splitter Cable | No | No | No | No | 64 |
| NVIDIA SM MPO12 APC to 4x LC Split Optical Cable | |||||||
| 4X97B14685 | CGKX | Lenovo Luxshare 5M Single Mode MPO12 APC to 4x LC Split Optical Cable | No | 4 | 32 | No | No |
| 4X97B14686 | CGKY | Lenovo Luxshare 10M Single Mode MPO12 APC to 4x LC Split Optical Cable | No | 4 | 32 | No | No |
| 4X97B14687 | CGKZ | Lenovo Luxshare 20M Single Mode MPO12 APC to 4x LC Split Optical Cable | No | 4 | 32 | No | No |
| 4X97B14688 | CGL0 | Lenovo Luxshare 30M Single Mode MPO12 APC to 4x LC Split Optical Cable | No | 4 | 32 | No | No |
| NVIDIA SM MPO12/APC to 2xSM MPO12/APC Split Optical Cable | |||||||
| 4X97B14779 | CGUV | Lenovo 3M NVIDIA SM_MPO12/APC to 2xSM_MPO12/APC Optical Cable (Generic) | No | No | 32 | 64 | No |
| 4X97B14780 | CGUW | Lenovo 5M NVIDIA SM_MPO12/APC to 2xSM_MPO12/APC Optical Cable (Generic) | No | No | 32 | 64 | No |
| 4X97B14781 | CGUX | Lenovo 10M NVIDIA SM_MPO12/APC to 2xSM_MPO12/APC Optical Cable (Generic) | No | No | 32 | 64 | No |
| 4X97B14782 | CGUY | Lenovo 15M NVIDIA SM_MPO12/APC to 2xSM_MPO12/APC Optical Cable (Generic) | No | No | 32 | 64 | No |
| 4X97B14783 | CGUZ | Lenovo 20M NVIDIA SM_MPO12/APC to 2xSM_MPO12/APC Optical Cable (Generic) | No | No | 32 | 64 | No |
| 4X97B14784 | CGV0 | Lenovo 30M NVIDIA SM_MPO12/APC to 2xSM_MPO12/APC Optical Cable (Generic) | No | No | 32 | 64 | No |
| Accelink 400GbE QSFP-DD to 400G QSFP-DD Active Optical Cable | |||||||
| 4X97B16858 | CJED | Lenovo 5M 400GbE QSFP-DD to 400G QSFP-DD Active Optical Cable | No | No | 32 | 64 | No |
| 4X97B16859 | CJEE | Lenovo 10M 400GbE QSFP-DD to 400G QSFP-DD Active Optical Cable | No | No | 32 | 64 | No |
| 4X97B16860 | CJEF | Lenovo 20M 400GbE QSFP-DD to 400G QSFP-DD Active Optical Cable | No | No | 32 | 64 | No |
| 4X97B16861 | CJEG | Lenovo 30M 400GbE QSFP-DD to 400G QSFP-DD Active Optical Cable | No | No | 32 | 64 | No |
| Lenovo 400GbE QSFP-DD to 2 x 200GbE QSFP56 AOC Cable | |||||||
| 4X97B16862 | CKEC | Lenovo 5M 400G QSFP-DD to 2x200G QSFP56 Active Optical Cable | No | No | 32 | 64 | No |
| 4X97B16863 | CKED | Lenovo 10M 400G QSFP-DD to 2x200G QSFP56 Active Optical Cable | No | No | 32 | 64 | No |
| 4X97B16864 | CKEE | Lenovo 20M 400G QSFP-DD to 2x200G QSFP56 Active Optical Cable | No | No | 32 | 64 | No |
| 4X97B16865 | CKEF | Lenovo 30M 400G QSFP-DD to 2x200G QSFP56 Active Optical Cable | No | No | 32 | 64 | No |
| Lenovo 400GbE QSFP-DD to 4 x 100GbE QSFP56 AOC Cable | |||||||
| 4X97B16866 | CKEG | Lenovo 5M 400G QSFP-DD to 4x100G QSFP56 Active Optical Cable | No | No | 32 | 64 | No |
| 4X97B16867 | CKEH | Lenovo 10M 400G QSFP-DD to 4x100G QSFP56 Active Optical Cable | No | No | 32 | 64 | No |
| 4X97B16868 | CKEJ | Lenovo 20M 400G QSFP-DD to 4x100G QSFP56 Active Optical Cable | No | No | 32 | 64 | No |
| 4X97B16869 | CKEK | Lenovo 30M 400G QSFP-DD to 4x100G QSFP56 Active Optical Cable | No | No | 32 | 64 | No |
Copper cables
| Part number | Feature | Description | Maximum supported | ||||
|---|---|---|---|---|---|---|---|
|
NVIDIA SN2201
|
NVIDIA SN3420
|
NVIDIA SN4700
|
NVIDIA SN5400
|
NVIDIA SN5610
|
|||
| QSFP+ 40Gb DAC Breakout Cables (QSFP+ to 4xSFP+) | |||||||
| 49Y7886 | A1DL | 1m QSFP+ DAC Break Out Cable | No | 12 | 32 | 64 | No |
| 49Y7887 | A1DM | 3m QSFP+ DAC Break Out Cable | No | 12 | 32 | 64 | No |
| 49Y7888 | A1DN | 5m QSFP+ DAC Break Out Cable | No | 12 | 32 | 64 | No |
| QSFP-to-QSFP 40Gb Cables | |||||||
| 49Y7890 | A1DP | 1m QSFP+ to QSFP+ Cable | No | 12 | 32 | 64 | No |
| 49Y7891 | A1DQ | 3m QSFP+ to QSFP+ Cable | No | 12 | 32 | 64 | No |
| 00D5810 | A2X8 | 5m QSFP+ to QSFP+ Cable | No | 12 | 32 | 64 | No |
| 00D5813 | A2X9 | 7m QSFP+ to QSFP+ Cable | No | No | 32 | 64 | No |
| SFP+ 10Gb Passive DAC Cables | |||||||
| 00D6288 | A3RG | 0.5m Passive DAC SFP+ Cable | No | 60 | 32 | 66 | 2 |
| 90Y9427 | A1PH | 1m Passive DAC SFP+ Cable | No | 60 | 32 | 66 | 2 |
| 00AY764 | A51N | 1.5m Passive DAC SFP+ Cable | No | 60 | 32 | 66 | 2 |
| 00AY765 | A51P | 2m Passive DAC SFP+ Cable | No | 60 | 32 | 66 | 2 |
| 90Y9430 | A1PJ | 3m Passive DAC SFP+ Cable | No | 60 | 32 | 66 | 2 |
| 90Y9433 | A1PK | 5m Passive DAC SFP+ Cable | No | 60 | 32 | 66 | 2 |
| 00D6151 | A3RH | 7m Passive DAC SFP+ Cable | No | 60 | 32 | 66 | 2 |
| SFP+ 10Gb Active DAC Cables | |||||||
| 00VX111 | AT2R | Lenovo 1m Active DAC SFP+ Cables | 4 | 60 | 32 | 66 | 2 |
| 00VX114 | AT2S | Lenovo 3m Active DAC SFP+ Cables | 4 | 60 | 32 | 66 | 2 |
| 00VX117 | AT2T | Lenovo 5m Active DAC SFP+ Cables | 4 | 60 | 32 | 66 | 2 |
| SFP28 25Gb Passive DAC Cables | |||||||
| 7Z57A03557 | AV1W | Lenovo 1m Passive 25G SFP28 DAC Cable | 4 | 60 | 32 | 66 | 2 |
| 7Z57A03558 | AV1X | Lenovo 3m Passive 25G SFP28 DAC Cable | 4 | 60 | 32 | 66 | 2 |
| 7Z57A03559 | AV1Y | Lenovo 5m Passive 25G SFP28 DAC Cable | 4 | 60 | 32 | 66 | 2 |
| QSFP28 100Gb Ethernet Passive DAC Cables | |||||||
| 7Z57A03561 | AV1Z | Lenovo 1m Passive 100G QSFP28 DAC Cable | 4 | 12 | 32 | 64 | No |
| 7Z57A03562 | AV20 | Lenovo 3m Passive 100G QSFP28 DAC Cable | 4 | 12 | 32 | 64 | No |
| 7Z57A03563 | AV21 | Lenovo 5m Passive 100G QSFP28 DAC Cable | 4 | 12 | 32 | 64 | No |
| QSFP28 100G-to-4x25G Ethernet Breakout Cables | |||||||
| 7Z57A03564 | AV22 | Lenovo 1m 100G QSFP28 to 4x25G SFP28 Breakout DAC Cable | 4 | 60 | 32 | 66 | No |
| 4Z57A85043 | BS32 | Lenovo 1.5m 100G to 4x25G Breakout SFP28 Breakout DAC Cable | 4 | 60 | 32 | 66 | No |
| 4Z57A85044 | BS33 | Lenovo 2m 100G to 4x25G Breakout SFP28 Breakout DAC Cable | 4 | 60 | 32 | 66 | No |
| 7Z57A03565 | AV23 | Lenovo 3m 100G QSFP28 to 4x25G SFP28 Breakout DAC Cable | 4 | 60 | 32 | 66 | No |
| 7Z57A03566 | AV24 | Lenovo 5m 100G QSFP28 to 4x25G SFP28 Breakout DAC Cable | 4 | 60 | 32 | 66 | No |
| QSFP56 HDR InfiniBand / 200 GbE Passive DAC Cables | |||||||
| 4Z57A14183 | B4QR | 1m Mellanox HDR IB Passive Copper QSFP56 Cable | No | No | 32 | 64 | No |
| 4Z57A14184 | B4QS | 1.5m Mellanox HDR IB Passive Copper QSFP56 Cable | No | No | 32 | 64 | No |
| 4Z57A14185 | B4QT | 2m Mellanox HDR IB Passive Copper QSFP56 Cable | No | No | 32 | 64 | No |
| NVIDIA NDRx2 OSFP800 Finned to NDRx2 OSFP800 Finned Copper Cables | |||||||
| 4X97A81744 | BQJF | Lenovo 0.5m NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Passive Copper Cable | No | No | No | No | 64 |
| 4X97A82957 | BQJG | Lenovo 1m NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Passive Copper Cable | No | No | No | No | 64 |
| 4X97A82958 | BQJH | Lenovo 1.5m NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Passive Copper Cable | No | No | No | No | 64 |
| 4X97A82959 | BQJJ | Lenovo 2m NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Passive Copper Cable | No | No | No | No | 64 |
| 4X97A81747 | BQJK | Lenovo 3m NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Active Copper Cable | No | No | No | No | 64 |
| 4X97A82960 | BQJL | Lenovo 5M NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Active Copper Cable | No | No | No | No | 64 |
| NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Splitter Copper Cables | |||||||
| 4X97A81827 | BQJV | Lenovo 1m NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A81828 | BQJW | Lenovo 1.5m NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A81829 | BQJX | Lenovo 2m NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A81830 | BQJY | Lenovo 3m NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Passive Copper Splitter Cable | No | No | No | No | 64 |
| NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Splitter Copper Cables | |||||||
| 4X97A81832 | BQK0 | Lenovo 1m NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A81833 | BQK1 | Lenovo 1.5m NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A81834 | BQK2 | Lenovo 2m NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A81835 | BQK3 | Lenovo 3m NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable | No | No | No | No | 64 |
| NVIDIA NDR NDRx2 OSFP800 to 2x HDR QSFP56 Copper Splitter Cables | |||||||
| 4X97A81841 | BQK9 | Lenovo 1m NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A81842 | BQKA | Lenovo 1.5m NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A81843 | BQKB | Lenovo 2m NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Passive Copper Splitter Cable | No | No | No | No | 64 |
| NVIDIA NDR NDRx2 OSFP800 to 4x HDR QSFP56 Copper Splitter Cables | |||||||
| 4X97A81846 | BQKE | Lenovo 1m NVIDIA NDRx2 OSFP800 to 4x HDR100 QSFP56 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A81847 | BQKF | Lenovo 1.5m NVIDIA NDRx2 OSFP800 to 4x HDR100 QSFP56 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A81848 | BQKG | Lenovo 2m NVIDIA NDRx2 OSFP800 to 4x HDR100 QSFP56 Passive Copper Splitter Cable | No | No | No | No | 64 |
| NVIDIA Twin NDR OSFP112 to 2xNDR QSFP112 Passive Copper Splitter Cable | |||||||
| 4X97A95308 | C1V7 | Lenovo 1m NVIDIA Twin NDR OSFP112 to 2xNDR QSFP112 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A95309 | C1V8 | Lenovo 1.5m NVIDIA Twin NDR OSFP112 to 2xNDR QSFP112 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A95310 | C1V9 | Lenovo 2m NVIDIA Twin NDR OSFP112 to 2xNDR QSFP112 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A95311 | C1VA | Lenovo 2.5m NVIDIA Twin NDR OSFP112 to 2xNDR QSFP112 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A95312 | C1VB | Lenovo 3m NVIDIA Twin NDR OSFP112 to 2xNDR QSFP112 Passive Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A95313 | C1VC | Lenovo 4m NVIDIA Twin NDR OSFP112 to 2xNDR QSFP112 Active Copper Splitter Cable | No | No | No | No | 64 |
| 4X97A95314 | C1VD | Lenovo 5m NVIDIA Twin NDR OSFP112 to 2xNDR QSFP112 Active Copper Splitter Cable | No | No | No | No | 64 |
| Lenovo 400GbE QSFP-DD to 2 x 200GbE QSFP56 DAC Cables | |||||||
| 4X97B16870 | CK2K | Lenovo 1M 400GbE QSFP-DD to 2x 200GbE QSFP56 DAC Cable | No | No | 32 | 64 | No |
| 4X97B16871 | CK2L | Lenovo 1.5M 400GbE QSFP-DD to 2x 200GbE QSFP56 DAC Cable | No | No | 32 | 64 | No |
| 4X97B00137 | C6RD | Lenovo 2m 400GbE QSFP-DD to 2 x 200GbE QSFP56 DAC Cable | No | No | 32 | 64 | No |
| 4X97B00139 | C6RC | Lenovo 3m 400GbE QSFP-DD to 2 x 200GbE QSFP56 DAC Cable | No | No | 32 | 64 | No |
| Lenovo 400GbE QSFP-DD to 4 x 100GbE QSFP56 DAC Cable | |||||||
| 4X97B16872 | CK2M | Lenovo 1M 400GbE QSFP-DD to 4x100GbE QSFP56 DAC Cable | No | No | 32 | 64 | No |
| 4X97B16873 | CK2N | Lenovo 1.5M 400GbE QSFP-DD to 4x100GbE QSFP56 DAC Cable | No | No | 32 | 64 | No |
| 4X97B16874 | CK2P | Lenovo 2M 400GbE QSFP-DD to 4x100GbE QSFP56 DAC Cable | No | No | 32 | 64 | No |
| 4X97B16875 | CK2Q | Lenovo 3M 400GbE QSFP-DD to 4x100GbE QSFP56 DAC Cable | No | No | 32 | 64 | No |
RJ45 cables
| Part number | Feature | Description | Maximum supported | ||||
|---|---|---|---|---|---|---|---|
|
NVIDIA SN2201
|
NVIDIA SN3420
|
NVIDIA SN4700
|
NVIDIA SN5400
|
NVIDIA SN5610
|
|||
| CAT6 Green cables | |||||||
| 00WE123 | AVFW | 0.75m Green Cat6 Cable | 53 | 61 | 33 | 67 | 3 |
| 00WE127 | AVFX | 1.0m Green Cat6 Cable | 53 | 61 | 33 | 67 | 3 |
| 00WE131 | AVFY | 1.25m Green Cat6 Cable | 53 | 61 | 33 | 67 | 3 |
| 00WE135 | AVFZ | 1.5m Green Cat6 Cable | 53 | 61 | 33 | 67 | 3 |
| 00WE139 | AVG0 | 3m Green Cat6 Cable | 53 | 61 | 33 | 67 | 3 |
| 90Y3718 | A1MT | 10m Green Cat6 Cable | 53 | 61 | 33 | 67 | 3 |
| 90Y3727 | A1MW | 25m Green Cat6 Cable | 53 | 61 | 33 | 67 | 3 |
| CAT6 Blue cables | |||||||
| 90Y3721 | A1MU | 10m Blue Cat6 Cable | 53 | 61 | 33 | 67 | 3 |
| 90Y3730 | A1MX | 25m Blue Cat6 Cable | 53 | 61 | 33 | 67 | 3 |
| CAT6 Yellow cables | |||||||
| 90Y3715 | A1MS | 10m Yellow Cat6 Cable | 53 | 61 | 33 | 67 | 3 |
| 90Y3724 | A1MV | 25m Yellow Cat6 Cable | 53 | 61 | 33 | 67 | 3 |
| CAT6 White cables without jackets | |||||||
| CAT5e Blue Cables | |||||||
| 40K5679 | 3801 | e1350 .6 Meter Blue Ethernet Cable | 53 | 61 | 33 | 67 | 3 |
| 00WE111 | AVFT | 0.75m Blue Cat5e Cable | 53 | No | 33 | 67 | No |
| 00WE115 | AVFU | 1.0m Blue Cat5e Cable | 53 | No | 33 | 67 | No |
| 00WE119 | AVFV | 1.25m Blue Cat5e Cable | 53 | No | 33 | 67 | No |
| 40K8785 | 3802 | 1.5 Meter Blue Ethernet Cable | 53 | 61 | 33 | 67 | 3 |
| 40K5581 | 3803 | 3m Blue Cat5e Cableupdate | 53 | 61 | 33 | 67 | 3 |
| 40K8927 | 3804 | e1350 10 Meter Blue Ethernet Cable | 53 | 61 | 33 | 67 | 3 |
| 40K8930 | 3805 | 25m Blue Cat5e Cable | 53 | 61 | 33 | 67 | 3 |
| CAT5e Green Cables | |||||||
| 40K5563 | BQ6P | 0.6m Green Cat5e Cable | No | No | 33 | 67 | No |
| 00WE099 | AVFQ | 0.75m Green Cat5e Cable | 53 | No | 33 | 67 | No |
| 00WE103 | AVFR | 1.0m Green Cat5e Cable | 53 | No | 33 | 67 | No |
| 00WE107 | AVFS | 1.25m Green Cat5e Cable | 53 | No | 33 | 67 | No |
| 40K5643 | 3797 | e1350 1.5 Meter Green Ethernet Cable | 53 | 61 | 33 | 67 | 3 |
| 40K5793 | 3798 | e1350 3 Meter Green Ethernet Cable | 53 | 61 | 33 | 67 | 3 |
| 40K5794 | 3799 | 10m Green Cat5e Cable | 53 | 61 | 33 | 67 | 3 |
| 40K8869 | 3800 | 25m Green Cat5e Cable | 53 | 61 | 33 | 67 | 3 |
| CAT5e Yellow Cables | |||||||
| 40K8933 | 3791 | e1350 .6 Meter Yellow Ethernet Cable | 53 | 61 | 33 | 67 | 3 |
| 40K8951 | 3792 | e1350 1.5 Meter Yellow Ethernet Cable | 53 | 61 | 33 | 67 | 3 |
| 40K8957 | BQ6Q | Ethe 3m Yellow | No | No | 33 | 67 | No |
| 40K8801 | 3794 | 10 Meter Yellow Ethernet Cable | 53 | 61 | 33 | 67 | 3 |
| 40K8807 | 3795 | 25m Yellow Cat5e Cable | 53 | 61 | 33 | 67 | 3 |
Rack mount kit
The following table lists the optional rack mount kit for the NVIDIA switches.
SN5400 and SN5610 rack mount kits: The SN5400 and SN5610 include the slide rails as standard, so a rack mount kit is not needed for these switches.
| Part number | Feature | Description | NVIDIA part number | Maximum supported | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NVIDIA SN2201 oPSE
|
NVIDIA SN2201 PSE
|
NVIDIA SN3420 oPSE
|
NVIDIA SN3420 PSE
|
NVIDIA SN4700 oPSE
|
NVIDIA SN4700 PSE
|
NVIDIA SN5400 oPSE
|
NVIDIA SN5400 PSE
|
NVIDIA SN5610 oPSE
|
||||
| 4XF7A85362 | BSNA | NVIDIA SN2201 Enterprise Rack Mount Kit for Recessed Mounting | 930-9NRKT-00JS-000 | 1 | No | No | No | No | No | No | No | No |
| 4XF7A85363 | BSNB | NVIDIA SN2201 Enterprise Rack Mount Kit w/Air Duct | 930-9BRKT-0064-000 | No | 1 | No | No | No | No | No | No | No |
| 4M27A68446 | BEGJ | NVIDIA MTEF-KIT-SP Rack Mount Kit | 930-9NRKT-00JV-000 | No | No | 1 | No | No | No | No | No | No |
| 4M27A68447 | BEGK | NVIDIA SN2F-KIT-SP Rack Mount Kit4xx/SN34xx 1U Rack Mount Kit w/Air Duct | 930-9NRKT-27PD-000 | No | No | No | 1 | No | No | No | No | No |
| 4M27A16332 | B5RW | Mellanox QM87xx Enterprise RMK for Recessed Mounting | 930-9BRKT-00JJ-000 | No | No | No | No | 1 | No | No | No | No |
| 4M27A16331 | B5RV | Mellanox QM87xx Enterprise RMK w/Air Duct | 930-9BRKT-27B2-000 | No | No | No | No | No | 1 | No | No | No |
Power cables
The following table lists the power cables that can be ordered with the NVIDIA switches.
Tip: Power cables vary by switch:
- SN2201 and SN3420 use C13 power cables
- SN4700 and SN5610 use C15 power cables
- SN5400 uses C19 power cables
| Part number | Feature | Description | Maximum supported | ||||
|---|---|---|---|---|---|---|---|
|
NVIDIA SN2201
|
NVIDIA SN3420
|
NVIDIA SN4700
|
NVIDIA SN5400
|
NVIDIA SN5610
|
|||
| C13 to C14 line cords | |||||||
| None | BPHZ | 0.5m, 10A/100-250V, C13 to C14 Jumper Cord | 2 | 2 | No | No | No |
| 39Y7937 | 6201 | 1.5m, 10A/100-250V, C13 to C14 Jumper Cord | 2 | 2 | No | No | No |
| 4L67A08366 | 6311 | 2.8m, 10A/100-250V, C13 to C14 Jumper Cord | 2 | 2 | No | No | No |
| 39Y7932 | 6263 | 4.3m, 10A/100-250V, C13 to C14 Jumper Cord | 2 | 2 | No | No | No |
| C15 to C14 line cords | |||||||
| 4L67A84863 | BRQ8 | 0.5m, 10A/100-250V, C15 to C14 Jumper Cord | No | No | 2 | No | 4 |
| 4L67A84862 | BRQ7 | 1.5m, 10A/100-250V, C15 to C14 Jumper Cord | No | No | 2 | No | 4 |
| 4L67A84861 | BRQ6 | 2.8m, 10A/100-250V, C15 to C14 Jumper Cord | No | No | 2 | No | 4 |
| 4L67A84860 | BRQ5 | 4.3m, 10A/100-250V, C15 to C14 Jumper Cord | No | No | 2 | No | 4 |
| C13 to C20 line cords | |||||||
| 39Y7938 | 6204 | 2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable | 2 | 2 | No | No | No |
| C15 to C20 line cords | |||||||
| 4L67A84859 | BRQ4 | 1.5m, 10A/100-250V, C15 to C20 Jumper Cord | No | No | 2 | No | 4 |
| C19 to C20 line cords | |||||||
| SL67B08594 | BPJ0 | 0.5M IEC C19 / C20 Jumper Cord | No | No | No | 2 | No |
| 4L67A86678 | B4L0 | 1.0m, 16A/100-250V, C19 to C20 Jumper Cord | No | No | No | 2 | No |
| 4L67A86679 | B4L1 | 1.5m, 16A/100-250V, C19 to C20 Jumper Cord | No | No | No | 2 | No |
| 4L67A86680 | B4L2 | 2.0m, 16A/100-250V, C19 to C20 Jumper Cord | No | No | No | 2 | No |
| 39Y7916 | 6252 | 2.5m, 16A/100-240V, C19 to IEC 320-C20 Rack Power Cable | No | No | No | 2 | No |
| 4L67A86681 | B4L3 | 4.3m, 16A/100-250V, C19 to C20 Jumper Cord | No | No | No | 2 | No |
Operating environment
The NVIDIA switches have the following operating characteristics:
- Normal operating temperature range (sustained): 0°C to +40°C (32°F to +104°F)
- Shipping and storage temperature range: -40°C to +70°C (-40°F to +158°F)
- Normal operating humidity: 10% to 85%, non-condensing
- Non-operating humidity: 10% to 90%, non-condensing
Related product families
Product families related to this document are the following:
- Ethernet Switches
Trademarks
Lenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at https://www.lenovo.com/us/en/legal/copytrade/.
The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo®
ThinkAgile®
ThinkSystem®
The following terms are trademarks of other companies:
Linux® is the trademark of Linus Torvalds in the U.S. and other countries.
Copilot® is a trademark of Microsoft Corporation in the United States, other countries, or both.
NVIDIA® and NVIDIA Spectrum® are trademarks of NVIDIA Corporation.
Other company, product, or service names may be trademarks or service marks of others.
