Lenovo ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter: технические характеристики и документация

Abstract

The ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter is an advanced programmable network adapter enabling customized hardware acceleration and offload. The U25 programming model supports both high-level network programming abstractions such as HLS and P4, as well compute acceleration frameworks such as Vitis to enable both Xilinx and third-party accelerated applications.

This product guide provides essential presales information to understand the adapter and its key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the Xilinx Alveo U25 adapter and consider its use in IT solutions.

Change History

Changes in the October 31, 2023 update:

  • Added the following transceiver - Supported transceivers and cables section:
    • ThinkSystem Finisar Dual Rate 10G/25G SR SFP28 Transceiver, 4TC7A88638

Introduction

The ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter is an advanced programmable network adapter enabling customized hardware acceleration and offload. The U25 programming model supports both high-level network programming abstractions such as HLS and P4, as well compute acceleration frameworks such as Vitis to enable both Xilinx and third-party accelerated applications.

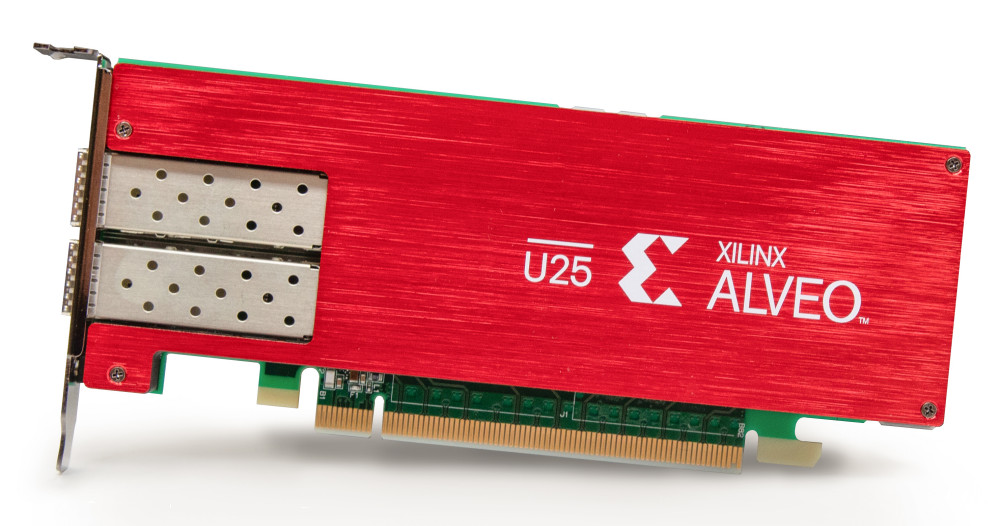

The following figure shows the ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter.

ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter
Figure 1. ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter

Did you know?

In addition to standard NIC drivers, the U25 adapter also supports Onload kernel bypass to provide both TCP and packet-based APIs for network application acceleration. The Xilinx Onload software accelerates and scales network-intensive applications such as in-memory databases, software load balancers, and web servers. With Onload, data centers can support 400% or more users on their cloud network while delivering improved reliability, enhanced quality of service (QoS) and higher return on investment, without modification to existing applications.

Part number information

The following table shows the part number for the adapter.

Table 1. Ordering information
Part number Feature code Description
4XC7A08317 BFPU ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter

The part numbers include the following:

  • One Xilinx adapter
  • Low-profile (2U) and full-height (3U) adapter brackets
  • Documentation

Supported transceivers and cables

The following table lists the supported transceivers.

Table 2. Transceivers
Part number Feature code Description NVIDIA part number
25Gb Transceivers
7G17A03537AV1BLenovo Dual Rate 10G/25G SR SFP28 Transceiver-
4TC7A88638BYBJThinkSystem Finisar Dual Rate 10G/25G SR SFP28 Transceiver-

25Gb transceivers: When installed in the Xilinx Alveo U25 Ethernet adapter, the supported 25Gb transceiver will currently only operate at 25Gb/s speeds.

The following table lists the supported rack cabinets.

Table 3. Rack cabinets (D)
ModelDescription
7D6DA007WWThinkSystem 42U Onyx Primary Heavy Duty Rack Cabinet (1200mm)
7D6DA008WWThinkSystem 42U Pearl Primary Heavy Duty Rack Cabinet (1200mm)
7D6EA009WWThinkSystem 48U Onyx Primary Heavy Duty Rack Cabinet (1200mm)
7D6EA00AWWThinkSystem 48U Pearl Primary Heavy Duty Rack Cabinet (1200mm)
93074RX42U Standard Rack (1000mm)
93604PX42U 1200mm Deep Dynamic Rack
93604EX42U 1200mm Deep Dynamic Expansion Rack
93614PX42U 1200mm Deep Static Rack
93614EX42U 1200mm Deep Static Expansion Rack
93634PX42U 1100mm Dynamic Rack
93634EX42U 1100mm Dynamic Expansion Rack
93084PX42U Enterprise Rack
93084EX42U Enterprise Expansion Rack

For specifications about these racks, see the Lenovo Rack Cabinet Reference, available from:
https://lenovopress.com/lp1287-lenovo-rack-cabinet-reference

For more information, see the list of Product Guides in the Rack cabinets category:
https://lenovopress.com/servers/options/racks

Features

The Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter offers a number of features, including the following:

A Powerful SmartNIC

The U25 delivers ultra-high throughput, small packet performance and low-latency. The host interface supports standard NIC drivers as well as Onload kernel bypass to provide both TCP and packet-based APIs for network application acceleration. IEEE1588v2 precision timing protocol (PTP) is provided for applications that require synchronized time stamping of packets with single-digit nanosecond accuracy.

A Programmable Fabric

The U25 SmartNIC contains a programmable FPGA handling all network flows. Each flow can be individually delivered to the host and/or streamed in hardware to through bump-in-the-wire network acceleration functions and/or compute acceleration kernels for application processing within the FPGA.

A Platform for Hardware Accelerated Clouds

Cloud service providers are deploying SmartNIC fabrics to achieve virtual switching and micro- segmentation of services that scale linearly with CPU cores and network links.

Technical specifications

The adapter has the following specifications:

  • Adapter Hardware
    • XtremeScale™ Ethernet Controller
    • Zynq® UltraScale+™ XCU25 FPGA
    • 2x PCIe Gen 3 x8 (x16 connector in bifurcated mode)
    • 2x 10/25 GbE SFP28 cages supporting DAC cables or optical transceivers
    • 1x 2GB x 40 DDR4-2400
    • 1x 4GB x 72 DDR4-2400
  • Acceleration
    • SDx Compute Acceleration
    • Universal Kernel Bypass
    • DPDK Poll Mode Driver - Packet (Cloud, Telco)
    • Onload® – TCP (Cloud, Telco, Enterprise)
    • Onload®/ TCPDirect - TCP/UDP (Fintech)
  • Security
    • Tamper resistant adapter – Digitally signed firmware
  • Time Synchronization and Hardware Timestamping
    • Hardware timestamping for all packets
    • On-board Stratum 3 stable oscillator
    • Solarflare Software PTP Daemon delivers enhanced stability and clock synchronization accuracy and can be used to synchronize the adapter clock to external time source
  • Stateless Offloads
    • TCP/UDP Checksum Offload (CSO) TCP Segmentation Offload (TSO) Giant Send Offload (GSO)
    • Large Send Offload (LSO) Large Receive Offload (LRO) Receive Side Scaling (RSS)
    • Receive Segment Coalescing (RSC)
  • Manageability and Remote Boot
    • PXE and UEFI
    • NC-SI over MCTP SMBus
    • PLDM over MCTP SMBus MCTP PCIe VDM
    • Management and Utilities
    • Solarflare Boot Manager
  • Traffic Engineering
    • XtremePacket™ Engine for parsing, filtering, and flow steering
    • TCP/UDP/IP, MAC, VLAN, RSS filtering Accelerated Receive Flow Steering (ARFS) Transmit Packet Steering
  • Virtualization
    • Linux Multiqueue
    • SR-IOV: 16 physical functions; 240 virtual functions 2048 Guest OS protected vNICs
    • VXLAN, tunneling offload; adaptable to custom overlays.
    • VLAN and VLAN Q-in-Q Insertion/Stripping
  • Ethernet Standards
    • IEEE802.3-2018 Ethernet Base Standard
    • IEEE 802.3by Ethernet consortium 25 Gigabit Ethernet
    • IEEE 802.3ad, 802.1AX Link Aggregation
    • IEEE 802.1Q, 802.1P VLAN Tags and Priority IEEE 1588-2008 PTPv2
    • Jumbo Frame support (9000 bytes)

Server support

The following tables list the ThinkSystem servers that are compatible.

Table 4. Server support - Current servers (Part 1 of 2)
Part Number Description AMD V3 2S Intel V3/V4 1S V3 4S 8S Intel V3/V4
SR635 V3 (7D9H / 7D9G)
SR655 V3 (7D9F / 7D9E)
SR645 V3 (7D9D / 7D9C)
SR665 V3 (7D9B / 7D9A)
SD535 V3 (7DD8 / 7DD1)
ST650 V3 (7D7B / 7D7A)
SR630 V3 (7D72 / 7D73)
SR650 V3 (7D75 / 7D76)
SR630 V4 (7DG8 / 7DG9)
SR650 V4 (7DGC / 7DGD)
SR650a V4 (7DGC / 7DGD)
ST45 V3 (7DH4 / 7DH5)
ST50 V3 (7DF4 / 7DF3)
ST250 V3 (7DCF / 7DCE)
SR250 V3 (7DCM / 7DCL)
SR850 V3 (7D97 / 7D96)
SR860 V3 (7D94 / 7D93)
SR950 V3 (7DC5 / 7DC4)
SR850 V4 (7DJT / 7DJS)
SR860 V4 (7DJQ / 7DJN)
4XC7A08317 ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter N N N N N N N N N N N N N N N N N N N N
Table 5. Server support - Current servers (Part 2 of 2)
Part Number Description AI Servers Edge Super computing
SR675 V3 (7D9Q / 7D9R)
SR680a V3 B200 (7DM9)
SR685a V3 (7DHC)
SR780a V3 (7DJ5)
SR680a V4 (7DMK)
SE100 (7DGR)
SE455 V3 (7DBY)
SC750 V4 (7DDJ)
SC777 V4 (7DKA)
SD665 V3 (7D9P)
4XC7A08317 ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter N N N N N N N N N N
Table 6. Server support - Withdrawn servers (Part 1 of 3)
Part Number Description Edge 1S Intel V2 2S Intel V2 AMD V1 Multi node AI
SE350 (7Z46 / 7D1X)
SE350 V2 (7DA9)
SE360 V2 (7DAM)
SE450 (7D8T)
ST50 V2 (7D8K / 7D8J)
ST250 V2 (7D8G / 7D8F)
SR250 V2 (7D7R / 7D7Q)
ST650 V2 (7Z75 / 7Z74)
SR630 V2 (7Z70 / 7Z71)
SR650 V2 (7Z72 / 7Z73)
SR635 (7Y98 / 7Y99)
SR655 (7Y00 / 7Z01)
SR645 (7D2Y / 7D2X)
SR665 (7D2W / 7D2V)
SD530 V3 (7DDA / 7DD3)
SD550 V3 (7DD9 / 7DD2)
SR670 V2 (7Z22 / 7Z23)
SR680a V3 (7DHE)
4XC7A08317 ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter N N N N N N N N N N N N Y N N N N N
Table 7. Server support - Withdrawn servers (Part 2 of 3)
Part Number Description SC Dense V2 4S V2 8S 4S V1 1S Intel V1
SD665-N V3 (7DAZ)
SD650 V3 (7D7M)
SD650-I V3 (7D7L)
SD650-N V3 (7D7N)
SD630 V2 (7D1K)
SD650 V2 (7D1M)
SD650-N V2 (7D1N)
SN550 V2 (7Z69)
SR850 V2 (7D31 / 7D32)
SR860 V2 (7Z59 / 7Z60)
SR950 (7X11 / 7X12)
SR850 (7X18 / 7X19)
SR850P (7D2F / 2D2G)
SR860 (7X69 / 7X70)
ST50 (7Y48 / 7Y50)
ST250 (7Y45 / 7Y46)
SR150 (7Y54)
SR250 (7Y52 / 7Y51)
4XC7A08317 ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter N N N N N N N N N N N N N N N N N N
Table 8. Server support - Withdrawn servers (Part 3 of 3)
Part Number Description 2S Intel V1 Dense V1
ST550 (7X09 / 7X10)
SR530 (7X07 / 7X08)
SR550 (7X03 / 7X04)
SR570 (7Y02 / 7Y03)
SR590 (7X98 / 7X99)
SR630 (7X01 / 7X02)
SR650 (7X05 / 7X06)
SR670 (7Y36 / 7Y37)
SD530 (7X21)
SD650 (7X58)
SN550 (7X16)
SN850 (7X15)
4XC7A08317 ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter N N N N N N N N N N N N

Operating system support

The adapter supports the operating systems listed in the following table.

Tip: This table is automatically generated based on data from Lenovo ServerProven.

Table 9. Operating system support for ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter, 4XC7A08317
Operating systems
SR645
SR665
Red Hat Enterprise Linux 7.6 Y 1 Y 1

1 The OS is not supported with EPYC 7003 processors. HW is not supported with EPYC 7003 processors.

Regulatory approvals

The adapter has the following hardware certifications:

  • FCC 47 CFR Part 15 Class A
  • UL 94-/V
  • CE Mark
  • RoHS - Complies with EU directive 2011/65/EU

Physical specifications

The adapter has the following physical specifications:

  • Length: 168 mm (6.6 inches)
  • Width: 64 mm (2.54 inches)

Operating environment

The adapter is supported in the following environment:

  • Temperature:
    • Operating: 0°C to 55°C (32°F to 131°F)
    • Storage: -40°C to 65°C (-40°F to 149°F)
  • Humidity:
    • Operating: 10% to 80%
    • Storage: 5% to 90%

Warranty

One year limited warranty. When installed in a Lenovo server, this adapter assumes the server’s base warranty and any warranty upgrades.

Related product families

Product families related to this document are the following:

  • 25 Gb Ethernet Connectivity
  • Ethernet Adapters
