Lenovo ThinkSystem NVIDIA ConnectX-7 NDR200 InfiniBand/200GbE QSFP112 Adapters: технические характеристики и документация
Abstract
The ThinkSystem NVIDIA ConnectX-7 NDR200 InfiniBand QSFP112 Adapters offer 200 Gb/s connectivity for both Ethernet and InfiniBand protocols. The adapters are suitable for providing high-performance connectivity when running HPC, cloud, storage and machine learning applications.
This product guide provides essential presales information to understand the ConnectX-7 NDR200 adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ConnectX-7 NDR200 adapters and consider their use IT solutions.
Change History
Changes in the May 27, 2025 update:
- Added OS support for the following adapter - Operating system support section:
- ThinkSystem SC750 V4 NVIDIA ConnectX-7 NDR200/HDR/200GbE QSFP112 2-Port PCIe Gen5 x16 Adapter (SharedIO) DWC, 4XC7A99370
Introduction
The ThinkSystem NVIDIA ConnectX-7 NDR200 InfiniBand QSFP112 Adapters offer 200 Gb/s connectivity for both Ethernet and InfiniBand protocols. The adapters are suitable for providing high-performance connectivity when running HPC, cloud, storage and machine learning applications.

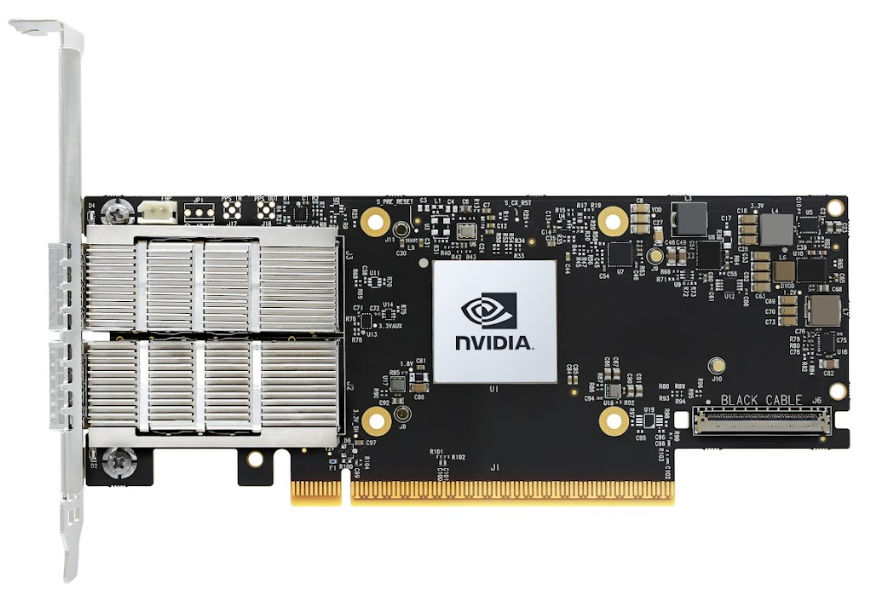

The following figure shows the ThinkSystem NVIDIA ConnectX-7 NDR200/200GbE QSFP112 2-port PCIe Gen5 x16 InfiniBand Adapter (the standard heat sink has been removed in this photo).
Figure 1. ThinkSystem NVIDIA ConnectX-7 NDR200/200GbE QSFP112 2-port PCIe Gen5 x16 InfiniBand Adapter
Did you know?
The ConnectX-7 NDR200 adapters are optimized to deliver accelerated networking for modern cloud, artificial intelligence, and traditional enterprise workloads. ConnectX-7 provides a broad set of software-defined, hardware-accelerated networking, storage, and security capabilities which enable organizations to modernize and secure their IT infrastructures.
Part number information
The following table shows the part numbers for the adapters.
| Part number |
Feature code |
NVIDIA equivalent |
Description | Protocol support |
|---|---|---|---|---|
| Air-cooled adapter | ||||
| 4XC7A81883 | BQBN | MCX755106AS-HEAT | ThinkSystem NVIDIA ConnectX-7 NDR200/200GbE QSFP112 2-port PCIe Gen5 x16 InfiniBand Adapter | InfiniBand, Ethernet |
| Water-cooled adapter | ||||
| 4XC7A86669 | BKSL* | MCX755106AS-HEAT-DWC | ThinkSystem SD650 V3 NVIDIA ConnectX-7 NDR200/HDR/200GbE QSFP112 2-Port PCIe Gen5 x16 Adapter (SharedIO) DWC | InfiniBand, Ethernet |
| 4XC7A99370 | ThinkSystem SC750 V4 NVIDIA ConnectX-7 NDR200/HDR/200GbE QSFP112 2-Port PCIe Gen5 x16 Adapter (SharedIO) DWC | |||
* In the configurator, the server-specific copper tubing for water cooling is automatically derived and attached in the factory
Non-DWC adapter part numbers includes the following:
- One NVIDIA adapter with full-height (3U) adapter bracket attached
- Low-profile (2U) adapter bracket
- Documentation
Supported transceivers and cables
The ConnectX-7 NDR200 adapters have two empty QSFP112 cages for connectivity. The following table lists the supported transceivers.
For the transceiver and cable support for the Mellanox QSA 100G to 25G Cable Adapter (4G17A10853), see the 25G Cable Adapter transceiver and cable support section.
The following table lists the supported transceivers.
| Part number | Feature code | Description | NVIDIA part number |
|---|---|---|---|
| 100Gb Transceivers | |||
| 4TC7B14550 | CFUH | Lenovo NVIDIA 100GbE DR1 QSFP28 LC Single mode Transceiver (Generic) | 980-9I042-00C000 |
| 4M27A67042 | BFH1 | Lenovo 100Gb SR4 QSFP28 Ethernet Transceiver | - |
| 7G17A03539 | AV1D | Lenovo 100GBase-SR4 QSFP28 Transceiver | - |
| 4TC7A86257 | BVA4 | Lenovo 100GBase-SR4 QSFP28 Transceiver | - |
| 200/400Gb Transceivers | |||
| 4TC7A81831 | BQJZ | ThinkSystem NDR/NDR200 QSFP112 IB Multi Mode Solo-Transceiver | 980-9I693-00NS00 |
| 400Gb Transceivers | |||
| 4TC7B10047 | CFUD | Lenovo NVIDIA Single Port 400GbE QSFP112, MPO12 APC, MMF Transceiver, Up to 50M - Flat Top (Generic) | 980-9I693-F4NS00 |
| 800Gb Transceivers with 2x 400Gb connections | |||
| 4TC7B09057 | CB2U | Lenovo NVIDIA MMA4Z00-NS-T Ethernet OSFP Multi Mode Twin-Transceiver (Generic) | 980-9I510-F4NS00 |
| Converters/Adapters | |||
| 4G17A10853 | B306 | Mellanox 100G QSFP28 to 25G SFP28 Cable Adapter | 980-9I78I-00A000 |
The following table lists the supported optical cables.
| Part number | Feature code | Description | NVIDIA part number |
|---|---|---|---|
| SFP28 25Gb Active Optical Cables | |||
| 4X97A94008 | AV1F | Lenovo 3m 25G SFP28 Active Optical Cable | - |
| 4X97A94011 | AV1G | Lenovo 5m 25G SFP28 Active Optical Cable | - |
| 4X97A94012 | AV1H | Lenovo 10m 25G SFP28 Active Optical Cable | - |
| 4X97A94013 | AV1J | Lenovo 15m 25G SFP28 Active Optical Cable | - |
| 4X97A94702 | AV1K | Lenovo 20m 25G SFP28 Active Optical Cable | - |
| 7Z57A03541 | C10R | Lenovo 3m 25G SFP28 Active Optical Cable | - |
| 7Z57A03542 | C10S | Lenovo 5m 25G SFP28 Active Optical Cable | - |
| 7Z57A03543 | C10N | Lenovo 10m 25G SFP28 Active Optical Cable | - |
| 7Z57A03544 | C10T | Lenovo 15m 25G SFP28 Active Optical Cable | - |
| 7Z57A03545 | C1MB | Lenovo 20m 25G SFP28 Active Optical Cable | - |
| QSFP28 100Gb Ethernet Active Optical Cables | |||
| 4X97A94703 | B2UZ | Lenovo 1m 100G QSFP28 Active Optical Cable | - |
| 4X97A94014 | AV1L | Lenovo 3m 100G QSFP28 Active Optical Cable | - |
| 4X97A94015 | AV1M | Lenovo 5m 100G QSFP28 Active Optical Cable | - |
| 4X97A94016 | AV1N | Lenovo 10m 100G QSFP28 Active Optical Cable | - |
| 4X97A94704 | AV1P | Lenovo 15m 100G QSFP28 Active Optical Cable | - |
| 4X97A94705 | AV1Q | Lenovo 20m 100G QSFP28 Active Optical Cable | - |
| 4Z57A10844 | C1MC | Lenovo 1m 100G QSFP28 Active Optical Cable | - |
| 7Z57A03546 | C10P | Lenovo 3m 100G SFP28 Active Optical Cable | - |
| 7Z57A03547 | C10Q | Lenovo 5m 100G QSFP28 Active Optical Cable | - |
| 7Z57A03548 | C10M | Lenovo 10m 100G QSFP28 Active Optical Cable | - |
| 7Z57A03549 | C1MD | Lenovo 15m 100G QSFP28 Active Optical Cable | - |
| 7Z57A03550 | C1ME | Lenovo 20m 100G QSFP28 Active Optical Cable | - |
| 100G MPO OM4 MMF Cables (these cables require a transceiver) | |||
| 7Z57A03567 | AV25 | Lenovo 5m MPO-MPO OM4 MMF Cable | - |
| 7Z57A03568 | AV26 | Lenovo 7m MPO-MPO OM4 MMF Cable | - |
| 7Z57A03569 | AV27 | Lenovo 10m MPO-MPO OM4 MMF Cable | - |
| 7Z57A03570 | AV28 | Lenovo 15m MPO-MPO OM4 MMF Cable | - |
| 7Z57A03571 | AV29 | Lenovo 20m MPO-MPO OM4 MMF Cable | - |
| 7Z57A03572 | AV2A | Lenovo 30m MPO-MPO OM4 MMF Cable | - |
| QSFP56 HDR InfiniBand / 200 GbE Optical Cables | |||
| 4Z57A14188 | B4QW | 3m Mellanox HDR IB Active Optical QSFP56 Cable | 980-9I457-00H003 |
| 4Z57A14189 | B4QX | 5m Mellanox HDR IB Active Optical QSFP56 Cable | 980-9I45D-00H005 |
| 4Z57A14190 | B4QY | 10m Mellanox HDR IB Active Optical QSFP56 Cable | 980-9I45J-00H010 |
| 4Z57A14191 | B4QZ | 15m Mellanox HDR IB Active Optical QSFP56 Cable | 980-9I45O-00H015 |
| 4Z57A14192 | B4R0 | 20m Mellanox HDR IB Active Optical QSFP56 Cable | 980-9I45T-00H020 |
| 4Z57A16016 | B68P | 30m Mellanox HDR IB Optical QSFP56 Cable | 980-9I95W-27H030 |
| 4Z57A16017 | B68N | 50m Mellanox HDR IB Optical QSFP56 Cable | 980-9I95X-27H050 |
| 4Z57A16018 | B68M | 100m Mellanox HDR IB Optical QSFP56 Cable | 980-9I44G-00H100 |
| 4Z57A72553 | BFXR | 3m Mellanox HDR IB Optical QSFP56 Low Latency Cable | 980-9I545-27H003 |
| 4Z57A72554 | BFXS | 5m Mellanox HDR IB Optical QSFP56 Low Latency Cable | 980-9I546-27H005 |
| 4Z57A72555 | BFXT | 10m Mellanox HDR IB Optical QSFP56 Low Latency Cable | 980-9I867-27H010 |
| 4Z57A72556 | BFXU | 15m Mellanox HDR IB Optical QSFP56 Low Latency Cable | 980-9I868-27H015 |
| 4Z57A72557 | BFXV | 20m Mellanox HDR IB Optical QSFP56 Low Latency Cable | 980-9I459-27H020 |
| 4Z57A72558 | BFXW | 30m Mellanox HDR IB Optical QSFP56 Low Latency Cable | 980-9I45A-27H030 |
| 4Z57A72559 | BFXX | 50m Mellanox HDR IB Optical QSFP56 Low Latency Cable | MFS1S00-H050E |
| 4Z57A72560 | BFXY | 100m Mellanox HDR IB Optical QSFP56 Low Latency Cable | MFS1S00-H100E |
| QSFP56 HDR IB to 2x HDR100 Optical Splitter Cables | |||
| 4Z57A14196 | B4R4 | 3m Mellanox HDR IB to 2x HDR100 Splitter Optical QSFP56 Cable | - |
| 4Z57A14197 | B4R5 | 5m Mellanox HDR IB to 2x HDR100 Splitter Optical QSFP56 Cable | - |
| 4Z57A14198 | B4R6 | 10m Mellanox HDR IB to 2x HDR100 Splitter Optical QSFP56 Cable | - |
| 4Z57A14199 | B4R7 | 15m Mellanox HDR IB to 2x HDR100 Splitter Optical QSFP56 Cable | - |
| 4Z57A14214 | B4R8 | 20m Mellanox HDR IB to 2x HDR100 Splitter Optical QSFP56 Cable | - |
| 4Z57A11490 | B68K | 30m Mellanox HDR IB to 2x HDR100 Splitter Optical QSFP56 Cable | - |
| 4Z57A72561 | BFXZ | 3m Mellanox HDR IB to 2x HDR100 Splitter Optical QSFP56 Low Latency Cable | - |
| 4Z57A72562 | BFY0 | 5m Mellanox HDR IB to 2x HDR100 Splitter Optical QSFP56 Low Latency Cable | - |
| 4Z57A72563 | BFY1 | 10m Mellanox HDR IB to 2x HDR100 Splitter Optical QSFP56 Low Latency Cable | - |
| 4Z57A72564 | BFY2 | 15m Mellanox HDR IB to 2x HDR100 Splitter Optical QSFP56 Low Latency Cable | - |
| 4Z57A72565 | BFY3 | 20m Mellanox HDR IB to 2x HDR100 Splitter Optical QSFP56 Low Latency Cable | - |
| 4Z57A72566 | BFY4 | 30m Mellanox HDR IB to 2x HDR100 Splitter Optical QSFP56 Low Latency Cable | - |
| NVIDIA NDR Multi Mode Fibre Optical Cables | |||
| 4X97A81748 | BQJN | Lenovo 3m NVIDIA NDR Multi Mode Optical Cable | 980-9I73U-000003 |
| 4X97A81749 | BQJP | Lenovo 5m NVIDIA NDR Multi Mode Optical Cable | 980-9I73V-000005 |
| 4X97A81750 | BQJQ | Lenovo 7m NVIDIA NDR Multi Mode MPO12 APC Optical Cable | 980-9I57W-000007 |
| 4X97A81751 | BQJR | Lenovo 10m NVIDIA NDR Multi Mode Optical Cable | 980-9I57X-00N010 |
| 4X97A81752 | BQJS | Lenovo 20m NVIDIA NDR Multi Mode Optical Cable | 980-9I57Z-000020 |
| 4X97A85349 | BSN6 | Lenovo 30M NVIDIA NDR Multi Mode MPO12 APC Optical Cable | 980-9I570-00N030 |
| NVIDIA NDR Multi Mode Fibre Optical Splitter Cables | |||
| 4X97A81836 | BQK4 | Lenovo 3m NVIDIA NDR to 2x NDR200 Multi Mode Optical Cable | 980-9I571-00N003 |
| 4X97A81837 | BQK5 | Lenovo 5m NVIDIA NDR to 2x NDR200 Multi Mode Optical Cable | 980-9I572-00N005 |
| 4X97A81838 | BQK6 | Lenovo 7m NVIDIA NDR to 2x NDR200 Multi Mode MPO12 APC Optical Cable | 980-9I573-00N007 |
| 4X97A81839 | BQK7 | Lenovo 10m NVIDIA NDR to 2x NDR200 Multi Mode Optical Cable | 980-9I554-00N010 |
| 4X97A81840 | BQK8 | Lenovo 20m NVIDIA NDR to 2x NDR200 Multi Mode Optical Cable | 980-9I556-00N020 |
| NVIDIA SM MPO12 APC to 4x LC Split Optical Cable | |||
| 4X97B14685 | CGKX | Lenovo Luxshare 5M Single Mode MPO12 APC to 4x LC Split Optical Cable | - |
| 4X97B14686 | CGKY | Lenovo Luxshare 10M Single Mode MPO12 APC to 4x LC Split Optical Cable | - |
| 4X97B14687 | CGKZ | Lenovo Luxshare 20M Single Mode MPO12 APC to 4x LC Split Optical Cable | - |
| 4X97B14688 | CGL0 | Lenovo Luxshare 30M Single Mode MPO12 APC to 4x LC Split Optical Cable | - |
The following table lists the supported direct-attach copper (DAC) cables.
| Part number | Feature code | Description | NVIDIA part number |
|---|---|---|---|
| QSFP28 100Gb Ethernet Passive DAC Cables | |||
| 7Z57A03561 | AV1Z | Lenovo 1m Passive 100G QSFP28 DAC Cable | - |
| 7Z57A03562 | AV20 | Lenovo 3m Passive 100G QSFP28 DAC Cable | - |
| 7Z57A03563 | AV21 | Lenovo 5m Passive 100G QSFP28 DAC Cable | - |
| QSFP56 HDR InfiniBand / 200 GbE Passive DAC Cables | |||
| 4Z57A14182 | B4QQ | 0.5m Mellanox HDR IB Passive Copper QSFP56 Cable | 980-9I54A-00H00A |
| 4Z57A14183 | B4QR | 1m Mellanox HDR IB Passive Copper QSFP56 Cable | 980-9I548-00H001 |
| 4Z57A14184 | B4QS | 1.5m Mellanox HDR IB Passive Copper QSFP56 Cable | 980-9I54B-00H01A |
| 4Z57A14185 | B4QT | 2m Mellanox HDR IB Passive Copper QSFP56 Cable | 980-9I549-00H002 |
| QSFP56 HDR InfiniBand to 2x HDR100 Passive DAC Splitter Cables | |||
| 4Z57A14193 | B4R1 | 1m Mellanox HDR IB to 2x HDR100 Splitter Passive Copper QSFP56 Cable | 980-9I39E-00H001 |
| 4Z57A14194 | B4R2 | 1.5m Mellanox HDR IB to 2x HDR100 Splitter Passive Copper QSFP56 Cable | 980-9I98G-00H01A |
| 4Z57A11477 | B68L | 2m Mellanox HDR IB to 2x HDR100 Splitter Passive Copper QSFP56 Cable | 980-9I99F-00H002 |
| QSFP56 200Gb Ethernet Passive DAC Cables | |||
| 4X97A11113 | BF6W | Lenovo 1m Passive 200G QSFP56 Ethernet DAC Cable | - |
| 4X97A12613 | BF92 | Lenovo 3m Passive 200G QSFP56 Ethernet DAC Cable | - |
| QSFP56 HDR InfiniBand Active DAC Cables | |||
| 4X97A12610 | BCQW | 3m Mellanox HDR IB Active Copper QSFP56 Cable | - |
| 4X97A12611 | BCQX | 4m Mellanox HDR IB Active Copper QSFP56 Cable | - |
| NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Splitter Copper Cables | |||
| 4X97A81832 | BQK0 | Lenovo 1m NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable | 980-9I80B-00N001 |
| 4X97A81833 | BQK1 | Lenovo 1.5m NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable | 980-9I75D-00N01A |
| 4X97A81834 | BQK2 | Lenovo 2m NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable | 980-9I80C-00N002 |
| 4X97A81835 | BQK3 | Lenovo 3m NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable | 980-9I75R-00N003 |
| 4X97B08448 | CAGD | Lenovo 4M NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Active Copper Splitter Cable Generic | 980-9I76G-00N004 |
| 4X97B08449 | CAGR | Lenovo 5M NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Active Copper Splitter Cable Generic | 980-9I76H-00N005 |
| Lenovo 400GbE QSFP-DD to 2 x 200GbE QSFP56 DAC Cables | |||
| 4X97B16870 | CK2K | Lenovo 1M 400GbE QSFP-DD to 2x 200GbE QSFP56 DAC Cable | - |
| 4X97B16871 | CK2L | Lenovo 1.5M 400GbE QSFP-DD to 2x 200GbE QSFP56 DAC Cable | - |
| 4X97B00137 | C6RD | Lenovo 2m 400GbE QSFP-DD to 2 x 200GbE QSFP56 DAC Cable | - |
| 4X97B00139 | C6RC | Lenovo 3m 400GbE QSFP-DD to 2 x 200GbE QSFP56 DAC Cable | - |
| Lenovo 400GbE QSFP-DD to 4 x 100GbE QSFP56 DAC Cable | |||
| 4X97B16872 | CK2M | Lenovo 1M 400GbE QSFP-DD to 4x100GbE QSFP56 DAC Cable | - |
| 4X97B16873 | CK2N | Lenovo 1.5M 400GbE QSFP-DD to 4x100GbE QSFP56 DAC Cable | - |
| 4X97B16874 | CK2P | Lenovo 2M 400GbE QSFP-DD to 4x100GbE QSFP56 DAC Cable | - |
| 4X97B16875 | CK2Q | Lenovo 3M 400GbE QSFP-DD to 4x100GbE QSFP56 DAC Cable | - |
25G Cable Adapter transceiver and cable support
The Mellanox QSA 100G to 25G Cable Adapter (4G17A10853) supports the transceivers listed in the following table.
| Part number | Feature code | Description |
|---|---|---|
| 1Gb transceivers | ||
| 00FE333 | A5DL | SFP 1000Base-T (RJ-45) Transceiver |
| 10Gb transceivers | ||
| 46C3447 | 5053 | SFP+ SR Transceiver |
| 7G17A03130 | AVV1 | Lenovo 10GBaseT SFP+ Transceiver |
| 4TC7A78615 | BNDR | ThinkSystem Accelink 10G SR SFP+ Ethernet transceiver |
| 25Gb transceivers | ||
| 7G17A03537 | AV1B | Lenovo Dual Rate 10G/25G SR SFP28 Transceiver |
| 4M27A67041 | BFH2 | Lenovo 25Gb SR SFP28 Ethernet Transceiver |
The Mellanox QSA 100G to 25G Cable Adapter (4G17A10853) supports the fiber optic cables and Active Optical Cables listed in the following table.
| Part number | Feature code | Description |
|---|---|---|
| LC-LC OM3 Fiber Optic Cables (these cables require a 10 GbE SFP+ SR or 25 GbE SFP28 SR transceiver) | ||
| 00MN499 | ASR5 | Lenovo 0.5m LC-LC OM3 MMF Cable |
| 00MN502 | ASR6 | Lenovo 1m LC-LC OM3 MMF Cable |
| 00MN505 | ASR7 | Lenovo 3m LC-LC OM3 MMF Cable |
| 00MN508 | ASR8 | Lenovo 5m LC-LC OM3 MMF Cable |
| 00MN511 | ASR9 | Lenovo 10m LC-LC OM3 MMF Cable |
| 00MN514 | ASRA | Lenovo 15m LC-LC OM3 MMF Cable |
| 00MN517 | ASRB | Lenovo 25m LC-LC OM3 MMF Cable |
| 00MN520 | ASRC | Lenovo 30m LC-LC OM3 MMF Cable |
| MTP-4xLC OM3 MMF Breakout Cables (these cables require a transceiver) | ||
| 00FM412 | A5UA | Lenovo 1m MPO-4xLC OM3 MMF Breakout Cable |
| 00FM413 | A5UB | Lenovo 3m MPO-4xLC OM3 MMF Breakout Cable |
| 00FM414 | A5UC | Lenovo 5m MPO-4xLC OM3 MMF Breakout Cable |
| SFP+ 10Gb Active Optical Cables | ||
| 00YL634 | ATYX | Lenovo 1M SFP+ to SFP+ Active Optical Cable |
| 00YL637 | ATYY | Lenovo 3M SFP+ to SFP+ Active Optical Cable |
| 00YL640 | ATYZ | Lenovo 5M SFP+ to SFP+ Active Optical Cable |
| 00YL643 | ATZ0 | Lenovo 7M SFP+ to SFP+ Active Optical Cable |
| 00YL646 | ATZ1 | Lenovo 15M SFP+ to SFP+ Active Optical Cable |
| 00YL649 | ATZ2 | Lenovo 20M SFP+ to SFP+ Active Optical Cable |
| SFP28 25Gb Active Optical Cables | ||
| 7Z57A03541 | AV1F | Lenovo 3m 25G SFP28 Active Optical Cable |
| 7Z57A03542 | AV1G | Lenovo 5m 25G SFP28 Active Optical Cable |
| 7Z57A03543 | AV1H | Lenovo 10m 25G SFP28 Active Optical Cable |
| 7Z57A03544 | AV1J | Lenovo 15m 25G SFP28 Active Optical Cable |
| 7Z57A03545 | AV1K | Lenovo 20m 25G SFP28 Active Optical Cable |
| QSFP28 100Gb Ethernet Breakout Active Optical Cables | ||
| 7Z57A03551 | AV1R | Lenovo 3m 100G to 4x25G Breakout Active Optical Cable |
| 7Z57A03552 | AV1S | Lenovo 5m 100G to 4x25G Breakout Active Optical Cable |
| 7Z57A03553 | AV1T | Lenovo 10m 100G to 4x25G Breakout Active Optical Cable |
| 7Z57A03554 | AV1U | Lenovo 15m 100G to 4x25G Breakout Active Optical Cable |
| 7Z57A03555 | AV1V | Lenovo 20m 100G to 4x25G Breakout Active Optical Cable |
| OM4 LC to LC Cables (these cables require a transceiver) | ||
| 4Z57A10845 | B2P9 | Lenovo 0.5m LC-LC OM4 MMF Cable |
| 4Z57A10846 | B2PA | Lenovo 1m LC-LC OM4 MMF Cable |
| 4Z57A10847 | B2PB | Lenovo 3m LC-LC OM4 MMF Cable |
| 4Z57A10848 | B2PC | Lenovo 5m LC-LC OM4 MMF Cable |
| 4Z57A10849 | B2PD | Lenovo 10m LC-LC OM4 MMF Cable |
| 4Z57A10850 | B2PE | Lenovo 15m LC-LC OM4 MMF Cable |
| 4Z57A10851 | B2PF | Lenovo 25m LC-LC OM4 MMF Cable |
| 4Z57A10852 | B2PG | Lenovo 30m LC-LC OM4 MMF Cable |
The Mellanox QSA 100G to 25G Cable Adapter (4G17A10853) supports the direct-attach copper (DAC) cables listed in the following table.
| Part number | Feature code | Description |
|---|---|---|
| SFP+ 10Gb Passive DAC Cables | ||
| 00D6288 | A3RG | 0.5m Passive DAC SFP+ Cable |
| 90Y9427 | A1PH | 1m Passive DAC SFP+ Cable |
| 00AY764 | A51N | 1.5m Passive DAC SFP+ Cable |
| 00AY765 | A51P | 2m Passive DAC SFP+ Cable |
| 90Y9430 | A1PJ | 3m Passive DAC SFP+ Cable |
| 90Y9433 | A1PK | 5m Passive DAC SFP+ Cable |
| 00D6151 | A3RH | 7m Passive DAC SFP+ Cable |
| 90Y9436 | A1PL | 8.5m IBM Passive DAC SFP+ Cable |
| SFP+ 10Gb Active DAC Cables | ||
| 00VX111 | AT2R | Lenovo 1m Active DAC SFP+ Cables |
| 00VX114 | AT2S | Lenovo 3m Active DAC SFP+ Cables |
| 00VX117 | AT2T | Lenovo 5m Active DAC SFP+ Cables |
| SFP28 25Gb Passive DAC Cables | ||
| 7Z57A03557 | AV1W | Lenovo 1m Passive 25G SFP28 DAC Cable |
| 7Z57A03558 | AV1X | Lenovo 3m Passive 25G SFP28 DAC Cable |
| 7Z57A03559 | AV1Y | Lenovo 5m Passive 25G SFP28 DAC Cable |
| QSFP28 100G-to-4x25G Ethernet Breakout Cables | ||
| 7Z57A03564 | AV22 | Lenovo 1m 100G QSFP28 to 4x25G SFP28 Breakout DAC Cable |
| 4Z57A85043 | BS32 | Lenovo 1.5m 100G to 4x25G Breakout SFP28 Breakout DAC Cable |
| 4Z57A85044 | BS33 | Lenovo 2m 100G to 4x25G Breakout SFP28 Breakout DAC Cable |
| 7Z57A03565 | AV23 | Lenovo 3m 100G QSFP28 to 4x25G SFP28 Breakout DAC Cable |
| 7Z57A03566 | AV24 | Lenovo 5m 100G QSFP28 to 4x25G SFP28 Breakout DAC Cable |
Features
The adapters have the following features:
- Accelerated Networking and Security
ConnectX-7 provides a broad set of software-defined, hardware-accelerated networking, storage, and security capabilities which enable organizations to modernize and secure their IT infrastructures. Moreover, ConnectX-7 empowers agile and high-performance solutions from edge to core data centers to clouds, all while enhancing network security and reducing the total cost of ownership.
- Accelerate Data-Driven Scientific Computing
ConnectX-7 provides ultra-low latency, extreme throughput, and innovative NVIDIA In-Network Computing engines to deliver the acceleration, scalability, and feature- rich technology needed for today’s modern scientific computing workloads.
- Accelerate Software- Defined Networking
NVIDIA ASAP2 technology accelerates software-defined networking, delivering line-rate performance with no CPU penalty.
- Enhance Storage Performance
ConnectX-7 enables high- performance and efficient data storage by leveraging RDMA/RoCE, GPUDirect Storage, and hardware-based NVMe-oF offload engines.
- SharedIO (4XC7A86669 only)
SharedIO (Shared I/O) is an implementation of Sockets Direct that is offered in Lenovo direct water-cooled (DWC) servers such as the SD650 V3, where there are two server nodes per DWC tray. In this implementation, the ConnectX-7 adapter is installed in a PCIe slot in one node and the adapter is connected via a cable to a PCIe connector on the second node. The result is that the two nodes share the network connection of the adapter with significant savings both in the cost of the adapters but also the cost of switch ports.
Technical specifications
The ConnectX-7 NDR200 adapters have the following technical specifications:
- Networking interfaces
- Two QSFP112 cages for 200 Gb/s connectivity
- 400Gb/s total bandwidth
- InfiniBand connectivity
- Support for InfiniBand NDR200 or HDR with speeds up to 200 Gb/s
- InfiniBand Trade Association Spec 1.5 compliant
- RDMA, send/receive semantics
- 16 million input/output (IO) channels
- 256 to 4Kbyte maximum transmission unit (MTU), 2Gbyte messages
- Enhanced InfiniBand Networking
- Hardware-based reliable transport
- Extended Reliable Connected (XRC)
- Dynamically Connected Transport (DCT)
- GPUDirect RDMA
- GPUDirect Storage
- Adaptive routing support
- Enhanced atomic operations
- Advanced memory mapping, allowing user mode registration (UMR)
- On-demand paging (ODP), including registration-free RDMA memory access
- Enhanced congestion control
- Burst buffer offload
- Single root IO virtualization (SR-IOV)
- Optimized for HPC software libraries including: NVIDIA HPC-X, UCX, UCC, NCCL, OpenMPI, MVAPICH, MPICH, OpenSHMEM, PGAS
- Collective operations offloads
- Support for NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARP)
- Rendezvous protocol offload
- In-network on-board memory
- Ethernet connectivity
- Supports speeds up to 200 GbE
- Supports NRZ (10G, 25G) and PAM4 (50G, 100G)
- RDMA over Converged Ethernet (RoCE)
- Enhanced Ethernet Networking
- Zero-Touch RoCE
- ASAP² Accelerated Switch and Packet Processing for SDN and VNF acceleration
- Single Root I/O Virtualization (SR-IOV)
- VirtIO acceleration
- Overlay network acceleration: VXLAN, GENEVE, NVGRE
- Programmable flexible parser
- Connection tracking (L4 firewall)
- Flow mirroring, sampling and statistics
- Header rewrite
- Hierarchical QoS
- Stateless TCP offloads
- Storage Accelerations
- Block-level encryption: XTS-AES 256/512-bit key
- NVMe over Fabrics (NVMe-oF)
- NVMe over TCP (NVMe/TCP)
- T10 Data Integrity Field (T10-DIF) signature handover
- SRP, iSER, NFS over RDMA, SMB Direct
- Management and Control
- NC-SI, MCTP over SMBus, and MCTP over PCIe
- PLDM for Monitor and Control DSP0248
- PLDM for Firmware Update DSP0267
- PLDM for Redfish Device Enablement DSP0218
- PLDM for FRU DSP0257
- SPDM DSP0274
- Serial Peripheral Interface (SPI) to flash
- JTAG IEEE 1149.1 and IEEE 1149.6
- Remote Boot
- Remote boot over InfiniBand
- Remote boot over iSCSI
- UEFI
- PXE over InfiniBand and Ethernet
- Cybersecurity
- Platform security: secure boot with hardware root-of-trust, secure firmware update, flash encryption, and device attestation
- PCI Express Interface
- PCIe Gen 5.0 x16 host interface
- Support for PCIe bifurcation
- SharedIO (NVIDIA Multi-Host) supports connection of up to two hosts (on supported water-cooled nodes only)
- Transaction layer packet (TLP) processing hints (TPH)
- PCIe switch Downstream Port Containment (DPC)
- Support for MSI/MSI-X mechanisms
- Advanced error reporting (AER)
- Access Control Service (ACS) for peer-to-peer secure communication
- Process Address Space ID (PASID)
- Address translation services (ATS)
- Support for SR-IOV
NVIDIA Unified Fabric Manager
NVIDIA Unified Fabric Manager (UFM) is InfiniBand networking management software that combines enhanced, real-time network telemetry with fabric visibility and control to support scale-out InfiniBand data centers. The two UFM offerings are available from Lenovo:
- UFM Telemetry for Real-Time Monitoring
The UFM Telemetry platform provides network validation tools to monitor network performance and conditions, capturing and streaming rich real-time network telemetry information, application workload usage, and system configuration to an on-premises or cloud-based database for further analysis.
- UFM Enterprise for Fabric Visibility and Control
The UFM Enterprise platform combines the benefits of UFM Telemetry with enhanced network monitoring and management. It performs automated network discovery and provisioning, traffic monitoring, and congestion discovery. It also enables job schedule provisioning and integrates with industry-leading job schedulers and cloud and cluster managers, including Slurm and Platform Load Sharing Facility (LSF).
The following table lists the UFM subscription licenses available from Lenovo.
| Part number | Feature code (7S09CTO6WW) |
Description | NVIDIA part number |
|---|---|---|---|
| UFM Telemetry | |||
| 7S090011WW | S921 | NVIDIA UFM Tel Subscription SW with Business Critical for up to 1000 InfiniBand Adapters (HCAs), 1 Year | 797-YUFTMA+P3CMI12 |
| 7S090012WW | S922 | NVIDIA UFM Tel Subscription SW with Business Critical for up to 1000 InfiniBand Adapters (HCAs), 3 Year | 797-YUFTMA+P3CMI36 |
| 7S090013WW | S923 | NVIDIA UFM Tel Subscription SW with Business Critical for up to 1000 InfiniBand Adapters (HCAs), 5 Year | 797-YUFTMA+P3CMI60 |
| UFM Enterprise | |||
| 7S09000XWW | S91Y | NVIDIA UFM Ent Subscription SW with Business Critical for up to 1000 InfiniBand Adapters (HCAs), 1 Year | 797-YUFETA+P3CMI12 |
| 7S09000YWW | S91Z | NVIDIA UFM Ent Subscription SW with Business Critical for up to 1000 InfiniBand Adapters (HCAs), 3 Year | 797-YUFETA+P3CMI36 |
| 7S09000ZWW | S920 | NVIDIA UFM Ent Subscription SW with Business Critical for up to 1000 InfiniBand Adapters (HCAs), 5 Year | 797-YUFETA+P3CMI60 |
For more information on NVIDIA UFM, see the NVIDIA Unified Fabric Manager product page.
Server support
The following tables list the ThinkSystem servers that are compatible.
| Part Number | Description | AMD V3 | 2S Intel V3/V4 | 1S V3 | 4S 8S Intel V3/V4 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SR635 V3 (7D9H / 7D9G) |
SR655 V3 (7D9F / 7D9E) |
SR645 V3 (7D9D / 7D9C) |
SR665 V3 (7D9B / 7D9A) |
SD535 V3 (7DD8 / 7DD1) |
ST650 V3 (7D7B / 7D7A) |
SR630 V3 (7D72 / 7D73) |
SR650 V3 (7D75 / 7D76) |
SR630 V4 (7DG8 / 7DG9) |
SR650 V4 (7DGC / 7DGD) |
SR650a V4 (7DGC / 7DGD) |
ST45 V3 (7DH4 / 7DH5) |
ST50 V3 (7DF4 / 7DF3) |
ST250 V3 (7DCF / 7DCE) |
SR250 V3 (7DCM / 7DCL) |
SR850 V3 (7D97 / 7D96) |
SR860 V3 (7D94 / 7D93) |
SR950 V3 (7DC5 / 7DC4) |
SR850 V4 (7DJT / 7DJS) |
SR860 V4 (7DJQ / 7DJN) |
||
| 4XC7A81883 | ThinkSystem NVIDIA ConnectX-7 NDR200/200GbE QSFP112 2-port PCIe Gen5 x16 InfiniBand Adapter | Y | Y | Y | Y | Y | N | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | Y | Y | Y |
| BKSL | ThinkSystem NVIDIA ConnectX-7 NDR200/HDR/200GbE QSFP112 2-Port PCIe Gen5 x16 Adapter (SharedIO) DWC | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Part Number | Description | AI Servers | Edge | Super computing | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
SR675 V3 (7D9Q / 7D9R) |
SR680a V3 B200 (7DM9) |
SR685a V3 (7DHC) |
SR780a V3 (7DJ5) |
SR680a V4 (7DMK) |
SE100 (7DGR) |
SE455 V3 (7DBY) |
SC750 V4 (7DDJ) |
SC777 V4 (7DKA) |
SD665 V3 (7D9P) |
||
| 4XC7A81883 | ThinkSystem NVIDIA ConnectX-7 NDR200/200GbE QSFP112 2-port PCIe Gen5 x16 InfiniBand Adapter | Y | Y | Y | Y | N | N | Y | N | N | N |
| BKSL | ThinkSystem NVIDIA ConnectX-7 NDR200/HDR/200GbE QSFP112 2-Port PCIe Gen5 x16 Adapter (SharedIO) DWC | N | N | N | N | N | N | N | Y | Y | Y |
| Part Number | Description | Edge | 1S Intel V2 | 2S Intel V2 | AMD V1 | Multi node | AI | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SE350 (7Z46 / 7D1X) |
SE350 V2 (7DA9) |
SE360 V2 (7DAM) |
SE450 (7D8T) |
ST50 V2 (7D8K / 7D8J) |
ST250 V2 (7D8G / 7D8F) |
SR250 V2 (7D7R / 7D7Q) |
ST650 V2 (7Z75 / 7Z74) |
SR630 V2 (7Z70 / 7Z71) |
SR650 V2 (7Z72 / 7Z73) |
SR635 (7Y98 / 7Y99) |
SR655 (7Y00 / 7Z01) |
SR645 (7D2Y / 7D2X) |
SR665 (7D2W / 7D2V) |
SD530 V3 (7DDA / 7DD3) |
SD550 V3 (7DD9 / 7DD2) |
SR670 V2 (7Z22 / 7Z23) |
SR680a V3 (7DHE) |
||
| 4XC7A81883 | ThinkSystem NVIDIA ConnectX-7 NDR200/200GbE QSFP112 2-port PCIe Gen5 x16 InfiniBand Adapter | N | N | N | N | N | N | N | N | Y | Y | N | N | Y | N | Y | Y | Y | Y |
| BKSL | ThinkSystem NVIDIA ConnectX-7 NDR200/HDR/200GbE QSFP112 2-Port PCIe Gen5 x16 Adapter (SharedIO) DWC | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Part Number | Description | SC | Dense V2 | 4S V2 | 8S | 4S V1 | 1S Intel V1 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SD665-N V3 (7DAZ) |
SD650 V3 (7D7M) |
SD650-I V3 (7D7L) |
SD650-N V3 (7D7N) |
SD630 V2 (7D1K) |
SD650 V2 (7D1M) |
SD650-N V2 (7D1N) |
SN550 V2 (7Z69) |
SR850 V2 (7D31 / 7D32) |
SR860 V2 (7Z59 / 7Z60) |
SR950 (7X11 / 7X12) |
SR850 (7X18 / 7X19) |
SR850P (7D2F / 2D2G) |
SR860 (7X69 / 7X70) |
ST50 (7Y48 / 7Y50) |
ST250 (7Y45 / 7Y46) |
SR150 (7Y54) |
SR250 (7Y52 / 7Y51) |
||
| 4XC7A81883 | ThinkSystem NVIDIA ConnectX-7 NDR200/200GbE QSFP112 2-port PCIe Gen5 x16 InfiniBand Adapter | N | N | N | N | N | N | N | N | Y | N | N | N | N | N | N | N | N | N |
| BKSL | ThinkSystem NVIDIA ConnectX-7 NDR200/HDR/200GbE QSFP112 2-Port PCIe Gen5 x16 Adapter (SharedIO) DWC | N | Y | Y | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Part Number | Description | 2S Intel V1 | Dense V1 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ST550 (7X09 / 7X10) |
SR530 (7X07 / 7X08) |
SR550 (7X03 / 7X04) |
SR570 (7Y02 / 7Y03) |
SR590 (7X98 / 7X99) |
SR630 (7X01 / 7X02) |
SR650 (7X05 / 7X06) |
SR670 (7Y36 / 7Y37) |
SD530 (7X21) |
SD650 (7X58) |
SN550 (7X16) |
SN850 (7X15) |
||
| 4XC7A81883 | ThinkSystem NVIDIA ConnectX-7 NDR200/200GbE QSFP112 2-port PCIe Gen5 x16 InfiniBand Adapter | N | N | N | N | N | N | N | N | N | N | N | N |
| BKSL | ThinkSystem NVIDIA ConnectX-7 NDR200/HDR/200GbE QSFP112 2-Port PCIe Gen5 x16 Adapter (SharedIO) DWC | N | N | N | N | N | N | N | N | N | N | N | N |
Operating system support
The following table indicates which operating systems can be preloaded in the Lenovo factory for CTO server orders where this adapter is included in the server configuration.
| Operating system | Preload support |
|---|---|
| Windows Server 2016 | No support as a preload |
| Windows Server 2019 | Supported as a preload for factory orders |
| Windows Server 2022 | Supported as a preload for factory orders |
| Windows Server 2025 | Supported as a preload for factory orders |
| VMware ESXi 6.5 U3 | No support as a preload |
| VMware ESXi 6.7 U3 | No support as a preload |
| VMware ESXi 7.0 | No support as a preload |
| VMware ESXi 7.0 U1 | No support as a preload |
| VMware ESXi 7.0 U2 | No support as a preload |
| VMware ESXi 7.0 U3 | Supported as a preload for factory orders |
| VMware ESXi 8.0 | No support as a preload |
| VMware ESXi 8.0 U1 | No support as a preload |
| VMware ESXi 8.0 U2 | No support as a preload |
| VMware ESXi 8.0 U3 | Supported as a preload for factory orders |
| VMware ESXi 9.0 | No support as a preload |
Tip: If an OS is listed as "No support" above, but it is listed in one of the support tables below, that means the OS is supported by the adapter, just not available to be preloaded in the Lenovo factory in CTO orders.
The adapters support the operating systems listed in the following tables.
- ThinkSystem NVIDIA ConnectX-7 NDR200/200GbE QSFP112 2-port PCIe Gen5 x16 InfiniBand Adapter, 4XC7A81883
- ThinkSystem SD650 V3 NVIDIA ConnectX-7 NDR200/HDR/200GbE QSFP112 2-Port PCIe Gen5 x16 Adapter (SharedIO) DWC, 4XC7A86669
- ThinkSystem SC750 V4 NVIDIA ConnectX-7 NDR200/HDR/200GbE QSFP112 2-Port PCIe Gen5 x16 Adapter (SharedIO) DWC, 4XC7A99370
Tip: These tables are automatically generated based on data from Lenovo ServerProven.
ThinkSystem NVIDIA ConnectX-7 NDR200/200GbE QSFP112 2-port PCIe Gen5 x16 InfiniBand Adapter, 4XC7A81883
The following table lists the OS support for the ThinkSystem NVIDIA ConnectX-7 NDR200/200GbE QSFP112 2-port PCIe Gen5 x16 InfiniBand Adapter.
| Operating systems | SR665 |
SR860 V4 |
SR850 V4 |
SR650 V4/SR650a V4 |
SR630 V4 |
SR680a V3 |
SR685a V3 |
SD535 V3 |
SD550 V3 |
SD530 V3 |
SR650 V3 (5th Gen Xeon) |
SR630 V3 (4th Gen Xeon) |
SR630 V3 (5th Gen Xeon) |
SR950 V3 |
SE455 V3 |
SR675 V3 |
SR860 V3 |
SR850 V3 |
SR655 V3 |
SR650 V3 (4th Gen Xeon) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Microsoft Windows Server 2019 | Y | N | N | N | N | N | N | N | N | N | Y | Y | Y | N | Y | Y | Y | Y | Y | Y |
| Microsoft Windows Server 2022 | Y | Y | Y | Y 2 | Y | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Microsoft Windows Server 2025 | Y | Y | Y | Y | Y | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.6 | Y | N | N | N | N | N | N | N | N | N | N | Y | N | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.7 | Y | N | N | N | N | N | N | N | N | N | N | Y | N | Y | N | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.8 | Y | N | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.9 | Y | N | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.10 | Y | N | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 9.0 | Y | N | N | N | N | N | N | N | N | N | N | Y | N | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 9.1 | Y | N | N | N | N | N | N | N | N | N | N | Y | N | Y | N | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 9.2 | Y | N | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 9.3 | Y | N | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 9.4 | Y | N | N | Y | Y | Y | Y 3 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 9.5 | Y | N | N | Y | Y | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 9.6 | Y | Y | Y | Y | Y | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 9.7 | Y | Y | Y | Y | Y | N | N | Y | Y | Y | Y | Y | Y | Y | Y | N | Y | Y | Y | Y |
| Red Hat Enterprise Linux 9.8 | Y | Y | Y | Y | Y | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 10.0 | Y | Y | Y | Y | Y | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 10.1 | Y | Y | Y | Y | Y | N | N | Y | Y | Y | N | Y | Y | Y | Y | N | Y | Y | Y | Y |
| Red Hat Enterprise Linux 10.2 | Y | Y | Y | Y | Y | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 12 SP5 | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| SUSE Linux Enterprise Server 15 SP4 | Y | N | N | N | N | N | N | N | N | N | N | Y | N | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 15 SP5 | Y | N | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 15 SP6 | Y | N | N | Y | Y | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 15 SP7 | Y | Y | Y | Y | Y | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 16 | Y | Y | Y | Y | Y | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Ubuntu 22.04.2 LTS or later with HWE kernel | N | N | N | N | N | N | N | N | N | N | N | N | N | N | Y | N | N | N | N | N |
| Ubuntu 22.04.3 LTS or later with HWE kernel | N | N | N | N | N | N | N | Y | Y | Y | Y | N | Y | N | N | N | N | N | N | N |
| Ubuntu 22.04.5 LTS or later with HWE kernel | N | Y | Y | Y | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Ubuntu 22.04 LTS or later with HWE kernel | Y | N | N | N | N | Y | Y 3 | N | N | N | N | Y | N | N | N | Y | Y | Y | Y | Y |
| Ubuntu 24.04 LTS or later with HWE kernel | Y 1 | Y | Y | Y | Y | Y | Y 3 | Y | Y 1 | Y 1 | Y 4 | Y 1 | Y 1 | Y | Y 1 | Y 1 | Y 1 | Y 1 | Y 1 | Y 4 |
| Ubuntu 26.04 LTS or later with HWE kernel | Y | Y | Y | Y | Y | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 7.0 U3 | Y | N | N | N | N | N | N | Y | Y | Y | Y | Y | Y | N | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 8.0 U2 | Y | N | N | N | N | N | N | Y | Y | Y | Y | Y | N | Y | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 8.0 U3 | Y | N | N | Y | Y | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 9.0 | Y | Y | Y | Y | Y | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 9.1 | Y | Y | Y | Y | Y | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
1 The iboot hard drive can't be identified)
2 For limitation, please refer Support Tip TT2791
3 For limitation, please refer Support Tip TT2258
4 The iboot hard drive can't be identified
| Operating systems | SR635 V3 |
SR850 V2 |
SR670 V2 |
SR650 V2 |
SR630 V2 |
SR665 V3 |
SR645 V3 |
SR645 |
SR680a V3 B200 |
|---|---|---|---|---|---|---|---|---|---|
| Microsoft Windows Server 2019 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Microsoft Windows Server 2022 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Microsoft Windows Server 2025 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 8.6 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 8.7 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 8.8 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 8.9 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 8.10 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 9.0 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 9.1 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 9.2 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 9.3 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 9.4 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 9.5 | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 9.6 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 9.7 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 9.8 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 10.0 | Y | N | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 10.1 | Y | N | Y | Y | Y | Y | Y | Y | N |
| Red Hat Enterprise Linux 10.2 | Y | N | Y | Y | Y | Y | Y | Y | N |
| SUSE Linux Enterprise Server 12 SP5 | N | Y | Y | Y | Y | N | N | Y | N |
| SUSE Linux Enterprise Server 15 SP4 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| SUSE Linux Enterprise Server 15 SP5 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| SUSE Linux Enterprise Server 15 SP6 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| SUSE Linux Enterprise Server 15 SP7 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| SUSE Linux Enterprise Server 16 | N | N | N | Y | Y | Y | Y | Y | N |
| Ubuntu 22.04.2 LTS or later with HWE kernel | N | N | N | N | N | N | N | N | N |
| Ubuntu 22.04.3 LTS or later with HWE kernel | N | N | N | N | N | N | N | N | N |
| Ubuntu 22.04.5 LTS or later with HWE kernel | N | N | N | N | N | Y | Y | N | N |
| Ubuntu 22.04 LTS or later with HWE kernel | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Ubuntu 24.04 LTS or later with HWE kernel | Y 1 | Y 1 | Y 1 | Y 1 | Y 1 | Y 1 | Y 2 | Y 1 | Y |
| Ubuntu 26.04 LTS or later with HWE kernel | Y | N | N | N | N | Y | Y | Y | N |
| VMware vSphere Hypervisor (ESXi) 7.0 U3 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| VMware vSphere Hypervisor (ESXi) 8.0 U2 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| VMware vSphere Hypervisor (ESXi) 8.0 U3 | Y | Y | Y | Y | Y | Y | Y | Y | N |
| VMware vSphere Hypervisor (ESXi) 9.0 | Y | N | Y | Y | Y | Y | Y | Y | N |
| VMware vSphere Hypervisor (ESXi) 9.1 | Y | N | Y | Y | Y | Y | Y | Y | N |
1 The iboot hard drive can't be identified)
2 The iboot hard drive can't be identified
ThinkSystem SD650 V3 NVIDIA ConnectX-7 NDR200/HDR/200GbE QSFP112 2-Port PCIe Gen5 x16 Adapter (SharedIO) DWC, 4XC7A86669
The following table lists the OS support for the ThinkSystem SD650 V3 NVIDIA ConnectX-7 NDR200/HDR/200GbE QSFP112 2-Port PCIe Gen5 x16 Adapter (SharedIO) DWC.
| Operating systems | SD650 V3 |
SD650 V3 (5th Gen Xeon) |
SD650-N V3 (4th Gen Xeon) |
SD650-N V3 (5th Gen Xeon) |
SD650-I V3 (4th Gen Xeon) |
SD650-I V3 (5th Gen Xeon) |
|---|---|---|---|---|---|---|
| Red Hat Enterprise Linux 8.6 | Y | N | N | N | Y | N |
| Red Hat Enterprise Linux 8.8 | Y | Y | N | N | Y | Y |
| Red Hat Enterprise Linux 8.10 | Y | Y | N | N | N | N |
| Red Hat Enterprise Linux 9.0 | Y | N | N | N | N | N |
| Red Hat Enterprise Linux 9.2 | Y | Y | N | N | Y | Y |
| Red Hat Enterprise Linux 9.4 | Y | Y | N | N | N | N |
| Red Hat Enterprise Linux 9.6 | Y | Y | Y | Y | N | N |
| Red Hat Enterprise Linux 10.0 | Y | Y | Y | Y | N | N |
| Red Hat Enterprise Linux 10.2 | Y | Y | Y | Y | N | N |
| SUSE Linux Enterprise Server 15 SP4 | Y | N | N | N | Y | N |
| SUSE Linux Enterprise Server 15 SP5 | Y | Y | N | N | Y | Y |
| SUSE Linux Enterprise Server 15 SP6 | Y | Y | N | N | N | N |
| SUSE Linux Enterprise Server 15 SP7 | Y | N | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 16 | Y | Y | Y | Y | N | N |
| Ubuntu 22.04.3 LTS or later with HWE kernel | N | Y | Y | Y | N | N |
| Ubuntu 22.04 LTS or later with HWE kernel | Y | N | N | N | N | N |
| Ubuntu 24.04 LTS or later with HWE kernel | Y 1 | Y 1 | N | N | N | N |
1 The iboot hard drive can't be identified)
ThinkSystem SC750 V4 NVIDIA ConnectX-7 NDR200/HDR/200GbE QSFP112 2-Port PCIe Gen5 x16 Adapter (SharedIO) DWC, 4XC7A99370
The following table lists the OS support for the ThinkSystem SC750 V4 NVIDIA ConnectX-7 NDR200/HDR/200GbE QSFP112 2-Port PCIe Gen5 x16 Adapter (SharedIO) DWC.
| Operating systems | SC750 V4 |
|---|---|
| Red Hat Enterprise Linux 9.4 | Y |
| Red Hat Enterprise Linux 9.6 | Y |
| Red Hat Enterprise Linux 10.0 | Y |
| Red Hat Enterprise Linux 10.2 | Y |
| SUSE Linux Enterprise Server 15 SP6 | Y |
| SUSE Linux Enterprise Server 15 SP7 | Y |
| SUSE Linux Enterprise Server 16 | Y |
| Ubuntu 22.04 LTS or later with HWE kernel | Y |
| Ubuntu 24.04 LTS or later with HWE kernel | Y |
| VMware vSphere Hypervisor (ESXi) 9.1 | Y |
Regulatory approvals
The adapters have the following regulatory approvals:
- Safety: CB / cTUVus / CE
- EMC: CE / FCC / VCCI / ICES / RCM / KC
- RoHS: RoHS Compliant
Operating environment
The adapters have the following operating characteristics:
- Typical power consumption (passive cables): 19.3W
- Maximum power available through QSFP56 port: 5W
- Temperature
- Operational: 0°C to 55°C
- Non-operational: -40°C to 70°C
- Humidity: 90% relative humidity
Warranty
One year limited warranty. When installed in a Lenovo server, the adapter assumes the server’s base warranty and any warranty upgrades.
Related product families
Product families related to this document are the following:
- Ethernet Adapters
- InfiniBand & Omni-Path Adapters
Trademarks
Lenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at https://www.lenovo.com/us/en/legal/copytrade/.
The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo®
ServerProven®
ThinkSystem®
The following terms are trademarks of other companies:
AMD is a trademark of Advanced Micro Devices, Inc.
Intel®, the Intel logo and Xeon® are trademarks of Intel Corporation or its subsidiaries.
Linux® is the trademark of Linus Torvalds in the U.S. and other countries.
Microsoft®, Windows Server®, and Windows® are trademarks of Microsoft Corporation in the United States, other countries, or both.
NVIDIA® is a trademark of NVIDIA Corporation.
Other company, product, or service names may be trademarks or service marks of others.
