The ThinkSystem NVIDIA BlueField-3 QSFP112 Adapters are an advanced compute platform that enables software-defined, hardware-accelerated IT infrastructures. With up to 16 Arm cores and 400Gb/s of Ethernet or NDR InfiniBand network connectivity, BlueField-3 data processing units (DPUs) and SuperNICs offload, accelerate, and isolate software-defined networking, storage, security, and management functions.

This product guide provides essential presales information to understand the BlueField-3 adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the BlueField-3 adapters and consider their use in IT solutions.

Changes in the March 5, 2026 update:

Added OS support for the following adapter - Operating system support section:
- ThinkSystem NVIDIA Bluefield-3 B3240 2P 400G PCIe Gen5 x16 Crypto Enabled(Generic FW) with Tin Plating Connector, 4XC7A96568

Introduction

NVIDIA BlueField-3 is an advanced compute platform that enables software-defined, hardware-accelerated IT infrastructures. BlueField-3 offloads, accelerates, and isolates software-defined networking, storage, security, and management functions.

The following BlueField-3 adapters are offered in the ThinkSystem portfolio:

Model B3140H, a SuperNIC, with 8 Arm cores,16GB of DDR5 memory, and one port of 400Gb/s Ethernet or NDR InfiniBand network connectivity
Model B3220, a data processing unit (DPU) single-slot adapter, with 16 Arm cores, 32GB of DDR5 memory, and two ports of 200Gb/s Ethernet or NDR200 InfiniBand network connectivity
Model B3240, a data processing unit (DPU) dual-slot adapter, with 16 Arm cores, 32GB of DDR5 memory, and two ports of 400Gb/s Ethernet or NDR InfiniBand network connectivity

The NVIDIA BlueField-3 DPU is a full-height half-length (FHHL) adapter as shown in the following figure.

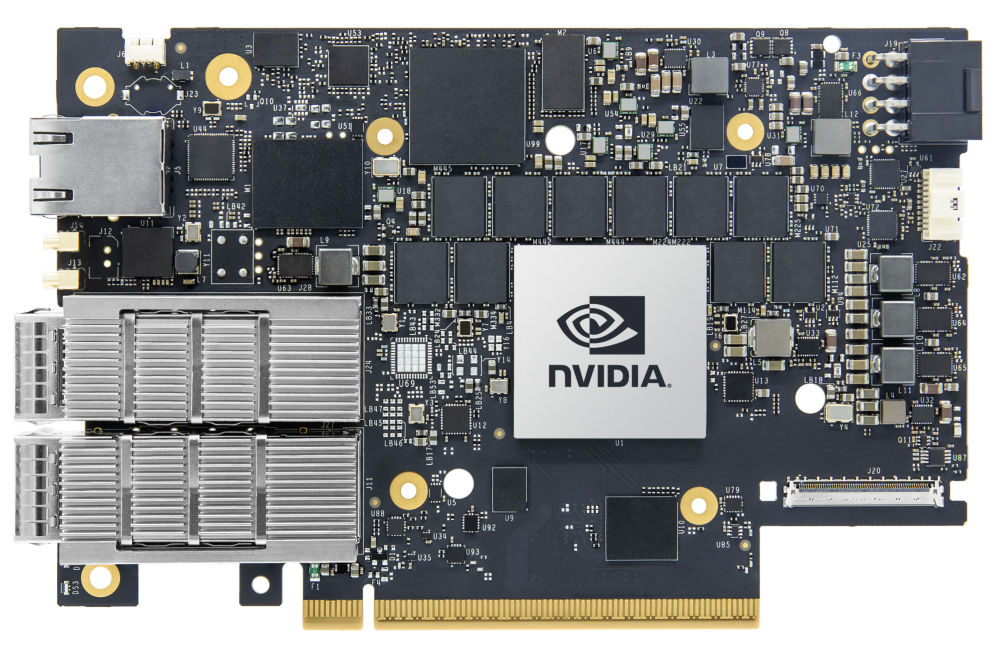

ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 Adapter
Figure 1. ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 Adapter

Did you know?

Powered by NVIDIA DOCA™, BlueField-3 enables full data center programmability through open APIs and an optimized developer experience. Top ISV providers and server makers are using DOCA for accelerating innovation and achieving better business outcomes with BlueField DPUs. Paired with NVIDIA GPUs, BlueField-3 secures and accelerates cloud-native computing platforms.

Compared to the BlueField-2 adapter, the BlueField-3 provides 4X more compute power, up to 4X faster crypto acceleration, 2X faster storage processing, and 4X more memory bandwidth, all while delivering full backward compatibility through the NVIDIA DOCA™ software framework.

Part number information

The following table shows the part number for the adapter and auxiliary power cable. The power cable is required to provide the power needed by the adapter.

Table 1. Part number information
Part number	Feature code	Description	NVIDIA model	NVIDIA part number	Additional information
BlueField-3 SuperNIC
4XC7A93809	C0Q4	ThinkSystem NVIDIA BlueField-3 B3140H VPI QSFP112 1P 400G PCIe Gen5 x16 Adapter	B3140H SuperNIC	900-9D3D4-00EN-HA0	-
BlueField-3 DPU
4XC7A87752	BVBG	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 Adapter	B3220 DPU	900-9D3B6-00CV-AA0	Gold-plated power connector
4XC7B08942	CCVX	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 with Tin Plating Connector	B3220 DPU	-	Tin-plated power connector
4XC7A96568	C4GD	ThinkSystem NVIDIA Bluefield-3 B3240 2P 400G PCIe Gen5 x16 Crypto Enabled(Generic FW) with Tin Plating Connector	B3240 DPU	900-9D3B6-00CN-AB0	Tin-plated power connector, dual-slot adapter
Auxiliary power cables for BlueField-3 DPU (for B3220, B3240)
4X97B02426	BMJL	ThinkSystem V3 2U BlueField-3 B3220 Power Cable Kit	-	-	For use with adapter BVBG only
4X97A91527	BXB6	ThinkSystem SR675 V3 BlueField-3 Power Cable Kit	-	-	For use with adapter BVBG only
4X97B04861	C6R3+C6R1	ThinkSystem SR650/a V4 DPU Adapter Power Cable Kit	-	-	For use with adapter BVBG or CCVX
CTO only	C1F7	ThinkSystem Rear BlueField-3 Power Cable	-	-	For use with adapter BVBG only
CTO only	C9K3	ThinkSystem BlueField-3 Power Cable	-	-	For use with adapter CCVX and C4GD only
4X97B13363	CEAJ	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 with Tin Plating Connector Power Cable	-	-	For use with adapter CCVX and C4GD only

The part number includes the following:

One adapter with a full-height (3U) adapter bracket
Documentation

The NVIDIA BlueField-3 SuperNIC is a half-height half-length (HHHL) adapter as shown in the following figure.

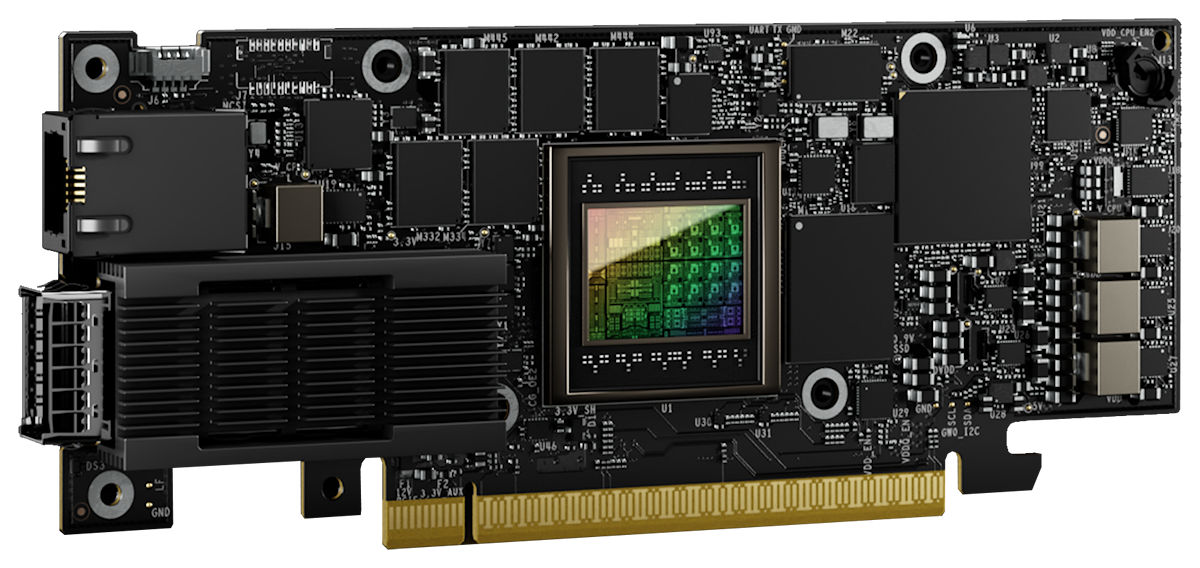

ThinkSystem NVIDIA BlueField-3 B3140H VPI QSFP112 1P 400G PCIe Gen5 x16 Adapter
Figure 2. ThinkSystem NVIDIA BlueField-3 B3140H VPI QSFP112 1P 400G PCIe Gen5 x16 Adapter

Supported transceivers and cables - B3140H

This section lists the transceivers and cables supported by the B3140H adpater.

The following table lists the supported transceivers.

Table 2. Transceivers
Part number	Feature code	Description	NVIDIA part number
200/400Gb Transceivers
4TC7A81831	BQJZ	ThinkSystem NDR/NDR200 QSFP112 IB Multi Mode Solo-Transceiver	980-9I693-00NS00

The following table lists the supported rack cabinets.

Table 3. Rack cabinets (D)
Model	Description
7D6DA007WW	ThinkSystem 42U Onyx Primary Heavy Duty Rack Cabinet (1200mm)
7D6DA008WW	ThinkSystem 42U Pearl Primary Heavy Duty Rack Cabinet (1200mm)
7D6EA009WW	ThinkSystem 48U Onyx Primary Heavy Duty Rack Cabinet (1200mm)
7D6EA00AWW	ThinkSystem 48U Pearl Primary Heavy Duty Rack Cabinet (1200mm)
93074RX	42U Standard Rack (1000mm)
93604PX	42U 1200mm Deep Dynamic Rack
93604EX	42U 1200mm Deep Dynamic Expansion Rack
93614PX	42U 1200mm Deep Static Rack
93614EX	42U 1200mm Deep Static Expansion Rack
93634PX	42U 1100mm Dynamic Rack
93634EX	42U 1100mm Dynamic Expansion Rack
93084PX	42U Enterprise Rack
93084EX	42U Enterprise Expansion Rack

For specifications about these racks, see the Lenovo Rack Cabinet Reference, available from:
https://lenovopress.com/lp1287-lenovo-rack-cabinet-reference

For more information, see the list of Product Guides in the Rack cabinets category:
https://lenovopress.com/servers/options/racks

Supported transceivers and cables - B3220

This section lists the transceivers and cables supported by the B3220 adapters.

The following table lists the supported transceivers.

Table 4. Transceivers
Part number	Feature code	Description	NVIDIA part number
100Gb Transceivers
4TC7B14550	CFUH	Lenovo NVIDIA 100GbE DR1 QSFP28 LC Single mode Transceiver (Generic)	980-9I042-00C000
200/400Gb Transceivers
4TC7A81831	BQJZ	ThinkSystem NDR/NDR200 QSFP112 IB Multi Mode Solo-Transceiver	980-9I693-00NS00
400Gb Transceivers
4TC7B10047	CFUD	Lenovo NVIDIA Single Port 400GbE QSFP112, MPO12 APC, MMF Transceiver, Up to 50M - Flat Top (Generic)	980-9I693-F4NS00

The following table lists the supported rack cabinets.

Table 5. Rack cabinets (D)
Model	Description
7D6DA007WW	ThinkSystem 42U Onyx Primary Heavy Duty Rack Cabinet (1200mm)
7D6DA008WW	ThinkSystem 42U Pearl Primary Heavy Duty Rack Cabinet (1200mm)
7D6EA009WW	ThinkSystem 48U Onyx Primary Heavy Duty Rack Cabinet (1200mm)
7D6EA00AWW	ThinkSystem 48U Pearl Primary Heavy Duty Rack Cabinet (1200mm)
93074RX	42U Standard Rack (1000mm)
93604PX	42U 1200mm Deep Dynamic Rack
93604EX	42U 1200mm Deep Dynamic Expansion Rack
93614PX	42U 1200mm Deep Static Rack
93614EX	42U 1200mm Deep Static Expansion Rack
93634PX	42U 1100mm Dynamic Rack
93634EX	42U 1100mm Dynamic Expansion Rack
93084PX	42U Enterprise Rack
93084EX	42U Enterprise Expansion Rack

For specifications about these racks, see the Lenovo Rack Cabinet Reference, available from:
https://lenovopress.com/lp1287-lenovo-rack-cabinet-reference

For more information, see the list of Product Guides in the Rack cabinets category:
https://lenovopress.com/servers/options/racks

Supported transceivers and cables - B3240

This section lists the transceivers and cables supported by the B3240 adapter.

The following table lists the supported transceivers.

Table 6. Transceivers
Part number	Feature code	Description	NVIDIA part number
200/400Gb Transceivers
4TC7A81831	BQJZ	ThinkSystem NDR/NDR200 QSFP112 IB Multi Mode Solo-Transceiver	980-9I693-00NS00

The following table lists the supported rack cabinets.

Table 7. Rack cabinets (D)
Model	Description
7D6DA007WW	ThinkSystem 42U Onyx Primary Heavy Duty Rack Cabinet (1200mm)
7D6DA008WW	ThinkSystem 42U Pearl Primary Heavy Duty Rack Cabinet (1200mm)
7D6EA009WW	ThinkSystem 48U Onyx Primary Heavy Duty Rack Cabinet (1200mm)
7D6EA00AWW	ThinkSystem 48U Pearl Primary Heavy Duty Rack Cabinet (1200mm)
93074RX	42U Standard Rack (1000mm)
93604PX	42U 1200mm Deep Dynamic Rack
93604EX	42U 1200mm Deep Dynamic Expansion Rack
93614PX	42U 1200mm Deep Static Rack
93614EX	42U 1200mm Deep Static Expansion Rack
93634PX	42U 1100mm Dynamic Rack
93634EX	42U 1100mm Dynamic Expansion Rack
93084PX	42U Enterprise Rack
93084EX	42U Enterprise Expansion Rack

For specifications about these racks, see the Lenovo Rack Cabinet Reference, available from:
https://lenovopress.com/lp1287-lenovo-rack-cabinet-reference

For more information, see the list of Product Guides in the Rack cabinets category:
https://lenovopress.com/servers/options/racks

Workloads

The BlueField-3 adapters are suitable for the following workload types:

Cloud Networking: Cloud overlay, SDN acceleration, NAT, load balancer, NFV, video streaming
Storage: NVMe over Fabrics (NVMe-oF), NVMe/ TCP™, elastic storage, hyper converged infrastructure (HCI)
Security: Distributed next- generation firewall, IDS/ IPS, root of trust, micro- segmentation, DDOS prevention
HPC / AI: Cloud-native supercomputing, multi-tenancy and security, communication accelerations
Telco and Edge: Cloud RAN, virtualized edge gateways, VNF acceleration, edge microservers

Technical specifications

The BlueField-3 adapters have the following technical specifications:

Adapter specifications

Form factor:
- B3140H adapter: Single-slot HHHL adapter
- B3220 adapter: Single-slot FHHL adapter
- B3240 adapter: Dual-slot FHHL adapter
Ports:
- B3140H adapter: 1 port with a QSFP112 cage, providing 400Gb/s Ethernet or NDR InfiniBand connectivity
- B3220 adapter: 2 ports using 2x QSFP112 cages, each providing 200Gb/s Ethernet or NDR200 InfiniBand connectivity
- B3240 adapter: 2 ports using 2x QSFP112 cages, each providing 400Gb/s Ethernet or NDR InfiniBand connectivity
Based on a ConnectX-7 networking subsystem
PCIe Gen5 x16 host interface
Support for an Auxiliary Card which provides an additional x16 host connection for Sockets Direct (SharedIO) support (B3240, B3220 adapters only)
Maximum power consumption:
- B3140H adapter: 75W
- B3220 adapter: 75W+150W
- B3240 adapter: 75W+150W

Compute and Memory

Arm CPU cores
- B3140H adapter: 8 Arm v8.2+ A78 Hercules cores (64-bit)
- B3220 adapter: 16 Arm v8.2+ A78 Hercules cores (64-bit)
- B3240 adapter: 16 Arm v8.2+ A78 Hercules cores (64-bit)
- 8MB L2 cache
- 16MB LLC system cache
Programmable Datapath Accelerator
- Programmability through DOCA
- Heavy multi-threading applications acceleration
DDR DIMM support
- Dual DDR5 5600MT/s DRAM controllers
- Onboard memory:
  - B3140H adapter: 16GB DDR5
  - B3220 adapter: 32GB DDR5
  - B3240 adapter: 32GB DDR5
- ECC error protection support

Networking protocol support

InfiniBand: IBTA v1.5(a) (Auto-Negotiation):
- (B3240, B3140H adapters only) NDR (4 lanes x 100Gb/s per lane)
- NDR200 (2 lanes x 100Gb/s per lane)
- HDR (50Gb/s per lane)
- HDR100 (2 lane x 50Gb/s per lane)
- EDR (25Gb/s per lane)
- FDR (14.0625Gb/s per lane)
- 1X/2X/4X SDR (2.5Gb/s per lane).
Ethernet:
- (B3240, B3140H adapters only) 400GAUI-4 C2M, 400GBASE-CR4
- 200GAUI-2 C2M, 200GAUI-4 C2M, 200GBASE-CR4
- 100GAUI-2 C2M, 100GAUI-1 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1
- 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2
- 40GBASE-CR4, 40GBASE-R2
- 25GBASE-R
- 10GBASE-R, 10GBASE-CX4
- 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI

Hardware Accelerations

Security
- Platform security
- Secure boot with hardware root-of-trust (RoT)
- Secure firmware update
- On-board flash encryption
- Device attestation
- Functional isolation layer
- Regular expression (RegEx) matching processor
- IPsec/TLS/MACSec 128/256-bit data-in-motion encryption
- PSP security protocol (PSP)
- AES-GCM 128/256bit key
- AES-XTS 256/512bit data-at-rest encryption
- Connection tracking for statefull firewall
- Public key accelerator (PKA)
- True random number generator (TRNG)
Cryptography (B3240 only)
- Inline crypto accelerations: IPsec, TLS, MACsec, PSP
Storage
- BlueField SNAP - Elastic block storage - NVMe and VirtIO-blk
- NVMe-oF and NVMe/TCP acceleration
- Decompression engine
- Erasure coding for RAID implementation
Networking
- RoCE, Zero Touch RoCE
- ASAP² - Accelerated Switch and Packet Processing® for SDN and VNF acceleration
- Single Root I/O Virtualization (SR-IOV)
- VirtIO acceleration
- Overlay network acceleration
- VXLAN, Geneve, NVGRE
- Programmable flexible parser: user-defined classification
- Connection tracking (L4 firewall)
- Flow mirroring, sampling and statistics
- Header rewrite
- Hierarchical QoS
- Stateless TCP offloads
HPC/AI Accelerations
- HPC / AI All-to-All engine
- NVIDIA GPUDirect
- NVIDIA GPUDirect Storage (GDS)
- HPC MPI Tag Matching

Additional features

Advanced Timing and Synchronization
- IEEE 1588v2 (any profile)
- G.8273.2 Class C
- PTP hardware clock (PHC)
- Line rate hardware timestamp
- SyncE
- G.8262.1 (eEEC)
- Configurable PPS In and PPS Out
- Time triggered scheduling
- Time-based SDN acceleration
Boot Options
- Secure boot (RSA authenticated)
- Remote boot over Ethernet
- Remote boot over iSCSI
- PXE and UEFI
Management
- 1GbE out-of-band management port via the RJ45 port (can be disabled)
- In-band management via the two network ports (can be disabled)
- NC-SI, MCTP over SMBus, and MCTP over PCIe
- IPMI management interface
- PLDM for Monitor and Control DSP0248
- PLDM for Firmware Update DSP026
- I2C interface for device control and configuration
- SPI interface to flash
- eMMC memory controller
- UART via the onboard 20-pin NCSI/UART connector
- USB via an onboard 4-pin connector

Server support

The following tables list the ThinkSystem servers that are compatible.

Table 8. Server support - Current servers (Part 1 of 2)
Part Number	Description	AMD V3					2S Intel V3/V4						1S V3				4S 8S Intel V3/V4
Part Number	Description	SR635 V3 (7D9H / 7D9G)	SR655 V3 (7D9F / 7D9E)	SR645 V3 (7D9D / 7D9C)	SR665 V3 (7D9B / 7D9A)	SD535 V3 (7DD8 / 7DD1)	ST650 V3 (7D7B / 7D7A)	SR630 V3 (7D72 / 7D73)	SR650 V3 (7D75 / 7D76)	SR630 V4 (7DG8 / 7DG9)	SR650 V4 (7DGC / 7DGD)	SR650a V4 (7DGC / 7DGD)	ST45 V3 (7DH4 / 7DH5)	ST50 V3 (7DF4 / 7DF3)	ST250 V3 (7DCF / 7DCE)	SR250 V3 (7DCM / 7DCL)	SR850 V3 (7D97 / 7D96)	SR860 V3 (7D94 / 7D93)	SR950 V3 (7DC5 / 7DC4)	SR850 V4 (7DJT / 7DJS)	SR860 V4 (7DJQ / 7DJN)
BlueField-3 adapters
4XC7A93809	ThinkSystem NVIDIA BlueField-3 B3140H VPI QSFP112 1P 400G PCIe Gen5 x16 Adapter	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N
4XC7A87752	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 Adapter	N	Y	N	Y	N	N	N	Y	N	Y	Y	N	N	N	N	N	N	N	N	N
4XC7B08942	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 with Tin Plating Connector	N	Y	N	Y	N	N	N	Y	N	Y	Y	N	N	N	N	N	N	N	N	N
4XC7A96568	ThinkSystem NVIDIA Bluefield-3 B3240 2P 400G PCIe Gen5 x16 Crypto Enabled(Generic FW) with Tin Plating Connector	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N
Auxiliary power cables for BlueField-3 DPU (model B3220, B3240)
4X97B02426	ThinkSystem V3 2U BlueField-3 B3220 Power Cable Kit	N	Y	N	Y	N	N	N	Y	N	N	N	N	N	N	N	N	N	N	N	N
4X97B04861	ThinkSystem SR650/a V4 DPU Adapter Power Cable Kit	N	N	N	N	N	N	N	N	N	Y	Y	N	N	N	N	N	N	N	N	N
C1F7	ThinkSystem Rear BlueField-3 Power Cable	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N
C9K3	ThinkSystem BlueField-3 Power Cable	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N
4X97B13363	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 with Tin Plating Connector Power Cable	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N

Table 9. Server support - Current servers (Part 2 of 2)
Part Number	Description	AI Servers					Edge		Super computing
Part Number	Description	SR675 V3 (7D9Q / 7D9R)	SR680a V3 B200 (7DM9)	SR685a V3 (7DHC)	SR780a V3 (7DJ5)	SR680a V4 (7DMK)	SE100 (7DGR)	SE455 V3 (7DBY)	SC750 V4 (7DDJ)	SC777 V4 (7DKA)	SD665 V3 (7D9P)
BlueField-3 adapters
4XC7A93809	ThinkSystem NVIDIA BlueField-3 B3140H VPI QSFP112 1P 400G PCIe Gen5 x16 Adapter	Y	Y	Y	Y	N	N	N	N	N	N
4XC7A87752	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 Adapter	Y	Y	Y	Y	Y	N	N	N	N	N
4XC7B08942	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 with Tin Plating Connector	Y	Y	N	Y	Y	N	N	N	N	N
4XC7A96568	ThinkSystem NVIDIA Bluefield-3 B3240 2P 400G PCIe Gen5 x16 Crypto Enabled(Generic FW) with Tin Plating Connector	N	N	N	N	Y	N	N	N	N	N
Auxiliary power cables for BlueField-3 DPU (model B3220, B3240)
4X97B02426	ThinkSystem V3 2U BlueField-3 B3220 Power Cable Kit	N	N	N	N	N	N	N	N	N	N
4X97B04861	ThinkSystem SR650/a V4 DPU Adapter Power Cable Kit	N	N	N	N	N	N	N	N	N	N
C1F7	ThinkSystem Rear BlueField-3 Power Cable	N	Y	Y	Y	Y	N	N	N	N	N
C9K3	ThinkSystem BlueField-3 Power Cable	N	Y	N	Y	Y	N	N	N	N	N
4X97B13363	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 with Tin Plating Connector Power Cable	Y	N	N	N	N	N	N	N	N	N

Table 10. Server support - Withdrawn servers (Part 1 of 3)
Part Number	Description	Edge				1S Intel V2			2S Intel V2			AMD V1				Multi node		AI
Part Number	Description	SE350 (7Z46 / 7D1X)	SE350 V2 (7DA9)	SE360 V2 (7DAM)	SE450 (7D8T)	ST50 V2 (7D8K / 7D8J)	ST250 V2 (7D8G / 7D8F)	SR250 V2 (7D7R / 7D7Q)	ST650 V2 (7Z75 / 7Z74)	SR630 V2 (7Z70 / 7Z71)	SR650 V2 (7Z72 / 7Z73)	SR635 (7Y98 / 7Y99)	SR655 (7Y00 / 7Z01)	SR645 (7D2Y / 7D2X)	SR665 (7D2W / 7D2V)	SD530 V3 (7DDA / 7DD3)	SD550 V3 (7DD9 / 7DD2)	SR670 V2 (7Z22 / 7Z23)	SR680a V3 (7DHE)
BlueField-3 adapters
4XC7A93809	ThinkSystem NVIDIA BlueField-3 B3140H VPI QSFP112 1P 400G PCIe Gen5 x16 Adapter	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	Y
4XC7A87752	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 Adapter	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	Y
4XC7B08942	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 with Tin Plating Connector	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	Y
4XC7A96568	ThinkSystem NVIDIA Bluefield-3 B3240 2P 400G PCIe Gen5 x16 Crypto Enabled(Generic FW) with Tin Plating Connector	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N
Auxiliary power cables for BlueField-3 DPU (model B3220, B3240)
4X97B02426	ThinkSystem V3 2U BlueField-3 B3220 Power Cable Kit	N	N	N	N	N	N	N	N	N	Y	N	N	N	Y	N	N	N	N
4X97B04861	ThinkSystem SR650/a V4 DPU Adapter Power Cable Kit	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N
C1F7	ThinkSystem Rear BlueField-3 Power Cable	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	Y
C9K3	ThinkSystem BlueField-3 Power Cable	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	Y
4X97B13363	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 with Tin Plating Connector Power Cable	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N

Table 11. Server support - Withdrawn servers (Part 2 of 3)
Part Number	Description	SC				Dense V2				4S V2		8S	4S V1			1S Intel V1
Part Number	Description	SD665-N V3 (7DAZ)	SD650 V3 (7D7M)	SD650-I V3 (7D7L)	SD650-N V3 (7D7N)	SD630 V2 (7D1K)	SD650 V2 (7D1M)	SD650-N V2 (7D1N)	SN550 V2 (7Z69)	SR850 V2 (7D31 / 7D32)	SR860 V2 (7Z59 / 7Z60)	SR950 (7X11 / 7X12)	SR850 (7X18 / 7X19)	SR850P (7D2F / 2D2G)	SR860 (7X69 / 7X70)	ST50 (7Y48 / 7Y50)	ST250 (7Y45 / 7Y46)	SR150 (7Y54)	SR250 (7Y52 / 7Y51)
BlueField-3 adapters
4XC7A93809	ThinkSystem NVIDIA BlueField-3 B3140H VPI QSFP112 1P 400G PCIe Gen5 x16 Adapter	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N
4XC7A87752	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 Adapter	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N
4XC7B08942	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 with Tin Plating Connector	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N
4XC7A96568	ThinkSystem NVIDIA Bluefield-3 B3240 2P 400G PCIe Gen5 x16 Crypto Enabled(Generic FW) with Tin Plating Connector	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N
Auxiliary power cables for BlueField-3 DPU (model B3220, B3240)
4X97B02426	ThinkSystem V3 2U BlueField-3 B3220 Power Cable Kit	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N
4X97B04861	ThinkSystem SR650/a V4 DPU Adapter Power Cable Kit	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N
C1F7	ThinkSystem Rear BlueField-3 Power Cable	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N
C9K3	ThinkSystem BlueField-3 Power Cable	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N
4X97B13363	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 with Tin Plating Connector Power Cable	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N

Table 12. Server support - Withdrawn servers (Part 3 of 3)
Part Number	Description	2S Intel V1								Dense V1
Part Number	Description	ST550 (7X09 / 7X10)	SR530 (7X07 / 7X08)	SR550 (7X03 / 7X04)	SR570 (7Y02 / 7Y03)	SR590 (7X98 / 7X99)	SR630 (7X01 / 7X02)	SR650 (7X05 / 7X06)	SR670 (7Y36 / 7Y37)	SD530 (7X21)	SD650 (7X58)	SN550 (7X16)	SN850 (7X15)
BlueField-3 adapters
4XC7A93809	ThinkSystem NVIDIA BlueField-3 B3140H VPI QSFP112 1P 400G PCIe Gen5 x16 Adapter	N	N	N	N	N	N	N	N	N	N	N	N
4XC7A87752	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 Adapter	N	N	N	N	N	N	N	N	N	N	N	N
4XC7B08942	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 with Tin Plating Connector	N	N	N	N	N	N	N	N	N	N	N	N
4XC7A96568	ThinkSystem NVIDIA Bluefield-3 B3240 2P 400G PCIe Gen5 x16 Crypto Enabled(Generic FW) with Tin Plating Connector	N	N	N	N	N	N	N	N	N	N	N	N
Auxiliary power cables for BlueField-3 DPU (model B3220, B3240)
4X97B02426	ThinkSystem V3 2U BlueField-3 B3220 Power Cable Kit	N	N	N	N	N	N	N	N	N	N	N	N
4X97B04861	ThinkSystem SR650/a V4 DPU Adapter Power Cable Kit	N	N	N	N	N	N	N	N	N	N	N	N
C1F7	ThinkSystem Rear BlueField-3 Power Cable	N	N	N	N	N	N	N	N	N	N	N	N
C9K3	ThinkSystem BlueField-3 Power Cable	N	N	N	N	N	N	N	N	N	N	N	N
4X97B13363	ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 with Tin Plating Connector Power Cable	N	N	N	N	N	N	N	N	N	N	N	N

Operating system support

The adapters support the operating systems listed in the following tables:

ThinkSystem NVIDIA BlueField-3 B3140H VPI QSFP112 1P 400G PCIe Gen5 x16 Adapter, 4XC7A93809
ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 Adapter, 4XC7A87752
ThinkSystem NVIDIA Bluefield-3 B3240 2P 400G PCIe Gen5 x16 Crypto Enabled(Generic FW) with Tin Plating Connector, 4XC7A96568

Tip: These tables are automatically generated based on data from Lenovo ServerProven.

ThinkSystem NVIDIA BlueField-3 B3140H VPI QSFP112 1P 400G PCIe Gen5 x16 Adapter, 4XC7A93809

The following table lists the OS support for the ThinkSystem NVIDIA BlueField-3 B3140H VPI QSFP112 1P 400G PCIe Gen5 x16 Adapter.

Table 13. Operating system support for ThinkSystem NVIDIA BlueField-3 VPI QSFP112 1P 400G PCIe Gen5 x16 B3140H, 4XC7A93809
Operating systems	SR685a V3	SR680a V3	SR780a V3	SR680a V3 B200
Red Hat Enterprise Linux 9.4	Y ¹	Y	Y	N
Red Hat Enterprise Linux 9.5	N	N	N	Y
Ubuntu 22.04 LTS or later with HWE kernel	Y ¹	Y	Y	Y
Ubuntu 24.04 LTS or later with HWE kernel	Y ¹	Y	Y	Y

¹ For limitation, please refer Support Tip TT2258

ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 Adapter, 4XC7A87752

The following table lists the OS support for the ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 Adapter.

Table 14. Operating system support for ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 Adapter, 4XC7A87752
Operating systems	SR665 V3	SR650 V3 (4th Gen Xeon)	SR655 V3	SR675 V3	SR650 V3 (5th Gen Xeon)	SR685a V3	SR680a V3	SR650 V4/SR650a V4	SR680a V3 B200
Microsoft Windows Server 2025	Y	Y	Y	Y	Y	N	N	Y	N
Red Hat Enterprise Linux 8.6	Y	Y	Y	Y	N	N	N	N	N
Red Hat Enterprise Linux 8.7	Y	Y	Y	Y	N	N	N	N	N
Red Hat Enterprise Linux 8.8	Y	Y	Y	N	Y	N	N	N	N
Red Hat Enterprise Linux 8.9	Y	Y	Y	N	Y	N	N	N	N
Red Hat Enterprise Linux 8.10	Y	Y	Y	N	Y	N	N	N	N
Red Hat Enterprise Linux 9.0	Y	Y	Y	Y	N	N	N	N	N
Red Hat Enterprise Linux 9.1	Y	Y	Y	Y	N	N	N	N	N
Red Hat Enterprise Linux 9.2	Y	Y	Y	N	Y	N	N	N	N
Red Hat Enterprise Linux 9.3	Y	Y	Y	N	Y	N	N	N	N
Red Hat Enterprise Linux 9.4	Y	Y	Y	N	Y	Y	Y	Y	N
SUSE Linux Enterprise Server 15 SP4	Y	Y	Y	N	N	N	N	N	N
SUSE Linux Enterprise Server 15 SP4 with Xen	Y	Y	Y	N	N	N	N	N	N
SUSE Linux Enterprise Server 15 SP5	Y	Y	Y	N	Y	N	N	N	N
SUSE Linux Enterprise Server 15 SP5 with Xen	Y	Y	Y	N	Y	N	N	N	N
SUSE Linux Enterprise Server 15 SP6	Y	Y	Y	Y	Y	N	N	Y	N
Ubuntu 20.04.5 LTS or later with HWE kernel	Y	N	Y	N	N	N	N	N	N
Ubuntu 20.04 LTS or later with HWE kernel	N	Y	N	N	Y	N	N	N	N
Ubuntu 22.04.3 LTS or later with HWE kernel	N	N	N	N	Y	N	N	N	N
Ubuntu 22.04.5 LTS or later with HWE kernel	Y	N	Y	N	N	N	N	Y	N
Ubuntu 22.04 LTS or later with HWE kernel	Y	Y	Y	Y	Y	Y ¹	Y	N	Y
VMware vSphere Hypervisor (ESXi) 7.0 U3	Y	Y	Y	N	Y	N	N	N	N
VMware vSphere Hypervisor (ESXi) 8.0 U1	Y	Y	Y	N	N	N	N	N	N
VMware vSphere Hypervisor (ESXi) 8.0 U2	Y	Y	Y	N	Y	N	N	N	N
VMware vSphere Hypervisor (ESXi) 8.0 U3	Y	Y	Y	Y	Y	N	Y	Y	N
VMware vSphere Hypervisor (ESXi) 9.0	Y	Y	Y	Y	Y	N	N	Y	N

¹ For limitation, please refer Support Tip TT2258

ThinkSystem NVIDIA Bluefield-3 B3240 2P 400G PCIe Gen5 x16 Crypto Enabled(Generic FW) with Tin Plating Connector, 4XC7A96568

The following table lists the OS support for the ThinkSystem NVIDIA Bluefield-3 B3240 2P 400G PCIe Gen5 x16 Crypto Enabled(Generic FW) with Tin Plating Connector.

Table 15. Operating system support for ThinkSystem Nvidia Bluefield-3 B3240 2P 400G PCIe Gen5 x16 Crypto Enabled(Generic FW) with Tin Plating Connector, 4XC7A96568
Operating systems	SR680a V4
Red Hat Enterprise Linux 9.6	Y ¹
Ubuntu 24.04 LTS or later with HWE kernel	Y ¹

¹ For limitation, please refer Support Tip TT3606 and Support Tip TT3456

Regulatory approvals

The BlueField-3 adapters have the following hardware certifications:

Safety: CB / cTUVus / CE
EMC: CE / FCC / VCCI / ICES / RCM
RoHS compliant

Physical specifications

The ThinkSystem NVIDIA BlueField-3 B3140H VPI QSFP112 1P 400G PCIe Gen5 x16 Adapter is a HHHL adapter and has the following physical specifications:

Length: 168 mm (6.6 inches)
Height: 69 mm (2.7 inches)
Single slot width

The ThinkSystem NVIDIA Bluefield-3 B3240 2P 400G PCIe Gen5 x16 Crypto Enabled(Generic FW) with Tin Plating Connector is a FHHL dual-slot adapter and has the following physical specifications:

Length: 168 mm (6.6 inches)
Height: 111 mm (4.4 inches)
Double-slot width

The ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 Adapter is a FHHL adapter and has the following physical specifications:

Length: 168 mm (6.6 inches)
Height: 111 mm (4.4 inches)
Single slot width

Operating environment

The BlueField-3 adapters are supported in the following environment:

Temperature:
- Operating: 0°C to 55°C (32°F to 131°F)
- Storage: -40°C to 70°C (-40°F to 158°F)
Humidity:
- Operating: 10% to 85%
- Storage: 10% to 90%

Warranty

One year limited warranty. When installed in a Lenovo server, this adapter assumes the server’s base warranty and any warranty upgrades.

Related information

For more information, refer to these documents:

ServerProven compatibility
https://serverproven.lenovo.com/
NVIDIA BlueField Data Processing Units product page
https://www.nvidia.com/dpu
NVIDIA DOCA
https://developer.nvidia.com/networking/doca
NVIDIA BlueField-3 User Guide:
https://docs.nvidia.com/networking/display/BlueField3DPU
NVIDIA BlueField-3 Software User Guide
https://docs.nvidia.com/networking/display/BlueFieldDPUOSLatest

Related product families

Product families related to this document are the following:

25 Gb Ethernet Connectivity
Ethernet Adapters
InfiniBand & Omni-Path Adapters

Trademarks

Lenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at https://www.lenovo.com/us/en/legal/copytrade/.

The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo®
ServerProven®
ThinkSystem®

The following terms are trademarks of other companies:

AMD® is a trademark of Advanced Micro Devices, Inc.

Intel®, the Intel logo and Xeon® are trademarks of Intel Corporation or its subsidiaries.

Linux® is the trademark of Linus Torvalds in the U.S. and other countries.

Microsoft®, Windows Server®, and Windows® are trademarks of Microsoft Corporation in the United States, other countries, or both.

NVIDIA® and NVIDIA DOCA® are trademarks of NVIDIA Corporation.

Other company, product, or service names may be trademarks or service marks of others.

Lenovo ThinkSystem NVIDIA BlueField-3 QSFP112 Adapters: технические характеристики и документация

Abstract

Change History

Introduction

Did you know?

Part number information

Supported transceivers and cables - B3140H

Supported transceivers and cables - B3220

Supported transceivers and cables - B3240

Workloads

Technical specifications

Adapter specifications

Compute and Memory

Networking protocol support

Hardware Accelerations

Additional features

Server support

Operating system support

ThinkSystem NVIDIA BlueField-3 B3140H VPI QSFP112 1P 400G PCIe Gen5 x16 Adapter, 4XC7A93809

ThinkSystem NVIDIA BlueField-3 B3220 VPI QSFP112 2P 200G PCIe Gen5 x16 Adapter, 4XC7A87752

ThinkSystem NVIDIA Bluefield-3 B3240 2P 400G PCIe Gen5 x16 Crypto Enabled(Generic FW) with Tin Plating Connector, 4XC7A96568

Regulatory approvals

Physical specifications

Operating environment

Warranty

Related product families

Trademarks
