Lenovo ThinkSystem Broadcom 57508 100GbE QSFP56 Ethernet Adapters: технические характеристики и документация

Abstract

The ThinkSystem Broadcom 57508 100GbE QSFP56 Ethernet adapters are a high-performance low-power 2-port 100 GbE adapter (or single-port 200 GbE) with a PCIe 4.0 host interface that offers TruFlow intelligent flow processing and supports advanced networking technologies such as VXLAN, NVGRE, Geneve, RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions. The adapters are available in PCIe low-profile or OCP 3.0 form factors.

This product guide provides essential presales information to understand the adapter and its key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the Broadcom 100 GbE network adapter and consider its use in IT solutions.

Change History

Changes in the May 7, 2026 update:

  • The adapter supports 25Gb and 10Gb connectivity using the Mellanox 100G QSFP28 to 25G SFP28 Cable Adapter (4G17A10853) - Specifications section
  • Added the list of transceivers and cables that are supported with the 25Gb Cable Adapter - 25G Cable Adapter transceiver and cable support section
  • The adapters support Data Plan Development Kit (DPDK) - Specifications section

Introduction to the adapter

In China? View this video on Youku

Introduction

The ThinkSystem Broadcom 57508 100GbE QSFP56 Ethernet adapters are a high-performance low-power 2-port 100 GbE adapter with a PCIe 4.0 host interface that offers TruFlow intelligent flow processing and supports advanced networking technologies such as VXLAN, NVGRE, Geneve, RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions. The adapters are available in PCIe low-profile or OCP 3.0 form factors.

The adapter nominally supports 2 ports of 100 Gb Ethernet, but can also be configured to support a single 200 GbE port. Port 1 will be active in this configuration, with Port 2 disabled.

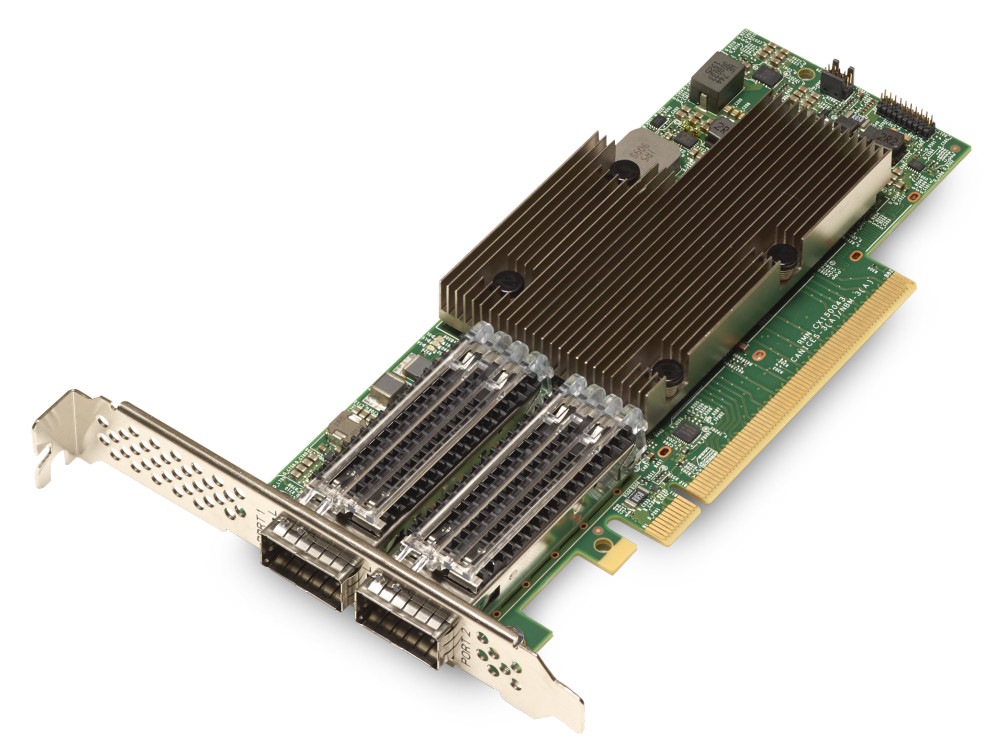

The following figure shows the PCIe Low Profile adapter.

ThinkSystem Broadcom 57508 100GbE QSFP56 2-port PCIe 4 Ethernet Adapter
Figure 1. ThinkSystem Broadcom 57508 100GbE QSFP56 2-port PCIe 4 Ethernet Adapter

Did you know?

These adapters are based on the Broadcom BCM57508 scalable Ethernet controller architecture which is designed to build highly-scalable, feature-rich networking solutions. The adapters are an ideal choice for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation, and data analytics.

Part number information

The ordering information is listed in the following table.

Table 1. Ordering information
Part number Feature code Description
4XC7A08297 B96F / BK1J ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port PCIe 4 Ethernet Adapter
4XC7A08243 BPPX ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter

The adapters, when shipped as a stand-alone option part number, include the following items:

  • One Broadcom adapter
  • PCIe adapter: An attached full-height (3U) bracket, and a low-profile (2U) bracket that can be substituted if needed
  • Documentation flyer

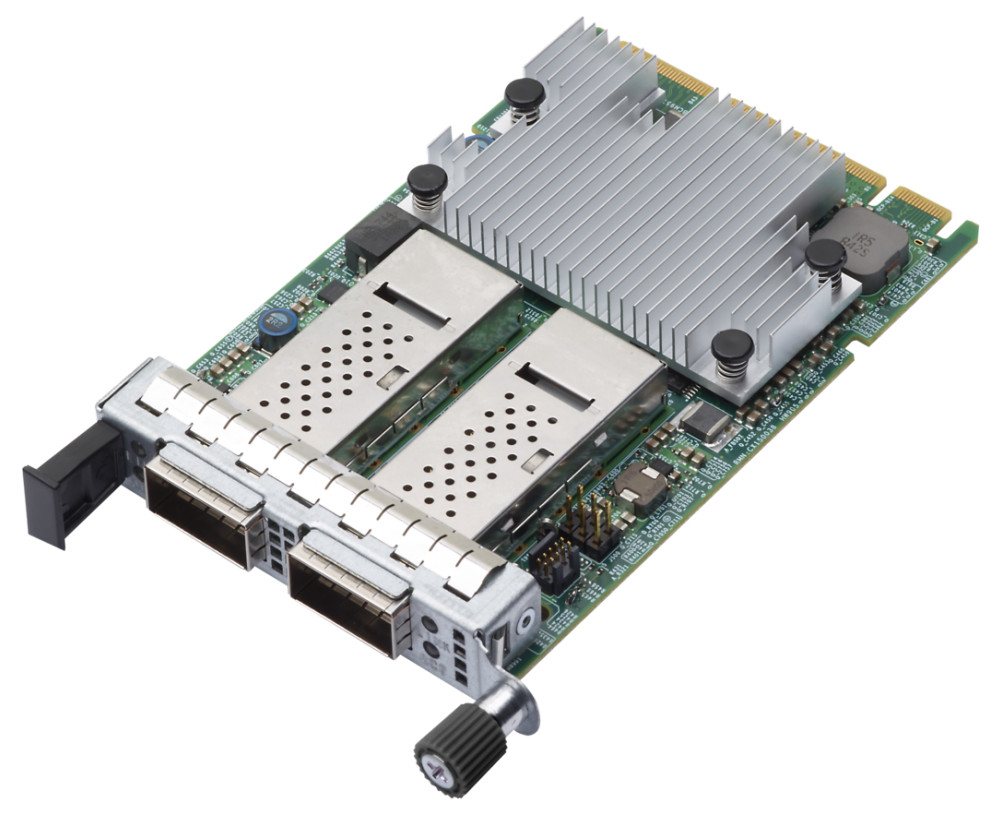

The following figure shows the OCP adapter:

ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter
Figure 2. ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter

Supported transceivers and cables

The adapters have two empty QSFP56 cages for connectivity.

If only one cage is used, then it can be configured to operate at 200 GbE, with the other cage disabled. For 200 GbE connectivity, the use of a transceiver is currently not supported.

A cable from one of the following cable groups is needed for 200GbE connectivity:

  • QSFP56 HDR InfiniBand / 200 GbE Optical Cables
  • QSFP56 HDR InfiniBand / 200 GbE Passive DAC Cables
  • QSFP56 200Gb Ethernet Passive DAC Cables (withdrawn)

The following table lists the supported transceivers.

Table 2. Transceivers
Part number Feature code Description NVIDIA part number
100Gb Transceivers
4M27A67042BFH1Lenovo 100Gb SR4 QSFP28 Ethernet Transceiver-
7G17A03539AV1DLenovo 100GBase-SR4 QSFP28 Transceiver-
4TC7A86257BVA4Lenovo 100GBase-SR4 QSFP28 Transceiver-
Converters/Adapters
4G17A10853B306Mellanox 100G QSFP28 to 25G SFP28 Cable Adapter980-9I78I-00A000

For the transceiver and cable support for the Mellanox 100G QSFP28 to 25G SFP28 Cable Adapter (4G17A10853), see the 25G Cable Adapter transceiver and cable support section.

The following table lists the supported rack cabinets.

Table 3. Rack cabinets (D)
ModelDescription
7D6DA007WWThinkSystem 42U Onyx Primary Heavy Duty Rack Cabinet (1200mm)
7D6DA008WWThinkSystem 42U Pearl Primary Heavy Duty Rack Cabinet (1200mm)
7D6EA009WWThinkSystem 48U Onyx Primary Heavy Duty Rack Cabinet (1200mm)
7D6EA00AWWThinkSystem 48U Pearl Primary Heavy Duty Rack Cabinet (1200mm)
93074RX42U Standard Rack (1000mm)
93604PX42U 1200mm Deep Dynamic Rack
93604EX42U 1200mm Deep Dynamic Expansion Rack
93614PX42U 1200mm Deep Static Rack
93614EX42U 1200mm Deep Static Expansion Rack
93634PX42U 1100mm Dynamic Rack
93634EX42U 1100mm Dynamic Expansion Rack
93084PX42U Enterprise Rack
93084EX42U Enterprise Expansion Rack

For specifications about these racks, see the Lenovo Rack Cabinet Reference, available from:
https://lenovopress.com/lp1287-lenovo-rack-cabinet-reference

For more information, see the list of Product Guides in the Rack cabinets category:
https://lenovopress.com/servers/options/racks

25G Cable Adapter transceiver and cable support

The Mellanox QSA 100G to 25G Cable Adapter (4G17A10853) supports the transceivers listed in the following table.

Table 4. Transceivers for Mellanox QSA 100G to 25G Cable Adapter (4G17A10853)
Part number Feature code Description
1Gb transceivers
00FE333 A5DL SFP 1000Base-T (RJ-45) Transceiver
10Gb transceivers
46C3447 5053 SFP+ SR Transceiver
7G17A03130 AVV1 Lenovo 10GBaseT SFP+ Transceiver
4TC7A78615 BNDR ThinkSystem Accelink 10G SR SFP+ Ethernet transceiver
25Gb transceivers
7G17A03537 AV1B Lenovo Dual Rate 10G/25G SR SFP28 Transceiver
4M27A67041 BFH2 Lenovo 25Gb SR SFP28 Ethernet Transceiver

The Mellanox QSA 100G to 25G Cable Adapter (4G17A10853) supports the fiber optic cables and Active Optical Cables listed in the following table.

Table 5. Optical cables for Mellanox QSA 100G to 25G Cable Adapter (4G17A10853)
Part number Feature code Description
LC-LC OM3 Fiber Optic Cables (these cables require a 10 GbE SFP+ SR or 25 GbE SFP28 SR transceiver)
00MN499 ASR5 Lenovo 0.5m LC-LC OM3 MMF Cable
00MN502 ASR6 Lenovo 1m LC-LC OM3 MMF Cable
00MN505 ASR7 Lenovo 3m LC-LC OM3 MMF Cable
00MN508 ASR8 Lenovo 5m LC-LC OM3 MMF Cable
00MN511 ASR9 Lenovo 10m LC-LC OM3 MMF Cable
00MN514 ASRA Lenovo 15m LC-LC OM3 MMF Cable
00MN517 ASRB Lenovo 25m LC-LC OM3 MMF Cable
00MN520 ASRC Lenovo 30m LC-LC OM3 MMF Cable
MTP-4xLC OM3 MMF Breakout Cables (these cables require a transceiver)
00FM412 A5UA Lenovo 1m MPO-4xLC OM3 MMF Breakout Cable
00FM413 A5UB Lenovo 3m MPO-4xLC OM3 MMF Breakout Cable
00FM414 A5UC Lenovo 5m MPO-4xLC OM3 MMF Breakout Cable
SFP+ 10Gb Active Optical Cables
00YL634 ATYX Lenovo 1M SFP+ to SFP+ Active Optical Cable
00YL637 ATYY Lenovo 3M SFP+ to SFP+ Active Optical Cable
00YL640 ATYZ Lenovo 5M SFP+ to SFP+ Active Optical Cable
00YL643 ATZ0 Lenovo 7M SFP+ to SFP+ Active Optical Cable
00YL646 ATZ1 Lenovo 15M SFP+ to SFP+ Active Optical Cable
00YL649 ATZ2 Lenovo 20M SFP+ to SFP+ Active Optical Cable
SFP28 25Gb Active Optical Cables
7Z57A03541 AV1F Lenovo 3m 25G SFP28 Active Optical Cable
7Z57A03542 AV1G Lenovo 5m 25G SFP28 Active Optical Cable
7Z57A03543 AV1H Lenovo 10m 25G SFP28 Active Optical Cable
7Z57A03544 AV1J Lenovo 15m 25G SFP28 Active Optical Cable
7Z57A03545 AV1K Lenovo 20m 25G SFP28 Active Optical Cable
QSFP28 100Gb Ethernet Breakout Active Optical Cables
7Z57A03551 AV1R Lenovo 3m 100G to 4x25G Breakout Active Optical Cable
7Z57A03552 AV1S Lenovo 5m 100G to 4x25G Breakout Active Optical Cable
7Z57A03553 AV1T Lenovo 10m 100G to 4x25G Breakout Active Optical Cable
7Z57A03554 AV1U Lenovo 15m 100G to 4x25G Breakout Active Optical Cable
7Z57A03555 AV1V Lenovo 20m 100G to 4x25G Breakout Active Optical Cable
OM4 LC to LC Cables (these cables require a transceiver)
4Z57A10845 B2P9 Lenovo 0.5m LC-LC OM4 MMF Cable
4Z57A10846 B2PA Lenovo 1m LC-LC OM4 MMF Cable
4Z57A10847 B2PB Lenovo 3m LC-LC OM4 MMF Cable
4Z57A10848 B2PC Lenovo 5m LC-LC OM4 MMF Cable
4Z57A10849 B2PD Lenovo 10m LC-LC OM4 MMF Cable
4Z57A10850 B2PE Lenovo 15m LC-LC OM4 MMF Cable
4Z57A10851 B2PF Lenovo 25m LC-LC OM4 MMF Cable
4Z57A10852 B2PG Lenovo 30m LC-LC OM4 MMF Cable

The Mellanox QSA 100G to 25G Cable Adapter (4G17A10853) supports the direct-attach copper (DAC) cables listed in the following table.

Table 6. Copper cables for Mellanox QSA 100G to 25G Cable Adapter (4G17A10853)
Part number Feature code Description
SFP+ 10Gb Passive DAC Cables
00D6288 A3RG 0.5m Passive DAC SFP+ Cable
90Y9427 A1PH 1m Passive DAC SFP+ Cable
00AY764 A51N 1.5m Passive DAC SFP+ Cable
00AY765 A51P 2m Passive DAC SFP+ Cable
90Y9430 A1PJ 3m Passive DAC SFP+ Cable
90Y9433 A1PK 5m Passive DAC SFP+ Cable
00D6151 A3RH 7m Passive DAC SFP+ Cable
90Y9436 A1PL 8.5m IBM Passive DAC SFP+ Cable
SFP+ 10Gb Active DAC Cables
00VX111 AT2R Lenovo 1m Active DAC SFP+ Cables
00VX114 AT2S Lenovo 3m Active DAC SFP+ Cables
00VX117 AT2T Lenovo 5m Active DAC SFP+ Cables
SFP28 25Gb Passive DAC Cables
7Z57A03557 AV1W Lenovo 1m Passive 25G SFP28 DAC Cable
7Z57A03558 AV1X Lenovo 3m Passive 25G SFP28 DAC Cable
7Z57A03559 AV1Y Lenovo 5m Passive 25G SFP28 DAC Cable
QSFP28 100G-to-4x25G Ethernet Breakout Cables
7Z57A03564 AV22 Lenovo 1m 100G QSFP28 to 4x25G SFP28 Breakout DAC Cable
4Z57A85043 BS32 Lenovo 1.5m 100G to 4x25G Breakout SFP28 Breakout DAC Cable
4Z57A85044 BS33 Lenovo 2m 100G to 4x25G Breakout SFP28 Breakout DAC Cable
7Z57A03565 AV23 Lenovo 3m 100G QSFP28 to 4x25G SFP28 Breakout DAC Cable
7Z57A03566 AV24 Lenovo 5m 100G QSFP28 to 4x25G SFP28 Breakout DAC Cable

Features

Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications (Machine Learning, HPC, Multi-node containers, NVMe, Web 2.0, NVMe storage disaggregation, HCI), enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and NVMe-oF™. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.

With its market-leading hardware acceleration technologies, the ThinkSystem Broadcom 57508 100GbE adapters address these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow™ increase VM density up to 50%, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions.

The adapters have the following features:

  • 2x 100GbE (or 1x 200GbE) network connectivity for high availability features eliminating throughput bottlenecks for data-intensive applications

    For details on switching the adapter between 2x 100Gb and 1x 200Gb, see the Lenovo Press paper Configuring 100Gb and 200Gb Link Speeds on the Broadcom 57508 Ethernet Adapters.

  • Industry’s best performing and longest-reach 50G PAM-4 / 25G NRZ SerDes dramatically lowering TCO by reducing cable costs by 50% and doubling port density
  • PCIe 4.0 x16 support maximizing the full potential of servers compliant with the PCI Express 4.0 specification, providing seamless interoperability and doubling server throughput while saving PCIe lanes
  • Third generation Broadcom TruFlow™ engine for intelligent flow processing to increase server VM density and accelerate vSwitch processing of traffic flows with data path Acceleration. TruFlow enables efficient network flow processing, increases Virtual Machine density by offloading the server CPU to improve application performance.
  • RoCE (RDMA over Converged Ethernet), allows Remote Direct Memory Access (RDMA) traffic to be communicated over Converged Ethernet using DCB. GPU Compute over RoCE enables scalable GPU clusters up to hundreds of nodes using Ethernet for HPC, AI, and ML applications.
  • Broadcom’s Smart Congestion Control provides consistent and predictable performance for real world workloads plus scaling for heavily loaded network traffic making it ideal for clients looking for deterministic low latency.
  • Broadcom adapters are the industry’s most secure PCIe Ethernet controller solution, leveraging Broadcom’s BroadSAFE® technology to provide unparalleled platform security via Silicon Root of Trust (RoT). Broadcom is the first Ethernet Adapter vendor to store authentication key and code in silicon to protect clients from maliciously modified firmware.
  • Broadcom’s TruManage™ enhances server manageability, network management, and security for data center deployments. TruManage supports widely deployed management standards including DMTF NC-SI, MCTP, PLDM, and SPDM specifications.
  • Support for SR-IOV which bypasses the hypervisor, reducing the latency by removing data copies and context switches between VM address space and hypervisor address space, when transmitting or receiving data over the network. The implementation supports 802.1Qbg Edge Virtual Bridging (EVB).
  • Support for Data Center Bridging (DCB), including IEEE 802.1Qbb Priority based Flow Control (PFC) and 802.1Qaz Enhanced Transmission Selection (ETS). DCB technology allows the device to provide lossless data delivery, prioritize low latency traffic, and share bandwidth among data center physical links.
  • In-band Network Telemetry features provide end-to-end real-time monitoring capability, enabling data center operators to fine tune their networks for maximum performance.

Specifications

The adapter has the following technical specifications:

  • Based on the Broadcom BCM57508 (2-port) controller
  • Supports 100Gb/s (2 ports) or 200Gb/s (1 port) connectivity
    • 25Gb and 10Gb connections are supported with the addition of the Mellanox 100G QSFP28 to 25G SFP28 Cable Adapter (4G17A10853)
    • Other connection speeds are currently not supported

    For details on switching the adapter between 2x 100Gb and 1x 200Gb, see the Lenovo Press paper Configuring 100Gb and 200Gb Link Speeds on the Broadcom 57508 Ethernet Adapters.

  • PCIe 4.0 x16 host interface
  • Available adapter form factors:
    • PCIe low profile form factor
    • OCP 3.0 SFF form factor
  • Supports Message Signal Interrupt (MSI-X)
  • Interrupt coalescing
  • Two QSFP56 external connectors supporting a transceiver, direct-attach copper (DAC) cable or active optical cable (AOC).
  • Network boot - PXE, UEFI
  • Support for PXE boot (Wake-on-LAN (WOL) are not supported)
  • iSCSI boot is only supported via server UEFI; iSCSI boot is not supported by the adapter in legacy mode
  • Fully compliant with the SFF-8402 standard
  • Networking Features
    • Jumbo frames (up to 9600-Byte)
    • 3x flow control
    • Link Aggregation (802.3ad, 802.1AX)
    • Virtual LANs-802.1q VLAN tagging
    • Configurable Flow Acceleration
    • Advanced Congestion Avoidance
    • IEEE 1588 and Time Sync
    • Forward Error Correction Clause 74, Clause 91 support over 25 Gbps
    • Data Plan Development Kit (DPDK) support
  • Performance Features
    • 100M Packet Per Second
    • Low latency
    • Bidirectional wire speed throughput
  • Stateless Offload Features
    • TCP, UDP, IPv4, IPv6 checksum offloads
    • Large Send Offload (LSO)
    • Receive Segment Coalescing
    • TCP Segmentation offload (TSO)
    • Large Receive Offload (LRO)
    • Generic Receive Offload (GRO)
    • Receive Side Scaling (RSS)
    • Transmit Side Scaling (TSS)
    • Header-Payload Split
    • Accelerated Received Flow Steering (aRFS)
  • Virtualization
    • vSwitch Acceleration
    • NetQueue, VMQueue, and Multiqueue
    • PCI SIG SR-IOV compliant with support for 1024 Virtual Functions
    • Virtual NIC (vNIC) / Network Partitioning (NPAR) with support for up to 16 Physical Functions
    • VXLAN-aware stateless offloads
    • NVGRE-aware stateless offloads
    • Geneve-aware stateless offloads
    • IP-in-IP-aware stateless offloads
    • GRE-aware stateless offloads
    • Per Virtual Function (VF) statistics
    • Virtual Ethernet Bridge (VEB)
    • Virtual Ethernet Port Aggregator (VEPA)
    • MAC/VLAN filtering and Mirroring
    • VF Isolation, Source pruning, Anti-spoofing checks
    • Stateless and packet steering offloads per VF
  • RDMA over Converged Ethernet (RoCE)
    • RoCEv2
    • Data Center Bridging with RoCE
    • Reliable Connection (RC) Queue Pair
    • Unreliable Datagram (UD) Queue Pair
    • Raw Ethertype Queue Pair
    • Up to 1 million Queue Pairs
    • Up to 64K Shared Receive Queues
    • Up to 1 million Completion Queues
    • Up to 1 million Memory Regions and Memory Windows
    • Up to 1 million Protection Domains
    • Up to 256 outstanding RDMA Reads or Atomics per Queue Pair
    • Congestion Avoidance (hardware-based flows tracking and rate adjustment)
    • Fast Memory Register
    • Linux OFED 3.5 and later
    • MS-Windows Network Direct Kernel Provider Interface and SMBDirect
    • MS-Windows Network Direct Service Provider Interface
    • GPU Direct RDMA
    • MPI
  • Integrated Flow Processing
    • Exact Match Flow Lookup
    • Wildcard Match Flow Lookup
    • VLAN insertion/deletion
    • VLAN PRI Edits
    • NAT/NAPT
    • Tunnel Encapsulation/De-capsulation
    • Flow tracking and aging
    • Mirroring
    • Metering
    • Flow counters/statistics
    • Custom tunnel header support
    • Connection tracking
  • Data Center Bridging
    • Priority-based flow control (PFC; IEEE 802.1Qbb)
    • Enhanced transmission selection (ETS; IEEE 802.1Qaz)
    • Quantized Congestion Notification (QCN; IEEE 802.1Qau)
    • Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz)
    • Up to 8 traffic classes per port; fully DCB compliant per 802.1Qbb
  • Manageability
    • TruManage Technology based on Distributed Management Task Force (DMTF) standards and protocols, support for NC-SI, MCTP, PLDM, and SPDM specifications
    • Management Component Transport Protocol (MCTP) – MCTP/SMBus 2.0 and MCTP/PCIe VDM
    • NC-SI – 1.1 spec compliance, both NC-SI/RBT and NC-SI/MCTP supported
    • PLDM – Monitoring and control, Firmware Update, NIC Model
    • SPDM 1.1 support for device attestation and firmware measurements
    • NIC Inventory, Monitoring and Control
    • Temperature reporting
    • Out-Of-Band Firmware update
    • Link and Media Management
    • In-Band Network Telemetry
  • Power Saving
    • ACPI compliant power management
    • PCI Express Active State Power Management (ASPM)
    • PCI Express eCLKREQ support
    • PCI Express unused lane powered down

Server support

The following tables list the ThinkSystem servers that are compatible.

Table 7. Server support - Current servers (Part 1 of 2)
Part Number Description AMD V3 2S Intel V3/V4 1S V3 4S 8S Intel V3/V4
SR635 V3 (7D9H / 7D9G)
SR655 V3 (7D9F / 7D9E)
SR645 V3 (7D9D / 7D9C)
SR665 V3 (7D9B / 7D9A)
SD535 V3 (7DD8 / 7DD1)
ST650 V3 (7D7B / 7D7A)
SR630 V3 (7D72 / 7D73)
SR650 V3 (7D75 / 7D76)
SR630 V4 (7DG8 / 7DG9)
SR650 V4 (7DGC / 7DGD)
SR650a V4 (7DGC / 7DGD)
ST45 V3 (7DH4 / 7DH5)
ST50 V3 (7DF4 / 7DF3)
ST250 V3 (7DCF / 7DCE)
SR250 V3 (7DCM / 7DCL)
SR850 V3 (7D97 / 7D96)
SR860 V3 (7D94 / 7D93)
SR950 V3 (7DC5 / 7DC4)
SR850 V4 (7DJT / 7DJS)
SR860 V4 (7DJQ / 7DJN)
4XC7A08297 ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port PCIe 4 Ethernet Adapter Y Y Y Y Y Y Y Y Y Y Y N N N N Y Y Y N N
4XC7A08243 ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter Y Y Y Y Y N Y Y Y Y Y N N N N Y Y N N N
Table 8. Server support - Current servers (Part 2 of 2)
Part Number Description AI Servers Edge Super computing
SR675 V3 (7D9Q / 7D9R)
SR680a V3 B200 (7DM9)
SR685a V3 (7DHC)
SR780a V3 (7DJ5)
SR680a V4 (7DMK)
SE100 (7DGR)
SE455 V3 (7DBY)
SC750 V4 (7DDJ)
SC777 V4 (7DKA)
SD665 V3 (7D9P)
4XC7A08297 ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port PCIe 4 Ethernet Adapter Y Y Y Y N N Y N N N
4XC7A08243 ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter Y N Y N N N Y N N N
Table 9. Server support - Withdrawn servers (Part 1 of 3)
Part Number Description Edge 1S Intel V2 2S Intel V2 AMD V1 Multi node AI
SE350 (7Z46 / 7D1X)
SE350 V2 (7DA9)
SE360 V2 (7DAM)
SE450 (7D8T)
ST50 V2 (7D8K / 7D8J)
ST250 V2 (7D8G / 7D8F)
SR250 V2 (7D7R / 7D7Q)
ST650 V2 (7Z75 / 7Z74)
SR630 V2 (7Z70 / 7Z71)
SR650 V2 (7Z72 / 7Z73)
SR635 (7Y98 / 7Y99)
SR655 (7Y00 / 7Z01)
SR645 (7D2Y / 7D2X)
SR665 (7D2W / 7D2V)
SD530 V3 (7DDA / 7DD3)
SD550 V3 (7DD9 / 7DD2)
SR670 V2 (7Z22 / 7Z23)
SR680a V3 (7DHE)
4XC7A08297 ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port PCIe 4 Ethernet Adapter N N N N N N N N Y Y Y Y Y Y Y Y Y Y
4XC7A08243 ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter N N N N N N N N N N N N N N Y Y N N
Table 10. Server support - Withdrawn servers (Part 2 of 3)
Part Number Description SC Dense V2 4S V2 8S 4S V1 1S Intel V1
SD665-N V3 (7DAZ)
SD650 V3 (7D7M)
SD650-I V3 (7D7L)
SD650-N V3 (7D7N)
SD630 V2 (7D1K)
SD650 V2 (7D1M)
SD650-N V2 (7D1N)
SN550 V2 (7Z69)
SR850 V2 (7D31 / 7D32)
SR860 V2 (7Z59 / 7Z60)
SR950 (7X11 / 7X12)
SR850 (7X18 / 7X19)
SR850P (7D2F / 2D2G)
SR860 (7X69 / 7X70)
ST50 (7Y48 / 7Y50)
ST250 (7Y45 / 7Y46)
SR150 (7Y54)
SR250 (7Y52 / 7Y51)
4XC7A08297 ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port PCIe 4 Ethernet Adapter N N N N N N N N Y Y N N N N N N N N
4XC7A08243 ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter N N N N N N N N N N N N N N N N N N
Table 11. Server support - Withdrawn servers (Part 3 of 3)
Part Number Description 2S Intel V1 Dense V1
ST550 (7X09 / 7X10)
SR530 (7X07 / 7X08)
SR550 (7X03 / 7X04)
SR570 (7Y02 / 7Y03)
SR590 (7X98 / 7X99)
SR630 (7X01 / 7X02)
SR650 (7X05 / 7X06)
SR670 (7Y36 / 7Y37)
SD530 (7X21)
SD650 (7X58)
SN550 (7X16)
SN850 (7X15)
4XC7A08297 ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port PCIe 4 Ethernet Adapter N N N N N N N N N N N N
4XC7A08243 ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter N N N N N N N N N N N N

Operating system support

The following table indicates which operating systems can be preloaded in the Lenovo factory for CTO server orders where this adapter is included in the server configuration.

Table 12. OS preload support
Operating system Preload support
Windows Server 2016 Supported as a preload for factory orders
Windows Server 2019 Supported as a preload for factory orders
Windows Server 2022 No support as a preload
Windows Server 2025 No support as a preload
VMware ESXi 6.5 U3 Supported as a preload for factory orders
VMware ESXi 6.7 U3 Supported as a preload for factory orders
VMware ESXi 7.0 Supported as a preload for factory orders
VMware ESXi 7.0 U1 Supported as a preload for factory orders
VMware ESXi 7.0 U2 No support as a preload
VMware ESXi 7.0 U3 No support as a preload
VMware ESXi 8.0 No support as a preload
VMware ESXi 8.0 U1 No support as a preload
VMware ESXi 8.0 U2 No support as a preload
VMware ESXi 8.0 U3 No support as a preload
VMware ESXi 9.0 No support as a preload

Tip: If an OS is listed as "No support" above, but it is listed in one of the support tables below, that means the OS is supported by the adapter, just not available to be preloaded in the Lenovo factory in CTO orders.

The following table lists the supported operating systems:

  • ThinkSystem Broadcom 57508 100GbE QSFP56 2-port PCIe 4 Ethernet Adapter, 4XC7A08297
  • ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter, 4XC7A08243

Tip: These tables are automatically generated based on data from Lenovo ServerProven.

Table 13. Operating system support for ThinkSystem Broadcom 57508 100GbE QSFP56 2-port PCIe 4 Ethernet Adapter, 4XC7A08297 (Part 1 of 2)
Operating systems
SR655
SR650 V4/SR650a V4
SR780a V3
SR630 V4
SR680a V3
ST650 V3 (5th Gen Xeon)
SR685a V3
SD535 V3
SD550 V3
SD530 V3
SR650 V3 (5th Gen Xeon)
SR630 V3 (4th Gen Xeon)
SR630 V3 (5th Gen Xeon)
SR950 V3
SE455 V3
SR675 V3
SR860 V3
SR635
SR645
SR665
Microsoft Windows 10 Y 1 N N N N N N N N N Y N Y N N N N N N N
Microsoft Windows 11 Y N N N N N N N N N Y Y Y N N N N N N N
Microsoft Windows Server 2016 N N N N N N N N N N N N N N N N N Y Y Y
Microsoft Windows Server 2019 Y N N N N Y N N N N Y Y Y N Y Y Y Y Y Y
Microsoft Windows Server 2022 Y Y N Y N Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
Microsoft Windows Server 2025 N Y N Y N Y N Y Y Y Y Y Y Y Y Y Y N Y Y
Red Hat Enterprise Linux 7.8 Y 2 N N N N N N N N N N N N N N N N Y 2 Y 2 Y 2
Red Hat Enterprise Linux 7.9 Y 2 N N N N N N N N N N N N N N N N Y 2 Y 2 Y 2
Red Hat Enterprise Linux 8.0 Y 2 N N N N N N N N N N N N N N N N Y 2 N N
Red Hat Enterprise Linux 8.1 Y 2 N N N N N N N N N N N N N N N N Y 2 Y 2 Y 2
Red Hat Enterprise Linux 8.2 Y 2 N N N N N N N N N N N N N N N N Y 2 Y 2 Y 2
Red Hat Enterprise Linux 8.3 Y N N N N N N N N N N N N N N N N Y Y Y
Red Hat Enterprise Linux 8.4 Y N N N N N N N N N N N N N N N N Y Y Y
Red Hat Enterprise Linux 8.5 Y N N N N N N N N N N N N N N N N Y Y Y
Red Hat Enterprise Linux 8.6 Y N N N N N N N N N N Y N Y Y Y Y Y Y Y
Red Hat Enterprise Linux 8.7 Y N N N N N N N N N N Y N Y N Y Y Y Y Y
Red Hat Enterprise Linux 8.8 Y N N N N Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 8.9 Y N N N N N N Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 8.10 Y N N N N Y N Y Y N Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.0 Y N N N N N N N N N N Y N Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.1 Y N N N N N N N N N N Y N Y N Y Y Y Y Y
Red Hat Enterprise Linux 9.2 Y N N N N Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.3 Y N N N N N N Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.4 Y Y Y Y Y Y Y Y Y N Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.5 Y Y N Y N Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.6 Y Y N Y N Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.7 Y Y N Y N Y N Y Y Y Y Y Y Y Y N Y Y Y Y
Red Hat Enterprise Linux 9.8 N Y N Y N Y N Y Y Y Y Y Y Y Y Y Y N Y Y
Red Hat Enterprise Linux 10.0 N Y N Y N Y N Y Y Y Y Y Y Y Y Y Y N Y Y
Red Hat Enterprise Linux 10.1 N Y N Y N Y N Y Y Y Y Y Y Y Y N Y N Y Y
Red Hat Enterprise Linux 10.2 N Y N Y N Y N Y Y Y Y Y Y Y Y Y Y N Y Y
SUSE Linux Enterprise Server 12 SP4 N N N N N N N N N N N N N N N N N Y 2 N N
SUSE Linux Enterprise Server 12 SP5 Y N N N N N N N N N N N N N N N N Y Y Y
SUSE Linux Enterprise Server 12 SP5 with Xen Y N N N N N N N N N N N N N N N N Y Y Y
SUSE Linux Enterprise Server 15 SP1 Y 2 N N N N N N N N N N N N N N N N Y 2 Y 2 Y 2
SUSE Linux Enterprise Server 15 SP1 with Xen Y 2 N N N N N N N N N N N N N N N N Y 2 Y 2 Y 2
SUSE Linux Enterprise Server 15 SP2 Y N N N N N N N N N N N N N N N N Y Y Y
SUSE Linux Enterprise Server 15 SP2 with Xen Y N N N N N N N N N N N N N N N N Y Y Y
SUSE Linux Enterprise Server 15 SP3 Y N N N N N N N N N N N N N N N N Y Y Y
SUSE Linux Enterprise Server 15 SP3 with Xen Y N N N N N N N N N N N N N N N N Y Y Y
SUSE Linux Enterprise Server 15 SP4 Y N N N N N N N N N N Y N Y Y Y Y Y Y Y
SUSE Linux Enterprise Server 15 SP4 with Xen Y N N N N N N N N N N Y N Y Y Y Y Y Y Y
SUSE Linux Enterprise Server 15 SP5 Y N N N N Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
SUSE Linux Enterprise Server 15 SP5 with Xen Y N N N N Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
SUSE Linux Enterprise Server 15 SP6 Y Y N Y N Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
SUSE Linux Enterprise Server 15 SP7 Y Y N Y N Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
SUSE Linux Enterprise Server 16 N Y N Y N Y N Y Y Y Y Y Y Y Y Y Y N Y Y
Ubuntu 18.04.5 LTS or later with HWE kernel N N N N N N N N N N N N N N N N N N N N
Ubuntu 20.04.5 LTS or later with HWE kernel N N N N N N N Y N N N N N N Y Y Y N N N
Ubuntu 20.04 LTS or later with HWE kernel N N N N N N N N N N Y Y Y N N N N N N N
Ubuntu 22.04.2 LTS or later with HWE kernel N N N N N N N N N N N N N N Y N N N N N
Ubuntu 22.04.3 LTS or later with HWE kernel N N N N N Y N Y Y Y Y N Y N N N N N N N
Ubuntu 22.04.5 LTS or later with HWE kernel N Y N Y N N N N N N N N N N N N N N N N
Ubuntu 22.04 LTS or later with HWE kernel Y N Y N Y N Y N N N N Y N N N Y Y Y Y Y
Ubuntu 24.04 LTS or later with HWE kernel Y 3 Y Y Y Y Y Y Y 4 Y 3 Y 3 Y 5 Y 3 Y 3 Y 3 Y 3 Y 3 Y 3 Y 3 Y 3 Y 3
Ubuntu 26.04 LTS or later with HWE kernel N Y N Y N Y N Y Y Y Y Y Y Y Y Y Y N Y Y
VMware vSphere Hypervisor (ESXi) 6.7 U3 N N N N N N N N N N N N N N N N N Y Y Y
VMware vSphere Hypervisor (ESXi) 7.0 Y 2 N N N N N N N N N N N N N N N N Y 2 Y 2 Y 2
VMware vSphere Hypervisor (ESXi) 7.0 U1 Y 2 N N N N N N N N N N N N N N N N Y 2 Y Y
VMware vSphere Hypervisor (ESXi) 7.0 U2 Y N N N N N N N N N N N N N N N N Y Y Y
VMware vSphere Hypervisor (ESXi) 7.0 U3 Y N N N N Y N Y Y Y Y Y Y N Y Y Y Y Y Y
VMware vSphere Hypervisor (ESXi) 8.0 Y N N N N N N N N N N Y N N N N N Y Y Y
VMware vSphere Hypervisor (ESXi) 8.0 U1 Y N N N N N N N N N N Y 6 N N Y Y Y Y Y Y
VMware vSphere Hypervisor (ESXi) 8.0 U2 Y N N N N Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
VMware vSphere Hypervisor (ESXi) 8.0 U3 Y Y Y Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
VMware vSphere Hypervisor (ESXi) 9.0 N Y N Y N Y N Y Y Y Y Y Y Y Y Y Y N Y Y
VMware vSphere Hypervisor (ESXi) 9.1 N Y N Y N Y N Y Y Y Y Y Y Y Y Y Y N Y Y

1 ISG will not sell/preload this OS, but compatibility and cert only.

2 The OS is not supported with EPYC 7003 processors.

3 The iboot hard drive can't be identified)

4 Ubuntu don't support SW iSCSI

5 The iboot hard drive can't be identified

6 For limitation, please refer Support Tip 104278

Table 14. Operating system support for ThinkSystem Broadcom 57508 100GbE QSFP56 2-port PCIe 4 Ethernet Adapter, 4XC7A08297 (Part 2 of 2)
Operating systems
SR645 V3
SR665 V3
SR630 V2
SR650 V2
SR670 V2
SR850 V2
SR860 V2
SR635 V3
SR650 V3 (4th Gen Xeon)
SR655 V3
SR850 V3
ST650 V3 (4th Gen Xeon)
SR680a V3 B200
Microsoft Windows 10 Y Y N N N N N Y Y Y N N N
Microsoft Windows 11 Y Y N N N N N Y Y Y N N N
Microsoft Windows Server 2016 N N Y Y Y Y Y N N N N N N
Microsoft Windows Server 2019 Y Y Y Y Y Y Y Y Y Y Y Y N
Microsoft Windows Server 2022 Y Y Y Y Y Y Y Y Y Y Y Y N
Microsoft Windows Server 2025 Y Y Y Y Y Y Y Y Y Y Y Y N
Red Hat Enterprise Linux 7.8 N N N N N N N N N N N N N
Red Hat Enterprise Linux 7.9 N N Y Y Y Y Y N N N N N N
Red Hat Enterprise Linux 8.0 N N N N N N N N N N N N N
Red Hat Enterprise Linux 8.1 N N N N N N N N N N N N N
Red Hat Enterprise Linux 8.2 N N Y Y Y Y Y N N N N N N
Red Hat Enterprise Linux 8.3 N N Y Y Y Y Y N N N N N N
Red Hat Enterprise Linux 8.4 N N Y Y Y Y Y N N N N N N
Red Hat Enterprise Linux 8.5 N N Y Y Y Y Y N N N N N N
Red Hat Enterprise Linux 8.6 Y Y Y Y Y Y Y Y Y Y Y Y N
Red Hat Enterprise Linux 8.7 Y Y Y Y Y Y Y Y Y Y Y Y N
Red Hat Enterprise Linux 8.8 Y Y Y Y Y Y Y Y Y Y Y Y N
Red Hat Enterprise Linux 8.9 Y Y Y Y Y Y Y Y Y Y Y Y N
Red Hat Enterprise Linux 8.10 Y Y Y Y Y Y Y Y Y Y Y Y N
Red Hat Enterprise Linux 9.0 Y Y Y Y Y Y Y Y Y Y Y Y N
Red Hat Enterprise Linux 9.1 Y Y Y Y Y Y Y Y Y Y Y Y N
Red Hat Enterprise Linux 9.2 Y Y Y Y Y Y Y Y Y Y Y Y N
Red Hat Enterprise Linux 9.3 Y Y Y Y Y Y Y Y Y Y Y Y N
Red Hat Enterprise Linux 9.4 Y Y Y Y Y Y Y Y Y Y Y Y N
Red Hat Enterprise Linux 9.5 Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.6 Y Y Y Y Y Y Y Y Y Y Y Y N
Red Hat Enterprise Linux 9.7 Y Y Y Y Y Y Y Y Y Y Y Y N
Red Hat Enterprise Linux 9.8 Y Y Y Y Y Y Y Y Y Y Y Y N
Red Hat Enterprise Linux 10.0 Y Y Y Y Y N N Y Y Y Y Y N
Red Hat Enterprise Linux 10.1 Y Y Y Y Y N N Y Y Y Y Y N
Red Hat Enterprise Linux 10.2 Y Y Y Y Y N N Y Y Y Y Y N
SUSE Linux Enterprise Server 12 SP4 N N N N N N N N N N N N N
SUSE Linux Enterprise Server 12 SP5 N N Y Y Y Y Y N N N N N N
SUSE Linux Enterprise Server 12 SP5 with Xen N N Y Y Y Y N N N N N N N
SUSE Linux Enterprise Server 15 SP1 N N N N N N N N N N N N N
SUSE Linux Enterprise Server 15 SP1 with Xen N N N N N N N N N N N N N
SUSE Linux Enterprise Server 15 SP2 N N Y Y Y Y Y N N N N N N
SUSE Linux Enterprise Server 15 SP2 with Xen N N Y Y Y Y Y N N N N N N
SUSE Linux Enterprise Server 15 SP3 N N Y Y Y Y Y N N N N N N
SUSE Linux Enterprise Server 15 SP3 with Xen N N Y Y Y Y Y N N N N N N
SUSE Linux Enterprise Server 15 SP4 Y Y Y Y Y Y Y Y Y Y Y Y N
SUSE Linux Enterprise Server 15 SP4 with Xen Y Y Y Y Y Y Y Y Y Y Y Y N
SUSE Linux Enterprise Server 15 SP5 Y Y Y Y Y Y Y Y Y Y Y Y N
SUSE Linux Enterprise Server 15 SP5 with Xen Y Y Y Y Y Y Y Y Y Y Y Y N
SUSE Linux Enterprise Server 15 SP6 Y Y Y Y Y Y Y Y Y Y Y Y N
SUSE Linux Enterprise Server 15 SP7 Y Y Y Y Y Y Y Y Y Y Y Y N
SUSE Linux Enterprise Server 16 Y Y Y Y N N N N Y Y Y Y N
Ubuntu 18.04.5 LTS or later with HWE kernel N N Y Y Y N N N N N N N N
Ubuntu 20.04.5 LTS or later with HWE kernel Y Y N N N N N Y N Y Y N N
Ubuntu 20.04 LTS or later with HWE kernel N N Y Y N N N N Y N N N N
Ubuntu 22.04.2 LTS or later with HWE kernel N N N N N N N N N N N N N
Ubuntu 22.04.3 LTS or later with HWE kernel N N N N N N N N N N N N N
Ubuntu 22.04.5 LTS or later with HWE kernel Y Y N N N N N N N N N N N
Ubuntu 22.04 LTS or later with HWE kernel Y Y Y Y Y Y Y Y Y Y Y Y Y
Ubuntu 24.04 LTS or later with HWE kernel Y 1 Y 2 Y 2 Y 2 Y 2 Y 2 Y 2 Y 2 Y 1 Y 2 Y 2 Y 2 Y
Ubuntu 26.04 LTS or later with HWE kernel Y Y N N N N N Y Y Y Y Y N
VMware vSphere Hypervisor (ESXi) 6.7 U3 N N Y Y Y N N N N N N N N
VMware vSphere Hypervisor (ESXi) 7.0 N N N N N N N N N N N N N
VMware vSphere Hypervisor (ESXi) 7.0 U1 N N N N N Y Y N N N N N N
VMware vSphere Hypervisor (ESXi) 7.0 U2 N N Y Y Y Y Y N N N N N N
VMware vSphere Hypervisor (ESXi) 7.0 U3 Y Y Y Y Y Y Y Y Y Y Y Y N
VMware vSphere Hypervisor (ESXi) 8.0 Y Y Y Y Y Y Y Y Y Y N N N
VMware vSphere Hypervisor (ESXi) 8.0 U1 Y Y Y Y Y Y Y Y Y Y Y Y N
VMware vSphere Hypervisor (ESXi) 8.0 U2 Y Y Y Y Y Y Y Y Y Y Y Y N
VMware vSphere Hypervisor (ESXi) 8.0 U3 Y Y Y Y Y Y Y Y Y Y Y Y N
VMware vSphere Hypervisor (ESXi) 9.0 Y Y Y Y Y N N Y Y Y Y Y N
VMware vSphere Hypervisor (ESXi) 9.1 Y Y Y Y Y N N Y Y Y Y Y N

1 The iboot hard drive can't be identified

2 The iboot hard drive can't be identified)

Table 15. Operating system support for ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter, 4XC7A08243
Operating systems
SR630 V3 (5th Gen Xeon)
SR650 V4/SR650a V4
SR630 V4
SR685a V3
SD535 V3
SD550 V3
SD530 V3
SR650 V3 (5th Gen Xeon)
SR630 V3 (4th Gen Xeon)
SR645 V3
SE455 V3
SR675 V3
SR860 V3
SR850 V3
SR655 V3
SR650 V3 (4th Gen Xeon)
SR635 V3
SR665 V3
Microsoft Windows 10 Y N N N N N N Y N Y N N N N Y Y Y Y
Microsoft Windows 11 Y N N N N N N Y Y Y N N N N Y Y Y Y
Microsoft Windows Server 2019 Y N N N N N N Y Y Y Y Y Y Y Y Y Y Y
Microsoft Windows Server 2022 Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
Microsoft Windows Server 2025 Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 8.6 N N N N N N N N Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 8.7 N N N N N N N N Y Y N Y Y Y Y Y Y Y
Red Hat Enterprise Linux 8.8 Y N N N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 8.9 Y N N N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 8.10 Y N N N Y Y N Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.0 N N N N N N N N Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.1 N N N N N N N N Y Y N Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.2 Y N N N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.3 Y N N N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.4 Y Y Y Y Y Y N Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.5 Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.6 Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 9.7 Y Y Y N Y N Y Y Y Y Y N Y Y Y Y Y Y
Red Hat Enterprise Linux 9.8 Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 10.0 Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
Red Hat Enterprise Linux 10.1 Y Y Y N Y Y Y Y Y Y Y N Y Y Y Y Y Y
Red Hat Enterprise Linux 10.2 Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
SUSE Linux Enterprise Server 15 SP4 N N N N N N N N Y Y Y Y Y Y Y Y Y Y
SUSE Linux Enterprise Server 15 SP4 with Xen N N N N N N N N Y Y Y Y Y Y Y Y Y Y
SUSE Linux Enterprise Server 15 SP5 Y N N N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
SUSE Linux Enterprise Server 15 SP5 with Xen Y N N N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
SUSE Linux Enterprise Server 15 SP6 Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
SUSE Linux Enterprise Server 15 SP7 Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
SUSE Linux Enterprise Server 16 Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y N Y
Ubuntu 22.04.2 LTS or later with HWE kernel N N N N N N N N N N Y N N N N N N N
Ubuntu 22.04.3 LTS or later with HWE kernel Y N N N Y Y Y Y N N N N N N N N N N
Ubuntu 22.04.5 LTS or later with HWE kernel N Y Y N N N N N N Y N N N N N N N Y
Ubuntu 22.04 LTS or later with HWE kernel N N N Y N N N N Y Y N Y Y Y Y Y Y Y
Ubuntu 24.04 LTS or later with HWE kernel Y 1 Y Y Y Y 2 Y 1 Y 1 Y 3 Y 1 Y 3 Y 1 Y 1 Y 1 Y 1 Y 1 Y 3 Y 1 Y 1
Ubuntu 26.04 LTS or later with HWE kernel Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
VMware vSphere Hypervisor (ESXi) 7.0 U3 Y N N N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
VMware vSphere Hypervisor (ESXi) 8.0 N N N N N N N N Y Y N N N N Y Y Y Y
VMware vSphere Hypervisor (ESXi) 8.0 U1 N N N N N N N N Y 4 Y Y Y Y Y Y Y 4 Y Y
VMware vSphere Hypervisor (ESXi) 8.0 U2 Y N N N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
VMware vSphere Hypervisor (ESXi) 8.0 U3 Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
VMware vSphere Hypervisor (ESXi) 9.0 Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y Y Y
VMware vSphere Hypervisor (ESXi) 9.1 Y Y Y N Y Y Y Y Y Y Y Y Y Y Y Y Y Y

1 The iboot hard drive can't be identified)

2 Ubuntu don't support SW iSCSI

3 The iboot hard drive can't be identified

4 For limitation, please refer Support Tip 104278

Physical specifications

The PCIe adapter has the following dimensions:

  • Length: 167 mm (6.6 in.)
  • Height: 63 mm (2.5 in)

The OCP adapter has the following dimensions:

  • Width: 76 mm (3 in.)
  • Depth: 115 mm (4.5 in.)

Operating environment

The adapter is supported in the following environment:

  • Temperature (operating): 0 to 55 °C (32 to 131 °F)
  • Temperature (storage): -40 to 65 °C (-40 to 149 °F)
  • Humidity: 5 to 95% non-condensing

Warranty

One-year limited warranty. When installed in a supported server, these adapters assume the server’s base warranty and any warranty upgrade.

Agency approvals

The adapter conforms to the following standards:

  • EN 55022:2010 + AC:2011 Class B (CE EU)
  • EN 55024 Class B (EU)
  • CFR47, Part 15 Class B (USA FCC)
  • ICES-003 Class B (Canada)
  • CNS13438 Class B (BSMI Taiwan)
  • RRL KN22 Class B (S. Korea)
  • KN24 (ESD) (S. Korea)
  • V-3 / 2014 / 04 (VCCI Japan)
  • EN 60950-1
  • UL 60950-1
  • CTUVus UL
  • CSA 22.2 No. 950
  • CNS14336 Class B
  • ICES 003
  • UL 1977 (connector safety)
  • UL 796 (PCB wiring safety)
  • UL 94 (flammability of parts)

Related product families

Product families related to this document are the following:

  • 100 Gb Ethernet Connectivity
  • Ethernet Adapters

Trademarks

Lenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at https://www.lenovo.com/us/en/legal/copytrade/.

The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo®
ServerProven®
ThinkSystem®

The following terms are trademarks of other companies:

AMD® and EPYC® are trademarks of Advanced Micro Devices, Inc.

Intel®, the Intel logo and Xeon® are trademarks of Intel Corporation or its subsidiaries.

Linux® is the trademark of Linus Torvalds in the U.S. and other countries.

Microsoft®, Windows 11™, Windows Server®, and Windows® are trademarks of Microsoft Corporation in the United States, other countries, or both.

NVIDIA® is a trademark of NVIDIA Corporation.

Other company, product, or service names may be trademarks or service marks of others.
