Intel XXV710-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter: технические характеристики и документация
Abstract
The ThinkSystem Intel XXV710-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter is a flexible follow-on to the X710 10Gb adapters and is best suited for existing 10Gb customers where they need to maintain 10Gb network support plus provide the investment protection of supporting 25GbE network speeds. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.
This product guide provides essential presales information to understand the XXV710 adapter and its key features, specifications and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about XXV710 and consider its use in IT solutions.
Change History
Changes in the October 31, 2023 update:
- Added the following transceiver - Supported transceivers and cables section:
- ThinkSystem Finisar Dual Rate 10G/25G SR SFP28 Transceiver, 4TC7A88638
Introduction
The ThinkSystem Intel XXV710-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter is a flexible follow-on to the X710 10Gb adapters and is best suited for existing 10Gb customers where they need to maintain 10Gb network support plus provide the investment protection of supporting 25GbE network speeds. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.

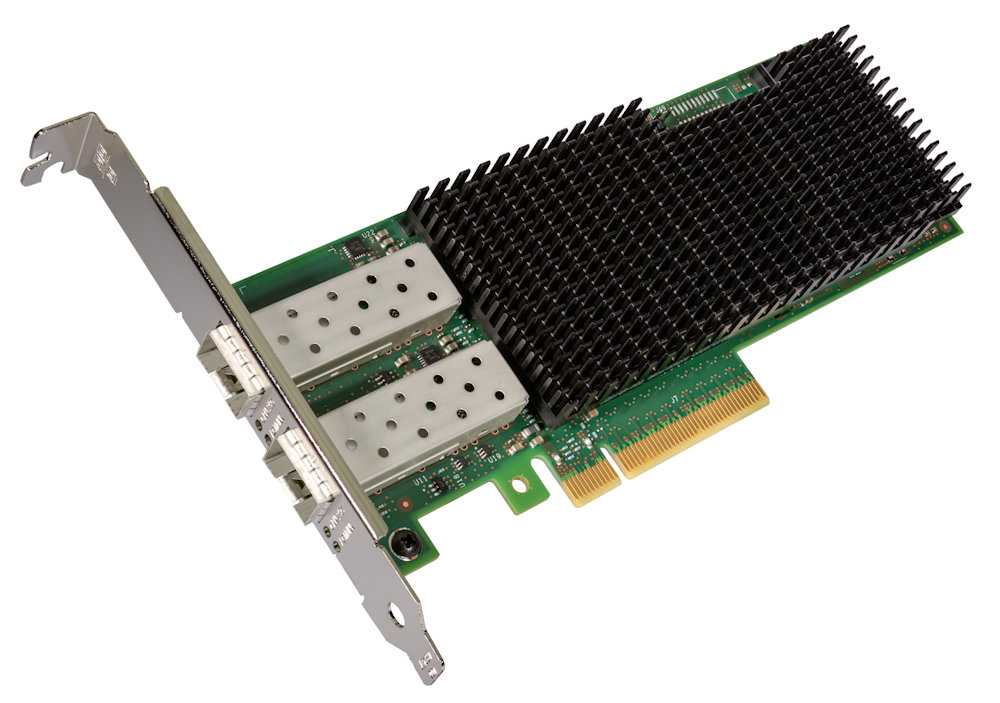

The following figure shows the ThinkSystem Intel XXV710-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter.
Figure 1. ThinkSystem Intel XXV710-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter
Did you know?
The Intel XXV710 adapter offers excellent small packet performance, and offers virtualization features with support for GENEVE, VXLAN, NVGRE offloads, DPDK, SR-IOV, and VMDq protocols.
Part number information
The following table provides the ordering part numbers and feature codes for the Intel XXV710 adapters.
| Part number | Feature code | Description |
|---|---|---|
| 7XC7A05523 | B0WY | ThinkSystem Intel XXV710-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter |
The ThinkSystem and System x adapter option part numbers includes the following items:
- One Intel Ethernet adapter
- Full-height (3U) bracket attached with low-profile (2U) bracket included in the box
- Documentation
Note: The adapters ship without any SFP28 transceivers or direct attach cables. These items must be ordered separately as listed in the following section.
Supported transceivers and cables
The Intel XXV710 adapters have empty SFP28 cages for connectivity. The adapter either supports connections to a 10 Gb or 25 Gb switch or can share a connection to a 100 Gb switch using a 4:1 breakout cable.
The following table lists the supported transceivers.
| Part number | Feature code | Description | NVIDIA part number |
|---|---|---|---|
| 1Gb Transceivers | |||
| 00FE333 | A5DL | SFP 1000Base-T (RJ-45) Transceiver | - |
| 10Gb Transceivers | |||
| 00FE331 | B0RJ | 10GBASE-LR SFP+ Transceiver | - |
| 49Y4216 | 0069 | Brocade 10Gb SFP+ SR Optical Transceiver | - |
| 49Y4218 | 0064 | QLogic 10Gb SFP+ SR Optical Transceiver | - |
| 90Y9412 | A1PM | SFP+ LR Transceiver | - |
| 46C3447 | 5053 | SFP+ SR Transceiver | - |
| 4TC7A78615 | BNDR | ThinkSystem Accelink 10G SR SFP+ Ethernet transceiver | - |
| 25Gb Transceivers | |||
| 4M27A67041 | BFH2 | Lenovo 25Gb SR SFP28 Ethernet Transceiver | - |
| 7G17A03537 | AV1B | Lenovo Dual Rate 10G/25G SR SFP28 Transceiver | - |
| 4TC7A88638 | BYBJ | ThinkSystem Finisar Dual Rate 10G/25G SR SFP28 Transceiver | - |
25Gb transceivers: When installed in the Intel XXV710 Ethernet adapter, the supported 25Gb transceiver will currently only operate at 25Gb/s speeds.
The following table lists the supported rack cabinets.
| Model | Description |
|---|---|
| 7D6DA007WW | ThinkSystem 42U Onyx Primary Heavy Duty Rack Cabinet (1200mm) |
| 7D6DA008WW | ThinkSystem 42U Pearl Primary Heavy Duty Rack Cabinet (1200mm) |
| 7D6EA009WW | ThinkSystem 48U Onyx Primary Heavy Duty Rack Cabinet (1200mm) |
| 7D6EA00AWW | ThinkSystem 48U Pearl Primary Heavy Duty Rack Cabinet (1200mm) |
| 93074RX | 42U Standard Rack (1000mm) |
| 93604PX | 42U 1200mm Deep Dynamic Rack |
| 93604EX | 42U 1200mm Deep Dynamic Expansion Rack |
| 93614PX | 42U 1200mm Deep Static Rack |
| 93614EX | 42U 1200mm Deep Static Expansion Rack |
| 93634PX | 42U 1100mm Dynamic Rack |
| 93634EX | 42U 1100mm Dynamic Expansion Rack |
| 93084PX | 42U Enterprise Rack |
| 93084EX | 42U Enterprise Expansion Rack |
For specifications about these racks, see the Lenovo Rack Cabinet Reference, available from:
https://lenovopress.com/lp1287-lenovo-rack-cabinet-reference
For more information, see the list of Product Guides in the Rack cabinets category:
https://lenovopress.com/servers/options/racks
Features
The Intel XXV710 adapter is optimized for data center, cloud, and mobile applications and include the following features:
- Compliance with the IEEE 802.3by and 25GEthernet.org 25 GbE specifications
- VXLAN, NVGRE and GENEVE Hardware Offloads: These stateless offloads preserve application performance for overlay networks. With these offloads, it is possible to distribute network traffic across CPU cores. At the same time, X710 offloads LSO, GSO, and checksum from the host software, which reduces CPU overhead.
- Mobile and cloud application acceleration: Intel’s Data Plan Development Kit (DPDK) delivers an open driver where users can fine-tune small packet performance.
- Low latency: Intel Ethernet Flow Director delivers hardware-based application steering and Intel Data Direct I/O makes the processor cache the primary destination and source of I/O data rather than main memory. Combined, latency is reduced and Intel reports a three-fold improvement in RPS.
- Virtualization performance: With Intel Virtualization Technology (VT), the X710 family of adapters delivers outstanding I/O performance in virtualized server environments. These adapters reduce I/O bottlenecks by providing intelligent offloads for networking traffic per virtual machine (VM), which enables near-line rate speeds for small packets and supports almost an unlimited amount of isolated traffic flows so that you can scale your cloud environment.
- Next-generation VMDq: The X710 adapters support up to 256 VMDq VMs and offer enhanced Quality of Service (QoS) feature by providing weighted round-robin servicing for the Tx data. The adapters offload the data-sorting functionality from the hypervisor to the network silicon, which improves data throughput and CPU usage.
- PCI-SIG SR-IOV implementation: Provides an implementation of the PCI-SIG standard for I/O Virtualization. The physical configuration of each port is divided into multiple virtual ports. Each virtual port is assigned to an individual VM directly by bypassing the virtual switch in the Hypervisor, which results in near-native performance.
- VM load balancing: Provides traffic load balancing (Tx and Rx) across VMs that are bound to the team interface. It also provides fault tolerance if a switch, port, cable, or adapter fails.
Specifications
The Intel XXV710 adapter has the following specifications:
- Empty SFP28 cages for supported transceivers or DAC cables
- Host interface:
- PCI Express 3.0; x8
- PCI Power Management/ACPI Extensions
- MSI-X Support
- Energy Efficient Ethernet
- 1,536 Tx and Rx queues
- Virtualization features:
- Microsoft Network Virtualization that uses Generic Routing Encapsulation (NVGRE)
- VMware Virtual Extensible LAN (VXLAN)
- GENEVE support
- VMDq for intelligent offloads
- SR-IOV direct assignment support
- Virtual Bridging Support: VEPA/802.1Qbg, BPE/802.1Qbh
- Virtual Functions: Up to 128 per device (SR-IOV)
- Hardware Queue Pairs: Up to 1.5K
- Management features:
- Advanced filtering capabilities (IPv4, IPv6)
- SNMP
- RMON statistic counters
- Additional features:
- Jumbo Frame Support: 9728 bytes
- VLAN support
- Flow Control
- IEEE 1588 Time Synchronization Support (802.1as)
- TCP/IP Layer 2 features:
- Receive Side Scaling (RSS)
- Large Send Offload (LSO)
- TCP/UDP/IP/SCTP Checksum Offload
- IPv4, IPv6
- Supports iSCSI as an iSCSI software initiator
- IEEE 802.1Q VLAN support with VLAN tag insertion, with stripping and packet filtering for up to 4096 VLAN tags.
- IEEE 802.3x flow control support.
- IEEE 802.1p Class of Service (CoS)/QoS.
- Support for Advanced Packet Filtering.
- Teaming support:
- Adapter Fault Tolerance (AFT)
- Switch Fault Tolerance (SFT)
- Adaptive Load Balancing (ALB)
- VM Load Balancing (VMLB)
- IEEE 802.3ad (link aggregation control protocol)
- Intel PROSet Utility for easy configuration and management.
- UEFI and legacy PXE boot
- Compliant with the European Union RoHS directive 2011/65/EU to reduce the use of hazardous materials.
Standards supported
The Intel XXV710 support the following IEEE standards:
- IEEE 802.3by 25 Gb/s Ethernet Standard
- IEEE 802.3ae 10GBASE-SR short range fiber optics 10 Gb Ethernet
- IEEE 802.1p CoS traffic prioritization
- IEEE 802.1Q VLAN tagging
- IEEE 802.3ad Link Aggregation Control Protocol
- IEEE 802.3x Full-duplex flow control
- IEEE 802.3bd priority-based flow control
- IEEE 1588, IEEE 802.1AS time sync
- IEEE 802.3az Energy Efficient Ethernet
Server support
The following tables list the ThinkSystem servers that are compatible.
| Part Number | Description | AMD V3 | 2S Intel V3/V4 | 1S V3 | 4S 8S Intel V3/V4 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SR635 V3 (7D9H / 7D9G) |
SR655 V3 (7D9F / 7D9E) |
SR645 V3 (7D9D / 7D9C) |
SR665 V3 (7D9B / 7D9A) |
SD535 V3 (7DD8 / 7DD1) |
ST650 V3 (7D7B / 7D7A) |
SR630 V3 (7D72 / 7D73) |
SR650 V3 (7D75 / 7D76) |
SR630 V4 (7DG8 / 7DG9) |
SR650 V4 (7DGC / 7DGD) |
SR650a V4 (7DGC / 7DGD) |
ST45 V3 (7DH4 / 7DH5) |
ST50 V3 (7DF4 / 7DF3) |
ST250 V3 (7DCF / 7DCE) |
SR250 V3 (7DCM / 7DCL) |
SR850 V3 (7D97 / 7D96) |
SR860 V3 (7D94 / 7D93) |
SR950 V3 (7DC5 / 7DC4) |
SR850 V4 (7DJT / 7DJS) |
SR860 V4 (7DJQ / 7DJN) |
||
| 7XC7A05523 | ThinkSystem Intel XXV710-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Part Number | Description | AI Servers | Edge | Super computing | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
SR675 V3 (7D9Q / 7D9R) |
SR680a V3 B200 (7DM9) |
SR685a V3 (7DHC) |
SR780a V3 (7DJ5) |
SR680a V4 (7DMK) |
SE100 (7DGR) |
SE455 V3 (7DBY) |
SC750 V4 (7DDJ) |
SC777 V4 (7DKA) |
SD665 V3 (7D9P) |
||
| 7XC7A05523 | ThinkSystem Intel XXV710-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | N |
| Part Number | Description | Edge | 1S Intel V2 | 2S Intel V2 | AMD V1 | Multi node | AI | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SE350 (7Z46 / 7D1X) |
SE350 V2 (7DA9) |
SE360 V2 (7DAM) |
SE450 (7D8T) |
ST50 V2 (7D8K / 7D8J) |
ST250 V2 (7D8G / 7D8F) |
SR250 V2 (7D7R / 7D7Q) |
ST650 V2 (7Z75 / 7Z74) |
SR630 V2 (7Z70 / 7Z71) |
SR650 V2 (7Z72 / 7Z73) |
SR635 (7Y98 / 7Y99) |
SR655 (7Y00 / 7Z01) |
SR645 (7D2Y / 7D2X) |
SR665 (7D2W / 7D2V) |
SD530 V3 (7DDA / 7DD3) |
SD550 V3 (7DD9 / 7DD2) |
SR670 V2 (7Z22 / 7Z23) |
SR680a V3 (7DHE) |
||
| 7XC7A05523 | ThinkSystem Intel XXV710-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter | N | N | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Part Number | Description | SC | Dense V2 | 4S V2 | 8S | 4S V1 | 1S Intel V1 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SD665-N V3 (7DAZ) |
SD650 V3 (7D7M) |
SD650-I V3 (7D7L) |
SD650-N V3 (7D7N) |
SD630 V2 (7D1K) |
SD650 V2 (7D1M) |
SD650-N V2 (7D1N) |
SN550 V2 (7Z69) |
SR850 V2 (7D31 / 7D32) |
SR860 V2 (7Z59 / 7Z60) |
SR950 (7X11 / 7X12) |
SR850 (7X18 / 7X19) |
SR850P (7D2F / 2D2G) |
SR860 (7X69 / 7X70) |
ST50 (7Y48 / 7Y50) |
ST250 (7Y45 / 7Y46) |
SR150 (7Y54) |
SR250 (7Y52 / 7Y51) |
||
| 7XC7A05523 | ThinkSystem Intel XXV710-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | Y | Y | Y | Y | N | Y | N | Y |
| Part Number | Description | 2S Intel V1 | Dense V1 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ST550 (7X09 / 7X10) |
SR530 (7X07 / 7X08) |
SR550 (7X03 / 7X04) |
SR570 (7Y02 / 7Y03) |
SR590 (7X98 / 7X99) |
SR630 (7X01 / 7X02) |
SR650 (7X05 / 7X06) |
SR670 (7Y36 / 7Y37) |
SD530 (7X21) |
SD650 (7X58) |
SN550 (7X16) |
SN850 (7X15) |
||
| 7XC7A05523 | ThinkSystem Intel XXV710-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter | Y | N | N | Y | Y | Y | Y | Y | Y | N | N | N |
Operating system support
The following table lists the supported operating systems for the adapter.
Tip: This table is automatically generated based on data from Lenovo ServerProven.
| Operating systems | SR650 (Xeon Gen 1) |
SE450 |
ST550 (Xeon Gen 1) |
ST550 (Xeon Gen 1) |
ST550 (Xeon Gen 2) |
ST550 (Xeon Gen 2) |
SR950 (Xeon Gen 2) |
SR950 (Xeon Gen 1) |
SR860 (Xeon Gen 1) |
SR850P (Xeon Gen 2) |
SR850 (Xeon Gen 1) |
SD530 (Xeon Gen 1) |
SR630 (Xeon Gen 1) |
ST250 |
ST250 |
SR250 |
SR250 |
SR850 (Xeon Gen 2) |
SR860 (Xeon Gen 2) |
SR650 (Xeon Gen 2) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Microsoft Windows Server 2012 R2 | Y | N | Y | Y | N | N | N | Y | Y 2 | N | Y 2 | Y | Y | N | N | N | N | N | N | N |
| Microsoft Windows Server 2016 | Y | N | Y | Y | Y | Y | Y | Y | Y 2 | Y | Y 2 | Y | Y | Y | Y | Y | Y | Y 2 | Y 2 | Y |
| Microsoft Windows Server 2019 | Y | Y | Y | Y | Y | Y | Y | Y | Y 2 | Y | Y 2 | Y | Y | Y | Y | Y | Y | Y 2 | Y 2 | Y |
| Microsoft Windows Server 2022 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Microsoft Windows Server 2025 | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Microsoft Windows Server version 1709 | Y | N | Y | Y | N | N | N | Y | Y 2 | N | N | Y | Y | N | N | N | N | N | N | N |
| Microsoft Windows Server version 1803 | Y | N | N | N | N | N | N | Y | Y 2 | N | Y 2 | Y | Y | N | N | N | N | N | N | N |
| Red Hat Enterprise Linux 6.9 | Y | N | Y | Y | N | N | N | Y | Y 2 | N | Y 2 | Y | Y | N | N | N | N | N | N | N |
| Red Hat Enterprise Linux 6.10 | Y | N | Y | Y | N | N | N | Y | Y 2 | N | Y 2 | Y | Y | N | N | N | N | N | N | N |
| Red Hat Enterprise Linux 7.3 | Y | N | Y | Y | N | N | N | Y | N | N | Y 2 | Y | Y | N | N | N | N | N | N | N |
| Red Hat Enterprise Linux 7.4 | Y | N | Y | Y | N | N | N | Y | Y 2 | N | Y 2 | Y | Y | N | N | N | N | N | N | N |
| Red Hat Enterprise Linux 7.5 | Y | N | Y | Y | N | N | N | Y | Y 2 | N | Y 2 | Y | Y | Y | Y | Y | Y | N | N | N |
| Red Hat Enterprise Linux 7.6 | Y | N | Y | Y | Y | Y | Y | Y | Y 2 | Y | Y 2 | Y | Y | N | N | N | N | Y 2 | Y 2 | Y |
| Red Hat Enterprise Linux 7.7 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 7.8 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 7.9 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.0 | Y | N | Y | Y | Y | Y | Y | Y | Y 2 | Y | Y 2 | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.1 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.2 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.3 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.4 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.5 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.6 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.7 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.8 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.9 | N | Y | N | N | Y | Y | Y | N | N | Y | N | N | N | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 8.10 | N | Y | N | N | Y | Y | Y | N | N | N | N | N | N | N | N | N | N | N | N | Y |
| Red Hat Enterprise Linux 9.0 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 9.1 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 9.2 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 9.3 | N | Y | N | N | Y | Y | Y | N | N | Y | N | N | N | Y | Y | Y | Y | Y | Y | Y |
| Red Hat Enterprise Linux 9.4 | N | Y | N | N | Y | Y | Y | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Red Hat Enterprise Linux 9.5 | N | Y | N | N | Y | Y | Y | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Red Hat Enterprise Linux 9.6 | N | Y | N | N | N | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Red Hat Enterprise Linux 9.7 | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Red Hat Enterprise Linux 9.8 | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Red Hat Enterprise Linux 10.0 | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Red Hat Enterprise Linux 10.1 | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Red Hat Enterprise Linux 10.2 | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| SUSE Linux Enterprise Server 11 SP4 | Y | N | Y | Y | N | N | N | Y | Y 2 | N | Y 2 | Y | Y | N | N | N | N | N | N | N |
| SUSE Linux Enterprise Server 11 SP4 with Xen | Y | N | Y | Y | N | N | N | Y | Y 2 | N | Y 2 | Y | Y | N | N | N | N | N | N | N |
| SUSE Linux Enterprise Server 12 SP2 | Y | N | Y | Y | N | N | N | Y | N | N | Y 2 | Y | Y | N | N | N | N | N | N | N |
| SUSE Linux Enterprise Server 12 SP2 with Xen | Y | N | Y | Y | N | N | N | Y | N | N | Y 2 | Y | Y | N | N | N | N | N | N | N |
| SUSE Linux Enterprise Server 12 SP3 | Y | N | Y | Y | N | N | N | Y | Y 2 | Y | Y 2 | Y | Y | Y | Y | Y | Y | N | N | N |
| SUSE Linux Enterprise Server 12 SP3 with Xen | Y | N | Y | Y | N | N | N | Y | Y 2 | Y | Y 2 | Y | Y | Y | Y | Y | Y | N | N | N |
| SUSE Linux Enterprise Server 12 SP4 | Y | N | Y | Y | Y | Y | Y | Y | Y 2 | Y | Y 2 | Y | Y | N | N | N | N | Y 2 | Y 2 | Y |
| SUSE Linux Enterprise Server 12 SP4 with Xen | Y | N | Y | Y | Y | Y | Y | Y | Y 2 | Y | Y 2 | Y | Y | N | N | N | N | Y 2 | Y 2 | Y |
| SUSE Linux Enterprise Server 12 SP5 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 12 SP5 with Xen | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 15 | Y | N | Y | Y | Y | Y | Y | Y | Y 2 | Y | Y 2 | Y | Y | Y | Y | Y | Y | Y 2 | Y 2 | Y |
| SUSE Linux Enterprise Server 15 SP1 | Y | N | Y | Y | Y | Y | Y | Y | Y 2 | Y | Y 2 | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 15 SP1 with Xen | Y | N | Y | Y | Y | Y | Y | Y | Y 2 | Y | Y 2 | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 15 SP2 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 15 SP2 with Xen | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 15 SP3 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 15 SP3 with Xen | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 15 SP4 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 15 SP4 with Xen | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 15 SP5 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 15 SP5 with Xen | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| SUSE Linux Enterprise Server 15 SP6 | N | Y | N | N | N | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N |
| SUSE Linux Enterprise Server 15 SP7 | N | Y | N | N | N | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N |
| SUSE Linux Enterprise Server 15 with Xen | Y | N | Y | Y | Y | Y | Y | Y | Y 2 | Y | Y 2 | Y | Y | Y | Y | Y | Y | Y 2 | Y 2 | Y |
| SUSE Linux Enterprise Server 16 | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Ubuntu 24.04 LTS or later with HWE kernel | N | Y 1 | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| Ubuntu 26.04 LTS or later with HWE kernel | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| VMware vSphere Hypervisor (ESXi) 6.0 U3 | Y | N | Y | Y | N | N | N | Y | Y 2 | N | Y 2 | Y | Y | N | N | N | N | N | N | N |
| VMware vSphere Hypervisor (ESXi) 6.5 | Y | N | Y | Y | N | N | N | Y | N | N | N | Y | Y | N | N | N | N | N | N | N |
| VMware vSphere Hypervisor (ESXi) 6.5 U1 | Y | N | Y | Y | N | N | N | Y | Y 2 | N | Y 2 | Y | Y | N | N | N | N | N | N | N |
| VMware vSphere Hypervisor (ESXi) 6.5 U2 | Y | N | Y | Y | Y | Y | Y | Y | Y 2 | Y | Y 2 | Y | Y | Y | Y | Y | Y | Y 2 | Y 2 | Y |
| VMware vSphere Hypervisor (ESXi) 6.5 U3 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 6.7 | Y | N | Y | Y | N | N | N | Y | Y 2 | N | Y 2 | Y | Y | Y | Y | Y | Y | N | N | N |
| VMware vSphere Hypervisor (ESXi) 6.7 U1 | Y | N | Y | Y | Y | Y | Y | Y | Y 2 | Y | Y 2 | Y | Y | N | N | N | N | Y 2 | Y 2 | Y |
| VMware vSphere Hypervisor (ESXi) 6.7 U2 | Y | N | Y | Y | Y | Y | Y | Y | Y 2 | Y | Y 2 | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 6.7 U3 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 7.0 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 7.0 U1 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 7.0 U2 | Y | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 7.0 U3 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 8.0 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 8.0 U1 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 8.0 U2 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 8.0 U3 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | Y |
| VMware vSphere Hypervisor (ESXi) 9.0 | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | Y |
| VMware vSphere Hypervisor (ESXi) 9.1 | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
1 The iboot hard drive can't be identified)
2 The maximum quantity of Intel X710-DA2 plus XXV710-DA2 adapters supported is 5. Detail information please refer to Support Tip HT508158
| Operating systems | SR630 (Xeon Gen 2) |
SD530 (Xeon Gen 2) |
|---|---|---|
| Microsoft Windows Server 2012 R2 | N | N |
| Microsoft Windows Server 2016 | Y | Y |
| Microsoft Windows Server 2019 | Y | Y |
| Microsoft Windows Server 2022 | Y | Y |
| Microsoft Windows Server 2025 | N | N |
| Microsoft Windows Server version 1709 | N | N |
| Microsoft Windows Server version 1803 | N | N |
| Red Hat Enterprise Linux 6.9 | N | N |
| Red Hat Enterprise Linux 6.10 | N | N |
| Red Hat Enterprise Linux 7.3 | N | N |
| Red Hat Enterprise Linux 7.4 | N | N |
| Red Hat Enterprise Linux 7.5 | N | N |
| Red Hat Enterprise Linux 7.6 | Y | Y |
| Red Hat Enterprise Linux 7.7 | Y | Y |
| Red Hat Enterprise Linux 7.8 | Y | Y |
| Red Hat Enterprise Linux 7.9 | Y | Y |
| Red Hat Enterprise Linux 8.0 | Y | Y |
| Red Hat Enterprise Linux 8.1 | Y | Y |
| Red Hat Enterprise Linux 8.2 | Y | Y |
| Red Hat Enterprise Linux 8.3 | Y | Y |
| Red Hat Enterprise Linux 8.4 | Y | Y |
| Red Hat Enterprise Linux 8.5 | Y | Y |
| Red Hat Enterprise Linux 8.6 | Y | Y |
| Red Hat Enterprise Linux 8.7 | Y | Y |
| Red Hat Enterprise Linux 8.8 | Y | Y |
| Red Hat Enterprise Linux 8.9 | Y | Y |
| Red Hat Enterprise Linux 8.10 | N | N |
| Red Hat Enterprise Linux 9.0 | Y | Y |
| Red Hat Enterprise Linux 9.1 | Y | Y |
| Red Hat Enterprise Linux 9.2 | Y | Y |
| Red Hat Enterprise Linux 9.3 | Y | Y |
| Red Hat Enterprise Linux 9.4 | N | N |
| Red Hat Enterprise Linux 9.5 | N | N |
| Red Hat Enterprise Linux 9.6 | N | N |
| Red Hat Enterprise Linux 9.7 | N | N |
| Red Hat Enterprise Linux 9.8 | N | N |
| Red Hat Enterprise Linux 10.0 | N | N |
| Red Hat Enterprise Linux 10.1 | N | N |
| Red Hat Enterprise Linux 10.2 | N | N |
| SUSE Linux Enterprise Server 11 SP4 | N | N |
| SUSE Linux Enterprise Server 11 SP4 with Xen | N | N |
| SUSE Linux Enterprise Server 12 SP2 | N | N |
| SUSE Linux Enterprise Server 12 SP2 with Xen | N | N |
| SUSE Linux Enterprise Server 12 SP3 | N | N |
| SUSE Linux Enterprise Server 12 SP3 with Xen | N | N |
| SUSE Linux Enterprise Server 12 SP4 | Y | Y |
| SUSE Linux Enterprise Server 12 SP4 with Xen | Y | Y |
| SUSE Linux Enterprise Server 12 SP5 | Y | Y |
| SUSE Linux Enterprise Server 12 SP5 with Xen | Y | Y |
| SUSE Linux Enterprise Server 15 | Y | Y |
| SUSE Linux Enterprise Server 15 SP1 | Y | Y |
| SUSE Linux Enterprise Server 15 SP1 with Xen | Y | Y |
| SUSE Linux Enterprise Server 15 SP2 | Y | Y |
| SUSE Linux Enterprise Server 15 SP2 with Xen | Y | Y |
| SUSE Linux Enterprise Server 15 SP3 | Y | Y |
| SUSE Linux Enterprise Server 15 SP3 with Xen | Y | Y |
| SUSE Linux Enterprise Server 15 SP4 | Y | Y |
| SUSE Linux Enterprise Server 15 SP4 with Xen | Y | Y |
| SUSE Linux Enterprise Server 15 SP5 | Y | Y |
| SUSE Linux Enterprise Server 15 SP5 with Xen | Y | Y |
| SUSE Linux Enterprise Server 15 SP6 | N | N |
| SUSE Linux Enterprise Server 15 SP7 | N | N |
| SUSE Linux Enterprise Server 15 with Xen | Y | Y |
| SUSE Linux Enterprise Server 16 | N | N |
| Ubuntu 24.04 LTS or later with HWE kernel | N | N |
| Ubuntu 26.04 LTS or later with HWE kernel | N | N |
| VMware vSphere Hypervisor (ESXi) 6.0 U3 | N | N |
| VMware vSphere Hypervisor (ESXi) 6.5 | N | N |
| VMware vSphere Hypervisor (ESXi) 6.5 U1 | N | N |
| VMware vSphere Hypervisor (ESXi) 6.5 U2 | Y | Y |
| VMware vSphere Hypervisor (ESXi) 6.5 U3 | Y | Y |
| VMware vSphere Hypervisor (ESXi) 6.7 | N | N |
| VMware vSphere Hypervisor (ESXi) 6.7 U1 | Y | Y |
| VMware vSphere Hypervisor (ESXi) 6.7 U2 | Y | Y |
| VMware vSphere Hypervisor (ESXi) 6.7 U3 | Y | Y |
| VMware vSphere Hypervisor (ESXi) 7.0 | Y | Y |
| VMware vSphere Hypervisor (ESXi) 7.0 U1 | Y | Y |
| VMware vSphere Hypervisor (ESXi) 7.0 U2 | Y | Y |
| VMware vSphere Hypervisor (ESXi) 7.0 U3 | Y | Y |
| VMware vSphere Hypervisor (ESXi) 8.0 | Y | Y |
| VMware vSphere Hypervisor (ESXi) 8.0 U1 | Y | Y |
| VMware vSphere Hypervisor (ESXi) 8.0 U2 | Y | Y |
| VMware vSphere Hypervisor (ESXi) 8.0 U3 | Y | Y |
| VMware vSphere Hypervisor (ESXi) 9.0 | N | N |
| VMware vSphere Hypervisor (ESXi) 9.1 | N | N |
Physical specifications
The Intel XXV710-DA2 adapter has the following dimensions:
- Length: 168 mm (6.6 in.)
- Width: 69 mm (2.7 in.)
- Height: 15 mm (0.6 in.)
Operating environment
The XXV710 adapters are supported in the following environment:
- Operating temperature: 0 to 55 °C (32 to 131 °F)
- Storage temperature: -20 to 65 °C (-4 to 149 °F)
- Shipping conditions: -20 to 70 °C (-4 to 158 °F)
- Air flow requirement (LFM)
- 25G optics: 200 LFM
- Direct-attach 25G cables: 100 LFM
- Wet bulb (max): 27 °C
- Relative humidity (non-operating): 10% to 90%
- Maximum dew Point (operating): 21 °C
- Maximum operating altitude: 7,000 feet or 2,134 meters
- Vibration and shock with 25-GS0009 standard
- Electrostatic/electromagnetic susceptibility with 25-GS0009 standard
Warranty
One-year limited warranty. When installed in a supported server, these adapters assume the server’s base warranty and any warranty upgrade.
Agency approvals
The adapter conforms to the following standards:
- EN55032
- EN55024
- EN 61000-3-2
- EN 61000-3-3
- ICES-003, Issue-004
- FCC 47 CFR Part 15 Class A
- Japan VCCI
- AS/NZS CISPR 22 / C-tick
- RRL for KC
- BSMI
- UL 94 V-1
Top-of-rack Ethernet switches
The following table lists the 10 Gb, 25 Gb and 100 Gb Ethernet LAN switches that are offered by Lenovo.
| Part number | Description |
|---|---|
| 10 Gb Ethernet switches | |
| 7159A1X | Lenovo ThinkSystem NE1032 RackSwitch (Rear to Front) |
| 7159B1X | Lenovo ThinkSystem NE1032T RackSwitch (Rear to Front) |
| 7159C1X | Lenovo ThinkSystem NE1072T RackSwitch (Rear to Front) |
| 7159BR6 | Lenovo RackSwitch G8124E (Rear to Front) |
| 7159G64 | Lenovo RackSwitch G8264 (Rear to Front) |
| 7159DRX | Lenovo RackSwitch G8264CS (Rear to Front) |
| 7159CRW | Lenovo RackSwitch G8272 (Rear to Front) |
| 7159GR6 | Lenovo RackSwitch G8296 (Rear to Front) |
| 25 Gb Ethernet switches | |
| 7159E1X | Lenovo ThinkSystem NE2572 RackSwitch (Rear to Front) |
| 100 Gb Ethernet switches | |
| 7159D1X | Lenovo ThinkSystem NE10032 RackSwitch (Rear to Front) |
For more information, see the list of Product Guides in the following switch categories:
- 10 Gb Ethernet switches: http://lenovopress.com/networking/tor/10gb?rt=product-guide
- 25 Gb Ethernet switches: http://lenovopress.com/networking/tor/25gb?rt=product-guide
- 100 Gb Ethernet switches: https://lenovopress.com/networking/tor/100Gb?rt=product-guide
Related product families
Product families related to this document are the following:
- 25 Gb Ethernet Connectivity
- Ethernet Adapters
Trademarks
Lenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at https://www.lenovo.com/us/en/legal/copytrade/.
The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo®
ServerProven®
System x®
ThinkSystem®
The following terms are trademarks of other companies:
AMD® is a trademark of Advanced Micro Devices, Inc.
Intel®, the Intel logo and Xeon® are trademarks of Intel Corporation or its subsidiaries.
Linux® is the trademark of Linus Torvalds in the U.S. and other countries.
Microsoft®, Windows Server®, and Windows® are trademarks of Microsoft Corporation in the United States, other countries, or both.
NVIDIA® is a trademark of NVIDIA Corporation.
Other company, product, or service names may be trademarks or service marks of others.
