Lenovo ThinkSystem DM5000H is a unified, hybrid storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium enterprises. Powered by the ONTAP software, ThinkSystem DM5000H delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DM5000H is a perfect fit for a wide range of enterprise workloads, including data analytics, artificial intelligence, engineering and design, enterprise applications, and other storage I/O-intensive applications.

ThinkSystem DM5000H models are 2U rack-mount controller enclosures that include two controllers, 64 GB RAM and 8 GB battery-backed NVRAM (32 GB RAM and 4 GB NVRAM per controller), and 24 SFF hot-swap drive bays (2U24 form factor). Controllers provide universal 1/10 GbE NAS/iSCSI or 4/8/16 Gb Fibre Channel (FC) ports, or 1/10 GbE RJ-45 ports for host connectivity.

A single ThinkSystem DM5000H Storage Array scales up to 144 drives with the attachment of Lenovo ThinkSystem DM240S 2U24 SFF, DM120S 2U12, and DM600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).

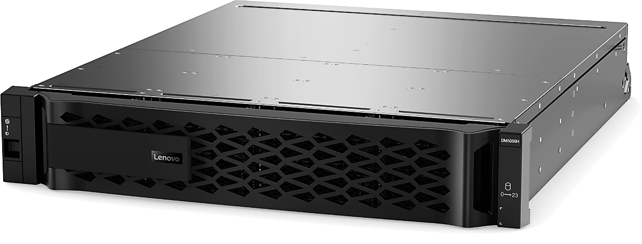

Figure 1. Lenovo ThinkSystem DM5000H

Up to 12 DM5000H Storage Arrays can be combined into a clustered system in a NAS environment, or up to 6 DM5000H Storage Arrays can be combined into a clustered system in a SAN environment.

Full 3D Tour

A single ThinkSystem DM5000H can scale up to 1.96 PB of raw storage capacity. A cluster of the DM5000H storage systems can scale up to 23.5 PB for NAS or up to 11.7 PB for SAN environments.

The ThinkSystem DM5000H offers unified file and block storage connectivity with support for 1 GbE or 10 GbE NAS and iSCSI, and 8 Gb or 16 Gb Fibre Channel protocols at the same time.

The ThinkSystem DM5000H offers the following key features and benefits:

• Unified, hybrid storage with dual active/active controller configurations for high availability and performance.
• Improved performance and data protection with RAID-DP and RAID-TEC, as well as support for traditional RAID 4.
• Flexible host connectivity to match diverse client needs with support for unified NAS and SAN storage protocols, including 1/10 GbE NAS and iSCSI, and 8/16 Gb Fibre Channel connectivity.
• 12 Gb SAS drive-side connectivity with multipathing with up to 24x 2.5-inch small form factor (SFF) drives in the 2U24 SFF controller and expansion enclosures, up to 12x 3.5-inch large form factor (LFF) drives in the 2U12 LFF expansion enclosures, or up to 60x 3.5-inch LFF drives in the 4U60 LFF expansion enclosures.
• Scalability to up to 144 SFF or 120 LFF and 24 SFF drives with the attachment of the ThinkSystem DM240S 2U24 SFF, DM120S 2U12 LFF, or DM600S 4U60 LFF expansion enclosures to satisfy growing needs for storage capacity and performance.
• Flexibility in storing data on capacity-optimized SAS SSDs, performance-optimized enterprise SAS HDDs, or capacity-optimized enterprise NL SAS HDDs; mixing and matching drive types within a single system to perfectly meet performance and capacity requirements for various workloads.
• Acceleration of read-centric workloads with the high-speed, low-latency onboard NVMe SSD caching.
• A comprehensive set of advanced storage management features with the ONTAP software, including SSD read cache, hybrid storage pools, snapshots, volume copy, quality of service, thin provisioning, compression, deduplication, encryption, disk-based backup, application- and virtual machine-aware backup, quick data recovery, clustering, synchronous replication, asynchronous replication, and up to 84 drives.
• A core set of storage management features with the ONTAP Fundamentals software, including SSD read cache, hybrid storage pools, snapshots, quality of service, thin provisioning, compression, deduplication, encryption, quick data recovery, and asynchronous replication.
• Optional licensed functions, including WORM (write once, read many) data protection (SnapLock) and object storage tiering (FabricPool).
• Scale-out clustering of up to 12 ThinkSystem DM Series storage systems for NAS connectivity or up to 6 DM Series storage systems for SAN connectivity.
• Intuitive, web-based GUI for easy system setup and management.
• Lenovo XClarity support for centralized systems management of Lenovo x86 servers, switches, and storage, which provides automated agent-less discovery, inventory, monitoring, and additional platform-specific functions across multiple systems.
• Designed for 99.9999% availability with redundant hot-swap components, including controllers and I/O modules, power supplies, and non-disruptive firmware upgrades.
• Certified storage for Oracle VM.
• Certified storage for Citrix XenServer: http://hcl.xenserver.org/storage/910/Lenovo_DM_Series.

The ThinkSystem DM5000H supports the following drives:

• 2U24 SFF capacity-optimized SSDs: 960 GB, 3.84 TB, 7.68 TB, and 15.36 TB
• 2U24 SFF enterprise SAS HDDs: 900 GB, 1.2 TB, and 1.8 TB 10K rpm
• 2U12 LFF and 4U60 LFF high-capacity nearline HDDs: 4 TB, 8 TB, 10 TB, and 16 TB 7.2K rpm

All drives are dual-port and hot-swappable.

The ThinkSystem DM5000H supports attachment of the following ThinkSystem DM Series expansion enclosures:

• Up to 5 ThinkSystem DM240S 2U24 SFF enclosures.
• Up to 9 ThinkSystem DM120S 2U12 LFF enclosures.
• Up to 2 ThinkSystem DM600S 4U60 LFF enclosures.
• A combination of the DM240S, DM120S, and DM600S enclosures for a maximum of 144 drives.

Customers can intermix 2U24 SFF, 2U12 LFF, and 4U60 LFF expansion enclosures behind a 2U24 controller enclosure. This configuration delivers the added flexibility to mix 3.5-inch and 2.5-inch drives within a single system (but not within the enclosure).

More drives and expansion enclosures are designed to be dynamically added with virtually no downtime, which helps to quickly and seamlessly respond to ever-growing capacity demands.

The ThinkSystem DM5000H offers high levels of system and data availability with the following technologies:

• Dual-active controllers (high availability pair) with automatic load balancing and failover
• Mirrored, battery-backed controller NVRAM
• Dual-port SAS HDDs and SSDs with automatic drive failure detection and rebuild
• Redundant, hot-swappable and customer replaceable hardware components, including SFP+ transceivers, controllers, I/O modules, power supplies, cooling modules (4U60 LFF only), and drives
• Automated failover for the data path between the host and the drives with multipathing
• Non-disruptive controller and drive firmware upgrades
• Scale-out clustering

The front of the ThinkSystem DM5000H or DM240S 2U SFF enclosure includes the following components:

• 24 SFF hot-swap drive bays.
• Enclosure status LEDs.
• Enclosure ID LED.

The following figure shows the rear of the ThinkSystem DM5000H 2U controller enclosure with 10GBASE-T host ports.

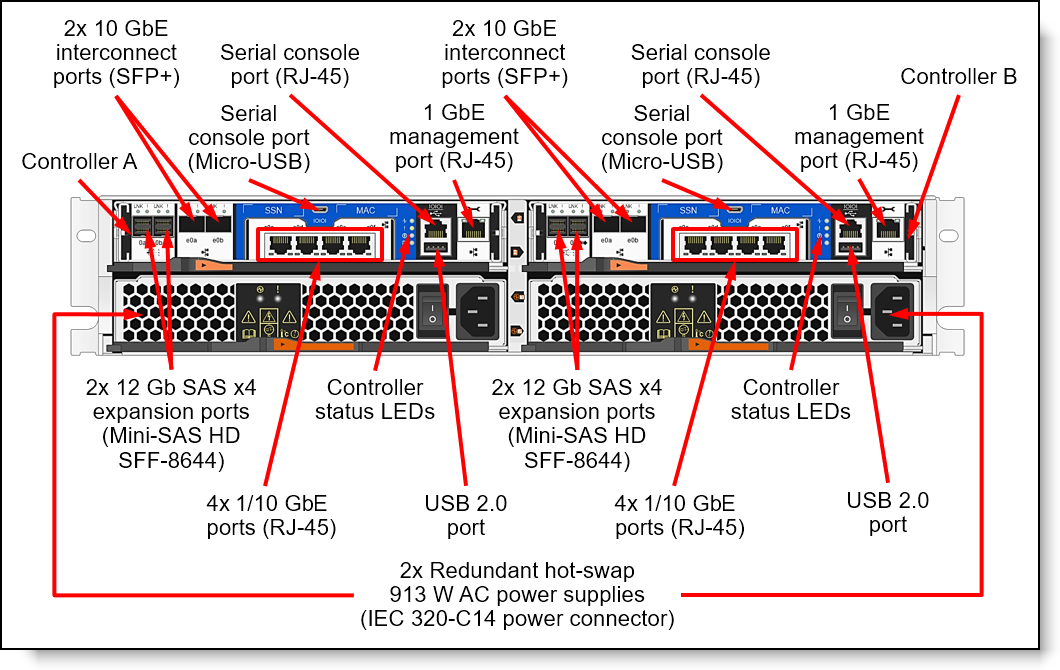

Figure 4. ThinkSystem DM5000H 2U controller enclosure rear view: 10GBASE-T host ports

The following table lists the ThinkSystem DM5000H storage system specifications.

Note: The supported hardware options, software features, and interoperability listed in this product guide are based on the ONTAP software version 9.7. For details about specific software releases that introduced support for certain hardware options and software features, refer to the Release notes of the particular software release for the ThinkSystem DM5000H that can be found at:
http://datacentersupport.lenovo.com

* Estimated performance based on internal measurements.
** For a detailed list of configuration limits and restrictions for a specific version of the software, refer to the Lenovo Data Center Support website:
http://datacentersupport.lenovo.com

Preconfigured and factory-integrated models of the ThinkSystem DM5000H Unified Hybrid Storage Array are configured by using the Lenovo Data Center Solution Configurator (DCSC):
http://dcsc.lenovo.com

The following table lists the preconfigured models of the ThinkSystem DM5000H.

Configuration note:

• Two DM3000/DM5000 10GBASE-T controllers (feature code B39G) or two DM3000/DM5000 SFP+ controllers (feature code B39F) must be selected during the CTO configuration process, and both controllers must be of the same type (either 10GBASE-T or SFP+).

The ThinkSystem DM5000H controller enclosures ship with two DM3000/DM5000 10GBASE-T or SFP+ controllers. A controller provides interfaces for host connectivity, management, and internal drives, and it runs ONTAP storage management software. Each DM5000H controller enclosure provides 64 GB RAM, 8 GB battery-backed NVRAM, and 2 TB NVMe SSD flash cache (32 GB RAM, 4 GB NVRAM, and 1 TB NVMe SSD flash cache per controller).

The ThinkSystem DM5000H controller enclosures ship with four interconnect 10 GbE SFP+ ports (two ports per controller) to cable a directly-connected dual-controller HA pair or for switched cluster interconnect with multiple dual-controller HA pairs. Up to six HA pairs can be combined into a single SAN cluster or up to 12 HA pairs can be combined into a single NAS cluster.

The ThinkSystem DM5000H controller enclosures ship with one of the following interface types:

• 8x Universal SFP+ ports (four ports per controller) for 1/10 GbE NAS / iSCSI or 4/8/16 Gb FC host connectivity.
• 8x 1/10 GbE RJ-45 ports (four ports per controller) for 1/10 GbE NAS / iSCSI host connectivity.

Each DM5000H controller enclosure also provides four integrated 12 Gb SAS x4 expansion ports (Mini-SAS HD SFF-8644 connectors) (two ports per controller) for the attachment of the ThinkSystem DM Series expansion enclosures.

Configuration notes:

• Two controllers are required for selection. Both controllers must be of the same type (either 16 Gb FC / 10 GbE or 10GBASE-T, but not both types), and they must have matching configurations of the base ports (type and physical connections).
• A pair of the universal SFP+ base ports (e0c/0c and e0d/0d or e0e/0e and e0f/0f) in the system must have the same connectivity type (either Ethernet or Fibre Channel, but not both types) and the same type of physical connections; different pairs might have different types of connectivity.

The following table lists the controllers for the DM5000H Storage Array and supported connectivity options.

* Factory-installed only.

The ThinkSystem DM5000H supports attachment of the following DM Series expansion enclosures:

• Up to 5 ThinkSystem DM240S 2U24 SFF enclosures.
• Up to 9 ThinkSystem DM120S 2U12 LFF enclosures.
• Up to 2 ThinkSystem DM600S 4U60 LFF enclosures.
• A combination of the DM240S, DM120S, and DM600S enclosures for a maximum of 144 drives.

Note: The ONTAP Fundamentals software supports up to 84 drives.

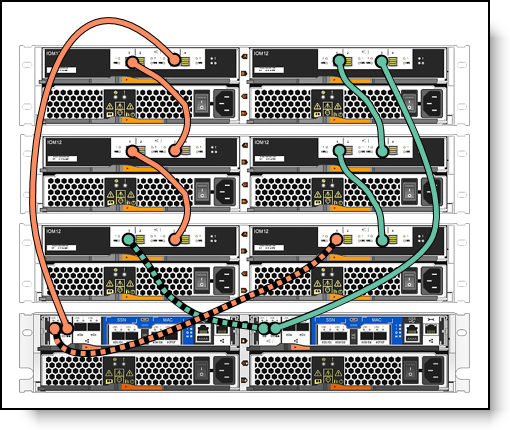

DM240S 2U24 SFF, DM120S 2U12 LFF, and DM600S 4U60 LFF expansion enclosures can be intermixed behind a 2U24 controller enclosure. The expansion enclosures can be added to the system non-disruptively.

Each ThinkSystem DM Series expansion enclosure ships with two SAS I/O expansion modules. Each I/O expansion module provides two external 12 Gb SAS x4 ports (Mini-SAS HD SFF-8644 connectors labelled Port 1-4) that are used for connections to the ThinkSystem DM5000H and for daisy chaining the expansion enclosures between each other.

The following table lists ordering information for the supported expansion enclosure connectivity options.

The ThinkSystem DM5000H and DM240S 2U24 SFF enclosures support up to 24 SFF hot-swap drives, the DM120S 2U12 LFF expansion enclosures support up to 12 LFF hot-swap drives, and the DM600S 4U60 LFF expansion enclosures support up to 60 LFF hot-swap drives.

The following table lists supported drive packs for the controller and expansion enclosures.

Configuration notes:

The following table lists supported drive packs for DM5000H  enclosure.

The following table lists supported drive packs for the DM5000H 2U24 SFF.

The following table lists supported drive packs for the DM240S 2U24 SFF expansion enclosures.

The following table lists supported drive packs for the DM600S 4U60 LFF expansion enclosures.

Feature bundles

Controller software for the DM5000H is available in the following bundles of features:

• SAN Base (China only) (Feature BKKC) (only available with 3-year models, machine type 7D7V)
• SAN Premium (Feature BKKE) (China only, and only available with 3-year models, machine type 7D7V)
• Unified Fundamentals (All markets except China) (Feature B72U)
• Unified Essentials (China only) (Feature BWU9)
• Unified Complete (Feature BWU8)

The following table summarizes the features in each bundle for the DM5000H.

The features are summarized as follows:

• RAID-4, RAID-DP, and RAID-TEC data protection: Provides the flexibility to choose the level of data protection required and helps improve performance and availability with built-in spare capacity and by distributing data across all physical drives in the aggregate, sustaining to up to one (RAID-4), two (RAID-DP), or three (RAID-TEC) concurrent drive failures.
• Thin provisioning: Optimizes efficiency by allocating storage space based on the minimum space required by each application at any given time, so that applications consume only the space they are actually using, not the total space that has been allocated to them, which allows customers to purchase storage they need today and add more as application requirements grow.
• Compression: Provides transparent inline and post-process data compression to reduce the amount of storage that customers need to purchase and manage.
• Deduplication: Performs general-purpose deduplication for removal of redundant data to reduce the amount of storage that customers need to purchase and manage.
• Snapshots: Enables creation of read-only copies of data for backup, parallel processing, testing, and development, and have the copies available almost immediately.
• Encryption: Provides software-based encryption for data at rest for enhanced data security with the traditional drives and embedded key management (requires the encryption-capable version of the ONTAP software).
• Balanced placement: Provides automated workload distribution across the cluster to help increase utilization and performance.
• Dynamic capacity expansion: Allows the capacity of a volume or aggregate to be expanded by adding new physical drives.
• Adaptive Quality of Service: Simplifies operations and maintains consistent workload performance by defining QoS policies and automatically adjusting storage resources to respond to workload changes.
• SnapRestore: Enables quick recovery of data by reverting a local volume or file to its previous state from a particular snapshot copy stored on the file system.
• FlexClone: References snapshot metadata to create writable point-in-time copies of a volume.
• FlexVol: Provides abstraction layer between the logical volume and its physical location in the storage array.
• FlexCache: Speeds up access to data and offloads traffic from heavily accessed volumes for read-intensive workloads by placing frequently used data in cache locally or remotely (closer to the point of client access) and serving the data to the clients directly from cache without accessing the data source.
• SnapMirror asynchronous replication: Provides storage system-based data replication between the storage systems containing source (local) and destination (remote) volumes by using asynchronous (at specified regular intervals) data transfers over IP communication links.
• SyncMirror data protection: Adds extra level of data protection and availability by mirroring a pair of RAID aggregates.
• Trusted Platform Module (TPM): For encryption enabled systems.  The encryption keys for the onboard key manager (OKM) are no longer stored in the boot device, but instead are stored in the physical TPM for systems so equipped, offering greater security and protection. Moving to the TPM is a nondisruptive process.
• MetroCluster IP: Provides storage system-based clustering with online, real-time data mirroring between the local and remote sites by using synchronous data transfers over IP communication links to deliver continuous availability with zero RPO and near-zero RTO. All storage systems in a MetroCluster IP configuration must be of the same model. New to ONTAP 9.11: MetroCluster with Storage Virtual Machine Disaster Recovery (SVM-DR) can now use a third site for the SVM-DR
• NVMe over TCP Protocol: Enables NVMe over TCP
• Data Protection Optimized (DPO): Increases the amount of concurrent SnapMirror sessions per node, as well as improving SnapMirror performance to the cluster.
• SnapMirror synchronous replication: Provides storage system-based data replication between the storage systems containing source (local) and destination (remote) volumes by using synchronous (as soon as the data is written to the source volume)
• FlexGroup: Enables a single volume to span across multiple clustered storage arrays to maximize storage capacity and automate load distribution. New to ONTAP 9.11: FlexGroups can now be created as SnapLock volumes.
• SnapVault disk-based storage backup: Enables data stored on multiple systems to be backed up to a central, secondary system quickly and efficiently as read-only snapshot copies.
• SnapCenter: Provides application- and virtual machine-aware backup and restoration of data by using the Snapshots technology and leverages the SnapMirror capabilities of storage systems to provide onsite or offsite backup set mirroring for disaster recovery.
• ONTAP S3: Expands the DM Series unified story and allows customers to manage, block, file, and object data from one interface. Customers can now natively store data in S3 buckets onboard the DM Series.
• ONTAP S3 SnapMirror : Enables you to protect buckets in ONTAP S3 object stores using familiar SnapMirror mirroring and backup functionality. Requires ONTAP 9.11 or later on both source and destination clusters. Requires the Unified Premium Bundle.
• SnapMirror Cloud: A backup and recovery technology designed for ONTAP users who want to transition their data protection workflows to the cloud. SnapMirror Cloud is an extension to the family of SnapMirror replication technologies. While SnapMirror is frequently used for ONTAP-to-ONTAP backups, SnapMirror Cloud uses the same replication engine to transfer Snapshot copies for ONTAP to S3-compliant object storage backups.
• Multitenant Key Management (MTKM): Provides the ability for individual tenants or storage virtual machines (SVMs) to maintain their own keys through KMIP for NVE. With multitenant external key management, you can centralize your organization’s key management functions by department or tenant while inherently confirming that keys are not stored near the assets. This approach decreases the possibility of compromise.
• Autonomous Ransomware Protection (ARP): ARP improves cyber resiliency by adopting a machine-learning model for anti-ransomware analytics that detects constantly evolving forms of ransomware with 99% accuracy and zero false. ARP’s machine-learning model is pre-trained on a large dataset of files both before and after a simulated ransomware attack. This resource-intensive training is done outside ONTAP, but the learning from this training is used for the model inside ONTAP.

Add-on feature bundles:

• Security and Compliance Bundle: Licensed per 2-node HA Pair, the Security and Compliance Bundle provides built-in protection from ransomware and while also providing the ability to meet regulatory compliance and organizational data retention requirements.
  • Includes: Anti-ransomware feature with Multitenant Key Management (MTKM) and SnapLock

• Hybrid Cloud Bundle: Licensed per TB (3 Year & 5 Year Offerings) the Hybrid Cloud Bundle provides the ability to use S3 SnapMirror from ONTAP to the Public Cloud (AWS S3) and/or SnapMirror Cloud with participating ISV Backup providers.
  • Includes SnapMirror Cloud and FabricPool

Optional Extended features also available via Feature on Demand (FoD) (see the Extended ONTAP features section)

• FabricPool: FabricPool is a hybrid storage solution that uses an all flash (all SSD) aggregate as the performance tier and an object store as the external capacity tier. Data in a FabricPool is stored in a tier based on whether it is frequently accessed or not. Using a FabricPool helps you reduce storage cost without compromising performance, efficiency, or protection.
• No license is required when tiering to StorageGRID or ONTAP S3.
• SnapLock data protection: Creates Write-Once-Read-Many (WORM) non-rewritable, non-erasable data on hard disk drives to prevent files from being altered or deleted until a predetermined or default retention date.

Software maintenance is included in the DM5000H warranty and support (see Warranty and support for details).

Extended ONTAP features

FabricPool and SnapLock WORM data protection are optional extended features. To obtain these feature licenses, order the part numbers as listed in the following table. Upgrades are supported in specific bundles as listed in the Comparison of software features table.

* Field upgrade only; no factory installation.

Upgrading to Unified Premium ONTAP

To upgrade your existing ONTAP installation to Unified Premium ONTAP, use DCSC to specify the storage you already have installed, since the upgrade license is based on your existing configuration.
https://dcsc.lenovo.com/#/configuration/cto/7D4FCTO2WW?hardwareType=storage

The ThinkSystem DM5000H supports the following management interfaces:

• Lenovo ThinkSystem Storage Manager, a web-based interface via HTTPS for single-system management or centralized management of the cluster of systems, that runs on the storage system itself and requires only a supported browser (Microsoft Internet Explorer, Google Chrome, or Mozilla Firefox), so there is no need for a separate console or plug-in.
• Command line interface (CLI) via SSH or through serial console.
• Syslog, SNMP, and e-mail notifications.
• Optional Lenovo XClarity for discovery, inventory, monitoring, and alerts.

The ThinkSystem DM5000H, DM240S 2U24 SFF, and DM120S LFF enclosures ship with two redundant hot-swap 913 W (100 - 240 V) Platinum AC power supplies, each with an IEC 320-C14 connector.

The ThinkSystem DM600S 4U60 LFF expansion enclosures ship with two redundant hot-swap 2325 W (200 - 240 V) Platinum AC power supplies, each with an IEC 320-C20 connector.

Each ThinkSystem DM Series enclosure requires the selection of two power cables.

The following table lists the rack power cable and line cord options that can be ordered for the DM5000H, DM240S 2U24 SFF, and DM120S 2U12 LFF enclosures (two power cords per enclosure).

The following table lists the rack power cable and line cord options that can be ordered for the DM600S 4U60 LFF expansion enclosures (two power cords per enclosure).

The individually shipped ThinkSystem DM5000H, DM240S, and DM600S enclosures come with the ThinkSystem Storage Rack Mount Kit 2U24/4U60, and the individually shipped ThinkSystem DM120S enclosures come with the ThinkSystem Storage Rack Mount Kit 2U12. The rack mount kits are listed in the following table.

When the ThinkSystem DM Series enclosures are factory-integrated and shipped installed in a rack cabinet, the rack mount kits that support Ship-in-Rack (SIR) capabilities are derived by the configurator.

The following table summarizes the rack mount kit features and specifications.

‡ The rack cabinet must be at least 1100 mm (43.31 in.) deep for 4U60 enclosures.
* The majority of the enclosure components can be serviced from the front or rear of the enclosure, which does not require the removal of the enclosure from the rack cabinet.
** If a 0U PDU is used, the rack cabinet must be at least 1000 mm (39.37 in.) deep for 2U12 and 2U24 enclosures, or at least 1200 mm (47.24 in.) deep for 4U60 enclosures.
^ Measured when mounted on the rack, from the front surface of the front mounting flange to the rear most point of the rail.

The ThinkSystem DM5000H controller enclosure has the following dimensions and weight (approximate):

• Height: 85 mm (3.4 in.)
• Width: 447 mm (17.6 in.)
• Depth: 483 mm (19.0 in.)
• Weight (fully configured): 27.6 kg (60.8 lb)

The ThinkSystem DM5000H and DM240S 2U24 SFF enclosures are supported in the following environment:

• Air temperature:
  • Operating:
    • DM5000H and DM240S 2U24 SFF: 5 °C - 45 °C (41 °F - 113 °F)
    • DM120S 2U12 LFF and DM600S 4U60 LFF: 10 °C - 40 °C (50 °F - 104 °F)
  • Non-operating: -40 °C - +70 °C (-40 °F - 158 °F)
  • Maximum altitude: 3050 m (10,000 ft)
• Relative humidity:
  • Operating: 8% - 90% (non-condensing)
  • Non-operating: 10% - 95% (non-condensing)
• Electrical power:
  • DM5000H
    • 100 to 127 (nominal) V AC; 50 Hz or 60 Hz; 5.35 A
    • 200 to 240 (nominal) V AC; 50 Hz or 60 Hz; 2.67 A
    • Maximum system power load: 508 W
  • DM240S 2U24 SFF
    • 100 to 127 (nominal) V AC; 50 Hz or 60 Hz; 4.11 A
    • 200 to 240 (nominal) V AC; 50 Hz or 60 Hz; 2.05 A
    • Maximum system power load: 390 W
  • DM120S 2U12 LFF
    • 100 to 127 (nominal) V AC; 50 Hz or 60 Hz; 3.56 A
    • 200 to 240 (nominal) V AC; 50 Hz or 60 Hz; 1.78 A
    • Maximum system power load: 338 W
  • DM600S 4U60 LFF
    • 200 to 240 (nominal) V AC; 50 Hz or 60 Hz; 8.11 A
    • Maximum system power load: 1541 W
• Heat dissipation:
  • DM5000H: 1733 BTU/hour
  • DM240S 2U24 SFF: 1331 BTU/hour
  • DM120S 2U12 LFF: 1153 BTU/hour
  • DM600S 4U60 LFF: 5258 BTU/hour
• Acoustical noise emission:
  • DM5000H: 6.9 bels
  • DM240S 2U24 SFF: 6.9 bels
  • DM120S 2U12 LFF: 6.3 bels
  • DM600S 4U60 SFF: 7.2 bels

The DM5000H and expansion enclosures have a 1-year or 3-year warranty based on the machine type of the system, as listed in the following table.

For more information, consult the brochure Lenovo Operational Support Services for Data Centers Services.

* Some service levels may not be available in all markets. Contact your sales representative for more information.

Lenovo Data Center Services empower you at every stage of your IT lifecycle. From expert advisory and strategic planning to seamless deployment and ongoing support, we ensure your infrastructure is built for success. Our comprehensive services accelerate time to value, minimize downtime, and free your IT staff to focus on driving innovation and business growth.

In this section:

• Lenovo Advisory Services
• Lenovo Plan & Design Services
• Lenovo Deployment, Migration, and Configuration Services
• Lenovo Support Services
• Lenovo Managed Services
• Lenovo Sustainability Services

Lenovo Deployment, Migration, and Configuration Services

Optimize your IT operations by shifting labor-intensive functions to Lenovo's skilled technicians for seamless on-site or remote deployment, configuration, and migration. Enjoy peace of mind, faster time to value, and comprehensive knowledge sharing with your IT staff, backed by our best-practice methodology.

• Deployment Services for Storage and ThinkAgile

  A comprehensive range of remote and onsite options tailored specifically for your business needs to ensure your storage and ThinkAgile hardware are fully operational from the start.

• Hardware Installation Services

  A full-range, comprehensive setup for your hardware, including unpacking, inspecting, and positioning components to ensure your equipment is operational and error-free for the most seamless and efficient installation experience, so you can quickly benefit from your investments.

• DM/DG File Migration Services

  Take the burden of file migration from your IT’s shoulders. Our experts will align your requirements and business objectives to the migration plans while coordinating with your team to plan and safely execute the data migration to your storage platforms.

• DM/DG/DE Health Check Services

  Our experts perform proactive checks of your Firmware and system health to ensure your machines are operating at peak and optimal efficiency to maximize up-time, avoid system failures, ensure the security of IT solutions and simplify maintenance.

• Factory Integrated Services

  A suite of value-added offerings provided during the manufacturing phase of a server or storage system that reduces time to value. These services aim at improving your hardware deployment experience and enhance the quality of a standard configuration before it arrives at your facility.

Lenovo Support Services

In addition to response time options for hardware parts, repairs, and labor, Lenovo offers a wide array of additional support services to ensure your business is positioned for success and longevity. Our goal is to reduce your capital outlays, mitigate your IT risks, and accelerate your time to productivity.

Our commitment to ensuring the fastest, most seamless resolution times for mission-critical systems that require immediate attention to ensure minimal downtime and risk for your business. This service is only available for machines under the Premier 4-Hour Response SLA.

• Premier Support for Data Centers

  Your direct line to the solution that promises the best, most comprehensive level of support to help you fully unlock the potential of your data center.

• Premier Support Plus (PSP) for Servers 24x7 4-Hour Response

  Helping customers reduce unplanned downtime by moving from reactive support to proactive and preventative care

• Premier Support Plus (PSP) for Storage 24x7 4-Hour Response

  Helping storage customers reduce unplanned downtime by moving from reactive support to proactive and preventative care

• Committed Service Repair (CSR)

  Our commitment to ensuring the fastest, most seamless resolution times for mission-critical systems that require immediate attention to ensure minimal downtime and risk for your business. This service is only available for machines under the Premier 4-Hour Response SLA.

• Multivendor Support Services (MVS)

  Your single point of accountability for resolution support across vast range of leading Server, Storage, and Networking OEMs, allowing you to manage all your supported infrastructure devices seamlessly from a single source.

• Keep Your Drive (KYD)

  Protect sensitive data and maintain compliance with corporate retention and disposal policies to ensure your data is always under your control, regardless of the number of drives that are installed in your Lenovo server.

• Technical Account Manager (TAM)

  Your single point of contact to expedite service requests, provide status updates, and furnish reports to track incidents over time, ensuring smooth operations and optimized performance as your business grows.

• Enterprise Software Support (ESS)

  Gain comprehensive, single-source, and global support for a wide range of server operating systems and Microsoft server applications.

For more information, consult the brochure Lenovo Operational Support Services for Data Centers.

Lenovo Managed Services

Achieve peak efficiency, high security, and minimal disruption with Lenovo's always-on Managed Services. Our real-time monitoring, 24x7 incident response, and problem resolution ensure your infrastructure operates seamlessly. With quarterly health checks for ongoing optimization and innovation, Lenovo's remote active monitoring boosts end-user experience and productivity by keeping your data center's hardware performing at its best.

Lenovo Managed Services provides continuous 24x7 remote monitoring (plus 24x7 call center availability) and proactive management of your data center using state-of-the-art tools, systems, and practices by a team of highly skilled and experienced Lenovo services professionals.

Quarterly reviews check error logs, verify firmware & OS device driver levels, and software as needed. We’ll also maintain records of latest patches, critical updates, and firmware levels, to ensure you systems are providing business value through optimized performance.

Lenovo Sustainability Services

• Asset Recovery Services

  Lenovo Asset Recovery Services (ARS) provides a secure, seamless solution for managing end-of-life IT assets, ensuring data is safely sanitized while contributing to a more circular IT lifecycle. By maximizing the reuse or responsible recycling of devices, ARS helps businesses meet sustainability goals while recovering potential value from their retired equipment. For more information, see the Asset Recovery Services offering page.

• CO2 Offset Services

  Lenovo’s CO2 Offset Services offer a simple and transparent way for businesses to take tangible action on their IT footprint. By integrating CO2 offsets directly into device purchases, customers can easily support verified climate projects and track their contributions, making meaningful progress toward their sustainability goals without added complexity.

• Lenovo Certified Refurbished

  Lenovo Certified Refurbished offers a cost-effective way to support IT circularity without compromising on quality and performance. Each device undergoes rigorous testing and certification, ensuring reliable performance and extending its lifecycle. With Lenovo’s trusted certification, you gain peace of mind while making a more sustainable IT choice.

Lenovo TruScale XaaS is your set of flexible IT services that makes everything easier. Streamline IT procurement, simplify infrastructure and device management, and pay only for what you use – so your business is free to grow and go anywhere.

Lenovo TruScale is  the unified solution that gives you simplified access to:

• The industry’s broadest portfolio – from pocket to cloud – all delivered as a service
• A single-contract framework for full visibility and accountability
• The global scale to rapidly and securely build teams from anywhere
• Flexible fixed and metered pay-as-you-go models with minimal upfront cost
• The growth-driving combination of hardware, software, infrastructure, and solutions – all from one single provider with one point of accountability.

For information about Lenovo TruScale offerings that are available in your region, contact your local Lenovo sales representative or business partner.

The ThinkSystem DM Series enclosures conform to the following regulations:

• United States: FCC Part 15, Class A; UL 60950-1
• Canada: ICES-003, Class A; CAN/CSA-C22.2 60950-1
• Mexico NOM
• European Union: CE Mark (EN55032 Class A, EN55024, IEC/EN60950-1); ROHS Directive 2011/65/EU
• Russia, Kazakhstan, Belarus: EAC
• China: CCC GB 4943.1, GB 17625.1, GB 9254 Class A; CELP; CECP
• Japan: VCCI, Class A
• Taiwan: BSMI CNS 13438, Class A; CNS 14336-1
• Korea KN32/35, Class A
• Australia/New Zealand: AS/NZS CISPR 22 Class A

Lenovo provides end-to-end storage compatibility testing to deliver interoperability throughout the network. The ThinkSystem DM5000H Unified Hybrid Storage Array supports attachment to Lenovo servers by using NAS (NFS and CIFS/SMB), iSCSI, and Fibre Channel storage connectivity protocols.

For end-to-end storage configuration support, refer to the Lenovo Storage Interoperation Center (LSIC):
https://datacentersupport.lenovo.com/us/en/lsic

Use the LSIC to select the known components of your configuration and then get a list all other supported combinations, with details about supported hardware, firmware, operating systems, and drivers, plus any additional configuration notes. View results on screen or export them to Excel.

The following table lists the Ethernet storage switch that can be used with the ThinkSystem DM5000H Unified Hybrid Storage Array for cluster interconnect configurations.

*For more information, see the BES-53248 Ethernet Storage Switch for Lenovo Product Guide:
http://lenovopress.com/lp1226

**The SN2100 switch can be used with the ThinkSystem DM5000H Unified Hybrid Storage Array for cluster interconnect.

For more information, see the NVIDIA SN2100 16-port 100Gb Ethernet Storage Switch Article:
https://lenovopress.lenovo.com/lp1756-nvidia-sn2100-100gb-ethernet-storage-switch

Lenovo offers the ThinkSystem DB Series of Fibre Channel SAN switches for high-performance storage expansion. See the DB Series product guides for models and configuration options:

• ThinkSystem DB Series SAN Switches:
  https://lenovopress.com/storage/switches#rt=product-guide

The following table lists the supported rack cabinets.

For specifications about these racks, see the Lenovo Rack Cabinet Reference, available from:
https://lenovopress.com/lp1287-lenovo-rack-cabinet-reference

For more information, see the list of Product Guides in the Rack cabinets category:
https://lenovopress.com/servers/options/racks

The following table lists the power distribution units (PDUs) that are offered by Lenovo.

For more information, see the Lenovo Press documents in the PDU category:
https://lenovopress.com/servers/options/pdu

The following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo.

For more information, see the list of Product Guides in the UPS category:
https://lenovopress.com/servers/options/ups

Why wait to obtain the technology you need now? No payments for 90 days and predictable, low monthly payments make it easy to budget for your Lenovo solution.

• Flexible

  Our in-depth knowledge of the products, services and various market segments allows us to offer greater flexibility in structures, documentation and end of lease options.

• 100% Solution Financing

  Financing your entire solution including hardware, software, and services, ensures more predictability in your project planning with fixed, manageable payments and low monthly payments.

• Device as a Service (DaaS)

  Leverage latest technology to advance your business. Customized solutions aligned to your needs. Flexibility to add equipment to support growth. Protect your technology with Lenovo's Premier Support service.

• 24/7 Asset management

  Manage your financed solutions with electronic access to your lease documents, payment histories, invoices and asset information.

• Fair Market Value (FMV) and $1 Purchase Option Leases

  Maximize your purchasing power with our lowest cost option. An FMV lease offers lower monthly payments than loans or lease-to-own financing. Think of an FMV lease as a rental. You have the flexibility at the end of the lease term to return the equipment, continue leasing it, or purchase it for the fair market value. In a $1 Out Purchase Option lease, you own the equipment. It is a good option when you are confident you will use the equipment for an extended period beyond the finance term. Both lease types have merits depending on your needs. We can help you determine which option will best meet your technological and budgetary goals.

Ask your Lenovo Financial Services representative about this promotion and how to submit a credit application. For the majority of credit applicants, we have enough information to deliver an instant decision and send a notification within minutes.

The following sales training courses are offered for employees and partners (login required). Courses are listed in date order.

1. Partner Technical Webinar - Storage Battlecards and TCE Update
   2026-08-18 | 35 minutes | Employees and Partners
   Details
   Partner Technical Webinar - Storage Battlecards and TCE Update



   Storage Battlecards, Storage Promotion and TCE Updates

   Published: 2026-08-18
   Length: 35 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo 360 Learning Center


   Course code: AUG1426
2. Data Storage Solutions Primer
   2026-07-30 | 45 minutes | Employees Only
   Details
   Data Storage Solutions Primer



   This course is part of the Lenovo ISG (Infrastructure Solutions Group) Primer Series - a learning program designed to help Client Managers build foundational knowledge, strengthen customer conversations, and recognize opportunities with greater confidence.

   By the end of this course, you will be able to:

   - Understand how storage connects to modern IT and business outcomes
   - Explain the importance of storage in data‑centric environments
   - Identify opportunities and align storage solutions to customer needs

   Last Update: July 30, 2026

   Published: 2026-07-30
   Length: 45 minutes


   Start the training:
   Employee link: Grow@Lenovo


   Course code: DSTOO104
3. Guide d'étude pour l'examen de certification technique Lenovo Data Center
   2026-07-13 | 10 minutes | Employees and Partners
   Details
   Guide d'étude pour l'examen de certification technique Lenovo Data Center



   Ce guide contient des informations pour aider les candidats à se préparer et à s'inscrire aux examens pratiques et de certification Data Center Technical.

   Tags: Data Center

   Published: 2026-07-13
   Length: 10 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo 360 Learning Center


   Course code: LENU-322C-SG-FR
4. Guide d'étude pour l'examen de certification des ventes de Lenovo Data Center
   2026-07-13 | 10 minutes | Employees and Partners
   Details
   Guide d'étude pour l'examen de certification des ventes de Lenovo Data Center



   Ce guide contient des informations destinées à aider les candidats à se préparer et à s'inscrire aux examens pratiques et de certification en vente de centres de données.

   Tags: Cloud

   Published: 2026-07-13
   Length: 10 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo 360 Learning Center


   Course code: LENU-122C-SG-FR
5. Lenovoデータセンターセールス認定試験学習ガイド
   2026-07-13 | 10 minutes | Employees and Partners
   Details
   Lenovoデータセンターセールス認定試験学習ガイド



   このガイドには、データセンターセールスの実技試験および認定試験の準備と登録に役立つ情報が含まれています。

   Tags: Data Center

   Published: 2026-07-13
   Length: 10 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo 360 Learning Center


   Course code: LENU-122C-SG-AJP
6. Lenovoデータセンター技術認定試験学習ガイド（LENU-322C-SG-AJP)
   2026-07-13 | 10 minutes | Employees and Partners
   Details
   Lenovoデータセンター技術認定試験学習ガイド（LENU-322C-SG-AJP)



   このガイドには、受験者がLenovoデータセンター技術実技試験および認定試験の準備と登録を行う際に役立つ情報が含まれています。

   Tags: Data Center

   Published: 2026-07-13
   Length: 10 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo 360 Learning Center


   Course code: LENU-322C-SG-AJP
7. Partner Technical Webinar - Data Protection - Ransomware
   2026-05-04 | 60 minutes | Employees and Partners
   Details
   Partner Technical Webinar - Data Protection - Ransomware



   In this 60 minute replay, Dan Beins, Lenovo Storage Architect, provided an in-depth overview of Lenovo ransomware defenses across ThinkSystem DS, DG, and DM.

   Published: 2026-05-04
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo 360 Learning Center


   Course code: MAY0126
8. Partner Technical Webinar - Storage 101
   2026-04-30 | 60 minutes | Employees and Partners
   Details
   Partner Technical Webinar - Storage 101



   In this 60 minute replay, Dan Beins, Lenovo Storage Architect, took us “back to basics” with a Storage Portfolio Overview 101.

   Published: 2026-04-30
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo 360 Learning Center


   Course code: APR2426
9. Family Portfolio: Storage
   2026-02-13 | 50 minutes | Employees and Partners
   Details
   Family Portfolio: Storage



   This course covers the Lenovo storage portfolio, from tape drives used for backups and archiving all the way through high-performance storage systems. After completing this course about the Storage family, the learner will be able to identify products and features within the family, describe the features of this Product Family, and recognize when a specific product should be selected.

   Tags: Storage, ThinkSystem

   Published: 2026-02-13
   Length: 50 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo 360 Learning Center


   Course code: SXSW1201r18
10. ONTAP Unified Bundles Overview
    2026-02-09 | 10 minutes | Employees and Partners
    Details
    ONTAP Unified Bundles Overview



    This course provides a comprehensive overview of the ONTAP Unified Essentials and Unified Complete bundles, enabling participants to confidently position and recommend them in real-world customer engagements. Through practical guidance and detailed feature exploration, learners will gain a solid understanding of how each ONTAP bundle fits within today’s competitive marketplace. By the end of the course, participants will be able to clearly articulate the capabilities of each offering, identify the right solution for a variety of customer scenarios, and determine when Unified Complete is the most effective choice for high‑value opportunities. This course is designed to empower sales teams, technical specialists, and customer-facing roles with the knowledge needed to drive informed, strategic ONTAP recommendations.

    Tags: Sales, Storage

    Published: 2026-02-09
    Length: 10 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DDMO104
11. Lenovo ThinkSystem DM/DG Series Technical Positioning
    2026-02-04 | 14 minutes | Employees and Partners
    Details
    Lenovo ThinkSystem DM/DG Series Technical Positioning



    The Lenovo ThinkSystem DM and DG Series Technical Positioning course offers a comprehensive exploration of Lenovo’s enterprise storage portfolio, with a focused deep dive into the DM and DG series platforms. Designed for technical professionals, this training provides the knowledge needed to understand, evaluate, and position these high‑performance, scalable, and secure storage solutions for modern business workloads.
    Participants will examine the architecture, technical capabilities, and deployment considerations of the DM and DG systems, gaining insights into how these solutions support diverse data environments. The course also reviews how these systems integrate into Lenovo’s broader data management strategy, enabling organizations to optimize performance, enhance data protection, and streamline storage operations. By the end of the session, learners will be equipped to confidently position Lenovo’s storage technologies in real‑world scenarios.

    Tags: Data Management, Storage

    Published: 2026-02-04
    Length: 14 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DSTOP201
12. Partner Technical Webinar - ThinkSystem Intelligent Monitoring
    2026-01-13 | 40 minutes | Employees and Partners
    Details
    Partner Technical Webinar - ThinkSystem Intelligent Monitoring



    In this 40-minute replay, Jocelyn Johnson, Lenovo WW Product Manager for Storage, presented TIM – ThinkSystem Intelligent Monitoring which is an actionable dashboard view of a customer’s DE, DG, DM and DS Series storage. Jocelyn concluded the session with a live demo of TIM.

    Tags: Data Management

    Published: 2026-01-13
    Length: 40 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: JAN0926
13. How to Order DM and DE Services Through DCSC
    2025-08-28 | 35 minutes | Employees and Partners
    Details
    How to Order DM and DE Services Through DCSC



    The goal of this training is to provide Lenovo sellers and business partners with an overview of the available services for ThinkSystem DM and DE.

    Learning Objectives:

    - Review what is included in each service
    - Describe the benefits of each service
    - Demonstrate how to order
    - Discover where to go for more details

    Tags: Services

    Published: 2025-08-28
    Length: 35 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DSVC134r4
14. Lenovo ThinkSystem DM/DG series Portfolio Overview
    2025-07-23 | 60 minutes | Employees and Partners
    Details
    Lenovo ThinkSystem DM/DG series Portfolio Overview



    This course builds on the Data Management Overview DSTOO201 course by introducing you to the Lenovo ThinkSystem DG/DM Series Portfolio.

    By the end of this course, you will be able to:
    Position the Lenovo ThinkSystem DE Series products and features based on the needs of your customers
    Correlate the Lenovo ThinkSystem DE Series Portfolio with Lenovo’s comprehensive Data Management Portfolio
    Use the qualifying questions to identify customer needs during conversations

    Tags: Data Management, Storage, ThinkSystem

    Published: 2025-07-23
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DDMO103
15. Data Storage Solutions Overview
    2025-06-18 | 25 minutes | Employees and Partners
    Details
    Data Storage Solutions Overview



    After completing this course you will be able to:
    1. Know more about the data management trends and challenges
    2. Understand the data storage solutions portfolio
    3. Find out how data drives business value

    Tags: Storage

    Published: 2025-06-18
    Length: 25 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DSTOO102
16. Lenovo Data Center Product Portfolio
    2025-06-11 | 20 minutes | Employees and Partners
    Details
    Lenovo Data Center Product Portfolio



    This course introduces the Lenovo data center portfolio, and covers servers, storage, storage networking, and software-defined infrastructure products. After completing this course about Lenovo data center products, you will be able to identify product types within each data center family, describe Lenovo innovations that this product family or category uses, and recognize when a specific product should be selected.

    Course objectives:
    1.Identify product types within each data center family
    2.Describe the features of the product family or category
    3.Recognize when a specific product should be selected

    Tags: Advanced DataCenter, DataCenter Products, Server, ThinkAgile, ThinkEdge, ThinkSystem

    Published: 2025-06-11
    Length: 20 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: SXXW1110r8
17. How to Attach Services for ThinkSystem DM Using DCSC
    2024-12-23 | 20 minutes | Employees and Partners
    Details
    How to Attach Services for ThinkSystem DM Using DCSC



    The goal of this training is to review services for ThinkSystem DM products, professional and support services, support levels, and recommended options. By the end of this course, you will be able to summarize the professional services for ThinkSystem DM, identify the levels of maintenance support for the DM series, and recognize the steps required to attach services to DM products.

    Tags: Services, ThinkSystem

    Published: 2024-12-23
    Length: 20 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DSVC122r4
18. ThinkSystem DM and DE Series Technical Overview
    2024-10-15 | 30 minutes | Employees and Partners
    Details
    ThinkSystem DM and DE Series Technical Overview



    This course provides a technical overview of the ThinkSystem DM and DE series products. Course DDMO101 – Lenovo ThinkSystem DM & DE Series Overview is recommended prior to this course.
    By the end of this course, you should be able to:
    - Describe the Lenovo portfolio for the DM and DE storage systems
    - Explain features of the DM series ONTAP software
    - Explain features of the ThinkSystem SAN Manager

    Tags: Data Management, Storage

    Published: 2024-10-15
    Length: 30 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DDMT100r2
19. VTT Data Management How to sell storage - April 2024
    2024-04-10 | 60 minutes | Employees and Partners
    Details
    VTT Data Management How to sell storage - April 2024



    In this course, you will know:

    - Why do we sell storage?
    - What are the basics you need to get an opportunity rolling?
    - Why Lenovo for Storage?
    - What is happening in the market today?
    - How to determine traction?

    Tags: Data Management, Storage

    Published: 2024-04-10
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DVDAT209
20. Lenovo Data Backup and Recovery Solution Overview
    2024-03-25 | 40 minutes | Employees and Partners
    Details
    Lenovo Data Backup and Recovery Solution Overview



    The goal of this course is to give Lenovo sellers and business partners an overview of the Data Backup and Recovery solution. This course includes general information about backup, archive, disaster, nomenclature and key terms for back and recovery, and Lenovo features and alliance partners software.

    Tags: Data Management

    Published: 2024-03-25
    Length: 40 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DSOLO200
21. ONTAP Technical Positioning
    2024-03-14 | 45 minutes | Employees and Partners
    Details
    ONTAP Technical Positioning



    This course focuses on enabling you to interpret the technical market trends and challenges that ONTAP customers face. You also learn to ask qualifying questions that identify which industries, companies, and customer contacts are appropriate targets for ONTAP software. Module two covers explaining ONTAP features and functionality and enabling you to strengthen ONTAP marketing claims with technical details.
    Learning Objectives:
    •Interpret the technical market trends and challenges that ONTAP customers face
    •Ask qualifying questions that identify which industries, companies, and customer contacts are appropriate targets for ONTAP software
    •Explain ONTAP features and functionality
    •Strengthen ONTAP marketing claims with technical details

    Tags: Data Management, Sales, Storage, Technical Sales, ThinkSystem

    Published: 2024-03-14
    Length: 45 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DDMT200r2
22. VTT ONTAP 9.14.1 and Bundle Change Update - February 2024
    2024-03-07 | 25 minutes | Employees and Partners
    Details
    VTT ONTAP 9.14.1 and Bundle Change Update - February 2024



    In this course, you will know more about:
    - The new Features of ONTAP 9.14.1 update
    - ONTAP Bundle Update

    Tags: Data Management, Storage

    Published: 2024-03-07
    Length: 25 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DVDAT207
23. Selling ONTAP
    2024-03-06 | 22 minutes | Employees and Partners
    Details
    Selling ONTAP



    In this course, you learn how ONTAP software helps your customers simplify data management, access and protect their data across clouds, and future-proof their environments.
    Learning objectives:
    •Explain the value of ONTAP data-management software
    •Describe the features and benefits of ONTAP 9 software
    •Effectively position ONTAP software to your customers

    Tags: Data Management, Storage, Technical Sales, ThinkSystem

    Published: 2024-03-06
    Length: 22 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DDMO102
24. ONTAP Data Protection Fundamentals
    2023-11-02 | 76 minutes | Employees and Partners
    Details
    ONTAP Data Protection Fundamentals



    In this course, we discuss the integrated data protection features in ONTAP data-management software. We also discuss the tools and software that you use to manage and monitor the data protection features. You learn about cluster peering, storage virtual machine (or SVM) peering, and data protection relationships. You also learn about the architecture and functionality of the Snapshot, SnapMirror, SnapVault, and SyncMirror technologies.

    Course DDMT203 – ONTAP SAN Fundamentals is a prerequisite.
    Course Objectives:
    •Describe the integrated data protection features in ONTAP data-management software
    •Identify the tools and software that you use to manage and monitor ONTAP data protection features
    •Describe cluster peering, storage virtual machine (SVM) peering, and data protection relationships
    •Explain the architecture and functionality of the Snapshot, SnapMirror, SnapVault, and SyncMirror technologies

    Tags: Data Management, Sales, Storage, Technical Sales, ThinkSystem

    Published: 2023-11-02
    Length: 76 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DDMT204r2
25. Lenovo DM Series Data Efficiency Guarantee
    2023-10-09 | 10 minutes | Employees Only
    Details
    Lenovo DM Series Data Efficiency Guarantee



    The Data Efficiency Guarantee offers Lenovo customers an agreed amount of capacity savings. If the Lenovo solution does not meet the terms agreed to in the Guarantee, Lenovo will remediate.

    Course Objectives:
    •Define the Lenovo DM Series Data Efficiency Guarantee
    •Understand how the guarantee works
    •Describe the sales process for delivering and tracking the guarantee

    Tags: Sales, Storage, ThinkSystem

    Published: 2023-10-09
    Length: 10 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DDMC100
26. ThinkSystem DM Series Technical 200 - ONTAP Data Management Fundamentals
    2023-10-03 | 90 minutes | Employees and Partners
    Details
    ThinkSystem DM Series Technical 200 - ONTAP Data Management Fundamentals



    This course focuses on enabling you to manage and provision ONTAP systems and it is part of the ISG Sales education supporting our ThinkSystem DM and DE Series education. Before taking this course, you should have completed the ThinkSystem DM and DE Series Overview as well as the ThinkSystem DM and DE Series Technical Overview 100. 200 level technical knowledge is provided separately for the DM and DE Series products.

    This course focuses on enabling you to do the following:

    - Describe the consumers of resources and management requirements
    - Describe the user and administrative roles that manage resources
    - List the various data management products you can use to manage ONTAP systems
    - Define the resources that are commonly provisioned
    - Describe various methods and tools that can be used to provision resources

    Tags: Storage

    Published: 2023-10-03
    Length: 90 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DDMT205
27. ThinkSystem DM Series Technical 200 - ONTAP Cluster Fundamentals
    2023-10-02 | 135 minutes | Employees and Partners
    Details
    ThinkSystem DM Series Technical 200 - ONTAP Cluster Fundamentals



    This course identifies and describes the components that make up a cluster. It also describes the supported cluster configurations and details the steps that are required to create and configure a cluster as well as discusses the physical storage components and the Write Anywhere File Layout file system, also known as the WAFL file system. Course DDMT200 – ONTAP Technical Positioning is a prerequisite.

    By the end of this course, you will be able to:

    -Identify the components that make up a cluster
    -Describe the cluster configurations that are supported
    -Create and configure a cluster
    -Describe the physical storage components
    -Describe the Write Anywhere File Layout (WAFL) file system

    Tags: Storage

    Published: 2023-10-02
    Length: 135 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DDMT201
28. Assessment for Lenovo ThinkSystem DM and DE Series Technical Overview 100
    2023-10-02 | 30 minutes | Partners Only
    Details
    Assessment for Lenovo ThinkSystem DM and DE Series Technical Overview 100



    This is the online assessment for the virtual-live course Lenovo ThinkSystem DM and DE Series Technical Overview 100 (DDMT100).

    Your objective for this assessment is to complete the 15-question quiz with the minimum passing score of 80%.

    Tags: Technical Sales

    Published: 2023-10-02
    Length: 30 minutes


    Start the training:
    Partner link: Lenovo 360 Learning Center


    Course code: DDMT101
29. ThinkSystem DM Series Technical 200 Assessment
    2023-09-28 | 15 minutes | Employees and Partners
    Details
    ThinkSystem DM Series Technical 200 Assessment



    This is the assessment for the DM Series Technical 200 training

    Tags: Sales, Storage, ThinkSystem

    Published: 2023-09-28
    Length: 15 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DDMT206
30. VEEAM Solutions Sales Training
    2023-09-27 | 20 minutes | Employees and Partners
    Details
    VEEAM Solutions Sales Training



    In this course you will learn about Hyper-availability for the Always-On Enterprise.

    By the end of this training, you should be able to:

    Identify and explain the core products and solutions offered by Veeam.
    Explain the key benefits and value propositions of integrating Veeam solutions with Lenovo products.

    Tags: Sales

    Published: 2023-09-27
    Length: 20 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DSTOO100
31. ONTAP SAN Fundamentals
    2023-09-26 | 60 minutes | Employees and Partners
    Details
    ONTAP SAN Fundamentals



    In this course, you learn how ONTAP provides block access to a host by using SAN protocols. You learn about LUNs and how to map them to a host to enable read and write access. You also learn about multipathing techniques that can improve availability and performance.
    The course objectives are:
    1.Describe how ONTAP provides block access to a host
    2.Explain how SANs use the iSCSI, FC, and FCoE protocols to transport data between a host and storage system
    3.List the steps that are required to access a LUN in a storage virtual machine (SVM) from the host
    4.Describe multipathing between the host and a cluster

    Tags: Sales, Storage, ThinkSystem

    Published: 2023-09-26
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DDMT203
32. ONTAP NAS Fundamentals
    2023-09-25 | 45 minutes | Employees and Partners
    Details
    ONTAP NAS Fundamentals



    This course describes how ONTAP provides file access to clients. The course also explains how you use the NFS and SMB protocols to access files, how you access files over a network, and how you use load-balancing techniques to improve performance.
    Course objectives:
    1.Describe how ONTAP provides file access to clients
    2.Use the NFS protocol to access files
    3.Use the SMB protocol to access files
    4.Access files over a network and use the load-balancing features of ONTAP

    Tags: Sales, Storage, ThinkSystem

    Published: 2023-09-25
    Length: 45 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DDMT202
33. VEEAM Hyper-Availability Integration with ThinkSystem DM Series
    2023-09-20 | 20 minutes | Employees and Partners
    Details
    VEEAM Hyper-Availability Integration with ThinkSystem DM Series



    In this course you will learn about VEEAM Hyper-Availability for ThinkSystem DM Series

    Tags: ThinkSystem

    Published: 2023-09-20
    Length: 20 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DSTOO300
34. VTT The Benefits of Scale Out Clustering with DM/DG - September 2023
    2023-09-12 | 60 minutes | Employees Only
    Details
    VTT The Benefits of Scale Out Clustering with DM/DG - September 2023



    In this course, you will know more about:
    - What is scale out?
    - Hardware benefits
    - Administrative benefits
    - Scale out Features

    Tags: Data Management, ThinkSystem

    Published: 2023-09-12
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DVDAT204
35. Storage Masters - Unified Storage on DM Series
    2023-07-28 | 14 minutes | Employees and Partners
    Details
    Storage Masters - Unified Storage on DM Series



    Storage Masters is a multi-module education series. It is intended to help sellers and partners be able to discuss various storage topics that you will encounter in the field and how to position the valuable features of the DM Series within these conversations.

    By the end of this training, you should be able to:
    •Describe the business challenges resolved by the unified storage for the ThinkSystem DM series.
    •Learn about the technology implemented on the DM series of storage arrays.
    •Find out what are the benefits of the technology and positioning.

    Tags: Data Management, Storage

    Published: 2023-07-28
    Length: 14 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DSTOT2006
36. Storage Masters - DM Series - Data Security
    2023-06-30 | 14 minutes | Employees and Partners
    Details
    Storage Masters - DM Series - Data Security



    Storage Masters is a multi-module education series. It is intended to help sellers and partners be able to discuss various storage topics that you will encounter in the field and how to position the valuable features of the DM Series within these conversations.

    Tags: Data Management, Storage

    Published: 2023-06-30
    Length: 14 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DSTOT2005
37. Benefits and the positioning of Lenovo ThinkSystem file offerings with WEKA, DSS, and DM+ONTAP
    2023-05-08 | 10 minutes | Employees and Partners
    Details
    Benefits and the positioning of Lenovo ThinkSystem file offerings with WEKA, DSS, and DM+ONTAP



    Course objectives:
    1.Learn about file storage
    2.Understand the different types of storage
    3.Recognize the Lenovo data management portfolio

    Tags: Artificial Intelligence (AI), Storage, Technical Sales

    Published: 2023-05-08
    Length: 10 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DSOLS207
38. Storage Masters - DM Series Performance
    2023-02-15 | 15 minutes | Employees and Partners
    Details
    Storage Masters - DM Series Performance



    Storage Masters is a multi-module education series. It is intended to help sellers and partners be able to discuss various storage topics that you will encounter in the field and how to position the valuable features of the DM Series within these conversations.

    By the end of this course, you will be able to:
    •Understand the key business challenges that companies face with their data storage solutions
    •Describe DM Series features
    •Explain the benefit of DM Series features to customers

    Tags: Data Management, Storage, ThinkSystem

    Published: 2023-02-15
    Length: 15 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DSTOT2004r3
39. ONTAP Fundamentals Bundle
    2023-02-01 | 15 minutes | Employees and Partners
    Details
    ONTAP Fundamentals Bundle



    ONTAP Fundamentals is intended to help sellers and partners be able to discuss the ONTAP Fundamentals license. By the end of this training, you should be able to position ONTAP Fundamentals within the marketplace; describe the ONTAP bundle; identify when to use the ONTAP Bundle in an opportunity; and determine when to use ONTAP Premium in an opportunity.

    Tags: DataCenter Products, Storage

    Published: 2023-02-01
    Length: 15 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DSTOF200
40. Storage Masters - Hybrid Cloud for DM Series
    2023-02-01 | 30 minutes | Employees and Partners
    Details
    Storage Masters - Hybrid Cloud for DM Series



    Storage Masters is a multi-module education series. It is intended to help sellers and partners be able to discuss various storage topics that you will encounter in the field and how to position the valuable features of the DM Series within these conversations.

    Tags: Storage

    Published: 2023-02-01
    Length: 30 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center


    Course code: DSTOT2003
41. Lenovo DM Storage Series - Hybrid Cloud Solutions
    2022-11-04 | 15 minutes | Employees Only
    Details
    Lenovo DM Storage Series - Hybrid Cloud Solutions



    This course focuses on enabling you to:
    •Identify DM Series Hybrid Cloud Solutions
    •Describe features of the DM Series FabricPool capability
    •Describe features of the DM Series Cloud Volumes ONTAP capability.

    Tags: Cloud, Storage, Technology solutions

    Published: 2022-11-04
    Length: 15 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DDM201
42. Data Infrastructure Management - DM Series Storage
    2022-10-28 | 25 minutes | Employees Only
    Details
    Data Infrastructure Management - DM Series Storage



    This course provides a technical overview of the ThinkSystem DM series products. Course DDMO101 – Lenovo ThinkSystem DM & DE Series Overview is recommended prior to this course.

    By the end of this course, you should be able to:
    •Recognize the components of the Lenovo Data Management portfolio
    •Discuss the features of the Lenovo Data Management components
    •Describe the features of the SnapCenter software components

    Tags: Sales, Storage, Technical Sales, ThinkSystem

    Published: 2022-10-28
    Length: 25 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DDM200

1-10 of 42 courses. Show All

For more information, see the following resources:

• Lenovo Data Center Unified Storage product page
  https://www.lenovo.com/us/en/c/data-center/storage/unified-storage
• Lenovo Data Center Solution Configurator
  http://dcsc.lenovo.com
• ThinkSystem DM Series documentation
  https://datacentersupport.lenovo.com/us/en/storagepubs
• ONTAP Ransomware Protection
  https://datacentersupport.lenovo.com/us/en/storagepubs/ontap/ontap-security-hardening/autonomous-ransomware-protection
• Lenovo Data Center Support - ThinkSystem DM5000H
  http://datacentersupport.lenovo.com/us/en/products/storage/lenovo-storage/thinksystem-dm5000h
