Abstract
Lenovo Storage D1224 Drive Enclosure models for SAP HANA provide additional required disk storage capacity for certain SAP HANA X6 systems with large memory configurations. They are designed specifically for SAP HANA certified appliance requirements and are supported on SAP HANA X6 systems.
This product guide provides essential pre-sales information to understand the structure of the D1224 drive enclosure offerings for SAP HANA, their key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the D1224 for SAP HANA and consider their use in IT solutions.
Notes:
- This product guide describes single ESM models of the D1224 drive enclosures that are designed for use with Lenovo X6 servers in SAP HANA solutions.
- For general purpose models of the D1224, refer to the Lenovo Storage D1212 and D1224 Drive Enclosures Product Guide.
Change History
Changes in the September 14, 2026 update:
- The Lenovo Storage D1224 Disk Expansion Enclosure is now withdrawn from marketing 09/11/2026
Introduction
Lenovo Storage D1224 Drive Enclosure models for SAP HANA provide additional required disk storage capacity for certain SAP HANA X6 systems with large memory configurations. They are designed specifically for SAP HANA certified appliance requirements and are supported on SAP HANA X6 systems.
The D1224 for SAP HANA is a 2U rack-mount enclosure that has 24 SFF hot-swap drive bays and is attached to SAP HANA X6 systems via the ServeRAID M5225 RAID adapter. All D1224 models for SAP HANA contain single Environmental Service Module (ESM) with 3x 12 Gbps SAS x4 ports for direct-attach host connectivity.

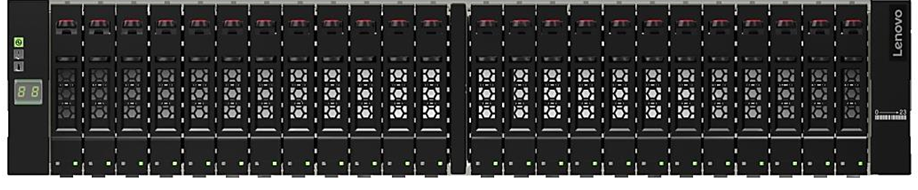

The D1224 for SAP HANA is shown in the following figure.
Figure 1. Lenovo Storage D1224 Disk Expansion Enclosure for SAP HANA
Did you know?
The D1224 expansion enclosures for SAP HANA offer flexible hybrid storage configurations with enterprise SAS hard disk drives (HDDs) and high performance SAS solid-state drives (SSDs).
The D1224 expansion units for SAP HANA support 12 Gbps SAS connectivity, which doubles the data transfer rate compared to 6 Gb SAS solutions to maximize performance of storage I/O-intensive applications.
Key features
Key features and benefits provided by the D1224 storage expansion enclosures for SAP HANA include:
- Single Environmental Service Module (ESM) configurations for direct attach storage connectivity to System x SAP HANA nodes via a supported RAID adapter
- Support for 24x 2.5-inch small form factor (SFF) drives
- 12 Gb SAS drive-side connectivity to maximize storage I/O performance
- Accelerated storage I/O performance of hybrid configurations with high performance SAS SSDs and performance-optimized enterprise SAS HDDs
The D1224 for SAP HANA is designed to support the SAP HANA data storage requirements with the following 2.5-inch SAS drives:
- High performance solid-state drives (3 DWD and 10 DWD): 400 GB, 800 GB, and 1.6 TB
- High performance self-encrypting solid-state drives (10 DWD): 800 GB
- Capacity optimized solid-state drives (1 DWD): 3.84 TB, 7.68 TB, and 15.36 TB
- Performance-optimized, enterprise class disk drives
- 300 GB, 600 GB, and 900 GB 15K rpm
- 600 GB, 900 GB, 1.2 TB, 1.8 TB, and 2.4 TB 10K rpm
- Performance-optimized, enterprise class self-encrypting disk drives: 1.2 TB 10K rpm
- High-capacity, archival-class nearline disk drives: 1 TB and 2 TB 7.2K rpm
The D1224 enclosures for SAP HANA are designed to offer high levels of system and data availability with redundant and hot-swappable hardware, including power and cooling modules (PCMs) and drives.
Components and connectors

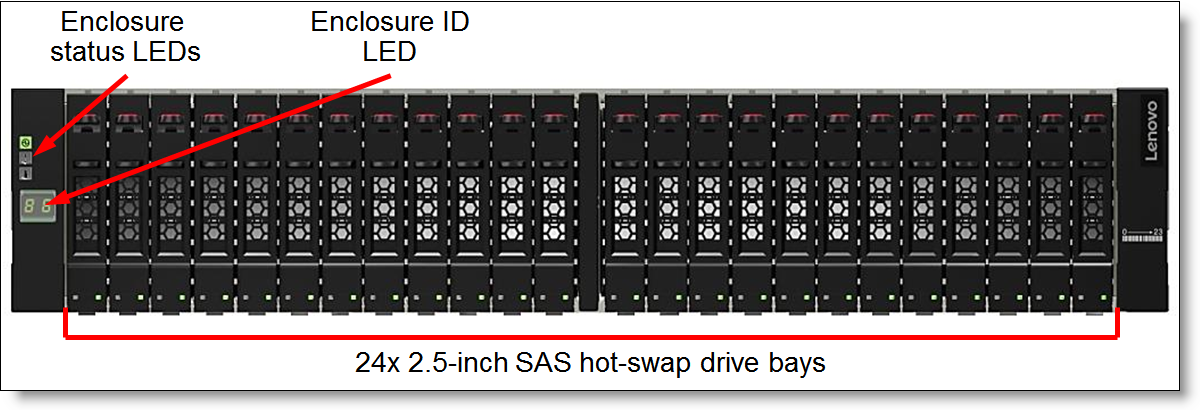

The following figure shows the front of the D1224 drive expansion enclosure for SAP HANA.
Figure 2. Front view of the D1224 drive enclosure for SAP HANA

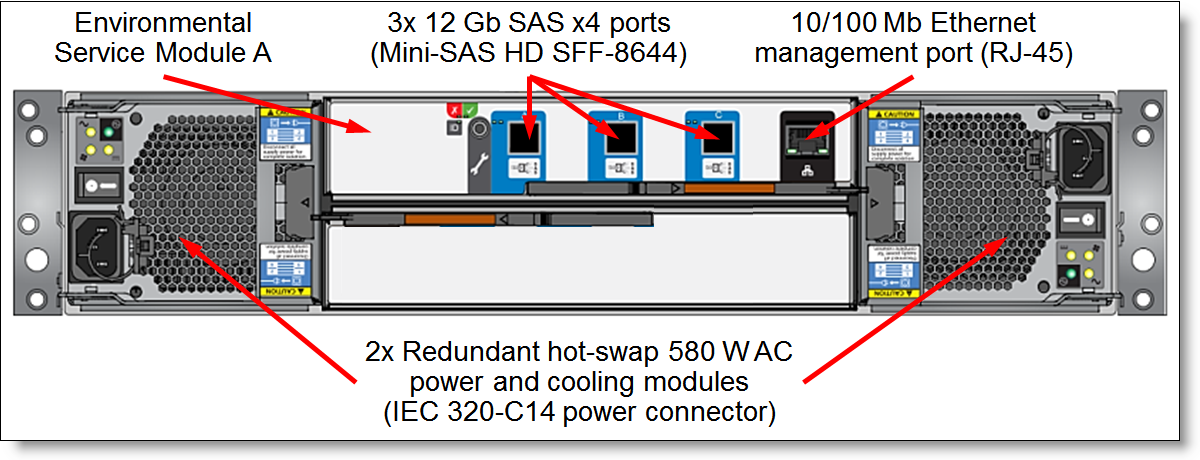

The following figure shows the rear of the D1224 drive enclosure for SAP HANA.
Figure 3. Rear view of the D1224 drive enclosure for SAP HANA
Note: The ESM (shown in Figure 4) has additional service ports with a specialized connector, and these ports are reserved for use by a Lenovo service technician.
System specifications
The following table lists the D1224 for SAP HANA system specifications.
| Attribute | Specification |
| Form factor | 2U rack mount (Machine Type 4587) |
| Number of ESMs | 1 |
| Expansion ports | 3x 12 Gb SAS x4 (Mini-SAS HD SFF-8644) ports (A, B, C) |
| Drive bays | 24 SFF hot-swap drive bays. |
| Drive technologies | SAS HDDs and SSDs. Intermix of HDDs and SSDs is supported. |
| Drive connectivity | 12 Gb SAS drive attachment infrastructure. |
| Drives |
|
| Storage capacity | Up to 368 TB (24x 15.36 TB SFF SAS SSDs) |
| Host adapters | ServeRAID M5225 (2-port 12 Gb SAS; RAID 0, 1, 10, 5, 50; optional RAID 6, 60) |
| Host operating systems | Red Hat Enterprise Linux (RHEL) 6 for SAP HANA; SUSE Linux Enterprise Server (SLES) 11 and 12 for SAP Applications. |
| Cooling | Redundant cooling with two fans built into power and cooling modules (PCMs). |
| Power supply | Two redundant hot-swap 580 W AC power supplies built into PCMs. |
| Hot-swap parts | Drives, PCMs. |
| Management interfaces | SAS Enclosure Services, 10/100 Mb Ethernet for external management. |
| Warranty | Three-year customer-replaceable unit, parts delivered limited warranty with 9x5 next business day response. |
| Service and support | Optional warranty service upgrades are available through Lenovo: Technician installed parts, 24x7 coverage, 2-hour or 4-hour response time, 6-hour or 24-hour committed repair, 1-year or 2-year warranty extensions, YourDrive YourData. |
| Dimensions | Height: 88 mm (3.5 in), width: 443 mm (17.4 in), depth: 630 mm (24.8 in) |
| Maximum weight | 24 kg (52.9) lb |
Models
The following table lists the models of the D1224 drive enclosure for SAP HANA.
| Description | Part number |
|---|---|
| Lenovo Storage D1224 Single ESM Drive Enclosure for SAP HANA (US English documentation) | 4587E41* |
| Lenovo Storage D1224 Single ESM Drive Enclosure for SAP HANA (Simplified Chinese documentation) | 4587E4C^ |
| Lenovo Storage D1224 Single ESM Drive Enclosure for SAP HANA (Japanese documentation) | 4587E4J** |
* Available worldwide (except China and Japan)
^ Available only in China
** Available only in Japan
The part numbers for the D1224 drive enclosures for SAP HANA include the following items:
- One SFF chassis with the following components:
- One 3-port environmental service module
- Two power and cooling modules
- Two 1.5m, 10A/100-250V, C13 to IEC 320-C14 rack power cables
- Lenovo Storage 12Gb SAN Rack Mount Kit - Rails 25"-36"
- Documentation package
Host connectivity
All D1224 models for SAP HANA contain one environmental service module (ESM) with three 12 Gb SAS x4 ports (Mini-SAS HD SFF-8644 connectors) for direct-attach host connectivity (daisy-chaining is not supported).
The following table lists the SAS cable options for direct-attach hot connectivity.
| Description | Part number | Feature code | Quantity per one D1224 |
|---|---|---|---|
| External MiniSAS HD 8644/MiniSAS HD 8644 2M Cable | 00YL849 | AU18 | 1 |
Drives
The following table lists drive options for the D1224 drive enclosure for SAP HANA.
| Description | Part number | Feature code | Maximum quantity per one D1224 |
|---|---|---|---|
| 2.5-inch SAS hot-swap HDDs | |||
| Lenovo Storage 300GB 15K 2.5" SAS HDD | 01DC197 | AU1J | 24 |
| Lenovo Storage 600GB 10K 2.5" SAS HDD | 01DC427 | AU1Q | 24 |
| Lenovo Storage 600GB 15K 2.5" SAS HDD | 01DC192 | AU1H | 24 |
| Lenovo Storage 900GB 10K 2.5" SAS HDD | 01DC417 | AU1N | 24 |
| Lenovo Storage 900GB 15K 2.5" SAS HDD | 01KP040 | AVP5 | 24 |
| Lenovo Storage 1.2TB 10K 2.5" SAS HDD | 01DC407 | AU1L | 24 |
| Lenovo Storage 1.8TB 10K 2.5" SAS HDD | 01DC402 | AU1K | 24 |
| Lenovo Storage 2.4TB 10K 2.5" SAS HDD | 4XB7A09101 | B103 | 24 |
| 2.5-inch NL SAS hot-swap HDDs | |||
| Lenovo Storage 1TB 7.2K 2.5" NL-SAS HDD | 01DC442 | AU1S | 24 |
| Lenovo Storage 2TB 7.2K 2.5" NL-SAS HDD | 01DC437 | AU1R | 24 |
| 2.5-inch SAS hot-swap SED HDDs | |||
| Lenovo Storage 1.2TB 10K 2.5" SAS HDD (SED) | 01DC412 | AU1M | 24 |
| 2.5-inch SAS hot-swap SSDs (10 DWD) | |||
| Lenovo Storage 400GB 10DWD 2.5" SAS SSD | 01DC462 | AUDK | 24 |
| Lenovo Storage 800GB 10DWD 2.5" SAS SSD | 01DC452 | AUDH | 24 |
| Lenovo Storage 1.6TB 10DWD 2.5" SAS SSD | 01DC447 | AUDG | 24 |
| 2.5-inch SAS hot-swap SSDs (3 DWD) | |||
| Lenovo Storage 400GB 3 DWD 2.5" SAS SSD | 01DC482 | AU1V | 24 |
| Lenovo Storage 800GB 3DWD 2.5" SAS SSD | 01DC477 | AU1U | 24 |
| Lenovo Storage 1.6TB 3DWD 2.5" SAS SSD | 01DC472 | AU1T | 24 |
| 2.5-inch SAS hot-swap SSDs (1 DWD) | |||
| Lenovo Storage 3.84TB 1DWD 2.5" SAS SSD (1200.2) | 01CX632 | AV2F | 24 |
| Lenovo Storage 3.84TB 1DWD 2.5" SAS SSD (PM1633a) | 01KP065 | AVPA | 24 |
| Lenovo Storage 7.68TB 1DWD 2.5" SAS SSD | 01KP060 | AVP9 | 24 |
| Lenovo Storage 15.36TB 1DWD 2.5" SAS SSD | 4XB7A08817 | B104 | 24 |
| 2.5-inch SAS hot-swap SED SSDs (10 DWD) | |||
| Lenovo Storage 800GB 10DWD 2.5" SAS SSD (SED) | 01DC457 | AUDJ | 24 |
Power cables
The D1224 for SAP HANA ships standard with two 1.5m, 10A/100-250V, C13 to IEC 320-C14 rack power cables. Other power cable options are also available, and the part numbers and feature codes to order the power cables are listed in the following table (two power cables are required per each D1224 for SAP HANA).
| Description | Part number | Feature code |
|---|---|---|
| Rack power cables | ||
| 1.2m, 10A/100-250V, 2 Short C13s to Short C14 Rack Power Cable | 47C2487 | A3SS |
| 1.2m, 16A/100-250V, 2 Short C13s to Short C20 Rack Power Cable | 47C2491 | A3SW |
| 1.5m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | 39Y7937 | 6201 |
| 2.5m, 10A/100-250V, 2 Long C13s to Short C14 Rack Power Cable | 47C2488 | A3ST |
| 2.5m, 16A/100-250V, 2 Long C13s to Short C20 Rack Power Cable | 47C2492 | A3SX |
| 2.8m, 10A/100-250V, 2 Short C13s to Long C14 Rack Power Cable | 47C2489 | A3SU |
| 2.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | None* | 6311 |
| 2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable | 39Y7938 | 6204 |
| 2.8m, 16A/100-250V, 2 Short C13s to Long C20 Rack Power Cable | 47C2493 | A3SY |
| 4.1m, 10A/100-250V, 2 Long C13s to Long C14 Rack Power Cable | 47C2490 | A3SV |
| 4.1m, 16A/100-250V, 2 Long C13s to Long C20 Rack Power Cable | 47C2494 | A3SZ |
| 4.3m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | 39Y7932 | 6263 |
| Line cords | ||
| 10A/125V C13 to NEMA 5-15P 4.3m line cord | 39Y7931 | 6207 |
| 10A/250V C13 to NEMA 6-15P 2.8m line cord | 46M2592 | A1RF |
| Argentina 10A/250V C13 to IRAM 2073 2.8m line cord | 39Y7930 | 6222 |
| Australia/NZ 10A/250V C13 to AS/NZ 3112 2.8m line cord | 39Y7924 | 6211 |
| Brazil 10A/250V C13 to NBR 14136 2.8m line cord | 69Y1988 | 6532 |
| China 10A/250V C13 to GB 2099.1 2.8m line cord | 39Y7928 | 6210 |
| Denmark 10A/250V C13 to DK2-5a 2.8m line cord | 39Y7918 | 6213 |
| European 10A/230V C13 to CEE7-VII 2.8m line cord | 39Y7917 | 6212 |
| India 10A/250V C13 to IS 6538 2.8m line cord | 39Y7927 | 6269 |
| Israel 10A/250V C13 to SI 32 2.8m line cord | 39Y7920 | 6218 |
| Italy 10A/250V C13 to CEI 23-16 2.8m line cord | 39Y7921 | 6217 |
| Japan 12A/125V C13 to JIS C-8303 2.8m line cord | 46M2593 | A1RE |
| Korea 12A/250V C13 to KETI 2.8m line cord | 39Y7925 | 6219 |
| South Africa 10A/250V C13 to SABS 164 2.8m line cord | 39Y7922 | 6214 |
| Switzerland 10A/250V C13 to SEV 1011-S24507 2.8m line cord | 39Y7919 | 6216 |
| Taiwan 15A/125V C13/CNS 10917 2.8m line cord | 00CG267 | 6402 |
| United Kingdom 10A/250V C13 to BS 1363/A 2.8m line cord | 39Y7923 | 6215 |
Physical specifications
The D1224 for SAP HANA has the following dimensions and weight (approximate):
- Height: 88 mm (3.5 in.)
- Width: 443 mm (17.4 in.)
- Depth: 630 mm (24.8 in.)
- Maximum weight: 24 kg (52.9 lb)
Operating environment
The D1224 for SAP HANA is supported in the following environment:
- Air temperature:
- Operating: 5 °C to 40 °C (41 °F to 104 °F)
- Storage: -40 °C to +60 °C (-40 °F to 140 °F)
- Maximum altitude: 3,045 m (10,000 ft)
- Humidity:
- Operating: 20% to 80% (non-condensing)
- Storage: 5% to 100% (no precipitation)
- Electrical:
- 100 to 127 (nominal) V AC; 50 Hz to 60 Hz; 6.11 A
- 200 to 240 (nominal) V AC; 50 Hz to 60 Hz; 3.05 A
- BTU output: 1979 BTU/hr (580 W)
- Noise level: 6.5 bels
Warranty
The D1224 for SAP HANA has a three-year customer-replaceable unit (CRU) warranty with standard call center support during normal business hours and 9x5 Next Business Day Parts Delivered. Lenovo offers the service upgrades through warranty maintenance upgrades and post-warranty maintenance agreements with a well-defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions.
Lenovo warranty service upgrade offerings are region-specific. Not all warranty service upgrades are available in every region. For more information about Lenovo warranty service upgrade offerings that are available in your region, go to the Lenovo Enterprise Solutions Configurator (LESC):
http://lesc.lenovo.com
The following table explains warranty service definitions for the D1224 drive enclosures for SAP HANA.
| Term | Description |
|---|---|
| Parts Delivered | If a problem with your product cannot be resolved via telephone and a CRU part is required, Lenovo will send a replacement CRU to arrive at your location. |
| Technician Installed Parts | If a problem with your product cannot be resolved via telephone, a Service Technician will be dispatched to arrive at your location. |
| Hours of coverage |
|
| Response time target | 2 hours, 4 hours or Next Business Day: The time period from when the telephone based troubleshooting is completed and logged, to the delivery of the CRU or arrival of a Service Technician and part at the Customer’s location for repair. |
| Committed Repair | 6 hours or 24 hours: The time period between the service request registration in Lenovo’s call management system and the restoration of the product to conformance with its specification by a Service Technician. |
The following Lenovo warranty service upgrades are available:
- Warranty and maintenance service upgrades:
- Three, four, or five years of 9x5 or 24x7 service coverage
- Parts delivered or technician installed parts from next business day to 4 or 2 hours
- Committed repair service
- Warranty extension of up to 5 years
- Post warranty extensions
- Committed Repair Service
Committed Repair Services enhances the level of Warranty Service Upgrade or Post Warranty/Maintenance Service offering associated with the selected systems. Offerings vary and are available in select regions.
- Priority handling to meet defined time frames to restore the failing machine to good working condition
- 24x7x6: Service performed 24 hours per day, 7 days per week, within 6 hours
- 24x7x24: Service performed 24 hours per day, 7 days per week, within 24 hours
- YourDrive YourData
Lenovo’s YourDrive YourData service is a multi-drive retention offering that ensures your data is always under your control, regardless of the number of drives that are installed in your Lenovo system. In the unlikely event of a drive failure, you retain possession of your drive while Lenovo replaces the failed drive part. Your data stays safely on your premises, in your hands. The YourDrive YourData service can be purchased in convenient bundles with Lenovo warranty upgrades and extensions.
Regulatory compliance
The D1224 drive enclosures for SAP HANA conform to the following regulations:
- BSMI CNS 13438, Class A; CNS 14336 (Taiwan)
- CCC GB 4943.1, GB 17625.1, GB 9254 Class A (China)
- CE Mark (European Union)
- CISPR 22, Class A
- EAC (Russia)
- EN55022, Class A
- EN55024
- FCC Part 15, Class A (United States)
- ICES-003/NMB-03, Class A (Canada)
- IEC/EN60950-1
- KC Mark (Korea)
- NOM-019 (Mexico)
- Reduction of Hazardous Substances (ROHS)
- UL/CSA IEC 60950-1
- VCCI, Class A (Japan)
Interoperability
Lenovo provides end-to-end storage compatibility testing to deliver interoperability throughout the network.
For end-to-end storage configuration support, refer to the Lenovo Storage Interoperation Center (LSIC):
https://datacentersupport.lenovo.com/us/en/lsic
Use the LSIC to select the known components of your configuration and then get a list all other supported combinations, with details about supported hardware, firmware, operating systems, and drivers, plus any additional configuration notes. View results on screen or export them to Excel.
Rack cabinets
The following table lists the supported rack cabinets.
| Model | Description |
|---|---|
| 7D6DA007WW | ThinkSystem 42U Onyx Primary Heavy Duty Rack Cabinet (1200mm) |
| 7D6DA008WW | ThinkSystem 42U Pearl Primary Heavy Duty Rack Cabinet (1200mm) |
| 7D6EA009WW | ThinkSystem 48U Onyx Primary Heavy Duty Rack Cabinet (1200mm) |
| 7D6EA00AWW | ThinkSystem 48U Pearl Primary Heavy Duty Rack Cabinet (1200mm) |
| 93074RX | 42U Standard Rack (1000mm) |
| 93604PX | 42U 1200mm Deep Dynamic Rack |
| 93604EX | 42U 1200mm Deep Dynamic Expansion Rack |
| 93614PX | 42U 1200mm Deep Static Rack |
| 93614EX | 42U 1200mm Deep Static Expansion Rack |
| 93634PX | 42U 1100mm Dynamic Rack |
| 93634EX | 42U 1100mm Dynamic Expansion Rack |
| 93084PX | 42U Enterprise Rack |
| 93084EX | 42U Enterprise Expansion Rack |
For specifications about these racks, see the Lenovo Rack Cabinet Reference, available from:
https://lenovopress.com/lp1287-lenovo-rack-cabinet-reference
For more information, see the list of Product Guides in the Rack cabinets category:
https://lenovopress.com/servers/options/racks
Power distribution units
The following table lists the power distribution units (PDUs) that are offered by Lenovo.
| Part number |
Feature code |
Description |
ANZ
|
ASEAN
|
Brazil
|
EET
|
MEA
|
RUCIS
|
WE
|
HTK
|
INDIA
|
JAPAN
|
LA
|
NA
|
PRC
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0U Basic PDUs | |||||||||||||||
| 4PU7A93176 | C0DA | 0U 36 C13 and 6 C19 Basic 32A 1 Phase PDU | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | Y | Y | Y |
| 4PU7A93177 | C0D9 | 0U 24 C13/C15 and 24 C13/C15/C19 Basic 32A 3 Phase WYE PDU v2 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 00YJ776 | ATZY | 0U 36 C13/6 C19 24A 1 Phase PDU | N | Y | Y | N | N | N | N | N | N | Y | Y | Y | N |
| 00YJ779 | ATZX | 0U 21 C13/12 C19 48A 3 Phase PDU | N | N | Y | N | N | N | Y | N | N | Y | Y | Y | N |
| 00YJ777 | ATZZ | 0U 36 C13/6 C19 32A 1 Phase PDU | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | Y | Y |
| 00YJ778 | AU00 | 0U 21 C13/12 C19 32A 3 Phase PDU | Y | Y | N | Y | Y | Y | Y | Y | Y | N | N | Y | Y |
| 0U Switched and Monitored PDUs | |||||||||||||||
| 4PU7B08148 | CD15 | 0U 3 C13 and 18 C19 Monitored 48A 3 Phase WYE PDU | N | N | N | N | N | N | N | N | N | N | N | Y | N |
| 4PU7B08149 | CD16 | 0U 3 C13 and 18 C19 Monitored 63A 3 Phase WYE PDU | N | N | N | Y | N | N | Y | Y | N | N | N | N | N |
| 4PU7A93181 | C0D5 | 0U 21 C13/C15 and 21 C13/C15/C19 Switched and Monitored 60A 3 Phase Delta PDU v2 | N | Y | N | N | Y | N | N | Y | N | Y | N | Y | N |
| 4PU7A93178 | C0D8 | 0U 20 C13 and 4 C19 Switched and Monitored 32A 1 Phase PDU | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | Y | Y | Y |
| 4PU7A93182 | C0CS | 0U 18 C13/C15 and 18 C13/C15/C19 Switched and Monitored 63A 3 Phase WYE PDU | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 4PU7A93180 | C0D6 | 0U 18 C13/C15 and 18 C13/C15/C19 Switched and Monitored 32A 3 Phase WYE PDU v2 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 4PU7A93179 | C0D7 | 0U 16 C13/C15 and 16 C13/C15/C19 Switched and Monitored 30A 1 Phase PDU v2 | N | Y | N | N | N | N | N | Y | N | Y | Y | Y | N |
| 00YJ783 | AU04 | 0U 12 C13/12 C19 Switched and Monitored 48A 3 Phase PDU | N | N | Y | N | N | N | Y | N | N | Y | Y | Y | N |
| 00YJ781 | AU03 | 0U 20 C13/4 C19 Switched and Monitored 24A 1 Phase PDU | N | N | Y | N | Y | N | Y | N | N | Y | Y | Y | N |
| 00YJ782 | AU02 | 0U 18 C13/6 C19 Switched and Monitored 32A 3 Phase PDU | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | Y | N | Y |
| 00YJ780 | AU01 | 0U 20 C13/4 C19 Switched and Monitored 32A 1 Phase PDU | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | Y | N | Y |
| 1U Basic PDUs | |||||||||||||||
| 4PU7B12339 | CE6L | 1U Basic 16A 1 Phase PDU | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | Y | Y | Y |
| 1U Switched and Monitored PDUs | |||||||||||||||
| 4PU7A90808 | C0D4 | 1U 18 C19/C13 Switched and monitored 48A 3P WYE PDU V2 ETL | N | N | N | N | N | N | N | Y | N | Y | Y | Y | N |
| 4PU7A81117 | BNDV | 1U 18 C19/C13 switched and monitored 48A 3P WYE PDU - ETL | N | N | N | N | N | N | N | N | N | N | N | Y | N |
| 4PU7A90809 | C0DE | 1U 18 C19/C13 Switched and monitored 48A 3P WYE PDU V2 CE | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | Y |
| 4PU7A81118 | BNDW | 1U 18 C19/C13 switched and monitored 48A 3P WYE PDU – CE | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | Y |
| 4PU7A90810 | C0DD | 1U 18 C19/C13 Switched and monitored 80A 3P Delta PDU V2 | N | N | N | N | N | N | N | Y | N | Y | Y | Y | N |
| 4PU7A77467 | BLC4 | 1U 18 C19/C13 Switched and Monitored 80A 3P Delta PDU | N | N | N | N | N | N | N | N | N | Y | N | Y | N |
| 4PU7A90811 | C0DC | 1U 12 C19/C13 Switched and monitored 32A 3P WYE PDU V2 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 4PU7A77468 | BLC5 | 1U 12 C19/C13 switched and monitored 32A 3P WYE PDU | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 4PU7A90812 | C0DB | 1U 12 C19/C13 Switched and monitored 60A 3P Delta PDU V2 | N | N | Y | N | N | N | N | Y | N | Y | Y | Y | N |
| 4PU7A77469 | BLC6 | 1U 12 C19/C13 switched and monitored 60A 3P Delta PDU | N | N | N | N | N | N | N | N | N | N | N | Y | N |
| 46M4002 | 5896 | 1U 9 C19/3 C13 Switched and Monitored DPI PDU | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 46M4004 | 5894 | 1U 12 C13 Switched and Monitored DPI PDU | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 46M4003 | 5897 | 1U 9 C19/3 C13 Switched and Monitored 60A 3 Phase PDU | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 46M4005 | 5895 | 1U 12 C13 Switched and Monitored 60A 3 Phase PDU | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 1U C13 Enterprise PDUs (12x IEC 320 C13 outlets) | |||||||||||||||
| 39M2816 | 6030 | DPI C13 PDU+ | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 39Y8941 | 6010 | Enterprise C13 PDU | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 1U C19 Enterprise PDUs (6x IEC 320 C19 outlets) | |||||||||||||||
| 39Y8948 | 6060 | Enterprise C19 PDU | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 39Y8923 | 6061 | Enterprise C19 3 phase PDU (60a) | N | N | Y | N | N | N | Y | N | N | N | Y | Y | N |
| 1U Front-end PDUs (3x IEC 320 C19 outlets) | |||||||||||||||
| 39Y8938 | 6002 | DPI 30amp/125V Front-end PDU with NEMA L5-30P | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 39Y8939 | 6003 | DPI 30amp/250V Front-end PDU with NEMA L6-30P | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 39Y8934 | 6005 | DPI 32amp/250V Front-end PDU with IEC 309 2P+Gnd | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 39Y8940 | 6004 | DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd connector | Y | N | Y | Y | Y | Y | Y | N | N | Y | Y | Y | N |
| 39Y8935 | 6006 | DPI 63amp/250V Front-end PDU with IEC 309 2P+Gnd connector | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 1U NEMA PDUs (6x NEMA 5-15R outlets) | |||||||||||||||
| 39Y8905 | 5900 | DPI 100-127v PDU with Fixed Nema L5-15P line cord | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Line cords for 1U PDUs that ship without a line cord | |||||||||||||||
| 40K9611 | 6504 | 4.3m, 32A/380-415V, EPDU/IEC 309 3P+N+G 3ph wye (non-US) Line Cord | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 40K9612 | 6502 | 4.3m, 32A/230V, EPDU to IEC 309 P+N+G (non-US) Line Cord | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 40K9613 | 6503 | 4.3m, 63A/230V, EPDU to IEC 309 P+N+G (non-US) Line Cord | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 40K9614 | 6500 | 4.3m, 30A/208V, EPDU to NEMA L6-30P (US) Line Cord | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 40K9615 | 6501 | 4.3m, 60A/208V, EPDU to IEC 309 2P+G (US) Line Cord | N | N | Y | N | N | N | Y | N | N | Y | Y | Y | N |
| 40K9617 | 6505 | 4.3m, 32A/230V, Souriau UTG to AS/NZS 3112 (Aus/NZ) Line Cord | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| 40K9618 | 6506 | 4.3m, 32A/250V, Souriau UTG Female to KSC 8305 (S. Korea) Line Cord | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
For more information, see the Lenovo Press documents in the PDU category:
https://lenovopress.com/servers/options/pdu
Uninterruptible power supply units
The following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo.
| Part number | Description |
|---|---|
| Rack-mounted or tower UPS units - 100-125VAC | |
| 7DD5A001WW | RT1.5kVA 2U Rack or Tower UPS-G2 (100-125VAC) |
| 55941AX | RT1.5kVA 2U Rack or Tower UPS (100-125VAC) |
| 55942AX | RT2.2kVA 2U Rack or Tower UPS (100-125VAC) |
| 7DD5A003WW | RT3kVA 2U Rack or Tower UPS-G2 (100-125VAC) |
| 55943AX | RT3kVA 2U Rack or Tower UPS (100-125VAC) |
| Rack-mounted or tower UPS units - 200-240VAC | |
| 7DD5A002WW | RT1.5kVA 2U Rack or Tower UPS-G2 (200-240VAC) |
| 55941KX | RT1.5kVA 2U Rack or Tower UPS (200-240VAC) |
| 55942KX | RT2.2kVA 2U Rack or Tower UPS (200-240VAC) |
| 7DD5A005WW | RT3kVA 2U Rack or Tower UPS-G2 (200-240VAC) |
| 55943KX | RT3kVA 2U Rack or Tower UPS (200-240VAC) |
| 7DD5A007WW | RT5kVA 3U Rack or Tower UPS-G2 (200-240VAC) |
| 55945KX | RT5kVA 3U Rack or Tower UPS (200-240VAC) |
| 7DD5A008WW | RT6kVA 3U Rack or Tower UPS-G2 (200-240VAC) |
| 55946KX | RT6kVA 3U Rack or Tower UPS (200-240VAC) |
| 55948KX | RT8kVA 6U Rack or Tower UPS (200-240VAC) |
| 7DD5A00AWW | RT11kVA 6U Rack or Tower UPS-G2 (200-240VAC) |
| 55949KX | RT11kVA 6U Rack or Tower UPS (200-240VAC) |
| 55943KT† | ThinkSystem RT3kVA 2U Standard UPS (200-230VAC) (2x C13 10A, 2x GB 10A, 1x C19 16A outlets) |
| 55943LT† | ThinkSystem RT3kVA 2U Long Backup UPS (200-230VAC) (2x C13 10A, 2x GB 10A, 1x C19 16A outlets) |
| 55946KT† | ThinkSystem RT6kVA 5U UPS (200-230VAC) (2x C13 10A outlets, 1x Terminal Block output) |
| 5594XKT† | ThinkSystem RT10kVA 5U UPS (200-230VAC) (2x C13 10A outlets, 1x Terminal Block output) |
| Rack-mounted or tower UPS units - 380-415VAC | |
| 55948PX | RT8kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) |
| 55949PX | RT11kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) |
† Only available in China and the Asia Pacific market.
For more information, see the list of Product Guides in the UPS category:
https://lenovopress.com/servers/options/ups
Lenovo Financial Services
Why wait to obtain the technology you need now? No payments for 90 days and predictable, low monthly payments make it easy to budget for your Lenovo solution.
- Flexible
Our in-depth knowledge of the products, services and various market segments allows us to offer greater flexibility in structures, documentation and end of lease options.
- 100% Solution Financing
Financing your entire solution including hardware, software, and services, ensures more predictability in your project planning with fixed, manageable payments and low monthly payments.
- Device as a Service (DaaS)
Leverage latest technology to advance your business. Customized solutions aligned to your needs. Flexibility to add equipment to support growth. Protect your technology with Lenovo's Premier Support service.
- 24/7 Asset management
Manage your financed solutions with electronic access to your lease documents, payment histories, invoices and asset information.
- Fair Market Value (FMV) and $1 Purchase Option Leases
Maximize your purchasing power with our lowest cost option. An FMV lease offers lower monthly payments than loans or lease-to-own financing. Think of an FMV lease as a rental. You have the flexibility at the end of the lease term to return the equipment, continue leasing it, or purchase it for the fair market value. In a $1 Out Purchase Option lease, you own the equipment. It is a good option when you are confident you will use the equipment for an extended period beyond the finance term. Both lease types have merits depending on your needs. We can help you determine which option will best meet your technological and budgetary goals.
Ask your Lenovo Financial Services representative about this promotion and how to submit a credit application. For the majority of credit applicants, we have enough information to deliver an instant decision and send a notification within minutes.
Related product families
Product families related to this document are the following:
- Direct-Attached Storage
Trademarks
Lenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at https://www.lenovo.com/us/en/legal/copytrade/.
The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo®
System x®
ThinkSystem®
The following terms are trademarks of other companies:
Linux® is the trademark of Linus Torvalds in the U.S. and other countries.
Excel® is a trademark of Microsoft Corporation in the United States, other countries, or both.
Other company, product, or service names may be trademarks or service marks of others.
