HPE Aruba Networking 503 Series Campus Access Points QuickSpecs

Affordable Wi-Fi 6 (802.11ax) for Low-to-Medium-Density Indoor Environments

The HPE Aruba Networking 503 Series Campus Access Points provide cost-effective, high-performance connectivity for any organization experiencing device growth due to increased mobility, the shift to cloud, or IoT. With a maximum real-world aggregate data rate of 1.49 Gbps (HE80/HE20), the 503 Series Campus Access Points deliver the speed and reliability needed for medium-density venues and workplaces such as schools, midsize offices, and retailers. Each 503 series access points provides connectivity for a maximum of 256 associated clients per radio (512 in total).

HPE Aruba Networking 503 Series Campus Access Points

Key Features

- 1.49 Gbps maximum real-world speed (HE80/HE20)

- WPA3 and Enhanced Open security

- Built-in technology that resolves sticky client issues

- OFDMA for enhanced multi-user efficiency

- IoT-ready Bluetooth 5 and Zigbee support (requires optional radio dongle)

- Offered as optional eco-friendly 10-packs

Optimized User Experience

The HPE Aruba Networking 503 Series Campus Access Points are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.

Features include orthogonal frequency-division multiple access (OFDMA) and cellular optimization. With up to 2 spatial streams (2SS) and 80MHz channel bandwidth (HE80), the 503 series provides the next generation of wireless capabilities for cost-conscious deployments.

Advantages of OFDMA

This capability allows HPE Aruba Networking's access points to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that multiple clients are sharing a channel and not competing for airtime and bandwidth.

Client optimization

HPE Aruba Networking's patented AI-powered ClientMatch technology eliminates sticky client issues by placing Wi-Fi 6 capable devices on the best available access point. Session metrics are used to steer mobile devices to the best access point based on available bandwidth, types of applications being used, and traffic type - even as users roam.

Resource management

To better support growth in client device density and in data volumes, HPE Aruba Networking AirMatch uses machine learning techniques that provide automated radio frequency optimization.

By analyzing the entire wireless network, AirMatch determines the optimum radio configuration and enables the network to automatically adapt in real time to changing RF conditions such as high noise and radar. It also adjusts for higher density, co-channel interference, and coverage gaps.

Reduced Interference

Unique to HPE Aruba Networking, Advanced Cellular Coexistence (ACC) uses built-in filtering, HPE Aruba Networking Advanced Cellular Coexistence automatically minimizes the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small cell or femtocell equipment.

IOT Platform Capabilities

Using an optional IoT expansion radio, 503 series can use the Bluetooth 5 and 802.15.4/Zigbee radio to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors.

This allows organizations to leverage the 503 series as an IoT platform, which eliminates the need for an overlay infrastructure and additional IT resources.

Target Wake Time (TWT)

Ideal for IoT devices that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This helps improve client power savings and reduces airtime contention with other clients.

HPE Aruba Networking Secure Infrastructure

The 503 series supports a Zero Trust/Secure Access Service Edge (SASE) architecture to better protect user authentication and wireless traffic. Select capabilities include:

WPA3 and Enhanced Open

Support for stronger encryption and authentication is provided via the latest version of WPA for enterprise networks. Enhanced Open offers seamless new protection for users connecting to open networks where each session is automatically encrypted to protect user passwords and data on guest networks.

WPA2-MPSK

MPSK enables simpler passkey management for WPA2 devices - should the Wi-Fi password on one device or device type change, no additional changes are needed for other devices. This capability requires HPE Aruba Networking ClearPass Policy Manager.

Simple and Secure Access

To improve security and ease of management, IT can centrally configure and automatically enforce rolebased policies that define proper access privileges for employees, guests, contractors, and other user groups - no matter where users connect on wired and WLANs. Dynamic Segmentation eliminates the time consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.

Seamless Handoffs to Cellular

Built on the technical foundations of Passpoint® and Wi-Fi Calling, Air Pass creates a roaming network across the HPE Aruba Networking enterprise customer footprint, extending cellular coverage and enhancing the visitor and subscriber experience to deliver a great experience for your guests while reducing costs and management overhead for DAS.

Flexible Operation and Management

Our unified access points can operate as standalone access points or with a gateway for greater scalability, security, and manageability. Access points can be deployed using zero touch provisioning - without on-site technical expertise - for ease of implementation in branch offices and for remote work.

HPE Aruba Networking access pointscan be managed using cloud-based or on-premises solutions for any campus, branch, or remote work environment. As the management and orchestration console for HPE Aruba Networking ESP (Edge Services Platform), HPE Aruba Networking Central provides a single pane of glass for overseeing every aspect of wired and wireless LANs, WANs, and VPNs. AI-powered analytics, end-to-end orchestration and automation, and advanced security features are built natively into the solution. The 503 series can also be deployed using GreenLake for HPE Aruba Networking for flexible consumption and financing options.

BTO Models

503 Internal Antenna Access Points

Description

SKU

HPE Aruba Networking AP-503-EG Dual Radio 2x2 802.11ax Wi-Fi 6 Campus Access Point

R8M95A

HPE Aruba Networking AP-503-IL Dual Radio 2x2 802.11ax Wi-Fi 6 Campus Access Point

R8M96A

HPE Aruba Networking AP-503-JP Dual Radio 2x2 802.11ax Wi-Fi 6 Campus Access Point

R8M97A

HPE Aruba Networking AP-503-RW Dual Radio 2x2 802.11ax Wi-Fi 6 Campus Access Point

R8M98A

HPE Aruba Networking AP-503-US Dual Radio 2x2 802.11ax Wi-Fi 6 Campus Access Point

R8M99A

HPE Aruba Networking AP-503 (RW1) Dual Radio 2x2 802.11ax Wi-Fi 6 Campus Access Point

S2C07A

HPE Aruba Networking AP-503 (ID) Dual Radio 2x2 802.11ax Internal Antennas Campus Access Point

S5D83A

503 Internal Antenna Access Points (Eco-Friendly 10-Packs)

Description

SKU

HPE Aruba Networking AP-503 (RW) 10-Pack Dual Radio 2x2:2 Wi-Fi 6 Campus Access Point

S1E83A

HPE Aruba Networking AP-503 (US) 10-Pack Dual Radio 2x2:2 Wi-Fi 6 Campus Access Point

S1E84A

Mount Accessories

AP Mount Kits

Description

SKU

HPE Aruba Networking AP-220-MNT-C1 2x Ceiling Grid Rail Adapter for Basic Flat Rails Mount Kit

JW044A

HPE Aruba Networking AP-220-MNT-C2 2x Ceiling Grid Rail Adapter for Interlude and Silhouette Mt Kit

JW045A

HPE Aruba Networking AP-MNT-CM1 Industrial Grade Indoor AP Metal Suspended Ceiling Rail Mount Kit

JX961A

HPE Aruba Networking AP-220-MNT-W1 Flat Surface Wall/Ceiling Black AP Basic Flat Surface Mount Kit

JW046A

HPE Aruba Networking AP-220-MNT-W1W Flat Surface Wall/Ceiling White AP Basic Flat Surface Mount Kit

JW047A

HPE Aruba Networking AP-200-MNT-W3 Low Profile Box Style Small Indoor AP Flat Surface Mount Kit

JY705A

HPE Aruba Networking AP-MNT-W4 White Low Profile Basic AP Flat Surface Mount Kit

Q9U25A

Power Options

Power Options

Description

SKU

HPE Aruba Networking AP-POE-AFGE 1-Port GbE 802.3af 15.4W Midspan Injector

R6P68A

Accessories

Other Accessories

Description

SKU

HPE Aruba Networking USB LTE Modem for Access Points and Gateways

R8F34A

HPE Aruba Networking AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable

JY728A

HPE Aruba Networking AP-MOD-SERU Micro-USB TTL3.3V to RJ45 RS232 AP Console Adapter Module

R6Q99A

Software

Central

Cloud Services / Access Point Foundation Subscriptions

HPE Aruba Networking Central AP Foundation 1-year Subscription E-STU

Q9Y58AAE

HPE Aruba Networking Central AP Foundation 3 year Subscription E-STU

Q9Y59AAE

HPE Aruba Networking Central AP Foundation 5 year Subscription E-STU

Q9Y60AAE

HPE Aruba Networking Central AP Foundation 7 year Subscription E-STU

Q9Y61AAE

HPE Aruba Networking Central AP Foundation 10 year Subscription E-STU

Q9Y62AAE

Cloud Services / Access Point Advanced Subscriptions

HPE Aruba Networking Central AP Advanced 1 year Subscription E-STU

Q9Y63AAE

HPE Aruba Networking Central AP Advanced 3 year Subscription E-STU

Q9Y64AAE

HPE Aruba Networking Central AP Advanced 5 year Subscription E-STU

Q9Y65AAE

HPE Aruba Networking Central AP Advanced 7 year Subscription E-STU

Q9Y66AAE

HPE Aruba Networking Central AP Advanced 10 year Subscription E-STU

Q9Y67AAE

On-Prem Services / Access Point Foundation Subscriptions

HPE Aruba Networking Central on Prem AP Foundation 1 year Subscription E-STU

R6U63AAE

HPE Aruba Networking Central on Prem AP Foundation 3 year Subscription E-STU

R6U64AAE

HPE Aruba Networking Central on Prem AP Foundation 5 year Subscription E-STU

R6U65AAE

HPE Aruba Networking Central on Prem AP Foundation 7 year Subscription E-STU

R6U66AAE

HPE Aruba Networking Central on Prem AP Foundation 10 year Subscription E-STU

R6U67AAE

As-a-Service

Cloud Services / Access Point Foundation Subscriptions

HPE Aruba Networking Central AP Foundation 1 year Subscription SaaS

Q9Y58AAS

HPE Aruba Networking Central AP Foundation 3 year Subscription SaaS

Q9Y59AAS

HPE Aruba Networking Central AP Foundation 5 year Subscription SaaS

Q9Y60AAS

HPE Aruba Networking Central AP Foundation 7 year Subscription SaaS

Q9Y61AAS

HPE Aruba Networking Central AP Foundation 10 year Subscription SaaS

Q9Y62AAS

Cloud Services / Access Point Advanced Subscriptions

HPE Aruba Networking Central AP Advanced 1 year Subscription SaaS

Q9Y63AAS

HPE Aruba Networking Central AP Advanced 3 year Subscription SaaS

Q9Y64AAS

HPE Aruba Networking Central AP Advanced 5 year Subscription SaaS

Q9Y65AAS

HPE Aruba Networking Central AP Advanced 7 year Subscription SaaS

Q9Y66AAS

HPE Aruba Networking Central AP Advanced 10 year Subscription SaaS

Q9Y67AAS

Additional WI-FI Features

Each AP also includes the following standards-based technologies:

Transmit Beamforming

Increased signal reliability and range

Dynamic Frequency Selection (DFS)

Optimized use of available RF spectrum

Maximum Rate Combining (MRC)

Improved receiver performance

Cyclic Delay/Shift Diversity (CDD/CSD)

Greater downlink RF performance

Space-Time Block Coding (STBC)

Increased range and improved reception

Low-Density Parity Check (LDPC)

High-efficiency error correction for improved throughput

Hardware Variants

AP-503: Campus AP platform, integrated antennas

WI-FI Radio Specifications

- Access point type: Indoor, dual-radio, 2.4GHz and 5GHz (dual concurrent) 802.11ax 2x2 MIMO

- 2.4GHz radio: Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with 2SS HE40 802.11ax client devices (287Mbps for HE20)

- 5GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices

- Up to 256 associated client devices per radio, and up to 16 BSSIDs per radio

- Supported frequency bands (country-specific restrictions apply):

• 2.400 to 2.4835GHz ISM
• 5.150 to 5.250GHz U-NII-1
• 5.250 to 5.350GHz U-NII-2A
• 5.470 to 5.725GHz U-NII-2C
• 5.725 to 5.850GHz U-NII-3/ISM
• 5.850 to 5.895GHz U-NII-4

- Available bands and channels: Dependent on configured regulatory domain (country)

- Dynamic frequency selection (DFS) optimizes the use of available RF spectrum in the 5GHz band

- Supported radio technologies:

• 802.11b: Direct-sequence spread-spectrum (DSSS)
• 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
• 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units

- Supported modulation types:

• 802.11b: BPSK, QPSK, CCK
• 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM and 256- QAM (proprietary extension)
• 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM (proprietary extension)
• 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM
• 802.11n high-throughput (HT) support: HT20/40
• 802.11ac very high throughput (VHT) support: VHT20/40/80
• 802.11ax high efficiency (HE) support: HE20/40/80

- Supported data rates (Mbps):

• 802.11b: 1, 2, 5.5, 11
• 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
• 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM (proprietary extension)
• 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 1,083 with 1024-QAM (MCS10 and MCS11, proprietary extension)
• 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
• 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

- 802.11n/ac packet aggregation: A-MPDU, A-MSDU

- Transmit power: Configurable in increments of 0.5 dBm

- Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):

• Per radio (2.4GHz / 5GHz): +21 dBm (18dBm per chain)
• Notes: Conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.

- Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks

- Maximum ratio combining (MRC) for improved receiver performance

- Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance

- Space-time block coding (STBC) for increased range and improved reception

- Low-density parity check (LDPC) for high-efficiency error correction and increased throughput

- Transmit beam-forming (TxBF) for increased signal reliability and range

- 802.11ax Target Wait Time (TWT) to support low-power client devices

Wi-Fi Antennas

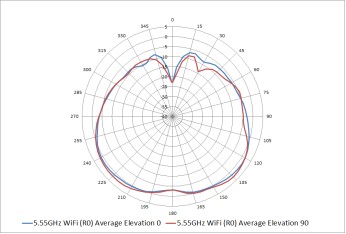

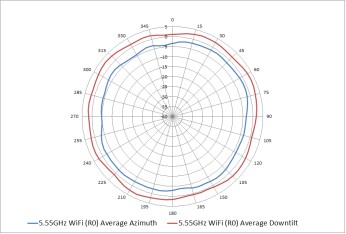

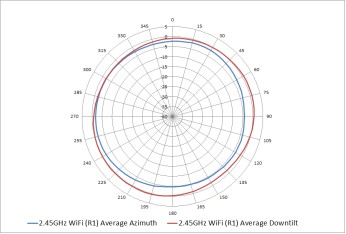

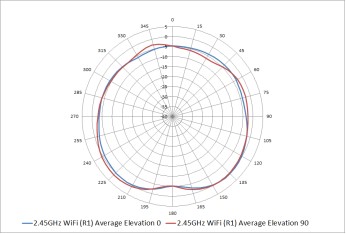

AP-503: Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 1.7dBi in 2.4GHz and 4.8dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the access point. The downtilt angle for maximum gain is roughly 30 degrees.

- Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 1.5dBi in 2.4GHz and 3.9dBi in 5GHz.

Other Interfaces and Features

- E0: Ethernet wired network port (RJ-45)

• Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDIX
• POE-PD: 48Vdc (nominal) 802.3af POE (class 3 or higher)
• 802.3az Energy Efficient Ethernet (EEE)

- USB 2.0 host interface (Type A connector)

• Capable of sourcing up to 100mA / 500mW to an attached device

- Built-in Trusted Platform Module (TPM) for enhanced security and anti-counterfeiting

- Visual indicators (two multi-color LEDs): for System and Radio status

- Reset button: factory reset, LED mode control (normal/off)

- Serial console interface (proprietary, micro-B USB physical jack)

- Automatic thermal shutdown and recovery function

Power Sources and Power Consumption

- The access point supports Power over Ethernet (POE) on port E0

- Power sources are sold separately; see the HPE Aruba Networking 503 Series Campus Access Points Ordering Guide for details

- Maximum (worst-case) power consumption: 10.9W

- Maximum (worst-case) power consumption in idle mode: 4.7W

- Both numbers assume no power is drawn from the USB interface

• Drawing 0.5W from the USB interface increases max access point power consumption by up to 0.7W

Mounting Details

A generic mount bracket to attach the AP-503 to suspended ceiling rails ships with the access point. Alternate or spare brackets can be ordered separately; see the 503 Series Ordering Guide for details.

Mechanical Specifications

- Dimensions/weight (AP-503; unit with mount bracket):

• 145mm (W) x 145mm (D) x 51mm (H)
• 270g

- Dimensions/weight (AP-503; unit without mount bracket):

• 145mm (W) x 145mm (D) x 35mm (H)
• 255g

- Dimensions/weight (AP-503; shipping):

• 196mm (W) x 183mm (D) x 67mm (H)
• 515g

Environmental Specifications

- Operating conditions

• Temperature: 0C to +40C / +32F to +104F
• Relative humidity: 5% to 95%
• ETS 300 019 class 3.2 environments
• AP is plenum rated for use in air-handling spaces

- Storage conditions

• Temperature: -25C to +55C / +13F to +131F
• Relative humidity: 10% to 100%
• ETS 300 019 class 1.2 environments

- Transportation conditions

• Temperature: -40C to +70C / -40F to +158F
• Relative humidity: up to 95%
• ETS 300 019 class 2.3 environments

Reliability

Mean Time Between Failure (MTBF): 930khrs (106yrs) at +25°C operating temperature.

Regulatory Compliance

- FCC/ISED

- CE Marked

- RED Directive 2014/53/EU

- EMC Directive 2014/30/EU

- Low Voltage Directive 2014/35/EU

- UL/IEC/EN 62368-1

For more country-specific regulatory information and approvals, please see your HPE Aruba Networking representative.

Regulatory Model Numbers

- AP-503 (all models): APIN0503

Certifications

- Wi-Fi Alliance (WFA):

• Wi-Fi CERTIFIED a, b, g, n, ac
• Wi-Fi CERTIFIED 6
• WPA, WPA2 and WPA3 - Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
• WMM, WMM-PS, Wi-Fi Agile Multiband

- Ethernet Alliance (POE, PD device, class 3)

Warranty

HPE Aruba Networking's hardware limited lifetime warranty.

Minimum Operating System Software Versions

HPE Aruba Networking Wireless Operating System and HPE Aruba Networking InstantOS 8.11.1.0, HPE Aruba Networking Wireless Operating System 10.5.0.0

RF Performance Table

Band, Rate

Maximum Transmit Power (dBm) per Transmit Chain

Receiver Sensitivity (dBm) per Receive Chain

2.4GHz, 802.11b

1Mbps

18.0

-96.0

11Mbps

18.0

-88.0

2.4GHz, 802.11g

6Mbps

18.0

-92.0

54Mbps

18.0

-74.0

2.4GHz, 802.11n HT20

MCS0

18.0

-93.0

MCS7

16.0

-72.0

2.4GHz, 802.11ax HE20

MCS0

18.0

-92.0

MCS11

12.0

-62.0

5GHz, 802.11a

6Mbps

18.0

-94.0

54Mbps

16.0

-74.0

5GHz, 802.11n HT20 / HT40

MCS0

18.0 / 18.0

-93.0 / -90.0

MCS7

16.0 / 16.0

-73.0 / -70.0

5GHz, 802.11ac VHT20 / VHT40 / VHT80

MCS0

18.0 / 18.0 / 18.0

-93.0 / -90.0 / -87.0

MCS9

14.0 / 14.0 / 14.0

-67.0 / -64.0 / -61.0

5GHz, 802.11ax HE20 / HE40 / HE80

MCS0

18.0 / 18.0 / 18.0

-91.0 / -89.0 / -86.0

MCS11

12.0 / 12.0 / 12.0

-64.0 / -61.0 / -58.0

Antenna Patterns

Horizontal Planes (Top View)

Showing azimuth (0 degrees) and 30 degrees downtilt patterns (averaged patterns for all applicable antennas)

2.45GHz Wi-Fi (antennas 1, 2)

5.55GHz Wi-Fi (antennas 1, 2)

Vertical (elevation) planes (side view, AP facing down)

Showing side view with AP rotated 0 and 90 degrees (averaged patterns for all applicable antennas)

2.45GHz Wi-Fi (antennas 1, 2)

5.55GHz Wi-Fi (antennas 1, 2)

Have feedback on QuickSpecs? We're listening

Chat now

© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

To learn more, visit: http://www.hpe.com/networking

a50006989enw - 17099 - Worldwide  - V10 - 06-July-2026

HEWLETT PACKARD ENTERPRISE

HPE.com
