HPE Aruba Networking 360 Series Outdoor Access Points

Entry-level outdoor and warehouse connectivity with Wi-Fi 5 (802.11ac Wave 2)

Multi-functional 360 Series 802.11ac Wave 2 outdoor access points deliver cost-effective wireless connectivity to mobile and IoT devices in a wide range of outdoor and warehouse environments.

With a maximum aggregate data rate of 1.2 Gbps (1.167 Gbps), the 360 Series comes with multi-user MIMO (MU-MIMO), 4 spatial streams (4SS), and optional 160MHz channel bandwidth (VHT160) to quickly add performance and capacity to existing or wireless networks.

Able to survive in harsh outdoor environments and provide connectivity in warehouses and distribution centers, the 360 Series can withstand exposure to high and low temperature extremes, wind speeds up to 165 mph, and tolerate persistent moisture, precipitation, and dust and salt sprays for extended periods of time. All electrical interfaces include industrial strength surge protection.

To simplify policy enforcement, the HPE Aruba Networking 360 Series uses HPE Aruba Networking's policy enforcement firewall (PEF) feature to encapsulate all traffic from the AP to the Mobility Controller (or Gateway) for end-to-end encryption and inspection. Policies are applied based on user role, device type, applications, and location. This reduces the manual configuration of SSIDs, VLANs and ACLs. PEF also serves as the underlying technology for dynamic segmentation.

The 360 Series includes HPE Aruba Networking's patented ClientMatch technology to eliminate sticky client issues while optimizing 802.11ac Wave 2 performance. These APs continuously gather session performance metrics to steer mobile devices to the best-available AP - even while users roam. With MU-MIMO awareness, ClientMatch can group MU-MIMO capable devices together to increase network capacity and efficiency. ClientMatch also participates in HPE Aruba Networking's AI-powered Mobility solution.

Like all HPE Aruba Networking Wi-Fi 6 APs, the 360 Series includes an integrated Bluetooth Low Energy radio to simplify the deployment and management of location services, asset tracking services, security solutions and IoT sensors. This allows organizations to leverage the 360 Series as an IoT platform, which eliminates the need for an overlay infrastructure and additional IT resources.

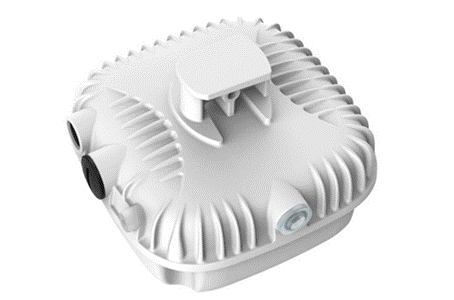

HPE Aruba Networking 360 Series Outdoor Access Points

Unique Benefits

• WPA3 and Enhanced Open

­ Support for stronger encryption and authentication is provided via the latest version of WPA for enterprise protected networks.

­ Enhanced Open offers seamless new protection for users connecting to open networks where each session is automatically encrypted to protect user passwords and data on guest networks.

• WPA2-MPSK

­ MPSK enables simpler passkey management for WPA2 devices - should the Wi-Fi password on one device or device type change, no additional changes are needed for other devices. Requires ClearPass Policy Manager.

• VPN Tunnels

­ In Remote AP (RAP) and IAP-VPN deployments, the HPE Aruba Networking 318 Series can be used to establish a secure SSL/IPSec VPN tunnel to a Mobility Controller that is acting as a VPN concentrator.

• Trusted Platform Module (TPM)

­ For enhanced device assurance, all HPE Aruba Networking APs have an installed TPM for secure storage of credentials and keys, and boot code.

• Flexible operations and management

­ Controller-less (Instant) mode - For enhanced device assurance, all HPE Aruba Networking APs have an installed TPM for secure storage of credentials and keys, and boot code.

­ Mobility Controller mode - For optimized network performance, roaming and security, APs tunnel all traffic to a mobility controller for centrally managed traffic forwarding and segmentation, data encryption, and policy enforcement.

­ Other management options - Available management solutions include HPE Aruba Networking Central (cloud-managed) or Aruba AirWave - a multi-vendor on-premises management solution. For large installations across multiple sites, APs can be factory-shipped and can be activated with Zero Touch Provisioning through HPE Aruba Networking Central or AirWave. This reduces deployment time, centralizes configuration, and helps manage inventory.

• Additional Features

­ Zero Touch Provisioning - APs can be factory-shipped and zero-touch provisioned through HPE Aruba Networking Central or AirWave using a cloud-based service to reduce deployment time, centralize configuration, and manage inventory.

­ Advanced Cellular Coexistence - Minimizes interference from 3G/4G LTE cellular networks, distributed antenna systems (DAS), and commercial small cell or femtocell equipment.

­ Hardened, industrial design - Extends the temperature range capabilities of indoor access points for environments that lack heating and cooling. It also provides sealed connector interfaces to protect against dust and moisture.

AP-360 Series Specification

• AP-365

­ 2.4-GHz (400 Mbps max) and 5-GHz (866 Mbps max) radios, each with 2x2 MIMO and integrated omni- directional antennas.

• AP-367

­ 2.4-GHz (400 Mbps max) and 5-GHz (866 Mbps max) radios, each with 2x2 MIMO and integrated directional antennas.

Other Interfaces

• One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)

­ Auto-sensing link speed and MDI/MDX

­ 802.3az Energy Efficient Ethernet (EEE)

­ PoE-PD: 802.3af PoE

• Serial console interface (micro USB)
• Reset button
• Visual indicator (LED):

­ Power/system status

Choose Your Operating Mode

The 360 Series APs offer a choice of operating modes to meet your unique management and deployment requirements.

• Controller-managed AP or Remote AP (RAP) running HPE ArubaOS - When managed by HPE Aruba Networking Mobility Controllers, 360 Series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding.

Please refer to the HPE Aruba Networking Mobility Controller data sheets for more details

• HPE Aruba Networking 360 Series APs running InstantOS - In Aruba Instant mode, a single AP automatically distributes the network configuration with other APs in Instant mode in the WLAN.
• Air monitor
• Hybrid WLAN AP and air monitor
• Secure enterprise mesh

For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management.  With Aruba Activate, HPE Aruba Networking APs in Instant mode are factory shipped to any site and configure themselves when powered up.

If WLAN and network requirements change, a built-in migration path allows 360 Series APs in Instant mode to become part of a WLAN that is centrally managed by a Mobility Controller.

Antennas

Supports 802.11ac TxBF which provides an effectively infinite variety  of  antenna  patterns

• AP-365: Integrated Omni antennas (H and V polarized)

­ 2.7 dBi @ 2.4 GHz

­ 4.3 dBi @ 5.x GHz

• AP-367: Integrated Directional antennas (+/-45 polarized)

­ 6.3 dBi @ 2.4 GHz (90° Vertical x 90° Horizontal)

­ 6.5 dBi @ 5.x GHz (90° Vertical x 100° Horizontal)

Mounting

• Ordered separately
• Optional mounting kits:

­ AP-270-MNT-V1: Outdoor AP long mount kit for pole/wall mounting. Reduces impact of obstruction by pole or extends away from corner

­ AP-270-MNT-V2: Outdoor AP short mount kit for pole/wall mounting

­ AP-270-MNT-H1: Outdoor AP mount kit for hanging from inclined/horizontal structures

­ AP-270-MNT-H2: Outdoor AP flush mount kit for hanging from inclined/horizontal structures

Warranty

• HPE Aruba Networking limited lifetime warranty

Minimum Software Versions

• HPE ArubaOS 6.5.2.0
• Aruba InstantOS 4.3.2

BTO Models

Remarks

Description

SKU

365 Unified Access Points

Aruba AP-365 (EG) 802.11n/ac Dual 2x2:2 Radio Integrated Omni Ant Outdoor AP

JX963A

Aruba AP-365 (IL) 802.11n/ac Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP

JX964A

Aruba AP-365 (JP) 802.11n/ac Dual 2x2:2 Radio Integrated Omni Ant Outdoor AP

JX965A

Aruba AP-365 (RW) 802.11n/ac Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP

JX966A

Aruba AP-365 (US) 802.11n/ac Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP

JX967A

Aruba AP-365 (IN) 802.11n/ac Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP

R3P89A

367 Unified Access Points

Aruba AP-367 (EG) 802.11n/ac Dual 2x2:2 Radio Integrated Directional Antenna Outdoor AP

JX970A

Aruba AP-367 (IL) 802.11n/ac Dual 2x2:2 Radio Integrated Directional Antenna Outdoor AP

JX971A

Aruba AP-367 (JP) 802.11n/ac Dual 2x2:2 Radio Integrated Directional Antenna Outdoor AP

JX972A

Aruba AP-367 (RW) 802.11n/ac Dual 2x2:2 Radio Integrated Directional Antenna Outdoor AP

JX973A

Aruba AP-367 (US) 802.11n/ac Dual 2x2:2 Radio Integrated Directional Ant Outdoor AP

JX974A

365/367 TAA Unified Access Points

Aruba AP-365 (RW) FIPS/TAA 802.11n/ac Dual 2x2:2 Radio Integrated Omni Ant Outdoor AP

JX968A

Aruba AP-365 (US) FIPS/TAA 802.11n/ac Dual 2x2:2 Radio Integrated Omni Ant Outdoor AP

JX969A

Aruba AP-367 (RW) FIPS/TAA 802.11n/ac Dual 2x2:2 Radio Integrated Direct Ant Outdoor AP

JX975A

Aruba AP-367 (US) FIPS/TAA 802.11n/ac Dual 2x2:2 Radio Integrated Direct Ant Outdoor AP

JX976A

Mounting Accessories

For 365, 367 Std (Min 0 // max 1) User Selection (min 0 // max 1)

Outdoor AP Mount Kits

HPE Aruba Networking AP-OUT-MNT-V1A Outdoor AP Long Arm Pole/Wall Mounting Bracket

R9H97A

HPE Aruba Networking AP-270-MNT-V2 Outdoor AP Short Arm Pole/Wall Mounting Bracket

JW053A

HPE Aruba Networking AP-270-MNT-H1 Outdoor AP Hanging One-Way Tilt Pole/Wall Mounting Bracket

JW054A

HPE Aruba Networking AP-270-MNT-H2 Outdoor AP Flush Wall Mounting Bracket

JW055A

HPE Aruba Networking AP-270-MNT-H3 Outdoor AP Hanging Dual-Tilt Pole/Wall Mounting Bracket

R6W11A

Notes:

­ Add mounting bracket

o For 365

• V2 bracket most often used for wall or pole mount.
• H1 bracket most often used for hanging from inclined or horizontal structure.
• The AP-36x chassis does not ship with bracket

o For 367

• H1 bracket most often with (I)AP-367 for mounting to a wall. Allows chassis tilt.
• V1A and V2 brackets can be used but will result in the AP-367 pointing down.
• The AP-36x chassis does not ship with bracket.

Power Options

PoE Power Options
For 365, 367 Std (Min 0 // max 1) User Selection (min 0 // max 1)

HPE Aruba Networking PD-9501-5GCO-AC 60W 802.3bt Smart Rate Otdr Surge Protection Midspan Injector

R7T40A

HPE Aruba Networking PD-9501-5GCO-DC 60W 802.3bt Smart Rate Otdr Surge Protection Midspan Injector

R7T41A

1

HPE Aruba Networking AP-POE-AFGE 1-Port GbE 802.3af 15.4W Midspan Injector

R6P68A

Aruba PD-9001GO-DC 30W 802.3at PoE+ 10/100/1000 12-24V DC in Outdoor Surge Prot Midspan Injector

JW630A

Aruba PD-9001GO-INTL 30W 802.3at PoE+ 10/100/1000 Outdoor Surge Prot Intl Power Cord Injector

JW701A

Aruba PD-9001GO-NA 30W 802.3at PoE+ 10/100/1000 Otdr Surge Prot NA Power Cord Mdspan Injector

JW700A

Configuration Rules

Rule

Description

SKU

1

If this Power Injector is selected, bring in (Min 1 // Max 1) Localized power cord based on the HPE Aruba Networking Localization Menu

Notes:

­ Add PoE accessories for units to be PoE powered

­ Indoor Injector provides no surge protection

­ Indoor injector requires indoor AC power cord

­ AP-36x is powered by PoE only

­ Power Cord for JW630A, R7T40A, R7T41A should be provided by installer

­ R7T40A and R7T41A do not include a power cord, power cord must be constructed by installer using the included power connector parts and assembled per the user guide by a certified installer

Power Injector Mounts

For 365, 367 Std (Min 0 // max 1) User Selection (min 0 // max 1)

HPE Aruba Networking PD-MOUNT-OD Outdoor PoE Midspan Injectors Pole/Mast Mount Kit

JW620A

Notes:

Add mounting kit for Outdoor PoE Midspan Injector (optional). This is optional but recommended for outdoor injectors

Accessories

Spare Items
Std (Min 0 // max 99) User Selection (min 0 // max 99)
For 365, 367 Std (Min 0 // max 1) User Selection (min 0 // max 1)

HPE Aruba Networking Otdr AP Covers/Glands 1pk M25/5pk M20 Cover and Gland/2pk M16 Cover Ground Kit

Q8N47A

HPE Aruba Networking Outdoor AP Metric to Standard M20 to 1/2 inch NPT 5-pk Thread Adapter

Q8N48A

Notes:

These items are replacement items or special application

Software

Central

Cloud Services / Access Point Foundation Subscriptions

2, 8

HPE Aruba Networking Central AP Foundation 1 year Subscription E-STU

Q9Y58AAE

2, 8

HPE Aruba Networking Central AP Foundation 3 year Subscription E-STU

Q9Y59AAE

2, 8

HPE Aruba Networking Central AP Foundation 5 year Subscription E-STU

Q9Y60AAE

2, 8

HPE Aruba Networking Central AP Foundation 7 year Subscription E-STU

Q9Y61AAE

2, 8

HPE Aruba Networking Central AP Foundation 10 year Subscription E-STU

Q9Y62AAE

Cloud Services / Access Point Advanced Subscriptions

2, 8

HPE Aruba Networking Central AP Advanced 1 year Subscription E-STU

Q9Y63AAE

2, 8

HPE Aruba Networking Central AP Advanced 3 year Subscription E-STU

Q9Y64AAE

2, 8

HPE Aruba Networking Central AP Advanced 5 year Subscription E-STU

Q9Y65AAE

2, 8

HPE Aruba Networking Central AP Advanced 7 year Subscription E-STU

Q9Y66AAE

2, 8

HPE Aruba Networking Central AP Advanced 10 year Subscription E-STU

Q9Y67AAE

On-Prem Services / Access Point Foundation Subscriptions

3, 8

HPE Aruba Networking Central on Prem AP Foundation 1 year Subscription E-STU

R6U63AAE

3, 8

HPE Aruba Networking Central on Prem AP Foundation 3 year Subscription E-STU

R6U64AAE

3, 8

HPE Aruba Networking Central on Prem AP Foundation 5 year Subscription E-STU

R6U65AAE

3, 8

HPE Aruba Networking Central on Prem AP Foundation 7 year Subscription E-STU

R6U66AAE

3, 8

HPE Aruba Networking Central on Prem AP Foundation 10 year Subscription E-STU

R6U67AAE

On-Prem Services / Access Point Foundation Government Subscriptions

3

HPE Aruba Networking COP AP Foundation Government 1-year Subscription E-STU

S1P56AAE

3

HPE Aruba Networking COP AP Foundation Government 3-year Subscription E-STU

S1P57AAE

3

HPE Aruba Networking COP AP Foundation Government 5-year Subscription E-STU

S1P58AAE

3

HPE Aruba Networking COP AP Foundation 7-year Government Subscription E-STU

S1P59AAE

3

HPE Aruba Networking COP AP Foundation 10-year Government Subscription E-STU

S1P60AAE

FedRAMP Services / Access Point Advanced Subscriptions

6, 8

HPE Aruba Networking Central AP Advanced Government 1-year Subscription E-STU

R8K84AAE

6, 8

HPE Aruba Networking Central AP Advanced Government 3-year Subscription E-STU

R8K85AAE

6, 8

HPE Aruba Networking Central AP Advanced Government 5-year Subscription E-STU

R8K86AAE

6, 8

HPE Aruba Networking Central AP Advanced Government 7-year Subscription E-STU

R8K87AAE

6, 8

HPE Aruba Networking Central AP Advanced Government 10-year Subscription E-STU

R8K88AAE

Configuration Rules

Rule #

Description

SKU

2

Add the Central Cloud SKUs to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > Cloud Services

3

Add the Central On-Prem SKUs to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > On-Prem Services

6

Add the Central FedRAMP Service SKUs to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > FedRAMP

8

For OCA: When configuring the following AP 10-Pack, selection condition for this Subscription should be 0 (default) or 10

HPE Aruba Networking AP-503 (RW) 10-Pack Dual Radio 2x2:2 Wi-Fi 6 Campus Access Point

S1E83A

HPE Aruba Networking AP-503 (US) 10-Pack Dual Radio 2x2:2 Wi-Fi 6 Campus Access Point

S1E84A

As-a-Service

Cloud Services / Access Point Foundation Subscriptions

7

HPE Aruba Networking Central AP Foundation 1 year Subscription SaaS

Q9Y58AAS

7

HPE Aruba Networking Central AP Foundation 3 year Subscription SaaS

Q9Y59AAS

7

HPE Aruba Networking Central AP Foundation 5 year Subscription SaaS

Q9Y60AAS

7

HPE Aruba Networking Central AP Foundation 7 year Subscription SaaS

Q9Y61AAS

7

HPE Aruba Networking Central AP Foundation 10 year Subscription SaaS

Q9Y62AAS

Cloud Services / Access Point Advanced Subscriptions

7

HPE Aruba Networking Central AP Advanced 1 year Subscription SaaS

Q9Y63AAS

7

HPE Aruba Networking Central AP Advanced 3 year Subscription SaaS

Q9Y64AAS

7

HPE Aruba Networking Central AP Advanced 5 year Subscription SaaS

Q9Y65AAS

7

HPE Aruba Networking Central AP Advanced 7 year Subscription SaaS

Q9Y66AAS

7

HPE Aruba Networking Central AP Advanced 10 year Subscription SaaS

Q9Y67AAS

Configuration Rules

Rule#

Description

SKU

7

For IRIS reference only. No action required for OCX and Clic

Notes: please check with your country manager for regional product schedules.

Mechanical

• Dimensions/weight (unit, excluding mount accessories):

­ 165mm (W) x 165mm (D) x 110mm (H), 6.5" (W) x 6.5" (D) 4.3" (H)

­ 800g/1.75lbs

• Dimensions/weight  (shipping):

­ 198mm (W) x 198mm (D) x 128mm (H), 7.8" (W) x 7.8" (D) x5.0" (H)

­ 1,000g/2.2lbs

WI-FI Radio Specifications

• AP type: outdoor, dual radio, 5 GHz 802.11ac and 2.4 GHz 802.11n

­ In addition to 802.11n data rates, the 2.4-GHz radio supports 802.11ac data rates using 256-QAM modulation.

• 2x2 MIMO with two spatial streams and up to 1,266 Mbps wireless data rate
• Supported frequency bands (country-specific restrictions apply):

­ 2.4000 GHz to 2.4835 GHz

­ 5.150 GHz to 5.250 GHz

­ 5.250 GHz to 5.350 GHz

­ 5.470 GHz to 5.725 GHz

­ 5.725 GHz to 5.875 GHz

• Available channels: Dependent upon configured regulatory domain
• Dynamic frequency selection (DFS) compliant to radar coexistence requirements
• Supported radio technologies:

­ 802.11b: Direct-sequence spread-spectrum (DSSS)

­ 802.11a/g/n/ac:  Orthogonal  frequency-division multiplexing (OFDM)

­ 802.11n/ac: 2x2 MU-MIMO with up to two spatial streams

• Supported modulation types:

­ 802.11b: BPSK, QPSK, CCK

­  802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM

­ 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

• Transmit power: Configurable in increments of 0.5 dBm
• Maximum (conducted aggregate) transmit power (limited by local regulatory requirements):

­ 2.4-GHz band: +21 dBm (18 dBm per chain)

­ 5-GHz bands: +25 dBm (22 dBm per chain)

• Advanced cellular coexistence (ACC) feature to effectively deal with interference from cellular systems
• Maximum ratio combining (MRC) for improved receiver performance
• Cyclic delay diversity (CDD) for improved downlink RF performance
• Short guard interval for 20-MHz, 40-MHz and 80-MHz channels
• Space-time block coding (STBC) for increased range and improved reception
• Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
• Transmit beam-forming (TxBF) for increased reliability in signal delivery
• 802.11ac wave 2 MU-MIMO
• Supported data rates (Mbps):

­ 802.11b: 1, 2, 5.5, 11

­ 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

­ 802.11n: 6.5 to 300 (MCS0 to MCS15)

­ 802.11ac: 6.5 to 866 (MCS0 to MCS9, NSS = 1 to 2)

• 802.11n high-throughput (HT) support: HT 20/40
• 802.11ac very high throughput (VHT) support: VHT 20/40/80
• 802.11n/ac packet aggregation: A-MPDU, A-MSDU Power
• Maximum power consumption: 12.5 watts
• Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af-compliant source

Environmental

• Operating:

­ Temperature: -40° C to +55° C (-40° F to +131°F) ambient  in  full  sun

­ Humidity: 5% to 95% non-condensing

• Storage and transportation:

­ Temperature: -40° C to +70° C (-40° F to +158°F)

­ EN 300 019 Storage and Transportation

• Shock, vibration, and earthquake

­ IEC 60068-2-64/-27/-6

• Weather resistance

­ IP66/67

­ ASTM B117-07A: Salt spray testing per UL50 NEMA 4x

­ EN 300 019 Environmental testing

­ Non-weather protected locations

­ Full solar exposure

Regulatory

• FCC/Industry of Canada
• CE Marked
• R&TTE Directive 1995/5/EC
• Low Voltage Directive 72/23/EEC
• EN 300 328
• EN 301 489
• EN 301 893
• UL/IEC/EN 60950
• EN 60601-1-1, EN60601-1-2

For more country-specific regulatory information and approvals, please see your HPE Aruba Networking representative.

Regulatory Model Numbers

• AP-365: APEX0365
• AP-367: APEX0367

Certifications

• CB Scheme Safety, cTUVus
• Wi-Fi CERTIFIED a,b,g,n
• Wi-Fi CERTIFIED ac (with wave 2 features

Date

Version History

Action

Description of Change

19-Feb-2024

Version 12

Changed

Series name was updated.

16-Oct-2023

Version 11

Changed

Configuration Information section was updated

07-Aug-2023

Version 10

Changed

Configuration Information section was updated.

21-Nov-2022

Version 9

Changed

Configuration Information section was updated.

06-Dec-2021

Version 8

Changed

SKUs were added in Configuration Information section.

15-Mar-2021

Version 7

Changed

SKUs were added in Configuration Information section.

02-Nov-2020

Version 6

Changed

Configuration Information section was updated.

New SKUs were added.

08-Sep-2020

Version 5

Changed

Configuration Information section was updated.

New SKUs were added.

04-Nov-2019

Version 4

Changed

Overview and Configuration Information sections were updated.

New SKUs were added.

07-Oct-2019

Version 3

Changed

New SKU R3P89A was added.

06-Nov-2017

Version 2

Added

SKUs added: Q8N47A, Q8N48A

09-Jan-2017

Version 1

New

New QuickSpecs

© Copyright 2024 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

To learn more, visit: http://www.hpe.com/networking

c05348011 - 15770 - Worldwide - V12 - 19-February-2024
