HPE Aruba 7000 Series Mobility Controllers: технические характеристики и документация

В архиве
Aruba 7000 Series Mobility Controllers

Overview

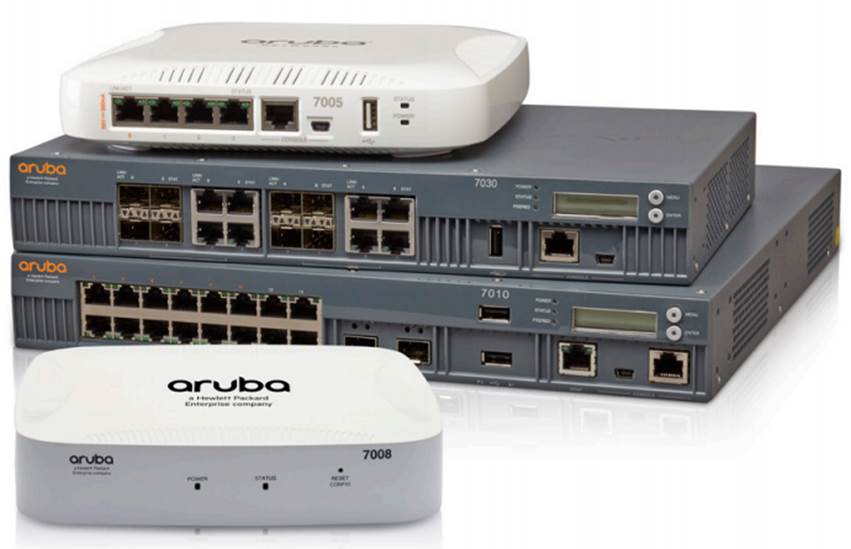

Aruba 7000 Series Mobility Controllers

Improved Network Performance, Visibility, and Control

Aruba 7000 Series Mobility Controllers enhance WLAN performance by centralizing all control functionality for individual Aruba access points (APs) to improve AP utilization, security, and client roaming. Ideally suited for midsize campuses and branches, the 7000 Series can be deployed using Zero Touch Provisioning (ZTP) to simplify deployment.

Aruba 7000 Series Mobility Controllers

Key Features

  • 7005 Mobility Controller is a compact, fanless entry-level branch platform that can be powered by a Power-over-Ethernet (PoE) switch.
  • 7008 Mobility Controller is a compact, fanless entry-level branch platform with 8 integrated PoE and PoE+ switch ports for small branch locations with some PoE requirements
  • 7010 Mobility Controller is designed for mid-sized branch deployments that require several PoE and PoE+ switch ports.
  • 7024 Mobility Controller is designed for mid-sized branch offices that require up to 24 switch ports for unified wired and wireless access.
  • 7030 Mobility Controller is ideal for mid- to large- sized branch deployments that require unprecedented scale and performance.



Standard Features

Simple and Secure Access

The 7000 Series serves a key role in Dynamic Segmentation, providing Aruba's Policy Enforcement Firewall (PEF) to enforce policies based on user role, device type, application, and network location - and simplifying and securing wired and wireless network access. Traffic is encapsulated in GRE tunnels for complete encryption all the way from an AP or switch. This feature can be enabled with the ArubaOS PEF license and eliminates the need to manually configure SSIDs, VLANs or ACLs for each new client on the network.

High Performance and Reliability

Each 7000 Series provides connectivity for up to 4,096 concurrent users or client devices, 64 access points and include up to 24 Ethernet ports and multiple WAN uplinks. With 8Gbps of maximum throughput to perform Policy Enforcement Firewall (PEF) features, the 7000 Series delvers plenty of horsepower for the most demanding enterprise environments. These capabilities are over 40 times the client density and 10 times the maximum throughput of typical network appliances.

For enhanced resiliency and availability, the 7000 Series can be clustered together in a network.

24/7 Mission-critical Networking

Aruba's unique patented wireless technologies are based on AI-powered machine learning algorithms and integrated directly into ArubaOS. Adaptive Radio Management, AirMatch and ClientMatch (now enhanced with Wi-Fi 6 grouping) provide RF optimization techniques to improve user experience and network health based on changing environmental conditions, correct for noisy or congested RF and resolve sticky client issues during user roaming. RFProtect provides advanced spectrum analysis and wireless intrusion protection (WIPS/WIDS) to help identify and mitigate Wi-Fi and non-Wi-Fi sources of interference, as well as containment of potential security risks. Learn more about Aruba's software features on the ArubaOS datasheet.

When deployed with Aruba Mobility Conductor, the 7000 Series can be joined to a controller cluster to increase scale, improve reliability using High Availability (HA), adopt configurations seamlessly based on hierarchy, support Live Upgrades to reduce maintenance windows, and share licenses from a global licensing pool. The 7000 Series also serves a key policy enforcement role in Aruba's 360 Secure Fabric. Aruba AirWave provides real-time monitoring, reporting and Wi-Fi planning and visibility services.

Microsoft Features

Aruba's integration with Microsoft enables unique application intelligence that detects Microsoft 365, Teams and Skype for Business traffic and then prioritizes them over less critical applications. Through management interfaces on ArubaOS, Aruba Central, and Aruba AirWave, IT can visualize call quality metrics such as MOS, latency, jitter, and packet loss for additional insights.

Mobility Controller Deployment

The Aruba 7000 Series can be deployed using Aruba Mobility Controller software licenses in a campus or branch access layer deployment. In this mode, the controllers cannot be simultaneously used for SD-WAN. In Mobility Controller mode, the 7000 Series can also participate in Aruba's Dynamic Segmentation framework, with, at minimum, an access point (AP) license and a Policy Enforcement Firewall (PEF) license for each Aruba access point and switch in the network.

SD-WAN Deployment

Refer to the SD-WAN use cases guide for more information on how the 7000 Series can be used. Each 7000 Series requires an Aruba Central software subscription license to enable SD-WAN software features and the use of cloud-based management. The SD-WAN license also enables the use of the entire bandwidth capacity stated in the data sheet for each gateway.

  • For micro-branch deployments, the 7005, 7008 (and 9004) can be ordered with a base capacity license that supports up to 75 client devices each.
  • In high availability deployments, each primary and backup appliances need to have a separate subscription license applied.

Each SD-WAN Base Capacity subscription includes software support and TAC/phone support. For SD-WAN hardware replacement support, order hardware-only support SKUs through your Aruba value-added reseller (VAR).

Service and Warranty Information

  • Hardware: 1 year parts/ labor, can be extended with support contract
  • Software: 90 days, can be extended with support contract

Enhanced Capabilities

  • Wi-Fi 6 (802.11ax) enhanced with ClientMatch

The latest Wi-Fi standard brings enhanced performance, speed, and efficiency with key features such as OFDMA, 1024-QAM, and bidirectional MU-MIMO. Combined with Aruba's patented ClientMatch technology, 802.11ax clients will now be grouped together to optimize the multi-user experience.

  • Enhanced wireless security

Support for WPA3 brings stronger encryption and authentication methods, while Enhanced Open brings automatic security to open networks. New WPA2-MPSK feature enables simpler passkey management for WPA2 devices - should the Wi-Fi password on one device need to be changed, no additional key changes are needed for other devices on the network.

  • Dynamic Segmentation

To simplify and better secure wired and wireless network access, the 7000 Series can enforce per-user and device roles across wired and wireless networks by integrating with ClearPass Policy Manager. This ensures consistent policy regardless of user role and device type, and eliminates the need to configure unnecessary SSIDs, ACLs, VLANs and subnets at every node in the network.

  • Policy Enforcement Firewall

Enabled by the PEF license, wired and wireless user and application traffic can be tunneled to a stateful firewall on the 7000 Series through GRE tunnels for inspection. Policies are then enforced based on user role, device type, application and location - as described in Dynamic Segmentation.

  • Application visibility and control

As part of the PEF license, application visibility with Deep Packet Inspection (DPI) technology evaluates and optimizes performance and Quality of Service policies for over 3,000 applications - even for encrypted or hidden traffic.

  • Web content filtering

WebCC is an add-on subscription-based feature that classifies websites by content category and rates them by reputation. It can also block, apply QoS, bandwidth-limit, mirror, and log web content.

  • Unified Communications and Collaboration (UCC)

Visualize and troubleshoot networks based on call quality metrics such as MOS, latency, jitter and packet loss. Supported applications include: Teams, Skype for Business®, Wi-Fi Calling, Facetime, SIP, Jabber, Spark and more.

  • Zero Touch Provisioning

The 7000 Series can be factory-shipped and deployed onsite with cloud-based Aruba Activate. For network-specific requirements, settings can be applied based on hierarchical configuration.

  • Integrated VPN services

With support for IPSec/SSL VPNs, Aruba remote APs (RAPs) and Aruba VIA VPN users can establish encrypted sessions without any additional hardware required.

  • Third-party security integration

For advanced malware or antivirus protection, the 7000 Series can assume the role of an on-premises agent of centrally-hosted firewalls such as those provided by Palo Alto Networks and Check Point Software. Dedicated firewall appliances are no longer needed at each branch.

Configuration Information

7000 Ordering Guide



Remarks

Description

SKU



Step 1: Select the appropriate 7010 Chassis





Aruba 7010 (RW) 16p 150W PoE+ 10/100/1000BASE-T 1G BASE-X SFP 32 AP and 2K Clients Controller

JW678A



Aruba 7010 (US) 16p 150W PoE+ 10/100/1000BASE-T 1G BASE-X SFP 32 AP and 2K Clients Controller

JW679A



Aruba 7010(IL) 16p 150W PoE+ 10/100/1000BASE-T 1G BASE-X SFP 32 for AP and 2K Clients Cntrlr

JW680A



Aruba 7010 (JP) 16p 150W PoE+ 10/100/1000BASE-T 1G BASE-X SFP for 32 AP and 2K Clients Cntrlr

JW681A



Aruba 7010 (EG) 16x 1000BASE-T + 2x SFP Ports 32 AP Branch Controller

JY850A



Aruba 7010 (RW) FIPS/TAA 16p 150W PoE+ 10/100/1000BASE-T 1GBASE-X SFP 32 AP and 2K Clnts Cntrlr

JW702A



Aruba 7010 (US) FIPS/TAA 16p 150W PoE+ 10/100/1000BASE-T 1GBASE-X SFP 32 AP and 2K Clnts Cntrlr

JW703A



Aruba 7010 (IL) FIPS/TAA 16p 150W PoE+ 10/100/1000BASE-T 1G BASE-X SFP 32 AP and 2K Clnts Cntrlr

JW704A



Aruba 7010 (JP) FIPS/TAA 16p 150W PoE+ 10/100/1000BASE-T 1GBASE-X SFP 32 AP and 2K Clnts Cntrlr

JW705A





Step 2: Select AC power cord





PC-AC-ARG AC Power Cord (Argentina) 250V/10A 1.8m C13 to IRAM 2073

JW113A



PC-AC-AUS AC Power Cord (Australia) 250V/10A 1.8m C13 to AS3112

JW114A



PC-AC-BR AC Power Cord (Brazil) 250V/10A 1.8m C13 to NBR 14136

JW115A



PC-AC-CHN AC Power Cord (China) 250V/10A 1.8m C13 to GB2099

JW116A



PC-AC-DEN AC Power Cord (Denmark) 250V/10A 1.8m C13 to AFSNIT 107-2-D1

JW117A



PC-AC-EC AC Power Cord (Europe) 250V/10A 1.8m C13 to CEE7/7

JW118A



PC-AC-IN AC Power Cord (India) 250V/6A 1.8m C13 to IS1293

JW119A



PC-AC-IL AC Power Cord (Israel) 250V/10A 1.8m C13 to SI32

JW120A



PC-AC-IT AC Power Cord (Italy) 250V/10A 1.8m C13 to CEI 23-50

JW121A



PC-AC-JPN AC Power Cord (Japan) 125V/12A 1.8m C13 to JISC 8303

JW122A



PC-AC-KOR AC Power Cord (Korea) 250V/7A 1.8m C13 to KSC 8305

JW123A



PC-AC-NA AC Power Cord (North America) 125V/10A 1.8m C13 to NEMA 5-15P

JW124A



PC-AC-SWI AC Power Cord (Switzerland) 220V/10A 1.8m C13 to SEV 1011

JW125A



PC-AC-UK AC Power Cord (United Kingdom) 250V/10A 1.8m C13 to BS1363

JW127A



PC-AC-ZA AC Power Cord (South Africa) 250V/10A 1.8m C13 to SANS 164-1

JW128A





Step 3: Select Transceivers for SFP Ports





Notes: There are 2 SFP 10/100/1000 ports on 7010











Step 4: Spare Mount Kit





Aruba 7010-MNT-19 7010 Series Replacement 19-inch Rack Mounting Kit

JW085A







Step 5: Select Software (Optional)



Remarks

Description

SKU



Central



1

Aruba SUB1-WE-IAP-1 Cloud Web Policy Enforcement for 1 Instant AP 1-year Subscription E-STU

JW455AAE

1

Aruba SUB3-WE-IAP-1 Cloud Web Policy Enforcement for 1 Instant AP 3-year Subscription E-STU

JW456AAE

1

Aruba SUB5-WE-IAP-1 Cloud Web Policy Enforcement for 1 Instant AP 5-year Subscription E-STU

JW457AAE

Notes:

Cloud web policy enforcement for 1 AP (NOT required for Access Points with Central Subscription)



3

Aruba Central On-Premises Campus Gateway Ctr Foundation 1 yr Subscription E-STU

R6U58AAE

3

Aruba Central On-Premises Campus Gateway Ctr Foundation 3 yr Subscription E-STU

R6U59AAE

3

Aruba Central On-Premises Campus Gateway Ctr Foundation 5 yr Subscription E-STU

R6U60AAE

3

Aruba Central On-Premises Campus Gateway Ctr Foundation 7 yr Subscription E-STU

R6U61AAE

3

Aruba Central On-Premises Campus Gateway Ctr Foundation 10 yr Subscription E-STU

R6U62AAE

Rule #:

Configuration Rules



1

For use with iQuote. Do not model in OCx as it is already visible in the Aruba Catalog under Network Management.



3

Add the Central  On-Prem Skus to the Aruba Catalog as Standalone:
Aruba > Network Management > Central > On-Prem Services





7024 Ordering Guide



Remarks

Description

SKU



Step 1: Select the appropriate 7024 Chassis





Aruba 7024 (RW) 24-port 400W PoE+ 10G BASE-X SFP+ 32 AP and 2K Clients Controller

JW682A



Aruba 7024 (US) 24-port 400W PoE+ 10G BASE-X SFP+ 32 AP and 2K Clients Controller

JW683A









Step 2: Select AC power cord





PC-AC-ARG AC Power Cord (Argentina) 250V/10A 1.8m C13 to IRAM 2073

JW113A



PC-AC-AUS AC Power Cord (Australia) 250V/10A 1.8m C13 to AS3112

JW114A



PC-AC-BR AC Power Cord (Brazil) 250V/10A 1.8m C13 to NBR 14136

JW115A



PC-AC-CHN AC Power Cord (China) 250V/10A 1.8m C13 to GB2099

JW116A



PC-AC-DEN AC Power Cord (Denmark) 250V/10A 1.8m C13 to AFSNIT 107-2-D1

JW117A



PC-AC-EC AC Power Cord (Europe) 250V/10A 1.8m C13 to CEE7/7

JW118A



PC-AC-IN AC Power Cord (India) 250V/6A 1.8m C13 to IS1293

JW119A



PC-AC-IL AC Power Cord (Israel) 250V/10A 1.8m C13 to SI32

JW120A



PC-AC-IT AC Power Cord (Italy) 250V/10A 1.8m C13 to CEI 23-50

JW121A



PC-AC-JPN AC Power Cord (Japan) 125V/12A 1.8m C13 to JISC 8303

JW122A



PC-AC-KOR AC Power Cord (Korea) 250V/7A 1.8m C13 to KSC 8305

JW123A



PC-AC-NA AC Power Cord (North America) 125V/10A 1.8m C13 to NEMA 5-15P

JW124A



PC-AC-SWI AC Power Cord (Switzerland) 220V/10A 1.8m C13 to SEV 1011

JW125A



PC-AC-UK AC Power Cord (United Kingdom) 250V/10A 1.8m C13 to BS1363

JW127A



PC-AC-ZA AC Power Cord (South Africa) 250V/10A 1.8m C13 to SANS 164-1

JW128A









Step 3: Select Transceivers for SFP/SFP+ Ports (Optional)











Step 4: Mount (Optional)





Aruba 7030-MNT-19 7030 Series Replacement 19-inch Rack Mounting Kit

JW086A



Aruba SPR-WL2-MNT S1500-24/-48/S2500/S1500-24/-48/S2500 Wall and Rack Mount Kit

JW083A









Step 5: Select Software (Optional)





Central



1

Aruba SUB1-WE-IAP-1 Cloud Web Policy Enforcement for 1 Instant AP 1-year Subscription E-STU

JW455AAE

1

Aruba SUB3-WE-IAP-1 Cloud Web Policy Enforcement for 1 Instant AP 3-year Subscription E-STU

JW456AAE

1

Aruba SUB5-WE-IAP-1 Cloud Web Policy Enforcement for 1 Instant AP 5-year Subscription E-STU

JW457AAE

Notes:

Cloud web policy enforcement for 1 AP (NOT required for Access Points with Central Subscription)



3

Aruba Central On-Premises Campus Gateway Ctr Foundation 1 yr Subscription E-STU

R6U58AAE

3

Aruba Central On-Premises Campus Gateway Ctr Foundation 3 yr Subscription E-STU

R6U59AAE

3

Aruba Central On-Premises Campus Gateway Ctr Foundation 5 yr Subscription E-STU

R6U60AAE

3

Aruba Central On-Premises Campus Gateway Ctr Foundation 7 yr Subscription E-STU

R6U61AAE

3

Aruba Central On-Premises Campus Gateway Ctr Foundation 10 yr Subscription E-STU

R6U62AAE

Rules:





1

For use with iQuote. Do not model in OCx as it is already visible in the Aruba Catalog under Network Management.



3

Add the Central  On-Prem Skus to the Aruba Catalog as Standalone:
Aruba > Network Management > Central > On-Prem Services





7030 Ordering Guide



Remarks

Description

SKU



Step 1: Select the appropriate 7030 Chassis





Aruba 7030 (RW) 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clients Controller

JW686A



Aruba 7030 (US) 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clients Controller

JW687A



Aruba 7030 (IL) 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clients Controller

JW688A



Aruba 7030 (JP) 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clients Controller

JW689A



Aruba 7030 (EG) 8x 1000BASE-T or 8xSFP64 AP Branch Controller

JY851A



Aruba 7030 (RW) FIPS/TAA 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clnts Cntrlr

JW710A



Aruba 7030 (US) FIPS/TAA 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clnts Cntrlr

JW711A



Aruba 7030 (IL) FIPS/TAA 8p Dual Pers 10/100/1000BASE-T 1GBASE-X SFP 64 AP and 4K Clnts Cntrlr

JW712A



Aruba 7030 (JP) FIPS/TAA 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clnts Cntrlr

JW713A









Step 2: Select AC power cord for main power supply for AC Powered Units





PC-AC-ARG AC Power Cord (Argentina) 250V/10A 1.8m C13 to IRAM 2073

JW113A



PC-AC-AUS AC Power Cord (Australia) 250V/10A 1.8m C13 to AS3112

JW114A



PC-AC-BR AC Power Cord (Brazil) 250V/10A 1.8m C13 to NBR 14136

JW115A



PC-AC-CHN AC Power Cord (China) 250V/10A 1.8m C13 to GB2099

JW116A



PC-AC-DEN AC Power Cord (Denmark) 250V/10A 1.8m C13 to AFSNIT 107-2-D1

JW117A



PC-AC-EC AC Power Cord (Europe) 250V/10A 1.8m C13 to CEE7/7

JW118A



PC-AC-IN AC Power Cord (India) 250V/6A 1.8m C13 to IS1293

JW119A



PC-AC-IL AC Power Cord (Israel) 250V/10A 1.8m C13 to SI32

JW120A



PC-AC-IT AC Power Cord (Italy) 250V/10A 1.8m C13 to CEI 23-50

JW121A



PC-AC-JPN AC Power Cord (Japan) 125V/12A 1.8m C13 to JISC 8303

JW122A



PC-AC-KOR AC Power Cord (Korea) 250V/7A 1.8m C13 to KSC 8305

JW123A



PC-AC-NA AC Power Cord (North America) 125V/10A 1.8m C13 to NEMA 5-15P

JW124A



PC-AC-SWI AC Power Cord (Switzerland) 220V/10A 1.8m C13 to SEV 1011

JW125A



PC-AC-UK AC Power Cord (United Kingdom) 250V/10A 1.8m C13 to BS1363

JW127A



PC-AC-ZA AC Power Cord (South Africa) 250V/10A 1.8m C13 to SANS 164-1

JW128A









Step 3: Select Transceivers for Combo Ports (Optional)



Notes:

There are 8 combo ports on 7030 10/100/1000 or SFP











Step 4: Mount (Optional)





Aruba 7030-MNT-19 7030 Series Replacement 19-inch Rack Mounting Kit

JW086A





Step 5: Select Software (Optional)





Central



1

Aruba SUB1-WE-IAP-1 Cloud Web Policy Enforcement for 1 Instant AP 1-year Subscription E-STU

JW455AAE

1

Aruba SUB3-WE-IAP-1 Cloud Web Policy Enforcement for 1 Instant AP 3-year Subscription E-STU

JW456AAE

1

Aruba SUB5-WE-IAP-1 Cloud Web Policy Enforcement for 1 Instant AP 5-year Subscription E-STU

JW457AAE

Notes:

Cloud web policy enforcement for 1 AP (NOT required for Access Points with Central Subscription)



3

Aruba Central On-Premises Campus Gateway Ctr Foundation 1 yr Subscription E-STU

R6U58AAE

3

Aruba Central On-Premises Campus Gateway Ctr Foundation 3 yr Subscription E-STU

R6U59AAE

3

Aruba Central On-Premises Campus Gateway Ctr Foundation 5 yr Subscription E-STU

R6U60AAE

3

Aruba Central On-Premises Campus Gateway Ctr Foundation 7 yr Subscription E-STU

R6U61AAE

3

Aruba Central On-Premises Campus Gateway Ctr Foundation 10 yr Subscription E-STU

R6U62AAE

Rules:





1

For use with iQuote. Do not model in OCx as it is already visible in the Aruba Catalog under Network Management.



3

Add the Central  On-Prem Skus to the Aruba Catalog as Standalone:
Aruba > Network Management > Central > On-Prem Services



Related Options

Transceivers

7010

7024

7030

Description

SKU

X1

X1

X1

Aruba 1G SFP LC LX 10km SMF Transceiver

J4859D

X1

X1

X1

Aruba 1G SFP LC SX 500m OM2 MMF Transceiver

J4858D

X2

X2

X2

Aruba 1G SFP LC LH 70km SMF Transceiver

J4860D

X1

X1

X1

Aruba 1G SFP RJ45 T 100m Cat5e Transceiver

J8177D



X



Aruba SFP-10GE-ER 10GBASE-ER SFP+ 1310nm LC Connector Pluggable 10GbE XCVR

JW147A



X1



Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver

J9150D



X1



Aruba 10G SFP+ LC LR 10km SMF Transceiver

J9151E



X1



Aruba 10G SFP+ LC LRM 220m OM2 MMF Transceiver

J9152D



X1



Aruba 10G SFP+ LC ER 40km SMF Transceiver

J9153D



X1



Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281D



X1



Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283D



X1



Aruba 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285D

Notes:

­ 1 Default minimum ArubaOS software version is 6.5.3.0 and 8.1.0.0

­ 2 Minimum ArubaOS software version is 6.5.4.7 and 8.4.0.0

For additional information on the Aruba 7000 Series Mobility Controllers please refer to:

  • ArubaOS Network Operating System Data Sheet (and licenses) - https://www.arubanetworks.com/assets/ds/DS_AOS.pdf
  • 7000 Series Mobility Controller - https://www.arubanetworks.com/products/networking/controllers/7000-series/
  • 7000 Series Ordering Guide - https://www.arubanetworks.com/assets/og/OG_7000Series.pdf

Software

SD-WAN Cloud Subscription Licenses

Remarks

Description

SKU

2

Aruba 70xx or 90xx Gateway Foundation 1yr Subscription E-STU

JZ118AAE

2

Aruba 70xx or 90xx Gateway Foundation 3yr Subscription E-STU

JZ119AAE

2

Aruba 70xx or 90xx Gateway Foundation 5yr Subscription E-STU

JZ120AAE

2

Aruba 70xx or 90xx Gateway Foundation 7yr Subscription E-STU

R0G52AAE

2

Aruba 70xx or 90xx Gateway Foundation 10yr Subscription E-STU

R0G53AAE

1

Aruba 70xx or 90xx Gateway Foundation Base Capacity 1yr Subscription E-STU

JZ124AAE

1

Aruba 70xx or 90xx Gateway Foundation Base Capacity 3yr Subscription E-STU

JZ125AAE

1

Aruba 70xx or 90xx Gateway Foundation Base Capacity 5yr Subscription E-STU

JZ126AAE

1

Aruba 70xx or 90xx Gateway Foundation Base Capacity 7yr Subscription E-STU

R0G56AAE

1

Aruba 70xx or 90xx Gateway Foundation Base Capacity 10yr Subscription E-STU

R0G57AAE

2

Aruba 70xx or 90xx Gateway Advanced 1yr Subscription E-STU

JZ121AAE

2

Aruba 70xx or 90xx Gateway Advanced 3yr Subscription E-STU

JZ122AAE

2

Aruba 70xx or 90xx Gateway Advanced 5yr Subscription E-STU

JZ123AAE

2

Aruba 70xx or 90xx Gateway Advanced 7yr Subscription E-STU

R0G54AAE

2

Aruba 70xx or 90xx Gateway Advanced 10yr Subscription E-STU

R0G55AAE

SD-aaS Licenses

3

HPE Aruba Networking 90xx or 70xx Gateway Foundation 1-year Subscription SaaS

JZ118AAS

3

HPE Aruba Networking 90xx or 70xx Gateway Foundation 3-year Subscription SaaS

JZ119AAS

3

HPE Aruba Networking 90xx or 70xx Gateway Foundation 5-year Subscription SaaS

JZ120AAS

3

HPE Aruba Networking 90xx or 70xx Gateway Advanced 1-year Subscription SaaS

JZ121AAS

3

HPE Aruba Networking 90xx or 70xx Gateway Advanced 3-year Subscription SaaS

JZ122AAS

3

HPE Aruba Networking 90xx or 70xx Gateway Advanced 5-year Subscription SaaS

JZ123AAS

3

HPE Aruba Networking 90xx or 70xx Gateway Foundation Base Capacity 1-year Subscription SaaS

JZ124AAS

3

HPE Aruba Networking 90xx or 70xx Gateway Foundation Base Capacity 3-year Subscription SaaS

JZ125AAS

3

HPE Aruba Networking 90xx or 70xx Gateway Foundation Base Capacity 5-year Subscription SaaS

JZ126AAS

3

HPE Aruba Networking 90xx or 70xx Gateway Foundation 7-year Subscription SaaS

R0G52AAS

3

HPE Aruba Networking 90xx or 70xx Gateway Foundation 10-year Subscription SaaS

R0G53AAS

3

HPE Aruba Networking 90xx or 70xx Gateway Advanced 7-year Subscription SaaS

R0G54AAS

3

HPE Aruba Networking 90xx or 70xx Gateway Advanced 10-year Subscription SaaS

R0G55AAS

3

HPE Aruba Networking 90xx or 70xx Gateway Foundation Base Capacity 7-year Subscription SaaS

R0G56AAS

Rule #:

Configuration Rules



1

Available only for 7005 and 7008 Series Controllers only



2

Available for all Controllers



3

For IRIS reference only. No action required for OCX and Clic



Mobility Controler Licenses



Aruba LIC-ENT Enterprise (LIC-AP LIC-PEF LIC-RFP and LIC-AW) Licence Bundle E-LTU

JW471AAE



Aruba LIC-AP Controller per AP Capacity License E-LTU

JW472AAE



Aruba LIC-PEF Controller Policy Enforcement Firewall Per AP License E-LTU

JW473AAE



Aruba LIC-RFP Controller RFProtect Per AP License E-LTU

JW474AAE



Aruba LIC-ACR Controller Advanced Cryptography 1 Session License E-LTU

Q9B90AAE



Aruba Controller Web Content Classification 1 Year Subscription E-STU

JY028AAE



Aruba Controller Web Content Classification 3 Year Subscription E-STU

JY029AAE



Aruba Controller Web Content Classification 5 Year Subscription E-STU

JY030AAE



Aruba Controller Web Content Classification 7 Year Subscription E-STU

JY031AAE



Aruba Controller Web Content Classification 10 Year Subscription E-STU

JY032AAE



Aruba LIC-ACR Controller Advanced Cryptography 1 Session License E-LTU

Q9B90AAE



Aruba LIC-7010-PEFV Controller Policy Enforcement Firewall for Aruba 7010 Cntrlr License E-LTU

JW496AAE



Aruba LIC-7008-PEFV Controller Policy Enforcement Firewall for Aruba 7008 Cntrlr License E-LTU

JY342AAE



Aruba LIC-7010-PEFV Controller Policy Enforcement Firewall for Aruba 7010 Cntrlr License E-LTU

JW496AAE



Aruba LIC-7024-PEFV Controller Policy Enforcement Firewall for Aruba 7024 Cntrlr License E-LTU

JW497AAE



Aruba LIC-7030-PEFV Controller Policy Enforcement Firewall for Aruba 7030 Cntrlr License E-LTU

JW498AAE



Aruba LIC-VIA Per VIA Client Controller VPN License E-LTU

JZ148AAE

Notes:

­ For each AP attached to the controller the minimal configuration is 1xLIC-AP per AP. LIC-ENT (JW471AAE) is equivalent to 1 each of LIC-AP, LIC-REF, LIC-RFP, and LIC-AW.

­ LIC-AW is a device license for AirWave Management system

­ The PEFV enables firewall services on a per controller basis for VPN termination such as Aruba VIA, Aruba RAPs and IAP-VPN.

­ PEFV license can also be used for VIA VPN termination. But PEFV is tied to a particular controller and the license capacity scales to the controller user capacity. On the other hand, LIC-VIA license is per VIA user license and is not tied to any particular controller. It can be transferred from one controller to another. Unlike PEFV, LICVIA supports centralized licensing and can be managed by Mobility Master or a Master Controller in AOS 8.x deployment.



Technical Specifications

Performance and Capacity

Features

7005

7008

7010

7024

7030

Maximum campus or remote AP licenses

16

16

32

32

64

Maximum concurrent users/devices

1,024

1,024

2,048

2,048

4,096

Maximum VLANs

4,096

4,096

4,096

4,096

4,096

Active firewall sessions

64K

64K

64K

64K

64K

Concurrent GRE tunnels

256

256

512

512

1,024

Concurrent IPsec sessions

1,024

1024

2,048

2,048

4,096

Concurrent tunneled ports

1,024

1024

2,048

2,048

4,096

Firewall throughput

4 Gbps

4 Gbps

8 Gbps

8 Gbps

8 Gbps

Wired bridged throughput

4 Gbps

4 Gbps

8 Gbps

8 Gbps

8 Gbps

Encrypted throughput 3DES

1.2 Gbps

1.2 Gbps

2.4 Gbps

2.4 Gbps

2.4 Gbps

Encrypted throughput AES-CBC-256

1.3 Gbps

1.3 Gbps

2.6 Gbps

2.6 Gbps

2.6 Gbps

Encrypted throughput AES-CCM

2.0 Gbps

2.0 Gbps

3.4 Gbps

3.4 Gbps

4.0 Gbps

Encrypted throughput AES-GCM-256

1.7 Gbps

1.7 Gbps

3.3 Gbps

3.3 Gbps

3.4 Gbps



Interfaces and Indicators

Features

7005

7008

7010

7024

7030

Form factor/footprint

Desktop/

fanless

Desktop/

fanless

1 RU

1 RU

1 RU

10/100/1000BASE-T

4

8

16

24

8 (combo)

1000BASE-X

N/A

N/A

2 SFP

N/A

8 (combo)

10G Ports (10G or 1G supported)

N/A

N/A

N/A

2xSFP+

N/A

USB 2.0

1

1

1

1

1

Management/status LEDs

Yes

Yes

Yes

Yes

Yes

LINK/ACT and status LEDs

Yes

Yes

Yes

Yes

Yes

LCD panel and navigation buttons

No

No

Yes

Yes

Yes

Console port

Mini USB/RJ-45

RJ-45

Mini USB/RJ-45

micro USB/RJ-45

Mini USB/RJ-45

Out-of-band management port

No

No

Yes

Yes

Yes



Power Over Ethernet (PoE) Support

Features

7005

7008

7010

7024

7030

PoE 1Role/Model

Powered Device (PD)

Power Source Equipment (PSE)

PSE

PSE

-

PoE In or Out

In - Port 0

Out

Out

Out

-

Number of PoE+2 capable Ports

-

8

12

24

-

Max concurrent of PoE Ports

-

8

12

24

-

Max concurrent PoE+ Ports

-

3

5

13

-

PoE Power Budget

-

100W

150W

400W

-

Notes:

­ 1 PoE: 802.3af, 15.4W from the PSE and 12.95W at the PD

­ 2 PoE+: 802.3at, 30W from the PSE and 25.5W at the PD



Physical

Features

7005

7008

7010

7024

7030

Dimensions  (H x W x D)

4.1 cm x 20 cm x 20 cm
(1.6" x 7.9" x 7.9")

4.2 cm x 20.32 cm x 20 .32cm
(1.65" x 8.0" x 8.0")

4.42 cm x 31.75 cm x 33.7 cm
(1.74" x 12.75" x 13.3")

4.37 cm x 44.2 cm x 31.3 cm
(1.72" x 17.4" x 12.32")

4.4 cm x 30.5 cm x 21.1 cm
(1.7" x 12" x 8.3")

Weight

0.92 kg
(2.03 lbs)

1.0 kg
(2.2 lbs)

3.4 kg
(7.5 lbs)

5.127 kg
(11.3 lbs)

2.06 kg
(4.54 lbs)

MTBF (hours, @ 25C)

323,896

300,000

232,843

311,901

390,679

Environmental Range

Specification

7005

7008

7010

7024

7030

Operating temperature

0° C to 40° C

Storage temperature

-40° C to 70° C

Humidity/storage humidity

5% to 95%, NC

5% to 95%, NC

5% to 95%, NC

10% to 95%, NC

5% to 95%, NC

Operating altitude

10,000 feet

Acoustic noise1

0 dBA (fanless)

0 dBA (fanless)

39.8 - 58.6 dBA

34.3 - 71.2 dBA

29.1 - 57.4 dBA

Maximum power consumption

16.6 W (with USB)

126W with PoE

(26W without PoE)

190 W (with PoE)

450 W (with PoE)

55 W

Power Source

PoE or 12v - 30W

150-watt power supply

internal power supply

internal power supply

internal power supply



Power Adapter and Supply Specifications

Features

12v - 30W

150-watt

Input voltage range

90 VAC to 264 VAC

90 VAC to 264 VAC

Output Voltage

+12VDC, 4A

54VDC, 2.78A

Input frequency

47-63 Hz

47-63 Hz

AC line input current (steady state)

1.0A

2.0A

Operating Temperature

-0o to +40o C

-0o to +40o C

Cooling

-

-

Weight

.24 kg (.53 lbs)

.72 kg (1.58 lbs)

Regulatory and Safety Compliance

Safety certifications

  • UL 60950-1 Second Edition
  • CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition
  • EN 60950:2005
  • IEC 60950-1 Second Edition
  • NOM (obtained by partners and distributors)

Electromagnetic emissions certifications

  • FCC Part 15 Class B CE AS/NZS CISPR22 Class B
  • CISPR22 Class A (7010, 7024, 7030), Class B (7005)
  • EN55022 Class A (7010, 7024, 7030), Class B (7005)
  • ICES-003 Class A (7010, 7024, 7030), Class B (7005)
  • VCCI Class A (7010, 7024, 7030), Class B (7005) EN61000-3-2
  • EN61000-3-3
  • EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4- 6, EN 61000-
  • 4-8, EN 61000-4-11, AS/NZS 3548
  • KN22 Class B KCC
  • CNS13438 Class B EN55024/CISPR24 KN24
  • Industry Canada Class B
  • CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC

Telco

  • Common Language Equipment Identifier (CLEI) Code

Regulatory SKU information

  • ARCN01014(7005), ARCN0103(7010), ARCN7024(7024),  ARCN7030(7030)

Minimum ArubaOS Release

  • 7005, AOS 6.4.1.0; 7010, AOS 6.4.1.0; 7024, AOS 6.4.3.0; 7030, AOS 6.4.1.0

Summary of Changes

Date

Version History

Action

Description of Change

06-Nov-2023

Version 13

Changed

Obsolete SKUs were deleted and Configuration Information section was updated

16-Aug-2021

Version 12

Changed

Obsolete SKUs were deleted in Configuration Information section.

07-Jun-2021

Version 11

Changed

Obsolete SKUs were deleted in Configuration Information section. Technical Specifications section was updated.

15-Mar-2021

Version 10

Changed

SKUs added in Configuration Information section.

01-Feb-2021

Version 9

Changed

SKUs updated in Configuration Information section.

11-Jan-2021

Version 8

Changed

Standard Features section was updated.

05-Oct-2020

Version 7

Changed

Configuration Information section was updated.

Obsolete SKUs were removed.

04-Nov-2019

Version 6

Changed

Overview, Standard Features, Configuration Information and Technical Specification sections were updated.

03-Dec-2018

Version 5

Changed

Document name changed to Aruba 7000 Series Mobility Controllers

Complete document revised (software feature update)

08-Jan-2018

Version 4

Added

SKUs added: Q9B90AAE, JW538AAE, JW539AAE, JW540AAE, JW541AAE, JW542AAE, JW543AAE, JW544AAE, JY028AAE, JY029AAE, JY030AAE, JY031AAE, JY032AAE

07-Aug-2017

Version 3

Changed

Aruba footer removed.

Family series photo updated.

07-Nov-2016

Version 2

Added

Models added: JY849A, JY850A, JY851A

01-Nov-2016

Version 1

New

New QuickSpecs

Copyright

Make the right purchase decision. Contact our presales specialists.









HewlettPackardEnterpriseLogo



© Copyright 2023 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.



To learn more, visit: http://www.hpe.com/networking



c05272689 - 15702 - Worldwide  - V13 - 06-November-2023
