Aruba 370EX Series Hazardous Location Access Points |
|
High-performance 802.11ac Wave 2 for hazardous locations and harsh outdoor environments In outdoor and environmentally challenging locations such as oil rigs, mining facilities, and industrial plants, networks need to be protected from extreme temperatures, flammable gas, vapor, and dust concentrations. With Class 1 Division 2 and ATEX Zone 2 certifications, the Aruba 370EX Series Access Points deliver hardened multi-gigabit Wi-Fi to hazardous locations. The 370EX series provides a maximum aggregate data rate of over 2 Gbps (2.4GHz: 300Mbps; 5GHz: 1,733 Mbps) as well as multi-user MIMO (MU-MIMO), 4 spatial streams (4SS), and optional 160MHz channel bandwidth (VHT160) to quickly add performance and capacity to existing or new wireless networks. Purpose-built to survive in the harshest environments, the 370EX Series have undergone extensive certification testing (Class 1 Division 2 and ATEX Zone 2, and IP66/67) to demonstrate the ability to withstand exposure to high and low temperature extremes, windspeeds up to 165 mph, and tolerate persistent moisture, precipitation, and dust and salt sprays for extended periods of time. All electrical interfaces include industrial strength surge protection. |
|
|
|
|
|

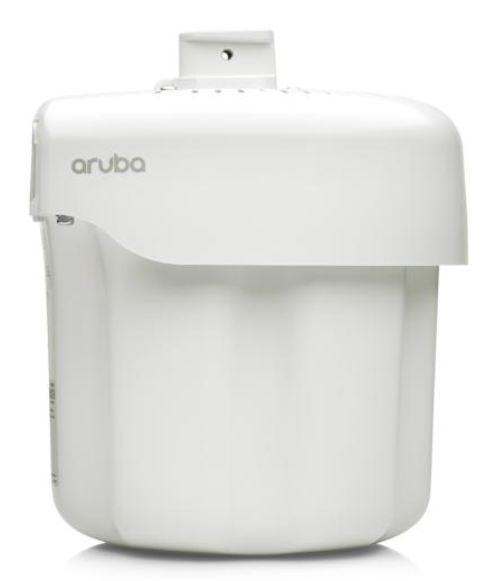

Aruba 370EX Series - Front View |
|
|
|
Key Features
|
|
|
Standard Features
|
MU-MIMO-aware Client Optimization The 370EX Series includes Aruba's patented ClientMatch technology to eliminate sticky client issues while optimizing 802.11ac Wave 2 performance. These APs continuously gather session performance metrics to steer mobile devices to the best-available AP - even while users roam. With MU-MIMO awareness, ClientMatch can group MU-MIMO capable devices together to increase network capacity and efficiency. ClientMatch also participates in Aruba's AI-powered Mobility solution. |
|
|
|
IoT-Ready Like all Aruba Wi-Fi 6 APs, the 370EX Series includes an integrated Bluetooth Low Energy radio to simplify the deployment and management of location services, asset tracking services, security solutions and IoT sensors. This allows organizations to leverage the 360 Series as an IoT platform, which eliminates the need for an overlay infrastructure and additional IT resources.. |
|
|
|
Simple and Secure Access To simplify policy enforcement, the Aruba 370EX Series uses Aruba's policy enforcement firewall (PEF) feature to encapsulate all traffic from the AP to the Mobility Controller (or Gateway) for end-to-end encryption and inspection. Policies are applied based on user role, device type, applications, and location. This reduces the manual configuration of SSIDs, VLANs and ACLs. PEF also serves as the underlying technology for Aruba Dynamic Segmentation. |
|
|
|
Unique Features:
Support for stronger encryption and authentication is provided via the latest version of WPA for enterprise protected networks. Enhanced Open offers seamless new protection for users connecting to open networks where each session is automatically encrypted to protect user passwords and data on guest networks.
- MPSK enables simpler passkey management for WPA2 devices - should the Wi-Fi password on one device or device type change, no additional changes are needed for other devices. Requires ClearPass Policy Manager.
- In Remote AP (RAP) and IAP-VPN deployments, the Aruba 318 Series can be used to establish a secure SSL/IPSec VPN tunnel to a Mobility Controller that is acting as a VPN concentrator.
For enhanced device assurance, all Aruba APs have an installed TPM for secure storage of credentials and keys, and boot code.
Controller-less
(Instant) mode - For enhanced device assurance, all Aruba APs have an
installed TPM for secure storage of credentials and keys, and boot code.
Mobility
Controller mode - For optimized network performance, roaming and security,
APs tunnel all traffic to a mobility controller for centrally managed
traffic forwarding and segmentation, data encryption, and policy enforcement.
Other management options - Aruba offers two network management options: cloud-based Aruba Central or Aruba AirWave for on-prem deployments. For organizations with the need for more flexible services, higher scale and performance, learn about the next generation management capabilities of Aruba Central https://www.arubanetworks.com/assets/ds/DS_ArubaCentral.pdf, an AI powered network operations solution. |
|
|
|
Additional Features
|
|
|
Warranty
|
|
|
Configuration Information
|
Build To Order: BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution. | ||
|
BTO Models | ||
|
Remarks |
Description |
SKU |
|
|
Unified Outdoor Access Points |
|
|
6 |
Aruba AP-375EX (US) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Omni Antenna Outdoor HazLoc AP |
R3P69A |
|
6 |
Aruba AP-375EX (RW) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Omni Antenna Outdoor HazLoc AP |
R3P70A |
|
6 |
Aruba AP-375EX (JP) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Omni Antenna Outdoor HazLoc AP |
R3P71A |
|
6 |
Aruba AP-375EX (IL) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Omni Antenna Outdoor HazLoc AP |
R3P72A |
|
6 |
Aruba AP-375EX (EG) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Omni Antenna Outdoor HazLoc AP |
R3P73A |
|
6 |
Aruba AP-377EX (US) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Directional Ant Otdr HazLoc AP |
R3P90A |
|
6 |
Aruba AP-377EX (RW) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Directional Ant Otdr HazLoc AP |
R3P93A |
|
6 |
Aruba AP-377EX (JP) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Directional Ant Otdr HazLoc AP |
R3P94A |
|
6 |
Aruba AP-377EX (IL) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Directional Ant Otdr HazLoc AP |
R3P95A |
|
6 |
Aruba AP-377EX (EG) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Directional Ant Otdr HazLoc AP |
R3P96A |
|
7 |
Aruba AP-375ATEX (US) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Omni Antenna Outdoor HazLoc AP |
R7J11A |
|
7 |
Aruba AP-375ATEX (RW) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Omni Antenna Outdoor HazLoc AP |
R7J10A |
|
7 |
Aruba AP-375ATEX (JP) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Omni Antenna Outdoor HazLoc AP |
R7J09A |
|
7 |
Aruba AP-375ATEX (IL) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Omni Antenna Outdoor HazLoc AP |
R7J08A |
|
7 |
Aruba AP-375ATEX (EG) 802.11n/ac Dual 2x2:2/4x4:4 Radio Int Omni Antenna Outdoor Hazloc AP |
R7J07A |
|
Notes: |
OCA Only Model Selection Form - Aruba > Wireless > Access Points > Outdoor / Rugged > 370EX Series |
|
|
|
Configuration Rules |
|
|
6 |
The EX APs should be used in Class 1 Div 2 required locations (C1D2) |
|
|
7 |
The ATEX APs should be used in ATEX Zone 2 required locations (ATEX Zone 2 |
|
|
| ||
|
Mounting Accessories | ||
|
|
AP Mount Kits |
|
|
|
Std (Min 0 // max 1) User Selection (min 0 // max 1) |
|
|
|
Aruba AP-OUT-MNT-V1A Outdoor AP Pole/Wall Long Mount Kit v2 |
R9H97A |
|
|
AP-270-MNT-V2 AP-270 Series Outdoor Pole/Wall Short Mount Kit |
JW053A |
|
|
AP-270-MNT-H1 AP-270 Series Outdoor AP Hanging or Tilt Install Mount Kit |
JW054A |
|
|
AP-270-MNT-H2 AP-270 Series Access Flush Wall or Ceiling Mount |
JW055A |
|
|
AP-270-MNT-H3 AP-270 Series Outdoor AP Hanging or Dual-Tilt Install Mount Kit |
R6W11A |
|
Notes: |
For 375EX: o V1A bracket most often used for pole mount. o V2 bracket most often used for wall mount. o H1 bracket most often used for hanging from inclined or horizontal structure. o The AP-375EX chassis does not ship with bracket For 377EX: o H1 bracket most often with AP-377 for mounting to a wall. Allows chassis tilt in single axis. o H3 bracket most often with AP-377 for mounting to a wall. Allows chassis dual-tilt in two axes. o V1A and V2 brackets can be used but will result in the AP-377 pointing down. o The AP-377EX chassis does not ship with bracket. |
|
|
| ||
|
Transceivers | |||
|
|
SFP |
| |
|
|
Std (Min 0 // max 2) User Selection (min 0 // max 2) |
| |
|
|
SFP-LX Extended Temperature 1000BASE-LX SFP 1310nm LC Connector Pluggable GbE XCVR |
Q8N52A | |
|
|
SFP-SX Extended Temperature 1000BASE-SX SFP 850nm LC Connector Pluggable GbE XCVR |
Q8N53A | |
|
|
CKIT-EX-OD-SFP Outdoor HazLoc SFP Fiber Strain Relief |
R7L09A | |
|
Notes: |
Add Qty 1 of Q8N54A if this XCVR is selected. R7L09A is a mandatory item if an SFP will be used. |
| |
|
| |||
|
Power Options | |||
|
Remarks |
Description |
SKU | |
|
|
PoE Power Options |
| |
|
|
Std (Min 0 // max 1) User Selection (min 0 // max 1) |
| |
|
|
PD-9501-5GCO-AC 60W 802.3bt Smart Rate Outdoor Surge Protection Midspan Injector |
R7T40A | |
|
|
PD-9501-5GCO-DC 60W 802.3bt Smart Rate Outdoor Surge Protection Midspan Injector |
R7T41A | |
|
|
Aruba PD-9001GO-NA 30W 802.3at PoE+ 10/100/1000 Otdr Surge Prot NA Power Cord Mdspan Injector |
JW700A | |
|
|
Aruba PD-9001GO-INTL 30W 802.3at PoE+ 10/100/1000 Outdoor Surge Prot Intl Power Cord Injector |
JW701A | |
|
|
Aruba PD-9001GO-DC 30W 802.3at PoE+ 10/100/1000 12-24V DC in Outdoor Surge Prot Midspan Injector |
JW630A | |
|
|
AP-POE-ATSR 1-Port Smart Rate 802.3at 30W midspan injector |
R6P67A | |
|
Notes: |
If this Power Injector is selected, bring in (Min 1 // Max 1) Localized power cord based on the Aruba Localization Menu These devices are not HAZLOC rated so must be installed in a non rated area. Indoor Injector provides no surge protection. Indoor injector requires indoor AC power cord AP-37x may be powered by PoE Only. Power cord for JW630A, R7T40A, R7T41A should be provided by installer R7T40A and R7T41A do not include a power cord, power cord must be constructed by installer using the included power connector parts and assembled per the user guide by a certified installer |
| |
|
|
AC Power Cord for Indoor PoE Injector |
| |
|
|
PC-AC-ARG AC Power Cord (Argentina) 250V/10A 1.8m C13 to IRAM 2073 |
JW113A | |
|
|
PC-AC-AUS AC Power Cord (Australia) 250V/10A 1.8m C13 to AS3112 |
JW114A | |
|
|
PC-AC-BR AC Power Cord (Brazil) 250V/10A 1.8m C13 to NBR 14136 |
JW115A | |
|
|
PC-AC-CHN AC Power Cord (China) 250V/10A 1.8m C13 to GB2099 |
JW116A | |
|
|
PC-AC-DEN AC Power Cord (Denmark) 250V/10A 1.8m C13 to AFSNIT 107-2-D1 |
JW117A | |
|
|
PC-AC-EC AC Power Cord (Europe) 250V/10A 1.8m C13 to CEE7/7 |
JW118A | |
|
|
PC-AC-IN AC Power Cord (India) 250V/6A 1.8m C13 to IS1293 |
JW119A | |
|
|
PC-AC-IL AC Power Cord (Israel) 250V/10A 1.8m C13 to SI32 |
JW120A | |
|
|
PC-AC-IT AC Power Cord (Italy) 250V/10A 1.8m C13 to CEI 23-50 |
JW121A | |
|
|
PC-AC-JPN AC Power Cord (Japan) 125V/12A 1.8m C13 to JISC 8303 |
JW122A | |
|
|
PC-AC-KOR AC Power Cord (Korea) 250V/7A 1.8m C13 to KSC 8305 |
JW123A | |
|
|
PC-AC-NA AC Power Cord (North America) 125V/10A 1.8m C13 to NEMA 5-15P |
JW124A | |
|
|
PC-AC-SWI AC Power Cord (Switzerland) 220V/10A 1.8m C13 to SEV 1011 |
JW125A | |
|
|
PC-AC-TW AC Power Cord (Taiwan) 125V/7A 1.8m C13 to CNS 10917 |
JW126A | |
|
|
PC-AC-UK AC Power Cord (United Kingdom) 250V/10A 1.8m C13 to BS1363 |
JW127A | |
|
|
PC-AC-ZA AC Power Cord (South Africa) 250V/10A 1.8m C13 to SANS 164-1 |
JW128A | |
|
|
Power Injector Mounts |
| ||
|
|
Std (Min 0 // max 1) User Selection (min 0 // max 1) |
| ||
|
|
Aruba PD-MOUNT-OD Outdoor PoE Midspan Injectors Pole/Mast Mount Kit |
JW620A | ||
|
Notes: |
This is optional but recommended for outdoor injectors |
| ||
|
| ||||
|
Spares | ||||
|
|
Spare Items |
| ||
|
|
Std (Min 0 // max 99) User Selection (min 0 // max 99) |
| ||
|
|
Aruba 9004-MNT-19 9004 Series 19-inch Rack Mount Kit |
R1B30A | ||
|
Notes: |
Bring in (Min 1 // Max 1) Localized power cord based on the Aruba Localization Menu Qty 1 Power Adapter is included with Aruba Gateway |
| ||
|
| ||||
|
Accessories | ||||
|
Remarks |
Description |
SKU | ||
|
|
Spare Items |
| ||
|
|
Std (Min 0 // max 99) User Selection (min 0 // max 99) |
| ||
|
|
Outdoor AP Covers and Glands 1-pk M25/5-pk M20 Cover/2-pk M16 Cover/5-pk M20 Gland/2-pk Ground Kit |
Q8N47A | ||
|
Notes: |
This is a collection of extra covers and cabling glands, replicating what is in the shipping box |
| ||
|
|
Outdoor AP Metric to Standard M20 to 1/2 inch NPT 5-pk Thread Adapter |
Q8N48A | ||
|
Notes: |
This is a thread adapter normally used to allow direct interface for 1/2" NPT conduit. Spares of items that are shipped with the AP-370 chassis |
| ||
|
| ||||
|
Step 8: Add Software (Optional) Compatible with the 304/305 AP | ||||
|
Remarks |
Description |
SKU | ||
|
|
Aruba Central AP Foundation 1 year Subscription E-STU |
Q9Y58AAE | ||
|
|
Aruba Central AP Foundation 3 year Subscription E-STU |
Q9Y59AAE | ||
|
|
Aruba Central AP Foundation 5 year Subscription E-STU |
Q9Y60AAE | ||
|
|
Aruba Central AP Foundation 7 year Subscription E-STU |
Q9Y61AAE | ||
|
|
Aruba Central AP Foundation 10 year Subscription E-STU |
Q9Y62AAE | ||
|
|
Aruba Central AP Advanced 1yr Subscription E-STU |
Q9Y63AAE | ||
|
|
Aruba Central AP Advanced 3yr Subscription E-STU |
Q9Y64AAE | ||
|
|
Aruba Central AP Advanced 5yr Subscription E-STU |
Q9Y65AAE | ||
|
|
Aruba Central AP Advanced 7yr Subscription E-STU |
Q9Y66AAE | ||
|
|
Aruba Central AP Advanced 10yr Subscription E-STU |
Q9Y67AAE | ||
|
Notes: |
Add the Central Cloud Skus to the Aruba Catalog as Standalone: |
| ||
|
|
Aruba Central On-Premises AP Foundation 1 year Subscription E-STU |
R6U63AAE | ||
|
|
Aruba Central On-Premises AP Foundation 3 year Subscription E-STU |
R6U64AAE | ||
|
|
Aruba Central On-Premises AP Foundation 5 year Subscription E-STU |
R6U65AAE | ||
|
|
Aruba Central On-Premises AP Foundation 7 year Subscription E-STU |
R6U66AAE | ||
|
|
Aruba Central On-Premises AP Foundation 10 year Subscription E-STU |
R6U67AAE | ||
|
Notes: |
Add the Central On-Prem Skus to the Aruba Catalog as Standalone: |
| ||
|
| ||||
Technical Specifications
|
RF Performance Table | ||
|
Band, rate |
Maximum transmit power (dBm) per transmit chain6 |
Receiver sensitivity (dBm) per receive chain6 |
|
802.11b 2.4 GHz | ||
|
1Mbps |
25 |
-95 |
|
2Mbps |
25 |
-93 |
|
5.5Mbps |
25 |
-90 |
|
11Mbps |
25 |
-88 |
|
802.11g 2.4 GHz | ||
|
6Mbps |
25 |
-93 |
|
54Mbps |
19 |
-75 |
|
802.11n HT20 2.4 GHz | ||
|
MCS0/8 |
25 |
-93 |
|
MCS7/15 |
18 |
-71 |
|
802.11n HT40 2.4 GHz | ||
|
MCS0/8 |
22 |
-90 |
|
MCS11/15 |
18 |
-68 |
|
802.11a 5 GHz | ||
|
6Mbps |
22 |
-93 |
|
54Mbps |
19 |
-75 |
|
802.11n HT20 5 GHz | ||
|
MCS0/8 |
22 |
-93 |
|
MCS7/15 |
18 |
-71 |
|
802.11n HT40 5 GHz | ||
|
MCS0/8 |
22 |
-90 |
|
MCS7/15 |
18 |
-68 |
|
802.11ac VHT20 5 GHz | ||
|
MCS0 |
22 |
-93 |
|
MCS9 |
16 |
-68 |
|
802.11ac VHT40 5 GHz | ||
|
MCS0 |
22 |
-90 |
|
MCS9 |
15 |
-63 |
|
802.11ac VHT80 5 GHz | ||
|
MCS0 |
22 |
-87 |
|
MCS9 |
15 |
-61 |
|
802.11ac VHT80 5 GHz | ||
|
MCS0 |
22 |
-86 |
|
MCS9 |
15 |
-57 |
|
|
Wi-Fi radio specifications
2.400 to 2.4835GHz 5.150 to 5.250GHz 5.250 to 5.350GHz 5.470 to 5.725GHz 5.725 to 5.850GHz
802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
2.4GHz band: +25 dBm per chain, +28dBm aggregate (2x2) 5GHz band: +22 dBm per chain, +28dBm aggregate (4x4) Notes: Conducted transmit power levels exclude antenna gain
2.4 GHz band: o 375EX: 32.0 dBm EIRP o 375ATEX: 25.6dBm EIRP o 377EX: 34.4 dBm EIRP 5 GHz band: o 375EX: 35.6 dBm EIRP o 375ATEX: 32dBm EIRP o 377EX: 36 dBm EIRP
802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15) 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31) 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)
|
|
|
Series specifications
5GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate) Internal Omni Antennas 4.6 dBi 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios Internal Omni Antennas 4.0 dBi
5GHz 802.11ac 4x4 MUMIMO (1,733 Mbps max rate) Internal 80°H x 80°V Directional Antennas 6.3 dBi 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios Internal 80°H x 80°V Directional Antennas 6.4 dBi |
|
|
Power
|
|
|
Other interfaces
Autosensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE)
Up to 4dBm transmit power (class 2) and 91 dBm receive sensitivity
|
|
|
Mounting
|
|
|
Minimum operating system software versions
|
|
|
Mechanical specifications
23 cm (W) x 24 cm (D) x 27 cm (H) 9.0" (W) x 9.4" (D) x 10.6" (H) 2.4 kg/5.3 lbs
23 cm (W) x 22 cm (D) x 13 cm (H) 9.0" (W) x 8.7" (D) x 5.1" (H) 2.1 kg/4.6 lbs |
|
|
Environmental specifications
Temperature: -40° C to +65° C / -40° F to +149° F Humidity: 5% to 95% non-condensing
Temperature: -40° C to +70° C / -40° F to +158° F
IP66/67
Tested to ASTM B117-07A Salt Spray 200hrs
|
|
|
Regulatory compliance
For more country-specific regulatory information and approvals, please see your Aruba representative. |
|
|
Regulatory model numbers
|
|
|
Certifications
|
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
21-Nov-2022 |
Version 8 |
Changed |
Configuration Information section was updated. |
|
06-Dec-2021 |
Version 7 |
Changed |
SKUs were added in Configuration Information section. |
|
15-Mar-2021 |
Version 6 |
Changed |
SKUs were added in Configuration Information section. |
|
07-Dec-2020 |
Version 5 |
Changed |
Standard Features, Configuration Information, and Technical Specifications sections were updated. New SKUs were added. SKUs were removed. |
|
02-Nov-2020 |
Version 4 |
Changed |
Configuration Information section was updated. New SKUs were added. |
|
08-Sep-2020 |
Version 3 |
Changed |
Configuration Information section was updated. New SKUs were added. |
|
09-Dec-2019 |
Version 2 |
Changed |
Overview and Standard Features |
|
05-Aug-2019 |
Version 1 |
New |
New QuickSpecs |
Copyright
|
|
| |||||
|
|
|
© Copyright 2022 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
To learn more, visit: http://www.hpe.com/networking
a00067746enw - 16432 - Worldwide - V8 - 21-November-2022 |
