Aruba 320 Series Access Points

Multifunctional 320 series wireless APs provide the best 802.11ac Wi-Fi connectivity and user experience. Featuring Aruba enhanced ClientMatch and Aruba Beacon technologies, the 320 series enables the highest capacity, performance, and efficiency in extremely high- density environments

With a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 600 Mbps in the 2.4 GHz band (aggregated date rate of 2.3 Gbps), 320 series APs deliver best-in-class next-generation .Wi-Fi infrastructure for the highest density environments.

The high performance and high density 802.11ac 320 series supports multi-user MIMO (MU-MIMO) and 4 spatial streams (4SS). It provides simultaneous multicast data transmission to multiple devices, maximizing data throughput and improving network efficiency.

The 320 series includes the patent-pending enhanced ClientMatch technology that extends the client steering technology with MU-MIMO client awareness. It automatically identifies MU-MIMO capable mobile devices and steers those devices to the closest MU-MIMO capable Aruba access point. By grouping MU-MIMO capable mobile devices together, the network starts taking advantage of the simultaneous transmission to these devices, increasing its overall capacity. These dynamic roaming policies that are based on device types, help customers achieve the best WLAN performance in a mixed device environment during the technology transition period.

Aruba 320 Series Access Points

IoT Platform Capabilities

Like all Aruba Wi-Fi 6 APs, the 320 Series provides integrated Bluetooth capabilities to enable Meridian and IoT-based location services, asset tracking, and mobile engagement services. For expanded use cases, an IoT expansion radio can be added to support the Zigbee protocol. These features allow organizations to leverage the AP as an IoT platform, which eliminates the need for an overlay infrastructure and additional IT resources.

Unique Benefits

• Dual radio 4x4 802.11ac access point with multi-user MIMO

- Supports up to 1,733 Mbps in the 5 GHz band (with 4SS/VHT80 clients) and 600 Mbps in the 2.4 GHz band (with 4SS/HT40 clients).

• Built-in Bluetooth Low-Energy (BLE) radio

- Enables location based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time.

- Simplifies battery-powered Aruba beacon management.

• Advanced Cellular Coexistence (ACC)

- Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/femtocell equipment.

• Quality of service for unified communication apps

- Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype for Business with encrypted videoconferencing, voice, chat, and desktop sharing.

• RF Management

- Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness, and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs.

- The Aruba 320 series APs can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.

• Support for additional 5 GHz bands

- Supports software upgrade to enable additional 5 GHz spectrums when governments expand available frequencies.

• Spectrum analysis

- Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4 GHz and 5 GHz radio bands to identify sources of RF interference.

• Intelligent app visibility and control

- AppRF technology leverages deep packet inspection to classify and block, prioritize, or limit bandwidth for thousands of applications in a range of categories.

• Aruba Secure Infrastructure

- Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances.

- IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats.

- Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.

- SecureJack-capable for secure tunneling of wired Ethernet traffic

AP 320 Series Specifications

• AP-325 and IAP-325

- 5 GHz (1,733 Mbps max rate) and 2.4 GHz (600 Mbps max rate) radios, each with 4x4 MIMO support and a total of eight integrated omni-directional downtilt antennas.

• AP-324 and IAP-324

- 5 GHz (1,733 Mbps max rate) and 2.4 GHz (600 Mbps max rate) radios, each with 4x4 MIMO support and a total of four combined, diplexed (dual-band) external RP-SMA antenna connectors.

Choose your Operating Mode

Aruba 320 series APs offer a choice of operating modes to meet your unique management and deployment requirements.

• Controller-managed mode - When managed by Aruba Mobility Controllers, Aruba 320 series APs offer centralized configuration, data encryption, policy enforcement, and network services, as well as distributed and centralized traffic forwarding.
• Aruba Instant mode - In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one
• Instant AP, configure it over the air, and plug in the other APs - the entire process takes about five minutes. If WLAN requirements change, a built-in migration path allows 320 series Instant APs to become part of a WLAN that is managed by a Mobility Controller.
• Remote AP (RAP) for branch deployments.
• Air monitor (AM) for wireless IDS, rogue detection, and containment.
• Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference.
• Secure enterprise mesh.

For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Instant APs are factory- shipped to any site and configure themselves when powered up.

WI-FI Antennas

• AP-324/IAP-324: Four RP-SMA connectors for external dual band antennas.  Internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 2.5 dB in 2.4 GHz and 1.5 dB in 5 GHz.
• AP-325/IAP-325: Eight integrated downtilt omni- directional antennas for 4x4 MIMO with maximum antenna gain of 3.5 dBi in 2.4 GHz and 5.0 dBi in 5 GHz. Built-in antennas are optimized for horizontal ceiling- mounted orientation of the AP. The downtilt angle for maximum gain is ~ 30 degrees.

Other Interfaces

• Two 10/100/1000BASE-T Ethernet network interfaces (RJ-45)

- Auto-sensing link speed and MDI/MDX

- Link Aggregation support to achieve platform throughput up to 2 Gbps

- 802.3az Energy Efficient Ethernet (EEE)

- PoE-PD: 48 Vdc (nominal) 802.3af or 802.3at PoE

• DC power interface, accepts 2.1/5.5-mm center-positive circular plug with 9.5-mm length
• USB 2.0 host interface (Type A connector)
• Bluetooth Low Energy (BLE) radio

- Up to 4dBm transmit power (class 2) and -94dBm receive sensitivity

- Integrated antenna, -5dBi gain (30 degrees downtilt)

- Can be disabled with configuration

• Visual indicators (tri-color LEDs): For system and radio status
• Reset button: Factory reset (during device power up)
• Serial console interface (RJ-45)
• Kensington security slot

Mounting

• The AP ships with two (white) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling.
• Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section for details.

Warranty

• Aruba Limited lifetime warranty

Minimum Operating System Software Versions

• ArubaOS 6.4.4.0

- 320 Series Access Points are not supported on 650 Series Mobility Controllers

• Aruba InstantOS 4.2.2.0

Step 1: Select AP Model

Remarks

Description

SKU

324/325 TAA Controller-Managed Access Points

Aruba AP-325 TAA-compliant 802.11n/ac Dual 4x4:4 MU-MIMO Dual Radio Integrated Antenna AP

JW187A

Step 2: Add Powering Accessories (Optional)

Remarks

Description

SKU

Compatible with the 324/325 AP models

AP-POE-ATSR 1-Port Smart Rate 802.3at 30W midspan injector

R6P67A

AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5mm connector

R3K00A

Select three-prong AC power cord for injector or AC adapter

PC-AC-ARG AC Power Cord (Argentina) 250V/10A 1.8m C13 to IRAM 2073

JW113A

PC-AC-AUS AC Power Cord (Australia) 250V/10A 1.8m C13 to AS3112

JW114A

PC-AC-BR AC Power Cord (Brazil) 250V/10A 1.8m C13 to NBR 14136

JW115A

PC-AC-CHN AC Power Cord (China) 250V/10A 1.8m C13 to GB2099

JW116A

PC-AC-DEN AC Power Cord (Denmark) 250V/10A 1.8m C13 to AFSNIT 107-2-D1

JW117A

PC-AC-EC AC Power Cord (Europe) 250V/10A 1.8m C13 to CEE7/7

JW118A

PC-AC-IN AC Power Cord (India) 250V/6A 1.8m C13 to IS1293

JW119A

PC-AC-IL AC Power Cord (Israel) 250V/10A 1.8m C13 to SI32

JW120A

PC-AC-IT AC Power Cord (Italy) 250V/10A 1.8m C13 to CEI 23-50

JW121A

PC-AC-JPN AC Power Cord (Japan) 125V/12A 1.8m C13 to JISC 8303

JW122A

PC-AC-KOR AC Power Cord (Korea) 250V/7A 1.8m C13 to KSC 8305

JW123A

PC-AC-NA AC Power Cord (North America) 125V/10A 1.8m C13 to NEMA 5-15P

JW124A

PC-AC-SWI AC Power Cord (Switzerland) 220V/10A 1.8m C13 to SEV 1011

JW125A

PC-AC-TW AC Power Cord (Taiwan) 125V/7A 1.8m C13 to CNS 10917

JW126A

PC-AC-UK AC Power Cord (United Kingdom) 250V/10A 1.8m C13 to BS1363

JW127A

PC-AC-ZA AC Power Cord (South Africa) 250V/10A 1.8m C13 to SANS 164-1

JW128A

Step 3: Add Mount Accessories (Optional)

Compatible with the 324, 325 AP models

AP-220-MNT-C2 2x Ceiling Grid Rail Adapter for Interlude and Silhouette Mt Kit

JW045A

AP-MNT-CM1 Industrial Grade Indoor Access Point Metal Suspended Ceiling Rail Mount Kit

JX961A

AP-220-MNT-W1 Flat Surface Wall/Ceiling Black AP Basic Flat Surface Mount Kit

JW046A

AP-220-MNT-W1W Flat Surface Wall/Ceiling White AP Basic Flat Surface Mount Kit

JW047A

AP-220-MNT-W3 White Low Profile Box Style Secure Large Indoor AP Flat Surface Mount Kit

JY706A

AP-MNT-W4 White Low Profile Basic AP Flat Surface Mount Kit

Q9U25A

Step 4: Select Antennas (AP-324 Only)

Notes:

­ AP-ANT-1W, and AP-ANT-20W are usually direct connect to the chassis

­ AP-ANT-45,AP-ANT-48 ship with hardware for flush mount to a flat surface

­ AP-324 has 4x RPSMA female, concurrent dual-band connections

Step 5: Add Antenna Mount Kit (Optional)

Aruba AP-ANT-MNT-4 AZ/EL Adjustable Antenna Pole/Wall Mount Kit

JW021A

Notes:

Compatible with antenna AP-ANT-48

Aruba AP-ANT-MNT-5 AZ/EL Adjustable Antenna Pole/Wall Mount Kit

JW022A

Notes:

Compatible with antenna AP-ANT-45

Step 6: Add Other (Optional)

Aruba AP-USB-ZB External USB based Dongle with Zigbee and BLE for AP

R2X45A

Notes:

Single pack

Aruba AP-USB-ZB 10-pk External USB based Dongle with Zigbee and BLE for AP

R2Y09A

Notes:

10-pack

Aruba AP-USB-ZB 50-pk External USB based Dongle with Zigbee and BLE for AP

R2Y10A

Notes:

50-pack

Software (Optional)

Remarks

Description

SKU

Cloud Services / Access Point Foundation Subscriptions

2, 8

Aruba Central AP Foundation 1 year Subscription E-STU

Q9Y58AAE

2, 8

Aruba Central AP Foundation 3 year Subscription E-STU

Q9Y59AAE

2, 8

Aruba Central AP Foundation 5 year Subscription E-STU

Q9Y60AAE

2, 8

Aruba Central AP Foundation 7 year Subscription E-STU

Q9Y61AAE

2, 8

Aruba Central AP Foundation 10 year Subscription E-STU

Q9Y62AAE

Cloud Services / Access Point Advanced Subscriptions

2, 8

Aruba Central AP Advanced 1yr Subscription E-STU

Q9Y63AAE

2, 8

Aruba Central AP Advanced 3yr Subscription E-STU

Q9Y64AAE

2, 8

Aruba Central AP Advanced 5yr Subscription E-STU

Q9Y65AAE

2, 8

Aruba Central AP Advanced 7yr Subscription E-STU

Q9Y66AAE

2, 8

Aruba Central AP Advanced 10yr Subscription E-STU

Q9Y67AAE

On-Prem Services / Access Point Foundation Subscriptions

3, 8

Aruba Central On-Premises AP Foundation 1 year Subscription E-STU

R6U63AAE

3, 8

Aruba Central On-Premises AP Foundation 3 year Subscription E-STU

R6U64AAE

3, 8

Aruba Central On-Premises AP Foundation 5 year Subscription E-STU

R6U65AAE

3, 8

Aruba Central On-Premises AP Foundation 7 year Subscription E-STU

R6U66AAE

3, 8

Aruba Central On-Premises AP Foundation 10 year Subscription E-STU

R6U67AAE

FedRAMP Services / Access Point Advanced Subscriptions

6, 8

Aruba Central AP Advanced 1yr Subscription Government E-STU

R8K84AAE

6, 8

Aruba Central AP Advanced 3yr Subscription Government E-STU

R8K85AAE

6, 8

Aruba Central AP Advanced 5yr Subscription Government E-STU

R8K86AAE

6, 8

Aruba Central AP Advanced 7yr SubscriptionGovernment E-STU

R8K87AAE

6, 8

Aruba Central AP Advanced 10yr Subscription Government E-STU

R8K88AAE

Configuration Rules

Rule#

Description

SKU

2

Add the Central Cloud Skus to the Aruba Catalog as Standalone: Aruba > Network Management > Central > Cloud Services

3

Add the Central  On-Prem Skus to the Aruba Catalog as Standalone:
Aruba > Network Management > Central > On-Prem Services

8

For OCA: When configuring the following AP 10-Pack, selection condition for this Subscription should be 0(default) or 10

Aruba Access Point-503 (RW) 10-Pack Dual Radio 2x2:2 802.11ax Wi-Fi 6 Campus Access Point

S1E83A

Aruba Access Point-503 (US) 10-Pack Dual Radio 2x2:2 802.11ax Wi-Fi 6 Campus Access Point

S1E84A

As-a-Service

Cloud Services / Access Point Foundation Subscriptions

7

Aruba Central AP Foundation 1-year Subscription SaaS

Q9Y58AAS

7

Aruba Central AP Foundation 3-year Subscription SaaS

Q9Y59AAS

7

Aruba Central AP Foundation 5-year Subscription SaaS

Q9Y60AAS

7

Aruba Central AP Foundation 7-year Subscription SaaS

Q9Y61AAS

7

Aruba Central AP Foundation 10-year Subscription SaaS

Q9Y62AAS

Cloud Services / Access Point Advanced Subscriptions

7

Aruba Central AP Advanced 1-year Subscription SaaS

Q9Y63AAS

7

Aruba Central AP Advanced 3-year Subscription SaaS

Q9Y64AAS

7

Aruba Central AP Advanced 5-year Subscription SaaS

Q9Y65AAS

7

Aruba Central AP Advanced 7-year Subscription SaaS

Q9Y66AAS

7

Aruba Central AP Advanced 10-year Subscription SaaS

Q9Y67AAS

Configuration Rules

Rule#

Description

SKU

7

For IRIS reference only. No action required for OCX and Clic

Notes: Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory settings.

Mechanical

• Dimensions/weight (unit, excluding mount accessories):

- 203mm (W) x 203mm (D) x 57mm (H) 8.0" (W) x 8.0" (D) x 2.2" (H)

- 950g/34 oz

• Dimensions/weight (shipping):

- 315mm(W) x 265mm(D) x 100mm (H) 12.4" (W) x 10.4" (D) x 3.9" (H)

- 1,350g/48 oz

WI-FI Radio Specifications

• AP type: Indoor, dual radio, 5 GHz 802.11ac and 2.4 GHz 802.11n 4x4 MIMO.
• Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1).
• Four spatial stream SU-MIMO for up to 1,733 Mbps wireless data rate to a single client device.
• Three spatial stream MU-MIMO for up to 1,300 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously.
• Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio.
• Supported frequency bands (country-specific restrictions apply):

- 2.400 to 2.4835 GHz

- 5.150 to 5.250 GHz

- 5.250 to 5.350 GHz

- 5.470 to 5.725 GHz

- 5.725 to 5.850 GHz

• Available channels: Dependent on configured regulatory domain.
• Dynamic frequency selection (DFS) optimizes the use of available RF spectrum.
• Supported radio technologies:

- 802.11b: Direct-sequence spread-spectrum (DSSS)

- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

• Supported modulation types:

- 802.11b: BPSK, QPSK, CCK

- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

• Transmit power: Configurable in increments of 0.5 dBm
• Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):

- 2.4 GHz band: +24 dBm (18 dBm per chain)

- 5 GHz band: +24 dBm (18 dBm per chain)

Notes: Conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.

• Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks.
• Maximum ratio combining (MRC) for improved receiver performance.
• Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance.
• Short guard interval for 20-MHz, 40-MHz and 80-MHz channels.
• Space-time block coding (STBC) for increased range and improved reception.
• Low-density parity check (LDPC) for high-efficiency error correction and increased throughput.
• Transmit beamforming (TxBF) for increased signal reliability and range.
• Supported data rates (Mbps):

- 802.11b: 1, 2, 5.5, 11

- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

- 802.11n: 6.5 to 450 (MCS0 to MCS23)

- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

• 802.11n high-throughput (HT) support: HT 20/40
• 802.11ac very high throughput (VHT) support: VHT 20/40/80
• 802.11n/ac packet aggregation: A-MPDU, A-MSDU

Environmental

• Operating:

- Temperature: 0° C to +50° C (+32° F to +122° F)

- Humidity: 5% to 95% non-condensing

• Storage and transportation:

- Temperature: -40° C to +70° C (-40° F to +158° F)

Power

• Maximum (worst-case) power consumption: 20W (802.3at PoE), 13.5W (802.3af PoE) or 18.5W (DC)

- Excludes power consumed by external USB device (and internal overhead); this could add up to 6W (POE) or 5.5W (DC) for 5W/1A USB device

• Maximum (worst-case) power consumption in idle mode: 8W (PoE) or 7W (DC)
• Direct DC source: 12 Vdc nominal, +/- 5%
• Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/802.3at  compliant source

- Unrestricted functionality with 802.3at PoE

- Power-save mode with reduced functionality from 802.3af PoE

o USB port disabled

o Second Ethernet port disabled

o 2.4 GHz radio in 1x1:1 mode

• Power sources sold separately
• When both power sources are available, DC power takes priority

Regulatory

• FCC/Industry of Canada
• CE Marked
• R&TTE Directive 1995/5/EC
• Low Voltage Directive 72/23/EEC
• EN 300 328
• EN 301 489
• EN 301 893
• UL/IEC/EN 60950
• EN 60601-1-1, EN60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

Reliability

• MTBF: 739,935 hrs (84.5yrs) at +25C operating temperature (AP-325)

Regulatory Model Numbers

• AP-324 and IAP-324: APIN0324
• AP-325 and IAP-325: APIN0325

Certifications

• CB Scheme Safety, cTUVus
• UL2043 plenum rating
• Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
• Bluetooth SIG interoperability certification

AP 320 Antenna Pattern Plots

Horizontal or Azimuth plane (top view), 0 degrees downtilt

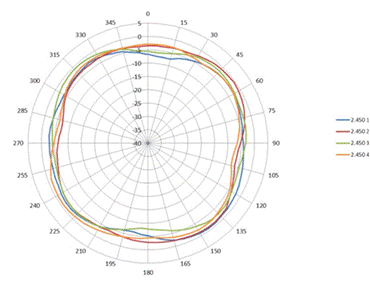

2.450 GHz

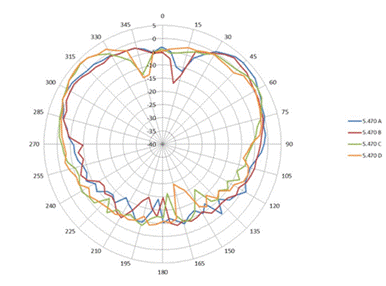

5.470 GHz

Horizontal or Azimuth plane (top view), 30 degrees downtilt

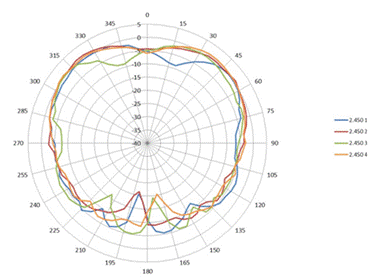

2.450 GHz

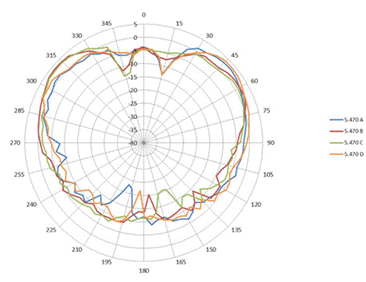

5.470 GHz

Elevation plane (side view, 0 degrees angle)

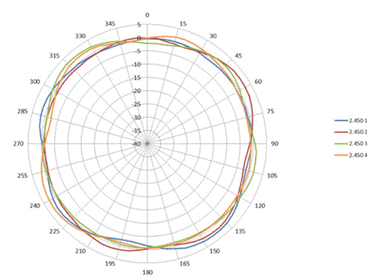

2.450 GHz

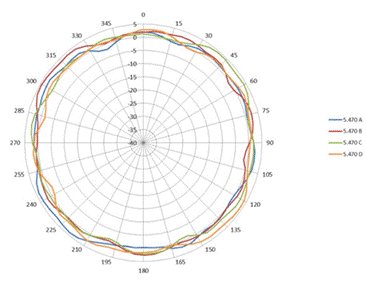

5.470 GHz

Elevation plane (side view, 90 degrees angle)

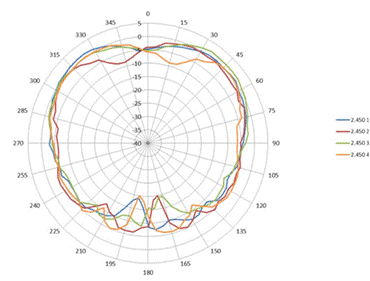

2.450 GHz

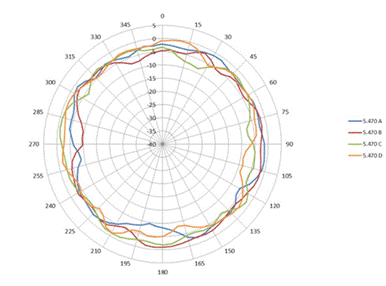

5.470 GHz

Date

Version History

Action

Description of Change

07-Aug-2023

Version 15

Changed

Configuration section was updated..

15-Mar-2021

Version 14

Changed

Central Software SKUs added in Configuration Information section.

08-Sep-2020

Version 13

Changed

Configuration information was updated.

New SKUs were added.

09-Dec-2019

Version 12

Changed

Overview and Standard Features sections were updated.

04-Nov-2019

Version 11

Changed

Configuration information was updated.

New SKUs were added.

07-Oct-2019

Version 10

Changed

Standard Features and Configuration Information sections were updated

New SKUs were added.

Obsolete SKUs were removed

04-Mar-2019

Version 9

Changed

Configuration section was updated.

01-Oct-2018

Version 8

Changed

SKU descriptions updated.

02-Jul-2018

Version 7

Changed

Minor changes made on Configuration

07-May-2018

Version 6

Added

SKU added: Q9U25A

18-Dec-2017

Version 5

Changed

Minor changes made on Features and Benefits

23-Oct-2017

Version 4

Changed

Updates made on Features and Benefits

06-Mar-2017

Version 3

Changed

Updates made on Configuration section

07-Nov-2016

Version 2

Added

Models added: JY745A, JY746A

01-Nov-2016

Version 1

New

New QuickSpecs

© Copyright 2023 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

To learn more, visit: http://www.hpe.com/networking

c05272672 - 15693 - Worldwide  - V15 - 07-August-2023
