Aruba 103 Series Access Points

Cost effective dual-band coverage in medium- density enterprise Wi-Fi environments

Product overview

Multifunctional and affordable Aruba 103 series wireless access points (APs) maximize mobile device performance in medium-density Wi-Fi environments while minimizing interference from cellular networks.

These compact and cost-effective APs deliver wireless data rates up to 300 Mbps per radio employing 802.11n technology with two spatial MIMO streams.

The AP-103 and Instant IAP-103 models feature a 2.4-GHz and a 5-GHz radio, each with 2x2:2 MIMO and two integrated dual-band omni-directional downtilt antennas.

Features and Benefits

Advanced Cellular Coexistence (ACC)
Aruba's Advanced Cellular Coexistence (ACC) feature enables WLANs to perform at peak efficiency by minimizing interference from 3G/4G LTE networks, distributed antenna systems and commercial small cell/femtocell equipment.

WI-FI Client Optimization
To eliminate sticky client behavior while users roam, the Aruba 103 series APs feature Aruba's patented ClientMatch technology, which continuously gathers session performance metrics from mobile devices.
If a mobile device moves away from an AP or if RF interference impedes performance, ClientMatch automatically steers the device to a better AP.

Quality of Service for Lync
Aruba 103 series APs additionally support priority handling and policy enforcement for individual Microsoft Lync media on the same device, including encrypted videoconferencing, voice, chat and desktop sharing.

Choose your Operating Mode
Aruba 103 series APs offer a choice of operating modes to meet your unique management and deployment requirements

• Controller-managed mode. When managed by Aruba Mobility Controllers, the AP-103 offers centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding. Please refer to the Aruba Mobility Controller data sheets for more details.
• Aruba Instant mode. In Aruba Instant mode, a single IAP-103 automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up on Instant AP, configure it over the air, and plug in the other APs - the entire process takes about five minutes

For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Instant APs are factory- shipped to any site and configure themselves when powered up.

If WLAN and network requirements change, a built-in migration path allows Aruba Instant APs to become part of a WLAN that is centrally managed by a Mobility Controller.

Advanced Features

• Spectrum analysis

- Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4-GHz and 5-GHz radio bands to identify sources of RF interference

• Security

- Integrated wireless intrusion protection offers thread protection and mitigation, and eliminates the need for separate RF sensors and security appliances

- IP reputation and security services identify, classify, and block malicious files, URL and IPs, providing comprehensive protection against advanced online threats

- Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys

- SecureJack-capable for secure tunneling of wired Ethernet traffic

Operating Modes

• 802.11a/b/g/n Aruba Instant AP
• 802.11a/b/g/n Mobility Controller-managed  AP
• Air monitor (AM) for wireless IDS, rogue detection and containment
• Spectrum analyzer
• Secure enterprise mesh
• Remote AP (RAP) when used with a Mobility Controller

Wireless Radio Specifications

• AP type: Indoor, dual radio, 5-GHz and 2.4-GHz 802.11n 2x2:2
• Software-configurable dual radio supports 5-GHz (Radio 0) and 2.4-GHz (Radio 1)
• 2x2 MIMO with two spatial streams and up to 300 Mbps wireless data rate
• Supported frequency bands (country-specific restrictions apply):

- 2.4000 to 2.4835 GHz

- 5.150 to 5.250 GHz

- 5.250 to 5.350 GHz

- 5.470 to 5.725 GHz

- 5.725 to 5.850 GHz

• Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio
• Available channels: Dependent on configured regulatory domain
• Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
• Supported radio technologies:

- 802.11b: Direct-sequence spread-spectrum (DSSS)

- 802.11a/g/n: Orthogonal frequency-division multiplexing (OFDM)

• Supported modulation types:

- 802.11b: BPSK, QPSK, CCK

- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM

• Transmit power: Configurable in increments of 0.5 dBm
• Maximum (aggregate, conducted total) transmit power (limited by local regulatory  requirements):

- 2.4-GHz band: +21 dBm (18 dBm per chain)

- 5-GHz band: +21 dBm (18 dBm per chain)

• Advanced Cellular Coexistence (ACC) minimizes interference  from  cellular networks
• Maximum ratio combining (MRC) for improved receiver performance
• Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
• Short guard interval for 20-MHz and 40-MHz channels
• Space-time block coding (STBC) for increased range and improved  reception
• Low-density parity check (LDPC) for high-efficiency error correction  and  increased throughput
• Supported data rates (Mbps):

- 802.11b: 1, 2, 5.5, 11

- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

- 802.11n: 6.5 to 300 (MCS0 to MCS15)

• 802.11n high-throughput (HT) support: HT 20/40
• 802.11n packet aggregation: A-MPDU, A-MSDU

Power

• Maximum power consumption: 9.5W (POE) or 8W (DC)
• Power sources sold separately
• Direct DC source: 12 Vdc nominal, +/- 5%
• Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af or 802.3at-compliant source

Antennas

• Two integrated dual-band downtilt omni-directional antennas for 2x2 MIMO with maximum antenna gain of 4.0 dBi in 2.4 GHz and 4.5 dBi in 5 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is approximately 30 degrees.

Other Interfaces

• 10/100/1000BASE-T Ethernet network interface (RJ-45)

- Auto-sensing link speed and MDI/MDX

- 802.3az Energy Efficient Ethernet (EEE)

- PoE-PD: 48 Vdc (nominal) 802.3af PoE or 802.3at PoE+

• DC power interface, accepts 1.7/4.0-mm center-positive circular plug with 9.5-mm  length
• Serial console interface (proprietary; optional adapter cable available)
• Visual indicators (LEDs):

- Power/system status

- Ethernet link status (ENET)

- Radio status (two; RAD0, RAD1)

• Kensington security slot
• Reset button

Mounting

• Included with AP:

- Mounting brackets (2) for attaching to 9/16-inch or 15/16-inch T-bar drop-tile ceiling

• Spare mounting kit:

- AP-220-MNT-C1: Aruba AP mount kit contains two ceiling-grid rail adapters for flat rails

• Optional mounting kits:

- AP-220-MNT-C2: Aruba AP mount kit contains two ceiling-grid rail adapters for Interlude and Silhouette style rails

- AP-220-MNT-W1: Aruba AP mount kit contains one basic flat-surface wall/ceiling mount  bracket

- AP-200-MNT-W2: Aruba AP mount kit contains one secure flat-surface wall/ceiling mount cradle

Mechanical

• Dimensions/weight (unit, excluding mount accessories):

- 150 mm (W) x 150 mm (D) x 41.5 mm (H)

- 5.9” (W) x 5.9” (D) x 1.63” (H)

- 300 g (0.66 lbs)

• • Dimensions/weight (shipping):

- 192 mm (W) x 178 mm (D) x 68 mm (H)

- 7.6” (W) x 7.0” (D) x 2.68” (H)

- 500 g (1.10 lbs)

Environmental

• Operating:

- Temperature: 0° C to +40° C (+32° F to +104° F)

- Humidity: 5% to 95% non-condensing

• Storage and transportation:

- Temperature: -40° C to +70° C (-40° F to +158° F)

Regulatory

• FCC/Industry of Canada
• CE Marked
• R&TTE Directive 1995/5/EC
• Low Voltage Directive 72/23/EEC
• EN 300 328
• EN 301 489
• EN 301 893
• UL/IEC/EN 60950
• EN 60601-1-1 and EN 60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

Regulatory Model Number

• AP-103 and IAP-103: APIN0103

Certifications

• CB Scheme Safety, cTUVus
• UL2043 plenum rating
• Wi-Fi Alliance (WFA) certified 802.11a/b/g/n

Warranty

• Limited lifetime warranty

Minimum software Versions

• ArubaOS 6.4.0.0
• Aruba InstantOS 4.1.0.0 (planned availability mid 2014)

Ordering Guide

Step 1: Select AP Model

Description

Part Number

Controller-Managed Access Points

Aruba AP-103 802.11n Dual 2x2:2 Radio Integrated Antenna AP

JW156A

Aruba Instant Access Points

Aruba Instant IAP-103 (RW) 802.11n Dual 2x2:2 Radio Integrated Antenna AP

JW190A

Aruba Instant IAP-103 (US) 802.11n Dual 2x2:2 Radio Integrated Antenna AP

JW191A

Aruba Instant IAP-103 (JP) 802.11n Dual 2x2:2 Radio Integrated Antenna AP

JW189A

Aruba Instant IAP-103 (IL) 802.11n Dual 2x2:2 Radio Integrated Antenna AP

JW188A

Aruba Instant IAP-103 (EG) 802.11n 2x2:2 Dual Radio Integrated Antenna AP

JY855A

NOTE: All models ship with ceiling-rail adapters (for flat rails) in the box.

Step 2: Add Powering Accessories (Optional)

Description

Part Number

Select one of the following:

PD-3510G-AC 15.4W 802.3af PoE 10/100/1000Base-T Ethernet Midspan Injector

JW627A

AP-AC-12V30A 12V/30W AC/DC Desktop Style 1.7/4.0/9.5mm Circular 90 Deg Plug DoE Level VI Adapter

JX989A

AP-DC-CAR 12V/18W Indoor AP Car Power US Only Adapter Kit

JW631A

Select three-prong AC power cord for injector or AC adapter (no power cable needed for universal adapter):

PC-AC-ARG Argentina 220V AC 10A 2-meter AC Power Cord

JW113A

PC-AC-AUS Australian AC Power Cord

JW114A

PC-AC-BR Brazil AC Power Cord

JW115A

PC-AC-CHN China AC Power Cord

JW116A

PC-AC-DEN Denmark 220V AC 10A 2-meter AC Power Cord

JW117A

PC-AC-EC Continental European/Schuko AC Power Cord

JW118A

PC-AC-IN India AC Power Cord

JW119A

PC-AC-IL Israel 250V AC 10A 2-meter AC Power Cord

JW120A

PC-AC-IT Italian AC Power Cord

JW121A

PC-AC-JP Japanese AC Power Cord

JW122A

PC-AC-KOR Korea AC Power Cord

JW123A

PC-AC-NA North America AC Power Cord

JW124A

PC-AC-SWI Switzerland 220V AC 10A 2-meter AC Power Cord

JW125A

PC-AC-TW Taiwan AC Power Cord

JW126A

PC-AC-UK UK AC Power Cord

JW127A

PC-AC-ZA South Africa 250V AC 10A 2-meter AC Power Cord

JW128A

Step 3: Add Mount Accessories (Optional)

Description

Part Number

AP-220-MNT-C2 2x Ceiling Grid Rail Adapter for Interlude and Silhouette Mt Kit

JW045A

AP-MNT-CM1 Industrial Grade Indoor Access Point Metal Suspended Ceiling Rail Mount Kit

JX961A

AP-220-MNT-W1 Flat Surface Wall/Ceiling Black AP Basic Flat Surface Mount Kit

JW046A

AP-220-MNT-W1W Flat Surface Wall/Ceiling White AP Basic Flat Surface Mount Kit

JW047A

AP-200-MNT-W2 AP AP-200 Series Flat Surface Mount Kit

JW038A

AP-200-MNT-W3 White Low Profile Box Style Secure Small AP Flat Surface Mount Kit

JY705A

AP-200-MNT-W3 White Low Profile Box Style Secure Small AP Flat Surface Mount Kit

JY705A

Step 4: Add Other (Optional)

Description

Part Number

AP-CBL-SER AP Proprietary DB9 Female Serial Adapter Cable

JW071A

Maximum capability of the hardware provided. Maximum transmit power is limited by local regulatory settings

Aruba AP-103 and IAP-103 Antenna Pattern Plots

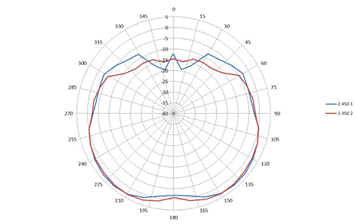

Horizontal or Azimuth plane (top view)

2.450 GHz

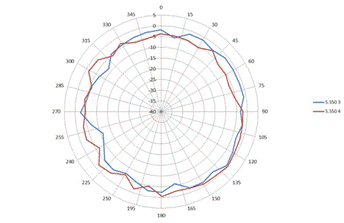

5.550 GHz

Elevation plane (side view, 0 degrees angle)

2.450 GHz

5.550 GHz

Elevation plane (side view, 90 degrees angle)

2.450 GHz

5.550 GHz

Date

Version History

Action

Description of Change

06-Mar-2017

From Version 2 to 3

Changed

Updates made on Configuration section

07-Nov-2016

From Version 1 to 2

Added

Models added: JY855A

01-Nov-2016

Version 1

Created

Document creation.
