Spectra Cube Tape Library QuickSpecs
Meeting enterprise data growth challenges head-on, the Spectra Cube Tape Library delivers enormous scalability to keep pace with unpredictable data growth. Choose from a range of base configurations and scale up to 1,670 LTO tape cartridges in increments of 10 slots for capacity on demand. Incorporating between 1-30 Half-Height (HH), 1-16 Full-Height (FH), or a combination of FH and HH LTO tape drives you can consolidate and store up to 50.1 PB native using LTO-10 or 125.3 PB (2.5:1 compressed) maximum using LTO-10 tape cartridges, of enterprise data. |
|
|
|
|

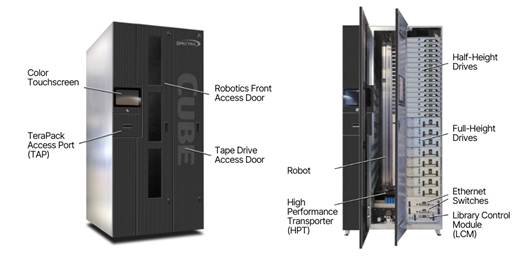

Spectra Cube Tape Library |
|
|
|
|
|
|
|
Key Features - Scalability
 - High Availability
 - Manageability - LumOS
 - Security
 - Cost Effective
|
|
|
|
Customer Benefits |
|
 - Capacity on demand
 - Continuous data protection
 - Reduced cost of ownership
|
|
 - Enhanced data security
|
|
|
|
Compatibility
|
|
Software Support The Spectra Cube Tape Library are supported by the following ISV's for LTO drives:
Please contact sales for further details. |
|
|
|
Encryption Support
|
|
|
|
Family Comparison
|
| ||||||||||||||||||||||
|
| ||||||||||||||||||||||
|
Scalability to meet uncertain data growth | ||||||||||||||||||||||
|
Buy only what you need today for backup and archive, and then expand the library for higher capacity and performance as your data grows.
The Spectra Cube Tape Library is capable of scaling capacity in as little as 10 LTO slots at a time. Both FH and HH tape drives can be used in the Cube with 1 to 30 HH, 1 to 16 FH drives, or a combination of FH and HH. When frame capacity reaches a maximum slot count or more throughput is required, additional Cube libraries may be installed to expand the libraries capacity and total drive count.
Notes: The Cube can support both full-height (LTO-6, LTO-7, LTO-8, LTO-9 and LTO-10) and half-height (LTO-6, 7, 8 and 9) drives. | ||||||||||||||||||||||
| ||||||||||||||||||||||
|
| ||||||||||||||||||||||
|
Media Handling TeraPack® magazines are unique in how they are used in the library. TeraPack magazines increase library density beyond all competition. Multiple tape cartridges are grouped in a single magazine that is used throughout the library and beyond. Library robotics can transport a TeraPack within the library and select a requested tape from the TeraPack magazine. In this unique architecture, each TeraPack magazine equals 10 x LTO media tape slots. A robot can move a bar-coded TeraPack magazine that contains 10 pieces of media in a single robotic move, while other tape libraries require 10 separate robotic moves to accomplish this task. Traditional libraries organize tapes one-tape-deep along the library chassis wall. The Cube library uses TeraPack magazine cases to store tapes, with each TeraPack case extending into the library's interior. This provides Spectra Tape Libraries with very high density, allowing more tapes in a given area than competitors' libraries. | |
|
| |
|
The library's TeraPack Access Port (TAP) provides a practical and efficient method for inserting and removing media. To simplify use and reduce time spent on data protection, Spectra Tape Libraries provide a configurable entry/exit pool, so all magazines to be exported are identified before the operator unloads media. The TeraPack cases can be swiftly unloaded through the front TAP, 10 LTO tapes at a time. Because tapes are loaded in multiple quantities, bulk loads and unloads save significant time.
|
|
|
| |
|
LumOS Management Software | |
|
The Spectra Cube Tape Library provides a graphical interface that is extremely easy to use. You can monitor and manage the library from the tape library's front panel or remotely. Reporting is also straightforward. The library, drive and media status can be viewed at a glance with complete reporting available if needed at the touch of a button. LumOS is included as a standard feature. | |
|
| |
|
Library Lifecycle Management LumOS Library Lifecycle Management (LLM) tracks the library and its components across the library's lifecycle. Through Hardware Health Monitoring (HHM), LumOS tracks maintenance thresholds for key library components and notifies you when maintenance tasks are required to keep your library in optimum operating condition. When a component reaches its maintenance threshold, the status bar displays a Maintenance Notification icon and automatic e-mail alerts may be generated. | |
|
| |
|
Library Lifecycle Management (LLM) collects or maintains the following information
|
|
|
| |
|
Drive Lifecycle Management (DLM) DLM gathers data each time a tape is unloaded from a drive. The data stored by the library includes the following information about the last 50 tapes unloaded:
The library uses this data to generate a report on overall drive health as well as health reports for individual drives. These reports, along with LumOS drive clean, test, and resets, help you determine whether a problem exists with a drive, a tape, or another library component. |
|
|
| |
|
Drive Performance Monitoring The Drive Performance Monitor lets you get the most out of your library by ensuring that drives are performing at the highest possible throughput rate. Performance monitoring graphically displays the read/write performance of the drives in the library. Metrics can be tracked per individual drive or by tracking overall library throughput. | |
|
| |
|
EnergyAudit Power Monitoring EnergyAudit, the LumOS power monitoring feature, tracks power use over time and by component. Customers can use this information to adjust and optimize power use. Tracking this data becomes increasingly important as energy prices continue to climb. | |
|
| |
|
Auto Drive Clean Auto Drive Clean provides library-based cleaning of drives without user intervention. The Auto Drive Clean feature uses a dedicated cleaning partition with specially labeled Maintenance TeraPacks. The cleaning partition can be shared by multiple storage partitions and is used by the library to automatically clean drives whenever necessary.
Automated drive cleaning results in fewer failed tape read/write operations and is the recommended method for cleaning drives. |
|
|
| |
|
Advanced Reporting
| |
|
Syslog A Syslog server is used to easily monitor all system messages. Once configured, the library automatically sends all system messages to a designated Linux server that has been configured to support Syslog. Syslog is a standard for forwarding log messages over an Internet Protocol (IP) computer network. It provides separation of the software that generates log messages from the system that stores the messages. | |
|
| |
|
AutoSupport Logs (ASL) The Spectra Cube Tape Library has a Phone Home feature, AutoSupport, which can be configured to automatically create and send e-mail messages about issues or problems to designated e-mail users, including technical support. The data included in these e-mail messages include trace information, log data, a system description, and information about any message or issue. You can also elect to copy this same data to a USB device, if security concerns prevent the use of automatic outbound e-mail. You can set whether some or all messages are sent, per severity level of the message. This easy-to-use and easy-to-administer feature helps identify issues before they turn into problems and speeds the resolution of problems. If the site is set up to use SSL, the Phone Home service uses the secure connection; otherwise, the service uses the network. |
|
|
|
Best in class reliability As data becomes more and more mission critical, and downtime becomes more costly to the enterprise, customers are requiring high availability consolidated storage solutions which offer hot-plug components and redundancies of key operating subsystems (tape drives, power supplies, control modules and filters). |
|
|
|
Data Encryption for added security ESKM: The Hewlett Packard Enterprise Secure Key Manager, using the industry-standard KMIP protocol, reduces your risk of a costly data breach and reputation damage while improving regulatory compliance with a secure centralized encryption key management solution for LTO-10, LTO-9, LTO-8, LTO-7 and LTO-6 Technology drives within the Spectra Cube Tape Library. In addition, the ESKM provides strong auditable security and reliable lifetime key archival. The ESKM with KMIP and LTO-10/LTO-9/LTO-8/LTO-7/LTO-6 Technology drive encryption in the Spectra Cube Tape Library provides a complete and secure privacy solution to protect customer's confidential data. |
|
|
|
BlueScale Professional Encryption BlueScale Professional Encryption offers LTO users integrated encryption key management provided through the library's user interface and is the only truly integrated encryption key management option for data on tape. Secure and easy to use, BlueScale Professional Encryption provides powerful key management features for encryption and decryption and is suitable for customers who desire more than one encryption key for all data stored by a single tape library. BlueScale Professional Encryption has the capability to manage up to 30 individual encryption keys on the tape library. The BlueScale user interface manages the encryption keys without any need for an external server, reducing operational complexity. |
|
|
|
Spectra SKLM Encryption For organizations with more complex and extensive encryption requirements, Spectra SKLM Encryption Key Management is time tested and proven across enterprise-level customers requiring the highest standard of encryption security. With Spectra SKLM, customers can deploy a centralized and redundant key management solution that meets the most complex key management requirements. Spectra SKLM allows multiple tape libraries to connect to a centralized key manager, giving all of the libraries access to the same encryption key store. Optional redundancy provided by Spectra SKLM provides high availability of the encryption keys. |
|
|
|
Bulk media import/export for significant time savings The Cube library Center TeraPack Access Point (TAP) allows for up to 10 LTO tape cartridges to be imported or exported into the library at one time. | |||||
|
| |||||
|
LTO Ultrium Technology LTO (Linear Tape Open) Ultrium Tape Drives use best of breed technology. By taking the best features from other tape technologies and combining them into a single new technology, Ultrium tape drives are in a league of their own. LTO technology is an open industry standard format. | |||||
|
| |||||
|
Data Rate Matching Data Rate Matching combines sophisticated buffer management with variable tape drive motor speeds to match the tape drive transfer rate to the host output. This feature ensures that the tape drive continues to stream data regardless of the environment, and brings three big advantages:
|
|||||
|
| |||||
|
WORM (Write-Once, Read-Many) Drive and Media Support Critical to the success of data retention policies in highly regulated environments is the ability to store and manage data in an unalterable state. Following stringent guidelines set forth by regulatory agencies such as the SEC and HIPAA, IT organizations must now integrate new solutions and policies that can verify the integrity of stored data for periods that can extend well beyond seven years. | |||||
|
Every generation of LTO Ultrium since LTO-3 tape drives features the ability to archive and store data in a read-only, non-rewritable format that meets the most stringent regulatory guidelines. Using a combination of integrated fail-safe features in the drive firmware, cartridge memory, and tape formatting, LTO Ultrium provides the ability to archive large amounts of data for periods of up to 30 years in a secure, untampered state. Ultrium tape drives include support for both rewritable and WORM media providing a secure, long-term archiving solution into any data protection strategy. LTO Ultrium WORM provides the following advantages:
|
|||||
|
| |||||
|
Spectra Certified Media Spectra Certified Media is designed to ensure that customers have the most reliable and automated tape storage available. No other supplier places as much emphasis on continual enhancements and features that simplify all aspects of the media management process. From manufacturer selection to testing and customer shipment, every step of the certified media process is designed to ensure you have the most reliable and automated tape storage available. |
| ||||
|
| |||||
|
Quality Hewlett Packard Enterprise believes that the test program for HPE Ultrium storage supplies is the most thorough and comprehensive in the industry. In order to carry the HPE Brand, designated cartridges must satisfy an exhaustive battery of additional procedures that relate directly to how the product is used in real life situations when real data and real businesses are at stake. Some of these procedures - e.g. "five corner" environmental interchange, load/unload for automation, ageing simulation and drop testing are not found in the standard logo test. These exhaustive tests on media and both HPE and non-HPE drives ensure that HPE LTO Ultrium storage supplies will always offer maximum reliability even in the most extreme conditions. Unique to Spectra Certified Media is an additional proprietary cleaningïprocess gives further peace of mind for Spectra Cube, T950 and Spectra TFinity Plus library customers. | |||||
|
| |||||
|
Intelligence Media Lifecycle Management (MLM) reduces the most common media-related failures. MLM allows you to proactively manage your tape inventory through simple monitoring of over 40 health statistics and automatically identifies at-risk tapes ready for retirement. | |||||
|
| |||||
|
Verification Spectra TeraPack Media assures data integrity using an integrated, intelligent and comprehensive set of Data Integrity Verification (DIV) tools when integrated with your tape library. PreScan verifies your tapes are safe prior to usage and QuickScan and FullScan verify your data has been properly written to tape. | |||||
|
| |||||
|
Protect When combining Spectra Certified Media and our tape library family's integrated Encryption Key Management, your data is protected with a straightforward, easily installed solution. | |||||
|
| |||||
|
Management Media arrives on customer's doorsteps, individual tapes unwrapped with pre-applied barcode labels bundled in TeraPack magazines and ready for bulk-loading into your tape library. | |||||
|
| |||||
|
Warranty Lifetime Guarantee warrants our tapes to be free from defects in materials and workmanship for the life of the media. All Spectra storage media products are supported by a worldwide network of resellers and service providers as well as toll-free 24 X 7 technical phone support during the warranty period. |
|
|
|
Data Integrity Verification Spectra Cube, T950 and TFinity Plus Tape Libraries' data integrity verification features a set of background processes that provide multiple levels of integrity verification for LTO data cartridges. These features help ensure that data stored over any length of time, including archived data stored for years, can be retrieved as needed. These processes include PreScan and PostScan (QuickScan or FullScan). PreScan checks newly imported tapes to make sure they are ready to use (for example, in good health and not write-protected.) FullScan verifies readability of all the data written on the tape. Quickscan verifies the readability of the data on a single pass of the tape. |
|
|
|
PreScan: Once configured, the library automatically inserts each newly imported LTO cartridge into a tape drive in the partition and checks the drive to determine the following about the cartridge:
|
|
|
|
PostScan After data is written to tape, a PostScan can be conducted to verify that the data written to the tape has no errors. Using QuickScan , the drive will scan each LTO cartridge and confirm that there are no media errors on the tape by reading either a single length of one wrap of tape or the entire length of the tape, up to the end of the recorded data (EOD). The PostScan process is performed by the library independently of the backup application normally used to read and write data to the tape. The results of the scan are stored in the library's media-health database. The user can set triggers to check the health of tapes over an interval of time, to ensure that the data is valid. You can also verify a specific tape's data integrity manually/by request. |
|
|
|
Warranty Included with the Product The Spectra Cube has a standard warranty that extends one year from the date of shipment from the factory. This warranty includes a Next Business Day service contract. Additional years of warranty service can be purchased. |
|
|
|
Service and Support A comprehensive set of support options is offered by HPE via Spectra Logic directly. These options span a wide range of business requirements, from simple phone support and parts replacement, to custom add-ons and focused service account management. Professional Services are also available from Spectra Logic to enhance your service and support experience. |
|
|
|
Recommended Support Services
|
|
Four-Hour On-Site Service Four-Hour On-Site Service includes: - Telephone access to a Technical Support representative, 24 hours a day, 7 days a week, 365 days a year (including evenings, weekends, and holidays). - Upon verification that the unit has malfunctioned, and a part replacement is required, a service visit from a field service representative will be dispatched to arrive on-site within four hours, including evenings, weekends, and holidays. The customer may specify an arrival time after the four-hour window. The customer may be requested to replace the part if appropriate. - Remote troubleshooting 24 hours a day, 7 days a week, 365 days a year. - 24 x 7 x 365 access to the Support Web Portal, Knowledge base and online documentation. Refer to https://support.spectralogic.com/ for Spectra Logic country-specific coverage of service options Four-Hour On-Site Library Hardware Service with Next Business Day On-Site Service for Tape Drives Four-Hour On-Site Library Hardware Service with Next Business Day On-Site Service for Tape Drives includes:
Refer to https://support.spectralogic.com/ for Spectra Logic country-specific coverage of service options. |
|
|
|
Next Business Day On-Site Service Next Business Day On-Site Service includes:
Refer to https://support.spectralogic.com/ for Spectra Logic country-specific coverage of service options. |
|
|
|
|
|
Cube LTO Base Frame | |
|
Please contact your local sales representative for more information. | |
|
|
|
|
Description |
SKU |
|
Spectra Cube HPT 30x HH Drive Shelves 5 Entry/Exit Chambers 2x PS Front Graphic Base Frame for HPE |
S4T30A |
|
Spectra Cube HPT 30x HH Drive Shelves 5 Entry/Exit Chambers 2x PS Front Custom Graphic Base Frame |
S4T31A |
|
Spectra Cube HPT 4xFH/24xHH Drv Shelves 5 Entry/Exit Chambers 2x PS Front Graphic Base Frame for HPE |
S4T32A |
|
Spectra Cube HPT 4xFH/24xHH Drv Shelves 5 Entry/Exit Chambers 2x PS Front Custom Graphic Base Frame |
S4T33A |
|
Spectra Cube HPT 8xFH/16xHH Drv Shelves 5 Entry/Exit Chambers 2x PS Front Graphic Base Frame for HPE |
S4T34A |
|
Spectra Cube HPT 8xFH/16xHH Drv Shelves 5 Entry/Exit Chambers 2x PS Front Custom Graphic Base Frame |
S4T35A |
|
Spectra Cube HPT 12xFH/8xHH Drv Shelves 5 Entry/Exit Chambers 2x PS Front Graphic Base Frame for HPE |
S4T36A |
|
Spectra Cube HPT 12xFH/8xHH Drv Shelves 5 Entry/Exit Chambers 2x PS Front Custom Graphic Base Frame |
S4T37A |
|
Spectra Cube HPT 16x FH Drive Shelves 5 Entry/Exit Chambers 2x PS Front Graphic Base Frame for HPE |
S4T38A |
|
Spectra Cube HPT 16x FH Drive Shelves 5 Entry/Exit Chambers 2x PS Front Custom Graphic Base Frame |
S4T39A |
|
Spectra TeraPack Entry/Exit LTO 10-slot No Media |
Q0H10A |
|
Notes: - Includes 10 Entry/Exit Slots, zero drives, and 50 slots enabled. - These products are TAA (Trade Agreements Act) compliant. | |
|
| |
|
Cube 4U and 8U Rack Options | |
|
Spectra 4U Front Graphic Rack for HPE |
S4T40A |
|
Spectra 4U Front Custom Graphic Rack |
S4T41A |
|
Spectra 8U Front Graphic Rack for HPE |
S4T42A |
|
Spectra 8U Front Custom Graphic Rack |
S4T43A |
|
Notes: - Customers may also be required to also purchase the necessary number of drives, Fibre Channel and SAS cables, tape media, power cords and software licenses in order to complete the library solution. - Installation and Support services will be quoted as a part of each library order. | |
|
| |
|
Tape Drives, Slot/Capacity Licenses, and Certified TeraPack Media |
|
|
LTO -10 Drive Options |
|
|
Description |
SKU |
|
Spectra Cube LTO-10 Ultrium SAS Full Height Drive Sled |
S6P56A |
|
|
|
|
LTO-9 Drive Options |
|
|
Spectra Cube LTO-9 Ultrium Fibre Channel Full Height Drive Sled |
S4T44A |
|
Spectra Cube LTO-9 Ultrium SAS Full Height Drive Sled |
S4T45A |
|
Spectra Cube LTO-9 Ultrium Fibre Channel Half Height Drive Sled |
S4T48A |
|
Spectra Cube LTO-9 Ultrium SAS Half Height Drive Sled |
S4T49A |
|
Notes: Quantity: 1 to 30 HH, 1 to 16 FH drives or a combination of drives per Cube. |
|
|
|
|
|
LTO-8 Drive Options |
|
|
Spectra Cube LTO-8 Ultrium Fibre Channel Full Height Drive Sled |
S4T46A |
|
Spectra Cube LTO-8 Ultrium Fibre Channel Half Height Drive Sled |
S4T50A |
|
Spectra Cube LTO-8 Ultrium SAS Half Height Drive Sled |
S4T51A |
|
Notes: Quantity: 1 to 30 HH, 1 to 16 FH or a combination of drives per Cube. | |
|
|
|
|
LTO-7 Drive Options |
|
|
Spectra Cube LTO-7 Ultrium Fibre Channel Full Height Drive Sled |
S4T47A |
|
Spectra Cube LTO-7 Ultrium Fibre Channel Half Height Drive Sled |
S4T52A |
|
Spectra Cube LTO-7 Ultrium SAS Half Height Drive Sled |
S4T53A |
|
Notes: Quantity: 1 to 30 HH, 1 to 16 FH or a combination of drives per Cube | |
|
|
|
|
LTO Slots/Capacity Licenses |
|
|
Spectra Cube LumOS Storage Chamber 10 Slots LTU |
S4T58A |
|
Notes: LTO slots are purchased in 10 slot increments. |
|
|
|
|
|
Spectra LTO Ultrium TeraPack Media |
|
|
|
|
|
Non-Custom Labeled LTO Ultrium TeraPack Data Cartridges |
|
|
Spectra TeraPack LTO-6 Ultrium 6.25TB BaFe RW Non Custom Labeled 10 Data Cartridges |
Q1G95A |
|
Spectra TeraPack LTO-7 Ultrium 15TB RW Non Custom Labeled 10 Data Cartridges |
Q1H01A |
|
Spectra TeraPack LTO-8 Ultrium 30TB RW Non Custom Labeled 10 Data Cartridges |
Q2R69A |
|
Spectra TeraPack LTO-9 Ultrium 45TB RW Non Custom Labeled 10 Data Cartridges for Full Height Drives |
R7C12A |
|
Spectra TeraPack LTO-9 Ultrium 45TB RW Non Custom Labeled 10 Data Cartridges for Half Height Drives |
S4T56A |
|
Custom Labeled LTO Ultrium TeraPacks Data Cartridges |
|
|
Notes: Custom labeled products allow customers to choose their own specific label sequence to be printed on their label order. A custom barcode label order form must be completed. | |
|
Description |
SKU |
|
Spectra TeraPack LTO-6 Ultrium 6.25TB BaFe RW Custom Labeled 10 Data Cartridges |
Q1G96A |
|
Spectra TeraPack LTO-7 Ultrium 15TB RW Custom Labeled 10 Data Cartridges |
Q1H02A |
|
Spectra TeraPack LTO-8 Ultrium 30TB RW Custom Labeled 10 Data Cartridges |
Q2R70A |
|
Spectra TeraPack LTO-9 Ultrium 45TB RW Custom Labeled 10 Data Cartridges for Full Height Drives |
R7C13A |
|
Spectra TeraPack LTO-10 Ultrium 75TB RW Custom Labeled 10 Data Cartridges |
S6P58A |
|
Spectra TeraPack LTO-9 Ultrium 45TB RW Custom Labeled 10 Data Cartridges for Half Height Drives |
S4T57A |
|
|
|
|
Non-Custom Labeled Cleaning LTO Ultrium TeraPacks |
|
|
Spectra TeraPack LTO Ultrium Cleaning 10 Cartridges |
Q1H03A |
|
|
|
|
Empty TeraPack Trays and Dust Covers |
|
|
Spectra TeraPack LTO Dust Cover |
Q1H05A |
|
Spectra TeraPack LTO Empty Tray No Cover or Media |
Q1J40A |
|
|
|
|
| |
|
Spectra Cube Tape Library Licenses and Misc Parts | |
|
Description |
SKU |
|
Spectra Cube Encryption Software Professional Edition LTU |
S4T59A |
|
Spectra Cube Shared Library Direct Connect Software Service |
S4T62A |
|
Spectra Cube SKLM Maximum 30 LTO Drives Encryption Key |
S4T66A |
|
Spectra Path Failover Driver Support |
S6Q02A |
|
Notes: Provides a redundant failover path to a tape drive from the host system. |
|
|
APC Basic 1-phase 5.7kVAL6-30P 24A 5-wire 24A/200-240V C13(20) C19(4)2-breaker NA PDU |
S4T63A |
|
Spectra C20 3x 1000W/2000W M-CRPS 12V Output 90-140/200-264VAC Power Supply Kit |
S4T67A |
|
Spectra Cube 1x Full Height to 2x Half Height Shelf Upgrade Kit |
S4T54A |
|
Spectra Cube 2x Half Height Shelves to 1x Full Height Shelf Upgrade Kit |
S4T55A |
|
Spectra T950/TFinity Per Frame Stability Kit |
S3H40A |
|
| |
|
SWARM |
|
|
Spectra T950/TFinity Swarm Ethernet to SAS Bridge Controller |
R7F09A |
|
Spectra T950/TFinity Swarm Ethernet 50Gb PCIe Adapter |
R7F08A |
|
Spectra T950/TFinity Swarm QSFP Transceiver |
R7F07A |
|
Spectra T950/TFinity Multi-mode OM4 10m Trunk Cable |
R7F06A |
|
Description |
SKU |
|
Spectra T950/TFinity Swarm Bracket |
R7F05A |
|
Spectra 3x Swarm Bracket Kit |
S4T65A |
|
Spectra 4x Swarm Bracket Kit |
S4T64A |
|
| |
|
Spectra OSW-2400 Optical SAS Switch | |
|
Spectra OSW-2400 Additional 9-port x36 Lanes Enablement Upgrade E-LTU |
S6Q57A |
|
Notes: (additional 9-port 36-lane enablement), SAS Gen2-3-4 compatible, up to 22.5 Gb/s per lane |
|
|
Spectra OSW-2400 Additional 6-port x24 Lanes Enablement Upgrade E-LTU |
S6Q58A |
|
Notes: (additional 6-port 24-lane enablement), SAS Gen2-3-4 compatible, up to 22.5 Gb/s per lane |
|
|
Spectra OSW-2400 Additional 3-port x12 Lanes Enablement Upgrade E-LTU |
S6Q59A |
|
Notes: (additional 3-port 12-lane enablement), SAS Gen2-3-4 compatible, up to 22.5 Gb/s per lane |
|
|
ATTO XstreamCORE 7600 Fibre Channel to SAS Bridge for Spectra |
S6Q37A |
|
| |
|
Fibre Channel and SAS Cables |
|
|
ATTO XstreamCORE 7600 Fibre Channel to SAS Bridge for Spectra |
S6Q37A |
|
Spectra 10m Duplex Multi-mode 50u LC/LC Optical Cable |
Q0G67A |
|
Spectra 50m Duplex Multi-mode 50u LC/LC Optical Cable |
Q0G69A |
|
Spectra T950/TFinity Mini SAS 3m Cable |
R7F74A |
|
Spectra T950/TFinity Tape Library Mini SAS HD 3m Cable |
R8S08A |
|
Spectra Mini SAS HD 4m Cable |
P76370-B21 |
|
Spectra Mini SAS HD to Mini SAS 4m Cable |
P76371-B21 |
|
Spectra Mini SAS to Mini SAS High Density 10m Active Optical Cable |
S6Q52A |
|
| |
|
Power Cord |
|
|
Spectra 220-240V 2.5m AU Power Cord |
Q0G56A |
|
Spectra 220-240V 2.5m ZA/IN Power Cord |
Q0G57A |
|
Spectra 220-240V 2.5m UK Power Cord |
Q0G58A |
|
Spectra 220-240V 2.5m IL Power Cord |
Q0G59A |
|
Spectra 220-240V 2.5m JP Power Cord |
Q0G60A |
|
Spectra 220-240V 2.5m EU Power Cord |
Q0G61A |
|
Spectra NEMA L6-30P 220-240V 4.5m US Power Cord |
Q0G62A |
|
Description |
SKU |
|
Spectra C19 IEC ZA Power Cord |
Q0G63A |
|
Spectra C19 IEC - NEMA 5-15P 110-120V 2.5m Power Cord |
Q0G64A |
|
Spectra C19 IEC309 220-240V 4.6m 12AWG Power Cord |
Q0G66A |
|
Spectra C19 L6-20P 220-240V 20Amp 4.5m US Locking Power Cord |
Q0G70A |
|
|
|
|
| |
|
Cube Support Options |
|
|
Description |
SKU |
|
Spectra Cube Professional Encryption Software Support |
S4T68A |
|
Spectra Cube Professional Encryption Software Zone 2 Support |
S4T69A |
|
Spectra Cube Base Tape Library SpectraGuard 1-year 4-hour Onsite Support |
S4T70A |
|
Spectra Cube Base Tape Library SpectraGuard 1-year 4-hour Onsite Zone 2 Support |
S4T71A |
|
Spectra Cube Base Tape Library SpectraGuard for Drives 1-year 4-hour Onsite Support |
S4T72A |
|
Spectra Cube Base Tape Library SpectraGuard for Drives 1-year 4-hour Onsite Zone 2 Support |
S4T73A |
|
Spectra Cube Base Tape Library SpectraGuard Additional 2-year 4-hour Onsite Support |
S4T74A |
|
Spectra Cube Base Tape Library SpectraGuard Additional 2-year 4-hour Onsite Zone 2 Support |
S4T75A |
|
Spectra Cube Base Tape Library SpectraGuard for Drives Additional 2-year 4-hour NBD Onsite Support |
S4T76A |
|
Spectra Cube Base Tape Library SpectraGuard for Drives Additional 2-year 4-hour Zone 2 Support |
S4T77A |
|
Spectra Cube Base Tape Library SpectraGuard Additional 2-year NBD Onsite and 5x9 Phone/email Support |
S4T78A |
|
Spectra Cube Base Tape Library SpectraGuard Add 2yr NBD Onsite Zone 2 and 5x9 Phone/email Support |
S4T79A |
|
Spectra Cube Base Tape Library SpectraGuard 1-year NBD Onsite and 5x9 Phone/email Support |
S4T80A |
|
Spectra Cube Base Tape Library SpectraGuard 1-year NBD Onsite Zone 2 and 5x9 Phone/email Support |
S4T81A |
|
Spectra Cube LumOS Software ServiceGuard 1-year 4-hour Onsite Support |
S4T82A |
|
Spectra Cube LumOS Software ServiceGuard 1-year 4-hour Onsite Zone 2 Support |
S4T83A |
|
Spectra Cube LumOS Software ServiceGuard for Drives 1-year 4-hour Next Business Day Onsite Support |
S4T84A |
|
Spectra Cube LumOS Software ServiceGuard for Drives 1-year 4-hour NBD Onsite Zone 2 Support |
S4T85A |
|
Spectra Cube LumOS Software ServiceGuard 1-year Next Business Day Onsite and 5x9 Phone/email Support |
S4T86A |
|
Spectra Cube LumOS Software ServiceGuard 1yr Next Business Day Onsite Zone 2/5x9 Phone/email Support |
S4T87A |
|
Spectra Cube LumOS Software ServiceGuard Additional 2-year 4-hour Onsite Support |
S4T88A |
|
Spectra Cube LumOS Software ServiceGuard Additional 2-year 4-hour Onsite Zone 2 Support |
S4T89A |
|
Spectra Cube LumOS Software ServiceGuard for Drives Add 2yr 4h Next Business Day Onsite Support |
S4T90A |
|
Spectra Cube LumOS Software ServiceGuard for Drives Add 2yr 4h NBD Onsite Zone 2 Support |
S4T91A |
|
Spectra Cube LumOS Software ServiceGuard Add 2yr NBD Onsite and 5x9 Phone/email Support |
S4T92A |
|
Spectra Cube LumOS Software ServiceGuard Add 2yr NBD Onsite Zone 2 and 5x9 Phone/email Support |
S4T93A |
|
Description |
SKU | |
|
Spectra Cube SKLM Maximum 30 LTO Drives Additional 2-year Support |
S4T94A | |
|
Spectra Cube SKLM Maximum 30 LTO Drives Additional 2-year Zone 2 Support |
S4T95A | |
|
Spectra Cube ServiceGuard for 1 Drive 1-year 4-hour Onsite Support |
S4T96A | |
|
Spectra Cube ServiceGuard for 1 Drive 1-year 4-hour Onsite Zone 2 Support |
S4T97A | |
|
Spectra Cube ServiceGuard for 1 Drive 1-year 4-hour Next Business Day Onsite Support |
S4T98A | |
|
Spectra Cube ServiceGuard for 1 Drive 1-year 4-hour Next Business Day Onsite Zone 2 Support |
S4T99A | |
|
Spectra Cube ServiceGuard for 1 Drive 1-year Next Business Day Onsite and 5x9 Phone/email Support |
S4U00A | |
|
Spectra Cube ServiceGuard for 1 Drive 1-year NBD Onsite Zone 2 and 5x9 Phone/email Support |
S4U01A | |
|
Spectra Cube ServiceGuard for 1 Drive Additional 2-year 4-hour Onsite Support |
S4U02A | |
|
Spectra Cube ServiceGuard for 1 Drive Additional 2-year 4-hour Onsite Zone 2 Support |
S4U03A | |
|
Spectra Cube ServiceGuard for 1 Drive Additional 2-year 4-hour Next Business Day Onsite Support |
S4U04A | |
|
Spectra Cube ServiceGuard for 1 Drive Additional 2-year 4-hour NBD Onsite Zone 2 Support |
S4U05A | |
|
Spectra Cube ServiceGuard for 1 Drive Add 2yr NBD Onsite and 5x9 Phone/email Support |
S4U06A | |
|
Spectra Cube ServiceGuard for 1 Drive Add 2yr NBD Onsite Zone 2 and 5x9 Phone/email Support |
S4U07A | |
|
Spectra Cube 7x24 Next Business Day Phone Uplift Support |
S4U08A | |
|
Spectra Cube ServiceGuard LTO-10 Drive 1-year 4-hour Onsite Support |
S6P59A | |
|
Spectra Cube ServiceGuard LTO-10 Drive 1-year 4-hour Onsite Zone 2 Support |
S6P60A | |
|
Spectra Cube ServiceGuard LTO-10 Drive 1-year 4-hour Next Business Day Onsite Support |
S6P61A | |
|
Spectra Cube ServiceGuard LTO-10 Drive 1-year 4-hour Next Business Day Onsite Zone 2 Support |
S6P62A | |
|
Spectra Cube ServiceGuard LTO-10 Drive 1-year Next Business Day Onsite and 5x9 Phone/email Support |
S6P63A | |
|
Spectra Cube ServiceGuard LTO-10 Drive 1-year NBD Onsite Zone 2 and 5x9 Phone/email Support |
S6P64A | |
|
Spectra Cube ServiceGuard LTO-10 Drive Additional 2-year 4-hour Onsite Support |
S6P65A | |
|
Spectra Cube ServiceGuard LTO-10 Drive Additional 2-year 4-hour Onsite Zone 2 Support |
S6P66A | |
|
Spectra Cube ServiceGuard LTO-10 Drive Additional 2-year 4-hour Next Business Day Onsite Support |
S6P67A | |
|
Spectra Cube ServiceGuard LTO-10 Drive Additional 2-year 4-hour NBD Onsite Zone 2 Support |
S6P68A | |
|
Spectra Cube ServiceGuard LTO-10 Drive Additional 2-year NBD Onsite and 5x9 Phone/email Support |
S6P69A | |
|
Spectra Cube ServiceGuard LTO-10 Drive Additional 2yr NBD Onsite Zone 2 and 5x9 Phone/email Support |
S6P70A | |
|
Spectra Cube 7x24 Next Business Day Phone Uplift Support |
S4U08A | |
|
Spectra T950/TFinity Swarm 1-year 24x7 Zone 2 Phone Support |
R7F11A | |
|
Spectra T950/TFinity Swarm 2-year Additional Uplift 24x7 Phone Support |
R7F12A | |
|
Description |
SKU |
|
Spectra T950/TFinity Swarm 2-year Additional Uplift 24x7 Zone 2 Phone Support |
R7F13A |
|
Spectra T950/TFinity Swarm 1-year 9x5 Phone Support |
R7F14A |
|
Spectra T950/TFinity Swarm 1-year 9x5 Zone 2 Phone Support |
R7F15A |
|
Spectra T950/TFinity Swarm 2-year Additional Uplift 9x5 Phone Support |
R7F16A |
|
Spectra T950/TFinity Swarm 2-year Additional Uplift 9x5 Zone 2 Phone Support |
R7F17A |
|
| |
|
Cube Professional Services Options |
|
|
Spectra Cube Professional Implementation 1-year Service |
S4T61A |
|
Spectra T950/TFinity Tape Library Professional Services Onsite (per Day) Consult and Training |
Q0G80A |
|
Spectra Cube Professional Preventive Maintenance Annual Visit 1-year Service |
S4T60A |
|
Spectra SKLM Basic Software Installation with up to 5-day Professional Service |
Q1J60A |
|
Spectra T950/TFinity Per Frame Stability Kit Installation Professional Service |
S3G77A |
|
Spectra Cube/T950/TFinity Top Rack Installation Professional Service |
S6Q05A |
|
Spectra Project Success Management Consultating Service |
S6Q06A |
|
Spectra Cube Dedicated Technical Account Manager Advanced Service |
S6Q11A |
|
Notes: Dedicated named technical account manager, expedited access to senior technical expertise, detailed reporting, technical reviews, key metric analysis |
|
|
Spectra Cube Dedicated Technical Account Manager Training and Maintenance Premium Service |
S6Q12A |
|
Notes: Dedicated named technical account manager, Sev 1 Fly & Fix, Training, Preventive Maintenance, expedited access to senior technical expertise, detailed reporting, technical reviews, key metric analysis. |
|
|
| |
|
Family Information
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System Architecture | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Date |
Version History |
Action |
Description of Change |
|
06-Oct-2025 |
Version 3 |
Changed |
Configuration Information section was updated - Updated LTO-10 Technology support |
|
18-Nov-2024 |
Version 2 |
Changed |
Overview, Standard Features, Service and Support, Configuration Information and Technical Specification sections were updated |
|
04-Nov-2024 |
Version 1 |
New |
New QuickSpecs. |
|
|
|
Shape the Future of QuickSpecs - Your Input Matters | |
|
|
|
| |
|
|
|
Chat now | |
|
|
|
© Copyright 2025 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
BlueScale, TeraPack, and TFinity are registered trademarks of Spectra Logic Corporation. All rights reserved worldwide. All library features and specifications listed are subject to change at any time without notice.
For tape drives and media, 1 GB = 1 billion bytes. Actual formatted capacity is less.
a00047732enw - 16269 - Worldwide - V3 - 06-October-2025 | |
|
|
|
HEWLETT PACKARD ENTERPRISE Hpe.com |
|
