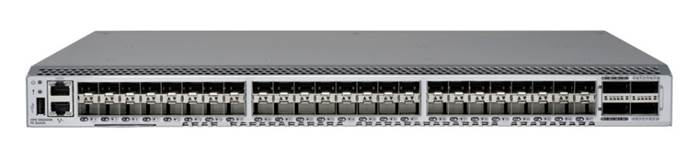

HPE Storage Fibre Channel Switch B-series SN6600B |
|
Today's mission-critical storage environments require greater consistency, predictability, and performance to keep pace with business demands. Faced with explosive data growth, IT environments need more IO capacity than ever before to accommodate massive amounts of data, business critical applications, data intensive workloads, and deliver on the promise of uninterrupted availability and accessibility from anywhere, at any time, on any device. To meet these dynamic and growing business demands, organizations need the ability to deploy and scale up applications quickly. As a result, many organizations are moving to higher Virtual Machine (VM) densities to enable rapid deployment of new applications and investing in flash storage to help those applications scale to support thousands of users. Organizations are realizing the full benefits of flash and transitioning their high-performance, latency-sensitive workloads to flash-based storage with NVMe. To increase agility, reduce expenses, and realize the full benefits of these architectures, organizations need the network to deliver the performance required by today's server and storage environments. In addition, storage networks are becoming increasingly important to application performance and are looked at as a strategic footprint within highly-virtualized environments since they can deliver efficiency and optimization as they scale. The HPE Storage Fibre Channel Switch B-series SN6600B meets the demands of hyper-scale virtualization, larger cloud infrastructures, and growing flash-based storage environments by delivering market-leading 32 Gb Fibre Channel capabilities. The HPE Storage Fibre Channel Switch B-series SN6600B is NVMe-ready, allowing organizations to seamlessly integrate fibre channel networks with the next generation of flash storage, without a disruptive rip and replace. It provides a high-density building block for increased scalability, designed to support growth, demanding workloads, and data center consolidation in small to large-scale enterprise infrastructures. It is built for maximum flexibility, scalability, and ease of use. Organizations can scale from 24 to 64 ports with 48 SFP+ and 4 QSFP ports, all in an efficient 1U package. It also provides a simplified deployment process and a point-and-click user interface-making it both powerful and easy to use. With the SN6600B Switch organizations gain the best of both worlds: high-performance access to industry-leading storage technology and "pay-as-you-grow" scalability to support an evolving storage environment. The HPE Storage Fibre Channel Switch B-series SN6600B is currently available in two models, One configured with 16Gb optics and one with 32Gb optics:
|
|
|
|
| |
|
HPE Storage Fibre Channel Switch B-series SN6600B Q0U58C & R6V47A have a mini-USB console/serial port instead of an RJ-45 | |
|
| |
|
Models
| |
|
HPE Storage Fibre Channel Switch B-series SN6600B 32Gb FC Switch |
|
|
Description |
SKU |
|
HPE SN6600B 32Gb 48/24 16Gb Short Wave SFP+ Fibre Channel Switch |
R6V47A |
|
HPE SN6600B 32Gb 48-port/24-port 24-port 32Gb Short Wave SFP+ Integrated Fibre Channel Switch |
Q0U58C |
|
| |
|
Notes: The references to SFP+ in the description is intended to identify switches bundled with optics. The 32Gb optics are also referred to as SFP28 optics, referencing the industry standard for 32Gb optics. | |
|
| |
Standard Features
|
Key Features and Benefits
|
|
|
|
SN6600B 32Gb FC Switch
Notes: *32 Gbps performance can be obtained between two 32 Gbps capable devices. |
|
|
|
Configuration Support https://support.hpe.com/hpsc/doc/public/display?docId=c00403562 |
|
|
|
High-availability features
|
|
|
|
Advanced Fabric Services
|
|
|
|
Cabinet Support HPE (22U, 36U, and 42U) 10000 G2 Series, the Intelligent Series racks, and HPE (14U, 22U, 36U, 42U, and 47U) 11000 G2 Series racks. Notes: To order factory integration, add #0D1 after the part number on your sales order. |
|
|
|
Software Components, Standard, Base Models
Frame Filtering An ASIC based capability that enables new applications and features. The switch has the ability to "view" the first 64 bytes of the Fibre Channel frame. At this time, Frame Filtering enables advanced capabilities such as Advanced Zoning.
Advanced Zoning WWN Zoning and Access Control are enforced by hardware that provides the same simple administration previously enforced only with software. Administrators can organize a physical fabric into logical groups and prevent unauthorized access by devices outside the Zone.
Web Tools Web Tools is an intuitive and easy-to-use graphical interface that enables organizations to monitor and manage SAN fabrics. Tasks can be performed through a Java-capable, or HTML5 (FOS 9.x and later), Web browser from a standard laptop, desktop PC or workstation from any location within the enterprise.
In-flight Encryption In-flight encryption provides security for frames while they are in flight between two switches. This allows frames to be encrypted at the egress point of an ISL between two B-series switches, and then to be decrypted at the ingress point of the ISL. This can be enabled (FOS 8.2.0 and above) for both E_Ports and EX_Ports on a per-port basis and no additional license is required.
In-flight Compression In-flight compression optimizes network performance within the data center and over long-distance links. Data is compressed at the source and uncompressed at the destination. Performance varies by data type, but generally achieve 2:1 compression with minimal impact on performance.
Adaptive Networking Adaptive Networking (AN) is a family of technologies which allow flexible control of traffic movement within the fabric which deliver application aware management of fabric resources. Applications may be used with multiple protocols and multiple classes of service. It includes the following features:
Allows the ingress bandwidth of a port to be throttled to a rate lower than negotiated with the SAN node. This could be very useful for enterprises offering stepped levels of service and enforcing SLAs.
Enables zones with high, medium, and low priorities within a fabric on a zone by zone basis. This can be very useful for prioritizing array replication over MANs and WANs over less critical traffic.
Defines paths through a fabric for some or all nodes. Failover allows a non-preferred path to be used if the preferred fails. TIZs use failover by default but it can be disabled if traffic should stop if a preferred path fails. TIZ can be used to manually map out traffic flows within a fabric based on application, priority, and topology. |
|
|
|
Software Components, Optional |
|
SN6600B 32Gb Switch Power Pack+ Software Bundle The Power Pack+ Software Bundle comes with the SN6600B 32Gb 48/24 Power Pack+ Switch and SN6600B 32Gb 48/48 Power Pack+ Switch (for both standalone and 32Gb SFP+ integrated switch models). The customers can purchase it separately as an optional software bundle for the SN6600B 32Gb 48/24 FC Switch and the SN6600B 48/48 FC Switch (both standalone and 32Gb SFP+ bundles switch). It includes the following:
Fabric Vision Fabric Vision technology provides a breakthrough hardware and software solution that helps simplify monitoring, maximize network availability, and dramatically reduce costs. Featuring innovative monitoring, management, and diagnostic capabilities, Fabric Vision technology enables administrators to avoid problems before they impact operations, helping their organizations meet SLAs. It Includes
Extended Fabric Optional license which extends all of the scalability, reliability, and performance benefits of Fibre Channel Storage Area Networks (SANs) beyond the native 10 km distance specified by the Fibre Channel standard. ISL Trunking For high performance enhanced Trunking, this optional license logically groups up to eight 32 Gbps SFP+ ports per ISL trunk or up to two 128 Gbps QSFP ports per ISL trunk to provide a high bandwidth trunk between two switches. Each 32Gb switch needs its own license. The switch operating system views the trunk as a single, high bandwidth resource (up to 256Gb) when routing connections between 32Gb switches. Connections are load-balanced across the individual links, which comprise the logical trunk group. |
|
|
|
Integrated Routing Integrated Routing is an optional license which provides native Fibre Channel Routing (FCR) on a per-port basis, rather than limiting routing ports to those on a dedicated routing switch or blade. Just like traditional FCR, Integrated Routing uses EX_Ports to import/export devices between fabrics, enabling selective device sharing while maintaining remote fabric isolation. Integrated Routing provides architecture flexibility to route on a port-by-port basis, enabling increased scalability and fault isolation. |
|
|
|
HPE SANnav Management Software HPE SANnav Management Software is the next-generation SAN management application suite for HPE B-series SAN environments. It consists of SANnav Management Portal Software and SANnav Global View Software:
SANnav Management Portal and SANnav Global View not only transform SAN telemetry data into useful insights, such as health and performance scores, but also enable administrators to quickly associate real-time data with historical metrics and logs for in-depth analysis. This can help with spotting trends, establishing baselines, and identifying any behavioral changes over time. HPE SANnav Management Software is available as a term-license for 1-year, 3-years and 5-years period as both - physical and electronic License-to-Use (LTU). It supports 8Gb, 16Gb and 32Gb FC Switches and Directors.
HPE Smart SAN for 3PAR HPE Smart SAN, optional software for HPE 3PAR, makes end-to-end SAN configuration and management simple and reduces the probability of errors through automation. It is an application embedded in SAN components (array, hosts and switches) that enables 3PAR arrays to orchestrate configuration, settings and policies across the SAN. Smart SAN is supported with B-series Switches, HPE Fibre Channel adapters (HBAs) and 3PAR storage. HPE Smart SAN for 3PAR through its Target Driven Peer Zoning (TDPZ) feature enables customers to automate peer zoning, resulting in the creation of fewer zones and enables configuration of zones in minutes and not in hours. Through automation, it reduces the probability of errors and potential downtime.
Notes: - Supports B-series 32Gb, 16Gb and 8Gb FC switches with FOS 7.4.0a or later. - A list of supported HPE FC Adapters can be found at: http://www.hpe.com/storage/spock - Supports 3PAR StoreServ storage with 3.2.2 or later with only 16Gb target ports on HPE 3PAR StoreServ storage. |
|
|
Service and Support
|
Warranty (1-1-1) Hardware Warranty; 1-year parts; 1-year on-site (standard business hours, next business day response) and 1-year labor. Notes: - The hardware warranty covers firmware and embedded non-saleable software. For extended hardware installation and maintenance information, click the link below: https://ssc.hpe.com - Certain restrictions and exclusions apply. Consult the Customer Support Center for details. - Hardware or Software product installation is not included in the warranty, but is available and highly recommended. |
|
|
|
HPE Services No matter where you are in your transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
|
|
Consulting services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting SAN Fabric Integration and Migration service HPE Data Storage Services - SAN Fabric Integration and Migration simplifies the introduction of and migration to new HPE B-series SAN fabric devices. It helps maximize the value of your investment in your new HPE B-series SAN fabric devices by leveraging HPE Services expertise and best practices. https://www.hpe.com/psnow/doc/a50011015enw
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational
|
|
|
|
Recommended Services HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare |
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare
|
|
|
|
Other related services from HPE Services HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
https://www.hpe.com/services/lifecycle
|
|
|
|
HPE SAN Deployment Service Hewlett Packard Enterprise delivers complete design and implementation services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI SAN connectivity components. Learn more: https://www.hpe.com/psnow/doc/5981-8527enw?jumpid=in_lit-psnow-red
HPE Installation Service Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
Learn more: https://h20195.www2.hpe.com/v2/Getdocument.aspx?docname=5981-9356enw HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training |
|
Defective Media Retention An
option available with HPE Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.
|
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. How to purchase services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience. Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
https://support.hpe.com/hpesc/public/home/signin |
|
|
|
Consume IT on your terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information: http://www.hpe.com/services |
|
|
Configuration Information
|
Step 1 - Base Configuration (Select one) | |||
|
Description |
SKU | ||
|
HPE SN6600B 32Gb 48/24 16Gb Short Wave SFP+ Fibre Channel Switch |
R6V47A | ||
|
Notes: - 32Gb 48-port FC Switch with 24 active ports bundled with 24 16Gb SFP+; accessory kit (Rackmount kit, enterprise safety and regulatory information, installation guide, rack-mounting instructions), power cords, mini USB serial cable, base software of Advanced Fabric OS, Advanced Web Tools and Advanced Zoning. - The console/serial port on this version has a mini-USB instead of the RJ45 connector. The switch comes with a mini-USB to RJ45 serial cable and a RJ45 to RS-232 adapter to connect to the host. - HPE B-series software licenses are available through the Electronic Delivery (E-Delivery) mechanism. The E-Delivery software licenses are functionally equivalent to the corresponding physical licenses. The E-Delivery version (ending with AE) is listed first and the physical version is second. - Requires the use of Secure optics
| |||
|
HPE SN6600B 32Gb 48-port/24-port 24-port 32Gb Short Wave SFP+ Integrated Fibre Channel Switch |
Q0U58C | ||
|
Notes: - 32Gb 48-port FC Switch with 24 active ports bundled with 24 32Gb SFP+; accessory kit (Rackmount kit, enterprise safety and regulatory information, installation guide, rack-mounting instructions), power cords, mini USB serial cable, base software of Advanced Fabric OS, Advanced Web Tools and Advanced Zoning. - The console/serial port on this version has a mini-USB instead of the RJ45 connector. The switch comes with a mini-USB to RJ45 serial cable and a RJ45 to RS-232 adapter to connect to the host. - HPE B-series software licenses are available through the Electronic Delivery (E-Delivery) mechanism. The E-Delivery software licenses are functionally equivalent to the corresponding physical licenses. The E-Delivery version (ending with AE) is listed first and the physical version is second. - Requires the use of Secure optics
| |||
|
| |||
|
Step 2 - Options With the release of FOS 9.0 the HPE Storage Fibre Channel Switch B-series SN6600B will have mixed optic support dependent on the model as outlined below:
- Models: Q0U58C & R6V47A
- Models: Q0U54A/B, Q0U55A/B, Q0U56A/B, Q0U56A/B, Q0U57A/B, Q0U58A/B, Q0U59A/B & Q0U60A/B |
|||
|
| |||
|
Fibre Channel Transceivers - Standard |
| ||
|
Description |
SKU | ||
|
HPE B-series 4x16 Short Wave QSFP Transceiver |
K2Q87A | ||
|
HPE B-series 4x32Gb 4-pack Short Wave QSFP Transceiver |
Q2R28A | ||
|
Notes: This QSFP requires minimum version of FOS 8.1.0a |
| ||
|
HPE B-series 4x32Gb 8-pack Short Wave QSFP Transceiver |
Q2R29A | ||
|
Notes: This QSFP requires minimum version of FOS 8.1.0a |
|||
|
HPE B-series 4x32Gb 16-pack Short Wave QSFP Transceiver |
Q2R30A | ||
|
Notes: This QSFP requires minimum version of FOS 8.1.0a |
| ||
|
Description |
SKU | ||||||||||||||||
|
HPE B-series 16Gb SFP+ Short Wave Transceiver |
QK724A | ||||||||||||||||
|
HPE B-series 4x16Gb SW QSFP+ 100m 16-pack Transceiver |
H6Z76A | ||||||||||||||||
|
|
| ||||||||||||||||
|
Fibre Channel Transceivers - Secure |
| ||||||||||||||||
|
HPE B-series 16Gb SFP+ Short Wave 1-pack Secure Transceiver |
R6B10A | ||||||||||||||||
|
HPE B-series 16Gb SFP+ Short Wave 8-pack Secure Transceiver |
R6W28A | ||||||||||||||||
|
HPE B-series 16Gb SFP+ Long Wave 10km 1-pack Secure Transceiver |
R6B11A | ||||||||||||||||
|
HPE B-series 32Gb SFP28 Short Wave 1-pack Secure Transceiver |
R6B12A | ||||||||||||||||
|
HPE B-series 32Gb SFP28 Short Wave 8-pack Secure Transceiver |
R6W26A | ||||||||||||||||
|
HPE B-series 32Gb SFP Extended Long Wave 25km 1-pack Secure Transceiver |
R7M17A | ||||||||||||||||
|
HPE B-series 32Gb SFP28 Long Wave 10km 1-pack Secure Transceiver |
R6B13A | ||||||||||||||||
|
HPE B-series 32Gb SFP28 Extended Long Wave 25km 1-pack Secure Transceiver |
R9S31A | ||||||||||||||||
|
Notes: The R9S31A is only supported on the Q0U58C and R6V47A with a Minimum FOS version of 9.1.1. R9S31A must be used on both ends of the cable. |
| ||||||||||||||||
|
HPE B-series 10Gb SFP+ Short Wave 1-pack Secure Transceiver |
R6B14A | ||||||||||||||||
|
HPE B-series 10Gb SFP+ Long Wave 10km 1-pack Secure Transceiver |
R6B15A | ||||||||||||||||
|
HPE B-series 4x50Gb QSFP56 Short Wave Inter Chassis Link 1-pack Secure Transceiver |
R6B19A | ||||||||||||||||
|
HPE B-series 4x32Gb QSFP28 Short Wave 100m 1-pack Secure Transceiver |
R6B20A | ||||||||||||||||
|
HPE B-series 16Gb SFP+ Extended Long Wave 25km 1-pack Secure Transceiver |
R6B21A | ||||||||||||||||
|
| |||||||||||||||||
|
Fibre Channel Transceivers - Other | |||||||||||||||||
|
HPE Storage Fibre Channel Switch B-series SN6600B supports HPE Complete SmartOptics For more information regarding Smartoptics SKUs/Accessories/Cables and ordering rules please refer HPE Complete Smartoptics QuickSpecs. https://www.hpe.com/h20195/v2/Getdocument.aspx?docname=c05205226 and Brocade Fabric OS Open Systems Compatibility Matrix | |||||||||||||||||
|
| |||||||||||||||||
|
Accessories | |||||||||||||||||
|
HPE B-series 4G USB Drive |
N9Y63A | ||||||||||||||||
|
Optical Cables | |||||||||||||||||
| |||||||||||||||||
|
| |||||||||||||||||
|
HPE PremierFlex OM4 Fiber Optic Cables | |||||||||||||||||
|
Description |
SKU | ||||||||||||||||
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable |
QK732A | ||||||||||||||||
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable |
QK733A | ||||||||||||||||
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable |
QK734A | ||||||||||||||||
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable |
QK735A | ||||||||||||||||
|
Description |
SKU | |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable |
QK736A | |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable |
QK737A | |
|
| ||
|
HPE Premier Flex OM4 QSFP Fiber Optic Cables |
| |
|
HPE Premier Flex MPO/MPO Multi-mode OM4 12 Fiber 1m Cable |
Q1H63A | |
|
HPE Premier Flex MPO/MPO Multi-mode OM4 12 Fiber 2m Cable |
Q1H64A | |
|
HPE Premier Flex MPO/MPO Multi-mode OM4 12 Fiber 5m Cable |
Q1H65A | |
|
HPE Premier Flex MPO/MPO Multi-mode OM4 12 Fiber 10m Cable |
QK729A | |
|
HPE Premier Flex MPO/MPO Multi-mode OM4 12 Fiber 15m Cable |
Q1H66A | |
|
HPE Premier Flex MPO/MPO Multi-mode OM4 12 Fiber 30m Cable |
Q1H67A | |
|
HPE Premier Flex MPO/MPO Multi-mode OM4 8 Fiber 50m Cable |
QK731A | |
|
HPE Premier Flex MPO/MPO OM4 100m Cable |
H6Z30A | |
|
| ||
|
HPE QSFP to 4xLC Breakout Cables | ||
|
HPE Multi Fiber Push On to 4 x Lucent Connector 5m Cable |
K2Q46A | |
|
HPE Multi Fiber Push On to 4 x Lucent Connector 15m Cable |
K2Q47A | |
|
HPE Premier Flex MPO to 4xLC 30m Cbl |
Q1H68A | |
|
HPE Premier Flex MPO to 4 x Lucent Connector 50m Cable |
Q1H69A | |
|
HPE OM3 LC-LC Optical Cables | ||
|
HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable |
AJ833A | |
|
HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable |
AJ834A | |
|
HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable |
AJ835A | |
|
HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable |
AJ836A | |
|
HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable |
AJ837A | |
|
HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable |
AJ838A | |
|
HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable |
AJ839A | |
|
| ||
|
Port on Demand (Pod) Kits With the release of FOS 9.0, the HPE Storage Fibre Channel Switch B-series SN6600B will have mixed PoD upgrade support dependent on the model as outlined below
- Support PoD Kits ONLY
- Support PoD Upgrades listed in Software Options as well as the PoD Kits
|
||
|
HPE SN6600B 16Gb 12-port Short Wave SFP+ Fibre Channel Upgrade License with Transceiver Kit |
R6V48A | |
|
HPE SN6600B 32Gb 12-port Short Wave SFP28 Fibre Channel Upgrade License with Transceiver Kit |
R6V49A | |
|
HPE SN6600B 4x32Gb 16-port Short Wave QSFP28 Fibre Channel Upgrade License with Transceiver Kit |
R9S32A | |
|
Notes: The above PoD Kits are available as a physical upgrade package only, these are not available as an e-license because they include the optics. PoD Kits include Secure optics. | ||
|
| ||
|
Step 3 - Optional Software Notes: - For Fabric OS (FOS) minimum requirements, please refer to: https://h20272.www2.hpe.com/spock/ - HPE B-series software licenses are available through the Electronic Delivery (E-Delivery) mechanism. The E-Delivery software licenses are functionally equivalent to the corresponding physical licenses. The E-Delivery version (ending with AE) is listed first and the physical version is second. | |
|
| |
|
Description |
SKU |
|
HPE SN6600B PowerPack+ Upgrade E-LTU |
Q0T78BAE |
|
Power Pack+ software includes additional software: Fabric Vision, ISL Trunking, and Extended Fabric. Power Pack+ software provides the SAN administrator with the necessary tools to monitor the health and performance of the network, while also ensuring the highest levels of security, scalability and manageability. |
|
|
Notes: The Power Pack+ Software Bundle kit includes Fabric Vision, ISL Trunking, and Extended Fabric. |
|
|
HPE B-series Integrated Routing E-LTU |
T5528BAE |
|
Notes: - For users purchasing SANnav licenses for the first time, one of the following SKUs should be purchased.. - For users wanted to renew a SANnav license, a renewal license should be selected from the SANnav Renewal Software License in the next section. | |
|
|
|
|
SANnav Software Licenses: |
|
|
HPE SANnav Management Portal Base 1yr E-LTU |
R3P45AAE |
|
HPE SANnav Management Portal Enterprise 1yr E-LTU |
R3P46AAE |
|
HPE SANnav Global View 1yr E-LTU |
R3P47AAE |
|
HPE SANnav Management Portal Base 3yr E-LTU |
R3P48AAE |
|
HPE SANnav Management Portal Enterprise 3yr E-LTU |
R3P49AAE |
|
HPE SANnav Global View 3yr E-LTU |
R3P50AAE |
|
HPE SANnav Management Portal Base 5yr E-LTU |
R4P29AAE |
|
HPE SANnav Management Portal Enterprise 5yr E-LTU |
R4P30AAE |
|
HPE SANnav Global View 5yr E-LTU |
R4P31AAE |
|
Notes: - The Base edition of HPE SANnav Management Portal does not support management of director class switches - HPE SANnav Management Software License-to-Use (LTU/E-LTU) includes maintenance and support for the duration of the license. At the end of the license period, customers have the option to renew the license, maintaining the same license key, by selecting from the SANnav Renewal Software License section below Software renewal via HPE Services is not allowed/supported. - Trial Licenses: depending on the version of SANnav license, the trial period is different. o 90-day trial license available with all SANnav releases through v2.2.0 o 30-day trial license available with SANnav v2.2.1 and v2.2.2 o No trial license available with SANnav v2.3.0 or later.
| |
|
SANnav Renewal Software Licenses: | |
|
Notes: For users who currently have a SANnav license and want to renew their software license, one of the following licenses should be selected. The SANnav license must align with the current type of software license i.e. in order to renew a Base license, the Base renewal licenses will need to be selected. | |
|
Description |
SKU |
|
HPE SANnav Management Portal Base 1-year Renewal E-LTU |
S1S52AAE |
|
HPE SANnav Management Portal Enterprise 1-year Renewal E-LTU |
S1S55AAE |
|
HPE SANnav Global View 1-year Renewal E-LTU |
S1S58AAE |
|
Notes: - The Base edition of HPE SANnav Management Portal does not support management of director class switches. - HPE SANnav Management Software License-to-Use (LTU/E-LTU) includes maintenance and support for the duration of the license. - Trial Licenses - depending on the version of SANnav license, the trial period is different. o 90-day trial license available with all SANnav releases through v2.2.0 o 30-day trial license available with SANnav v2.2.1 and v2.2.2 o No trial license available with SANnav v2.3.0 or later
| |
|
| |
Technical Specifications
|
Family Information | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
System Architecture | ||||||||||||||||||||||||||||||
|
| ||||||||
|
| ||||||||
|
| ||||||||
|
Management | ||||||||
| ||||||||
|
| ||||||||
|
| ||||||||
|
Mechanicals | ||||||||
| ||||||||
|
|
|
Environment | ||||||||||||||
| ||||||||||||||
|
| ||||||||||||||
|
| ||||||||||||||
|
Power | ||||||||||||||
| ||||||||||||||
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
07-Oct-2024 |
Version 28 |
Changed |
Overview, Standard Features and Configuration Information sections were updated. References to SFM and Storage Fabric Manager removed Note added for R9S31A |
|
03-Sep-2024 |
Version 27 |
Changed |
Service and Support section was updated |
|
15-Apr-2024 |
Version 26 |
Changed |
Rebranding Series Name applied |
|
13-Nov-2023 |
Version 25 |
Changed |
Standard Features, Service and Support and Configuration Information sections were updated. HPE Services Rebranding Added HPE Greenlake for Storage Fabric Management |
|
24-Jul-2023 |
Version 24 |
Changed |
Configuration Information section was updated. Removed Network Orchestrator |
|
05-Jun-2023 |
Version 23 |
Changed |
Overview, Configuration Information and Technical Specifications sections were updated. SANnav renewal offering added |
|
01-Aug-2022 |
Version 22 |
Changed |
Updated PoD Kit and Optic list |
|
13-Dec-2021 |
Version 21 |
Changed |
Configuration Information section was updated. |
|
01-Nov-2021 |
Version 20 |
Changed |
Clarified SFP28 32Gb optics references & added back Q0U58/60B |
|
04-Oct-2021 |
Version 19 |
Changed |
Service and Support section was updated Obso SKU was removed |
|
02-Aug-2021 |
Version 18 |
Changed |
Service and Support and Configuration Information sections were updated. |
|
07-June-2021 |
Version 17 |
Changed |
Added 16Gb and 32Gb 8-Pack Secure Transceivers |
|
07-Dec-2020 |
Version 16 |
Changed |
Overview, Standard Features and Service and Support sections were updated.(FOS 9.0, Secure Optics, PoD Kits and New 16Gb offering) |
|
06-Jul-2020 |
Version 15 |
Changed |
QuickSpecs layout was updated and Branding Refresh was applied. |
|
06-Apr-2020 |
Version 14 |
Changed |
Standard Features, Configuration Information and Technical Specifications sections were updated |
|
03-Feb-2020 |
Version 13 |
Changed |
Overview, Standard Features and Service and Support sections were updated. |
|
03-Sep-2019 |
Version 12 |
Changed |
SANnav added |
|
02-Apr-2019 |
Version 11 |
Changed |
Feature and Benefits, Product Highlights, Configuration Information, Technical Specifications sections were updated. |
|
01-Oct-2018 |
Version 10 |
Changed |
Models section SKU rollover A to B and Service and Support section was updated |
|
14-May-2018 |
Version 9 |
Changed |
Added airflow in Tech Specifications and updated links. |
|
23-Oct-2017 |
Version 8 |
Changed |
Care Pack naming and Service and Support- Parts and Materials updated. |
|
02-Oct-2017 |
Version 7 |
Changed |
Changes made to the Tech Specs Section. |
|
25-Sep-2017 |
Version 6 |
Changed |
Changes made to the entire document. |
|
27-Mar-2017 |
Version 5 |
Changed |
Added optics and cables. |
|
27-Jan-2017 |
Version 4 |
Changed |
Added a MPO/MPO OM4 100m (12ft) Cable, and changed the Warranty Section. |
|
16-Dec-2016 |
Version 3 |
Changed |
Image was changed. |
|
28-Nov-2016 |
Version 2 |
Changed |
Version number updated to match PB. |
|
28-Nov-2016 |
Version 1 |
New |
New QuickSpecs |
Copyright
|
|
| |||||
|
|
|
© Copyright 2024 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
c05269707 - 15682 - Worldwide - V28 - 07-October-2024 |
