The Brocade Analytics Monitoring Platform (AMP) is no longer being offered through HPE. However the Services for existing installs are available as defined in this QuickSpec.

IT organizations are constantly being faced with the task of managing extraordinary data growth while also becoming more knowledgeable about their own networks, in order to better pinpoint problem areas and maximize overall performance.

The growing challenges of application performance management are

Extremely complex deployment of real-time application monitoring across the infrastructure
Difficulty in identifying, isolating, and resolving application issues
Growing costs associated with application visibility
Lack of non-disruptive device-level troubleshooting tools that can be deployed in minutes

The Brocade Analytics Monitoring Platform (AMP) provides advanced storage telemetry, including storage device I/O performance, latency, and other SCSI metrics, across the network. Leveraging Brocade Fabric Vision technology, this platform ensures non-stop operations, identifies potential points of congestion, and maximizes end-to-end application performance. It not only provides end-to-end visibility that was not available previously, but it also improves the ROI for storage infrastructures by providing in-depth, fabric-wide metrics.

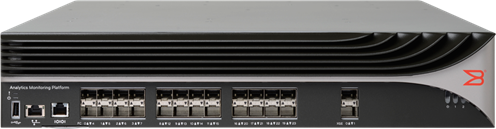

Figure 1. Brocade AMPv2 Appliance

NOTE: New Brocade AMP products no longer available through HPE, support only for existing installs

HPE Complete - Transceiver and BR-6510 Support and Services

HPE Complete offers a Brocade 4x32Gb QSFP 1-pack and a Brocade 4x32Gb QSFP CWDM 2km 1-pack Transceiver Kits and a variety of support levels for the BR-6510 switch.

HPE Complete- Resell of Third Party Branded Products HPE Complete is a resource enabling the purchase of best in class third party branded products with the added reliability of Hewlett Packard Enterprise's interop assurance for a complete validated solution, all via one HPE purchase order. Benefits One Stop Shop - Purchase complete solutions from HPE that include best in class third party branded products, all on a single HPE purchase order. Validated solution - Confidence of The HPE interop assurance validation for third party branded products that complement HPE Storage & Server solutions. Customer Experience - HPE Complete utilizes third-party expertise for installation, support, and warranty of their products. However, HPE Complete will step in to facilitate third-party issue resolution when required to assist in overall customer satisfaction. HPE products that are part of the overall solution are supported per HPE Pointnext services and support purchased Unique Value - Minimize risk, complexity and cost when deploying multi-vendor products and technologies into the HPE ecosystem. Many solutions come with custom HPE/Partner configuration and integration guides and tools. For more information please refer HPE Complete on HPE.com

Hewlett Packard Enterprise has the following Brocade AMP SKUs available via HPE Complete: Hardware SKUs, for additional and alternatives OEM SKU offerings please see: https://buy.hpe.com/b2c/us/en/storage/storage-networking/c/304608
Description	Part Number
Brocade XBR-DCX-0131 2GB USB Flash Drive	P9M45A
Brocade 4x32Gb QSFP 1-pack Transceiver Kit	Q9D50A
Brocade 4x32Gb QSFP CWDM 2km 1-pack Transceiver Kit	Q9D51A
Brocade AMP Service SKUs
Brocade Analytics Monitoring Platform Gen5 4hr Onsite 1yr Support LTU	P9T25A
Brocade Analytics Monitoring Platform Gen5 4hr Onsite 2yr Support LTU	P9T26A
Brocade Analytics Monitoring Platform Gen5 4hr Onsite 3yr Support LTU	P9T27A
Brocade Analytics Monitoring Platform Gen5 4hr Onsite 4yr Support LTU	P9T28A
Brocade Analytics Monitoring Platform Gen5 4hr Onsite 5yr Support LTU	P9T29A
Brocade Analytics Monitoring Platform Gen5 4hr Parts Only 1yr Support LTU	P9T30A
Brocade Analytics Monitoring Platform Gen5 4hr Parts Only 2yr Support LTU	P9T31A
Brocade Analytics Monitoring Platform Gen5 4hr Parts Only 3yr Support LTU	P9T32A
Brocade Analytics Monitoring Platform Gen5 4hr Parts Only 4yr Support LTU	P9T33A
Brocade Analytics Monitoring Platform Gen5 4hr Parts Only 5yr Support LTU	P9T34A
Brocade Analytics Monitoring Platform Gen5 Next Day Parts Only 1yr Support LTU	P9T91A
Brocade Analytics Monitoring Platform Gen5 Next Day Parts Only 2yr Support LTU	P9T92A
Brocade Analytics Monitoring Platform Gen5 Next Day Parts Only 3yr Support LTU	P9T93A
Brocade Analytics Monitoring Platform Gen5 Next Day Parts Only 4yr Support LTU	P9T94A
Brocade Analytics Monitoring Platform Gen5 Next Day Parts Only 5yr Support LTU	P9T95A
Brocade Analytics Monitoring Platform Gen5 Next Day Onsite 1yr Support LTU	P9T96A
Brocade Analytics Monitoring Platform Gen5 Next Day Onsite 2yr Support LTU	P9T97A
Brocade Analytics Monitoring Platform Gen5 Next Day Onsite 3yr Support LTU	P9T98A

Description	Part Number
Brocade Analytics Monitoring Platform Gen5 Next Day Onsite 4yr Support LTU	P9T99A
Brocade Analytics Monitoring Platform Gen5 Next Day Onsite 5yr Support LTU	P9U00A
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Onsite 1yr Support LTU	Q0P32A
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Onsite 2yr Support LTU	Q0P33A
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Onsite 3yr Support LTU	Q0P34A
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Onsite 4yr Support LTU	Q0P35A
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Onsite 5yr Support LTU	Q0P36A
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Parts Only 1yr Support LTU	Q0P37A
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Parts Only 2yr Support LTU	Q0P38A
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Parts Only 3yr Support LTU	Q0P39A
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Parts Only 4yr Support LTU	Q0P40A
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Parts Only 5yr Support LTU	Q0P41A
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Parts Only 1yr Support LTU	Q0P42A
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Parts Only 2yr Support LTU	Q0P43A
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Parts Only 3yr Support LTU	Q0P44A
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Parts Only 4yr Support LTU	Q0P45A
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Parts Only 5yr Support LTU	Q0P46A
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Onsite 1yr Support LTU	Q0P47A
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Onsite 2yr Support LTU	Q0P48A
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Onsite 3yr Support LTU	Q0P49A
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Onsite 4yr Support LTU	Q0P50A
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Onsite 5yr Support LTU	Q0P51A
Brocade Analytics Monitoring Platform Gen5 Premier Return to Factory 1yr Support LTU	Q0P52A
Brocade Analytics Monitoring Platform Gen5 Premier Return to Factory 2yr Support LTU	Q0P53A
Brocade Analytics Monitoring Platform Gen5 Premier Return to Factory 3yr Support LTU	Q0P54A
Brocade Analytics Monitoring Platform Gen5 Premier Return to Factory 4yr Support LTU	Q0P55A
Brocade Analytics Monitoring Platform Gen5 Premier Return to Factory 5yr Support LTU	Q0P56A
Brocade Analytics Monitoring Platform Gen5 Return to Factory 1yr Support LTU	Q0P57A
Brocade Analytics Monitoring Platform Gen5 Return to Factory 2yr Support LTU	Q0P58A
Brocade Analytics Monitoring Platform Gen5 Return to Factory 3yr Support LTU	Q0P59A
Brocade Analytics Monitoring Platform Gen5 Return to Factory 4yr Support LTU	Q0P60A
Brocade Analytics Monitoring Platform Gen5 Return to Factory 5yr Support LTU	Q0P61A
Brocade Analytics Monitoring Platform Gen5 Secure Uplift 1yr Support LTU	Q0P62A
Brocade Analytics Monitoring Platform Gen5 Secure Uplift 2yr Support LTU	Q0P63A
Brocade Analytics Monitoring Platform Gen5 Secure Uplift 3yr Support LTU	Q0P64A
Brocade Analytics Monitoring Platform Gen5 Secure Uplift 4yr Support LTU	Q0P65A
Brocade Analytics Monitoring Platform Gen5 Secure Uplift 5yr Support LTU	Q0P66A

Description	Part Number
Brocade BR-6510 Switch Services
Brocade Essential BR-6510-24/BR-6510-48-port 4h Onsite Support	R0K56A
Brocade Essential BR-6510-24/BR-6510-48-port 4h Parts Only Support	R0K57A
Brocade Essential BR-6510-24/BR-6510-48-port NBD Onsite Support	R0K58A
Brocade Essential BR-6510-24/BR-6510-48-port NBD Parts Only Support	R0K59A
Brocade Essential BR-6510-24/BR-6510-48-port Return to Factory Support	R0K60A
Brocade Premier BR-6510-24/BR-6510-48-port 4h Onsite Support	R0K61A
Brocade Essential BR-6510-24/BR-6510-48-port 4h Parts Only Support	R0K62A
Brocade Essential BR-6510-24/BR-6510-48-port NBD Onsite Support	R0K63A
Brocade Premier BR-6510-24/BR-6510-48-port NBD Parts Only Support	R0K64A
Brocade Premier BR-6510-24/BR-6510-48-port Return to Factory Support	R0K65A
Brocade Secure BR-6510-24/BR-6510-48-port Uplift Support	R0K66A
Brocade Network Advisor Software
Brocade SAN Network Advisor Enterprise Software LTU	Q1M86A

The Brocade AMP is a fully integrated monitoring and analytics solution for Brocade Gen 5 (16 Gig) Fibre Channel fabrics. The product is a 2U, 24-port management, purpose-built appliance that runs Brocade's Fabric OS (FOS) to ensure tight interoperability with the SAN.

The Brocade product sits out of band and connects into a single port on any Brocade Gen 5 FC director or switch. The out-of-band connectivity enables the product to collect data from storage or host ports without impacting performance levels or compromising security. Through that port, the product can capture and analyze millions of traffic flows and give detailed performance metrics for storage and server connections within the SAN fabric. The switch fabric can also include non Gen5 Brocade switches.

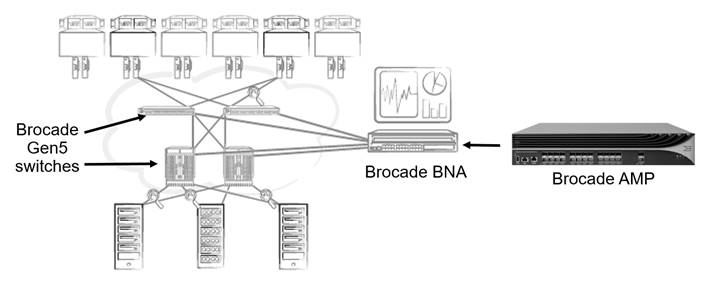

Figure 2. Brocade AMP Solution

The Brocade Analytics Monitoring Platform provides a non-intrusive connection that can make a virtual connection to any port in the fabric . The virtual taps are ASIC based and non disruptive. AMP automaticallylearns all IT/ITL flow conversations at each virtual tap-enabled Gen 5+ port and tracks metrics for each flow individually. It can track 20,000 flows concurrently, up to 5 million IOPS.

Key Features

The metrics captured are a mix of real-time and historical and include the following:

Read/write I/O latency and first response times (including both average and maximum values)
Read/write IOPS transfer rate
Other command latency stats (reserve, release)
I/O queue depth (pending IOs)
Protocol errorstats: Check conditions; I/O aborts; SCSI reserves, releases, reserve conflicts
Fabric latency

The ability to discover and deploy monitoring automatically to tens of thousands of initiator/target and initiator/target/LUN pairs in a fabric

Unmatched Monitoring

Delivers Application-level performance monitoring with zero downtime
SCSI command behavior and response time monitoring of any device without impacting distance or link integrity, unlike physical taps that cause light degradation
Normal device behavior learning by measuring time to first response, exchange completion time, read/write IOPS, and pending or outstanding I/Os to ensure predictable performance and flag unusual behavior or potential problems

Advanced troubleshooting

Analyze 20,000 data flows and millions of IOPS on a single system to optimize application performance
Track performance history and trends, enabling IT staff to proactively monitor individual IO violations and resolve issues, often before they occur
Provides customizable reports to correlate metrics and events and summarize trends for behavior analysis
On-demand, non-disruptive diagnostics of server, storage, and fabric devices to help quickly pinpoint problems
Integrated device-level and fabric behavior metrics to provide visibility into the entire environment and simplify
Granular threshold settings and automated alerts of unusual device behavior to enable early problem detection

Increased ROI

Provides flexibility and scalability, from a few application flows to tens of thousands of flows
Reduces the time to deploy advanced monitoring and analytics from days or weeks to minutes
Automates monitoring, alerting, and troubleshooting tasks to save administrators critical time
Scales out analytics for large environments without additional OpEx to maximize ROI
Integrates with existing Brocade Network Advisor, Fabric Vision technology, and Brocade Fabric OS, CLI tools to reduce the learning curve and save OpEx

Follow configuration Information based on product category: Hardware, BR-6510 Service, AMP Support or Brocade SW

The HPE Complete Brocade Hardware, configuration are as follows:

Step-1 Select needed Brocade HW.
Description	Part Number
Brocade XBR-DCX-0131 2GB USB Flash Drive	P9M45A
Brocade 4x32Gb QSFP 1-pack Transceiver Kit	Q9D50A
Brocade 4x32Gb QSFP CWDM 2km 1-pack Transceiver Kit	Q9D51A

The HPE Complete Brocade BR-6510 Service options are as follows:
Step-1 Select BR-6510 Service

Brocade Essential BR-6510-24/BR-6510-48-port 4h Onsite Support	R0K56A
NOTE: ESSENTIAL 4HR ONSITE SUPPORT, BR-6510-24 port, BR-6510-48 port.
Brocade Essential BR-6510-24/BR-6510-48-port 4h Parts Only Support	R0K57A
NOTE: ESSENTIAL 4HR PARTS ONLY SUPPORT, BR-6510-24 port, BR-6510-48 port.
Brocade Essential BR-6510-24/BR-6510-48-port NBD Onsite Support	R0K58A
NOTE: ESSENTIAL NBD ONSITE SUPPORT, BR-6510-24 port, BR-6510-48 port.
Brocade Essential BR-6510-24/BR-6510-48-port NBD Parts Only Support	R0K59A
NOTE: ESSENTIAL NBD PARTS ONLY SUPPORT, BR-6510-24 port, BR-6510-48 port.
Brocade Essential BR-6510-24/BR-6510-48-port Return to Factory Support	R0K60A
NOTE: ESSENTIAL RTN TO FACTORY SUPPORT, BR-6510-24 port, BR-6510-48 port.
Brocade Premier BR-6510-24/BR-6510-48-port 4h Onsite Support	R0K61A
NOTE: PREMIER 4HR ONSITE SUPPORT, BR-6510-24 port, BR-6510-48 port.
Brocade Essential BR-6510-24/BR-6510-48-port 4h Parts Only Support	R0K62A
NOTE: PREMIER 4HR PARTS ONLY SUPPORT, BR-6510-24 port, BR-6510-48 port.
Brocade Essential BR-6510-24/BR-6510-48-port NBD Onsite Support	R0K63A
NOTE: PREMIER NBD ONSITE SUPPORT, BR-6510-24 port, BR-6510-48 port.
Brocade Premier BR-6510-24/BR-6510-48-port NBD Parts Only Support	R0K64A
NOTE: PREMIER NBD PARTS ONLY SUPPORT, BR-6510-24 port, BR-6510-48 port.
Brocade Premier BR-6510-24/BR-6510-48-port Return to Factory Support	R0K65A
NOTE: PREMIER RTN TO FACTORY SUPPORT, BR-6510-24 port, BR-6510-48 port.
Brocade Secure BR-6510-24/BR-6510-48-port Uplift Support	R0K66A
NOTE: SECURE UPLIFT SUPPORT, BR-6510-24 port, BR-6510-48 port.

The HPE Complete Brocade AMP Support and Service options are as follows:
Step-1 Select Brocade AMP Service SKUs needed
Brocade Analytics Monitoring Platform Gen5 4hr Onsite 1yr Support LTU	P9T25A
NOTE: AMP for Gen 5 fabrics essential 4-hour Onsite Support for 1 year.
Brocade Analytics Monitoring Platform Gen5 4hr Onsite 2yr Support LTU	P9T26A
NOTE: AMP for Gen 5 fabrics essential 4-hour Onsite Support for 2 years.
Brocade Analytics Monitoring Platform Gen5 4hr Onsite 3yr Support LTU	P9T27A
NOTE: AMP for Gen 5 fabrics essential 4-hour Onsite Support for 3 years.

Description	Part Number
Brocade Analytics Monitoring Platform Gen5 4hr Onsite 4yr Support LTU	P9T28A
NOTE: AMP for Gen 5 fabrics essential 4-hour Onsite Support for 4 years.
Brocade Analytics Monitoring Platform Gen5 4hr Onsite 5yr Support LTU	P9T29A
NOTE: AMP for Gen 5 fabrics essential 4-hour Onsite Support for 5 years.
Brocade Analytics Monitoring Platform Gen5 4hr Parts Only 1yr Support LTU	P9T30A
NOTE: AMP for Gen 5 fabrics essential 4-hour Parts only Support for 1 year.
Brocade Analytics Monitoring Platform Gen5 4hr Parts Only 2yr Support LTU	P9T31A
NOTE: AMP for Gen 5 fabrics essential 4-hour Parts only Support for 2 years.
Brocade Analytics Monitoring Platform Gen5 4hr Parts Only 3yr Support LTU	P9T32A
NOTE: AMP for Gen 5 fabrics essential 4-hour Parts only Support for 3 years.
Brocade Analytics Monitoring Platform Gen5 4hr Parts Only 4yr Support LTU	P9T33A
NOTE: AMP for Gen 5 fabrics essential 4-hour Parts only Support for 4 years.
Brocade Analytics Monitoring Platform Gen5 4hr Parts Only 5yr Support LTU	P9T34A
NOTE: AMP for Gen 5 fabrics essential 4-hour Parts only Support for 5 years.
Brocade Analytics Monitoring Platform Gen5 Next Day Parts Only 1yr Support LTU	P9T91A
NOTE: AMP for Gen 5 fabrics essential Next Day Parts only Support for 1 year.
Brocade Analytics Monitoring Platform Gen5 Next Day Parts Only 2yr Support LTU	P9T92A
NOTE: AMP for Gen 5 fabrics essential Next Day Parts only Support for 2 years.
Brocade Analytics Monitoring Platform Gen5 Next Day Parts Only 3yr Support LTU	P9T93A
NOTE: AMP for Gen 5 fabrics essential Next Day Parts only Support for 3 years.
Brocade Analytics Monitoring Platform Gen5 Next Day Parts Only 4yr Support LTU	P9T94A
NOTE: AMP for Gen 5 fabrics essential Next Day Parts only Support for 4 years.
Brocade Analytics Monitoring Platform Gen5 Next Day Parts Only 5yr Support LTU	P9T95A
NOTE: AMP for Gen 5 fabrics essential Next Day Parts only Support for 5 years.
Brocade Analytics Monitoring Platform Gen5 Next Day Onsite 1yr Support LTU	P9T96A
NOTE: AMP for Gen 5 fabrics essential Next Day Onsite Support for 1 year.
Brocade Analytics Monitoring Platform Gen5 Next Day Onsite 2yr Support LTU	P9T97A
NOTE: AMP for Gen 5 fabrics essential Next Day Onsite Support for 2 years.
Brocade Analytics Monitoring Platform Gen5 Next Day Onsite 3yr Support LTU	P9T98A
NOTE: AMP for Gen 5 fabrics essential Next Day Onsite Support for 3 years.
Brocade Analytics Monitoring Platform Gen5 Next Day Onsite 4yr Support LTU	P9T99A
NOTE: AMP for Gen 5 fabrics essential Next Day Onsite Support for 4 years.
Brocade Analytics Monitoring Platform Gen5 Next Day Onsite 5yr Support LTU	P9U00A
NOTE: AMP for Gen 5 fabrics essential Next Day Onsite Support for 5 years.
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Onsite 1yr Support LTU	Q0P32A
NOTE: AMP for Gen 5 fabrics Premier 4-hour Onsite Support for 1 year.
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Onsite 2yr Support LTU	Q0P33A
NOTE: AMP for Gen 5 fabrics Premier 4-hour Onsite Support for 2 years.
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Onsite 3yr Support LTU	Q0P34A
NOTE: AMP for Gen 5 fabrics Premier 4-hour Onsite Support for 3 years.

Description	Part Number
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Onsite 4yr Support LTU	Q0P35A
NOTE: AMP for Gen 5 fabrics Premier 4-hour Onsite Support for 4 years.
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Onsite 5yr Support LTU	Q0P36A
NOTE: AMP for Gen 5 fabrics Premier 4-hour Onsite Support for 5 years.
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Parts Only 1yr Support LTU	Q0P37A
NOTE: AMP for Gen 5 fabrics Premier 4-hour Parts only Support for 1 year.
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Parts Only 2yr Support LTU	Q0P38A
NOTE: AMP for Gen 5 fabrics Premier 4-hour Parts only Support for 2 years.
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Parts Only 3yr Support LTU	Q0P39A
NOTE: AMP for Gen 5 fabrics Premier 4-hour Parts only Support for 3 years.
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Parts Only 4yr Support LTU	Q0P40A
NOTE: AMP for Gen 5 fabrics Premier 4-hour Parts only Support for 4 years.
Brocade Analytics Monitoring Platform Gen5 Premier 4hr Parts Only 5yr Support LTU	Q0P41A
NOTE: AMP for Gen 5 fabrics Premier 4-hour Parts only Support for 5 years.
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Parts Only 1yr Support LTU	Q0P42A
NOTE: AMP for Gen 5 fabrics Premier Next Day Parts only Support for 1 year.
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Parts Only 2yr Support LTU	Q0P43A
NOTE: AMP for Gen 5 fabrics Premier Next Day Parts only Support for 2 years.
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Parts Only 3yr Support LTU	Q0P44A
NOTE: AMP for Gen 5 fabrics Premier Next Day Parts only Support for 3 years.
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Parts Only 4yr Support LTU	Q0P45A
NOTE: AMP for Gen 5 fabrics Premier Next Day Parts only Support for 4 years.
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Parts Only 5yr Support LTU	Q0P46A
NOTE: AMP for Gen 5 fabrics Premier Next Day Parts only Support for 5 years.
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Onsite 1yr Support LTU	Q0P47A
NOTE: AMP for Gen 5 fabrics Premier Next Day Onsite Support for 1 year.
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Onsite 2yr Support LTU	Q0P48A
NOTE: AMP for Gen 5 fabrics Premier Next Day Onsite Support for 2 years.
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Onsite 3yr Support LTU	Q0P49A
NOTE: AMP for Gen 5 fabrics Premier Next Day Onsite Support for 3 years.
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Onsite 4yr Support LTU	Q0P50A
NOTE: AMP for Gen 5 fabrics Premier Next Day Onsite Support for 4 years.
Brocade Analytics Monitoring Platform Gen5 Premier Next Day Onsite 5yr Support LTU	Q0P51A

NOTE: AMP for Gen 5 fabrics Premier Next Day Onsite Support for 5 years. NOTE: 4-hour response for onsite/ parts and labor is from the time Brocade has determined a replacement is required and confirmed dispatch with the customer. Same applies to "Next Day" support. Also, please NOTE that with the exception of some major metropolitan cities, most regions in EMEA and APJ do not have coverage for 4OS (4-hour onsite), 4P (4-hour parts) and NDO (Next Day Onsite) support. Customer should contact the regional Brocade support to confirm the Brocade services available for that region. The NDP (Next Day Parts) support is available in all regions. Premier Support is the highest level of support offered by Brocade. In addition to all the features included in Essential Support, Premier Support includes personalized, preferential, and proactive support feature. For more information, please refer Brocade Premier Support
Brocade Analytics Monitoring Platform Gen5 Premier Return to Factory 1yr Support LTU	Q0P52A
NOTE: AMP for Gen 5 fabrics Premier Return to Factory Support for 1 year.
Brocade Analytics Monitoring Platform Gen5 Premier Return to Factory 2yr Support LTU	Q0P53A
NOTE: AMP for Gen 5 fabrics Premier Return to Factory Support for 2 years.
Brocade Analytics Monitoring Platform Gen5 Premier Return to Factory 3yr Support LTU	Q0P54A
NOTE: AMP for Gen 5 fabrics Premier Return to Factory Support for 3 years.
Brocade Analytics Monitoring Platform Gen5 Premier Return to Factory 4yr Support LTU	Q0P55A
NOTE: AMP for Gen 5 fabrics Premier Return to Factory Support for 4 years.
Brocade Analytics Monitoring Platform Gen5 Premier Return to Factory 5yr Support LTU	Q0P56A
NOTE: AMP for Gen 5 fabrics Premier Return to Factory Support for 5 years.
Brocade Analytics Monitoring Platform Gen5 Return to Factory 1yr Support LTU	Q0P57A
NOTE: AMP for Gen 5 fabrics essential Return to Factory Support for 1 year.
Brocade Analytics Monitoring Platform Gen5 Return to Factory 2yr Support LTU	Q0P58A
NOTE: AMP for Gen 5 fabrics essential Return to Factory Support for 2 years.
Brocade Analytics Monitoring Platform Gen5 Return to Factory 3yr Support LTU	Q0P59A
NOTE: AMP for Gen 5 fabrics essential Return to Factory Support for 3 years.
Brocade Analytics Monitoring Platform Gen5 Return to Factory 4yr Support LTU	Q0P60A
NOTE: AMP for Gen 5 fabrics essential Return to Factory Support for 4 years.
Brocade Analytics Monitoring Platform Gen5 Return to Factory 5yr Support LTU	Q0P61A
NOTE: AMP for Gen 5 fabrics essential Return to Factory Support for 5 years. NOTE: Provides a five-business-day reshipment for parts replacement from the time Brocade has physically received the defective material and confirmed dispatch with customer. Customer is responsible for return shipping costs as well as items lost or damaged in transit. Delivery times may vary due to customs and regulations that are outside of Brocade control. RTF is available worldwide and includes 24×7 access to the TAC software updates, and online self-service tools.
Brocade Analytics Monitoring Platform Gen5 Secure Uplift 1yr Support LTU	Q0P62A
NOTE: AMP for Gen5 fabrics secure uplift support for 1 year.
Brocade Analytics Monitoring Platform Gen5 Secure Uplift 2yr Support LTU	Q0P63A
NOTE: AMP for Gen5 fabrics secure uplift support for 2 years.
Brocade Analytics Monitoring Platform Gen5 Secure Uplift 3yr Support LTU	Q0P64A
NOTE: AMP for Gen5 fabrics secure uplift support for 3 years.
Brocade Analytics Monitoring Platform Gen5 Secure Uplift 4yr Support LTU	Q0P65A
NOTE: AMP for Gen5 fabrics secure uplift support for 4 years.
Brocade Analytics Monitoring Platform Gen5 Secure Uplift 5yr Support LTU	Q0P66A

NOTE: AMP for Gen5 fabrics secure uplift support for 5 years. NOTE: Secure uplift is an add-on service option that is mostly for federal business where there is classified information in the SAN environment and potentially stored on the device. When there is malfunctioning equipment that needs to be swapped out with a working replacement under the services and support plan, rather than the malfunctioning equipment being returned to Brocade as per the standard process, the customers can destroy that equipment in order to meet their secure data requirements.

Step-2 Optional: Validate Brocade environment for AMP Brocade AMP can only be connected to Gen 5 and above switches, and end devices to be monitored have to be attached to Gen 5 and above switches in the fabric. The switch fabric can also include non Gen5 Brocade switches. Any one of the following HPE B-series switches with Fabric Vision enabled are supported for the Brocade AMP,

HPE SN3000B 16Gb FC Switch 16Gb 24/24 FC Switch with 24 active ports; rackmount kit; accessory kit (enterprise safety and regulatory information, installation guide, rack-mounting instructions), power cord, serial cable, base software of Advanced Fabric OS, Advanced Web Tools, Brocade EZ Switch, Advanced Zoning and SAN Network Advisor Professional. HPE SN6000B 16Gb FC Switch Simplifies enterprise SAN deployment by combining higher edge switch port density with exceptional scalability, performance and reliability Delivers 24, 36, or 48-ports in a 1U enclosure Provides 4 Gb/s, 8 Gb/s, 10 Gb/s, 16 Gb/s* performance Employs optional Inter-Switch Link (ISL) Trunking to provide a high-speed data path between switches which enables a high speed data path between 16 Gb/s switches up to 128 Gb/s
Models
HPE SN6000B 16Gb 48-port/48-port Active Power Pack+ Fibre Channel Switch	QR481B
HPE SN6000B 16Gb 48-port/48-port Active Fibre Channel Switch	QR480B
HPE SN6000B 16Gb 48-port/24-port Active Fibre Channel Switch	QK753B
HPE StoreFabric SN6000B 16Gb 48/24 Bundled Fibre Channel Switch	C8R08A

HPE SN6500B 16Gb FC Switch Simplifies enterprise SAN deployment by combining higher edge switch port density with exceptional scalability, performance and reliability Delivers 48, 72, or 96-ports in a 2U enclosure Provides 4 Gb/s, 8 Gb/s, 16 Gb/s* performance Employs optional Inter-Switch Link (ISL) Trunking to provide a high-speed data path between switches which enables a high speed data path between 16 Gb/s switches up to 128 Gb/s
Models
HPE StoreFabric SN6500B 16Gb 96/96 FC Switch	C8R43A
HPE StoreFabric SN6500B 16Gb 96/48 Power Pack+ FC Switch	C8R44A
HPE StoreFabric SN6500B 16Gb 96/48 Port Side Air Intake Fibre Channel Switch	E7X98A

SN8000B SAN Director 4-slot or 8-slot

The SN8000B 8-Slot Director is a 14U chassis and supports 8Gb and 16Gb Fibre Channel blades for large enterprises to deliver maximum scalability and port density, performance, and functionality. The SN8000B 4-Slot Director is a 9U chassis and also supports 8Gb and 16Gb Fibre Channel blades for mid-size enterprises as the core of their SANs.

Brocade 16Gb SAN Switch for HPE BladeSystem c-Class

Gen 5 FC switch module for HPE BladeSystem

Fabric Vision

Fabric Vision offers innovative diagnostic, monitoring and management capabilities to help accelerate new application deployments, address SAN problems before they impact operations and reduce operational costs. It Includes

Monitoring and Alerting Policy Suite (MAPS): A policy-based monitoring tool with pre-built rules and automation that simplifies fabric-wide threshold configuration and monitoring.
Flow Vision: A comprehensive tool that enables administrators to identify, monitor, and analyze specific application data flows without using taps to ensure optimized performance
Health and performance dashboard: A single customizable screen displayed in HPE SAN Network Advisor that contains all critical SAN information for convenient review and analysis

Any switch directly connected to the AMP requires a Fabric Vision software

NOTE: Fabric Vision will be included by default in all HPE StoreFabric B-series Fibre Channel switches and Directors bundled with Power Pack+ (with FOS 7.2.x and later*). In all other cases, Fabric Vision can be enabled on HPE StoreFabric B-series Fibre Channel switches and Directors in any one of the following ways

Application of the Fabric Vision LTU (TC509A) (FOS 7.2.x and later*)
Application of the Power Pack+ LTU (T5521A) (FOS 7.2.x and later*)
Upgrading existing Switch/Director loaded with Power Pack+ to FOS 7.2.x or later*
Upgrading existing Switch/Director loaded with both Advanced Performance Monitor (APM) and Fabric Watch (FW) licenses to FOS 7.2.x or later* * See HPE Spock for Hewlett Packard Enterprise supported versions of FOS 7.2.x

Brocade Network Advisor Software

SAN Network Advisor Professional

HPE SAN Network Advisor Professional is a server based management application available at no charge that comes with B-series SAN Switches and includes the following features:

Allows management of up to 2 SAN Fabric OS (FOS) fabric (up to a 300 B-Series switch ports)
Performs group switch management beyond the scope of Web Tools
Does not offer management for the DC SAN Backbone Director, the SN8000B Director, or FICON

It is targeted for SMB customers that use FOS based SAN fabrics and require a management solution for smaller SANs based on a single fabric.

SMB customers that initially start off with SAN Network Advisor Professional and have a small SAN environment may over time feel the need for an enterprise-class product (SAN Network Advisor Enterprise) as their environments start to grow in size and complexity, and as they start to uptake more enterprise-class functionality (such as Fibre Channel Routing, FCIP, etc.). A non-disruptive upgrade path is available from SAN Network Advisor Professional to SAN Network Advisor Enterprise

NOTE: It is required for the management of AMP.

Brocade SAN Network Advisor Enterprise Software LTU (Q1M86A)

SAN Network Advisor Enterprise provides complete B-series Directors Management including enterprise-class features/environments such as FICON, Fibre Channel Routing, FCIP, adaptive networking, etc. It delivers unprecedented scalability, up to 100 fabrics and 15,000 switch ports

NOTE: It is required for the management of AMP.

Service and Support

Service and Support for Brocade AMP product is provided directly by Brocade. For any support and generic queries please email to support@brocade.com . Brocade licensors service delivery organization will be responsible for responding with a call, assigning a severity level to the call, and determining the service Severity Level acceptable to Hewlett Packard Enterprise customer. The support request will be processed by Brocade in accordance with the Severity Level agreed upon.

Warranty

Hardware

For a period of thirteen (13) months from the Start Date, Brocade warrants that the Brocade-branded product hardware will be free from defects in materials and workmanship under normal use. End User's sole and exclusive remedy and the entire liability of Brocade and its suppliers under this limited warranty will be, at Brocade's option, repair or replacement of such product hardware within thirty (30) working days of its receipt of the failed hardware, if in advance of its receipt, such hardware received a Technical Support RMA number from Brocade. Further, the product hardware must be shipped, shipment pre-paid, to Brocade, and the RMA number must be clearly indicated on the shipping box and papers. Where applicable, for shipments to locations outside the US, Customer or Customer's assigned agent will act as Importer of Record for shipments of repaired/replacement units and will be responsible for payment of any import duties, taxes and fees. See other Warranty Limitations and Restrictions below.

Software

For a period of ninety (90) days from the Start Date, Brocade warrants (a) that the media on which the software is delivered will be free of defects in material and workmanship, and (b) the software will operate substantially as set forth in the applicable Brocade specifications when used in accordance with the terms of the Brocade software license. End User's exclusive remedy and the entire liability of Brocade and its suppliers under this limited warranty will be replacement of the software media. Except for the foregoing, the software is provided AS IS. This limited warranty extends only to the End User as the original licensee. See other Warranty Limitations and Restrictions below.

Restrictions

Brocade warranties as set forth herein ("Warranty") are contingent on proper use of the Brocade branded hardware and software ("Products") and do not apply if (a) the Products have been modified without the written approval of Brocade, (b) the Products' serial number label is removed, (c) the Product has been damaged or subjected to abnormal physical or electrical stress, abnormal environmental conditions, misuse, negligence, or accident, or (d) the Product is licensed for beta, evaluation, testing or demonstration purposes. In order to ensure proper operation of Brocade products, it is required that all Brocade systems utilize only Brocade supplied optical transceiver components. Brocade reserves the right to void warranty and service support offerings if optical transceiver components other than those supplied by Brocade are used in the operation of Brocade products. The terms of the Warranty are limited to the remedies as set forth in this Warranty. This warranty is provided in lieu of all other rights, conditions and warranties. Brocade makes no other express or implied warranty with respect to the software, hardware, products, documentation or brocade support, including, without limitation, any warranty of merchantability, fitness for a particular purpose and non-infringement of third party rights. Brocade does not warrant that any products will be error-free, or that any defects that may exist in its products can be corrected. In no event shall brocade be liable for cost of procurement of substitute goods, lost profits or any other special, indirect, consequential or incidental damages (including but not limited to lost data), however caused whether or not brocade has been advised of the possibility of such damages. Some jurisdictions do not allow limitation or exclusion of liability for consequential or incidental damages, so that limitation or exclusion may not apply.

Return Policy for Resellers

Stocking of HPE Complete Brocade products are not recommended. Please purchase accurate quantity required to fulfil the customer order.

Date	Version History	Action	Description of Change
03-Sep-2019	Version 7	Changed	Sections were updated, removed AMP and other EOL SKUs
06-May-2019	Version 6	Changed	Removed EOL SKUs from Overview and Configuration Information sections.
06-Aug-2018	Version 5	Added	Added Transceivers, support SKUs, and AMP image.
24-Feb-2017	Version 4	Changed	Cosmetic Change.
13-Feb-2017	Version 3	Changed	Added V2.0 Applaince SKUs.
02-Sept-2016	Version 2	Changed	Changes made to the entire document.
07-June-2016	Version 1	New	New QuickSpecs


Sign up for updates

© Copyright 2019 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation. Unix is a registered trademark of The Open Group.

c05082956 - 15611 - Worldwide - V7 - 03-September-2019

HPE Complete Brocade AMP Solution: технические характеристики и документация
