HPE 8Gb Simple SAN Connection Kit: технические характеристики и документация

HPE 8Gb Simple SAN Connection Kit

HPE simplifies SANs by combining 8 Gbps Fibre Channel performance with a complete and economical SAN management system. Your future is protected today with an infrastructure capable of supporting emerging technologies at today 4 Gbps prices.

The HPE 8Gb Simple SAN Connection portfolio makes installing your first SAN (or your hundredth) easy. An entire SAN may now be deployed in minutes. SAN novices and seasoned experts alike will appreciate the simplicity and power of the included SAN Connection Manager (SCM) software, working seamlessly with both HPE P6000/Enterprise Virtual Arrays (EVA) and HPE P2000/Modular Storage Arrays (MSA) to handle common cross-platform management and maintenance tasks quickly.

The 8Gb Simple SAN Connection Kit consists of an enterprise-class 8 Gbps switch, four 81Q HBAs, and SCM - along with all the cables, 8 Gbps SFPs and documentation you need for a complete SAN solution that installs in minutes.

The 8Gb Simple SAN Connection portfolio offers enterprise-class functionality and value.

New RoHS compliant HPE Multifunction Router

NOTE: Restriction of Hazardous Substances Directive or RoHS is a directive adopted by the European Union that restricts the use of certain hazardous materials in the manufacture of various types of electronic and electrical equipment. The ROHS compliant products with new part numbers listed in this document are functionally equivalent to the corresponding products with old part numbers and are fully interchangeable.

HPE 8Gb Simple SAN Connection Kit

Key Features and Benefits

• Today’s performance at yesterday's prices:
  • High performance at affordable pricing - The future is within your reach today with state-of-the-art 8 Gbps Fibre Channel technology offering the bandwidth today that you will need for support of emerging technologies. 8 Gbps speed extends the useful life of your purchase. Migrate at your own pace .Enterprise-class functionality - Powerful features such as Adaptive Trunking (optimizes fabric speed), drag-and-drop zoning, I/O StreamGuard™ (uninterrupted dataflow), automatic firmware notifications and downloads and non-disruptive upgrades give you the winning edge and help you get the most out of your SAN. Integrated end-to-end management - No need to master separate interfaces to control HPE switches, HBAs and storage. Configure and monitor them all from a convenient unified dashboard.
• Simplicity at its finest:
  • Ease of deployment - Setting up your first SAN is now fast, easy and fool-proof. Eliminate the risk of expensive configuration errors with point-and-click wizards. Ensure full optimization and "best practices" with minimal training and expertise.
  • Application-based wizards - Application-based wizard enables your SAN to be quickly and easily provisioned based on published best practices. Included is a Microsoft Exchange wizard sized for a variety of typical configurations as well as a custom template to create your own for fast deployment of other applications.
  • Aggressively priced bundle - Ordering and deploying your first SAN couldn't be any easier or a better value. The 8 Gb Simple SAN Connection Kit includes everything required for a 4-host SAN infrastructure, including 8 Gb HBAs, cables and SFPs--just add your choice of HPE storage.
• Built with the future in mind:
  • Scalability - Start with an 8-port switch and as your needs for FC port growth change, simply expand via four-port license keys up to 20 ports per chassis. Then link additional switches to create a larger high-performance enterprise SAN of any topology.
  • Investment protection - Although the 8Gb Simple SAN Connection portfolio delivers 8 Gbps performance capabilities and a cross-platform GUI, it is priced competitively with 4 Gbps switches. On a "Cost per throughput" basis, its aggregate platform bandwidth of 340 Gbps makes it the price/performance leader in the market.
  • Long term value - Whether your needs involve email/database scalability, server/storage consolidation or automated backup/disaster recovery, an HPE 8/20q Fibre Channel Switch can provide accelerated ROI for your company.
  • Interoperability with HPE B-series and C-series fabrics using new Transparent Routing (TR) feature enables low cost SAN expansion with simplification of management at remote sites
• Gain operationally efficiencies with unique SAN management software
  • Integrated end-to-end management-server to storage
  • Microsoft Exchange wizard eliminates user error
  • Drag-and-drop zoning
  • Adaptive Trunking
  • Includes IO StreamGuard
  • Enterprise Fabric Management Suite software (EFMS) for managing and monitoring larger SANs (optional)
• Interoperability
  • TR - Seamless operation: HPE B and C-series SANs
  • 8/20q and SN6000 via device port -> ISL

What's new

New RoHS HPE 8/20q Fibre Channel Switch

NOTE: Restriction of Hazardous Substances Directive or RoHS is a directive adopted by the European Union that restricts the use of certain hazardous materials in the manufacture of various types of electronic and electrical equipment. The ROHS compliant products with new part numbers listed in this document are functionally equivalent to the corresponding products with old part numbers and are fully interchangeable.

HPE 8Gb Simple SAN Connection Kit

Quantity

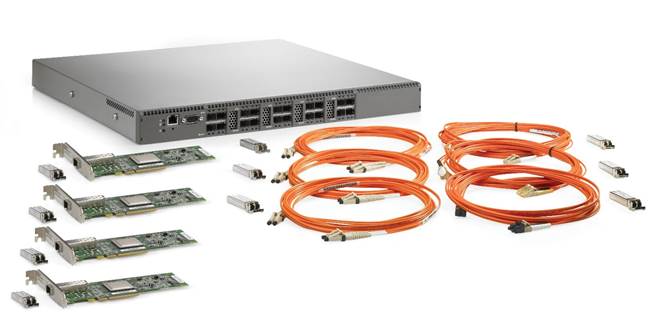

HPE 8Gb Simple SAN Connection Kit (contents)

Part Number

1*

HPE 8/20q Fibre Channel Switch (8 switch ports active)

AQ233B

4

HPE 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AK344A

6

HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

10

HPE 8Gb Short Wave Fibre Channel SFP+ 1 Pack

AJ718A

1

HPE SAN Connection Manager Software

*#0D1 may appear after this part number on your sales order when factory integration is indicated.

Configuration support

The 8/20q Fibre Channel Switch will interoperate with other HPE H-series Fibre Channel Switches running the firmware version defined in the SAN Design Guide: https://h20566.www2.hpe.com/hpsc/doc/public/display?docId=c00403562

High-availability features

• Hot-swappable 8 Gbps SFP+ optical transceivers
• Non-Disruptive Code Load and Activation (NDCLA)
• Non-Disruptive Port License Activation
• Two switches for redundancy

Security features

• User Security
  • User Accounts
  • RADIUS Authentication
• Connection security
  • SSH (CLI)
  • SSL (EFS and SMI-S)
• Device security
  • FC-SP DH-CHAP
  • FC-GS-4 CT Authentication

Manageability

• SAN Connection Manager (SCM) (included)
• QuickTools (Included)
• Command Line Interface (Included)
• Enterprise Fabric Management Suite (EFMS)
• HPE Systems Insight Manager
• SMI-S v1.1 provider
• GS-4 Management Server (including FDMI)
• SNMP
• FTP
• TFTP
• RADIUS

Scalability

• All topologies supported: cascade, ring, and mesh
• Up to six Inter-Switch links (ISLs) per switch
• Supports up to 30 switches in a fabric
• Adaptive trunking, intelligent path selection
• The 8/20q Fibre Channel Switch scales the maximum limits defined in the SAN Design Guide:

 https://h20566.www2.hpe.com/hpsc/doc/public/display?docId=c00403562

Cabinet Support

• 22U, 36U, and 42U; 5000, 9000, 10,000 series cabinets and Intelligent Series racks

Disk Array Support

• HPE P2000 G3 MSA
• HPE MSA2000fc and MSA2000fc G2
• HPE MSA1000 and MSA1500 (active/active failover only)
• HPE StoreVirtual 4000 Series with Fibre Channel connectivity
• P6000/EVA, P6300, P6500
• HPE EVA4400, EVA6400, EVA8400
• HPE EVA4100, EVA6100, EVA8100
• HPE EVA4000, EVA6000, EVA8000
• HPE P9000/XP, P9500, XP10000, XP20000, XP12000, XP24000
• HPE 3PAR, 7000 Series, F-Class , T-Class, V-Class (P10000)

NOTE: SAN Connection Manager software integration and array provisioning are available with P6000/EVA and P2000/MSA. All other supported storage devices provide hardware connect support to the switch/HBA. Refer to SPOCK

 (http://www.hpe.com/storage/spock) for the most recent interoperability support matrix

Server Support

• HPE ProLiant ML, DL series servers
• HPE Integrity servers
• HPE BladeSystem c-Class ProLiant server blades
• HPE BladeSystem c-Class Integrity server blades

H-series Solutions

The following Hewlett Packard Enterprise products combine with HPE H-series switches to provide unique, and comprehensive end-to-end solutions that are powerfully simple to manage.

• HPE BladeSystem c-Class chassis
• HPE Virtual Connect Fibre Channel module for the HPE BladeSystem c-Class enclosure
• HPE Virtual Connect Enterprise Manager (VCEM)
• HPE SAN Connection Manager (SCM)
• HPE Enterprise Virtual Array (P6000/EVA), or Modular Storage Array (P2000/MSA)
• HPE Command View EVA Software & HPE P6000 Command View Software
• HPE Continuous Access EVA Software
• HPE P6000 Continuous Access Software
• HPE FC HBAs for the HPE BladesySystem c-Class Enclosure
• HPE H-series Fibre Channel switches (SN6000 and 8/20q)
• HPE MPX200 Multifunction Router (H-series switches and FCIP gateway for remote replication)

Operating System Support

• Microsoft® Windows® Server 2012 x64
• Microsoft Windows Server 2012 x64 Hyper-V
• Microsoft Windows Server 2008
• Microsoft Windows Server 2003 SP2 and R2
• Microsoft Windows Storage Server 2003
• VMware® ESX v3.5 U1 and v3.5 U2, 4.0
• Red Hat® Enterprise Linux® (RHEL) 4.5, 4.6, 5, 5.1, 5.2
• SUSE® Linux Enterprise Server (SLES) 9 SP3 and SP4, 10 SP1 and SP2
• HP-UX 11.23, 11.31

For support details, see the SAN Design Guide: https://h20566.www2.hpe.com/hpsc/doc/public/display?docId=c00403562

Enterprise Backup Support (EBS)

• MSL6000 with LTO4 drives
• MSL2024, MSL4048, and MSL8096 with LTO4 drives
• EML-e Series with LTO4 drives
• HPE 6000 Virtual Library System
• HPE 9000 Virtual Library System
• HPE 12000 Virtual Library System EVA Gateway

Software Components

HPE SAN Connection Manager (included)

Comprehensive SAN infrastructure lifecycle enterprise management software that includes configuration, management, and maintenance for switches, HBAs, and HPE P2000/MSA/P6000/EVA storage, HPE BladeSystem c-Class with HPE Virtual Connect and HPE Virtual Connect Enterprise Management software in a single wizard-based management GUI.

Features include:

• Topology views of discovered (servers, HPE BladeSystem c-Class, switches, HBAs, storage)
• Integration with HPE Virtual Connect and HPE Virtual Connect Enterprise Manager (VCEM) for end-to-end discovery of HPE BladeSystem c-Class and SAN infrastructure
• Drill-down device management
• HBA and storage zoning administration
• EVA and MSA storage configuration and provisioning
• Application-based MSA/EVA setup and provisioning wizard for Microsoft Exchange deployment s and template for custom applications
• Automatic switch/HBA software/firmware update notifications and downloads for convenient upgrades
• Automatic EVA firmware notifications
• HBA failover configuration
• Event logs for switch & HBAs
• Change tracking
• Easy to follow software documentation

SAN Connection Manager is supported on a management station running Microsoft Windows Server 2003 R2 SP2, Microsoft Windows Storage Server 2003 R2 SP2, Microsoft Windows Server 2008 SP2, Microsoft Windows Server 2008 R2.

System requirements:

• 2 GB memory
• 200 MB disk space
• 2.0 GHz processor
• CD ROM drive, Ethernet port
• JAVA™ Runtime Environment (JRE)
• Internet browser: Microsoft Internet Explorer, Netscape Navigator, or Mozilla Firefox

QuickTools (included)

On-board graphical user interface that resides on each switch allows administrators to access basic switch element management functionality using the switch's IP address.

Optional Software

HPE Enterprise Fabric Management Suite (EFMS)

HPE Enterprise Fabric Management Suite (EFMS) software is a set of simple, affordable and powerful fabric management tools for HPE H-series fabrics. A management interface provides performance and fabric monitoring as well as configuration tools for H-series fabrics. Users are licensed, per site, geographic location, or campus, to manage an unlimited number of switches and fabrics from a single, fully integrated application.

Enterprise Fabric Management Suite also provides maintenance, isolation and troubleshooting capabilities for SAN administrators who require advanced tools. Included with EFMS is a comprehensive set of real-time diagnostic tools for monitoring and troubleshooting Fibre Channel Fabrics. Determine if a device is responding, trace the path in the fabric, as well as monitor the health of SFP and XPAK transceivers. Reference URL: http://www.hpe.com/go/EFMS

• Performance Monitoring provides easy-to-configure/easy-to-use graphs for monitoring the performance of your Fibre Channel SAN. Troubleshoot fabric problems and identify performance bottlenecks before they become an issue. Historical performance data can be exported to spreadsheets or databases for analysis.
• Extended Credit Wizard steps the user through a simple and easy to use interface, allowing the user to quickly configure ports to support situations when long distance communication is required.
• Fabric Tracker allows the user to view two saved configurations and compare the differences. Periodically take a snap-shot of the fabric configuration to see what has changed from yesterday, a week ago, a month ago, or from the day of installation.
• Fabric Monitoring enables the user to configure thresholds and alarms per switch port to alert operations when unexpected error rates, traffic levels, or anomalies occur in the fabric. Enterprise Fabric Management Suite can be configured to send alerts, through SNMP for full integration into existing enterprise monitoring applications.
• Auto Filtering takes the time and labor out of finding useful switch and port statistics- health, operation, and environmental statistics are a mouse click away. Filter switch data using buttons that group data into logical sets. Quickly find critical switch information such as power, cooling, health and the associated IP network status.
• Fabric Zoning provides simple drag and drop zoning with fast and easy activation. Unmatched flexibility with support of multiple zoning types: Port WWN Zoning, Node WWN Zoning, FCID Zoning, Hard Zoning, Soft Zoning.
• Device Management is a mouse click away through the topology view. Configure IP network properties, upgrade firmware, view and modify switch properties easily. Setup and configuration of devices in the fabric is made simple and fast.
• Configuration and Zoning Wizards makes a switch that is already easy to configure and zone even easier. Prompts guide the user through screens to quickly configure and zone a switch.
• Switch and Fabric Event Monitoring along with Alerting provide the user with views of monitored events and alerts that can also be configured and sent to management applications through SNMP.
• mPort Technology provides users with the flexibility to decide which licensed ports are active (SN6000 or 8/20q with less than 20 enabled device ports). De-activate one to four of the high-speed stacking ports of the SN6000 and enable the equivalent number of device ports. The administrator decides which ports are active based on their fabric needs.
• Robust On-Line Help features provide step by step instructions through an embedded Help function.
• Fibre Channel Fabric Ping is an essential tool for troubleshooting fabric problems. FC Ping verifies that a functional path exists between two ports and provides round trip information. Administrators can determine which ports and devices are responding - allowing the administrator to quickly identify issues.
• Fibre Channel Trace Route provides insight about the fabric and assists with troubleshooting congestion. FC Trace Route traces the route through the Fibre Channel network and displays path information between a source and destination device in order to determine the path of communication between the two devices. Knowing this aids the administrator in making decisions about fabric performance and problem resolution. FC Ping used in conjunction with FC Trace Route gives the administrator a powerful tool to pinpoint fabric connectivity problems and diagnose performance issues.

Digital Diagnostics Monitoring provides SFP and XPAK transceiver data and health status that SAN administrators depend on. Increase uptime of the SAN by proactively monitoring the vitals of transceivers. Set policies and trigger alarms based on power, temperature, voltage and current of the transceiver. Predict potential failures or isolate existing problems in the fabric with this simple, yet powerful, tool.

Warranty

(1-1-1) Hardware Warranty - One-year on-site warranty, normal business hours, next business day response, installation not included.

Software Warranty - Hewlett Packard Enterprise warrants only that the software media will be free of physical defects for a period of ninety (90) days from delivery.

NOTE: During the warranty period Hewlett Packard Enterprise will provide standard business hours, standard business days telephone support for firmware and embedded non-saleable software.

HPE Pointnext operational Services

For increased uptime, productivity and ROI -HPE Pointnext operational packaged services for Storage

These days, you need to get the most out of your storage investment-you can't afford not to. When you buy HPE storage products and solutions, it's also a good time to think about what levels of service and support you may need. To help take the worry out of deploying, designing, maintaining, and managing your environment, we've designed a portfolio of service options that are as: flexible, reliable and scalable as your storage. Unlike storage-only vendors, we take a holistic approach to your entire environment, bridging storage, servers, blades, software, and network infrastructures with our HPE Pointnext operational packaged services for Storage.

Protect your business beyond the warranty

When it comes to robustness and reliability, standard warranties on today's computing equipment have matured just as the technologies have matured. Good news on some fronts-but also a source of potential problems and subsequent consequences that come from depending on standard warranties alone. Standard warranty protects against product defects and some causes of downtime- but not the business. By using a standard approach to warranty uplifts, such as HPE Pointnext operational Services, you can reduce downtime risks and be more certain of operational consistency for both mission-critical and standard business computing. Simply put, HPE Pointnext operational Services normalize the warranty of combined products - helping you proactively guard against unplanned downtime.

Extending warranties with HPE Pointnext operational Services

For cost-effective upgrading or extending your standard warranty, HPE Pointnext operational Services offer a suite of standard reactive hardware and software support services that are sold separately, or combined as with our Support Plus and Support Plus 24 services. The portfolio also provides a combination of proactive and reactive services, such as Proactive 24 Service and Critical Service. In addition, with HPE Proactive Select we offer an innovative approach to service delivery that gives you the flexibility to acquire the specific proactive services you need today, then add services as your needs evolve. HPE Proactive Select offers a broad set of technical or per-event type service options - including server, storage, and network, SAN device, and software, environment, installation and education services. Services that you can mix and match depending on your specific requirements, from preliminary planning and equipment delivery to installation, configuration, integration, and testing, through every level of ongoing support. Our HPE Pointnext operational packaged services for Storage assures help when you need it most. And for many products, post-warranty HPE Pointnext operational Services are available when your original warranty has expired.

HPE Storage Services: Offering reliability, flexibility and value-just like your storage

HPE Storage Services offers a full spectrum of customer care, from technology support to complex migrations to complete completely managed services. HPE Factory Express provides customization, integration and deployment services for turnkey solutions. HPE Education offers flexible, comprehensive training on storage networking, disk storage systems, and storage software to help your IT staff get the most out of your investments. And HPE Financial solutions extend innovative financing and asset management programs to cost-effective buy, manage and eventually retire your older equipment.

HPE Storage Services, the trusted business technology experts who manage your technology in action, because when technology works, business works. http://www.hpe.com/services/storage

NOTE: HPE Pointnext Services availability may vary by product and country.

HPE Pointnext operational Services are sold by HPE and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find HPE Pointnext operational Services at

https://www.hpe.com/us/en/services.html

Recommended Services

Recommended HPE Pointnext operational Services for optimal satisfaction with your HPE product.

HPE Foundation Care 24x7 Service

HPE Foundation Care 24x7 connects you to Hewlett Packard Enterprise 24 hours a day, seven days a week for assistance on resolving issues - hardware onsite response within four hours and software call back within two hours after opening your case. Three years' coverage recommended with HPE Pointnext operational Service.

HPE SAN Solution Service for SANs

For customers who are building a new SAN or expanding their existing one, we offer the HPE Enhanced Implementation Service for SANs. This provides complete design and implementation services for Fibre Channel, FCOE, FCIP, SAS and iSCSI SAN connectivity components. Covering all major SAN connectivity technologies including virtual as well as physical hosts, no competitor offers a more complete end to end SAN design and implementation service, ensuring comprehensive optimal SAN connectivity tailored to your specific environment.

• Ensures optimal SAN connectivity tailored to your specific environment.
• Allows your IT resources to stay focused on their core tasks and priorities
• Reduces implementation time, impact and risk to your storage environment
• Helps ensure a successful implementation for complex deployments by providing HPE project management

https://www.hpe.com/h20195/v2/getpdf.aspx/5981-8527en.pdf

HPE Assessment Services for SANs

The HPE Assessment Service for SANs offers customized technical and operational guidance to customers employing HPE storage subsystems and the interconnecting storage area network (SAN) infrastructure. In a typical engagement, Hewlett Packard Enterprise or one of our authorized business partners will perform a detailed discovery using the HPE proprietary toolset to gain an understanding of the configuration of your storage devices and SAN topology. The findings from this process will be compared to HPE best practices and industry standards as defined by IT Service Management (ITSM) disciplines. The results of the evaluation will be quickly and efficiently processed into information you can leverage. This information, in the form of a comprehensive HPE SAN Assessment report, will be summarized by HPE or one of our authorized business partners with recommendations that are intended to improve availability levels and ongoing management of your storage and SAN environment.

• Recommendations to optimize your customer's SAN based on comprehensive discovery information
• Decrease the potential for unplanned downtime and encourage higher productivity by exposing single points of failure and other potential SAN configuration issues
• Clear documentation allows for optimal SAN management, more efficient future SAN implementations and lower IT staff involvement
• Service requires no SAN downtime and is easily adapted as a periodic review to help keep SANs performing efficiently as business evolves

Optional Services

Optional HPE Pointnext operational Services that will enhance your HPE product experience.

3-Year HPE Proactive 24

As an alternative to our recommended support level, for customers who want improved SAN availability and access to a wide range of proactive and reactive services:

HPE Proactive 24 Service for SANs is an integrated hardware and software support service that combines proactive problem prevention with responsive 24x7 assistance for rapid problem resolution. A collaborative relationship with HPE Services strengthens your IT team and gives you direct access to our technical expertise as issues arise.

Improve IT staff skills, increase SAN productivity.Proactive 24 Service for SANs can help you:

• Enhance the skills and efficiency of your IT staff through knowledge transfer, shared best practices in storage management, and hands-on assistance
• Improve SAN availability through access to a wide range of proactive and reactive services
• Boost productivity through effective change management, configuration assistance, and performance optimization
• Increase the return on your SAN investment
• Enhance your overall operational effectiveness

Expert single-point-of-contact assistance 24x7

• An assigned HPE Services account manager is your primary contact for proactive services and access to the HPE diverse technical resources. Your account manager works closely with your IT staff to understand your goals, document the components of your infrastructure, recommend changes to improve performance and stability, and monitor ongoing operations through the HPE industry-leading remote monitoring and support tools.

eSupport

HPE eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal. The HPE support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include:

• Access to self-solve tools (including search technical knowledge base)
• Efficient logging and tracking of support cases
• Collaboration with other business and IT professionals
• Download of patches and drivers
• Access to diagnostic tools
• Proactive notification of relevant information

Access to certain features of the support portal requires an HPE service agreement. To access the support portal, visit https://www.hpe.com/us/en/support.html

Customer Technical Training

Consider education as an integral part of your strategy to get the best return on investment for your HPE storage solution. Hewlett Packard Enterprise offers a variety of training courses on storage software, networking, archiving and disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led courses at one of our 80 training centers worldwide to on-site training customized to your needs or online. https://www.hpe.com/us/en/storage.html

HPE Services Awards

HPE Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction. For a list of all our awards, please visit

https://www.hpe.com/us/en/support.html

Additional Services Information

For more information about HPE Pointnext operational Services for Storage, please visit:

https://www.hpe.com/us/en/support.html

Step 1 - Base Configuration (Select one):

HPE 8Gb Simple SAN Connection Kit

AK241B

NOTE: Additional optical transceivers listed below may be purchased separately.

Step 2 - Additional Kit Parts

Port Upgrades

HPE 8/20q 4-port Upgrade LTU

T5463A

Host Bus Adapter

HPE 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ764A

Transceivers (SFP+)

HPE 8Gb Short Wave Fibre Channel SFP+ 1 Pack

AJ718A

Fibre Channel cables

HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

Step 3: Choose additional options for Factory Integration from Additional Options section below

Transceiver (SFP+)

HPE 8Gb Long Wave 10km Fibre Channel SFP+ 1 Pack Transceiver

AW584A

Optical cables

HPE PremierFlex OM4 Fibre Optic cables

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

QK732A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

QK733A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

QK734A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

QK735A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

QK736A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

QK737A

HPE Premier Flex MPO/MPO Multi-mode OM4 12 fiber 10m Cable

QK729A

HPE Premier Flex MPO/MPO Multi-mode OM4 8 fiber 50m Cable

QK731A

PremierFlex OM3+ type cables

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

QK732A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

QK733A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

QK734A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

QK735A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

QK736A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

QK737A

OM3 LC-LC type cables

HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A

HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A

HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A

HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A

HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A

HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A

Fibre Channel Standards And Revisions

Physical Interface (FC-PI-3, FC-PI-4)

Line Services (FC-LS)

Framing & Signaling (FC-FS-3)

Generic Services (FC-GS-6)

Switch Fabric (FC-SW-5), except for enhanced zoning

Arbitrated Loop-2 Rev. 7.0 (FC-AL-2)

Fibre Channel Device Attach (FC-DA)

Fibre Channel Methodologies for Interconnects (FC-MI-2)

Tape Technical Report (FC-Tape)

Virtual Interface Architecture Mapping (FC-VI)

Fabric Element MIB Specification (RFC 2837)

Fibre Alliance MIB Specification (Version 4.0)

Security Protocols (FC-SP)

Fibre Channel ports

20 universal device ports

Scalability

Full fabric architecture:

Certified maximum

Refer to SAN Design Guide: https://h20566.www2.hpe.com/hpsc/doc/public/display?docId=c00403562

Interoperability

H-series fabric

• HPE 8/20q Fibre Channel Switch
• HPE SN6000 Stackable 8Gb Fibre Channel Switch

HPE B-series fabric¹ using Transparent Router feature

HPE C-series fabric¹ using Transparent Router feature

¹ Refer to the SPOCK data base for supported B-series and C-series switches: http://www.hpe.com/storage/spock

Performance

8 Gbit/sec line speed, full duplex

Switch core

Non-blocking

Form Factor

1U

Fabric latency

<0.2μ sec., cut-through routing

Maximum frame size

2148 bytes (2112 byte payload)

Classes of service

Class 2, Class 3, Class F (inter-switch frames) connectionless Fibre Channel protocol support

Port types

FL_Port, F_Port, and E_Port; G_Port, GL_port (auto-configuring)

Data traffic types

Fabric switches support unicast and broadcast

Media types

8 Gbps Small Form-Factor Pluggable Plus (SFP+) optical transceivers

Laser

Distance using short-wave 8 Gbps optical transceivers at 2 Gbps, 4 Gbps, and 8 Gbps connection speed:

8 Gbps:

OM4 fiber: 190 m

OM3 fiber: 150 m

OM2 fiber: 50 m

4 Gbps:

OM4 fiber: 400 m

OM3 fiber: 270 m

OM2 fiber: 150 m

2 Gbps:

OM3 fiber: 500 m

OM2 fiber: 300 m

Distance using short-wave 4 Gb optical transceivers at 2 Gb and 4 Gb connection speed:

4 Gbps:

OM3 fiber: 270 m

OM2 fiber: 150 m

2 Gbps:

OM3 fiber: 500 m

OM2 fiber: 300 m

Fabric services

Simple name server

Hardware based zoning

Registered State Change Notification (RSCN)

I/O StreamGuard

Multi-chassis in-order delivery

Automatic path selection

FDMI support

Options

8 Gbps SFP+ and 4 Gbps SFP optical transceivers, device port upgrade license (4-port increments), Enterprise Fabric Management Suite software

Supported software

SAN Connection Manager, QuickTools, Enterprise Fabric Management Suite (EFMS)

Management access

10/100 Ethernet Base T (RJ-45), serial port (RS-232 with DB9), in-band (Fibre Channel)

Diagnostics

Power-on self-test POST

Front-to-back airflow

RoHS compliant

Dimensions

Width

17 in (43.2 cm)

Height

1.7 in (4.32 cm)

Depth

18.75 in (47.6 cm)

Weight

14 lb (6.4 kg)

Environment

Temperature

Operating

32° to 113°F (0° to 45°C)

Non-operating

-40° to 158°F (-40° to 70°C)

Humidity

Operating

15% to 80% non-condensing at 104°F (40°C)

Non-operating

5% to 90% , non-condensing at 149°F (65°C)

Altitude

Operating

0 to 10,000 ft

Non-Operating

0 to 50,000 ft

Shock

Operating

4 G, 11 ms, 20 repetitions

Non-Operating

30 G, 13 ms, trapezoidal

Vibration

Operating

5-500-5Hz, random, 0.21 G, 10 minutes

Non-operating

5-500Hz, random, 2.09 G, 10 minutes

Power consumption

Supported power range

Operational

100 to 240VAC

Frequency

50 to 60Hz

Heat output

60 watts nominal

70 watts typical maximum

Emissions

FCC subpart B section 15 - Class A (United States)

ICES-003, Issue 4:2004 - Class A (Canada)

AS/NZS CISPR22 - Class A (Australia/New Zealand)

VCCI V-3/2006.04 - Class A (Japan)

CISPR/EN 55022:1998 + A1:2000 and A2:2003 - Class A (EU)

EN 61000-3-2: 2000 + A2: 2005

EN 61000-3-3: 1995 + A1: 2001

KN22 with RRL notice No. 2005-85 - Class A (Korea)

Safety

US: UL Listed, UL 60950-1

CANADA, CSA C22.2 No. 60950-1 - cUL Listed

Europe: EN60950-1

CB Scheme-IEC 60950-1

European Union CE

German GS Mark through UL/DEMKO

DEMKO

VCCI-A Russia: GOST R

HPE 81Q PCIe FC HBA Single Port

81Q

Number of channels

Single

Port Speed

8 Gbps

Slot type supported

PCI Express 2.0 to Fibre Channel

Environmental - Operating Temperature

32° to 131°F / (0° to 55°C)

Environmental - Storage Temperature

-20° to 158°F / (-40° to 70°C)

Environmental - Relative Humidity - Operating

10% to 90% non-condensing

Product Dimensions (HxW)

6.60 x 2.54 in / (167.64 x 64.4 mm)

Media

Multi-mode Optic (SFP+)

Connector

Short wave laser with LC type connector

PCIe Connector

PCIe x8

Max x4 lanes Gen2

Max x8 lanes Gen1

Auto-negotiation

8/4/2 Gbps

Brackets

Shipped with both ½ height and full-height brackets

Date

Version History

Action

Description of Change

31-Mar-2017

Version 5

Changed

Rebranding

Overview, Service and Support ,Technical Specifications sections were revised

09-May-2014

Version 4

Changed

Recommended Services was revised.

30-Sep-2013

Version 3

Changed

Optional Software was revised.

10-Jun-2013

Version 2

Added

OM4 cables were added.

22-Feb-2013

Version 1

Created

New QuickSpecs
