HPE 8/8 Base SAN Switch and 8/8 SAN Switch Family: технические характеристики и документация
В архивеOverview
|

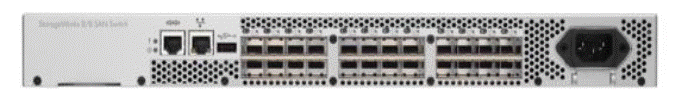

HPE 8/8 Base SAN Switch and 8/8 SAN Switch Family |
|
|
|
The 8/8 Base SAN Switch and 8/8 SAN Switch are targeted for small to medium sized enterprises and are ideal for entry-level SANs, and as an edge switch for core-to-edge SAN environments. The 8/8 Base SAN Switch and 8/8 SAN Switch provide SAN connectivity that simplifies IT management infrastructures, improves system performance, maximizes the value of virtual server deployments, and reduces overall storage costs.
The 8/8 SAN Switch integrates innovative hardware and software features that make it easy to deploy, manage, and integrate into a wide range of IT environments. The 8 Gbit/sec Fibre Channel 8/8 Base SAN Switch provides a simple, affordable, single-switch solution for a new, small SAN installation and connects to storage and servers only. An optional Full Fabric SAN scaling license provides connectivity to other switches. The 8/8 SAN Switch has 8 active ports and can be connected to multiple switches and scale to full fabric limits as defined in the SAN Design Guide. Both new 8 port switches provide growth options with Ports On Demand, the ability to activate additional ports in 8 port increments to a maximum of 24 ports. This provides the flexibility to start small and grow storage networks in a non-disruptive manner. In addition, organizations can choose to initially deploy 4 Gbit/sec SFPs and upgrade to 8 Gbit/sec SFP+ at a later date when necessary.
The 8/8 SAN Switch significantly increases performance and functionality for SANs at an entry-level price. The 8/8 SAN Switch provides auto-sensing 1, 2, 4, and 8 Gbit/sec full duplex performance to enable up to 128 Gbit/sec of uncongested throughput. Auto-sensing and speed-matching of data traffic provides interoperability with previous 1, 2, and 4 Gbit/sec devices. To provide more targeted performance, enhanced Inter-Switch Link (ISL) Trunking combines up to eight ISLs between a pair of switches into a single, logical high-speed trunk capable of up to 64 Gbit/sec of throughput. The evolutionary design provides these capabilities while consuming less than 2.5 watts of power per port for exceptional power and cooling efficiency.
An optional enhanced Power Pack+ software bundle can be purchased separately and includes Fabric Vision, Fabric Watch, ISL Trunking, Extended Fabric and Advanced Performance Monitor. The software bundle provides the SAN administrator with the necessary tools to proactively monitor the health and performance thresholds of the network, while also ensuring the highest levels of security, scalability and manageability. Power Pack+ software enables infrastructure management through a single-pane-of-glass. |
|
|
|
|
|
The 8 port 8 Gb/s 8/8 Base SAN Switch |
|
|
|
What's New | |
|
|
|
Notes: Restriction of Hazardous Substances Directive or RoHS is a directive adopted by the European Union that restricts the use of certain hazardous materials in the manufacture of various types of electronic and electrical equipment. The RoHS compliant products with new part numbers listed in this document are functionally equivalent to the corresponding products with old part numbers and are fully interchangeable. | |
|
| |
|
Models |
|
|
Description |
SKU |
|
HPE 8/8 SAN Switch Models |
|
|
HPE 8/8 and 8/24 SAN Switch 8-port Upgrade LTU |
T5518A |
|
HPE B-series 4/8 SAN Switch Full Fabric LTU |
T4261A |
|
HPE B-series Entry Switch Power Pack+ E-LTU |
T5521BAE |
|
|
|
Notes: Some HPE B-series software licenses are now available through the Electronic Delivery (E-Delivery) mechanism. The E-Delivery software licenses with new part numbers listed in this document are functionally equivalent to the corresponding physical licenses with different part numbers. Some software licenses in this document are represented by two part numbers, the first of which is the E-Delivery version (ending with AE) and the second is the physical version. | |
|
| |
Standard Features
|
Key Features and Benefits |
- 8Gb/s full duplex performance to enable up to 128 Gbit/s of uncongested throughput - Optional enhanced ISL Trunking combines up to eight ISLs between a pair of switches into a single, logical high-speed trunk capable of up to 64 Gbit/s of throughput
- Eight 8Gb/s ports expandable to 16 or 24 ports with the purchase of optional 8 port upgrade license - "pay as you grow" scalability from single-switch to full fabric connectivity
- Enables storage consolidation, simplified management of data center SAN environment
- Multi-vendor server and storage environment - Widest range of HPE SAN solutions - nteroperability with the more than 3.0 Million port HPE SAN Switch installed base
- Fabric Vision - Trunking - highest throughput between switches - Proactive threshold monitor (Fabric Watch) - Advanced Performance Monitor - Extended Fabric
- Mission critical SAN Services SAN-ES - Assessment and installation services for security
- The only SAN solutions providing the complete HPE SAN Switch functionality from Embedded to Enterprise. The HPE SAN Switch value line products allows the capability to apply the complete SAN Switch functionality to an affordable entry level SAN deployment and then to grow that deployment to the largest SAN fabric solutions supported by Hewlett Packard Enterprise. |
|
|
|
24 non-blocking ports Eight enabled ports with expandability to 16 or 24 ports; auto-sensing 2, 4, or 8 Gb universal, self-configuring ports (F, FL, E). Can be programmed to fixed 2 Gb, 4Gb, or 8Gb speed. |
|
|
|
Configuration support 8/8 SAN Switch will interoperate with 1Gb ,2Gb, 4Gb, 8Gb/s B-Series SAN Switches running the firmware version as defined in the SAN Design Guide. |
|
|
|
High-availability features Hot Code Load Activation |
|
|
|
Advanced Fabric Services
|
|
|
|
Manageability
|
|
|
|
Scalability
|
|
|
|
Cabinet Support HPE (22U, 36U and 42U) 10000 G2 Series, the Intelligent Series racks and HPE (14U, 22U, 36U, 42U, and 47U) 11000 G2 Series. Notes: To order factory integration, add 0D1 after the part number on your sales order. |
|
|
|
Software Components |
|
Frame Filtering An ASIC based capability in the 8Gb family of switches that enables new applications and features. The switch now has the ability to "view" the first 64 bytes of the Fibre Channel frame. At this time, Frame Filtering enables advanced capabilities such as Advanced Zoning and Advanced Performance Monitoring. |
|
Advanced Zoning WWN Zoning and Access Control are enforced by hardware that provides the same simple administration previously enforced only with software. Administrators can organize a physical fabric into logical groups and prevent unauthorized access by devices outside the Zone. |
|
Web Tools Enables organizations to monitor and manage single Fibre Channel switches and small SAN fabrics. Tasks can be performed through a Java-capable Web browser from a standard laptop, desktop PC or workstation from any location within the enterprise. |
|
EGM Enhanced Group Management (EGM) is a FOS license that is included with all B-Series switches and enables multi-switch operations. It helps automate operations across multiple switches to save time and streamline repetitive operations, which are typically prone to error. EGM drives consistency across fabrics, while minimizing the risk associated with potential downtime due to configuration mismatches. EGM provides streamlined troubleshooting for more effective fabric monitoring and diagnosis. Both SAN Network Advisor Professional and Enterprise enable EGM functionality. Customers have EGM functionality enabled within the hardware product and need only to make the decision around which management application is right for them - SAN Network Advisor Professional, Professional Plus, or Enterprise. |
|
Adaptive Networking Adaptive Networking (AN) is a family of technologies which allow flexible control of traffic movement within the fabric which deliver application aware management of fabric resources. Applications may be used with multiple protocols and multiple classes of service. It includes the following features:
Allows the ingress bandwidth of a port to be throttled to a rate lower than negotiated with the SAN node. This could be very useful for enterprises offering stepped levels of service and enforcing SLAs.
Enables zones with high, medium, and low priorities within a fabric on a zone by zone basis. This can be very useful for prioritizing array replication over MANs and WANs over less critical traffic.
Defines paths through a fabric for some or all nodes. Failover allows a non-preferred path to be used if the preferred fails. TIZs use failover by default but it can be disabled if traffic should stop if a preferred path fails. TIZ can be used to manually map out traffic flows within a fabric based on application, priority, and topology. |
|
Server Application Optimization Server Application Optimization (SAO) improves overall application performance for physical servers and virtual machines. SAO, when deployed with B-Series Fibre Channel HBAs, extends B-Series Adaptive Networking from the B-series SAN fabric to the server infrastructure. This delivers application-level, fine-grain Quality of Service (QoS) management to the HBAs and related server applications. |
|
|
|
Solution Requirements SAO requires B-series HBA installed in the server |
|
|
|
Software Components, Optional |
|
SAN Switch Power Pack+ Software Bundle Includes bundled license for:
Notes: Starting with FOS 7.4.0a, Fabric Watch and Advanced Performance Monitor are replaced by MAPS and Flow Vision respectively. Both are included in Fabric Vision. |
|
Fabric Vision Fabric Vision offers innovative diagnostic, monitoring and management capabilities to help accelerate new application deployments, address SAN problems before they impact operations and reduce operational costs. It Includes
Fabric Vision will be included by default in all HPE B-series Fibre Channel switches and Directors bundled with Power Pack+ (with FOS 7.2.0a and later). In all other cases, Fabric Vision can be enabled on HPE B-series Fibre Channel switches and Directors in any one of the following ways
|
|
ISL Trunking For high performance enhanced Trunking, this optional license logically groups up to eight E-ports to provide a high bandwidth trunk between two switches. Each 8 Gb switch needs its own license. The switch operating system views the trunk as a single, high bandwidth resource (up to 64 Gbit/s) when routing connections between switches. Connections are load-balanced across the individual links, which comprise the logical trunk group. |
|
Advanced Performance Monitoring This enabling technology helps administrators monitor and watch specific fabric metrics -- from a SID (Source ID) to a DID (Destination ID) -- so they can fine-tune and scale the fabric more efficiently. Plus, Advanced Performance Monitoring includes the ability for early warning detection of hot spots within the fabric, a powerful tool for maintaining overall balanced performance. Notes: Advanced Performance Monitoring has been obsoleted in FOS 7.4.0 and later. Users can utilize the Fabric Vision licensed Flow Vision features for performance monitoring. |
|
Fabric Watch Fabric Watch enables each switch to monitor the SAN for potential faults-and automatically alert network managers to problems before they become failures. Fabric Watch tracks a variety of SAN fabric elements, events, and counters. Monitoring fabric-wide events, ports, SFPs, and environmental parameters permits early fault detection and isolation as well as performance measurement. Each switch in the SAN needs its own Fabric Watch license. Notes: Fabric Watch has been obsoleted in FOS 7.4.0 and later. Users can migrate their Fabric Watch settings to the Fabric Vison licensed Monitoring and Performance Suite (MAPS) prior to upgrading. |
|
Extended Fabric Extends all of the scalability, reliability, and performance benefits of Fibre Channel Storage Area Networks (SANs) beyond the native 10 km distance specified by the Fibre Channel standard. |
|
SAN Network Advisor Professional HPE SAN Network Advisor Professional is a management application available at no-charge and comes with B-series SAN Switches and:
It is targeted for SMB customers that use FOS based SAN fabrics and require a management solution for smaller SANs based on fabrics. SMB customers that initially start off with SAN Network Advisor Professional and have a small SAN environment may over time feel the need for an enterprise-class product (SAN Network Advisor Professional+ or SAN Network Advisor Enterprise) as their environments start to grow in size and complexity, and as they start to uptake more enterprise-class functionality (such as Fibre Channel Routing, FCIP, etc.). A non-disruptive upgrade path is available from SAN Network Advisor Professional to SAN Network Advisor Professional+ or SAN Network Advisor Enterprise. |
|
SAN Network Advisor Enterprise and Professional+ HPE SAN Network Advisor Enterprise and Professional+ are the enterprise-class products that support FOS products as well as FOS and M-EOS products together. SAN Network Advisor Enterprise provides complete SN8000B 8-Slot Director and DC SAN Backbone Director management including enterprise-class features/environments such as FICON, Fibre Channel Routing, FCIP, adaptive networking, etc while HPE SAN Network Advisor Professional+ provides the same feature set except for support for the SN8000B 8-Slot Director, DC SAN Backbone Director, and FICON.
HPE SAN Network Advisor Enterprise delivers unprecedented scalability, up to 100 fabrics and 15,000 switch ports, while HPE SAN Network Advisor Professional+ scales to 36 SAN Fabrics and 2560 switch ports. To accommodate growth, there is an upgrade available to SAN Network Advisor Enterprise from SAN Network Advisor Professional Plus.
Both offerings provide brand-new features including Adaptive Networking features for quality of service, ingress rate limiting and traffic isolation zones. |
|
Full Fabric License for 8/8 SAN Switch Provides connectivity from zero e-ports to full fabric scaling. Please see the following web site for further information on supported configurations and SAN scalability: https://h20566.www2.hpe.com/hpsc/doc/public/display?docId=c00403562 |
|
HPE 8/8 8 port upgrade license Optional 8 port increments on demand licenses for additional connectivity. Enables the 8, 16, and 24 universal (E, F and FL) port progression to scale up. |
|
|
|
HPE Smart SAN for 3PAR HPE Smart SAN, optional software for HPE 3PAR, makes end-to-end SAN configuration and management simple and reduces the probability of errors through automation. It is an application embedded in SAN components (array, hosts and switches) that enables 3PAR arrays to orchestrate configuration, settings and policies across the SAN. Smart SAN is only supported with B-series Switches, HPE Fibre Channel Adapters (HBAs) and 3PAR storage. HPE Smart SAN for 3PAR through its Target Driven Peer Zoning (TDPZ) feature enables customers to automate peer zoning, resulting in the creation of fewer zones and enables configuration of zones in minutes and not in hours. Through automation, it reduces the probability of errors and potential downtime. Additional information can be found here: http://www.hpe.com/storage/3par Notes: - Supports B-series Brocade 16/8Gb FC switches with FOS 7.4.0a or later. - A list of supported HPE FC Adapters can be found at http://www.hpe.com/storage/spock - Supports 3PAR StoreServ storage with 3.2.2 or later with only 16Gb target ports on HPE 3PAR StoreServ storage. |
|
|
Services and Support
|
Warranty (1-1-1) Hardware Warranty - One-year on-site warranty, normal business hours, next business day response, installation not included. Notes: The hardware warranty covers firmware and embedded non-saleable software. Saleable software carries its own warranty, see below. Software Warranty - Hewlett Packard Enterprise warrants only that the software media will be free of physical defects for a period of ninety (90) days from delivery. EXCLUSIVE REMEDY. The entire liability of Hewlett Packard Enterprise and its suppliers and your exclusive remedy for software that does not conform to this Limited Warranty shall be the repair or replacement of the defective media. This warranty and remedy are subject to your returning the defective media during the warranty period to Hewlett Packard Enterprise in the country in which you obtained the software. |
|
|
|
|
|
For bundled Software Support Your HPE storage product includes comprehensive support and software updates to enhance the performance and availability of your software. Experienced Response Center engineers provide trustworthy advice on issues such as software features and use, problem diagnosis and resolution, and software defect identification.
Software support benefits include
|
|
|
|
|
|
HPE Services No matter where you are in your transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
| |
|
Consulting services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting
| |
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
| |
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational
| |
|
| |
|
Recommended Services HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare
|
|
|
|
Other related services from HPE Services HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
|
https://www.hpe.com/services/lifecycle
|
|
|
|
HPE SAN Deployment Service Hewlett Packard Enterprise delivers complete design and implementation services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI SAN connectivity components. Learn more: https://www.hpe.com/psnow/doc/5981-8527enw?jumpid=in_lit-psnow-red
|
|
HPE Installation Service Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
Learn more: https://h20195.www2.hpe.com/v2/Getdocument.aspx?docname=5981-9356enw
|
|
HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training
|
|
Defective Media Retention An
option available with HPE Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.
|
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. How to purchase services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience. Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
https://support.hpe.com/hpesc/public/home/signin |
|
|
|
Consume IT on your terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information: http://www.hpe.com/services |
|
|
Configuration Information
|
Step 1 - Base Configuration | |
|
Select one: |
|
|
Description |
SKU |
|
HPE 8/8 and 8/24 SAN Switch 8-port Upgrade E-LTU |
T5518AAE |
|
|
|
HPE B-series 4/8 SAN Switch Full Fabric LTU |
T4261A |
|
License for 8/8 Base (0) e-port SAN Switch (AM866B, AM866C) to increase connectivity to Full Fabric connectivity |
|
|
Add Software |
|
|
For Fabric OS (FOS) minimum requirements, please refer to: http://www.hpe.com/storage/spock |
|
|
B-series 8-24 Port SAN Switch Power Pack+ Upgrade LTU |
|
|
HPE B-series Entry Switch Power Pack+ E-LTU |
T5521BAE |
|
|
|
Fabric Vision, Fabric Watch, ISL Trunking, Advanced Performance Monitoring and Extended Fabric |
|
|
Notes: Adaptive Networking and Server Application Optimization features are included by default in the switch firmware (FOS 7.2.0a or later) and do not require a separate license. | |
|
Optional Software |
|
|
HPE 8/16Gb Entry Switch Fabric Vision E-LTU |
TC509AAE |
|
|
|
HPE B-series Entry Switch ISL Trunking E-LTU |
T5527AAE |
|
|
|
Notes: - Some HPE B-series software licenses are now available through the Electronic Delivery (E-Delivery) mechanism. The E-Delivery software licenses with new part numbers listed in this document are functionally equivalent to the corresponding physical licenses with different part numbers. Some software licenses in this document are represented by two part numbers, the first of which is the E-Delivery version (ending with AAE) and the second is the physical version. - HPE SAN Network Advisor software will no longer be shipped as a DVD to customers. Instead, customers will be able to access and download the software from The HPE Product Download web site. - Universal Temporary Licenses (UTLs) are available for trial usage or to test select features before purchasing permanent licenses. These UTLs enable optional features on B-series Directors and Switches on a temporary basis for one-time usage. Additional information can be found at the following URL using your HPE Passport credentials: https://h20392.www2.hpe.com/portal/swdepot/displayProductInfo.do?productNumber=BROCADETRIAL | |
|
| |
|
Step 2 - Additional Options | |
|
Optical Transceivers |
|
|
Description |
SKU |
|
HPE B-series 8Gb Shortwave Fibre Channel 1 Pack SFP+ Transceiver |
AJ716B |
|
Distance- Maximum |
OM3 Cable |
PremierFlex Cable |
|
8Gb performance: |
150 meters |
150 meters |
|
4Gb performance: |
380 meters |
380 meters |
|
2Gb performance: |
500 meters |
500 meters |
|
HPE B-series 8Gb Long Wave 10km Fibre Channel 1 Pack SFP+ Transceiver |
AJ717A |
|
USB Device |
|
|
HPE B-series 4G USB Drive |
N9Y63A |
|
Optical Cables |
|
|
HPE PremierFlex OM4+ Fiber Optic Cables |
|
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable |
QK732A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable |
QK733A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable |
QK734A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable |
QK735A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable |
QK736A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable |
QK737A |
|
OM3 LC-LC type cables |
|
|
HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable |
AJ833A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable |
AJ834A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable |
AJ835A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable |
AJ836A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable |
AJ837A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable |
AJ838A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable |
AJ839A |
|
Accessories |
|
|
HPE B-Series Switch Rack-Mount Kit |
A7511A |
|
Notes: When any of the switch models listed above is ordered, an accessory kit which contains the Rack Mount Kit is included in the package by default. A7511A is required only when the original accessory kit or Rack Mount Kit is unavailable. | |
|
| |
Technical Specifications
|
Family Information |
|
Features |
8/8 SAN Switch Base and 8/8 SAN Switch |
8/24 SAN Switch Base |
SN3000B 16Gb FC Switch |
SN3600B 32Gb FC Switch and SN3600B 32Gb FC Power Pack+ |
|
Targeted Environment |
Workgroups, Departments |
Workgroups, Departments |
Workgroups, Departments |
Workgroups, Departments |
|
Fibre Channel Port Bandwidth |
8Gbps |
8Gbps |
16Gbps |
32Gbps |
|
Aggregate device |
64-192 Gbps |
128-192 Gbps |
192-384 Gbps |
768 Gbps |
|
OS Support |
Notes: Please Refer to SPOCK https://www.hpe.com/storage/spock | |||
|
Storage system support |
3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | |||
|
FC Ports |
8 Enabled |
16 Enabled |
12 or 24 Enabled |
8 or 24 Enabled |
|
SFP |
B-series |
B-series |
B-series |
B-series |
|
Advanced |
Optional Upgrade |
Included with Power Pack+ or Optional Upgrade |
Included with Power Pack+ Upgrade |
Included with Power Pack+ or Optional Upgrade |
|
Adaptive Networking |
Included |
Included |
Included |
Included |
|
Form factor |
1U |
1U |
1U |
1U |
|
Zoning Software |
Yes (Included) |
Yes (Included) |
Yes (Included) |
Yes (Included) |
|
Hot plug, redundant |
No |
No |
Optional |
No |
|
Hot plug fans |
No |
No |
Yes (integrated with power supply) |
Yes (integrated with power supply) |
|
Features |
SN6000B 16 Gb FC Switch and SN6000B 16 Gb FC Power Pack+ |
SN6600B 32 Gb FC Switch and SN6600B 32 Gb FC Power Pack+ |
SN6600B 32 Gb Bundled (SFP+) FC Switch and SN6600B 32 Gb Power Pack+ Bundled (SFP+) FC Switch |
|
Targeted Environment |
Workgroups, Departments |
Workgroups, Departments |
Workgroups, Departments |
|
Fibre Channel Port Bandwidth |
16 Gbps |
32 Gbps |
32 Gbps |
|
Aggregate device |
384- 768 Gbps |
2 Tbps |
2 Tbps |
|
OS Support |
Notes: Please Refer to SPOCK https://www.hpe.com/storage/spock | ||
|
Storage system support |
3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | ||
|
FC Ports |
24 or 48 Enabled |
24 or 48 enabled 64 Max |
24 or 48 Enabled |
|
SFP |
B-series |
B-series (16 Gb or 32 Gb) |
B-series, 24 or 48 32 Gb SFP+ included in the box |
|
Advanced |
Included with Power Pack+ or Optional Upgrade |
Included with Power Pack+ or Optional Upgrade |
Included with Power Pack+ or Optional Upgrade |
|
Adaptive Networking |
Included |
Included |
Included |
|
Form factor |
1U |
1U |
1U |
|
Zoning Software |
Yes (Included) |
Yes (Included) |
Yes (Included) |
|
Hot plug, redundant |
Yes |
Yes |
Yes |
|
Hot plug fans |
Yes (integrated with power supply) |
Yes (integrated with power supply) |
Yes (integrated with power supply) |
|
Features |
SN6500B 16Gb FC Switch and SN6500B 16Gb FC Power Pack+ |
SN4000B Power Pack+ SAN Extension Switch |
1606 Extension SAN Switch |
|
Targeted Environment |
Workgroups, Departments |
Data Centers; long distance replication, multiprotocol SAN Fabrics |
Data Centers |
|
Fibre Channel Port Bandwidth |
16Gbps |
16Gbps |
8Gbps |
|
Ethernet |
N/A |
1/10/40 Gbps Ethernet |
1Gbps Ethernet |
|
Aggregate device |
768-1536 |
|
|
|
OS Support |
Notes: Please Refer to SPOCK https://www.hpe.com/storage/spock | ||
|
Storage system support |
3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | ||
|
FC Ports |
48 or 96 Enabled 96 Max |
24 FC Ports Enabled 24 Max |
4 or 16 Enabled |
|
Ethernet Ports |
N/A |
16 Enabled |
2 or 6 Enabled |
|
SFP |
B-series |
B-series |
B-series |
|
Advanced |
Included with Power Pack+ or Optional Upgrade |
Included |
Included with Power Pack+ or Optional Upgrade |
|
Adaptive Networking |
Included |
Included |
Included |
|
Form factor |
2U |
2U |
1U |
|
Zoning Software |
Yes (Included) |
Yes (Included) |
Yes (Included) |
|
Hot plug, redundant |
Yes |
Yes |
Yes |
|
Hot plug fans |
Yes |
Yes |
Yes |
|
Features |
SN8000B 8-Slot SAN Director Power Pack+ |
SN8600B 8-Slot SAN Director Power Pack+ |
|
Targeted Environment |
Cloud Optimized Data Centers |
Cloud Optimized Data Centers |
|
Port Bandwidth |
Up to 16Gbps |
Up to 32 Gbps |
|
Aggregate device |
10.2Tbps |
20.48 Tbps |
|
OS Support |
Notes: Please Refer to SPOCK https://www.hpe.com/storage/spock | |
|
Storage system support |
3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | |
|
Ports |
Up to 512 SFP |
512 32 Gbps ports or a 640-port equivalent with 128 Gbps (32 Gbps×4 QSFP ports) |
|
SFP |
B-series |
B-series |
|
Advanced |
Included with Power Pack |
Included with Power Pack |
|
Adaptive Networking |
Included |
Included |
|
Form factor |
14U |
14U |
|
Zoning Software |
Yes (included) |
Yes (included) |
|
Hot plug, redundant |
Yes |
Yes |
|
Hot plug fans |
Yes |
Yes |
|
Features |
SN8000B 4-Slot SAN Director and 4-Slot SAN Director Power Pack+ |
SN8600B 4-slot SAN Director Power Pack+ |
|
Targeted Environment |
Cloud Optimized Data Centers |
Cloud Optimized Data Centers |
|
Port Bandwidth |
Up to 16Gbps |
Up to 32Gbps |
|
Aggregate device |
5.1 Tbps |
10.24 Tbps |
|
OS Support |
Notes: Please Refer to SPOCK https://www.hpe.com/storage/spock | |
|
Storage system support |
3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | |
|
Ports |
Up to 256 SFP |
Up to 256 32 Gbps ports or a 320-port equivalent with 16 ICL ports. |
|
SFP |
B-series |
B-Series |
|
Advanced |
Included with Power Pack or Optional Upgrade |
Included with Power Pack |
|
Adaptive Networking |
Included |
Included |
|
Form factor |
9U |
9U |
|
Zoning Software |
Yes (included) |
Yes (Included) |
|
Hot plug, redundant |
Yes |
Yes |
|
Hot plug fans |
Yes |
Yes |
|
Features |
Brocade 16Gb SAN Switch for HPE c-Class BladeSystem |
Brocade 8Gb SAN Switch for HPE c-Class BladeSystem |
Brocade 16Gb Fibre Channel SAN Switch Module for HPE Synergy |
|
Targeted Environment |
Enterprise, Datacenters, Workgroups, Departments |
Workgroups, Departments |
Enterprise, Datacenters, Workgroups, Departments |
|
Port Bandwidth |
16Gbit/sec |
8Gbit/sec |
16 Gbit/sec |
|
Aggregate device bandwidth |
448 Gbit/sec (24 ports x 16Gb/s) |
192 Gbit/sec |
576 Gb/s (36 ports x 16 Gb/s) |
|
OS Support |
Notes: Please Refer to SAN Design Guide | ||
|
Storage system |
3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | ||
|
Ports |
12 external /16 internal |
4 or 8 external / 8 or 16 internal |
8 SFP+ external, 4 QSFP external /12 internal |
|
SFP |
B-series |
B-series |
B-series |
|
Advanced Trunking |
Included with Power Pack+ or Optional Upgrade |
Included with Power Pack+ or Optional Upgrade |
Included with Power Pack+ or Optional Upgrade |
|
Adaptive Networking |
Included |
Included |
Included |
|
Form factor |
Embedded |
Embedded |
Embedded |
|
Zoning Software |
Yes (Included) |
Yes (Included) |
Yes (Included) |
|
Hot plug, redundant power supplies |
Yes, in BladeSystem Enclosure |
Yes, in BladeSystem Enclosure |
Yes, in Synergy Frame |
|
Hot plug fans |
Yes, in BladeSystem Enclosure |
Yes, in BladeSystem Enclosure |
Yes, in Synergy Frame |
|
|
|
Fibre Channel Standards And Revisions
|
|
|
|
Interoperability
|
|
|
|
System Architecture |
|
Fibre Channel ports |
8 active with optional license to activate 24 universal ports | ||
|
Scalability |
0 E-port (8/8 Base) and scalable to Full fabric architecture with optional license: | ||
|
Certified maximum |
Refer to SAN Design Guide for current configuration information: | ||
|
Performance |
8 Gbit/sec line speed, full duplex | ||
|
Switch core |
Non-blocking | ||
|
Fabric latency |
700 nanoseconds with no contention, cut-through routing at 8 Gbit/sec | ||
|
Maximum frame size |
2112-byte payload | ||
|
Classes of service |
Class 2, Class 3, Class F (inter-switch frames) | ||
|
Port types |
FL_Port, F_Port, and E_Port; self-discovery based on switch type (U_Port) | ||
|
USB |
One USB port for system log file downloads or firmware upgrades | ||
|
Data traffic types |
Fabric switches supporting unicast, multicast (255 groups), and broadcast | ||
|
Media types |
B-Series Branded Small Form-Factor Pluggable (SFP) | ||
|
Laser |
Short-wave up to 1,640 ft (500 m); long-wave up to 18.6 mi (30 km) | ||
|
Fabric services |
Simple Name Server, Registered State Change Notification (RSCN), Alias Server (multicast); and Zoning, Web Tools, Enhanced group Management, Optional Fabric Watch, ISL Trunking, Adaptive Networking, Extended Fabric, Advanced Performance Monitor, and Server Application Optimization. | ||
|
Options |
SFP media, USB Device | ||
|
Supported software |
Telnet, RADIUS,SNMP, Web Tools, Enhanced Group Management, Advanced Zoning, Fabric Watch, Extended Fabric, Adaptive Networking, Advanced Performance Monitoring, ISL Trunking, Server Application Optimization, Fabric Manager, SAN Network Advisor | ||
|
Management access |
10/100 Ethernet (RJ-45), serial port | ||
|
Diagnostics |
POST and embedded online/offline diagnostics | ||
|
Back-to-front airflow, power inlet on port side |
1U | ||
|
Dimensions |
Width |
42.88 cm (16.88 inches) | |
|
Height |
4.29 cm (1.69 inches) | ||
|
Depth |
30.66 cm (12.07 inches) | ||
|
Weight |
9.3 lbs with single power supply, without SFP/SFP+ | ||
|
Environment |
Temperature |
Operating |
0° to 40° C |
|
Non-operating |
-25° to 70° C | ||
|
Humidity |
Operating |
10% to 85% (non-condensing) | |
|
Non-operating |
10% to 90% (non-condensing) | ||
|
Altitude |
Up to 9,800 ft (3,000 m) | ||
|
Shock |
20 G, 6 ms, half sine | ||
|
Vibration |
Operating |
.5 G sine, .4grms random 5-500Hz | |
|
Non-operating |
2 G sine, 5-500Hz | ||
|
Power |
AC Input |
100 to 240 VAC nominal | |
|
Supported power range |
Nominal |
48 Watts | |
|
Maximum |
57 Watts | ||
|
Frequency |
47 to 63 Hz | ||
|
| |||
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
13-Nov-2023 |
Version 34 |
Changed |
HPE Services Rebranding |
|
04-Oct-2021 |
Version 33 |
Changed |
Service and Support and Configuration Information sections were updated. |
|
02-Aug-2021 |
Version 32 |
Changed |
Service and Support and Configuration Information sections were updated. |
|
05-Oct-2020 |
Version 31 |
Changed |
Updated physical license |
|
03-Aug-2020 |
Version 30 |
Changed |
QuickSpecs layout was updated and Branding Refresh was applied |
|
06-Apr-2020 |
Version 29 |
Changed |
QuickSpecs layout was updated |
|
05-Nov-2018 |
Version 28 |
Changed |
Overview, Models, Service and Support, Standard Features, and, Configuration Information, sections were updated. SKU descriptions were updated. |
|
23-Oct-2017 |
Version 27 |
Changed |
Care Pack naming and Service and Support- Parts and Materials updated. |
|
07-Jun-2016 |
Version 26 |
Changed |
Updated SAN Network Advisor SKU/E-LTU and added SMART SAN details |
|
08-Apr-2016 |
Version 25 |
Changed |
Changed made to the Services Section |
|
16-Feb-2016 |
Version 24 |
Changed |
Content Updated on the entire document |
|
10-Jun-2014 |
Version 23 |
Changed |
Changes were made to the entire document |
|
28-Feb-2014 |
Version 22 |
Changed |
Updated the following: added to Step 2, Additional Options A7511A, HPE B-Series Switch Rack Mount Kit and NOTE |
|
09-Dec-2013 |
Version 21 |
Changed |
Model descriptions and product descriptions were revised throughout Configuration Information Removed: HPE 8/40 SAN Switch and 8/40 SAN Switch Power Pack+ was removed from Family Information |
|
15-Oct-2013 |
Version 20 |
Changed |
Fabric Vision was added to Product Highlights SN3000B and SN6500B Fibre Channel Switches were added to Interoperability 2408 FCoE CN Switch and 2408 FCoe CN Switch Power Pack+ was removed from Family Information chart |
|
30-Sep-2013 |
Version 19 |
Changed |
Optional Software was revised. |
|
22-Mar-2013 |
Version 18 |
Changed |
Configuration Information: Updated Optical Cables section. |
|
08-Mar-2013 |
Version 17 |
Changed |
Family Information: Updated Storage System support sections. |
|
15-Feb-2013 |
Version 16 |
Changed |
Changes were made to Family Information Sections. |
|
12-Oct-2012 |
Version 15 |
Changed |
Change made to URL in Service and Support, HPE Services operational and Warranty Information section. |
|
14-Sep-2012 |
Version 14 |
Changed |
Changes were made in Configuration Information section. |
|
13-Aug-2012 |
Version 13 |
Changed |
Changes were made in Overview, Models and Configuration Information sections. |
|
18-May-2012 |
Version 12 |
Changed |
Updated the following: Additional Options added AJ816B |
|
06-Apr-2012 |
Version 11 |
Changed |
Cabinet Support was revised. |
|
26-Sep-2011 |
Version 10 |
Changed |
Key Features and Benefits, Models, 24 non-blocking ports, Cabinet Support, Family Information, Optical Cables and Interoperability were revised. |
|
08-Jul-2011 |
Version 9 |
Changed |
Data Center Fabric Manager was changed to SAN Network Advisor and Optional Software was revised in Step 1. |
|
09-Jun-2011 |
Version 8 |
Removed |
Removed "StorageWorks" from the document. |
|
27-Sep-2010 |
Version 7 |
Added |
PremierFlex Cable was added Step 2. |
|
04-Dec-2009 |
Version 6 |
Added |
HPE 8Gb Long Wave B-Series 25km FC SFP+1 Pack was added to Step 2 of the Configuration Information section. |
|
Date |
Version History |
Action |
Description of Change |
|
14-Sep-2009 |
Version 5 |
Changed |
All mentions of Server Application Optimization and Data Center Fabric Manager Professional Plus (+) throughout the QuickSpecs and Encryption SAN Switch, 1606 Extension SAN Switch and 2408 PCoE Converged Network Switch to the Technical Specifications section. Completely revised Service and Support, HPE Services operational and Warranty Information and Family Information sections. |
|
26-Jan-2009 |
Version 4 |
Changed |
DC04 SAN Director and DC04 SAN Director Power Pack + to the Family Information chart. Completely revised Data Center Fabric Manager Enterprise in the Product Highlights section and Interoperability in the Technical Specifications section. |
|
17-Nov-2008 |
Version 3 |
Added |
Enhanced Group Management (EGM) and Data Center Fabric Manager throughout the QuickSpecs and HPE 8Gb Long Wave B-Series 10km FC SFP +1 Pack to Step 2 in the Configuration Information section |
|
Changed |
Optional Software in Step 1 of the Configuration Information section. | ||
|
25-Jul-2008 |
Version 2 |
Changed |
The charts in the Family Information section were completely rewritten. |
|
Removed |
1Gb Performance from HPE 8Gb Short Wave B-series FC SFP+ 1 Pack in Step 2 of the Configuration Information section. | ||
|
16-Jun-2008 |
Version 1 |
New |
New QuickSpecs |
Copyright
|
|
| |||||
|
|
|
© Copyright 2023 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
c04123371 - 13042 - Worldwide - V34 - 13-November-2023 |
