HPE 6Gb/s SAS BL Switch for BladeSystem

The HPE 6Gb/s SAS BL Switch for HPE BladeSystem c-Class enclosures is an integral part of HPE direct connect SAS storage, enabling a shared SAS storage solution. The SAS architecture combines a HPE Smart Array P711m, P712m (with cache module), P721m or P731m Controller in each server and 6Gb/s SAS BL switches connected to supported HPE storage enclosures for SAS storage. The 6 Gb/s SAS BL Switch contains an embedded Virtual SAS Manager (VSM) GUI & CLI interface used to zone, monitor, and update SAS fabric devices.

The 6 Gb/s SAS BL Switch enables two external SAS storage solutions for BladeSystem servers:

• Shared SAS: The 6 GB/s SAS BL Switch can be used to access shared SAS storage provided by the P2000 G3 SAS array system. A HPE Smart Array P711m, P712m (with cache module) , P721m or P731m Controller installed in each server acts as a pass-through, with RAID functionality for shared SAS storage provided by the P2000 G3 SAS array system. The P2000 G3 SAS array system creates a shared storage environment where more than one blade server can access a storage logical unit.
• Zoned Direct Attached Storage: Use the Virtual SAS Manager of the 6Gb SAS BL Switch to zone groups of drive bays in the MDS600, D2000 (D2600/D2700) or D3000 (D3600/D3700) and assign them to individual blade server bays. A HPE Smart Array P711m /P721m/P731m Controller installed in the server provides RAID functionality for the group of SAS and SATA drives that have been zoned to that server. The logical drives provided by the P711m /P721m/P731m Controller will appear as local drives to that individual server. The P711m/P721m/P731m offers load balancing and fail over anytime dual paths to dual-ported SAS drives are available when using two HPE 6Gb SAS BL Switches cabled to a MDS600 configured with the HPE MDS600 Dual I/O Module Option Kit or to a D2600/D2700 or D3600/D3700 or D6000 configured with dual IO module option kit.

For more information on 6Gb/s SAS storage solutions for HPE BladeSystem, see: http://www.hp.com/go/directconnect.

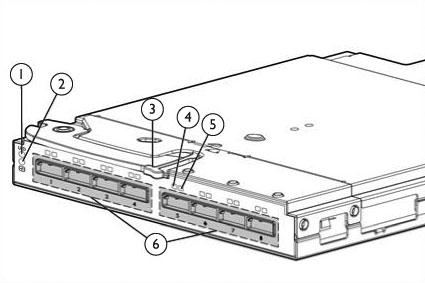

1.

Unit ID LED

• Solid Blue-Being identified.
• Blinking Blue-Firmware is being updated
• Off-Normal.

4.

Link LED

• Solid green-A link between switch and storage enclosure is established.
• Blinking green-There is activity on the established link.
• Off-There is no link between the server and storage.

2.

Health LED

• Solid Green-Healthy.
• Blinking Amber-There is a problem with the switch.
• Off-Not powered up.

5.

Fault LED

• Off-Normal.
• Solid Amber-There is a link error detected by the switch. Service either the Switch, SAS Cable, or attached Device.

3.

Release button for the ejector handle

6.

Mini-SAS ports containing 4x 6G SAS links (attach to external storage enclosures)

What's New

• Support for D3000 enclosures
• Support for MSA2040 SAS storage

At A Glance

• HPE Secure Encryption support when using a HPE Smart Array P731m Controller
• Hot Pluggable 6Gb/s SAS Switch for HPE BladeSystem
• Sixteen internal blade bay ports containing 2x 6Gb/s SAS links
• Eight external Mini-SAS ports containing 4x 6Gb/s SAS links
• Use Mini-SAS cables to connect to P2000 G3 SAS array system enclosures for shared SAS storage or MDS600 or D2000 enclosures for zoned direct attached SAS storage
• Dual Domain direct attached SAS architecture supported with MDS600, D2000 or D3000.
• Supported by c3000 and c7000 BladeSystem enclosures (see supported options list for specific SKUs)
• SAS fabric Topology View allows users to easily view their SAS fabric connectivity.
• View non-zoned hard drive information (capacity, RPM, link rate, etc.) while creating zone groups.
• Advanced tape support - port splitting allows up to 4 tape devices to attach to a single SAS switch port.
• SAS switch web interface allows the capture and deployment of configuration scripts.
• Full SNMP support for SAS switch and attached storage enclosures.
• Detailed diagnostic information provided for MDS600 field issues

For detailed deployment information, see the HPE direct connect external SAS storage for HPE BladeSystem external SAS storage deployment guide for 6Gb at: http://bizsupport1.austin.hp.com/bc/docs/support/SupportManual/c02775615/c02775615.pdf

Models

6Gb/s SAS Switch

HPE 6Gb SAS Switch Single Pack for HPE BladeSystem c-Class

BK763A

HPE 6Gb SAS Switch Dual Pack for HPE BladeSystem c-Class

BK764A

Configuration Rules:

6Gb/s SAS Switch:

• The SAS Switch is supported by all c3000 and selected c7000 BladeSystem enclosures (see the Related Items section for the list for specific SKUs). Installation of the 6 Gb/s SAS BL Switch in up to 6 interconnect bays in the c7000 and up to 2 interconnect bays in the c3000 is supported.
• (2) SAS Switches are required in the same c-Class enclosure interconnect bay row for redundancy. Single switch configurations are supported as non-redundant.
• NOTE: Cascading (“daisy-chaining”) multiple arrays from a single 6 GB/s SAS Switch port is not a supported configuration.

Use the embedded Virtual SAS Manager GUI or CLI interface to zone switch ports to server bays. Supported Internet browser versions: Microsoft Internet Explorer 6.0/7.0, Mozilla Firefox 3.

Related Items

P2000 G3 SAS

HP P2000 G3 SAS MSA Dual Controller LFF Array System

AW593B

HP P2000 G3 SAS MSA Dual Controller SFF Array System

AW594B

MDS600

HP MDS600 Dual I/O Module Option Kit

AP763A

D6000

HPE D6000 Dual I/O Module Disk Enclosure

QQ695A

D2000

HP D2600 Disk Enclosure

AJ940A

HPE D2700 Disk Enclosure

AJ941A

NOTE: For MDS600 6Gb host connectivity, P711m firmware 5.32 or higher, 6Gb BL SAS switch firmware 2.0.1.0 or higher and MDS600 firmware 3.44 are required.

NOTE: For D2600/D2700 support in Blade configuration, P711m firmware 5.32 or higher, 6Gb BL SAS switch firmware 2.0.1.0 or higher and D2600/D2700 firmware 1.34 or higher are required

D3000 Enclosures

HP D3600 Enclosure
HP D3700 Enclosure
NOTE: For D3600/D3700 support in Blade configuration, P721m firmware 5.32 or higher, 6Gb BL SAS switch firmware 2.0.1.0 or higher and D3600/D3700 firmware 1.34 or higher are required

QW968A
QW967A

Smart Array

HP Smart Array P712m/256 6Gb 2-ports Int/2-ports Ext Mezzanine SAS Controller

488348-B21

HPE Smart Array P711m/1G 6Gb FBWC 4-ports Ext Mezzanine SAS Controller

513778-B21

HP Smart Array P721m/2GB FBWC 6Gb 4-ports Ext Mezzanine SAS Controller

650072-B21

HP Smart Array P721m/512 FBWC 6Gb 4-ports Ext Mezzanine SAS Controller

655636-B21

HPE Smart Array P741m/2GB FBWC 12Gb 4-ports Ext Mezzanine SAS Controller

726782-B21

SAS cable

HPE External Mini SAS 2m Cable
NOTE:NOTE: Use this cable to connect HPE P2000 G3 SAS,MDS600, D2000

407339-B21

SAS cables for tape drives

HPE SAS Min-Min 1x-2M Cable Assembly Kit
NOTE:NOTE: Use this cable to connect HPE SAS external tape devices

AE470A

HPE SAS MIN-MIN 1X-4M Cable Assembly Kit
NOTE:NOTE: Use this cable to connect HPE SAS external tape devices

AE465A

HPE StoreEver 2m External Mini-SAS to 4x1 Mini-SAS Cable
NOTE: Use this cable to connect HPE MSL SAS Tape Libraries

AN975A

HPE StoreEver 4m External Mini-SAS to 4x1 Mini-SAS Cable
NOTE:NOTE: Use this cable to connect HPE MSL SAS Tape Libraries

AN976A

For more information on tape products, see: http://www.hp.com/go/tape

c -Class BladeSystem Enclosures

HP BLc7000 Enclosure with 1 Phase 2 Power Supply 4 Fan ROHS ICE License

507014-B21

HP BLc7000 Enclosure with 1 Phase 6 Power Supply 10 Fan FI ROHS ICE License

507015-B21

HP BLc7000 Enclosure with 3 Phase 6 Power Supply 10 Fan INTL ROHS ICE License

507016-B21

HP BLc7000 Enclosure with 3 Phase 6 Power Supply 10 Fan ENG ROHS ICE License

507017-B21

HPE BLc7000 Platinum Enclosure with 1 Phase 6 Power Supplies 10 Fans ROHS 16 Insight Control LTU

681842-B21

HPE BLc7000 Platinum Enclosure w/ 1 Phase 2 Power Supplies 4 Fans ROHS Trial Insight Control License

681840-B21

HPE BLc7000 Platinum Enclosure with 1 Phase 6 Pwr Supplies 10 Fans ROHS 16 OneView Licenses

763850-B21

HPE BLc3000 Platinum Enclosure with 4 AC Power Supplies 6 Fans ROHS 8 Insight Control Licenses

696908-B21

HPE BLc3000 Platinum Enclosure with 4 AC Power Supplies 6 Fans ROHS Trial Insight Control License

696909-B21

HP BLc3000 Enclosure with 4 AC Power Supplies 6 Fan Full ICE License

508664-B21

HP BLc3000 Enclosure with 4 AC Power Supplies 6 Fan Trial ICE License

508665-B21

HP BLc3000 Enclosure with 2 AC Power Supplies 4 Fan Trial ICE License

536841-B21

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements.

NOTE: Server Blade Interconnect Limited Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

HPE services provide total care and support expertise with committed response designed to meet your IT and business needs.

HPE Pointnext operational services

Scalable, Flexible, Dependable. Like your storage.
Your storage is evolving. Get scalable support that evolves with it. HPE Pointnext operational services is an easy-to-buy, easy-to-use portfolio of packaged services covering your lifecycle needs. You can rely on our highly skilled, HPE certified professionals to offer a breadth of expertise across leading storage technologies, and work side by side with you for optimal results. Push services beyond expectations and choose support that meets the changing needs of your business with the same reliability, scalability and flexibility you demand of your storage.

Protect your business beyond the warranty
Standard warranty protects against product defects and some causes of downtime. HPE Pointnext operational services helps you proactively guard against unplanned downtime which can reduce your productivity and profitability. By using a standard approach to warranty uplifts, such as HPE Pointnext operational services, customers can be more sure of consistency of operations for both mission-critical and standard business computing.

Extending warranties with HPE Pointnext operational services
The key to normalizing the warranty of combined solutions-is making service uplift simple: HPE Pointnext operational services. This portfolio of predefined packages, extending across the entire IT lifecycle, offering consulting, education, technical support, optimization, risk assessment, and more. It's entirely flexible allowing customers to extend the cover to the precise level of support required. Customer's standard hardware warranty, for example, can be upgraded to next-business-day response, to same-day coverage, or even to a committed six-hour call-to-repair service available 24 hours every day of the week.

• Provide consistent, predictable levels of support across your entire department or business
• Give you direct access to proven technical and problem-solving expertise
• Offer a choice of response-time and repair-time commitments
• Are available whenever and wherever you do business

For many products, post-warranty HPE Pointnext operational services are available when your original warranty has expired. Choose the support levels that meet your business requirements, from basic to mission-critical. http://www.hp.com/services/storage

NOTE: Care Pack Services availability may vary by product and country.

Recommended Services

Hewlett Packard Enterprise recommends Proactive Care for your BladeSystem servers, enclosures and components to prevent problems with proactive advice and assistance, resolve issues and rapidly recover by connecting to The Hewlett Packard Enterprise enhanced call experience and advanced technical expertise.

HPE Installation and Startup Service for HPE BladeSystem c-Class Infrastructure (OS + ICE)

HPE Installation and Startup Service for HPE BladeSystem c-Class Infrastructure (OS + ICE)

Related Services

Services that will enhance the user experience in many product deployments.

HPE SAN Solution Service

Get your SAN implementation right - right from the start.

Storage has become essential to the growth and agility of your business. That's why choosing an HPE SAN as your data management solution is a smart business decision. But your SAN can deliver the results you need only if it is implemented correctly and integrated with your business.

SAN installation, startup, and integration call for specialized expertise in planning and design, hardware configuration, network software installation, and operability verification. Your SAN needs to be configured for high performance and availability. And it needs to be integrated with your applications, management environment, and business processes.

HPE Data Migration Service

Minimize the risks involved in transferring data to your HPE Storage SAN.

You need to move your critical enterprise data to your new HPE Storage SAN platform. And you need to accomplish that without losing data. And without interrupting your ongoing business operations.

HPE Data Migration Service helps you lessen the risk of data loss, minimize threats to data integrity, and avoid productivity-sapping performance slowdowns during data transport. A highly experienced HPE Services storage specialist works with you to rapidly and securely migrate mission-critical business information across your data center or around the globe - regardless of the complexity of your environment.

HPE Proactive BladeSystem Service

HPE Proactive BladeSystem Service helps you improve the ongoing management and utilization of your HPE blade technology and tools in order to provide the reliability and the cost-effective performance your business expects. It covers HPE blade servers, storage, network and SAN devices, as well as the HPE blade management software suite included in the HPE blade enclosure. This proactive service leverages HPE's global delivery organization with its experienced technical experts who help IT organizations manage and maintain their IT infrastructures to be more cost-effective and change-ready.

eSupport

HPE eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal
The HPE support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include:

• Access to self-solve tools (including search technical knowledge base)
• Efficient logging and tracking of support cases
• Collaboration with other business and IT professionals
• Download of patches and drivers
• Access to diagnostic tools
• Proactive notification of relevant information

Access to certain features of the support portal requires an HPE service agreement. To access the support portal, visit: http://www.hp.com/support

Remote Support Technology (RST)-HPE Remote Support Pack
Taking a more proactive approach to IT support, the HPE Remote Support pack plug-in module easily integrates with HPE Systems Insight Manager to provide a powerful, unified "single pane of glass" solution for onsite and remote management.

HPE Remote Support Pack enhances HPE Systems Insight Manager with intelligent event diagnosis plus the automatic submission of hardware event notifications securely to HPE support, including acknowledgment and status returns. It adds remote configuration collections to allow the delivery of assessment and proactive services for your SAN storage and HP-UX environments.

Customer Technical Training

Consider education as an integral part of your strategy to get the best return on investment for your HPE storage solution. Hewlett Packard Enterprise offers a variety of training courses on storage software, networking, archiving and disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led courses at one of our 80 training centers worldwide to on-site training customized to your needs or online. http://www.hp.com/learn/storage

HPE Services Awards

HPE Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction. For a list of all our awards, please visit:
http://h20129.ww2.hp.com/services/cache/77318-0-0-225-121.html.

Additional Services Information

For more information about HPE Pointnext operational services for Storage, please visit: http://www.hp.com/hps/storage

If you have specific questions, contact your local HPE representative. Contact information for a representative in your area can be found at "Contact HPE" http://www.hp.com

General Specifications

Communications Processor

SSH, Telnet, HTTP, RS232 using OA CLI and SNMP

Data path

6Gb/s SAS x2 to Server Blade
6Gb/s SAS x4 to external storage enclosures

Dimensions (L xW)

Single-wide 1.1" tall, 7.584" wide, and 10.548" deep

Weight

5.2 lbs

Power and Environmental Specifications

Operating

Temperature

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305m (1.8°F per every 1000ft) above sea level to a maximum of 3050m (10,000ft), no direct sustained sunlight. Maximum rate of change is 10°C/Hr (18°F/Hr ). The upper limit may be limited by the type and number of options installed.

Humidity
(non-condensing)

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Power requirement

40Watts (Max), 3Watts (Min)

Emissions Classifications

Date

Version History

Action

Description of Change

23-Oct-2017

Version 16

Added

Care Pack naming and Service and Support- Parts and Materials updated.

17-Jun-2016

From Version 14 to 15

Changed

Updated configuration details and supported Smart Array Controllers

05-Dec-2014

From Version 13 to 14

Changed

Changes on the Solution Components Section;  Removed Obsolete SKUs

18-Apr-2014

From Version 12 to 13

Changed

Changes made in Service and Support section.

28-Feb-2014

From Version 11 to 12

Changed

Updated the following: Overview - added P731m Controller; At A Glance; Related Items - added MSA2040 SAS, C8S54A, C8S55A, C8S56A and C8S57A; Smart Array - added P731m, 698535-B21 and 698536-B21;

08-Nov-2013

From Version 10 to 11

Changed

Updated the following: Overview; What's New; Solution Components - related items - added MSA 2040 SKUs

10-Sep-2013

From Version 9 to 10

Changed

Product descriptions were revised.

29-Mar-2013

From Version 6 to 9

Changed

Overview: Updated What's New with: Support for HPE BladeSystem Platinum Enclosure

Solutions Components: Updated Configuration Rules and c -Class BladeSystem Enclosures sections.

28-Sep-2012

From Version 5 to 6

Changed

Changes were made in Overview, Solutions Components and Service and Support, HPE Care Pack and Warranty Information sections.

04-Nov-2011

From Version 4 to 5

Changed

Updated the following: What's New - firmware version

23-Sep-2011

From Version 3 to 4

Changed

Updated the following: Overview; What's new; At a Glance; Models; Configuration rules; Related Items; Service and Support; Technical Specifications - Communications Processor

09-Jun-2011

From Version 2 to 3

Removed

Removed "StorageWorks" throughout the document.

27-May-2011

From Version 1 to 2

Changed

Updated the following sections: minor typos corrected; at a Glance; Solution Components - configuration rules added RoHS note; Related Items replaced MSA2000sa with P2000 G3 SAS and updates controller names; Tape Drive list completely redone; c-Class Blade Enclosures - 4 SKUs added; service and warranty - new part numbers for the Installation and Startup Service for BladeSystems c-Class infrastructure.
