HPE StoreVirtual 3000 Family of Storage Systems

A next-gen, multi-controller architecture built for multi-dimensional scalability, the StoreVirtual 3000 Storage series is a cost-optimized platform built to address small to midsize business (SMB) challenges by providing:

• App acceleration on a budget: Start at $6k* and accelerate performance in multiple ways. Supercharge all workloads with a small amount of flash and Adaptive Optimization software. Increase performance by adding more drives or double performance with a second system.
• Management that's simple: Deploy in minutes with zero learning curve. Consumer-driven user experience with built-in best practices engine.
• Built-in resiliency: 5 9's availability when and where you need it. App-integrated, app-aware snapshots simplify disaster recovery. Synchronous replication between systems and sites lets you balance cost and resiliency.
• The ability to grow with your business: Start small and grow along multiple dimensions, adding performance, capacity, resiliency, and file protocol support as your needs change.

HPE StoreVirtual 3200 provides a virtualized pool of storage resources to deliver enterprise-level storage functionality that enhances virtual environments, simplifies management, and reduces costs. Easy to deploy, grow and maintain, HPE StoreVirtual 3200 ensures that critical business data remain available. The innovative approach to storage provides a unique data protection level across the entire system, reducing vulnerability without driving up costs the way traditional SANs can.

NOTE: *Estimated entry street price (US$) for 1.2TB configuration with hardware and software

HPE StoreVirtual 3200 Storage At a Glance:

• Support for the following front-end host connectivity:

- 1GbE iSCSI (4 or 8 RJ45 ports)

- 10GbE iSCSI (4 SFP+ ports)

- 10GBase-T iSCSI (4 RJ45 ports)

- 8/16Gb FC (4 SFP+ ports, speed determined by SFP+ module utilized)

• Multiple 12Gb SAS drive options:

- SFF/LFF SSDs

- 15K/10K RPM (SAS) SFF HDDs

- 7.2K¹ (MDL) RPM SFF HDDs

- 7.2K (MDL)¹ RPM LFF HDDs

• Rackmount 2U form factor
• StoreVirtual 3000 File Controller option to support file data
• Feature-rich StoreVirtual OS features including:

- Thin Provisioning and Space Reclamation

- Application Aware Snapshots

- Hardware RAID levels 5, 6, and 10

- Network RAID 0, 10 (selectable by volume)

• Simplified licensing strategy with one optional software suite:

- Advanced Data Services Suite featuring:

ú Adaptive Optimization

ú Remote Copy (Asynchronous Replication)

ú Multi-site stretch cluster (Synchronous Replication)

• Storage Controllers: Dual active/active controllers per system

- Single storage pool accessible by both controllers and managed centrally

• Hardware Availability features

- Hot-pluggable drives

- Hot spare drives

- Hot-pluggable and redundant power supplies and fan modules

- Cache backed by NVDIMM and battery backup

¹7.2K drives are commonly referred to as MDL or Midline drives

StoreVirtual 3200 SAN Storage

Number of systems per Storage Pool

2 (in scale-out⁶ configuration)

Number of controllers per system

2

Number of processors per controller

1x 6-core processor

Total system cache

16GB (8GB per controller)

Storage ports (1GbE iSCSI)

4 or 8 ports

RJ45 (no SFP+ required)

Storage ports (10GbE iSCSI)

4 ports

SFP+ (ordered separately)

Storage ports (10GBase-T)

4 ports

RJ45 (no SPF+ required)

Storage ports (8/16Gb FC)

4 ports

8/16Gb (speed determined by SFP+, ordered separately)

Enclosures

Expansion drive enclosures per array

Up to 6 (in scale-out⁶ configuration)

Expansion drive enclosures per system

Up to 3

LFF/SFF system/enclosure mixing

Supported

Maximum number of drives per system enclosure or drive enclosure

25 SFF / 12 LFF

Drive enclosure interface type

12Gb SAS3

Drives

Maximum total drives

200 SFF / 96 LFF (in scale-out⁶ configuration)

Maximum raw capacity

336TB (in scale-out⁶ configuration)

Maximum raw capacity per system

168TB⁵

Maximum SSDs per system

25

Drive RAID levels

5, 6, 10

Minimum number of drives per tier¹

4 (RAID 10), 6 (RAID 5), 12 (RAID 6)

Number of RAID devices per system¹
(logical groups of drives with a common RAID type applied)

1 to 32

Maximum number of hot spare drives per tier per enclosure

1

Maximum LUN size

128TiB

Supported Drive Capacities (all 12Gb SAS)

SFF SSDs (Mixed Used)⁴

400GB, 800GB, 1.6TB, 3.2TB

SFF SSDs (Write Intensive)⁴

200GB, 400GB, 800GB

LFF SSDs (Mixed Used)⁴

400GB, 800GB

LFF SSDs (Write Intensive)⁴

400GB, 800GB

SFF HDDs

15K RPM: 300GB, 600GB

10K RPM: 300GB, 600GB, 900GB, 1.2TB, 1.8TB
7.2K RPM (MDL): 2.0TB³

LFF HDDs³

7.2K RPM (MDL): 2TB, 4TB, 6TB, 8TB

Software Features

Thin Technologies

Thin Provisioning, Space Reclamation (T10 UNMAP)

Network RAID

0, 10 (selectable per volume)

Replication

Remote Copy² (Asynchronous Replication), Application Consistent Snapshots, SmartClone Technology, Multi-site stretch cluster with FOM² (Synchronous Replication)

Sub-LUN tiering

Auto-tiering via Adaptive Optimization²

Maximum tiers supported

2

Additional Features

Maximum number of volumes

1,024

Maximum number of snapshots

2,048

Maximum number of initiators

512

Maximum LUNs per host

127

Maximum queue depth per host port

128

Customer self-installable

Yes

Supported languages (locales)

English (United States), Simplified Chinese, Japanese, Korean,
 Spanish (Latin America)

Base hardware support

3/0/0 (Three-year next business day parts exchange)

Base software support

1 years Standard Phone Support and 30 day defective media

Additional support options

Available via Support Services

NOTE:

¹RAID devices must be configured in pairs of identical drive types and capacities.

²Features licensed through the purchase of the Advanced Data Services Suite.

³Either Drive RAID Level 6 or RAID Level 10 is supported with MDL-SAS 7.2K drives

⁴To make use of SSD drives customers must purchase Advanced Data Service Suites for each SV3200 system and enable AO

⁵Maximum supported raw capacity is 168TB per system irrespective of drive capacity.

⁶Scale-out functionality is currently supported only in iSCSI models (1GbE, 10GbE and 10GBase-T)

HPE StoreVirtual 3000 File Controller, At a Glance:

• With HPE StoreVirtual 3000 File Controller you get a low cost, powerful and simple way to provide file storage from HPE StoreVirtual 3200 Storage.
• The StoreVirtual 3000 File Controller saves you time and money by supporting hundreds to thousands of concurrent users and diverse file workload.  It also has non-intrusive data deduplication that provides an average 50-60% in space savings.
• It provides security through features such as built-in encryption, sophisticated access controls, online snapshots, and the ability to run endpoint protection and backup software onboard so that data is protected at rest and in flight.
• HPE StoreVirtual 3000 File Controllers can be clustered to provide transparent failover and online rolling maintenance updates that deliver continuous availability of data to users, servers, and applications.
• With a straightforward and consistent management experience, it also provides robust capabilities for demanding 24 x 7 file storage environments

Specification

Description

Network Ports

6 x 1GbE standard - 4 x 1GbE for client connectivity and 2 x 1GbE for SV3000 File controller system connectivity; 6 x 1GbE for client connectivity if optional 10GbE or 8/16Gb FC used for system connectivity

Protocols

SMB/CIFS, NFS, FTP, FTPS, HTTP, HTTPS, WebDAV

Processor/Cache Memory

Intel® Xeon® E5-2603v4 (1.7GHz/6-core/15MB/85W) Processor

Memory

8GB standard (1 x 8GB DDR4-2400 DIMM); up to 64GB maximum (8 x 8GB)

Expansion Slots

2 x Low Profile PCIe 3 slots, x16 and x8

Internal Storage

2 x SATA Mixed Use SFF Solid State Disks (configured as a RAID1 pair and used for pre-installed  WSS2016 Operating System)

System Connectivity

2 x 1GbE iSCSI standard; 10GbE iSCSI, 10GBase-T or 8/16Gb Fibre Channel optional

Power

2 x 750W AC 240VDC power supply, redundant

Cooling

5 hot plug fans, redundant

Software Features

Sub-file Deduplication, Snapshots (Volume Shadow Copy Service), Replication, File Classification Infrastructure, Storage Quotas, File Screening, Reporting

Form Factor

1U rack mount

Warranty

3/0/0 (Three-year next business day parts exchange), 1 year 9 x 5 software telephone support

StoreVirtual 3200 Software

Base Software Features

Application Consistent Snapshots

• The StoreVirtual 3200 allows for the creation of application consistent snapshots of VMware and Hyper-V VMs and of Microsoft VSS enabled applications.
• Application consistent snapshots create instant application consistent copies of data on a per-volume basis. Snapshots can be created in a variety of ways to meet business or application requirements. Administrators can create them manually ad-hoc, on a scheduled or scripted basis, or via the Microsoft VSS framework, and can then access these snapshots to recover individual files or folders from the volume, or rollback an entire volume. StoreVirtual 3200 snapshots are always thinly provisioned for efficiency, only consuming storage space on the system for the data written to the snapshot, eliminating any upfront space reservation or guesswork that could lead to snapshot and backup job failures.

Network RAID

• Network RAID 0 and 10 are supported on the StoreVirtual 3200. Network RAID 0 is enabled by default and maintains data availability to applications in the event of a drive or controller failure.
• StoreVirtual Network RAID stripes and protects multiple copies of data across a storage pool of storage systems, eliminating any single point of failure in HPE StoreVirtual system. Applications have continuous data availability in the event of a power, network, disk, controller, entire storage system or site failure
• Network RAID 10 offers an optional additional layer of data protection by mirroring the data in the storage pool. Administrators can manage redundancy on a per-volume basis to optimize storage utilization and match the data protection of the volume to the application data on that volume.

Thin Provisioning

• The StoreVirtual 3200 software manages all the storage allocations underneath a given volume, and the Thin Provisioning feature allocates space only as data is actually written to that volume. Thin Provisioning allows customers to purchase only the storage needed today and then add more storage as application data grows. This raises the overall utilization and efficiency of the system and ultimately increases the ROI associated with the storage.

Space Reclamation

• Unused virtual disk space can be reclaimed where files have been deleted from virtual disks by hosts. Files must be permanently deleted (on the host) to be considered as unused space. The unused space is returned to the storage pool.
• The StoreVirtual 3200 can reclaim space automatically when the T10 UNMAP feature is turned-on in VMware vSphere and Microsoft Windows environments.

REST API

• The REST API provides a rich programmatic interface for configuring, managing, and maintaining your StoreVirtual 3200 storage system. By using an industry standard protocol, customers can easily develop scripts or programs in their favorite language to automate common storage management tasks. For the StoreVirtual 3200, the capability of the REST API was significantly expanded to enable system configuration and health monitoring, management of all storage entities (including volumes, snapshots, and SmartClone volumes), and maintenance operations.

SmartClone Technology

• SmartClone technology allows customers to quickly and easily make multiple identical virtual copies (or "clones") of volumes without requiring additional storage space. The feature works by taking any volume or snapshot and making one or many clones in an instant. The cloning function makes a permanent, read/write volume on the system, pointing back to the original volume's blocks instead of duplicating the blocks. These space-efficient, thin-provisioned volume clones can be used to develop, test, and deploy new operating system versions and applications or implement a virtual desktop infrastructure, etc.

Optional Features

Remote Copy (included in the Advanced Data Services Suite)

• Remote Copy allows customers to replicate thin provisioned snapshots between primary and remote locations. Because remote copies are thin provisioned no space reservation at the remote location is required. Remote Copy is used for centralized backup and disaster recovery and can be set up on a per-volume basis. Remote copies placed on a recurring schedule allow customers to achieve point-in-time asynchronous replication of the data between locations, sites, or data centers.
• Integrated into the Remote Copy software is intelligent bandwidth management ensuring that the data traffic can be sent across shared WAN links without adversely impacting other network traffic. Administrators simply set the bandwidth limit for remote copies between the two sites and the StoreVirtual 3200 software holds that limit.
• Remote Copy leverages application consistent snapshots to enable VMware and Hyper-V VMs as well as Microsoft VSS applications to be replicated in a quiesced state, providing faster application recovery.

Adaptive Optimization (included in the Advanced Data Services Suite)

• The StoreVirtual 3200 Adaptive Optimization feature is an innovative technology that greatly increases the efficient use of faster storage devices (such as SSDs) by intelligently moving data between tiers of storage with different performance characteristics within a single storage system.
• Without the Advanced Data Services suites license, SSDs tiers will not be used until HDDs tiers fills completely. To enable Adaptive optimization, please purchase Advanced Data Suite license for each SV3200 system.
• Adaptive Optimization reduces planning complexity by utilizing innovative algorithms to pinpoint hot data at a highly granular level and re-provision data in real time while maintaining a balance between background IO operations and application IO requirements. The result is an effective solution that increases performance substantially without administrator intervention.
• Adaptive Optimization is configurable on a per volume basis, and requires no tuning or specialized configuration to implement.
• Performance benefits are available immediately, as the Adaptive Optimization engine constantly monitors the IO demands placed on the StoreVirtual 3200 system and reacts in near real-time. There is no need to wait for a scheduled operation to move data to the proper tier.
• Pages are migrated between tiers automatically such that I/O's are optimized in real-time

Multi-site Stretch Cluster⁷ (with FOM) (included in the Advanced Data Services Suite)

• The Multi-Site stretch cluster feature enables to mirror data synchronously between logical or physical sites automatically. Sites for a Multi-Site SAN can be geographically disparate, such as a primary data site and a back-up site in another building or on another campus. Sites can exist within the same building on different floors or in different labs on the same floor. Sites can be two different racks in the same server room or even two groups of storage systems in the same rack.
• A failover manager is required (FOM) to support for automatic failover/failback.

NOTE:

⁷Multi-site Stretch Cluster feature is supported only with iSCSI models (1GbE, 10GbE and 10GBase-T)

HPE Multi-pathing

• DSM for iSCSI: It can reduce latency and improve performance in Microsoft Windows environments. The DSM also optimizes data-path traffic in multi-site configurations. For StoreVirtual 3200 installations HPE recommends use of the native Windows DSM. When the DSM is installed, all load balancing is automatically managed by path selection plug-in.

HPE SV3200 Scalable Design

• Purchase only what you need today
  Avoid up-front cost and purchase only what is needed today, then grow the capacity of your StoreVirtual 3200 system online as storage requirements evolve. Buying storage capacity only when needed simplifies planning and relieves budget pressures.
• Scale-up options
  Up to three additional SFF and/or LFF drive enclosures may be added to a single SV3200 system to further increase capacity as needed. In 2-system scale-out¹ configuration, total six additional drive enclosures can be added.
• Scale-out⁶ options
  A management group may consist of up to two StoreVirtual 3200 systems and their respective drive enclosures, and create a bigger storage pool out of the two StoreVirtual 3200 systems together.
• Avoid disruptive upgrades
  Add capacity to the StoreVirtual 3200 non-disruptively as requirements increase. Applications remain online during maintenance events (adding drives, updating software or firmware) for best in class availability.

NOTE:

⁶Scale-out functionality feature is currently supported only with iSCSI models (1GbE, 10GbE and 10GBase-T)

Easy to manage SANs

• New Web-based User Interface
  The StoreVirtual 3200 is managed from an all-inclusive "single pane-of-glass" via a web-based user interface accessed directly from your browser for simple, easy-to-manage storage.
• Business continuity with integrated HA and DR
  Simplified management of high availability/fault tolerant and disaster recovery storage solutions.

HPE StoreVirtual 3000 File Controller

Base Software Features

The StoreVirtual 3000 File Controller is powered by Windows Storage Server 2016, Standard Edition with:

Sub-file Deduplication

• Deduplication uses variable size chunking and compression, which deliver optimization ratios of 2:1 for general file serving and up to 20:1 for virtualization data. Evaluate your deduplication savings with the included deduplication evaluation tool.

Snapshots (Volume Shadow Copy Service):

• Point-in-time copies (snapshots) of files and folders at predetermined time intervals that can then be accessed from client computers.

Replication

• Distributed File System Replication (DFS-R) enables efficient replication of folders across multiple servers and sites. Detects changes to the data in a file and replicates only the changed file blocks instead of the entire file.

File Classification Infrastructure

• Classify and apply polices to files. Some applicable policy examples are restricting access to files with sensitive data, encrypting file data and file expiration. Classification can be automated with rules or manually by modifying the properties of a selected file or folder.

Storage Quotas

• Quotas limit the storage space that is allowed for a volume or folder. Quotas can be set as hard or soft limits. Create quota templates that can be applied to new volumes or folders.

File Screening

• File screens can restrict certain file extensions such as MP3, AVI, etc., from being stored.

Reporting

• Reports identify trends in disk usage and how your data is classified. Also monitor attempts to access or save unauthorized files.

HPE StoreVirtual 3200 Storage Product Information

HPE StoreVirtual 3200 Storage

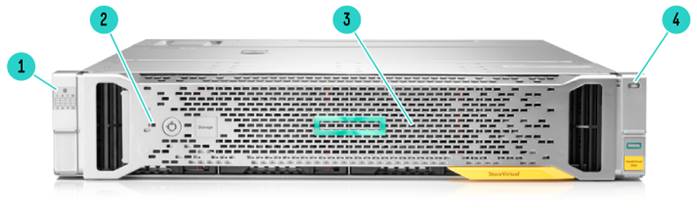

Front View

1. Drive placement diagram (LFF only)

2. Bezel lock

3. Removable bezel

4. Locator (UID) LED

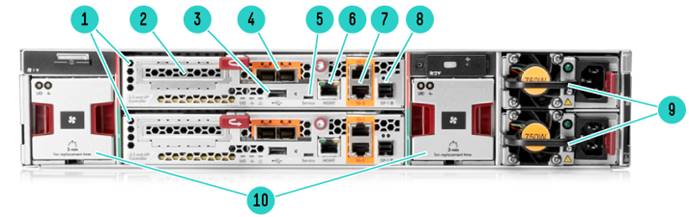

Rear View

1. Controller

2. Fibre Channel SFP+ ports (Fibre Channel systems only)

3. USB port

4. 10GbE iSCSI LOM (2 10GbE SFP+ ports, 2 10GBase-T RJ45 ports or 2 1GbE ports) (iSCSI systems only)

5. Micro USB Service port

6. Management (MGMT) port

7. 1GbE iSCSI RJ45 ports (active only on 8-port and 4-port 1GbE iSCSI systems)

8. External Drive Enclosure SAS ports

9. Hot-swappable power supply

10. Hot-swappable fan module

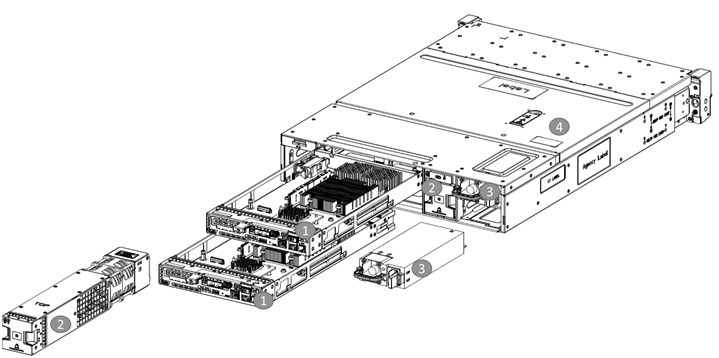

Exploded View

1. Controller

2. Hot-swappable fan module

3. Hot-swappable power supply module

4. Top cover

Models

All models include the following system hardware:

• Two controllers
• Two 6-core processors
• 16GB total RAM

- 2 8GB total NVDIMM battery-back cache

• Drive slots (25 for SFF and 12 for LFF systems)
• Redundant hot-swappable power supplies
• Redundant hot-swappable fan modules
• Dedicated Management port

What's in the Box:

• HPE StoreVirtual 3200 Storage system
• Rackmount kit
• Two power cables

HPE StoreVirtual 3200 4-port 1GbE iSCSI SFF Storage

N9X16A

HPE StoreVirtual 3200 4-port 1GbE iSCSI LFF Storage

N9X17A

HPE StoreVirtual 3200 8-port 1GbE iSCSI SFF Storage

N9X18A

HPE StoreVirtual 3200 8-port 1GbE iSCSI LFF Storage

N9X19A

HPE StoreVirtual 3200 4-port 10GbE iSCSI SFF Storage

N9X20A

HPE StoreVirtual 3200 4-port 10GbE iSCSI LFF Storage

N9X21A

HPE StoreVirtual 3200 4-port 16Gb Fibre Channel SFF Storage

N9X24A

HPE StoreVirtual 3200 4-port 16Gb Fibre Channel LFF Storage

N9X25A

HPE StoreVirtual 3200 4-port 10GBase-T SFF Storage

N9X22A

HPE StoreVirtual 3200 4-port 10GBase-T LFF Storage

N9X23A

Ordering Guidelines

Step 1 - StoreVirtual 3200 Base Configuration: Choose Your host interconnect

Host Interconnect

Description

Part Number

HPE StoreVirtual 3200 4-port 1GbE iSCSI SFF Storage

N9X16A

HPE StoreVirtual 3200 4-port 1GbE iSCSI LFF Storage

N9X17A

HPE StoreVirtual 3200 8-port 1GbE iSCSI SFF Storage

N9X18A

HPE StoreVirtual 3200 8-port 1GbE iSCSI LFF Storage

N9X19A

HPE StoreVirtual 3200 4-port 10GbE iSCSI SFF Storage

N9X20A

HPE StoreVirtual 3200 4-port 10GbE iSCSI LFF Storage

N9X21A

HPE StoreVirtual 3200 4-port 16Gb Fibre Channel SFF Storage

N9X24A

HPE StoreVirtual 3200 4-port 16Gb Fibre Channel LFF Storage

N9X25A

HPE StoreVirtual 3200 4-port 10GBase-T SFF Storage

N9X22A

HPE StoreVirtual 3200 4-port 10GBase-T LFF Storage

N9X23A

NOTE: All StoreVirtual 3200 Storage systems are available factory racked: just add "#0D1" as a suffix to the Part Numbers listed above when ordering.

Step 2 - Choose Your SFP+ module

SFP+ Modules

Description

Part Number

HPE StoreVirtual 3000 8Gb 2-pack Short Wave Fibre Channel SFP+ Transceiver

N9X01A

HPE StoreVirtual 3000 16Gb 2-pack Short Wave Fibre Channel SFP+ Transceiver

N9X02A

HPE StoreVirtual 3000 10Gb 2-pack Short Range iSCSI SFP+ Transceiver

N9X03A

NOTE: All StoreVirtual 3200 1GbE iSCSI and 10GBase-T Storage systems are equipped with RJ45 ports and do not require SFP+ modules. Also 10GbE iSCSI using DAC cables as will not require SFP+ modules.

Service and Support, HPE Proactive Care, and Warranty Information

Warranty

Three-year limited warranty, parts exchange Next Business day delivery

Enclosures, Hard drives, and Options carry their own warranty. Refer to Hewlett Packard Enterprise Limited Warranty Statement for more information.

The StoreVirtual 3200 has been designed with customer self-repairable parts to minimize repair time and provide greater flexibility in performing defective parts replacement. Please refer to Hewlett Packard Enterprise limited warranty Statement and parts replacement instructions for further details.   www.hpe.com/support/storage-warranties

Products included in various kits carry their own individual warranties.

NOTE: The warranty of the hard drive options purchased with the StoreVirtual 3200 models is different for SAS hard drives versus SAS MDL. SAS hard drive options have a three year warranty and SAS MDL have a one year warranty.

Solid State Drives (SSD) Warranty

3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage and or maximum supported lifetime limitations, whichever occurs first. Maximum Supported Lifetime is the period in years set to equal the warranty for the device. Maximum usage limit is the maximum amount of data that can be written to the device before reaching the device's write endurance limit.

Deployment Services

HPE StoreVirtual 3000 Startup Service

Designed to provide a smooth startup, HPE StoreVirtual 3000 Storage Installation and Startup Service provides deployment of your HPE StoreVirtual 3000 Storage, helping to ensure proper installation in your storage environment as well as helping you increase the benefit from your storage investment.

The service provides activities required to help you deploy your HPE StoreVirtual 3000 Storage into operation. When ordered with hardware upgrade products, the service also provides deployment of hardware upgrades to your existing HPE StoreVirtual 3000 Storage.

Ordering information: HA114A1#5ZK or U7VF7E.

HPE StoreVirtual 3K File Controller Installation and Startup Service

HPE StoreVirtual 3000 File Controller Installation and Startup Service provides the necessary activities required to deploy the HPE StoreVirtual 3000 File Controller into your storage environment.

With the assistance of your designated IT storage administrator and using Hewlett Packard Enterprise best practices, a Hewlett Packard Enterprise service specialist will help plan, design, and deploy your HPE StoreVirtual 3000 File Controller. The Hewlett Packard Enterprise service specialist will also perform HPE installation verification tests and provide pre-delivery planning and a brief customer orientation session.

Ordering information: HA114A1#5BV and H2US9E.

Service and Support

Protect your business beyond warranty with HPE Support Services.  HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Our integrated portfolio of Services for storage help customers reduce costs, optimize data, streamline storage management, and improve backup and recovery. HPE Support Services enable you to choose the right service level, length of coverage and response time as you purchase your new storage solution, giving you full entitlement for the support for need for your IT and business.

Optimized Care

HPE Proactive Care with 6 hour call-to-repair commitment, three year Support Service

HPE Proactive Care gives customers an enhanced call experience plus helps prevent problems and maintains IT stability by utilizing tailored, proactive reports with recommendations and advice when your products are connected to HPE. This Service combines three years' proactive reporting and advice with our highest level of hardware support - HPE's 24x7, six hour hardware call-to-repair. HPE is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable storage systems.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Standard Care

HPE Proactive Care with 24x7 coverage, three year Support Service

HPE Proactive Care gives customers an enhanced call experience plus helps preventing problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice when your products are connected to HPE. This Service combines three years' proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Basic Care

HPE Foundation Care 24x7, three-year Support Service

HPE Foundation Care 24x7 gives you access to HPE 24 hours a day, seven days a week for assistance on resolving issues. This service includes need based Hardware onsite response within four hours. Simplify your support experience and make HPE your first call to help resolve hardware or software problems.

http://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Additional Service Offers

HPE Proactive Care Advanced

HPE Proactive Care Advanced builds on HPE Proactive Care, providing additional benefits such as the assignment of a dedicated, local account support manager (ASM) for collaboration and best practices and critical event management that provides 24x7 fast response and IT service restoration with incident follow-up to prevent a repeat. All of this is designed to give you an incredibly personalized, high-touch support experience that keeps your system fully available and running at peak performance.

HPE Foundation Care Call-to-Repair Service

Offers 24x7 service, including on Hewlett Packard Enterprise holidays, with a six-hour call-to-repair time, where our commitment is to have the hardware operational within six hours after your call is opened. Software support is 24x7 with a 2-hour response time.

HPE Proactive Select

Addresses on-going operational and staffing needs of Converged Systems environments. The customer can buy HPE Proactive Select credits upfront, and choose from around 100 services to consume the required level of expertise and resources throughout a year. A vast array of services health checks, optimization, performance, and security-help customers address their skills and staffing requirements with flexibility.

Additional Information

For more information https://www.hpe.com/us/en/services.html

To learn more on HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. HPE Proactive Care Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from Hewlett Packard Enterprise or an enterprise reseller are quoted using Hewlett Packard Enterprise order configuration tools.
• Customers purchasing from a commercial reseller can find HPE Support Services at http://www.hpe.com/services/storage

HPE Services Awards

HPE Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction. For a list of all our awards, please visit: https://www.hpe.com/us/en/services.html

Additional Services Information

For more information about HPE Pointnext operational services, please visit: https://www.hpe.com/us/en/storage.html

If you have specific questions, contact your local Hewlett Packard Enterprise representative. Contact information for a representative in your area can be found at "Contact Us" http://www.hpe.com

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

HPE StoreVirtual 3200 Storage

Power Requirements

Max Input Power

575 W

Heat Dissipation

1962 BTU/hr

UPS Operation

The SV32x0 supports using any online or double conversion UPS.  The switch over time of an offline, standby or line-interactive UPS may be too long to provide consistent and reliable power.

Temperature and Humidity Ranges

Operating Temperature

50° to 95°F (10° to 35°C)

Shipping Temperature

-22° to 149°F (-30° to 65°C)

Operating Humidity

10% to 90%

Non-Operating Humidity

0% to 95%

Declared Acoustic Noise Levels

Sound Power

6.3 Bels - 7.75 Bels

Sound Pressure

51 dB - 67 dB

Shock and Vibration

Shock, Operational

5 G, 11 ms, half-sine

Shock, Non-Operational

10 G, 11 ms, half-sine

Vibration, Operational

.25 G, 5-500 Hz, Sine

Vibration, Non-Operational

.5 G, 5-500 Hz, Sine

Physical

Height

88mm (3.5")

Depth (excluding cables)

597mm (23.5"), to cam handle = 627mm (24.7")

Width (body only)

448mm (17.6"), ear to ear = 483mm (19")

Weight

Dual controller system with no HDD/SSDs LFF: 42 lbs.
SFF: 43 lbs.

Dual controller system with 12 LFF HDD/SSDs:  62 lbs.
Dual controller system with 25 SFF HDD/SSDs: 58 lbs.

Regulatory Info

Safety

UL 60950-1 (USA)

CAN/CSA-C22.2 No. 60950-1-07 (Canada)

IEC 60950-1 (International)

EN 60950-1 (European Union)

IS 13252 (Part 1) (India)

UL 60950-1 (USA)

Electromagnetic Compatibility

FCC Title 47, Part 15, Subpart B Class A (USA)

ICES-003, Issue 5 Class A (Canada)

VCCI V-3/2014.04 Class A (Japan)

AS/NZS CISPR 22 Class A (Australia, New Zealand)

EN 55022 & CISPR22 Class A (European Union, International)

EN 55024 & CISPR24 Class A (European Union, International)

EN 61000-3-2: Harmonics (European Union)

EN 61000-3-3: Flicker (European Union)

CNS 13438 Class A (Taiwan)

RoHS and WEEE

Compliance

RoHS-6/6 Compliance, China RoHS, WEEE

Exemptions

6(a);6(c); 7(a); 7(c)-I; 7(c)-II

Country Approvals

United States, Australia, New Zealand, Canada, European Union, Japan, Taiwan

HPE StoreVirtual 3000 File Controller

Power Requirements

Max Input Power

750W

Heat Dissipation

3325 BTU/hr (maximum)

Temperature and Humidity Ranges

Operating Temperature

50° to 95°F (10° to 35°C)

Shipping Temperature

-22° to 140°F (-30° to 60°C)

Operating Humidity

8% to 90%

Non-Operating Humidity

5% to 95%

Operating Acoustic Noise

L WAd

Entry 5.7 B

Base 5.8 B

L pAm

Entry 38.0 dBA

Base 39.0 dBA

Physical

Height

4.29 cm (1.69 inches)

Depth

60.76 cm (23.90 inches)

Width

43.46 cm (17.11inches)

Weight

9.53kg (21 lbs)

Emission Classification (EMC)

FCC Rating

Class A

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

Performance
Benchmark Performance Results

Single HDD and SSD tiers were tested in a laboratory setting to produce these results. Actual performance attained will vary due to several factors, including drive type, number of drives, RAID type, Network RAID type, host interconnect, block size, workload type, etc.

StoreVirtual 3200 hybrid configurations utilize the SSD RAID group as a very fast, low latency read/write tier in the storage pool.  Adaptive Optimization will move pages to the fastest tier based on real-time I/O dynamics as workloads change.  Performance testing of the SSD tier only as an all-flash array is not necessarily a good measure of the performance an application will have in a hybrid tiered system.

Benchmark Setup Configurations:

¹ HPE StoreVirtual 3200 4-port 16Gb FC/10GbE iSCSI SFF Storage, RAID: 5, Network RAID: 0, Block size: 8k, Drives: (24) HPE StoreVirtual 3000 900GB 12G SAS 10K SFF HDD; 6 drives per RAID set, Host: DL360, Average Latency: 30ms

² HPE StoreVirtual 3200 4-port 16Gb FC SFF Storage, RAID: 10, Network RAID: 10, Block size: 8k, Drives: (4) HPE StoreVirtual 3000 400GB 12G SAS 2.5in MU SSD; 2 drives per RAID set, Host: DL360, Average Latency: 7ms

StoreVirtual 3200 Scale-out Performance:

StoreVirtual 3200 supports Scale-Out with SVOS 13.5 or later (iSCSI configurations only, Max of two arrays).  In scale-out systems, Network RAID 0 or Network RAID 10 can be utilized to provide the appropriate balance between cost optimization, system performance and availability for each volume.

¹ HPE StoreVirtual 3200 4-port 10GbE iSCSI SFF Storage, RAID: 5, Block size: 8k, per system Drives: (48) HPE StoreVirtual 3000 900GB 12G SAS 10K SFF HDD; 6 drives per RAID set, Host: DL360, Average Latency: 30ms

² HPE StoreVirtual 3200 4-port 10GbE iSCSI SFF Storage, RAID: 5, Block size: 8k, per system Drives: (4) HPE StoreVirtual 3000 400GB 12G SAS 2.5in MU SSD; 2 drives per RAID set, Host: DL360, Average Latency: 7ms

Date

Version History

Action

Description of Change

05-Mar-2018

From Version 10 to 11

Removed

References to StoreVirtual DSM and iLO were removed.

05-Feb-2018

From Version 9 to 10

Changed

Errors on power supplies were fixed.

Removed

References to cloud based analytics were removed.

23-Oct-2017

From Version 8 to 9

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

16-Oct-2017

From Version 7 to 8

Changed

Added a note on SSD replacement.

25-Sept-2017

From Version 6 to 7

Changed

Updated UPS requirements and scale-out applies to iSCSI tuning on performance benchmarks.

19-May-2017

From Version 5 to 6

Changed

Added numbers and clarifications to the performance section.

03-Apr-2017

From Version 4 to 5

Changed

Changes made to the entire document.  Adding Scale-out, multi-site, Failover Manager and other elements from SVOS 13.5 release.

13-Jan-2017

From Version 3 to 4

Changed

SV3000 File controller sustaining updates, Addition of Scale-out, Multi-site feature & Regional Bundles.

28-Nov-2016

From Version 2 to 3

Changed

10GBase-T Host interface, SV3000 File Controller, New SSD/HDD support.

26-Sept-2016

From Version 1 to 2

Changed

Various corrections.

15-Aug-2016

Version 1

Created

Document Created.
