HPE Complete Riverbed SteelFusion: характеристики и документация

HPE Complete Riverbed SteelFusion

The HPE Complete Riverbed SteelFusion solution includes patented technology that delivers a modern, cloud-like experience to IT organizations managing increasingly complex, mission-critical Remote Office and Branch Offices (ROBO) locations in today's digital world.

SteelFusion is the first and only Software-Defined Edge (SD-Edge) solution that delivers local performance while enabling data convergence, instant provisioning/recovery and lower TCO for distributed organizations.

With SteelFusion Cloud Edge solution, you can:

Converge ROBO data, server, backup and networking infrastructure into one appliance
Secure 100% of a company's data in the data center or public cloud while delivering the application performance required by remote workers
Achieve agile IT with instant provisioning of new network services, line of business apps and entirely new sites
Eliminate remote backup, achieve near real-time RPO and significantly reduce RTO
Minimize operational costs by extending hybrid cloud investments in storage, virtualization, backup and IT staff to every edge in the business

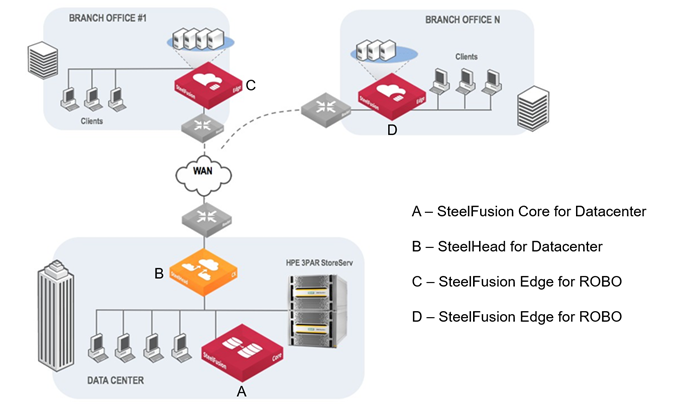

Figure 1. Riverbed StealFusion Solution

Reverbed SteelFusion solutions are available on HPE Catalog via HPE Complete program.

HPE Complete- Resell of Third Party Branded Products
HPE Complete is a resource enabling the purchase of best in class third party branded products with the added reliability of Hewlett Packard Enterprise's interop assurance for a complete validated solution, all via one HPE purchase order. Benefits One Stop Shop - Purchase complete solutions from HPE that include best in class third-party branded products, all on a single HPE purchase order Validated solution - Confidence of HPE's interop assurance validation for third party branded products that complement HPE Storage & Server solutions Customer Experience - HPE Complete utilizes the third-party expertise for installation, support, and warranty of their products. However, HPE Complete will step-in to facilitate third-party issue resolution when needed, enhancing overall customer satisfaction Unique Value - Minimize risk, complexity and cost when deploying multi-vendor products and technologies into the HPE ecosystem For more information please refer HPE Complete and HPE Complete Solution Brief on HPE.com

Hewlett Packard Enterprise is making the following Riverbed SteelFusion SKUs available via HPE Complete:
Hardware SKUs
Riverbed SteelFusion Edge 2100 Converged Compute Storage WAN Platform Appliance	Q2E62A
Riverbed SteelFusion Edge 2200 Converged Compute Storage WAN Platform Appliance	Q2E63A
Riverbed SteelFusion Edge 3100 Converged Compute Storage WAN Platform Appliance	Q2E64A
Riverbed SteelFusion Edge 3200 Converged Compute Storage WAN Platform Appliance	Q2E65A
Riverbed SteelFusion Edge 5100 Converged Compute Storage WAN Platform Appliance	Q2E66A
Riverbed SteelFusion Core 3500 Base Platform Appliance	Q2E67A
Riverbed SteelFusion Core Fusion Sync 3500 Standard Edition Appliance	Q2E70A
Riverbed SteelFusion 2-port 1GbE Fiber LX NIC	Q2E71A
Riverbed SteelFusion 2-port 1GbE Fiber SX NIC	Q2E72A
Riverbed SteelFusion 4-port 1GbE Fiber LX NIC	Q2E73A
Riverbed SteelFusion 4-port 1GbE Fiber SX NIC	Q2E74A
Riverbed SteelFusion 4-port 1GbE Copper Base-T NIC	Q2E75A
Riverbed SteelFusion 2-port 10GbE Fiber LR NIC	Q2E76A
Riverbed SteelFusion 2-port 10GbE Fiber SR NIC	Q2E77A
Riverbed SteelFusion 4-port 1GbE Fiber SFP NIC	Q2E78A
Riverbed SteelFusion 4-port 1GbE Copper Base-T SFP NIC	Q2E79A
Riverbed SteelFusion 2-port 10GbE Copper Base-T NIC	Q2E80A
Riverbed SteelFusion 2-port 10GbE Fiber SFP+ NIC	Q2E81A
Riverbed SteelFusion 4-port 10GbE Fiber SFP+ NIC	Q2E82A
Riverbed SteelFusion 4-port 10GbE Copper Base-T NIC	Q2E83A
Riverbed SteelFusion 4-port 1GbE Copper Base-T Hypervisor NIC	Q2E84A
Riverbed SteelFusion 2-port 10GbE Copper Base-T Hypervisor NIC	Q2E85A
Riverbed SteelFusion 4-port 10GbE Copper Base-T Hypervisor NIC	Q2E86A
Riverbed SteelFusion 4-port 1GbE Fiber/Copper SFP Hypervisor NIC	Q2E87A
Riverbed SteelFusion 2-port 10GbE Fiber SFP+ Hypervisor NIC	Q2E88A
Riverbed SteelFusion 4-port 10GbE Fiber SFP+ Hypervisor NIC	Q2E89A
Riverbed SteelFusion 2.5mts AR Power Cord	Q2E90A

Riverbed SteelFusion 2.5mts AU/NZ Power Cord	Q2E91A
Riverbed SteelFusion 2.5mts CN Power Cord	Q2E92A
Riverbed SteelFusion 1.83mts EU Power Cord	Q2E93A
Riverbed SteelFusion 2.5mts IN Power Cord	Q2E94A
Riverbed SteelFusion 2.5mts IL Power Cord	Q2E95A
Riverbed SteelFusion 2.5mts IT Power Cord	Q2E96A
Riverbed SteelFusion 2.5mts JP Power Cord	Q2E97A
Riverbed SteelFusion 2.5mts KR Power Cord	Q2E98A
Riverbed SteelFusion 2.5mts TW Power Cord	Q2E99A
Riverbed SteelFusion 2.5mts UK Power Cord	Q2F00A
Riverbed SteelFusion 2.5mts CH Power Cord	Q2F01A
Riverbed SteelFusion 2.5mts NA Power Cord	Q2F02A
Riverbed SteelFusion 2.5mts BR Power Cord	Q2F03A
Riverbed SteelHead Interceptor 9600 Base Unit	Q2F04A
Software SKUs
Riverbed SteelFusion Edge 2100 W1 BlockStream WAN Optimization 1500 Connections 20Mbps LTU	Q1N65A
Riverbed SteelFusion Edge 2100 W2 BlockStream WAN Optimization 2500 Connections 30Mbps LTU	Q1N66A
Riverbed SteelFusion Edge 2100 W3 BlockStream WAN Optimization 5000 Connections 50Mbps LTU	Q1N67A
Riverbed SteelFusion Edge 2200 W1 BlockStream WAN Optimization 1500 Connections 20Mbps LTU	Q1N69A
Riverbed SteelFusion Edge 2200 W2 BlockStream WAN Optimization 2500 Connections 30Mbps LTU	Q1N70A
Riverbed SteelFusion Edge 2200 W3 BlockStream WAN Optimization 5000 Connections 50Mbps LTU	Q1N71A
Riverbed SteelFusion Edge 3100 W1 BlockStream WAN Optimization 2500 Connections 30Mbps LTU	Q1N73A
Riverbed SteelFusion Edge 3100 W2 BlockStream WAN Optimization 5000 Connections 50Mbps LTU	Q1N74A
Riverbed SteelFusion Edge 3100 W3 BlockStream WAN Optimization 10000 Connections 100Mbps LTU	Q1N75A
Riverbed SteelFusion Edge 3200 W1 BlockStream WAN Optimization 2500 Connections 30Mbps LTU	Q1N77A
Riverbed SteelFusion Edge 3200 W2 BlockStream WAN Optimization 5000 Connections 50Mbps LTU	Q1N78A
Riverbed SteelFusion Edge 3200 W3 BlockStream WAN Optimization 10000 Connections 100Mbps LTU	Q1N79A
Riverbed SteelFusion Edge 5100 W1 BlockStream WAN Optimization 5000 Connections 50Mbps LTU	Q1N81A
Riverbed SteelFusion Edge 5100 W2 BlockStream WAN Optimization 10000 Connections 100Mbps LTU	Q1N82A
Riverbed SteelFusion Core 3500 C1 Capacity 25TB 200 LUN LTU	Q1N83A
Riverbed SteelFusion Core 3500 C2 Capacity 50TB 250 LUN LTU	Q1N84A
Riverbed SteelFusion Core 3500 C2 Capacity 100TB 300 LUN LTU	Q1N85A
Riverbed SteelHead 9600 Interceptor LTU	Q1P25A
Riverbed SteelHead CX 1555v Low Virtual Appliance LTU	Q1P26A
Riverbed SteelHead CX 1555v Mid Virtual Appliance LTU	Q1P27A
Riverbed SteelHead CX 1555v High Virtual Appliance LTU	Q1P28A
Riverbed SteelHead CX 5055v Mid Virtual Appliance LTU	Q1P29A
Riverbed SteelHead CX 5055v High Virtual Appliance LTU	Q1P30A
Riverbed SteelHead CX 7055v Low Virtual Appliance LTU	Q1P31A
Riverbed SteelHead CX 7055v Mid Virtual Appliance LTU	Q1P32A

Service SKUs
Riverbed SteelFusion Edge 2100 Gold Support LTU	Q2G79A
Riverbed SteelFusion Edge 2100 Gold Plus Support LTU	Q2G80A
Riverbed SteelFusion Edge 2200 Gold Support LTU	Q2G83A
Riverbed SteelFusion Edge 2200 Gold Plus Support LTU	Q2G84A
Riverbed SteelFusion Edge 3100 Gold Support LTU	Q2G87A
Riverbed SteelFusion Edge 3100 Gold Plus Support LTU	Q2G88A
Riverbed SteelFusion Edge 3200 Gold Support LTU	Q2G91A
Riverbed SteelFusion Edge 3200 Gold Plus Support LTU	Q2G92A
Riverbed SteelFusion Edge 5100 Gold Support LTU	Q2G95A
Riverbed SteelFusion Edge 5100 Gold Plus Support LTU	Q2G96A
Riverbed SteelFusion Core 3500 Gold Support LTU	Q2G99A
Riverbed SteelFusion Core 3500 Gold Plus Support LTU	Q2H00A
Riverbed SteelFusion Core 3500 FusionSync Support LTU	Q2H06A
Riverbed SteelHead 1555v Virtual Appliance Support	Q8Z24A
Riverbed SteelHead 5055v Virtual Appliance Support	Q8Z25A
Riverbed SteelHead 7055v Virtual Appliance Support	Q8Z26A
Riverbed SteelHead Interceptor 09600 Gold Support	Q8Z40A
Riverbed SteelHead Interceptor 09600 Gold Plus Support	Q8Z41A

Key Features and Benefits

Security and Data Protection (Mitigate risks associated with data in remote locations)

Control

Consolidate data back to the data center, removing sensitive information from high-risk remote locations
Render data on stolen appliances or drives inaccessible without admin authentication

Encryption

Ensure data at rest is safe using AES 256-bit encryption, compliant with HIPAA and Top Secret standards
Protect data in-fight with industry- standard SSL or IPSEC encryption
Reduce risk by maintaining only a limited set of active data blocks at remote locations

Productivity (Deliver superior application performance for branch and remote office productivity)

Optimization, Visibility, Control

Increases application and data transfer performance up to 100x
Improves visibility with application, network, and end user monitoring
Dynamically selects the best application path based on business intent and network availability

Business Continuity (Improve disaster recovery and reduce downtime dramatically)

Disaster Recovery and Avoidance

Reduce data loss with near real-time synchronization of data to the data center
Rapidly recover from disasters by deploying VMs from the data center to the edge
Spin up VMs in the data center and edges connect to those VM's over VPN when remote locations experience or expect interruption

Data Protection

Centralized data protection and benefit from mature enterprise-class practices in the data center/cloud
Eliminate the need to purchase, install, and manage dedicated branch backup solutions

Hardware Flexibility

Deploy software to meet customized compute and connectivity needs
Application delivery on commercial off the shelf servers
Leverage centralized enterprise-class storage of any class (NAS, SAN, HCI)

Agility (Reduce capital and operational costs, simplify IT practices, and deliver new services with velocity and ease)

Consolidation and Centralization

Centralize branch servers and storage while maintaining local performance
Slash branch IT costs by eliminating the need to purchase and maintain branch servers and storage
Significant reduction of operational overhead and costs
Drive greater utilization of data center storage investments

Simplified Management

Streamline deployment with intuitive configuration wizards
Reduce branch administration costs by leveraging standardized data center policies and procedures
Centralize control to eliminate the need for remote IT personnel or " fly and fix" missions
Quickly provision new applications, IT services to remote and branch offices, or entirely new sites in minutes from the data center

Cloud Services

Completely replace or augment data center storage with public cloud storage for ROBO consumption
Extend cloud services to ROBO edge without any performance penalty
Enable storage consolidation strategy for hybrid cloud deployments
Provide secondary storage options for additional capacity, cloud-based backups or storage tiering

The HPE Complete Riverbed configuration are as follows:
Step-1a Select Core Appliance
SteelFusion Core Appliances
Select the Core appliance based on the deployment environment and the SteelFusion Deployment Guide
Riverbed SteelFusion Core 3500 Base Platform Appliance	Q2E67A
NOTE: License step 1b required.
Step-1b Select Core License for 3500
SteelFusion Core SteelFusion License for 3500 Base Appliance (required)
Select the license based on deployment environment and SteelFusion Deployment Guide
Riverbed SteelFusion Core 3500 C1 Capacity 25TB 200 LUN LTU	Q1N83A
Riverbed SteelFusion Core 3500 C2 Capacity 50TB 250 LUN LTU	Q1N84A
Riverbed SteelFusion Core 3500 C2 Capacity 100TB 300 LUN LTU	Q1N85A
Step-1c Select DR (optional)
Disaster Recover option for SteelFusion Core Appliances (multiple Datacenters)
FusionSync is a replication-based technology between Cores that enables seamless branch continuity between two data centers, Select based on this SteelFusion Replication Guide this is optional
Riverbed SteelFusion Core Fusion Sync 3500 Standard Edition Appliance	Q2E70A
Step-1d Select Service & Support
Core SteelFusion Service and Support
Select one based on the appliance and SW chosen in steps 1a, 1b and 1c, and the level of support desired based on Riverbed Maintenance and Support Services
Riverbed SteelFusion Core 3500 Gold Support LTU	Q2G99A
Riverbed SteelFusion Core 3500 Gold Plus Support LTU	Q2H00A
Riverbed SteelFusion Core 3500 FusionSync Support LTU	Q2H06A

Step-2a Select Edge Appliance
SteelFusion Edge Appliances (Branch Appliances)
Select the Edge appliance based on the deployment environment and the SteelFusion Deployment Guide
Riverbed SteelFusion Edge 2100 Converged Compute Storage WAN Platform Appliance	Q2E62A
Riverbed SteelFusion Edge 2200 Converged Compute Storage WAN Platform Appliance	Q2E63A
Riverbed SteelFusion Edge 3100 Converged Compute Storage WAN Platform Appliance	Q2E64A
Riverbed SteelFusion Edge 3200 Converged Compute Storage WAN Platform Appliance	Q2E65A
Riverbed SteelFusion Edge 5100 Converged Compute Storage WAN Platform Appliance	Q2E66A

Step-2b Select Edge WANop License
SteelFusion Edge License for WANop features
Select the license based on deployment environment and SteelFusion Deployment Guide
Riverbed SteelFusion Edge 2100 W1 BlockStream WAN Optimization 1500 Connections 20Mbps LTU	Q1N65A
Riverbed SteelFusion Edge 2100 W2 BlockStream WAN Optimization 2500 Connections 30Mbps LTU	Q1N66A
Riverbed SteelFusion Edge 2100 W3 BlockStream WAN Optimization 5000 Connections 50Mbps LTU	Q1N67A
Riverbed SteelFusion Edge 2200 W1 BlockStream WAN Optimization 1500 Connections 20Mbps LTU	Q1N69A
Riverbed SteelFusion Edge 2200 W2 BlockStream WAN Optimization 2500 Connections 30Mbps LTU	Q1N70A
Riverbed SteelFusion Edge 2200 W3 BlockStream WAN Optimization 5000 Connections 50Mbps LTU	Q1N71A
Riverbed SteelFusion Edge 3100 W1 BlockStream WAN Optimization 2500 Connections 30Mbps LTU	Q1N73A
Riverbed SteelFusion Edge 3100 W2 BlockStream WAN Optimization 5000 Connections 50Mbps LTU	Q1N74A
Riverbed SteelFusion Edge 3100 W3 BlockStream WAN Optimization 10000 Connections 100Mbps LTU	Q1N75A
Riverbed SteelFusion Edge 3200 W1 BlockStream WAN Optimization 2500 Connections 30Mbps LTU	Q1N77A
Riverbed SteelFusion Edge 3200 W2 BlockStream WAN Optimization 5000 Connections 50Mbps LTU	Q1N78A
Riverbed SteelFusion Edge 3200 W3 BlockStream WAN Optimization 10000 Connections 100Mbps LTU	Q1N79A
Riverbed SteelFusion Edge 5100 W1 BlockStream WAN Optimization 5000 Connections 50Mbps LTU	Q1N81A
Riverbed SteelFusion Edge 5100 W2 BlockStream WAN Optimization 10000 Connections 100Mbps LTU	Q1N82A
Step-2c Select Service & Support
Edge SteelFusion Service and Support
Select one based on the appliance and SW chosen in steps 2a, and 2b, and the level of support desired based on Riverbed Maintenance and Support Services
Riverbed SteelFusion Edge 2100 Gold Support LTU	Q2G79A
Riverbed SteelFusion Edge 2100 Gold Plus Support LTU	Q2G80A
Riverbed SteelFusion Edge 2200 Gold Support LTU	Q2G83A
Riverbed SteelFusion Edge 2200 Gold Plus Support LTU	Q2G84A
Riverbed SteelFusion Edge 3100 Gold Support LTU	Q2G87A
Riverbed SteelFusion Edge 3100 Gold Plus Support LTU	Q2G88A
Riverbed SteelFusion Edge 3200 Gold Support LTU	Q2G91A
Riverbed SteelFusion Edge 3200 Gold Plus Support LTU	Q2G92A
Riverbed SteelFusion Edge 5100 Gold Support LTU	Q2G95A
Riverbed SteelFusion Edge 5100 Gold Plus Support LTU	Q2G96A

Step-3 Optional NICs
NIC Options
Select based on deployment connectivity requirements
Riverbed SteelFusion 2-port 1GbE Fiber LX NIC	Q2E71A
Riverbed SteelFusion 2-port 1GbE Fiber SX NIC	Q2E72A
Riverbed SteelFusion 4-port 1GbE Fiber LX NIC	Q2E73A
Riverbed SteelFusion 4-port 1GbE Fiber SX NIC	Q2E74A
Riverbed SteelFusion 4-port 1GbE Copper Base-T NIC	Q2E75A
Riverbed SteelFusion 2-port 10GbE Fiber LR NIC	Q2E76A
Riverbed SteelFusion 2-port 10GbE Fiber SR NIC	Q2E77A
Riverbed SteelFusion 4-port 1GbE Fiber SFP NIC	Q2E78A
Riverbed SteelFusion 4-port 1GbE Copper Base-T SFP NIC	Q2E79A
Riverbed SteelFusion 2-port 10GbE Copper Base-T NIC	Q2E80A
Riverbed SteelFusion 2-port 10GbE Fiber SFP+ NIC	Q2E81A
Riverbed SteelFusion 4-port 10GbE Fiber SFP+ NIC	Q2E82A
Riverbed SteelFusion 4-port 10GbE Copper Base-T NIC	Q2E83A
Riverbed SteelFusion 4-port 1GbE Copper Base-T Hypervisor NIC	Q2E84A
Riverbed SteelFusion 2-port 10GbE Copper Base-T Hypervisor NIC	Q2E85A
Riverbed SteelFusion 4-port 10GbE Copper Base-T Hypervisor NIC	Q2E86A
Riverbed SteelFusion 4-port 1GbE Fiber/Copper SFP Hypervisor NIC	Q2E87A
Riverbed SteelFusion 2-port 10GbE Fiber SFP+ Hypervisor NIC	Q2E88A
Step-4 Select Power Cord
Power Cord Options (choose for Core, Edge and optional Head Appliances)
Choose Power Cord to match existing power interface
Riverbed SteelFusion 2.5mts AR Power Cord	Q2E90A
Riverbed SteelFusion 2.5mts AU/NZ Power Cord	Q2E91A
Riverbed SteelFusion 2.5mts CN Power Cord	Q2E92A
Riverbed SteelFusion 1.83mts EU Power Cord	Q2E93A
Riverbed SteelFusion 2.5mts IN Power Cord	Q2E94A
Riverbed SteelFusion 2.5mts IL Power Cord	Q2E95A
Riverbed SteelFusion 2.5mts IT Power Cord	Q2E96A
Riverbed SteelFusion 2.5mts JP Power Cord	Q2E97A
Riverbed SteelFusion 2.5mts KR Power Cord	Q2E98A
Riverbed SteelFusion 2.5mts TW Power Cord	Q2E99A
Riverbed SteelFusion 2.5mts UK Power Cord	Q2F00A
Riverbed SteelFusion 2.5mts CH Power Cord	Q2F01A
Riverbed SteelFusion 2.5mts NA Power Cord	Q2F02A
Riverbed SteelFusion 2.5mts BR Power Cord	Q2F03A

Datacenter WANop Solution - Necessary if Riverbed WANop is not pre-existing
Step-5a Select Virtual WAN Optimizer SW (Optional)
Virtual Appliance WAN Optimizing Software (Optional)
Select based on deployment environment and this Guide: Selecting the correct Virtual platform (see virtual appliance section)
Riverbed SteelHead CX 1555v Low Virtual Appliance LTU	Q1P26A
Riverbed SteelHead CX 1555v Mid Virtual Appliance LTU	Q1P27A
Riverbed SteelHead CX 1555v High Virtual Appliance LTU	Q1P28A
Riverbed SteelHead CX 5055v Mid Virtual Appliance LTU	Q1P29A
Riverbed SteelHead CX 5055v High Virtual Appliance LTU	Q1P30A
Riverbed SteelHead CX 7055v Low Virtual Appliance LTU	Q1P31A
Riverbed SteelHead CX 7055v Mid Virtual Appliance LTU	Q1P32A
Step-5b Select WAN Optimizer SteelHead (optional)
SteelHead Datacenter WAN Optimization Load Balance Appliance (optional)
Select based on this Guide: What is the SteelHead Interceptor
Riverbed SteelHead Interceptor 9600 Base Unit	Q2F04A
Step-5c Select SteelHead SW (optional)
Software for SteelHead (Mandatory if 5b is selected)
Select based on this Guide: What is the SteelHead Interceptor
Riverbed SteelHead 9600 Interceptor LTU	Q1P25A
Step-5d Select Service & Support
SteelHead Service and Support
Select one based on the appliance and SW chosen in steps 2a, 2b and 2c, and the level of support desired based on Riverbed Maintenance and Support Services
Riverbed SteelHead Interceptor 09600 Gold Support	Q8Z40A
Riverbed SteelHead Interceptor 09600 Gold Plus Support	Q8Z41A
Riverbed SteelHead 1555v Virtual Appliance Support	Q8Z24A
Riverbed SteelHead 5055v Virtual Appliance Support	Q8Z25A
Riverbed SteelHead 7055v Virtual Appliance Support	Q8Z26A

Service and Support

Service and Support for Riverbed products are provided directly by Riverbed. For any service, support and generic queries please consult this Riverbed Maintenance and Support Services guide. If you have problems installing, using, or replacing Riverbed products, contact Riverbed Support or your channel partner who provides support. To contact Riverbed Support, open a trouble ticket by calling 1-888-RVBD-TAC (1-888-782-3822) in the United States and Canada or +1 415-247-7381 outside the United States. You can also go to https://support.riverbed.com

Warranty

Riverbed provides all warranty on these HPE Complete Riverbed Solution products and Warrents the products as defined within this Riverbed End User License Agreement and Product Warranty Statement.

Return Policy for Resellers

Stocking of HPE Complete Vision Solutions products are not recommended. Please purchase accurate quantity required to fulfil the customer order.

Date	Version History	Action	Description of Change
01-Oct-2018	Version 2	Changed	Configuration Information and Service and Support sections were updated.
02-Jul-2018	Version 1	Created	All content created.


Sign up for updates

© Copyright 2018 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation. Unix is a registered trademark of The Open Group.

a00000585enw - 15764 - Worldwide - V2 - 01-October-2018

HPE Complete Riverbed SteelFusion: технические характеристики и документация
