Cohesity: технические характеристики и документация

Cohesity dramatically simplifies data protection across the enterprise. But backups are just the starting point for Cohesity. Unlike legacy solutions, we provide more than an insurance policy by putting your backup data and infrastructure to productive use. With Cohesity, customers can re-use their backup data and infrastructure to provision test/dev copies, perform in-place search and analytics, and consolidate files and objects.

Cohesity Data Platform

Cohesity DataPlatform runs on HPE ProLiant platforms.  DataPlatform Virtual Edition supports ROBO and Edge environments in a virtual appliance form factor. DataPlatform Cloud Edition runs on VMs in the leading public clouds to enable multicloud data mobility, disaster recovery, test/dev, and analytics.  DataProtect is a backup and recovery product that runs converged on Cohesity DataPlatform to provide simple, fast, and cost-effective data protection

Cohesity DataPlatform

Cohesity solution is a scale-out platform that provides linear pay-as-you-grow scalability and always-on availability, while eliminating the need for data migrations and forklift upgrades..

Key Features:

• Distributed file and object interfaces:  Distributed NFS, SMB and S3 to consolidate files and objects.
• Space efficiency:  Maximize space efficiency with global dedupe, compression, and erasure coding.
• Cloud integration:  Native integration with all the leading public clouds (AWS, Google Cloud Platform, Microsoft Azure) for archival, tiering and replication.
• Copy data management:  Zero-cost, unlimited snapshots and clones with instant access to quickly provision test/dev copies.
• In-place analytics:  Analytics, content-indexing and global file-level search.

Cohesity DataProtect:

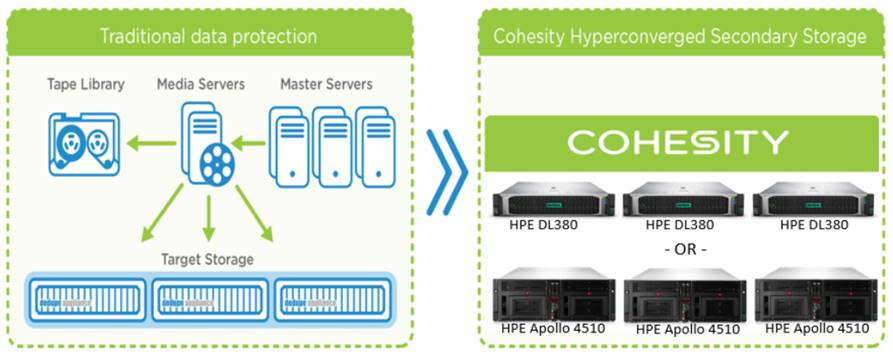

The Cohesity solution offers a converged backup and recovery solution that runs on DataPlatform. Eliminate data protection silos by converging all your backup infrastructure on the Cohesity scale-out platform - including backup software, target storage, replication, disaster recovery, and cloud tiering.  Simplify management with a single UI and policy-based automation. Accelerate your recovery points and recovery times while cutting data protection costs by 50%.

Key Features:

• Simple data protection: Replace multiple data protection silos (target storage, media servers, master servers, cloud gateways) with a simple converged solution managed through a single pane of glass.
• Instantaneous RTO and sub-5 minute RPO: Provide fast RPOs and RTOs by keeping each backup as a fully hydrated, always-ready snapshot.
• Application integrations: Tight integration with VMware for app-consistent backup of vSphere VMs. Support for physical Windows and Linux servers, SQL and Oracle databases, and NAS filers. Integration with Pure Storage for automatic tiering of Pure snapshots.

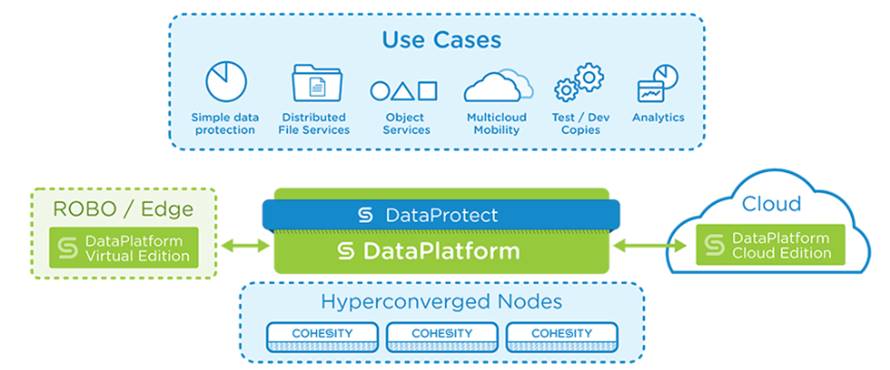

DataPlatform Virtual Edition supports ROBO and Edge environments in a virtual appliance form factor.

DataPlatform Cloud Edition runs on VMs in the leading public clouds to enable multicloud data mobility, disaster recovery, test/dev, and analytics.

HPE Hardware

Step-1 Select HPE Hardware (Qty)

Cohesity SW has been qualified and runs on Specific HPE Hardware 48 TB and 96 TB DL 380G10 and 400TB Apollo 4510G10.  Order this hardware per the quantities (QTY) listed for one node, 3 nodes minimum required for initial Cohesity deployments.  Cohesity DataPlatform Virtual Edition Subscription SW does not require Server hardware.

48TB DL380G10

QTY

Description

Part Number

(1)

HPE ProLiant DL380 Gen10 12LFF Configure-to-order Server

868705-B21

(1)

HPE DL380 Gen10 Intel Xeon-Gold 6143 (2.8GHz/16-core/205W) FIO Processor Kit

879424-L21

(1)

HPE DL380 Gen10 Intel Xeon-Gold 6143 (2.8GHz/16-core/205W) Processor Kit

879424-B21

(4)

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815100-B21

(12)

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872487-B21

(2)

HPE 240GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD

875488-B21

(1)

HPE DL38X Gen10 x16/x16 Riser Kit

826694-B21

(1)

HPE DL38X Gen10 12Gb SAS Expander Card Kit with Cables

870549-B21

(2)

HPE 1.6TB PCIe x8 Lanes Mixed Use HHHL 3yr Wty Digitally Signed Firmware Card

877825-B21

(1)

HPE Smart Array E208i-a SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular Controller

804326-B21

(1)

HPE FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter

700751-B21

(2)

HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver

455883-B21

(2)

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

(1)

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

(1)

HPE 2U Large Form Factor Easy Install Rail Kit

733662-B21

96TB DL380G10

QTY

Description

Part Number

(1)

HPE ProLiant DL380 Gen10 12LFF Configure-to-order Server

868705-B21

(1)

HPE DL380 Gen10 Intel Xeon-Gold 6143 (2.8GHz/16-core/205W) FIO Processor Kit

879424-L21

(1)

HPE DL380 Gen10 Intel Xeon-Gold 6143 (2.8GHz/16-core/205W) Processor Kit

879424-B21

(4)

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815100-B21

(12)

HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

819201-B21

(2)

HPE 240GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD

875488-B21

(1)

HPE DL38X Gen10 x16/x16 Riser Kit

826694-B21

(1)

HPE DL38X Gen10 12Gb SAS Expander Card Kit with Cables

870549-B21

(2)

HPE 3.2TB PCIe x8 Lanes Mixed Use HHHL 3yr Wty Digitally Signed Firmware Card

877827-B21

(1)

HPE Smart Array E208i-a SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular Controller

804326-B21

(1)

HPE FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter

700751-B21

(2)

HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver

455883-B21

(2)

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

(1)

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

(1)

HPE 2U Large Form Factor Easy Install Rail Kit

733662-B21

400TB Apollo 4510

QTY

Description

Part Number

(1)

HPE Apollo 4510 Gen10 Configure-to-Order Chassis

864668-B21

(1)

HPE ProLiant XL450 Gen10 Configure-to-order Server Node for Apollo 4510 Gen10 Chassis

864625-B21

(1)

HPE XL450 Gen10 Intel Xeon-Gold 6140 (2.3GHz/18-core/140W) FIO Processor Kit

872559-L21

(1)

HPE XL450 Gen10 Intel Xeon-Gold 6140 (2.3GHz/18-core/140W) Processor Kit

872559-B21

(1)

HPE Apollo 4500 Gen10 CPU0 x2/CPU1 x2 FIO I/O Module

882020-B21

(16)

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

835955-B21

(1)

HPE Apollo 4500 Gen10 Smart Array E208i-p/P408i-p SAS Cable Kit

874777-B21

(1)

HPE Apollo 4500 Gen10 Dual Smart Array E208i-p/P408i-p SAS Cable Kit

874778-B21

(2)

HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804394-B21

(2)

HPE 400GB NVMe x4 Lanes Mixed Use M.2 22110 3yr Wty Digitally Signed Firmware SSD

875583-B21

(50)

HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e Digitally Signed Firmware HDD

834031-B21

(1)

HPE Ethernet 1Gb 2-port 332T Adapter

615732-B21

(1)

HPE FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter

700751-B21

(2)

HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver

455883-B21

(4)

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

(1)

HPE s6500 Chassis Handles Kit

608477-B21

(1)

HPE 4U Server Rail Kit

878571-B21

Step-2A Select Cohesity Base

Cohesity Data Platform Software License - required

Software

SKUs

Cohesity Data Platform Software LTU for HPE DL360 Gen 9 Server Node

Q1N57A

NOTE: Cohesity DataPlatform Software nodes. The number of nodes must match the number of HPE DL360 hardware nodes. The corresponding Support SKU is required in addition to these SKU

Cohesity DataPlat 48TB DL380 G10 Svr LTU

R0U17A

NOTE: Cohesity DataPlatform Software nodes. The number of nodes must match the number of HPE DL380 hardware nodes. The corresponding Support SKU is required in addition to these SKU

Cohesity DataPlat 96TB DL380 G10 Svr LTU

R0U18A

NOTE: Cohesity DataPlatform Software nodes. The number of nodes must match the number of HPE DL380 hardware nodes. The corresponding Support SKU is required in addition to these SKU

Cohesity DataPlatform 400TB for HPE Apollo 4510 Gen10 Server Node LTU

R0Z59A

NOTE: Cohesity DataPlatform Software nodes. The number of nodes must match the number of HPE Apollo 4510 hardware nodes. The corresponding Support SKU is required in addition to these SKU

Cohesity DataPlatform Virtual Edition 1TB 1yr Subscription LTU

R0U23A

NOTE: Cohesity DataPlatform Virtual Edition Subscription (1 TB). Intelligent web-scale software for consolidating secondary data with support for NFS and SMB interfaces, variable-length global deduplication, replication and encryption. Requires replication to Cohesity DataPlatform at a central site. Licensed per TB of storage capacity up to a maximum of 16 TB. Premium support (24X7) is included.

Step-2B

Cohesity Software Licenses SKUs to run on top of the Data Platform (Select this optional SKU if interested in enabling a converged data protection use case)

Software

SKUs

Cohesity Data Protect Add-on Software 1TB LTU

Q1L16A

NOTE: Cohesity Data Protection software to backup primary workloads. Order quantity to match installed capacity.

Cohesity DataProtect 1TB Add 1yr Sub LTU

R0U21A

NOTE: 1TB Cohesity Data Protect Subscription software for policy-based tiering of the data to the cloud. Premium support (24X7) is included. Order quantity to match installed capacity.

Step-2C

Select optional Cohesity Software License SKUs to support cloud use cases. Supported public clouds include AWS, Azure and GCP.

Software

SKUs

Cohesity CloudTier 1TB Add 1yr Sub LTU

R0U20A

NOTE: 1TB Cohesity Cloud Tier Subscription software for policy-based tiering of the data to the cloud. Premium support (24X7) is included. Order quantity to match installed capacity.

Cohesity CloudArch 1TB Add 1yr Sub LTU

R0U19A

NOTE: 1TB Cohesity Cloud Archive Subscription software for policy-based tiering of the data to the cloud. Premium support (24X7) is included. Order quantity to match installed capacity.

Cohesity DataPlatform Software Virtual Edition 1TB LTU

Q8Y15A

NOTE: Cohesity DataPlatform Virtual Edition (1 TB). Intelligent web-scale software for consolidating secondary data with support for NFS and SMB interfaces, variable-length global deduplication, replication and encryption. Requires replication to Cohesity DataPlatform at a central site. Licensed per TB of storage capacity up to a maxium of 16 TB.

Cohesity DataPlatform Cloud Edition 1TB 1yr Subscription LTU

R0U22A

NOTE: DataPlatform Cloud Edition Subscription is DataPlatform delivered as a virtual appliance for remote and branch offices (ROBO). Enables customers to manage remote offices through the same UI, APIs, and policy-driven automation used in central datacenters. Requires replication to Cohesity DataPlatform at a central site. Licensed

Step-2D

Select Cohesity Software License SKUs to run along with Data Protection Software. These SKUs are optional but strongly recommended.

Software

SKUs

Cohesity Data Protect Kroll Ontrack Power Controls Add-on Software LTU

Q1L18A

NOTE: Kroll Ontrack perpetual license for single object recovery in Microsoft Exchange for up to 1000 mailboxes, 25 instances of SQL and 5TBs of SharePoint. The corresponding Support SKU is required in addition to this SKU. Order quantity to match required number of mailboxes and SharePoint TBs.

Cohesity Data Protect QStar Archive Manager Add-on Software 100TB LTU

Q1L19A

NOTE: Cohesity Qstar Archive Manager perpetual license for archiving to tape and managing up to (2) 100TB of tape libraries.  Must have Data Protect SW to utilize Qstar. The corresponding Support SKU is required in addition to this SKU.

Cohesity Data Protect QStar Archive Manager Add-on Software 200TB LTU

Q1P66A

NOTE: Cohesity Qstar Archive Manager perpetual license for archiving to tape and managing up to (2) 250TB of tape libraries.  Must have Data Protect SW to utilize Qstar. The corresponding Support SKU is required in addition to this SKU.

Cohesity Data Protect QStar Archive Manager 500TB Add On Software

Q1P67A

NOTE: Cohesity Qstar Archive Manager perpetual license for archiving to tape and managing up to (2) 500TB of tape libraries.  Must have Data Protect SW to utilize Qstar. The corresponding Support SKU is required in addition to this SKU.

Cohesity Data Protect QStar Archive Manager Add-on Software 1000TB LTU

Q1L20A

NOTE: Cohesity Qstar Archive Manager perpetual license for archiving to tape and managing up to (2) 1000TB of tape libraries.  Must have Data Protect SW to utilize Qstar. The corresponding Support SKU is required in addition to this SKU.

Step-3 Select Service

SKUs Cohesity Service & Support

Description

SKUs

Cohesity DataPlatform for HPE DL360 Gen9 Server Node 1yr Premium Support

R0U24A

NOTE: 1 year of premium (24X7) maintenance and support for a single DL360 Gen 9 24TB node of Cohesity Data Platform software license. Units need to match server units installed. When adding support for multiple years, add in multiple units of this SKU e.g., if quoting support for 3 years, please add 3 units of this SKU.

Cohesity DataPlat 48TB DL380 1y Prem Sup

R0U25A

NOTE: 1 year of premium (24X7) maintenance and support for a single DL380 Gen 10 48TB node of Cohesity Data Platform software license. Units need to match server units installed. When adding support for multiple years, add in multiple units of this SKU e.g., if quoting support for 3 years, please add 3 units of this SKU.

Cohesity DataPlat 96TB DL380 1y Prem Sup

R0U26A

NOTE: 1 year of premium (24X7) maintenance and support for a single DL380 Gen 10 96TB node of Cohesity Data Platform software license. Units need to match server units installed. When adding support for multiple years, add in multiple units of this SKU e.g., if quoting support for 3 years, please add 3 units of this SKU.

Cohesity DataPlatform 400TB for HPE Apollo 4510 Gen10 Server Node 1y Premium Support

R0Z60A

NOTE: 1 year of premium (24X7) maintenance and support for a single Apollo 4510 Gen 10 240TB node of Cohesity Data Platform software license. Units need to match server units installed. When adding support for multiple years, add in multiple units of this SKU e.g., if quoting support for 3 years, please add 3 units of this SKU.

Cohesity DataPlat Virtual Ed 1y Prem Sup

R0U27A

NOTE: 1 Year Cohesity DataPlatform Software Virtual Edition premium (24X7) support for a single node of Cohesity Data Platform software license. Units need to match serve units selected in Step 1. When adding support for multiple years, add in multiple units of this SKU e.g., if quoting support for 3 years for 4 units of 1TB, please add 3X4 = 12 units of this SKU.

Cohesity Data Protect Software 1yr Standard Support

Q1L24A

NOTE: 1 year of standard (24X7) maintenance and support for 1TB previously purchased perpetual Cohesity Data Protect software licenses. Units need to match TB selected in step 2A. When adding support for multiple years, add in multiple units of this SKU e.g., if quoting support for 3 years, please add 3 units of this SKU.

Cohesity DataProtect 1yr Prem Sup

R0U28A

NOTE: 1 year of premium (24X7) maintenance and support for 1TB of Cohesity Data Protect software license. Units need to match TB selected in step 2A. When adding support for multiple years, add in multiple units of this SKU e.g., if quoting support for 3 years, please add 3 units of this SKU.

Cohesity Kroll 1yr Prem Sup

R0U29A

NOTE: 1 year of premium (24X7) maintenance and support for Kroll Ontrack Power Controls add-on. When adding support for multiple years, add in multiple units of this SKU e.g., if quoting support for 3 years, please add 3 units of this SKU.

Cohesity Kroll 3yr Prem Sup

R0U30A

NOTE: 3 years of premium (24X7) maintenance and support for Kroll Ontrack Power Controls add-on. When adding support for multiple years, add in multiple units of this SKU e.g., if quoting support for 3 years, please add 3 units of this SKU.

Cohesity Data Protect QStar 1yr Remote Deployment Service

Q1L21A

NOTE: 1 Year Cohesity Data Protect Qstar Deployment provides remote assistance in setting up Qstar deployments.  This service is recommended but optional.

Cohesity QStar 100TB 1yr Prem Sup

R0U31A

NOTE: 1 year of premium (24X7) maintenance and support for 100TB of Qstar Archive Manager add-on functionality

Cohesity QStar 100TB 3yr Prem Sup

R0U32A

NOTE: 3 years of premium (24X7) maintenance and support for 100TB of Qstar Archive Manager add-on functionality

Cohesity QStar 200TB 1yr Prem Sup

R0U33A

NOTE: 1 year of premium (24X7) maintenance and support for 200TB of Qstar Archive Manager add-on functionality.

Cohesity QStar 200TB 3yr Prem Sup

R0U34A

NOTE: 3 years of premium (24X7) maintenance and support for 200TB of Qstar Archive Manager add-on functionality.

Cohesity QStar 500TB 1yr Prem Sup

R0U35A

NOTE: 1 year of premium (24X7) maintenance and support for 500TB of Qstar Archive Manager add-on functionality.

Cohesity QStar 500TB 3yr Prem Sup

R0U36A

NOTE: 3 years of premium (24X7) maintenance and support for 500TB of Qstar Archive Manager add-on functionality.

Cohesity QStar 1000TB 1yr Prem Sup

R0U37A

NOTE: 1 year of premium (24X7) maintenance and support for 1000TB of Qstar Archive Manager add-on functionality.

Cohesity QStar 1000TB 3yr Prem Sup

R0U38A

NOTE: 3 years of premium (24X7) maintenance and support for 1000TB of Qstar Archive Manager add-on functionality.

Service and Support for Cohesity products are provided directly by Cohesity. For any support and generic queries please email to support@cohesity.com. Cohesity licensors service delivery organization will be responsible for responding with a call, assigning a severity level to the call, and determining the service Severity Level acceptable to Hewlett Packard Enterprise customer. The support request will be processed by Cohesity in accordance with the Severity Level agreed upon.

Warranty

Software

For a period of ninety (90) days from the Start Date, Cohesity warrants (a) that the media on which the software is delivered will be free of defects in material and workmanship, and (b) the software will operate substantially as set forth in the applicable Cohesity specifications when used in accordance with the terms of the Cohesity software license. End User's exclusive remedy and the entire liability of Cohesity and its suppliers under this limited warranty will be replacement of the software media. Except for the foregoing, the software is provided AS IS. This limited warranty extends only to the End User as the original licensee. See other Warranty Limitations and Restrictions below.

Restrictions

Cohesity warranties as set forth herein ("Warranty") are contingent on proper use of the Cohesity branded hardware and software ("Products") and do not apply if (a) the Products have been modified without the written approval of Cohesity, (b) the Products' serial number label is removed, (c) the Product has been damaged or subjected to abnormal physical or electrical stress, abnormal environmental conditions, misuse, negligence, or accident, or (d) the Product is licensed for beta, evaluation, testing or demonstration purposes. In order to ensure proper operation of Cohesity products, it is required that all Cohesity systems utilize only Cohesity supplied optical transceiver components. Cohesity reserves the right to void warranty and service support offerings if optical transceiver components other than those supplied by Cohesity are used in the operation of Cohesity products. The terms of the Warranty are limited to the remedies as set forth in this Warranty. This warranty is provided in lieu of all other rights, conditions and warranties. Cohesity makes no other express or implied warranty with respect to the software, hardware, products, documentation or Cohesity support, including, without limitation, any warranty of merchantability, fitness for a particular purpose and non-infringement of third party rights. Cohesity does not warrant that any products will be error-free, or that any defects that may exist in its products can be corrected. In no event shall Cohesity be liable for cost of procurement of substitute goods, lost profits or any other special, indirect, consequential or incidental damages (including but not limited to lost data), however caused whether or not Cohesity has been advised of the possibility of such damages. Some jurisdictions do not allow limitation or exclusion of liability for consequential or incidental damages, so that limitation or exclusion may not apply.

Return Policy for Resellers

Stocking of Cohesity products are not recommended. Please purchase accurate quantity required to fulfil the customer order.
