HPE SDLT/DLT Storage Media

HPE SDLT storage media is ideally suited for data center and departmental backups where compatibility with existing DLT libraries, performance, and cost per megabyte are critical. HPE DLT is ideal for mid-range to enterprise requiring reliable, high-capacity back up. DLT is the answer to the high-capacity storage and archiving needs of mid-range systems, network servers and high-end workstations.

Labeled Data Cartridges: Customers can order HPE DLT IV, SDLT I and SDLT II data cartridges with Custom Lablels attached (available in USA and Europe). Custom Labeled Data Cartridges ship in 20 packs. Minimum order quantity of 5 units or 100 data cartridges in Europe (5 units x 20 cartridges).

HPE SDLT/DLT Storage Media

Models

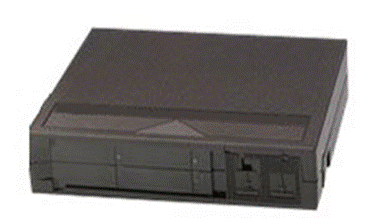

HPE SDLT II 600 GB Data Cartridge

Q2020A

HPE SDLT II Bar Code Labels

Q2006A

Key Features & Benefits

• Performance: High-performance with reliable back up
• Capacities up to 80GB for DLT; 160GB for VS and 600GB for SDLT
• Limited Lifetime Warranty
• Up to 30 years archival life

Proven Reliability

Hewlett Packard Enterprise ensures the highest level of quality with media specifications that far exceed industry standards. HPE conducts tests on multiple batches of media using multiple drives to ensure performance in different environmental conditions, such as variations of high/low temperature and humidity. Changes in external conditions, which can easily occur when media is moved from different locations, can have a huge impact on error rate performance. Increased error rates jeopardize backup, and backup disruption jeopardizes business continuity. Hewlett Packard Enterprise supports hardware warranty initiatives in the field with a vested interest in reducing all media-induced hardware issues. Hewlett Packard Enterprise customers are many and varied; this is why HPE specifies stringent durability and reliability metrics that the media must satisfy before it is good enough to bear the HPE logo.

DLT and VS Technology

DLT tape has been a leading technology in backup and archive storage for medium-sized business for almost a decade. Developed by Quantum Corporation, DLT technology offers high-performance, reliable backup at a great value. HPE DLT tapes offer optimum compatibility with HPE as well as other certified DLT drives. HPE DLTtape VS1 160GB Data Cartridges offer higher capacity and low cost per GB for customers with prior investments in DLT backup technology. They are a good choice for IT managers in corporate and Enterprise data centers who need to back up value servers in a reasonable time frame.

SDLT Technology

Super DLT is another tape format which extends the capabilities of DLT technology. It is designed to meet the business-critical demands of enterprise storage customers. 2nd generation Super DLT II 600GB Data Cartridge offers high capacity and low cost per GB for customers with prior investments in DLT backup technology. Super DLTtape II cartridges support DLTSage for improved media and drive diagnostics. DLTSage enables IT managers and network staff to better manage, predict and proactively prevent backup problems.

HPE Blade Servers

ProLiant BL20p

ProLiant BL40p

HPE ML Servers

ProLiant ML350

ProLiant ML370

ProLiant ML530

ProLiant ML570

HPE DL Servers

ProLiant DL320

ProLiant DL360

ProLiant DL380

ProLiant DL560

ProLiant DL740

ProLiant DL760

Hewlett Packard Enterprise servers tc

tc21xx

DLTTAPE IV

VS160

SUPER DLTTAPE I

SUPER DLTTAPE II

Physical Characteristics

Width

4.16 in (105.7 mm)

4.16 in (105.7 mm)

4.16 in (105.7 mm)

4.16 in (105.7 mm)

Length

4.15 in (105.4 mm)

4.15 in (105.4 mm)

4.15 in (105.4 mm)

4.15 in (105.4 mm)

Height

1 in (25.4 mm)

1 in (25.4 mm)

1 in (25.4 mm)

1 in (25.4 mm)

Weight

7.85 oz (225.5 g)

7.85 oz (225.5 g)

7.85 oz (225.5 g)

7.85 oz (225.5 g)

Color

Black

Ivory/Black

Green

Blue or Blue/Grey

Capacity

(all capacity numbers quoted use a 2:1 compression ratio; this may vary since compression is data dependent.)

40/70/80 GB

160 GB

220/320 GB

600 GB

Tape Characteristics

Tape Type

Metal Particle

Advanced Metal Particle

Advanced Metal Particle

eMP60^TM

Overall Length

1,828 ft (557 m)

1,847 ft (563 m)

1,833 ft (559 m)

2,066 ft (630 m)

Data Area Length

1,780 ft (543 m)

1,760 ft (536 m)

Tape Width

0.5 in (12.7 mm)

0.5 in (12.7 mm)

0.5 in (12.7 mm)

0.5 in (12.7 mm)

Tape Thickness

360µ

360µ

360µ

360µ

Magnetic Properties

Coercivity

1,850 Oe

1,850 Oe

1,900 Oe

2,800 Oe

Remanence

2,900 G

3,000 G

3,000 G

2,300 G

Tape Life

Archive Storage
(with less than 10% loss in demagnetization, at 20°C and 40% non-condensing humidity)

> 30 years

> 30 years

> 30 years

> 30 years

Durability

(average head passes in typical office/computer environment)

1,000,000

1,000,000

1,000,000

1,000,000

Operating Environment

Operating Temperature

50° - 113°F

(10° - 45°C)

50° - 113°F

(10° - 45°C)

50° - 113°F

(10° - 45°C)

50° - 113°F

(10° - 45°C)

Non-Condensing Relative Humidity

20% - 80%

20% - 80%

20% - 80%

20% - 80%

Max. Wet Bulb Temp.

77°F (25°C)

79°F (26°C)

79°F (26°C)

79°F (26°C)

Non-Archival Storage Environment

Temperature

61°- 90°F (16° - 32°C)

60° - 90°F (16° - 32°C)

60° - 90°F (16° - 32°C)

60° - 90°F (16° - 32°C)

Non-Condensing Relative Humidity

20% - 80%

20% - 80%

20% - 80%

20% - 80%

Maximum Wet Bulb Temperature

78°F (26°C)

79°F (26°C)

79°F (26°C)

79°F (26°C)

Archival Storage Environment

Ambient Temperature

64° - 82°F (18° - 28°C)

64° - 82°F (18° - 28°C)

64° - 82°F (18° - 28°C)

64° - 82°F (18° - 28°C)

Non-Condensing Relative Humidity

40% - 80%

40% - 80%

40% - 80%

40% - 80%

Stray Magnetic Field (strength impinging on any point on the cartridge)

< 4,000 G

< 4,000 G

< 4,000 G

< 4,000 G

Date

Version History

Action

Description of Change

24-Oct-2018

Version 11

Changed

Rebranding

Overview, Product Highlights, Options andTechnical Specifications sections were revised.

09-Oct-2016

Version 10

Changed

Updated "Models" in the OVERVIEW section.

02-Dec-2011

Version 9

Removed

HPE DLT VS160 Cleaning Cartridge and HPE DLT IIIXT Data Cartridge were removed from Models.

09-Jun-2011

Version 8

Removed

Mentions of StorageWorks were removed.

11-Jun-2007

Version 7

Added

Added EMEA version.

01-Mar-2007

Version 6

Changed

Updated the Introduction and the "Models" section in the OVERVIEW section.

20-Mar-20056

Version 5

Changed

Updated "Models" in the OVERVIEW section.

14-Feb-2005

Version 4

Changed

All sections except for Servers Supported were modified.

04-Aug-2004

Version 3

Changed

Changes made to the Introduction, Product Highlights and Technical Specification sections.

04-Mar-2004

Version 2

Removed

Options

HPE StorageWorks SDLT 80 Tape Drive

01-Nov-2003

Version 1

Created

New QuickSpecs
