HPE D2500sb Storage Blade | |||
|
Designed for a wide range of configuration and deployment options, the new HPE D2500sb Storage Blade direct connects to the HPE ProLiant BL460c Gen10 Server Blade to provide the flexibility to optimize and expand your core IT applications with right-sized storage for the right workload – resulting in a lower TCO. All of this is managed by HPE OneView, the converged management platform that accelerates IT service delivery and boosts business performance.
| |||
|
| |||
|
| |||
|

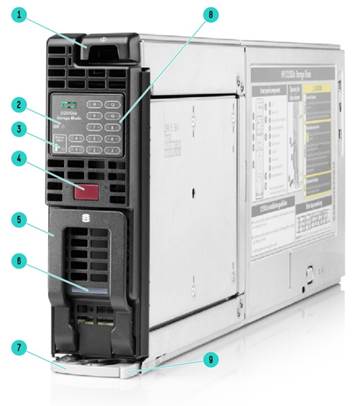

HPE D2500sb Storage Blade | |||
|
1. |
Product information tag |
6. |
Health status LED bar |
|
2. |
UID LED |
7. |
Storage blade release latch* |
|
3. |
Drawer Open LED |
8. |
Drive activity/fault LED (twelve of each) |
|
4. |
Hot-plug drive drawer release button |
9. |
Storage blade release button* |
|
5. |
Hot-plug drive drawer handle |
|
|
|
Notes: *Removing the storage blade from the enclosure removes power from the hard drives. | |||
|
| |||
|
What's New
| |||
|
| |||
Standard Features
|
Key Features
|
|
Features of the D2500sb include: SFF (SAS/SATA/SAS SSD/SATA SSD) support – Delivering data transfer rates up to 6 Gb/s SAS and 3Gb/s SATA speeds
|
|
Mix and Match of Hard Drive Types D2500sb supports mixing of different drive types (SAS/SATA, SSD/HDD) in a single enclosure. However, please note also that an array can be created across only one drive type. |
|
Universal hot plug Hard Drive Form factor is for use across multiple HPE servers, disk enclosures and storage systems. With compatibility across many enterprise platforms, you are free to deploy and re-deploy these drives to quickly deliver increased storage capacity, migrate data between systems, and easily manage spare drives. |
|
LED Indicators Front panel LEDs indicate drive activity and system health status. |
|
Density The D2500sb fits into a half height bay on the BladeSystem c7000 Enclosure. |
|
Fault Tolerance Using the built-in Smart Array P408i-sb SR Gen10 controller with 2 GB flash-backed write cache, the D2500sb can be configured for RAID 1, 5, 6, 10, 50, 60, 1 ADM, and 10 ADM (Advanced Data Mirroring). |
|
Manageability All Smart Array products utilize a standard set of management and utility software. These tools minimize Total Cost of Ownership (TCO) by reducing training requirements and technical expertise necessary to install and maintain the HPE server storage. |
|
Fault Prevention The following features offer detection of possible failures before they occur, allowing preventive action to be taken:
|
|
|
- **D2500sb is not supported with any generation other than the HPE ProLiant BL460c Gen10. - Minimum list of firmware versions required for installation of D2500sb P408i-sb SA FW: 1.34, BL460 Gen10 BIOS: 1.40 5/18/2018, iLO: 1.30, OA: 4.85. HPE Service Pack for ProLiant (SPP) 2018.06 (or later) provides all the necessary updates for support of D2500sb with BL460c Gen10 Server Blade in an HPE BladeSystem c7000 enclosure. | ||||||||||||||||||
|
| ||||||||||||||||||
|
Operating Systems
Notes: - For specific OS support information please visit the OS support matrices – links found at http://www.hpe.com/info/ossupport - For more information on the HPE Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrices at:
o http://h17007.www1.hpe.com/us/en/enterprise/servers/supportmatrix/vmware.aspx. |
||||||||||||||||||
|
| ||||||||||||||||||
|
Storage Management Software Suite
Notes: For additional information see the HPE Smart Array SR Gen10 Configuration Guide at: http://www.hpe.com/info/SmartArrayGen10-docs |
||||||||||||||||||
|
| ||||||||||||||||||
Service and Support
|
HPE Pointnext - Service and Support Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.
Consume IT on your terms HPE GreenLake brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world..
Managed services to run your IT operations HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. |
|
|
|
Free up resources with Operational Services from HPE Pointnext Services HPE delivers services for IT by using proven best practices as well as automation and methodologies that have been tested and refined by HPE experts and artificial intelligence through thousands of deployments globally. Choose from the recommended services for customers purchasing from Hewlett Packard Enterprise or an authorized reseller. Services are quoted using Hewlett Packard Enterprise order configuration tools.
HPE Pointnext Tech Care HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.
https://www.hpe.com/services/techcare
HPE Pointnext Complete Care HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts. HPE Pointnext Complete Care provides:
https://www.hpe.com/services/completecare
|
|
|
|
Warranty The warranty for this device is 3 years parts only.
|
|
|
|
Protect your business beyond warranty with HPE Pointnext Operational Service. HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution. Finally, operational services provides innovative new approaches like Flexible Capacity and Complete Care, to keep your business at peak performance. HPE is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple.
Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%1 reduction in down time, near 100%2 diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7 monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Tech Care Service and HPE Complete Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support. Notes: - 1IDC - 2HP CSC reports 2014 – 2015 Learn more about getting connected at http://www.hpe.com/services/getconnected |
|
|
|
Other related Services
|
|
HPE Install Storage Blade Hardware Installation Service Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner. |
|
HPE Installation and Startup Service for HPE BladeSystem Infrastructure is a fixed-price, fixed-scope installation and startup service that provides for the installation of HPE BladeSystem configurations, limited to one HPE BladeSystem enclosure, and certain eligible HPE ProLiant and Integrity server blades, HPE ProLiant workstation blades, HPE storage blades, HPE Virtual Connect modules (Ethernet and Fibre Channel), and Ethernet and InfiniBand network interconnects, as well as installation and configuration of HPE OneView virtual appliance for the BladeSystem c7000 enclosure. HPE OneView installation and configuration will be limited to the specific supported products and subject to the limitations detailed in the service data sheet. |
|
HPE Factory Express for Servers and Storage HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.
|
|
HPE Service Credits Offers flexible services and technical skills to meet your IT demands as your business evolves. With a menu of services, you can access additional resources and specialist skills to help you maintain peak performance of your IT. HPE Service Credits help you proactively respond to your dynamic IT and business needs. |
|
HPE Education Services Provides comprehensive training designed to expand the skills of your IT staff and keep them up to speed with the latest technologies.
|
|
HPE Support Center The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers.
Notes: *HPE Support Center Mobile App is subject to local availability |
|
|
|
Parts and Materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
Defective Media Retention An option available with HPE Pointnext Complete Care and HPE Pointnext Tech Care and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
|
|
|
|
For more information
To learn more on HPE Storage Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html
HPE Support Services are sold by HPE and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
Configuration Information
|
D2500sb Storage Blade Configuration (North America Only) | |
|
Models | |
|
HPE D2500sb Configure-to-order Storage Blade |
868909-B21 |
|
Notes: Includes 3yr NBD Parts-Only Warranty Service |
|
|
| |
Additional Options
|
Notes: - Maximum storage capacity per storage blade will vary depending upon drive size and RAID type applied. Current capacity is 3.84TB x 12 = 40.6TB in a single storage blade. Eight storage blades provide a max capacity of 368.64TB per enclosure. - For Technical Specifications and additional information on hard disk drives: - For Technical Specifications and additional information on solid state drives: - Using hard drives in unsupported configurations will result in voiding the warranty and could result in damage to the drive, thermal problems, and/or loss of data. | |
|
| |
|
HPE Hard Drives | |
|
The HPE D2500sb Storage Blade has been tested with these small form factor (SFF) SAS HDDs and SAS/SATA SSDs. This list will change often, so check the online ordering system for the latest updates: |
|
|
HDDs |
|
|
HPE 300GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD |
870753-B21 |
|
HPE 1.8TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD |
872481-B21 |
|
HPE 2.4TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD |
881457-B21 |
|
| |
|
State Solid Drives
|
|
|
Write Intensive SSD |
|
|
HPE 400GB SAS 12G Write Intensive SFF SC PM6 SSD |
P26295-K21 |
|
HPE 800GB SAS 12G Write Intensive SFF SC PM6 SSD |
P26372-K21 |
|
HPE 1.6TB SAS 12G Write Intensive SFF SC PM6 SSD
|
P26376-K21 |
|
Read Intensive SSD |
|
|
HPE 960GB SAS 12G Read Intensive SFF SC PM6 SSD |
P26285-K21 |
|
HPE 1.92TB SAS 12G Read Intensive SFF SC PM6 SSD |
P26302-K21 |
|
HPE 3.84TB SAS 12G Read Intensive SFF SC PM6 SSD |
P26306-K21 |
|
HPE 7.68TB SAS 12G Read Intensive SFF SC PM6 SSD |
P26310-K21 |
|
HPE 15.3TB SAS 12G Read Intensive SFF SC PM6 SSD |
P26314-K21 |
|
HPE 240GB SATA 6G Read Intensive SFF SC S4510 SSD |
P05924-B21 |
|
HPE 480GB SATA 6G Read Intensive SFF SC S4510 SSD |
P05928-B21 |
|
HPE 960GB SATA 6G Read Intensive SFF SC S4510 SSD |
P05932-B21 |
|
HPE 1.92TB SATA 6G Read Intensive SFF SC S4510 SSD |
P05938-B21 |
|
HPE 960GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
P18424-B21 |
|
HPE 240GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
P18420-B21 |
|
HPE 7.68TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
P18430-B21 |
|
HPE 480GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
P18422-B21 |
|
HPE 1.92TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
P18426-B21 |
|
HPE 3.84TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
P18428-B21 |
|
HPE 3.84TB SATA 6G Read Intensive SFF SC S4510 SSD |
P05946-B21 |
|
HPE 960GB SAS 12G Read Intensive SFF SC SS540 SSD |
P21139-K21 |
|
HPE 1.92TB SAS 12G Read Intensive SFF SC SS540 SSD |
P21141-K21 |
|
HPE 960GB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD |
P36997-K21 |
|
HPE 1.92TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD |
P36999-K21 |
|
HPE 3.84TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD |
P37001-K21 |
|
HPE 7.68TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD |
P37003-K21 |
|
HPE 1.92TB SATA 6G Read Intensive SFF SC S4520 SSD |
P47319-K21 |
|
HPE 1.92TB SATA 6G Mixed Use SFF SC S4620 SSD |
P47325-K21 |
|
HPE 480GB SATA 6G Read Intensive SFF SC PM893 SSD |
P47810-K21 |
|
HPE 960GB SATA 6G Read Intensive SFF SC PM893 SSD |
P47811-K21 |
|
HPE 1.92TB SATA Read Intensive SFF SC PM893 SSD |
P47812-K21 |
|
HPE 3.84TB SATA Read Intensive SFF SC PM893 SSD
|
P47813-K21 |
|
Mixed Use SSD |
|
|
HPE 800GB SAS 12G Mixed Use SFF SC PM6 SSD |
P26290-K21 |
|
HPE 1.6TB SAS 12G Mixed Use SFF SC PM6 SSD |
P26354-K21 |
|
HPE 3.2TB SAS 12G Mixed Use SFF SC PM6 SSD |
P26358-K21 |
|
HPE 6.4TB SAS 12G Mixed Use SFF SC PM6 SSD |
P26362-K21 |
|
HPE 480GB SATA 6G Mixed Use SFF SC S4610 SSD |
P05976-B21 |
|
HPE 960GB SATA 6G Mixed Use SFF SC S4610 SSD |
P05980-B21 |
|
HPE 1.92TB SATA 6G Mixed Use SFF SC S4610 SSD |
P05986-B21 |
|
HPE 480GB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
P18432-B21 |
|
HPE 960GB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
P18434-B21 |
|
HPE 3.84TB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
P18438-B21 |
|
HPE 1.92TB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
P18436-B21 |
|
HPE 480GB SATA 6G Mixed Use SFF SC SM883 SSD |
P09712-B21 |
|
HPE 960GB SATA 6G Mixed Use SFF SC SM883 SSD |
P09716-B21 |
|
HPE 1.92TB SATA 6G Mixed Use SFF SC SM883 SSD |
P09722-B21 |
|
HPE 800GB SAS 12G Mixed Use SFF SC SS540 SSD |
P21131-K21 |
|
HPE 1.6TB SAS 12G Mixed Use SFF SC SS540 SSD |
P21133-K21 |
|
HPE 3.2TB SAS 12G Mixed Use SFF SC SS540 SSD |
P21135-K21 |
|
HPE 6.4TB SAS 12G Mixed Use SFF SC SS540 SSD |
P21137-K21 |
|
HPE 960GB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD |
P37005-K21 |
|
HPE 1.92TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD |
P37011-K21 |
|
HPE 3.84TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD |
P37017-K21 |
|
HPE 480GB SATA 6G Mixed Use SFF SC S4620 SSD |
P47323-K21 |
|
HPE 1.92TB SATA 6G Mixed Use SFF SC S4620 SSD |
P47325-K21 |
|
HPE 3.84TB SATA 6G Mixed Use SFF SC S4620 SSD |
P47326-K21 |
|
HPE 480GB SATA 6G Mixed Use SFF SC PM897 SSD |
P47814-K21 |
|
HPE 960GB SATA 6G Mixed Use SFF SC PM897 SSD |
P47815-K21 |
|
HPE 1.92TB SATA 6G Mixed Use SFF SC PM897 SSD |
P47816-K21 |
|
| |
Storage
|
| |||||||||
|
Top view of the D2500sb Storage Blade, with the drive drawer opened | |||||||||
|
| |||||||||
| |||||||||
|
| |||||||||
Technical Specifications
|
HPE D2500sb Storage Blade |
|
Dimensions (HxWxD)
|
|
Weight
|
|
Protocol Support
|
|
O/S Support
|
|
LED Indicators
|
|
Drive LED Indicators (on drive trays)
|
|
Relative Humidity (non-condensing)
|
|
Temperature Range
Notes:
Drive
bays 1, 2, and 3 MUST be populated with either a drive or a blank to
maintain proper cooling and airflow. |
|
Power Consumption
|
|
|
|
Built-in Smart Array P408i-sb SR Gen10 Controller
|
|
Disk Drive and Enclosure Interface
|
|
Cache Memory Speed
|
|
Cache Memory
|
|
Logical Drives Supported
|
|
RAID Support
|
|
Optional License
Notes: For additional information on features of HPE Smart Array SR Gen10 Controllers, see the HPE Smart Array SR Gen10 User Guide. https://support.hpe.com/hpsc/doc/public/display?docId=emr_na-a00019059en_us |
|
|
|
Environment-friendly Products and Approach - End-of-life Management and Recycling Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas.
For trade-in information, please go to: https://www.hpe.com/us/en/about/environment/product-recycling.html.
To recycle your product, please go to: https://www.hpe.com/us/en/about/environment/product-recycling.html or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
|
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
06-Dec-2021 |
Version 13 |
Changed |
Additional Options section was updated Obsolete SKUs were removed |
|
01-Nov-2021 |
Version 12 |
Changed |
Additional Options section was updated Obsolete SKUs were removed Service and Support Pointnext Tech Care and Complete Care information updated |
|
01-Feb-2021 |
Version 11 |
Changed |
SKUs added in Additional Options sections. Obsolete SKUs were deleted in Additional Options section. |
|
07-Dec-2020 |
Version 10 |
Changed |
SKUs added and deleted from Additional Options sections |
|
22-Jun-2020 |
Version 9 |
Changed |
Additional Options section was updated. Rebranding applied to QuickSpecs |
|
07-Oct-2019 |
Version 8 |
Changed |
SKUs added in Additional Options section. |
|
16-Sep-2019 |
Version 7 |
Removed |
SKU was deleted: P05994-B21 |
|
05-Aug-2019 |
Version 6 |
Added |
SKUs added: P18424-B21, P18432-B21, P18420-B21, P18430-B21, P18434-B21, P18438-B21, P18436-B21, P18422-B21, P18426-B21, P18428-B21 |
|
02-Apr-2019 |
Version 5 |
Added |
SKUs added: P05924-B21, P05928-B21, P05932-B21, P05938-B21, P05946-B21, P10440-B21, P10442-B21, P10444-B21, P10446-B21, P05976-B21, P05980-B21, P05986-B21, , P10448-B21, P10454-B21, P10460-B21. |
|
Removed |
Obsolete SKUs were deleted: 873355-B21, 872374-B21, 873359-B21, 875470-B21, 875474-B21, 877758-B21. | ||
|
03-Dec-2018 |
Version 4 |
Added |
SKUs added: P04517-B21, P04519-B21, P04521-B21, P04523-B21, P04525-B21, P04527-B21, P04533-B21, P04537-B21, P04539-B21, P04541-B21, P04543-B21, P04545-B21, P04547-B21, P09712-B21, P09716-B21, P09722-B21, P09088-B21, P09090-B21, P09092-B21, P09094-B21, P09096-B21, P09098-B21, P09100-B21, P09102-B21. |
|
01-Oct-2018 |
Version 3 |
Changed |
Recommended/Extended updates applied. Options section was updated. |
|
Added |
SKUs added in Options sections: P07922-B21, P07926-B21, P07930-B21. | ||
|
06-Aug-2018 |
Version 2 |
Changed |
Product Highlights and Options sections were updated. |
|
Added |
SKUs added in Options sections: P06194-B21, P06196-B21, P06198-B21, P06200-B21. | ||
|
04-Jun-2018 |
Version 1 |
Created |
New QuickSpecs. |
