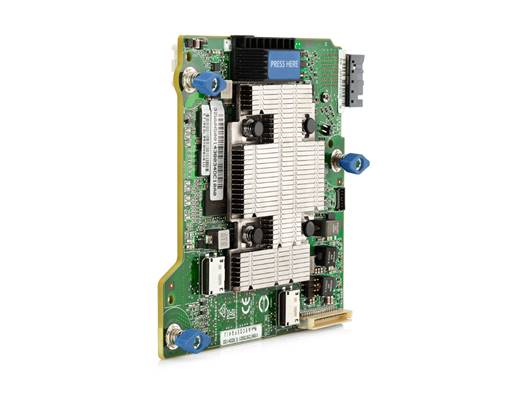

The HPE Smart Array P542D Controller is a PCI-Express (PCIe) 3.0 mezzanine, 12Gb/s Serial Attached SCSI (SAS) RAID controller that supports internal and direct attached storage. It provides enterprise-level reliability, connectivity, and performance for HPE Synergy compute and storage modules, and HPE ProLiant XL270d server through its support of the latest SCSI technology and advanced RAID capabilities. The controller supports 2GB flash-backed write cache (FBWC) to maximize data retention in case of a power failure. It features eight external physical links and eight internal physical links within four ports to deliver increased compute module uptime by providing advanced storage functionality, including online RAID level migration with FBWC, global online spare, and pre-failure alert. | ||
|
| ||
|
Models | ||
|
HPE Smart Array P542D/2GB FBWC 12Gb Mezzanine SAS Controller |
759557-B21 | |
|
HPE Smart Array P542D/2GB Controller for ProLiant XL270d Gen9 Server |
851508-B21 | |
|
| ||
|
Kit Contents |
HPE Smart Array P542D/2GB FBWC 12Gb Mezzanine SAS Controller |
759557-B21 |
|
The Smart Storage Battery and SAS cable are not included with this HPE Smart Array P542D Controller (759557-B21). The Smart Storage Battery is required by the Smart Array P542D Controller when configured in RAID mode. Only one Smart Storage Battery is required per Synergy Compute Module, thus you can use the Smart Storage Battery that was included with the Smart Array P240nr controller. The SAS cable is only required when attaching to the internal compute SAS/NVMe backplane. | ||
|
|
HPE Smart Array P542D/2GB Controller for ProLiant XL270d Gen9 Server |
851508-B21 |
|
The Smart Storage Battery and SAS cable for the internal drives on ProLiant XL270d server are included with this HPE Smart Array P542D Controller (851508-B21). | ||
Standard Features
|
Key Features |
- 16 physical links 2 x4 internal ports and 2 x4 external ports - 12Gb/s SAS, 6GB/s SATA technology - Mix-and-match SAS and SATA drives to the same controller - Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries
|
|
| |
|
Ports |
|
|
| |
|
Performance |
|
|
| |
|
Online Management Features |
|
|
| |
|
Fault Prevention |
The following features offer detection of possible failures before they occur, allowing preventive action to be taken:
|
|
| |
|
Fault Recovery |
Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure:
|
|
| |
|
HPE SmartCache |
The HPE SmartCache feature is a controller-based read and write caching solution in a DAS environment that caches the most frequently accessed data ("hot" data) onto lower latency SSDs to dynamically accelerate application workloads. The HPE SmartCache architecture is flexible and supports any server supported HDD for bulk storage and any server supported SSD as an accelerator. HPE SmartCache is an optional license (see Related Options for more information on the license). HPE SmartCache is deployed and managed using the HPE Smart Storage Administrator (HPE SSA). |
|
| |
|
HPE Secure Encryption |
HPE Secure Encryption is a Smart Array controller-based data encryption that protects sensitive, mission critical data. This is an enterprise-class encryption solution for data at rest on any bulk storage attached to the HPE Smart Array P542D controller including data on the cache memory of the controller. HPE Secure Encryption is an optional license per server requiring encryption enablement (see Related Options for more information on the license). The solution is available for both local and remote key management mode deployments. Local Key Management Mode is focused on single server deployment where there is one Master key per controller that is managed by the user. Remote Key Management Mode is for enterprise wide deployments from just a few servers to thousands of servers. For more information please visit http://www.hpe.com/servers/secureencryption |
|
| |
|
HPE SSD Smart Path |
The HPE SSD Smart Path feature included in the Smart Array software stack improves Solid State Disk (SSD) read performance. With up to 4x better SSD read performance, HPE SSD Smart Path chooses the optimum path to the SSD and accelerates reads for all RAID levels and RAID 0 writes. HPE SSD Smart Path requires updated firmware, drivers, and configuration utility available at: http://www.hpe.com/servers/ssa. HPE SSD Smart Path is ideal for read intensive workloads and is included as a base feature on HPE Smart Array P-series controllers. Please note, FBWC must be disabled for HPE SSD Smart path to be operational. |
Compatibility
|
Server Support |
HPE Synergy 480 Gen9 Compute Modules HPE Synergy 620 Gen9 Compute Modules HPE Synergy 660 Gen9 Compute Modules HPE Synergy 680 Gen9 Compute Modules
|
|
| |
|
Operating System Support |
Microsoft Windows Server |
|
Microsoft Windows Hyper-V Server | |
|
VMware vSphere ESXi | |
|
Red Hat Enterprise Linux (RHEL) | |
|
SUSE Linux Enterprise Server (SLES) | |
|
NOTE: For a complete and up-to-date list of certified and supported OS versions for HPE Smart Array controllers, please refer to the HPE Smart Array Operating System Support Matrix at: http://www.hpe.com/h20195/v2/GetPDF.aspx/4AA6-6550ENW.pdf | |
|
NOTE: For more information on HPE's Certified and Supported Servers and Compute Modules and Servers for OS, and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hpe.com/info/ossupport. | |
|
| |
|
Storage Management Software Suite |
HPE Smart Storage Administrator (HPE SSA) Comprehensive management for HPE Smart Storage products with advanced scripting and diagnostic features and simplified and intuitive interface and functionality. For more information please visit: http://www.hpe.com/servers/ssa
HPE Systems Insight Manager Powerful server and server options/storage manager tool with configuration/diagnostic utilities
HPE Storage Management Utility Offers the simplest method for configuring the storage system via Initial System Configuration Wizard |
Service and Support
|
|
HPE Support Services |
Protect your business beyond warranty with HPE Support Services HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution. Finally, operational services provides innovative new approaches like Flexible Capacity and Datacenter Care, to keep your business at peak performance. HPE is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple. |
| |
|
|
|
| ||
|
|
Recommended Support |
HPE Proactive Care* with 24x7 coverage, three year Support Service HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This Service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf
HPE Proactive Care* with 6 hour call-to-repair commitment, three year Support Service HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This Service combines three years' proactive reporting and advice with our highest level of hardware support - HPE's 24x7, six hour hardware call-to-repair. HPE is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf
*HPE Proactive Care and HPE Proactive Care Advanced require that the customer connect their devices to make the most of these services and receive all the deliverables. |
| |
|
|
|
| ||
|
|
HPE Education Services |
Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn |
| |
|
|
|
| ||
|
|
HPE Support Center |
The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers. Learn more http://www.hpe.com/support/hpesc HPE's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. *HPE Support Center Mobile App is subject to local availability |
| |
|
|
|
| ||
|
Parts and materials |
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. | |||
|
| ||||
|
Related Services |
HPE Server Hardware Installation HPE Installation and Startup Service provides for the installation and startup of HPE technology including BladeSystems, C-Class enclosure, HPE ProLiant c-Class and Integrity server blades, storage blades, SAN switch blades, HPE Virtual Connect modules (Ethernet and Fibre Channel), Ethernet network interconnects, and InfiniBand, as well as the installation of one supported operating system type (Windows® or Linux).
NOTE: This controller is covered under the HPE Service Contract applied to the HPE ProLiant Server. No separate HPE support services need to be purchased.
| |||
|
| ||||
|
Recommended Option
|
This controller is a Recommended Option. Offering the best combination of performance, value and availability, Recommended Options have been selected by HPE experts to provide the right technology for a range of workloads and market segments. Fully integrated into the ProLiant management and security experience, Recommended Options provide the best fit with timely availability. | |||
|
| ||||
|
Additional Service Information |
http://www.hpe.com/services | |||
Related Options
|
HPE Smart Storage Battery |
HPE Smart Storage Battery with 260mm Cable Kit |
P01367-B21 |
|
NOTE: The Smart Storage Battery and SAS cable are not included with the HPE Smart Array P542D Controller option kit (759557-B21) for Synergy Compute Module. The Smart Storage Battery is required by the Smart Array P542D Controller when configured in RAID mode. Only one Smart Storage Battery is required per Synergy Compute Module, thus you can use the Smart Storage Battery that was included with the Smart Array P240nr controller. The SAS cable is only required when attaching to the internal compute SAS/NVMe backplane. NOTE: The Smart Storage Battery is included with the HPE Smart Array P542D Controller for ProLiant XL270d option kit (851508-B21). |
| |
|
| ||
|
HPE Smart Array SAS Cable |
HPE Compute Module Smart Array P542D SAS Cable |
815173-B21 |
|
NOTE: The Smart Array SAS cable is not included with the HPE Smart Array P542D/2GB FBWC controller option kit. The SAS cable is only required when attaching to the internal Synergy compute backplane. NOTE: The Smart Array SAS Cable is included with the HPE Smart Array P542D Controller for ProLiant XL270d option kit (851508-B21). |
| |
|
| ||
|
HPE Secure Encryption |
HPE Smart Array Secure Encryption/Data at Rest Encryption/per Server Entitlement E-LTU |
Q2F26AAE |
|
NOTE: HPE Secure Encryption licensing is based on a per compute module entitlement which covers all Smart Array controllers installed in the compute module. |
| |
|
For more information visit: http://www.hpe.com/servers/secureencryption |
| |
|
| ||
|
HPE SmartCache |
HPE Smart Array SR SmartCache (Single Key/Single Server) LTU
|
D7S26A |
|
NOTE: This part number can be used to purchase a single license or to order multiple licenses with a unique activation key per server. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HPE Software Technical Support Services. |
| |
|
HPE Smart Array SR SmartCache (Single Key/Multiple Servers) LTU
|
D7S27A | |
|
NOTE: This part number can be used to purchase a single license or to order multiple licenses with a single activation key. Customers will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HPE Software Technical Support Services. |
| |
|
HPE Smart Array SR SmartCache (Single Key/Multiple Servers) E-LTU
|
D7S27AAE | |
|
NOTE: This part number can be used to purchase multiple licenses with a single activation key. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24x7 HPE Software Technical Support Services. |
| |
|
For more information please visit: http://www.hpe.com/servers/smartcache. |
| |
|
| |
Environment friendly Products and Approach - End-of life Management and Recycling |
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
