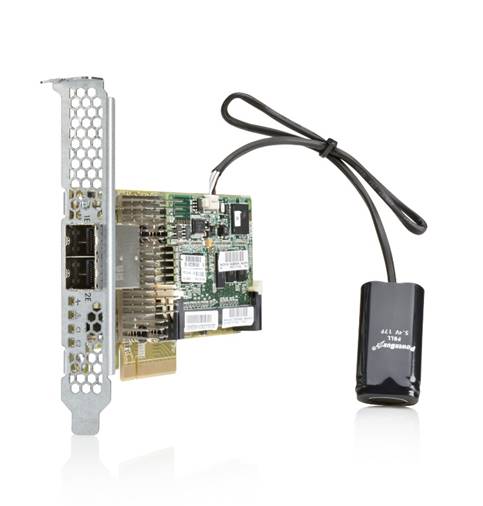

HPE Smart Array P431 Controller | |
|
| |
|
The HPE Smart Array P431 Controller is a low profile, PCIe3 x8, 12Gb/s capable Serial Attached SCSI (SAS) RAID controller that provides enterprise class storage performance, increased external scalability, and data protection for select HPE ProLiant Gen8 rack and tower servers. It features eight external physical links and delivers increased server uptime by providing advanced storage functionality, including online RAID level migration (between any RAID levels) with flash back write cache (FBWC), global online spare, and pre-failure warning. Data compatibility between HPE Smart Array Controllers means customers can easily upgrade to future Smart Array Controllers. | |
|
| |
|
HPE Smart Array P431 Controller | |
|
| |
|
Models | |
|
HPE Smart Array P431/4GB FBWC 12Gb 2-ports Ext SAS Controller (Recommended) |
698532-B21 |
Standard Features
|
Key Features |
Storage interface (SAS/SATA) 8 physical links across 2 x4 external ports 12Gb/s SAS, 6Gb/s SATA technology Mix-and-match SAS and SATA drives to the same controller Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries 4 GiBytes Flash-Backed Write Cache (FBWC) PCI Express Gen3 x8 link RAID 0, 1, 10, 5, 50, 6, 60, 10 ADM (Advanced Data Mirroring) Legacy and UEFI boot operation Up to 200 physical drives Up to 64 logical drives HPE SmartCache (optional license) HPE Secure Encryption (optional license) HPE SSD Smart Path VMware Virtual SAN certified Rapid Parity Initialization (RPI) Rapid rebuild Drive Erase Performance Optimization-Degraded Reads and Read Coalescing Power Efficiency Seamless upgrades to and from other HPE Smart Array controllers Recovery ROM to protect against controller ROM corruption Low-profile standard PCI Express plug-in card Ships with a full size and a low profile bracket Dimensions (excluding bracket): 7.5 in x 9.5 in x 2.25 in (19.05 cm x 24.13 cm x 5.72 cm) |
|
| |
|
Ports |
External: 8 SAS/SATA physical links across 2 x4 ports |
|
| |
|
Performance |
12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane) 6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane) PCI Express Gen3 x8 link width 4 GiBytes 72-bit wide DDR3-1866MHz Flash Back Write Cache provides up to 14.9GB/s maximum cache bandwidth Read ahead caching Write-back caching |
|
| |
|
Online Management Features |
Online array expansion Online capacity expansion Online logical drive extension Online RAID level migration Online stripe size migration Online mirror split, recombine, and rollback Online active drive replacement Online drive firmware upgrade Online and high performance offline Rapid Parity Initialization (RPI) Unlimited global online spares assignment User selectable expand and rebuild priority User selectable RAID level and stripe size User selectable read and write cache sizes Supports Predictive Spare Activation |
|
| |
|
Fault Prevention |
The following features offer detection of possible failures before they occur, allowing preventive action to be taken: S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) was first developed by HPE which detects possible hard disk failure before it occurs, allowing replacement of the component before failure occurs. Drive Parameter Tracking monitors drive operational parameters, predicting failure and notifying the administrator. Dynamic Sector Repairing continually performs background surface scans on the hard disk drives during inactive periods and automatically remaps bad sectors, ensuring data integrity. Smart Array Cache Tracking monitors integrity of controller cache, allowing pre-failure preventative maintenance. Environment Tracking for External Storage System: Monitors fan speed and cabinet temperature of Modular Smart Array Enclosures and HPE Disk Enclosures. |
| ||
|
|
| |||
|
Fault Recovery |
Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure Recovery ROM: This feature protects the user from a firmware image corruption by storing a redundant copy of the firmware image. If the active firmware image becomes corrupt, the controller will use the redundant firmware image and continue operating. On-Line Spares: There is no limit to the number of spare drives that can be installed prior to drive failure. If a failure occurs, recovery begins with an On-Line Spare and data is reconstructed automatically. DRAM ECC detects and corrects data bit errors. |
| ||
|
|
| |||
|
|
HPE SSD Smart Path |
The HPE SSD Smart Path feature included in the Smart Array software stack improves Solid State Disk (SSD) read performance. With up to 4x better SSD read performance, HPE SSD Smart Path chooses the optimum path to the SSD and accelerates reads for all RAID levels and RAID 0 writes. HPE SSD Smart Path requires updated firmware, drivers, and configuration utility available at: https://www.hpe.com/us/en/product-catalog/detail/pip.5409020.html. HPE SSD Smart Path is ideal for read intensive workloads and is included as a base feature on HPE Smart Array P-series controllers. The following operating systems are supported by the HPE SSD Smart Path feature. | ||
|
|
| |||
|
|
HPE SmartCache |
The HPE SmartCache feature is a controller-based read caching solution in a DAS environment that caches the most frequently accessed data ("hot" data) onto lower latency SSDs to dynamically accelerate application workloads. The HPE SmartCache architecture is flexible and supports any HPE ProLiant Gen8 supported HDD for bulk storage and any HPE ProLiant Gen8 supported SSD as an accelerator. HPE SmartCache is deployed and managed using the HPE Smart Storage Administrator (HPE SSA). HPE SmartCache is an optional license (see Related Options for more information on the license). For more information please visit: http://www.hpe.com/servers/smartcache | ||
|
|
| |||
|
|
HPE Secure Encryption |
HPE Secure Encryption is a Smart Array controller-based data encryption solution for ProLiant Gen9 servers that protects sensitive, mission critical data. This is an enterprise-class encryption solution for data at rest on any bulk storage attached to the HPE Smart Array controllers including data on the cache memory of the controller. HPE Secure Encryption is an optional license per server requiring encryption enablement (see Related Options for more information on the license). The solution is available for both local and remote key management mode deployments. Local Key Management Mode is focused on single server deployment where there is one Master key per controller that is managed by the user. Remote Key Management Mode is for enterprise wide deployments from just a few servers to thousands of servers. For more information please visit https://www.hpe.com/us/en/product-catalog/detail/pip.6532260.html | ||
|
|
| |||
|
Warranty |
The warranty for this device is 3 years parts only. |
|
Pre-Failure Warranty: Drives attached to the Smart Array Controller and monitored under Insight Manager are supported by a Pre-Failure (replacement) Warranty. For complete details, consult the HPE Support Center or refer to your HPE Server Documentation. | |
|
Warranty Upgrade Options
|
Compatibility
|
Server Support |
| |||
|
| ||||
|
Disk Enclosure Support |
| |||
|
| ||||
|
Operating Systems |
Microsoft Windows Server 2008 R2 | |||
|
Microsoft Windows Server 2012 / 2012 R2 | ||||
|
Red Hat Enterprise Linux 5 / 6 / 7 | ||||
|
SUSE Linux Enterprise Server 11 / 12 | ||||
|
VMware ESXi 5.0 / 5.1 | ||||
|
VMware vSphere 5.5 / 6.0 | ||||
|
NOTE: For more information on HPE's Certified and Supported ProLiant Servers for OS and Virtualization Software, please visit our Support Matrix at: http://www.hpe.com/info/ossupport | ||||
|
| ||||
|
Storage Management Software Suite |
HPE Smart Storage Administrator (HPE SSA) Comprehensive management for HPE Smart Storage products with advanced scripting and diagnostic features and simplified and intuitive interface and functionality. For more information please visit: http://www.hpe.com/servers/ssa |
| ||
|
HPE Systems Insight Manager Powerful server and server options/storage manager tool with configuration/diagnostic utilities |
| |||
|
HPE Storage Management Utility Offers the simplest method for configuring the storage system via Initial System Configuration Wizard |
| |||
Service and Support
|
HPE Support Services |
Protect your business beyond warranty with HPE Support Services HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution. Finally, operational services provides innovative new approaches like Flexible Capacity and Datacenter Care, to keep your business at peak performance. HPE is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple. |
|
| |
|
Recommended Support |
HPE Proactive Care* with 24x7 coverage, three year Support Service HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This Service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf
HPE Proactive Care* with 6 hour call-to-repair commitment, three year Support Service HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This Service combines three years’ proactive reporting and advice with our highest level of hardware support - HPE’s 24x7, six hour hardware call-to-repair. HPE is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf
*HPE Proactive Care and HPE Proactive Care Advanced require that the customer connect their devices to make the most of these services and receive all the deliverables. |
|
| |
|
HPE Education Services |
Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn |
|
| |
|
HPE Support Center |
The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers. Learn more http://www.hpe.com/support/hpesc HPE's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. *HPE Support Center Mobile App is subject to local availability |
|
| |
|
Parts and materials |
Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
|
| |
|
Related Services |
HPE Server Hardware Installation HPE Installation and Startup Service provides for the installation and startup of HPE technology including BladeSystems, C-Class enclosure, HPE ProLiant c-Class and Integrity server blades, storage blades, SAN switch blades, HPE Virtual Connect modules (Ethernet and Fibre Channel), Ethernet network interconnects, and InfiniBand, as well as the installation of one supported operating system type (Windows® or Linux).
NOTE: This controller is covered under the HPE Service Contract applied to the HPE ProLiant Server. No separate HPE support services need to be purchased.
|
|
| |
|
Recommended Option |
This controller is a Recommended Option. Offering the best combination of performance, value and availability, Recommended Options have been selected by HPE experts to provide the right technology for a range of workloads and market segments. |
|
| |
|
Additional Service Information |
http://www.hpe.com/services |
Related Options
|
HPE SmartCache |
HPE Smart Array SR SmartCache (Single Key/Single Server) LTU |
D7S26A |
|
Single-Server License Used to purchase a license for one server. |
| |
|
HPE Smart Array SR SmartCache (Single Key/Multiple Servers) LTU |
D7S27A | |
|
Flexible-Quantity License Used to purchase multiple licenses with a single activation key. Contains license(s) for a customer defined quantity of servers, a license entitlement certificate for the quantity of licenses purchased, end user license agreement, and license key installation card delivered via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HPE Software Technical Support Services. |
| |
|
HPE Smart Array SR SmartCache (Single Key/Multiple Servers) E-LTU |
D7S27AAE | |
|
Flexible-Quantity Electronic License Used to purchase multiple licenses with a single activation key. Contains license(s) for a customer defined quantity of servers, a license entitlement certificate for the quantity of licenses purchased, end user license agreement, and license key installation information delivered via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HPE Software Technical Support Services. |
| |
|
For more information please visit: http://www.hpe.com/servers/smartcache |
| |
|
| ||
|
HPE Secure Encryption |
HPE Secure Encryption per Svr Entitlement |
C9A82AAE |
|
NOTE: HPE Secure Encryption licensing is based on the number of servers requiring encryption for direct attached storage. For more information visit: https://www.hpe.com/us/en/product-catalog/detail/pip.6532260.html |
| |
|
| ||
|
HPE External Cable Options |
External Cable Options to be used with MSA 2040 Storage |
|
|
HPE External 0.5m (1ft) Mini-SAS HD 4x to Mini-SAS HD 4x Cable (Extended) |
691968-B21 | |
|
HPE External 1.0m (3ft) Mini-SAS HD 4x to Mini-SAS HD 4x Cable (Recommended) |
716195-B21 | |
|
HPE External 2.0m (6ft) Mini-SAS HD 4x to Mini-SAS HD 4x Cable (Recommended) |
716197-B21 | |
|
HPE External 4.0m (13ft) Mini-SAS HD 4x to Mini-SAS HD 4x Cable (Extended) |
716199-B21 | |
|
External Cable Options to be used with D2000 and D6000 Disk Enclosures |
| |
|
HPE 0.5m External Mini SAS High Density to Mini SAS Cable (Extended) |
691971-B21 | |
|
HPE 1.0m External Mini SAS High Density to Mini SAS Cable (Recommended) |
716189-B21 | |
|
HPE 2.0m External Mini SAS High Density to Mini SAS Cable (Recommended) |
716191-B21 | |
|
HPE 4.0m External Mini SAS High Density to Mini SAS Cable (Extended) |
716193-B21 | |
