HPE Smart Array Gen10 Controllers For ProLiant Server Blades: технические характеристики и документация
В архивеOverview
|
HPE Smart Array Gen10 Controllers For HPE ProLiant Server Blades | ||
|
The HPE Smart Array Gen10 Controllers for the HPE ProLiant Gen10 Server Blades, supporting 12Gb/s SAS and PCIe 3.0, are ideal for maximizing performance while supporting advanced RAID levels with up to 2 GB flash-backed write cache (FBWC). These controllers operate in Mixed Mode which combines RAID and HBA operations simultaneously. The Smart Array Gen10 controller portfolio provides the ability to support internally attached drives with the HPE Smart Array P204i-b SR Gen10 Controller and externally attached drives with the HPE Smart Array P408e-m SR Gen10 Controller. The Smart Array SR Gen10 Controllers also offer encryption for data-at-rest on any drive with HPE Smart Array SR Secure Encryption. The HPE controllers provide enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. | ||
|
| ||
|
|
| |
|

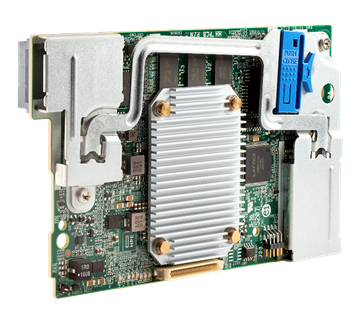

HPE Smart Array P204i-b SR Gen10 Controller |
HPE Smart Array P408e-m SR Gen10 Controller | |
|
| ||
|
Models | ||
|
HPE Smart Array P204i-b SR Gen10 (4 Internal Lanes/1GB Cache) 12G SAS Modular Controller |
804367-B21 | |
|
HPE Smart Array P408e-m SR Gen10 (8 External Lanes/2GB Cache) 12G SAS Mezzanine Controller |
804381-B21 | |
|
| ||
|
Kit Contents |
| |
|
Includes controller, documentation information card, warranty statement, and battery required card. | ||
|
Notes: The HPE Smart Storage Battery is not included in the kit and is required with Performance RAID controllers (P204i-b and P408e-m). | ||
|
| ||
Compatibility |
|
Server Support HPE ProLiant BL460c Gen10 Server Blade |
|
|
|
Disk Enclosure Support (with P408e-m SR) HPE MSA 1040 SAN Storage HPE MSA 1050 SAN Storage HPE MSA 2040 SAN Storage HPE MSA 2050 SAN Storage HPE D3610 Disk Enclosure HPE D3710 Disk Enclosure HPE D6020 Disk Enclosure |
|
|
|
Operating System Support |
|
Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware ESXi Canonical Ubuntu CentOS Notes: HPE Smart Array controllers are supported by the server operating system. For more information on HPE's server operating systems and virtualization software, please visit: http://www.hpe.com/info/ossupport |
|
|
|
Storage Management Software Suite HPE Smart Storage Administrator (SSA) GUI HPE Smart Storage Administrator (SSA) CLI HPE Smart Storage Administrator (SSA) Scripting HPE Intelligent Provisioning UEFI System Utilities (storage configuration) UEFI Storage RESTful Notes: For additional information see the HPE Smart Array SR Gen10 Configuration Guide at: http://www.hpe.com/info/SmartArrayGen10-docs |
|
|
|
Additional Information HPE Smart Array SR Gen10 Controllers For additional information on the features for HPE Smart Array SR Gen10 Controllers, please see the HPE Smart Array SR Gen10 User Guide, HPE Smart Array SR Gen10 Configuration Guide, and HPE Smart Array SR Secure Encryption Installation and User Guide at: http://www.hpe.com/info/SmartArrayGen10-docs |
|
|
|
XXXXXX-X21 is SKU designation formed by a common six digit part number and a -X21 suffix that identifies a SKU that is available across multiple server family lines. Refer to the table below to find the SKU suffix that applies to the specific server product line this option can be ordered with. | ||
|
-B21 |
-H21 |
-K21 |
|
COMPUTE Server Line |
SPECIALIZED COMPUTE Server Line |
STORAGE Line |
|
HPE
Cloudline CL2100/CL2200/CL2800/CL3100/ HPE Composable Cloud for ProLiant DL HPE ProLiant BL460c/BL660c Servers HPE ProLiant DL20/DL160/DL180 Servers HPE
ProLiant DL325/DL360/DL380/DL385/ HPE ProLiant DX360/DX380 Servers HPE ProLiant MicroServer HPE ProLiant for Microsoft Azure Stack HPE ProLiant ML30/ML110/ML350 Servers HPE Synergy 480/660 Systems HPE ProLiant DX170r/DX190r, DX2000 Servers HPE ProLiant DX560 Gen10 server HPE ProLiant DX4200 Gen10 server
|
HPE Apollo 35/40/70 Systems HPE Apollo 2000/6000 Servers HPE XL170r/XL190r/XL270d (Apollo 6500) Gen10 Server for BlueData Software HPE Converged System 300/500/700/750 HPE Edgeline Systems and Servers HPE Integrity BL860c i6/BL870c i6/BL890c i6 Server Blades HPE Integrity MC990 X Server HPE Integrity rx2800 i6 Server HPE Integrity Superdome HPE SGI 8600 System HPE Solutions for SAP HANA (TDI) |
HPE Apollo 4200 Gen9/Gen10 Servers HPE Apollo 4200 Gen10 LFF Server for BlueData Software HPE Apollo 4510 Gen10 System HPE D2220sb/D2500sb Storage Blade HPE D3000/D6020/D8000 Disk Enclosures HPE Scalable Object Storage with Scality RING HPE SimpliVity 2600 HPE SimpliVity 325/380 Gen10 HPE Storage File Controllers HPE StoreEasy 1460/1560/1650/1660/1860
Disclaimer: This may not be a complete listing of applicable servers |
Standard Features
|
Standard Features Table | ||
|
Description |
HPE Smart Array P204i-b SR Gen10 (4 Internal Lanes/1GB Cache) 12G SAS Modular Controller |
HPE Smart Array P408e-m SR Gen10 (8 External Lanes/2GB Cache) 12G SAS Mezzanine Controller |
|
SKU |
804367-B21 |
804381-B21 |
|
Ports:
| ||
|
Internal SAS lanes |
4 |
|
|
External SAS lanes |
|
8 |
|
Form Factor:
| ||
|
Type-b Modular Controller |
|
|
|
Mezzanine Controller |
|
|
|
Performance:
| ||
|
Cache Size (FBWC) |
1 GB |
2 GB |
|
Read Ahead Caching |
|
|
|
Write-Back Caching |
|
|
|
Storage Protocol: 12G SAS |
|
|
|
Storage Protocol: 6G SATA |
|
|
|
I/O slot: PCI Express 3.0 |
x8 link |
x8 link |
|
Key Features
| ||
|
Maximum Physical Drives (up to) |
238 |
238 |
|
Maximum Logical Drives (up to) |
64 |
64 |
|
RAID: 0/1/5/6/10/50/60/1 ADM/10 ADM |
|
|
|
Mixed Mode: (RAID & HBA) |
|
|
|
Boot Mode: Legacy and UEFI |
|
|
|
SSD Accelerator |
Smart Path |
Smart Path |
|
HPE Smart Array SR Secure Encryption (license) |
Optional |
Optional |
|
HPE Smart Array SR SmartCache |
|
Optional |
|
HPE OneView Support |
|
|
|
FIPS 140-2 Level 1 Validation* |
|
|
|
*Validation Program FIPS 140-2 Implementation Under Test List. Expected completion is in 2019. | ||
|
Array Configuration Features Expand Array Heal Array Move Drives Re-Mirror Array Shrink Array Spare Management Split Mirrored Array |
|
|
|
Logical Drive Configuration Features Extend Logical Drive Instant Secure Erase Migrate RAID/Stripe Size Modifying Cache Write Policy Move Logical Drive Re-enable Failed Logical Drive |
|
|
|
Fault Prevention The following features offer detection of possible failures before they occur, allowing preventive action to be taken: Predictive drive failure detects possible drive failure before it occurs, allowing replacement of the component before failure occurs. Background surface scan checks drives during inactive periods and automatically remaps bad sectors, ensuring data integrity. HPE SmartSSD Wear Gauge reports the amount of lifetime remaining on your SSDs. |
|
|
|
Fault Recovery Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure Recovery ROM: This feature protects the user from a firmware image corruption by storing a redundant copy of the firmware image. If the active firmware image becomes corrupt, the controller will use the redundant firmware image and continue operating. On-Line Spares: There is no limit to the number of spare drives that can be installed prior to drive failure. If a failure occurs, recovery begins with an On-Line Spare and data is reconstructed automatically. DRAM ECC detects and corrects data bit errors. |
|
|
|
HPE SSD Smart Path The HPE SSD Smart Path feature included in the Smart Array software stack improves Solid State Disk (SSD) read performance by up to 4x. HPE SSD Smart Path chooses the optimum path to the SSD and accelerates reads for all RAID levels and RAID 0 writes. |
|
|
|
HPE Smart Array SR SmartCache (optional license) The HPE Smart Array SR SmartCache feature is a controller-based read and write caching solution in a DAS environment that caches the most frequently accessed data ("hot" data) onto lower latency SSDs to dynamically accelerate application workloads. The SmartCache architecture is flexible and supports any HPE ProLiant Gen10 HDD for bulk storage and SSD as an accelerator. SmartCache is deployed and managed using the HPE Smart Storage Administrator (HPE SSA). SmartCache requires an optional license (see Related Options section below for more information on the license). For additional information please visit: http://www.hpe.com/servers/smartcache. |
|
|
|
HPE Smart Array SR Secure Encryption (optional license) HPE Smart Array SR Secure Encryption is a Smart Array controller-based data encryption solution that protects sensitive, mission critical data. This is an enterprise-class encryption solution for data-at-rest on any drives attached to the HPE Smart Array controllers including data on the controller cache. Secure Encryption requires an optional license per server (see Related Options for more information on the license). The solution is available for both local and remote key management mode deployments. Local Key Management Mode is focused on single server deployment where there is one Primary key per controller that is managed by the user. Remote Key Management Mode is for enterprise wide deployments from just a few servers to thousands of servers. For more information on please visit: http://www.hpe.com/servers/secureencryption | |
|
| |
|
FIPS 140-2 Cryptographic Module Validation FIPS provides a security assurance level validation for cryptographic modules. This HPE Smart Array SR Gen10 Controller is a cryptographic module that is currently on the Validation Program FIPS 140-2 Implementation Under Test List. The National Institute of Standards and Technology (NIST) issue the FIPS 140-2 requirements and standards for cryptography modules that include both hardware and software components. | |
|
| |
|
Warranty |
|
|
The warranty for this device is 3 years parts only. |
|
|
Warranty Upgrade Options
|
|
|
|
|
|

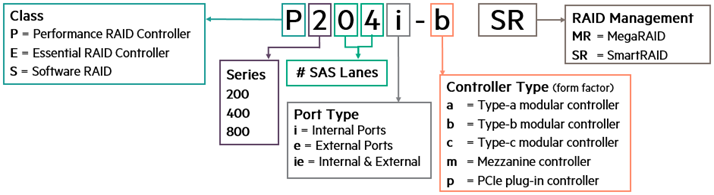

Naming Framework The Gen10 controller naming framework is illustrated below to help simplify controller identification.
|
|
|
|
|
|
|
|
Service and Support
|
HPE Pointnext - Service and Support Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.
Consume IT on your terms HPE GreenLake brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.
Managed services to run your IT operations HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. |
|
|
|
Recommended Services HPE Pointnext Tech Care. HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
HPE Pointnext Complete Care HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts. HPE Pointnext Complete Care provides:
https://www.hpe.com/services/completecare
|
|
|
|
HPE Education Services Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn |
|
|
|
HPE Support Center The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers. Learn more http://www.hpe.com/support/hpesc The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement. *HPE Support Center Mobile App is subject to local availability |
|
|
|
Parts and Materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
|
|
|
Related Services
HPE Server Hardware Installation Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner. https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf |
|
HPE Installation and Startup Service provides for the installation and startup of HPE technology including BladeSystems, C-Class enclosure, HPE ProLiant c-Class and Integrity server blades, storage blades, SAN switch blades, HPE Virtual Connect modules (Ethernet and Fibre Channel), Ethernet network interconnects, and InfiniBand, as well as the installation of one supported operating system type (Windows® or Linux). Notes: The Smart Array controller is covered under the HPE Service Contract applied to the HPE ProLiant Server. No separate HPE support services need to be purchased. Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre switches, InfiniBand and UPS batteries over 12KVA. See the specific high value options that require additional support HERE |
|
|
|
Additional Service Information http://www.hpe.com/services |
|
|
Related Options
|
HPE Smart Array SR SmartCache
| ||
|
Single-Server License Used to purchase a license for one server. Contains one license per server, a printed license entitlement certificate, end user license agreement, and license key installation card delivered via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HPE Software Technical Support Services. | ||
|
HPE Smart Array SR SmartCache (Single Key/Single Server) LTU |
D7S26A | |
|
| ||
|
Flexible-Quantity License Used to purchase multiple licenses with a single activation key. Contains license(s) for a customer defined quantity of servers, a license entitlement certificate for the quantity of licenses purchased, end user license agreement, and license key installation card delivered via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HPE Software Technical Support Services. | ||
|
HPE Smart Array SR SmartCache (Single Key/Multiple Servers) LTU |
D7S27A | |
|
| ||
|
Flexible-Quantity Electronic License Used to purchase multiple licenses with a single activation key. Contains license(s) for a customer defined quantity of servers, a license entitlement certificate for the quantity of licenses purchased, end user license agreement, and license key installation information delivered via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HPE Software Technical Support Services. | ||
|
HPE Smart Array SR SmartCache (Single Key/Multiple Servers) E-LTU |
D7S27AAE | |
|
Notes: For more information please visit: http://www.hpe.com/servers/smartcache |
| |
|
| ||
|
HPE Smart Array SR Secure Encryption |
| |
|
HPE Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU |
Q2F26AAE | |
|
Notes: HPE Smart Array SR Secure Encryption licensing is based on the number of servers requiring encryption for direct attached storage. For more information visit: http://www.hpe.com/servers/secureencryption or see the HPE Smart Array SR Secure Encryption Installation and User Guide at: http://www.hpe.com/info/SmartArrayGen10-docs |
| |
|
| ||
|
HPE Smart Storage Battery |
| |
|
HPE BladeSystem c-Class 12W Smart Storage Lithium-ion Battery |
P01363-B21 | |
|
Notes: Smart Array Gen10 controllers are supported by the HPE Smart Storage Battery. This battery supports multiple devices and is sold separately. |
| |
|
| ||
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
15-Nov-2021 |
Version 4 |
Changed |
Service and Support Section was updated |
|
18-Jan-2021 |
Version 3 |
Changed |
Standard Features Section was updated |
|
01-Oct-2018 |
Version 2 |
Changed |
Overview, Standard Features and Related Options were revised. |
|
04-Sep-2018 |
Version 1 |
New |
New QuickSpecs |
