HPE H240 Smart Host Bus Adapter: технические характеристики и документация
В архивеOverview
|
HPE H240 Smart Host Bus Adapter | |
|
| |
|

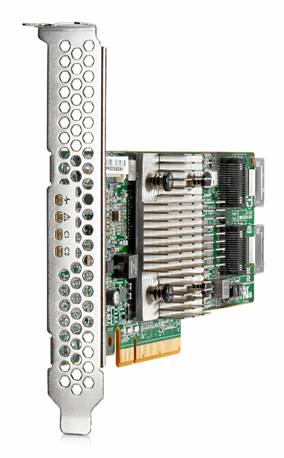

The HPE H240 Smart Host Bus Adapter is a low profile, 2 x4 internal ports Smart HBA controller that provides customers with the flexibility and speed they have come to expect from HPE. The H240 HBA is ideal for internal connectivity to, HDDs and SSDs that provides support for both 12Gb SAS and SATA drives. H240 HBA can also provide high performance for SSDs that do not require data protection. This SAS HBA is ideal for driving cost-effective and reliable scalability in today's data centers. The H240 Smart HBA controller can scale internal storage with addition of HPE 12G SAS Expander card. The H240 Smart Host Bus Adapter provides flexibility to run in HBA mode or simple RAID mode. When operating in simple RAID mode, it provides RAID 0, RAID 1, and RAID 5 with optional HPE Secure Encryption capabilities. Unlike the HPE Smart Array Controllers, the H240 does not offer any acceleration or support cache modules. | |
|
| |
|
| |
|
Model | |
|
Host Bus Adapter | |
|
HPE H240 12Gb 2-ports Int Smart Host Bus Adapter |
726907-B21 |
|
| |
|
Kit contents
| |
|
| |
Standard Features
|
Key Features
|
|
|
|
Ports Internal: 8 SAS/SATA physical links across 2 x4 internal ports |
|
|
|
Performance
|
|
|
|
HPE Secure Encryption HPE Secure Encryption is a Smart Array controller-based data encryption solution for ProLiant Gen9 servers that protects sensitive, mission critical data. This is an enterprise-class encryption solution for data at rest on any bulk storage attached to the HPE Smart Array controllers including data on the cache memory of the controller. HPE Secure Encryption is an optional license per server requiring encryption enablement (see Related Options for more information on the license). The solution is available for both local and remote key management mode deployments. Local Key Management Mode is focused on single server deployment where there is one Primary key per controller that is managed by the user. Remote Key Management Mode is for enterprise wide deployments from just a few servers to thousands of servers. For more information please visit http://www.hpe.com/servers/secureencryption |
|
|
|
Warranty The warranty for this device is 1 year parts only. Warranty Upgrade Options
|
|
|
Compatibility
|
Server Support
| |
|
| |
|
Operating Systems
Notes: For a complete and up-to-date list of certified and supported OS versions for HPE Smart Array controllers, please refer to the HPE Smart Array Operating System Support Matrix at: http://www.hpe.com/h20195/v2/GetPDF.aspx/4AA6-6550ENW.pdf | |
|
| |
|
Storage Management Software Suite HPE Smart Storage Administrator (HPE SSA) Comprehensive management for HPE Smart Storage products with advanced scripting and diagnostic features and simplified and intuitive interface and functionality. For more information please visit: http://www.hpe.com/servers/ssa HPE Systems Insight Manager Powerful server and server options/storage manager tool with configuration/diagnostic utilities HPE Storage Management Utility Offers the simplest method for configuring the storage system via Initial System Configuration Wizard |
Service and Support
|
HPE Support Services Protect your business beyond warranty with HPE Support Services HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution. Finally, operational services provides innovative new approaches like Flexible Capacity and Datacenter Care, to keep your business at peak performance. HPE is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple. |
|
|
|
Recommended Support HPE Proactive Care* with 24x7 coverage, three year Support Service HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This Service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf
HPE Proactive Care* with 6 hour call-to-repair commitment, three year Support Service HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This Service combines three years' proactive reporting and advice with our highest level of hardware support - HPE's 24x7, six hour hardware call-to-repair. HPE is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf Notes: *HPE Proactive Care and HPE Proactive Care Advanced require that the customer connect their devices to make the most of these services and receive all the deliverables. |
|
|
|
HPE Education Services Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn |
|
|
|
HPE Support Center The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers. Learn more http://www.hpe.com/support/hpesc HPE's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. Notes: *HPE Support Center Mobile App is subject to local availability |
|
|
|
Parts and materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
|
|
|
Related Services HPE Server Hardware Installation HPE Installation and Startup Service provides for the installation and startup of HPE technology including BladeSystems, C-Class enclosure, HPE ProLiant c-Class and Integrity server blades, storage blades, SAN switch blades, HPE Virtual Connect modules (Ethernet and Fibre Channel), Ethernet network interconnects, and InfiniBand, as well as the installation of one supported operating system type (Windows® or Linux).
Notes: The Smart Array P408i-a SR Gen10 Controller is covered under the HPE Service Contract applied to the HPE ProLiant Server. No separate HPE support services need to be purchased.
|
|
|
|
Recommended and Extended Products Recommended Offering the best combination of performance, value and availability, Recommended Options have been selected by HPE experts to provide the right technology for a range of workloads and market segments. Fully integrated into the ProLiant management and security experience, Recommended Options provide the best fit with timely availability.
Extended Extended Options provide an extended catalog of products tailored for customers in specific markets or with specific workloads, requiring the utmost in performance or value. Fully integrated into the ProLiant management and security experience, Extended Options represent great value and performance but typically have a longer lead-time.
This controller is an Extended Option. |
|
|
|
Additional Service Information http://www.hpe.com/services |
|
|
Related Options
|
HPE Smart Array SR Secure Encryption | |
|
HPE Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU |
Q2F26AAE |
|
Notes: HPE Smart Array SR Secure Encryption licensing is based on the number of servers requiring encryption for direct attached storage.
For more information visit: http://www.hpe.com/servers/secureencryption | |
|
| |
|
HPE Cable Options For a list of SAS cables for this controller, please refer to the HPE Smart Storage Cables compatibility matrix. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA5-4154ENW&cc=us&lc=en | |
|
| |
Environment friendly Products and Approach - End-of life Management and Recycling Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. | |
|
| |
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
18-Jan-2021 |
Version 7 |
Changed |
Standard Features Section was Updated |
|
5-Feb-2018 |
Version 6 |
Changed |
Replaced Secure Encryption SKU (C9A82AAE) with Q2F26AAE. Updated Service and Support. |
|
23-Oct-2017 |
Version 5 |
Changed |
Care Pack naming and Service and Support- Parts and Materials updated. |
|
19-Aug-2016 |
Version 4 |
Changed |
Overview, Standard Features, Compatibility, and Related Options were revised. |
|
30-Mar-2015 |
Version 3 |
Changed |
Version changed to sync Product Bulletin and QS Online version. |
|
17-Feb-2015 |
Version 2 |
Changed |
Overview and Compatibility sections were revised. |
|
09-Sep-2014 |
Version 1 |
New |
Initial version |
