NEC Vector Engine Accelerators

Hewlett Packard Enterprise supports, on selected HPE ProLiant and Apollo servers, computational modules based on the NEC Vector Engine technology.

The NEC Vector Engine Accelerator Module with its unmatched memory bandwidth per core offers a balanced architecture for applications bounded by insufficient Byte per FLOPS characteristics.

Extremely large amount of data can be processed per cycle thanks to the native vector architecture.

Moreover, users can easily exploit these capabilities via a standard development environment leveraged from the vector supercomputers era. Applications don't have to be migrated to a new programming environment. Existing Fortran and C/C++ codes will simply have to be recompiled for the Vector Engine processor.

Full software environment is available with compilers, libraries and tools. Compilers are able to vectorize and auto-parallelize loops. Parallelization with OpenMP and MPI is supported.

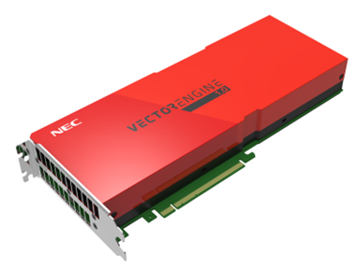

The NEC Vector Engine Accelerator Module is offered in a PCIe form factor, to be hosted by an HPE supported server running a standard Linux® operating system as the user front end.

It has been developed using 16nm FinFET process technology for extreme high performance and low power consumption.

An outstanding memory bandwidth of 1.2 TB/s is leveraged from the exceptional integration of six HBM2 memory modules and a multi-core vector processor using Chip-on-Wafer-on-Substrate technology.

The eight cores share a Last-Level-Cache, facilitating shared memory parallelization.

NEC Vector Engine Models

HPE NEC Vector Engine Accelerator Module

Q7G75A

Notes: Q7G75A is to be used with HPE Apollo 6500 Gen10. Please see the server QuickSpecs for configuration rules, including requirements for enablement kits.

HPE NEC Vector Engine Accelerator Module

Q7G75C

Notes: Q7G75C is to be used with HPE ProLiant DL380 Gen10. Please see the server QuickSpecs for configuration rules, including requirements for enablement kits.

Notes:

- HPE ProLiant DL380 Gen10 servers must be equipped with several options to receive the HPE NEC Vector Engine. For example, High Performance Heatsink Kit, High Performance Temperature Fan Kit, Graphics Cable Kit. Only a selection of HPE ProLiant DL380 Gen10 server models are supported with the HPE NEC Vector Engine Accelerator Module. Please see the HPE ProLiant DL380 Gen10 server QuickSpecs for configuration rules.

- NEC Software Licenses are available from HPE on a per project basis.

Performance of the Vector Engine 1.0 Type 10B-P

• The Vector Engine 1.0 Type 10B-P PCIe module is built for HPC and AI.
• 8 vector cores.
• 16MB last-level-cache shared by all the cores at 3TB/s (400GB/s per core).
• Each core has 64 registers of 16,384 bits (256 elements) for a total of 128kB per core.
• Three Fused Multiply-Add (FMA), one Scalar and a few other functional units are available per core.
• 2.15 TFLOPS of double-precision performance.
• 4.30 TFLOPS of single-precision performance.
• 48GB HBM2 at 1.2 TB/s.
• Power consumption: less than 300W.
• x16 PCIe Gen 3.0 maximizes bandwidth between the HPE ProLiant server and the vector processors. The whole application being run on the Vector Engine, it is less subject to PCIe bottleneck than codes offloading functions to accelerators and transferring data constantly.
• Vector processors can communicate directly when placed under the same root complex. Up to 8 VEs in an Apollo 6500 Gen10.

Service and Support

Notes: This option is covered under HPE Support Services / Service Contract applied to the HPE ProLiant Server. No separate HPE Support Services need to be purchased. Most HPE branded options sourced from HPE that are compatible with your product will be covered under your main product support at the same level of coverage, allowing you to upgrade freely. Please check HPE ProLiant Server documentation for more details on the services for this particular option.

HPE Pointnext - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges.  Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.

Consume IT on your terms

HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

Managed services to run your IT operations

HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

Recommended Services

HPE Pointnext Tech Care.

HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Pointnext Complete Care

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.  HPE Pointnext Complete Care provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

Warranty and Support Services

Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre channel switches, InfiniBand and UPS batteries over 12KVA.

See the specific high value options that require additional support here

Protect your business beyond warranty with HPE Support Services

HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation.  From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap.  Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution.   Finally, operational services provides innovative new approaches like Flexible Capacity and Complete Care, to keep your business at peak performance.  HPE is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers.

Learn more https://support.hpe.com/hpesc/public/home

HPE's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.

Notes:*HPE Support Center Mobile App is subject to local availability.

For more information

Visit the Hewlett Packard Enterprise Service and Support website.

Date

Version History

Action

Description of Change

15-Nov-2021

Version 3

Changed

Service and Support section was updated.

02-Dec-2019

Version 2

Changed

Overview and Standard Features sections were updated.

Q7G75C addition to be used with HPE ProLiant DL380 Gen10

02-Apr-2019

Version 1

New

New QuickSpecs
