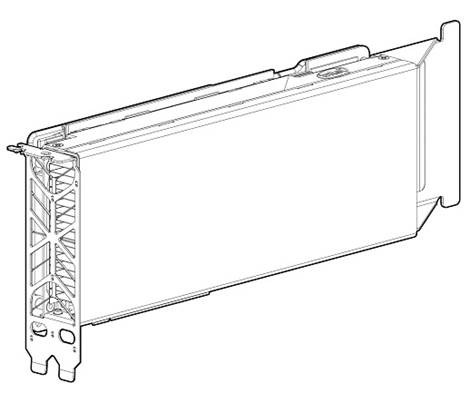

Intel® Xeon Phi^TM Coprocessors

Hewlett Packard Enterprise supports, on select HPE ProLiant servers, computational accelerator modules based on Intel® Xeon Phi^TM Coprocessors.

The following Intel Xeon Phi coprocessor products are available from HPE, for use in HPE ProLiant SL250s and SL270s servers.

• Intel Xeon Phi 5110P Coprocessor Kit (SL250s and SL270s)
• Intel Xeon Phi 7120P Coprocessor Kit (SL250s)

Based on Intel's Many Integrated Core architecture, the Intel Xeon Phi coprocessors enable seamless integration of accelerator computing with HPE ProLiant servers for high-performance computing and large data center, scale-out deployments. The Intel Xeon Phi 5110P coprocessor has a peak performance of 1.011 double-precision Tflops with 8 GB of ECC-capable memory. The Intel Xeon Phi 7120P coprocessor has a nominal peak performance of 1.208 double-precision Tflops with 16 GB of ECC-capable memory, and the capacity to exceed this nominal performance through use of a turbo clock mode. These coprocessors deliver all of the standard benefits of accelerator computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

The HPE accelerator ecosystem includes HPE Cluster Platform specification and qualification, HPE-supported accelerator-aware cluster software, and also third-party accelerator-aware cluster software for Intel Xeon Phi coprocessors on HPE ProLiant Servers. In particular, the HPE Insight Cluster Management Utility (CMU) will monitor and display Intel Xeon Phi coprocessor health sensors such as temperature.

Models

Intel® Xeon® Phi 7120P (16GB/300W) Coprocessor Kit

E2M34A

Intel® Xeon® Phi 5110P (8GB/225W) Coprocessor Kit

C1P87A

NOTE: Please see the HPE ProLiant SL250s, SL270s, XL250a and DL380p Gen8 server QuickSpecs for configuration rules including requirements, if any, for enablement kits.
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04128237

https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04123204

https://www.hpe.com/h20195/v2/GetHtml.aspx?docname=c04447895
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04128241

Intel Xeon Phi Coprocessors

Performance of Intel Xeon Phi 7120P Coprocessor

• 61 silicon cores, 244 threads
• 512-bit SIMD instructions
• 1.208 Tflops of double-precision peak performance
• GDDR5 memory optimizes performance and reduces data transfers by keeping large data sets in 16 GB local memory that is attached directly to the coprocessor.
• The high speed PCIe Gen 2.0 data transfer maximizes bandwidth between the HPE ProLiant server and the Intel Xeon Phi coprocessors

Performance of Intel Xeon Phi 5110P Coprocessor

• 60 silicon cores, 240 threads
• 512-bit SIMD instructions
• 1.011 Tflops of double-precision peak performance
• GDDR5 memory optimizes performance and reduces data transfers by keeping large data sets in 8 GB local memory that is attached directly to the coprocessor.
• The high speed PCIe Gen 2.0 data transfer maximizes bandwidth between the HPE ProLiant server and the Intel Xeon Phi coprocessors

Reliability

• ECC Memory meets a critical requirement for computing accuracy and reliability for datacenters and supercomputing centers.
• Passive heatsink design eliminates moving parts and cables, which reduces mean time between failures.

Programming and Management Ecosystem

• The Intel Many Integrated Core (MIC) architecture supports programming models which are compatible with Intel's multicore processors. This permits programmers to develop optimized multicore programs which can immediately run on the Intel Xeon Phi coprocessor.
• Standard Intel development tools can be used for MIC program development.
• HPE Insight Cluster Management Utility has incorporated the Intel Xeon Phi environmental sensors into its monitoring features so that cluster-wide accelerator data can be presented in real time, can be stored for historical analysis and can be easily used to set up management alerts.

Supported Operating Systems

NOTE: The Intel Xeon Phi coprocessors are supported only on 64-bit versions of Linux operating systems. The supported operating systems are those below.

RHEL 5

RHEL 6

SLES 11

Supported Servers and Workstation Blades

HPE ProLiant SL250 Gen8 (Intel Xeon Phi 5110P and 7120P coprocessors) and HPE ProLiant SL270 Gen 8 (Intel Xeon Phi 5110P coprocessor)

HPE Warranty

The Intel Xeon Phi coprocessor has a one year parts exchange warranty. For details on HPE Qualified Options Limited Warranty visit:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

Enhancements to warranty services are available for server and chassis through HPE Pointnext operational services.

NOTE: For more information, visit HPE Pointnext operational services at: http://www.hp.com/services

HPE High Performance Clusters

HPE Cluster Platforms

The Intel Xeon Phi coprocessors are optional components of the HPE Cluster Platforms - specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and Novell SLES, as well as Microsoft Windows HPC Server. Compliance to the HPE Cluster Platform specification is verified using the HPE Cluster Test diagnostic suite, which includes accelerator diagnostics. A Cluster Platform Configurator simplifies ordering. [http://www.hp.com/go/clusters.]

HPE HPC Interconnects

High Performance Computing (HPC) interconnect technologies are available for ProLiant servers as part of the HPE Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by Hewlett Packard Enterprise when integrated within an HPE cluster. Flexible, validated solutions can be defined with the help of configuration tools. [http://www.hp.com/techservers/clusters/ucp/index.html]

HPE Cluster Management Utility

HPE Insight Cluster Management Utility (CMU) is an Hewlett Packard Enterprise-licended and Hewlett Packard Enterprise-supported suite of tools that are used to manage large-scale Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes as well as the Intel Xeon Phi coprocessors. CMU makes the administration of clusters user friendly, efficient, and effective. [http://www.hp.com/go/cmu]

Third Party GPU Cluster and Development Software

More software for applications and development tools for general purpose Intel Xeon Phi coprocessor enabled systems are available every week. Examples of software available from various vendors are listed below.

PGI Accelerator: Fortran and C Compilers

CAPS HMPP Compiler
Intel C++, Fortran compilers, debugger
Intel Math Kernel library
Intel VTune, Intel Trace Analyzer and Collector, Intel Inspector XE, Intel Advisor XE

Roguewave TotalView Dynamic Source Code and Memory Debugging for C, C++ and FORTRAN HPC

Allinea DDT Distributed Debugging Tool

Wolfram Mathematica mathematical analysis software

Altair PBS Professional workload scheduler

IBM Platform LSF workload scheduler

Adaptive Computing Moab workload scheduler

HPE High Performance Cluster Models

HPE Insight Cluster Management Utility 1yr 24x7 Flexible LTU
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.
NOTE: For additional license kits please see the QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111735

QL803B

HPE Insight Cluster Management Utility 3yr 24x7 Flexible LTU
NOTE: Order a minimum of one license per cluster to purchase media including software and documentation, which will be delivered to the customer, and also licenses CMU management. No license key is delivered or required.
NOTE: For additional license kits please see the QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111735

BD476A

HPE Insight Cluster Management Utility Media
NOTE: For additional license kits please see the QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111735

BD477A

Form Factor

PCIe x16 form factor double-width

Double Precision floating point performance (peak)

Intel Xeon Phi 5110P

1.011 Tflops

Intel Xeon Phi 7120P

1.208 Tflops

Total Dedicated Memory

Intel Xeon Phi 5110P

8GB GDDR5

Intel Xeon Phi 7120P

16GB GDDR5

Memory Bandwidth

Intel Xeon Phi 5110P

320 GB/sec

Intel Xeon Phi 7120P

352 GB/sec

Power Consumption

Intel Xeon Phi 5110P

225W TDP

Intel Xeon Phi 7120P

300W TDP

System Interface

PCIe x16 Gen2

Thermal Solution

Passive heatsink cooled by host system airflow

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HPE OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

23-Oct-2017

Version 8

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

26-Oct-2016

From Version 6 to 7

Updated

Rebranded version of the QuickSpecs

09-Feb-2015

From Version 5 to 6

Updated

Update several sections throughout the QuickSpecs

05-Jun-2014

From Version 4 to 5

Changed

Models and High Performance Clusters were revised.

27-Sep-2013

From Version 3 to 4

Changed

Changes were made to the Models Section

10-Sep-2013

From Version 2 to 3

Added

Intel Xeon 7120P Coprocessor Kit was added.

22-Feb-2013

From Version 1 to 2

Changed

Changes made in the Standard Features Section, the note was updated.
