HPE Dynamic Smart Array Controllers

HPE Dynamic Smart Array is a RAID solution combining a storage host bus adapter (HBA) and proprietary software components. Eliminating most of the hardware RAID controller components and relocating advanced RAID algorithms from a hardware-based controller into device driver software lowers the total solution cost, while still maintaining comparable RAID protection and full compatibility with Smart Array disk format, configuration utilities, and management/monitoring software.

The Dynamic Smart Array controllers share the same easy and consistent UI with standup Smart Array controllers, thus making storage management and deployment easier for IT workers.

Models

HPE Dynamic Smart Array RAID Controllers

HPE Dynamic Smart Array B120i Controller

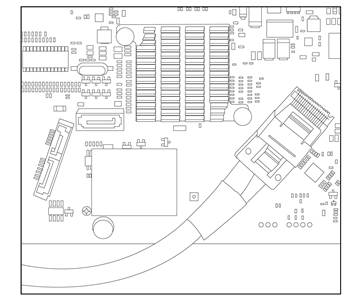

Embedded on system board

HPE Dynamic Smart Array B320i Controller
NOTE: Daughter card with HPE ProLiant BL420c Gen8.

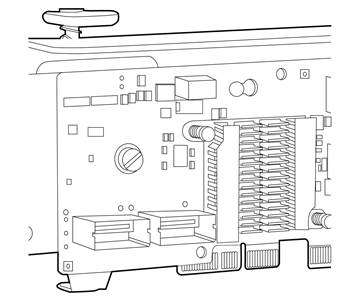

Embedded on PCI riser or daughter card

HPE Dynamic Smart Array B120i & B320i

The Hewlett Packard Enterprise innovative design and integration work of the Smart Array family of products creates customer value that is unmatched in the industry. Use of Smart Array products across multiple applications results in a much lower Total Cost of Ownership (TCO) than any other server storage RAID product. The HPE Smart Array family brings an unparalleled return on investment through:

Data Compatibility among all models of Smart Array controllers allows simple and easy upgrades any time needs for higher performance, capacity, and availability increase. Even successive generations of Smart Array controllers understand the data format of other Smart Array Controllers.

Built on embedded controller. HPE Dynamic Smart Array controllers provide critical data protection at a lower cost to customers by building the RAID algorithms into device driver software.

Performance and data protection innovation. Hewlett Packard Enterprise has extended the support of SATA Solid State Disks into the Dynamic Smart Array B120i Controller and support of SAS and SATA Solid State Disks into the Dynamic Smart Array B320i for enhanced performance.

SmartDrive Carrier form factor is for use across HPE ProLiant Gen8 servers. With compatibility across many enterprise platforms, you are free to deploy and re-deploy these drives to quickly deliver increased storage capacity, migrate data between systems, and easily manage spare drives.

Standard configuration and management across all controllers. The Dynamic Smart Array controllers share the same easy and consistent UI with Smart Array controllers, thus making storage management and deployment easier for IT workers.

Pre-Failure Warranty means HPE Insight Manager not only reports when a drive is going to fail but allows replacement of failing drives prior to actual failure. For complete details, consult the HPE Support Center or refer to your HPE Server documentation.

Key Features

• Optional 512MB Flash Backed Write Cache (FBWC) (BL420c Gen8, DL160 Gen8, DL360e Gen8, DL380e Gen8, ML350e Gen8)
• System memory used as read cache
• Smart Array RAID engine running in OS driver
• RAID functionality requires driver to be downloaded from Hewlett Packard Enterprise website for Linux and VMware
• Support for migration of drives to P-Series controllers
• RAID 0, 1, 1+0, Optional RAID 5
• Windows, Linux and VMware support
• Online drive flash support
• Array Configuration Utility (ACU), Systems Insight Manager, and Array Diagnostic Utility (ADU)

Ports

B120i

Up to 6 SATA drives
NOTE: NO SAS supported.

B320i

Up to 8 SATA drives;
NOTE: SAS supported with optional SAS License key.

Performance

HPE's High Performance Architecture sets new boundaries of industry performance expectations!

B120i

• Up to 6Gb/s SATA drive support (600MB/s bandwidth per physical link)
• x2 6Gb/s SATA physical links (compatible with 3Gb/s SATA )
  NOTE: Two SATA ports will be running at 6Gb/s and reaming ports will be running at 3Gb/s.
• 512 MB 40-bit wide DDR3-800MHz flash backed write cache
• write back caching with FBW

B320i

• Up to 6Gb/s SATA or SAS drive support
  (600MB/s bandwidth per physical link)
• x8 6Gb/s SATA or SAS physical links
  (compatible with 3Gb/s SATA )
• 512 MB 40-bit wide DDR3-800MHz flash backed write cache
• write back caching with FBWC

Capacity

Given the increasing need for high performance and rapid capacity expansion, the HPE Dynamic Smart Array Controllers offer:

• Up to 32TB of total internal storage with 8 x 4TB LFF SATA hard drives
• Up to 9.6TB of total internal storage 8x 1.2TB SFF SAS hard drives (B320i with SAS license)

Availability

Provides increased server uptime by providing advanced storage functionality:

• Online drive firmware upgrade
• Pre-Failure Warranty

Fault Prevention

The following features offer detection of possible failures before they occur, allowing preventive action to be taken:

• S.M.A.R.T.: Self-Monitoring and Reporting Technology first developed at HPE detects possible hard disk failure before it occurs, allowing replacement of the hard drive before a real failure occurs.
• Drive Parameter Tracking monitors drive operational parameters, predicting failure and notifying the administrator.
• Dynamic Sector Repairing continually performs background surface scans on the hard disk drives during inactive periods and automatically remaps bad sectors, ensuring data integrity.
• Smart Array Cache Tracking monitors integrity of controller cache, allowing pre-failure preventative maintenance.

Fault Tolerance

Keeps data available and server running while a failed drive is being replaced; several fault tolerance configurations are supported including:

• RAID 5 (Distributed Data Guarding): Supported with a minimum of 3 drives. This allocates one set of parity data across drives. This level of fault tolerance can withstand a single drive failure without downtime or data loss.
  • RAID5 is available on the B120i/B320i with 512MB FBWC
• RAID 1, 1+0, 10 (Drive Mirroring): Supported with a minimum of 2 drives. This allocates half of the drive array to the data and the other half to the mirrored data, providing two copies of the data.

Fault Recovery

Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure

• DRAM ECC detects and corrects data bit errors.
• Flash Backed Write Cache upgrade provides indefinite data retention.

Ease of Use

Consistency and Upgradeability make the Smart Array family unique in the industry:

• GUI based configuration, management and diagnostic software tools
• Common data format between generations of products
• Data migration from B-series to P-series controllers

Warranty

The warranty for this device is based on the server warranty as it is embedded and part of the server.

Pre-Failure Warranty: Drives attached to the Smart Array Controller and monitored under Insight Manager are supported by a Pre-Failure (replacement) Warranty. For complete details, consult the HPE Support Center or refer to your HPE Server Documentation.

Warranty Upgrade Options

• Response - Upgrade on-site response from next business day to same day 4 hours
• Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days
• Duration - Select duration of coverage for a period of 1, 3, or 5 years
• Warranty upgrade options can come in the form of Care Packs, which are sold at the HPE System level this product attaches too

Server Compatibility

For up to date compatibility, please see the following URL for complete Smart Array 1Controller compatibility and support information:
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-4003enw.pdf

Operating Systems

Microsoft Windows 2012 Server (64 bit)

Microsoft Windows 2008 Server R2 (64 & 32 bit)

Red Hat Enterprise Linux 5 (64 & 32 bit)

Red Hat Enterprise Linux 6

SUSE Linux Enterprise Server 10 (64 & 32 bit)

SUSE Linux Enterprise Server 11 (x64 & x86) (64 & 32 bit)

VMware ESX 4.1 u2

VMware ESXi 4.1 u2

VMware ESXi 5.0, 5.0 u1, 5.0 u2, ESXi 5.1

NOTE: Please refer to the server QuickSpecs for full support.

NOTE: For more Linux OS support & certification information, please visit our the ProLiant & BladeSystem Server Linux matrix: http://www8.hp.com/us/en/products/servers/management/operating-environments/os-support-matrix.html

Software Suite

All Smart Array products share a common set of configuration, management and diagnostic tools, including Array Configuration Utility, Array Diagnostic Utility (ADU), and Systems Insight Manager. This software consistency of tools reduces the cost of training for each successive generation of product and takes much of the guesswork out of troubleshooting field problems. These tools lower the total cost of ownership by reducing training and technical expertise necessary to install and maintain HPE server storage.

Systems Insight Manager

• Powerful server and server options/storage manager tool
• Monitors over 1200 system wide parameters
• Configuration/Diagnostic Utilities

HPE Array Configuration Utility (ACU)

• Powerful Web based configuration utility for all Smart Array controllers
• Provides a graphical view of HPE drive array configurations
• Allows for management of multiple arrays over a secure internet connection from anywhere in the world
• Easy to use Wizards for configuration
• Runs offline for all supported Operating Systems and runs online for Windows and Linux.

HPE Array Diagnostic Utility (ADU)

• In depth diagnostic and reporting utility for all Smart Array controllers
• Runs offline for all supported Operating Systems, and runs online for Windows and Linux

Service and Support

HPE Technology Services
HPE Technology Services offers you technical consultants and support expertise to solve your most complex infrastructure problems. We help keep your business running, boost availability, and avoid downtime.

Protect your business beyond warranty with HPE Pointnext operational services
When you buy HPE Options, it's also a good time to think about what level of service you may need. HPE Pointnext operational services provide total care and support expertise with committed response choices designed to meet your IT and business need.

HPE Foundation Care services deliver scalable support-packages for Hewlett Packard Enterprise industry-standard servers and software. You can choose the type and level of service that is most suitable for your business needs. New to this portfolio is HPE Collaborative Support. If you are running business critical environments, Hewlett Packard Enterprise offers Proactive Care or Critical Advantage. These services help you deliver high levels of application availability through proactive service management and advanced technical response.

Here is the support service recommendation from the Foundation Care and Proactive Care portfolio. For customized support service solution, Hewlett Packard Enterprise can work with you to tailor a service solution for your unique support requirements using broader services portfolio of Foundation Care and Proactive Care.

Recommended HPE Pointnext operational services for optimal satisfaction with your HPE product

Recommended Services

3-Year HPE 24x7 4 hour Response, Proactive Care
Helps optimize your systems and delivers high levels of application availability through proactive service management and advanced technical response. A skilled Technical Manager will own your query or issue end to end until resolved, delivering a single point of contact for you

OR

3-Year HPE 24x7 4 hour Response, HPE Collaborative Support
Provides problem resolution support across the stack of HW, firmware, and Hewlett Packard Enterprise and 3rd party SW. In case the issue is with 3rd party SW, Hewlett Packard Enterprise does known issue resolution. If Hewlett Packard Enterprise cannot solve the issue, it will contact the third-party vendor and create a problem incident on your behalf
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-8232enw.pdf

HPE Installation of ProLiant Add On Options Service
This easy-to-buy, easy-to-use HPE Care Pack service helps ensure that your new Hewlett Packard Enterprise hardware or software is installed smoothly, efficiently, and with minimal disruption of your IT and business operations

Related HPE Pointnext operational services to enhance your HPE product experience

Related Services

3-Year HPE 24x7 4 hour Response, Proactive Care
Helps optimize your systems and delivers high levels of application availability through proactive service management and advanced technical response. A skilled Technical Manager will own your query or issue end to end until resolved, delivering a single point of contact for you

OR

3-Year HPE 24x7 4 hour Response, Hardware Support Onsite Service
Provides you with rapid remote support and if required an Hewlett Packard Enterprise Authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged
https://www.hpe.com/h20195/v2/getpdf.aspx/5982-6547eee.pdf

3-Year HPE 6-hour Onsite Call-to-Repair, HPE Collaborative Support
Offers customers a single point of contact for server problem diagnosis, hardware problem resolution to return the hardware in operating condition within 6 hours of the initial service request to the HPE Global Solution Center, and basic software problem diagnosis, fault isolation, and resolution if available to HPE. https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-8232enw.pdf

HPE Proactive Select Service
Provides a flexible way to purchase HPE best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf

Insight Remote Support

Provides 24 X 7 remote monitoring, proactive notifications, and problem resolution. Learn more http://www.hp.com/go/insightremotesupport

HPE Support Center

Personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers. Learn more http://www.hp.com/go/hpsc

The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.
HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Care Pack or Hewlett Packard Enterprise contractual support agreement.

*The Hewlett Packard Enterprise  Support Center Mobile App is subject to local availability

Parts and materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Supplies and consumable parts will not be provided as part of this service; standard warranty terms and conditions apply. Parts and components that have exceeded their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual or the technical product data sheet will not be provided, repaired or replaced as part of this service.

Warranty / Service Coverage

For ProLiant servers and storage systems, this service covers HPE-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22" and tower UPS products; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms and conditions apply.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by HPE as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option.

For more information

To learn more on services for HPE ESSN Options, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant or http://www.hp.com/services/bladesystem

HPE Optional Upgrades

HPE Dynamic Smart Array Cache options

HPE 512MB B-series Dynamic Smart Array Flash Backed Write Cache with 24 inch Cable

676473-B21

HPE Smart Array SAS License Key - for B320i only

HPE SAS License Key No Media 1 Single Server License for B320i
NOTE:NOTE: This part number can be used to purchase a single license or to order multiple licenses with a single activation key. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s).

BC393A

HP SAS License Key No Media Flexible Quantity License for B320i
NOTE: This part number can be used to purchase multiple licenses with a single activation key. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s).

BC393B

HPE Dynamic Smart Array B120i Controller

Dimensions

Embedded

Disk Drive and Enclosure Interface - Transfer rate

Up to 6Gb/s SATA (Serial ATA)

Connectors

6 internal SATA connectors

Server Interface

x4 PCIe 2.0

SATA Speed

6Gb/s SATA links

Cache Memory

Zero Memory RAID has no cache memory

Logical Drives Supported

Up to 8 logical volumes (6 physical drives)

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space

Hot Plug Support

Yes

RAID Support

RAID 0 (Striping), RAID 1 (Mirroring)

RAID 1+0 (Striping & Mirroring)

HPE Dynamic Smart Array B320i Controller

Dimensions

Embedded

Disk Drive Interface - Transfer rate

Up to 6Gb/s SATA (Serial ATA)

Connectors

2 internal x4 connectors

Server Interface

x4 PCIe 2.0

Speed

6Gb/s SAS links

Cache Memory

Zero Memory RAID has no cache memory
optional 40-bit 512MB ECC protected Flash Backed Write Cache (FBWC)

Logical Drives Supported

Zero Memory, Up to 2 logical volumes (6 physical drives)

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space

Hot Plug Support

Yes

RAID Support

RAID 0 (Striping), RAID 1 (Mirroring)

RAID 1+0 (Striping & Mirroring)

RAID 5 with optional 512MB FBWC
NOTE: 512 MB cache is required to enable RAID 5 support

NOTE: SAS mode requires purchase of SAS license key. For more information please visit http://www.hp.com/go/saslicense

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

http://www8.hp.com/us/en/hpe/hp-information/livingprogress/environmentalprogress/product-recycling.html#.V-lPA_krKiM

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

http://www8.hp.com/us/en/hpe/hp-information/livingprogress/environmentalprogress/product-recycling.html#.V-lPA_krKiM

Date

Version History

Action

Description of Change

23-Oct-2017

Version 17

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

07-Oct-2016

From Version 15 to 16

Changed

QuickSpecs was rebranded.

31-Mar-2015

From Version 14 to 15

 Removed

 Online RAID level migration (between any RAID level/with FBWC) was removed from Availability in Standard Features.

29-Aug-2014

From Version 13 to 14

 Changed

 Server compatibility link in Compatibility section was updated.

Related Options section was revised.

20-Sep-2013

From Version 12 to 13

 Changed

 HPE Dynamic Smart Array B120i Controller in Technical Specifications was revised.

15-Aug-2013

From Version 11 to 12

Changed

Changes made in Standard Features: Performance

05-Jul-2013

From Version 10 to 11

Changed

Built on embedded controller and Performance and data protection innovation were revised in HPE Dynamic Smart Array B120i and B320i

Fault Tolerance was revised in Standard Features

RAID functionality requires driver to be downloaded from Hewlett Packard Enterprise website for Linux and VMware was added to Key Features

13-May-2013

From Version 9 to 10

Changed

Changes made to the following sections:

Overview- Introduction

Standard Features

Compatibility

Technical Specifications: Update HPE Dynamic Smart Array B120i Controller and HPE Dynamic Smart Array B320i Controller sections.

29-Apr-2013

From Version 8 to 9

Changed

Technical Specifications: Update HPE Dynamic Smart Array B120i Controller and HPE Dynamic Smart Array B320i Controller sections.

25-Jan-2013

From Version 7 to 8

Changed

Updated Models

Updated Operating Systems in Compatibility

Added a note in Technical Specifications

17-Dec-2012

From Version 6 to 7

Changed

Description change made in the Technical Specifications section.

07-Nov-2012

From Version 5 to 6

Changed

Corrections were made.

26-Oct-2012

From Version 4 to 5

Changed

Changes made in Standard Features, Compatibility, and Technical Specifications sections.

19-Oct-2012

From Version 3 to 4

Changed

Change made to SKU description in Related Options section.

06-Jul-2012

From Version 2 to 3

Changed

Change made in Standard Features section.

06-Jun-2012

From Version 1 to 2

Changed

Changed Smart Drive to SmartDrive in Core Options.
