HPE MSR50 Series

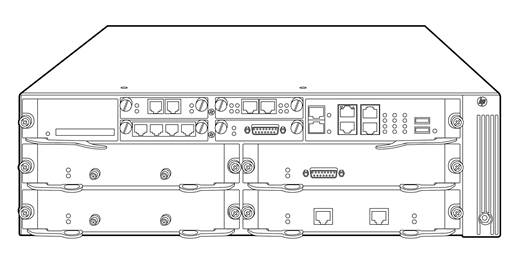

HP MSR50-40 Router

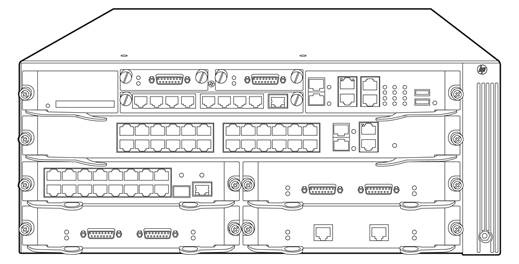

HP MSR50-60 Router

Models

HP MSR50-40 Router

JD433A

HP MSR50-60 Router

JF231A

Key features

• High-performance, modular LAN/WAN router
• Converged routing, switching, wireless, voice, and security
• Third-party applications and virtualized services platform
• Embedded encryption, firewall, and other security features
• High reliability, with available dual power supplies and hot-swappable modules

Product overview

HPE MSR50 Series routers are a component of the Hewlett Packard Enterprise FlexBranch solution, which is part of the Hewlett Packard Enterprise FlexNetwork architecture.

These routers are designed for large branch offices, regional offices, and enterprise deployments that require high-performance converged routing, switching, wireless, security, voice, and virtualized applications.

The MSR50 Series has a rich set of modular WAN, LAN, and voice interface connectivity options, as well as embedded hardware-based encryption and voice processing. With optional Open Architecture Platform (OAP) modules, it can deliver VMware vSphere, an industry-leading virtualization platform that integrates third-party applications with the router

Features and benefits

Quality of Service (QoS)

• Traffic policing: supports Committed Access Rate (CAR) and line rate
• Congestion management: supports FIFO, PQ, CQ, WFQ, CBQ, and RTPQ
• Congestion avoidance: Weighted Random Early Detection (WRED)/Random Early Detection (RED)
• Other QoS technologies: supports traffic shaping, FR QoS, MPLS QoS, and MP QoS/LFI

Management

• Management interface control: provides management access through modem port and terminal interface; provides access through terminal interface, telnet, or SSH
• Industry-standard CLI with a hierarchical structure: reduces training time and expenses, and increases productivity in multivendor installations
• Management security: restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide Telnet and SNMP access; local and remote syslog capabilities allow logging of all access
• SNMPv1, v2, and v3: provide complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption
• Remote monitoring (RMON): uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group
• FTP, TFTP, and SFTP support: FTP allows bidirectional transfers over a TCP/IP network and is used for configuration updates; Trivial FTP is a simpler method using User Datagram Protocol (UDP)
• Debug and sampler utility: supports ping and traceroute for both IPv4 and IPv6
• Network Time Protocol (NTP): synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
• Info center: provides a central information center for system and network information; aggregates all logs, traps, and debugging information generated by the system and maintains them in order of severity; outputs the network information to multiple channels based on user-defined rules
• Network Quality Analyzer (NQA): analyzes network performance and service quality by sending test packets, and provides network performance and service quality parameters such as jitter, TCP, or FTP connection delays; allows network manager to determine overall network performance and diagnose and locate network congestion points or failures

Connectivity

• High-density port connectivity: provides up to 10 interface module slots and up to 90 Fast Ethernet ports
• Multiple WAN and LAN interfaces: provide a traditional link with E3, T3, E1, T1, ADSL, ADSL2, ADSL2+, G.SHDSL, OC-3, POS, ATM, and ISDN/AM backup; deliver high-density Ethernet access with WAN Fast Ethernet/Gigabit Ethernet, LAN Fast Ethernet, and PoE; offer mobility access with IEEE 802.11b/g/n Wi-Fi and 3G
• 3G access support: provides 3G wireless access for primary or backup connectivity via a 3G SIC module certified on various cellular networks; optional carrier 3G USB modems are available
• Ideal IP telephony solutions: support FXO, FXS, T1, E1, and BRI in various densities; provide Web browser-based administration, Smart Dial Routing, FXS and FXO 1:1 binding for all ports, Power to Escape to PSTN when IP failures occur, and Enhanced Local MSR Survivability
• Flexible port selection: provides combination of fiber and copper interface modules, 100/1000BASE-X auto-speed selection, and 10/100/1000BASE-T auto-speed detection plus auto duplex and MDI/MDI-X
• Packet storm protection: protects against broadcast, multicast, or unicast storms with user-defined thresholds
• Loopback: supports internal loopback testing for maintenance purposes and an increase in availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per-VLAN basis for added flexibility

Performance

• Excellent forwarding performance: provides forwarding performance up to 800 Kpps/1280 Kpps (for two kinds of engines); meets current and future bandwidth-intensive application demands of enterprise businesses
• Powerful encryption capacity: includes embedded hardware encryption accelerator to improve encryption performance
• Flexible chassis selection: offers a choice of four or six FIC slot routers, meeting different requirements on enterprise branches

Resiliency and high availability

• Hot swappable modules: facilitate the replacement of hardware interface modules without impacting the traffic flow through the system
• Dual internal power supply: provides high reliability
• Virtual Router Redundancy Protocol (VRRP): allows groups of two routers to dynamically back each other up to create highly available routed environments; supports VRRP load balancing

Layer 2 switching

• Spanning Tree Protocol (STP)
  fully supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) protocol snooping: effectively control and manage the flooding of multicast packets in a Layer 2 network
• Port mirroring: duplicates port traffic (ingress and egress) to a local or remote monitoring port
• VLANs: support up to 4,094 ports or IEEE 802.1Q-based VLANs
• sFlow: allows traffic sampling

Layer 3 services

• Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
• User Datagram Protocol (UDP) helper: redirects UDP broadcasts to specific IP subnets to prevent server spoofing
• Dynamic Host Configuration Protocol (DHCP): simplifies the management of large IP networks and supports client and server; DHCP Relay enables DHCP operation across subnets

Layer 3 routing

• Static IPv4 routing: provides simple, manually configured IPv4 routing
• Routing Information Protocol (RIP)
  uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop protection
• Open Shortest Path First (OSPF)
  Interior Gateway Protocol (IGP) uses link-state protocol for faster convergence; supports ECMP, NSSA, and MD5 authentication for increased security and graceful restart for faster failure recovery
• Border Gateway Protocol 4 (BGP-4)
  Exterior Gateway Protocol (EGP) with path vector protocol uses TCP for enhanced reliability for the route discovery process, reduces bandwidth consumption by advertising only incremental updates, and supports extensive policies for increased flexibility, as well as scales to very large networks
• Intermediate system to intermediate system (IS-IS): Interior Gateway Protocol (IGP) using path vector protocol, which is defined by the ISO organization for IS-IS routing and extended by IETF RFC 1195 to operate in both TCP/IP and the OSI reference model (Integrated IS-IS)
• Static IPv6 routing: provides simple, manually configured IPv6 routing
• Dual IP stack: maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network design
• Routing Information Protocol next generation (RIPng): extends RIPv2 to support IPv6 addressing
• OSPFv3: provides OSPF support for IPv6
• BGP+: extends BGP-4 to support Multiprotocol BGP (MBGP), including support for IPv6 addressing
• IS-IS for IPv6: extends IS-IS to support IPv6 addressing
• IPv6 tunneling: is an important element for the transition from IPv4 to IPv6; allows IPv6 packets to traverse IPv4-only networks by encapsulating the IPv6 packet into a standard IPv4 packet; supports manually configured, 6to4, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnels
• Multiprotocol Label Switching (MPLS): uses BGP to advertise routes across Label Switched Paths (LSPs), but uses simple labels to forward packets from any Layer 2 or Layer 3 protocol, thus reducing complexity and increasing performance; supports graceful restart for reduced failure impact; supports LSP tunneling and multilevel stacks
• Multiprotocol Label Switching (MPLS) Layer 3 VPN: allows Layer 3 VPNs across a provider network; uses MP-BGP to establish private routes for increased security; supports RFC 2547bis multiple autonomous system VPNs for added flexibility; supports IPv6 MPLS VPN
• Multiprotocol Label Switching (MPLS) Layer 2 VPN: establishes simple Layer 2 point-to-point VPNs across a provider network using only MPLS Label Distribution Protocol (LDP); requires no routing and therefore decreases complexity, increases performance, and allows VPNs of non-routable protocols; uses no routing information for increased security; supports Circuit Cross Connect (CCC), Static Virtual Circuits (SVCs), Martini draft, and Kompella-draft technologies
• Policy routing: allows custom filters for increased performance and security; supports ACLs, IP prefix, AS paths, community lists, and aggregate policies

Security

• Access control list (ACL): supports powerful ACLs for both IPv4 and IPv6; ACLs are used for filtering traffic to prevent illegal users from accessing the network, or for controlling network traffic to save resources; rules can either deny or permit traffic to be forwarded; rules can be based on a Layer 2 header or a Layer 3 protocol header; rules can be set to operate on specific dates or times
• Media access control (MAC) authentication: provides simple authentication based on a user's MAC address; supports local or RADIUS-based authentication
• Terminal Access Controller Access-Control System (TACACS+)
  is an authentication tool using TCP with encryption of the full authentication request that provides additional security
• Network login: standard IEEE 802.1X allows authentication of multiple users per port
• RADIUS: eases security access administration by using a password authentication server
• Network address translation (NAT): supports one-to-one NAT, many-to-many NAT, and NAT control, enabling NAT-PT to support multiple connections; supports blacklist in NAT/NAT-PT, a limit on the number of connections, session logs, and multi-instances
• Secure Shell (SSHv2): uses external servers to securely login into a remote device or securely login into the router from a remote location; with authentication and encryption, it protects against IP spoofing and plain text password interception; increases the security of SFTP transfers
• Unicast Reverse Path Forwarding (URPF): allows normal packets to be forwarded correctly, but discards the attaching packet due to lack of reverse path route or incorrect inbound interface; prevents source spoofing and distributed attacks
• IPSec VPN: supports DES, 3DES, and AES 128/192/256 encryption, and MD5 and SHA-1 authentication
• Dynamic Virtual Private Network (DVPN)
  collects, maintains, and distributes dynamic public addresses through the VPN Address Management (VAM) protocol, making VPN establishment available between enterprise branches that use dynamic addresses to access the public network; compared to traditional VPN technologies, DVPN technology is more flexible and has richer features, such as NAT traversal of DVPN packets, AAA identity authentication, IPSec protection of data packets, and multiple VPN domains

Convergence

• Internet Group Management Protocol (IGMP): is used by IP hosts to establish and maintain multicast groups; supports v1, v2, and v3; utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4 multicast networks
• Protocol Independent Multicast (PIM): is used for IPv4 and IPv6 multicast applications; supports PIM Dense Mode (PIM-DM), Sparse Mode (PIM-SM), and Source-Specific Mode (PIM-SSM)
• Multicast Source Discovery Protocol (MSDP): is used for inter-domain multicast applications, allowing multiple PIM-SM domains to interoperate
• Multicast Border Gateway Protocol (MBGP): allows multicast traffic to be forwarded across BGP networks and kept separate from unicast traffic

Integration

• Open Application Architecture (OAA): provides high-performance application-specific modules fully integrated with the switching architecture; uses the chassis high-speed backplane to access network-related data; increases performance, reduces costs, and simplifies network management
• Embedded NetStream: local and global server load-balancing module improves traffic distribution using powerful scheduling algorithms, including Layer 4 to 7 services; monitors the health status of servers and firewalls
• Embedded VPN firewall: provides enhanced stateful packet inspection and filtering; delivers advanced VPN services with Triple DES (3DES) and Advanced Encryption Standard (AES) encryption at high performance and low latency, Web content filtering, and application prioritization and enhancement

Additional information

• OPEX savings: are delivered through the use of a common operating system that simplifies and streamlines deployment, management, and training, thereby cutting costs as well as reducing the chance for human errors associated with having to manage multiple operating systems across different platforms and network layers
• High reliability: provides a state-of-the-art unified code base
• Faster time to market: engineering efficiencies allow new and custom features to be brought rapidly to the market with better initial and ongoing stability
• Green initiative support: provides support for RoHS and WEEE regulations

Product architecture

• Ideal multiservice platform
  provides a WAN router, Ethernet switch, wireless LAN, 3G WAN, firewall, VPN, and SIP/voice gateway all in one box
• High-density voice interfaces
  provide flexible analog and digital voice interface options for easy integration within a wide range of deployments
• Embedded service modules for security and voice
  embedded Voice Co-Processing Modules (VCPMs) and Voice Processing Modules (VPMs) accommodate digital signal processor (DSP) modules for voice packet processing; embedded hardware encryption modules, Standard Network Data Encryption (SNDE) cards, and Advanced Network Data Encryption (ANDE) cards do not occupy I/O slots
• Open Application Platform (OAP) and virtualization
  are available on HP MSR Open Architecture Platform (OAP) Module with VMware vSphere; offer an industry-leading virtualization platform which integrates third-party applications with the MSR series routers; provide application and services flexibility; deliver the potential functionality of multiple devices, creating capital and operational expense savings and lasting investment protection
• USB interface
  uses USB memory disk to download and upload configuration files; supports an external USB 3G modem for a 3G WAN uplink
• Flexible modular design
  includes multiple types of modules that meet different requirements, such as Smart Interface Cards (SICs), which are small and cost-effective modules; Multi-functional Interface Modules (MIMs), which are more high-density and affordable modules;
  Flexible Interface Cards (FICs), which provide high reliability and are hot-swappable; and double-width modules, which provide high density
• SIP trunk
  the SIP trunk link can carry multiple concurrent calls, and the carrier authenticates only the link, rather than carrying each SIP call on this link

Warranty and support

• 1-year warranty: See http://www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
• Software releases: to find software for your product, refer to http://www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary

Build To Order:
BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

Standard Switch Enclosures

HP MSR50-40 Router

JD433A

• 4 - FIC module slots
• Must select at least 1 Main Processing Unit
• Must select at least 1 Multi Service Module
• 1 - 350w AC Power Supply included
• 3U - Height

See Configuration NOTE:9

HP MSR50-40 DC Router

JF285A

• 4 - FIC module slots
• Must select at least 1 Main Processing Unit
• Must select at least 1 Multi Service Module
• 1 - 350w DC Power Supply included
• 3U - Height

HP MSR50-60 Router

JF231A

• 6 - FIC module slots
• Must select at least 1 Main Processing Unit
• Must select at least 1 Multi Service Module
• 1 - 350w AC Power Supply included
• 4U - Height

See Configuration NOTE:9

HP MSR50-60 Rtr Chassis w DC PwrSupply

JF640A

• 6 - FIC module slots
• Must select at least 1 Main Processing Unit
• Must select at least 1 Multi Service Module
• 1 - 350w DC Power Supply included
• 4U - Height

Configuration Rules:

Note 9

Localization required. (See Localization Menu)

CTO Models

CTO Solution Sku

HP MSR CTO Router Solution

JG500A

• SSP trigger sku

See Configuration NOTE:10

CTO Base Sku

HP MSR50-40 Router

JD433A

• 4 - FIC module slots
• Must select at least 1 Main Processing Unit
• Must select at least 1 Multi Service Module
• 1 - 350w AC Power Supply included
• 3U - Height

See Configuration NOTE:1, 9, 11

HP MSR50-60 Router

JF231A

• 6 - FIC module slots
• Must select at least 1 Main Processing Unit
• Must select at least 1 Multi Service Module
• 1 - 350w AC Power Supply included
• 4U - Height

See Configuration NOTE:1, 9, 11

Configuration Rules:

Note 1

If this Switch is selected integrated to the CTO Switch Solution, Then a Minimum of 1 factory integrated accessory must be ordered and integrated to CTO chassis. See Menu below, option must have a #0D1 to be integrated to the CTO Chassis.

Note 9

Localization required. (See Localization Menu for list.)

Note 10

This HPN CTO switch cannot be factory racked. (Future Release)

Note 11

If the Router Chassis is to be Box Level Factory Integrated (CTO), Then the #0D1 is required on the Router Chassis and integrated to the JG500A - HP MSR CTO Enablement. (Min 1/Max 1 Router per SSP)

Internal Power Supplies

JD433A and JF285A Only System (std 1 // max 2) User Selection (min 0 // max 1) Per router

JF231A and JF640A Only System (std 1 // max 3) User Selection (min 0 // max 2) Per router

HP MSR50 AC Power Supply

JD650A

See Configuration NOTE:1, 4, 9

HP MSR50-60 DC Power Supply

JF443A

See Configuration NOTE:2, 4

HP MSR50 AC PoE Power Supply

JD652A

See Configuration NOTE:3, 5, 9

Configuration Rules:

Note 1

If this Power Supply is selected, Then one of the following routers is required:

HP MSR50-40 Router

JD433A

HP MSR50-60 Router

JF231A

Note 2

If this Power Supply is selected, Then one of the following routers is required:

HP MSR50-40 DC Router

JF285A

HP MSR50-60 Rtr Chassis w DC PwrSupply

JF640A

Note 3

Only 1 AC PoE Power Supply can be added ANY MSR 50.

Note 4

Only 1 JD650A - HP MSR50 AC Power Supply or JF443A - HP MSR50-60 DC Power Supply can be added ANY MSR50.

Note 5

If the JD429B - HP MSR50 G2 Processor Module is selected, Then this power supply is not supported.

Note 9

Localization required. (See Localization Menu for list.)

Enter the following menu selections as integrated to the CTO Model X server above if order is factory built.

Modules

Main Processing Unit Slot

HP MSR50 Processor Module

JD653A

• 4 - SIC modules slot
• min=0 \ max=2 SFP Transceivers
• 1 - 512MB HP MSR 512MB SDRAM Included
• 1 - 256MB HP X600 256M Compact Flash Card Included

See Configuration NOTE:1, 2, 4, 6, 8

Russian Reduced Encryption

JD653A#A59

HP MSR50 G2 Processor Module

JD429B

• with no SIC modules slot
• min=0 \ max=3 SFP Transceiver
• 1 - 512MB HP MSR 512MB SDRAM Included
• 1 - 256MB HP X600 256M Compact Flash Card Included

See Configuration NOTE:1,3, 4, 5, 8

Russian Reduced Encryption

JD429B#A59

Configuration Rules:

Note 1

The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if applicable

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

HP X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HP X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP LC LH100 Transceiver

JD103A

HP X120 1G SFP LC BX 10-U Transceiver

JD098B

HP X115 100M SFP LC FX Transceiver

JD102B

HP X110 100M SFP LC LH40 Transceiver

JD120B

HP X110 100M SFP LC LH80 Transceiver

JD091A

HP X110 100M SFP LC LH40 Transceiver

JD090A

HP X120 1G SFP LC BX 10-D Transceiver

JD099B

Note 2

The following DDR SDRAM install into this Module:

HP A-Series 256MB DDR SDRAM

JD647A

HP A-Series 512MB DDR SDRAM

JD648A

Note 3

The following DDR SDRAM install into this Module:

HP A-Series 2GB DDR2 SDRAM

JG205A

Note 4

The following CF Card install into this Module:

HP A7500 1G Compact Flash Card

JC684A

HP A7500 512M Compact Flash Card

JC685A

HP A7500 256M Compact Flash Card

JC686A

Note 5

If this Module is selected, Then JD434A - HP MSR50 Router Software License is required.

Note 6

The following SIC Modules install into this Module: (Use #0D1 if router is CTO) - if applicable

HP MSR 4-port 10/100 SIC Module

JD573B

HP MSR 9-port 10/100 DSIC Module

JD574B

HP A-MSR 4-port 10/100Base-T PoE Switch SIC Module

JD620A

HP A-MSR 9-port 10/100Base-T PoE Switch DSIC Module

JD621A

HP MSR 1-port 10/100 SIC Module

JD545B

HP 1-port 100Mbt SFP SIC Router Module

JF280A

HP MSR 1-port 10/100/1000 SIC Module

JD572A

HP MSR 2-port FXO SIC Module

JD558A

HP MSR 1-port FXO SIC Module

JD559A

HP MSR 2-port FXS SIC Module

JD560A

HP MSR 1-port FXS SIC Module

JD561A

HP MSR 1-port E1-Voice SIC Module

JD575A

HP MSR 1-port T1-Voice SIC Module

JD576A

HP 2p ISDN-S/T Voice Interface SIC Mod

JF821A

HP MSR 2FXS + 1FXO Voice Intfc SIC Mod

JD632A

HP MSR 1-port Fractional E1 SIC Module

JD634A

HP MSR 1-port Fractional SIC Module

JD538A

HP MSR 2-port Fractional E1 SIC Module

JF842A

HP MSR 1-port Enhanced Serial SIC Mod

JD557A

HP A-MSR 1-port ADSL over POTS SIC Module

JD537A

HP MSR 1-port ISDN-S/T SIC Module

JD571A

HP A-MSR 8-port Async Serial SIC Module

JF281A

HP 802.11b/g/n Wireless AP SIC Module

JF819A

HP MSR 802.11b/g/n Wless AP SIC Mod (NA)

JG211A

HP MSR 1p 8-wire G.SHDSL (RJ45) DSIC Mod

JG191A

HP MSR 1-port ADSL over ISDN SIC Module

JG056B

HP MSR 16-port Async Serial SIC Module

JG186A

HP A-MSR 4-port FXS/1-port FXO DSIC Mod

JG189A

HP A-MSR HSPA/WCDMA SIC Module

JG187A

HP MSR 4G LTE SIC Mod for Verizon

JG742A

HP MSR 4G LTE SIC Mod for ATT

JG743A

HP MSR 4G LTE SIC Mod for Global

JG744A

Note 8

If this product is ordered in Russia, Then the #A59 must be ordered with product number.

Multi-Service Module Slot

System (std 0 // max 1) User Selection (min 0 // max 1) per Router

HP MSR50 Module

JD651A

• 2 - ESM Modules
• 1 - VCPM Module
• 4 - VPM Modules

See Configuration NOTE:1, 3, 4, 5

HP MSR50 G2 Module

JD430A

• 2 - ESM Modules
• 1 - VCPM Module

See Configuration NOTE:2, 3, 4

Configuration Rules:

Note 1

If this module is selected, Then the JD653A - HP MSR50 Processor Module is required.

Note 2

If this module is selected, Then the JD429B - HP MSR50 G2 Processor Module is required.

Note 3

The following ESM Modules install into this Module: (Use #0D1 if router is CTO) - -

HP A-MSR Advanced Network Data Encryption ESM Module

JD608A

HP A-MSR Standard Network Data Encryption ESM Module

JD609A

Note 4

The following VCPM Modules install into this Module: (Use #0D1 if router is CTO)

HP A-MSR Voice Co-processing Module

JD610A

Note 5

The following VPM Modules install into this Module: (Use #0D1 if router is CTO)

HP A-MSR 32-Channel Voice Processing Module

JD598A

HP A-MSR 24-Channel Voice Processing Module

JD599A

HP A-MSR 16-Channel Voice Processing Module

JD600A

HP A-MSR 8-Channel Voice Processing Module

JD601A

FIC Modules

JD433A and JF285A Only System (std 0 // max 4) User Selection (min 0 // max 4) Per router

JF231A and JF640A Only System (std 0 // max 6) User Selection (min 0 // max 6) Per router

HP MSR 1-port 10/100/1000 FIC Module

JD583B

HP MSR 8p Async Serial RJ45 FIC Module

JF260B

• min=0 \ max=8 AUX Cables

See Configuration NOTE:6

HP MSR 16p Async Serial RJ45 FIC Mod

JF265B

• min=0 \ max=16 AUX Cables

See Configuration NOTE:6

HP MSR 2-port Gig-T FIC Module

JF269B

HP MSR 2-port 1000BASE-X FIC Module

JF270B

• min=0 \ max=2 SFP Modules

See Configuration NOTE:3

HP MSR 1-port GbE Fiber FIC Module

JD582A

• min=0 \ max=1 SFP Modules

See Configuration NOTE:3

HP MSR 2-port 10/100 FIC MSR Module

JD577A

HP 4-port 10/100 FIC Module

JF824A

HP MSR 16-port 10/100 PoE FIC Module

JD616A

• min=0 \ max=1 SFP Modules

See Configuration NOTE:3, 11, 19, 20

HP MSR 24-port 10/100 POE DFIC Module

JD617A

• min=0 \ max=2 SFP Modules

See Configuration NOTE:1, 2,3, 11, 19, 20

HP MSR 4-port E and M FIC Module

JD602A

HP MSR 4-port FXO FIC Module

JD593A

HP MSR 4-port FXS FIC Module

JD594A

HP MSR 1-port T1 Voice FIC Module

JD605A

• min=0 \ max=1 T1 Cable

HP MSR 2-port T1 Voice FIC Module

JD606A

• min=0 \ max=2 T1 Cable

HP MSR 1-port E1 Voice FIC Module

JD607A

• min=0 \ max=1 E1 Cable

See Configuration NOTE:8, 13

HP MSR 2-port E1-Voice FIC Module

JD587A

• min=0 \ max=2 E1 Cable

See Configuration NOTE:8, 13

HP MSR 4-port Enhanced Serial FIC Module

JD584A

• min=0 \ max=4 Serial Port Cable

See Configuration NOTE:7

HP MSR 8-port Serial Enhanced FIC Module

JD580A

• min=0 \ max=8 Serial Port Cable

See Configuration NOTE:7

HP MSR 2-port CE1/PRI FIC Module

JD578A

• min=0 \ max=2 E1 Cable

See Configuration NOTE:8, 13

HP MSR 4-port CE1/PRI FIC Module

JD588A

• min=0 \ max=4 E1 Cable

See Configuration NOTE:8, 13

HP MSR 8-port CE1/PRI FIC-75 Module

JD585A

• must select 1 8-port E1 Cable

See Configuration NOTE:9

HP MSR 4-port Fractional E1 FIC Module

JD591A

• min=0 \ max=4 E1 Cable

See Configuration NOTE:8, 13

HP MSR 4-port Fractional T1 FIC Module

JD592A

• min=0 \ max=4 T1 Cable

See Configuration NOTE:12

HP MSR 1-port FT3/CT3 FIC Module

JD629A

• min=0 \ max=2 E3/T3 Cable

See Configuration NOTE:11

HP MSR 1-port FE3/CE3 FIC Module

JD625A

• min=0 \ max=2 E3/T3 Cable

See Configuration NOTE:11

HP MSR 4-port ISDN-S/T FIC Module

JD589A

HP MSR 4-port E1-IMA FIC -75 Module

JD622A

• min=0 \ max=1 E1 Cable

See Configuration NOTE:14

HP MSR 1-port T3 ATM FIC Module

JD595A

• min=0 \ max=2 E3/T3 Cable

See Configuration NOTE:11

HP MSR 1-port E3 ATM FIC Module

JD596A

• min=0 \ max=2 E3/T3 Cable

See Configuration NOTE:11

HP MSR 1-port OC-3 ATM FIC Module

JD633A

• min=0 \ max=1 SFP Modules

See Configuration NOTE:4

HP MSR 1-port OC-3 POS FIC Module

JD581C

• min=0 \ max=1 SFP Modules

See Configuration NOTE:4

HP MSR 1p OC-3/STM-1 E1/T1 CPOS FIC Mod

JG201A

• min=0 \ max=1 SFP Modules

See Configuration NOTE:4

HP A-MSR 8-p E1 IMA (75ohm) FIC Module

JF278B

• min=1 \ max=1 8-port E1 Cable

See Configuration NOTE:15

HP A-MSR 24-port FXS FIC Module

JG197A

HP A-MSR 8-port T1/CT1/PRI FIC Module

JD586B

• min=1 \ max=1 T1 Cable

See Configuration NOTE:17

HP A-MSR 8-port T1 IMA FIC Module

JG200A

• min=1 \ max=1 T1 Cable

See Configuration NOTE:17

HP MSR OAP FIC Mod w/VMware vSphere

JG533A#B01

HP MSR LSB Com FIC Mod pwrby Msft Lync

JG589A#B01

See Configuration NOTE:21

Configuration Rules:

Note 1

If these Modules are add to the following routers Then Max = 2:

HP MSR50-40 Router

JD433A

HP MSR50-40 DC Router

JF285A

Note 2

If these Modules are add to the following routers Then Max = 2:

HP MSR50-60 Router

JF231A

HP MSR50-60 Rtr Chassis w DC PwrSupply

JF640A

Note 3

The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if applicable

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HP X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HP X120 1G SFP LC BX 10-U Transceiver

JD098B

HP X120 1G SFP LC BX 10-D Transceiver

JD099B

HP X120 1G SFP LC LH100 Transceiver

JD103A

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

Note 4

The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if applicable

HP X110 100M SFP LC LH40 Transceiver

JD090A

HP X110 100M SFP LC LH80 Transceiver

JD091A

HP X110 100M SFP LC FX Transceiver

JD102B

HP X110 100M SFP LC LX Transceiver

JD120B

Note 6

The following AUX Cables and Transit Cables install into this Module:

Aux Cable-3m (D25 Male)

JD508A

Single Cable, Transit Plug, D25F, MP8(S)-?

JD636A

Single Cable, Transit Cable, 0.5m (RJ45)

JD641A

Note 7

The following Cables install into this Module:

V.24 Serial Port Cable, DTE, 3m

JD519A

V.24 Serial Port Cable, DCE, 3m

JD521A

V.35 Serial Port Cable, DTE, 3m

JD523A

V.35 Serial Port Cable, DCE, 3m

JD525A

X.21 Serial Port Cable, DTE, 3m

JD527A

X.21 Serial Port Cable, DCE, 3m

JD529A

RS449 Serial Port Cable, DTE, 3m

JF825A

RS449 Serial Port Cable, DCE, 3m

JF826A

RS530 Serial Port Cable, DTE, 3m

JF827A

RS530 Serial Port Cable, DCE, 3m

JF828A

Note 8

The following E1 Cables install into this Module:

HP X260 E1 (2) BNC 75 ohm 3m Rtr Cable

JD175A

HP X260 E1 BNC 20m Router Cable

JD514A

HP X260 E1/2 BNC 75 ohm 40m Router Cable

JD516A

Note 9

The following Cable install into this Module:

8-port E1 Cable, 16 BNC, 3m, 75ohm

JD512A

Note 11

The following E3/T3 Cable and Connector install into this Module:

E3/T3 Cable 15m-BNC75 (ohm) Straight Male/SFYZ-75-2-1/SMB75 (ohm) Straight Female

JD531A

E3/T3 Cable 30m-BNC75 (ohm) Straight Male/SFYZ-75-2-1/SMB75 (ohm) Straight Female

JD533A

Note 12

The following T1 Cables install into this Module:

HP X260 T1 Router Cable

JD518A

Note 13

The following E1 Cables install into this Module:

HP X260 E1 RJ45 3m Router Cable

JD509A

HP X260 E1 RJ45 20m Router Cable

JD517A

Note 14

The following E1 Cables install into this Module:

HP X260 E1 4-Port IMA Router Cable

JD638A

Note 15

The following 8E1 Cables install into this Module:

HP CAB-75ohm 8E1-3m-BNC-IMA

JD927A

Note 16

The following Cables install into this Module:

HP A-MSR 50 pin D-sub Male to 24 x RJ-11 Plug 15m Router Cable

JG318A

Note 17

The following Cables install into this Module:

HP X260 8T1 RJ45 3m Router Cable

JD639A

Note 19

If selected, Then show - Warning- JD652A - HP MSR50 AC PoE Power Supply required for POE.

Note 20

If the JD429B - HP MSR50 G2 Processor Module is selected, Then this Module is not supported.

Note 21

Max of 2 Modules per router with 1 Power Supply, and Max of 4 Modules per router with 2 Power supplies.

SIC Modules

System (std 0 // max 4) User Selection (min 0 // max 4) per JD653A MPU

HP MSR 4-port 10/100 SIC Module

JD573B

See Configuration NOTE:1

HP MSR 9-port 10/100 DSIC Module

JD574B

See Configuration NOTE:1

HP A-MSR 4-port 10/100Base-T PoE Switch SIC Module

JD620A

See Configuration NOTE:1

HP A-MSR 9-port 10/100Base-T PoE Switch DSIC Module

JD621A

See Configuration NOTE:1

HP MSR 1-port 10/100 SIC Module

JD545B

See Configuration NOTE:1

HP 1-port 100Mbt SFP SIC Router Module

JF280A

• min=0 \ max=1 SFP Transceivers

See Configuration NOTE:1, 2

HP MSR 1-port 10/100/1000 SIC Module

JD572A

• min=0 \ max=1 SFP Transceivers

See Configuration NOTE:1, 3

HP MSR 2-port FXO SIC Module

JD558A

HP MSR 1-port FXO SIC Module

JD559A

HP MSR 2-port FXS SIC Module

JD560A

HP MSR 1-port FXS SIC Module

JD561A

HP MSR 1-port E1-Voice SIC Module

JD575A

• min=0 \ max=1 E1 Cable

See Configuration NOTE:4, 13

HP MSR 1-port T1-Voice SIC Module

JD576A

• min=0 \ max=1 T1 Cable

See Configuration NOTE: 10

HP 2p ISDN-S/T Voice Interface SIC Mod

JF821A

HP MSR 2FXS + 1FXO Voice Intfc SIC Mod

JD632A

HP MSR 1-port Fractional E1 SIC Module

JD634B

• min=0 \ max=1 E1 Cable

See Configuration NOTE:4

HP MSR 1-port Fractional SIC Module

JD538A

• min=0 \ max=1 T1 Cable

See Configuration NOTE: 10

HP MSR 2-port Fractional E1 SIC Module

JF842A

• min=0 \ max=1 2E1 Cable

See Configuration NOTE:11

HP MSR 1-port Enhanced Serial SIC Mod

JD557A

• min=0 \ max=1 Serial Port Cable

See Configuration NOTE:6

HP A-MSR 1-port ADSL over POTS SIC Module

JD537A

See Configuration NOTE:1

HP MSR 1-port ISDN-S/T SIC Module

JD571A

HP A-MSR 8-port Async Serial SIC Module

JF281A

• Must select 1 8AS Communication Cable (min=1 \ max=1 cable)

See Configuration NOTE:7

HP 802.11b/g/n Wireless AP SIC Module

JF819A

See Configuration NOTE:1

HP MSR 802.11b/g/n Wless AP SIC Mod (NA)

JG211A

See Configuration NOTE:1

HP MSR 1p 8-wire G.SHDSL (RJ45) DSIC Mod

JG191A

See Configuration NOTE:1

HP MSR 1-port ADSL over ISDN SIC Module

JG056B

See Configuration NOTE:1

HP MSR 16-port Async Serial SIC Module

JG186A

• Must select 4 HP X260 mini D-28/4-RJ45 0.3m Rtr Cables (min=4 \ max=4 cables)

See Configuration NOTE:12

HP A-MSR 4-port FXS/1-port FXO DSIC Mod

JG189A

See Configuration NOTE:1

HP A-MSR HSPA/WCDMA SIC Module

JG187A

See Configuration NOTE:1

HP MSR 1-port E1/CE1/PRI SIC Module

JF253B

See Configuration NOTE:1

HP MSR 4G LTE SIC Mod for Verizon

JG742A

• None

See Configuration NOTE:14, 15

HP MSR 4G LTE SIC Mod for ATT

JG743A

• None

See Configuration NOTE:14, 15

HP MSR 4G LTE SIC Mod for Global

JG744A

• None

See Configuration NOTE:14, 15

Configuration Rules:

Note 1

If these Modules are added, Then the Max = 2.

Note 2

The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if applicable

HP X110 100M SFP LC LH40 Transceiver

JD090A

HP X110 100M SFP LC LH80 Transceiver

JD091A

HP X110 100M SFP LC FX Transceiver

JD102B

HP X110 100M SFP LC LX Transceiver

JD120B

Note 3

The following Transceivers install into this Module:

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HP X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HP X120 1G SFP LC BX 10-U Transceiver

JD098B

HP X120 1G SFP LC BX 10-D Transceiver

JD099B

HP X120 1G SFP LC LH100 Transceiver

JD103A

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

Note 4

The following E1 Cables install into this Module:

HP X260 E1 (2) BNC 75 ohm 3m Rtr Cable

JD175A

HP X260 E1 BNC 20m Router Cable

JD514A

HP X260 E1/2 BNC 75 ohm 40m Router Cable

JD516A

Note 6

The following Cables install into this Module:

V.24 Serial Port Cable, DTE, 3m

JD519A

V.24 Serial Port Cable, DCE, 3m

JD521A

V.35 Serial Port Cable, DTE, 3m

JD523A

V.35 Serial Port Cable, DCE, 3m

JD525A

X.21 Serial Port Cable, DTE, 3m

JD527A

X.21 Serial Port Cable, DCE, 3m

JD529A

RS449 Serial Port Cable, DTE, 3m

JF825A

RS449 Serial Port Cable, DCE, 3m

JF826A

RS530 Serial Port Cable, DTE, 3m

JF827A

RS530 Serial Port Cable, DCE, 3m

JF828A

Note 7

If this module is selected Then 1 JD642A - HP X260 SIC-8AS RJ45 0.28m Router Cable is required.

Note 10

The following T1 Cables install into this Module:

HP X260 T1 Router Cable

JD518A

Note 11

The following 2E1 Cables install into this Module:

HP X260 2E1 BNC 3m Router Cable

JD643A

Note 12

If this module is selected Then 4 - JG263A HP X260 mini D-28/4-RJ45 0.3m Rtr Cable are required to be on the same order.

Note 13

The following E1 Cables install into this Module:

HP X260 E1 RJ45 3m Router Cable

JD509A

HP X260 E1 RJ45 20m Router Cable

JD517A

Note 14

The following Antenna Cables install into this Module:

HP MSR 3G RF 2.8m Antenna Cable

JG522A

HP MSR 3G RF 6m Antenna Cable

JG666A

HP MSR 3G RF 15m Antenna Cable

JG667A

Note 15

If this module is selected, Then Max = 2 Modules of any combination or pairing of the following modules: JG742A, JG743A, JG744A.

ESM Modules

JD651A and JD430A Service Modules Only - System (std 0 // max 2) User Selection (min 0 // max 2)

HP MSR Encryption Accelerator Adv Mod

JD608A

HP MSR Std Encryption Accelerator Mod

JD609A

Voice Co-Processing Modules

JD651A and JD430A Service Modules Only -System (std 0 // max 1) User Selection (min 0 // max 1)

HP MSR Voice Co-processor Module

JD610A

Voice Processing Modules

JD651A Service Modules Only -System (std 0 // max 1) User Selection (min 0 // max 4)

JD430A Service Modules Only -Not supported

HP MSR 32-channel Voice Processor Module

JD598A

HP MSR 24-channel Voice Processor Module

JD599A

HP MSR 16-channel Voice Processor Module

JD600A

HP MSR 8-channel Voice Processor Module

JD601A

SDRAM

System (std 1 // max 2) User Selection (min 0 // max 2) per Main Processing Module

HP 2GB DDR2 SDRAM

JG205A

HP MSR 256MB SDRAM

JD647A

HP MSR 512MB SDRAM

JD648A

Transceivers

SFP Transceivers

HP X115 100M SFP LC FX Transceiver

JD102B

HP X110 100M SFP LC LH40 Transceiver

JD120B

HP X110 100M SFP LC LH80 Transceiver

JD091A

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

HP X120 1G SFP LC LH40 1550nm XCVR

JD062A

HP X110 100M SFP LC LH40 Transceiver

JD090A

HP X125 1G SFP LC LH40 1310nm XCVR

JD061A

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP LC BX 10-D Transceiver

JD099B

HP X120 1G SFP LC LH100 Transceiver

JD103A

HP X120 1G SFP LC BX 10-U Transceiver

JD098B

Cables

HP X260 mini D-28/4-RJ45 0.3m Rtr Cable

JG263A

HP X200 V.24 DTE 3m Serial Port Cable

JD519A

HP X200 V.24 DCE 3m Serial Port Cable

JD521A

HP X200 V.35 DTE 3m Serial Port Cable

JD523A

HP X200 V.35 DCE 3m Serial Port Cable

JD525A

HP X200 X.21 DTE 3m Serial Port Cable

JD527A

HP X200 X.21 DCE 3m Serial Port Cable

JD529A

HP X260 RS449 3m DTE Serial Port Cable

JF825A

HP X260 RS449 3m DCE Serial Port Cable

JF826A

HP X260 RS530 3m DTE Serial Port Cable

JF827A

HP X260 RS530 3m DCE Serial Port Cable

JF828A

HP X260 Auxiliary Router Cable

JD508A

HP X260 E1 RJ45 3m Router Cable

JD509A

HP X260 E1 RJ45 20m Router Cable

JD517A

HP X260 E1 (2) BNC 75 ohm 3m Rtr Cable

JD175A

HP X260 E1 BNC 20m Router Cable

JD514A

HP X260 E1/2 BNC 75 ohm 40m Router Cable

JD516A

HP X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable

JD511A

HP X260 2E1 BNC 3m Router Cable

JD643A

HP X260 T1 Router Cable

JD518A

HP X260 T1 Voice Router Cable

JD535A

HP X260 T3/E3 Router Cable

JD531A

HP X260 E3-30 E3/T3 Router Cable

JD533A

HP X260 E1 4-port IMA Router Cable

JD638A

HP X260 8E1 BNC 75 ohm 3m Router Cable

JD512A

HP X260 SIC-8AS RJ45 0.28m Router Cable

JD642A

HP X200 Transit Plug D25F MP8(S) Single Cable

JD636A

HP X200 Transit Cable RJ45 0.5m Single Cable

JD641A

HP A-MSR 50 pin D-sub Male to 24 x RJ-11 Plug 15m Router Cable

JG318A

HP X260 8T1 RJ45 3m Router Cable

JD639A

HP CAB-75ohm 8E1-3m-BNC-IMA

JD927A

Remarks:

The following cable is used for RJ45 BNC Conversion

HP X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable

JD511A

Router Options

Antenna Cables

System (std 0 // max 2) User Selection (min 0 // max 2) per SIC Module (JG742A, JG743A, JG744A)

HP MSR 3G RF 2.8m Antenna Cable

JG522A

HP MSR 3G RF 6m Antenna Cable

JG666A

HP MSR 3G RF 15m Antenna Cable

JG667A

Licenses

System (std 0 // max 1) User Selection (min 0 // max 1) per switch enclosure

HP MSR50 Router Software License

JD434A

SDRAM

System (std 1 // max 2) User Selection (min 0 // max 2) per Main Processing Module

HP A-Series 2GB DDR2 SDRAM

JG205A

See Configuration NOTE:1

HP MSR 256MB SDRAM

JD647A

See Configuration NOTE:1

HP MSR 512MB SDRAM

JD648A

See Configuration NOTE:1

Configuration Rules:

Note 1

These SDRAM's are supported on the following Modules only:

HP MSR50 G2 Main Processing Unit

JD429B

HP MSR50 Main Processing Unit

JD653A

Compact Flash cards

System (std 1 // max 2) User Selection (min 0 // max 1) per Main Processing Module

HP X600 1G Compact Flash Card

JC684A

See Configuration NOTE:1

HP X600 512M Compact Flash Card

JC685A

See Configuration NOTE:1

HP X600 256M Compact Flash Card

JC686A

See Configuration NOTE:1

Configuration Rules:

Note 1

These CF Cards are supported on the following Modules only:

HP MSR50 G2 Main Processing Unit

JD429B

HP MSR50 Main Processing Unit

JD653A

Opacity Shield Kit

System (std 0 // max 1) User Selection (min 0 // max 1)

HP MSR50-40 Opcty Shld Kit

JG583A

NOTE:
Supported on JD433A, JF285A

See Configuration NOTE:1

HP MSR50-60 Opcty Shld Kit

JG584A

NOTE:
Supported on JF231A, JF640A

See Configuration NOTE:1

Configuration Rules:

Note 1

If selected with a CTO Router Solution, Quantity 1 of JG586A#B01 must also be ordered.

Tamper Evidence Labels

HP 12mm x 60mm Tmpr-Evidence (100) Lbl

JG586A

NOTE:
Supported on JD433A, JF285A, JF231A, JF640A

See Configuration NOTE:1

Configuration Rules:

Note 1

If selected with a CTO Router Solution, Quantity 1 of JG583A#B01 or JG584A#B01 must also be ordered.

Remarks:

Each JG583A or JG584A would use 1 of JG586A.

HP MSR50-40 Router (JD433A)

Ports

4 FIC slots

Physical characteristics

Dimensions

17.17(w) x 16.69(d) x 5.16(h) in (43.6 x 42.4 x 13.1 cm) (3U height)

Weight

39.68 lb (18 kg)

Memory and processor

Processor 1

RISC @ 1700 MHz, 1 GB DDR SDRAM, 256 MB compact flash

Processor 2

RISC @ 833 MHz, 512 MB DDR SDRAM, 256 MB compact flash

Mounting

Mounts in an EIA standard 19-in. rack

Performance

Throughput

up to 1280 Kpps (64-byte packets)

Routing/Switching capacity

3 Gbps

Routing table size

100000 entries (IPv4), 100000 entries (IPv6)

Environment

Operating temperature

32ºF to 104ºF (0ºC to 40ºC)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

-40ºF to 158ºF (-40ºC to 70ºC)

Nonoperating/Storage relative humidity

5% to 90%, noncondensing

Electrical characteristics

Maximum heat dissipation

1194 BTU/hr (1259.67 kJ/hr)

Voltage

100-240 VAC

Maximum power rating

350 W

PoE power

500 W

Frequency

50/60 Hz

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS).

Safety

UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03; FDA 21 CFR Subchapter J

Emissions

EN 55022 Class A
ICES-003 Class A
ANSI C63.4 2003
ETSI EN 300 386 V1.3.3
AS/NZS CISPR 22 Class A
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-3-2:2006
EN 61000-3-3:1995 +A1:2001+A2:2005
EMC Directive 2004/108/EC
FCC (CFR 47, Part 15) Class A
EN 55024:1998+ A1:2001 + A2:2003
EN 61000-4-11:2004
EN 61000-4-8:2001

Telecom

FCC part 68
CS-03

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB

Notes

The HP 3G Wireless GSM/WCDMA WAN SIC Module (JF820A) is not approved for use in the same chassis as a Wi-Fi interface (IEEE 802.11b/g, 802.11b/g/n, etc.) in the European Union.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP MSR50-60 Router (JF231A)

Ports

6 FIC slots

Physical characteristics

Dimensions

17.17(w) x 16.69(d) x 6.89(h) in (43.6 x 42.4 x 17.5 cm) (4U height)

Weight

44.09 lb (20 kg)

Memory and processor

Processor 1

RISC @ 1700 MHz, 1 GB DDR SDRAM, 256 MB compact flash

Processor 2

RISC @ 833 MHz, 512 MB DDR SDRAM, 256 MB compact flash

Mounting

Mounts in an EIA standard 19-in. rack

Performance

Throughput

up to 1280 Kpps (64-byte packets)

Routing/Switching capacity

3 Gbps

Routing table size

100000 entries (IPv4), 100000 entries (IPv6)

Environment

Operating temperature

32ºF to 104ºF (0ºC to 40ºC)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

-40ºF to 158ºF (-40ºC to 70ºC)

Nonoperating/Storage relative humidity

5% to 90%, noncondensing

Electrical characteristics

Maximum heat dissipation

1194 BTU/hr (1259.67 kJ/hr)

Voltage

100-240 VAC

Maximum power rating

350 W

PoE power

500 W

Frequency

50/60 Hz

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS).

Safety

UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03; FDA 21 CFR Subchapter J

Emissions

EN 55022 Class A
ICES-003 Class A
ANSI C63.4 2003
ETSI EN 300 386 V1.3.3
AS/NZS CISPR 22 Class A
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-3-2:2006
EN 61000-3-3:1995 +A1:2001+A2:2005
EMC Directive 2004/108/EC
FCC (CFR 47, Part 15) Class A
EN 55024:1998+ A1:2001 + A2:2003
EN 61000-4-11:2004
EN 61000-4-8:2001

Telecom

FCC part 68
CS-03

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB

Notes

The HP 3G Wireless GSM/WCDMA WAN SIC Module (JF820A) is not approved for use in the same chassis as a Wi-Fi interface (IEEE 802.11b/g, 802.11b/g/n, etc.) in the European Union.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Standards and protocols
(applies to all products in series)

BGP
RFC 1163 Border Gateway Protocol (BGP)
RFC 1267 Border Gateway Protocol 3 (BGP-3)
RFC 1657 Definitions of Managed Objects for
BGPv4
RFC 1771 BGPv4
RFC 1772 Application of the BGP
RFC 1773 Experience with the BGP-4 Protocol
RFC 1774 BGP-4 Protocol Analysis
RFC 1965 BGP4 confederations
RFC 1997 BGP Communities Attribute
RFC 1998 PPP Gandalf FZA Compression Protocol
RFC 2385 BGP Session Protection via TCP MD5
RFC 2439 BGP Route Flap Damping

Device management
RFC 1305 NTPv3
RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0
RFC 2271 FrameWork
RFC 2452 MIB for TCP6
RFC 2454 MIB for UDP6

General protocols
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 855 Telnet Option Specification
RFC 856 TELNET
RFC 858 Telnet Suppress Go Ahead Option
RFC 894 IP over Ethernet
RFC 925 Multi-LAN Address Resolution
RFC 950 Internet Standard Subnetting Procedure
RFC 959 File Transfer Protocol (FTP)
RFC 1006 ISO transport services on top of the TCP: Version 3
RFC 1027 Proxy ARP
RFC 1034 Domain Concepts and Facilities
RFC 1035 Domain Implementation and Specification
RFC 1042 IP Datagrams
RFC 1058 RIPv1
RFC 1071 Computing the Internet Checksum
RFC 1091 Telnet Terminal-Type Option
RFC 1122 Host Requirements
RFC 1141 Incremental updating of the Internet checksum
RFC 1142 OSI IS-IS Intra-domain Routing Protocol
RFC 1144 Compressing TCP/IP headers for low-speed serial links
RFC 1195 OSI ISIS for IP and Dual Environments
RFC 1256 ICMP Router Discovery Protocol (IRDP)
RFC 1293 Inverse Address Resolution Protocol
RFC 1315 Management Information Base for Frame Relay DTEs
RFC 1332 The PPP Internet Protocol Control Protocol (IPCP)
RFC 1333 PPP Link Quality Monitoring
RFC 1334 PPP Authentication Protocols (PAP)
RFC 1349 Type of Service
RFC 1350 TFTP Protocol (revision 2)
RFC 1377 The PPP OSI Network Layer Control Protocol (OSINLCP)
RFC 1381 SNMP MIB Extension for X.25 LAPB
RFC 1471 The Definitions of Managed Objects for the Link Control Protocol of the Point-to-Point Protocol
RFC 1472 The Definitions of Managed Objects for the Security Protocols of the Point-to-Point Protocol
RFC 1490 Multiprotocol Interconnect over Frame Relay
RFC 1519 CIDR
RFC 1534 DHCP/BOOTP Interoperation
RFC 1542 Clarifications and Extensions for the Bootstrap Protocol
RFC 1552 The PPP Internetworking Packet Exchange Control Protocol (IPXCP)
RFC 1577 Classical IP and ARP over ATM
RFC 1613 Cisco Systems X.25 over TCP (XOT)
RFC 1624 Incremental Internet Checksum
RFC 1631 NAT
RFC 1638 PPP Bridging Control Protocol (BCP)
RFC 1661 The Point-to-Point Protocol (PPP)
RFC 1662 PPP in HDLC-like Framing
RFC 1695 Definitions of Managed Objects for ATM Management Version 8.0 using SMIv2
RFC 1701 Generic Routing Encapsulation
RFC 1702 Generic Routing Encapsulation over IPv4 networks
RFC 1721 RIP-2 Analysis
RFC 1722 RIP-2 Applicability
RFC 1723 RIP v2
RFC 1795 Data Link Switching: Switch-to-Switch Protocol AIW DLSw RIG: DLSw Closed Pages, DLSw Standard Version 1
RFC 1812 IPv4 Routing
RFC 1829 The ESP DES-CBC Transform
RFC 1877 PPP Internet Protocol Control Protocol Extensions for Name Server Addresses
RFC 1878 Variable Length Subnet Table for IPv4
RFC 1944 Benchmarking Methodology for Network Interconnect Devices
RFC 1973 PPP in Frame Relay
RFC 1974 PPP Stac LZS Compression Protocol
RFC 1990 The PPP Multilink Protocol (MP)
RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP)
RFC 2091 Trigger RIP
RFC 2131 DHCP
RFC 2132 DHCP Options and BOOTP Vendor Extensions
RFC 2166 APPN Implementer's Workshop Closed Pages Document DLSw v2.0 Enhancements
RFC 2205 Resource ReSerVation Protocol (RSVP) - Version 1 Functional Specification
RFC 2280 Routing Policy Specification Language (RPSL)
RFC 2284 EAP over LAN
RFC 2338 VRRP
RFC 2364 PPP Over AAL5
RFC 2374 An Aggregatable Global Unicast Address Format
RFC 2451 The ESP CBC-Mode Cipher Algorithms
RFC 2453 RIPv2
RFC 2510 Internet X.509 Public Key Infrastructure Certificate Management Protocols
RFC 2511 Internet X.509 Certificate Request Message Format
RFC 2516 A Method for Transmitting PPP Over Ethernet (PPPoE)
RFC 2570 Introduction to Version 3 of the Internet-standard Network Management Framework
RFC 2644 Directed Broadcast Control
RFC 2661 L2TP
RFC 2663 NAT Terminology and Considerations
RFC 2684 Multiprotocol Encapsulation over ATM Adaptation Layer 5
RFC 2694 DNS extensions to Network Address Translators (DNS_ALG)
RFC 2702 Requirements for Traffic Engineering Over MPLS
RFC 2747 RSVP Cryptographic Authentication
RFC 2763 Dynamic Name-to-System ID mapping support
RFC 2765 Stateless IP/ICMP Translation Algorithm (SIIT)
RFC 2766 Network Address Translation - Protocol Translation (NAT-PT)
RFC 2784 Generic Routing Encapsulation (GRE)
RFC 2787 Definitions of Managed Objects for VRRP
RFC 2961 RSVP Refresh Overhead Reduction Extensions
RFC 2966 Domain-wide Prefix Distribution with Two-Level IS-IS
RFC 2973 IS-IS Mesh Groups
RFC 2985 PKCS #9: Selected Object Classes and Attribute Types Version 2.0
RFC 2993 Architectural Implications of NAT
RFC 3022 Traditional IP Network Address Translator (Traditional NAT)
RFC 3027 Protocol Complications with the IP Network Address Translator
RFC 3031 Multiprotocol Label Switching Architecture
RFC 3032 MPLS Label Stack Encoding
RFC 3036 LDP Specification
RFC 3046 DHCP Relay Agent Information Option
RFC 3063 MPLS Loop Prevention Mechanism
RFC 3065 Support AS confederation
RFC 3137 OSPF Stub Router Advertisement
RFC 3209 RSVP-TE Extensions to RSVP for LSP Tunnels
RFC 3210 Applicability Statement for Extensions to RSVP for LSP-Tunnels
RFC 3212 Constraint-Based LSP setup using LDP (CR-LDP)
RFC 3214 LSP Modification Using CR-LDP

RFC 3215 LDP State Machine
RFC 3246 Expedited Forwarding PHB
RFC 3268 Advanced Encryption Standard (AES) Ciphersuites for Transport Layer Security (TLS)
RFC 3277 IS-IS Transient Blackhole Avoidance
RFC 3279 Algorithms and Identifiers for the Internet X.509 Public Key Infrastructure Certificate and Certificate Revocation List (CRL) Profile
RFC 3280 Internet X.509 Public Key Infrastructure Certificate and Certificate Revocation List (CRL) Profile
RFC 3392 Support BGP capabilities advertisement
RFC 3410 Introduction and Applicability Statements for Internet Standard Management Framework
RFC 3479 Fault Tolerance for the Label Distribution Protocol (LDP)
RFC 3564 Requirements for Support of Differentiated Services-aware MPLS Traffic Engineering
RFC 3602 The AES-CBC Cipher Algorithm and Its Use with IPsec
RFC 3706 A Traffic-Based Method of Detecting Dead Internet Key Exchange (IKE) Peers
RFC 3784 ISIS TE support
RFC 3786 Extending the Number of IS-IS LSP Fragments Beyond the 256 Limit
RFC 3811 Definitions of Textual Conventions (TCs) for Multiprotocol Label Switching (MPLS) Management
RFC 3812 Multiprotocol Label Switching (MPLS) Traffic Engineering (TE) Management Information Base (MIB)
RFC 3847 Restart signaling for IS-IS
RFC 4301 Security Architecture for the Internet Protocol
RFC 5101 Specification of the IP Flow Information Export (IPFIX) Protocol for the Exchange of IP Traffic Flow Information
FRF.1.2 PVC User-to-Network Interface (UNI) Implementation Agreement - July 2000
FRF.11.1 Voice over Frame Relay Implementation Agreement - May 1997 - Annex J added March 1999
FRF.12 Frame Relay Fragmentation Implementation Agreement - December 1997
FRF.16.1 Multilink Frame Relay UNI/NNI Implementation Agreement - May 2002
FRF.2.2 Frame Relay Network-to-Network Interface (NNI) Implementation Agreement - March 2002
FRF.20 Frame Relay IP Header Compression Implementation Agreement - June 2001
FRF.3.2 Frame Relay Multiprotocol Encapsulation Implementation Agreement - April 2000
FRF.7 Frame Relay PVC Multicast Service and Protocol Description - October 1994
FRF.9 Data Compression Over Frame Relay Implementation Agreement - January 1996

IP multicast
RFC 1112 IGMP
RFC 2236 IGMPv2
RFC 2283 Multiprotocol Extensions for BGP-4
RFC 2362 PIM Sparse Mode
RFC 2934 Protocol Independent Multicast MIB for
IPv4
RFC 3376 IGMPv3

IPv6
RFC 1981 IPv6 Path MTU Discovery
RFC 2080 RIPng for IPv6
RFC 2292 Advanced Sockets API for IPv6
RFC 2373 IPv6 Addressing Architecture
RFC 2460 IPv6 Specification
RFC 2461 IPv6 Neighbor Discovery
RFC 2462 IPv6 Stateless Address Auto-configuration
RFC 2464 Transmission of IPv6 over Ethernet
Networks
RFC 2472 IP Version 6 over PPP
RFC 2473 Generic Packet Tunneling in IPv6
RFC 2529 Transmission of IPv6 Packets over IPv4
RFC 2545 Use of MP-BGP-4 for IPv6
RFC 2553 Basic Socket Interface Extensions for IPv6
RFC 2740 OSPFv3 for IPv6
RFC 2893 Transition Mechanisms for IPv6 Hosts
and Routers
RFC 3056 Connection of IPv6 Domains via IPv4
Clouds
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNS Extension for IPv6

MIBs
RFC 1213 MIB II
RFC 1229 Interface MIB Extensions
RFC 1286 Bridge MIB
RFC 1493 Bridge MIB
RFC 1573 SNMP MIB II
RFC 1724 RIPv2 MIB
RFC 1757 Remote Network Monitoring MIB
RFC 1850 OSPFv2 MIB
RFC 2011 SNMPv2 MIB for IP
RFC 2012 SNMPv2 MIB for TCP
RFC 2013 SNMPv2 MIB for UDP
RFC 2233 Interfaces MIB
RFC 2454 IPV6-UDP-MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMPv6 MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2863 The Interfaces Group MIB
RFC 2933 IGMP MIB
RFC 3813 MPLS LSR MIB

Network management
IEEE 802.1D (STP)
RFC 1155 Structure of Management Information
RFC 1157 SNMPv1
RFC 1905 SNMPv2 Protocol Operations
RFC 2272 SNMPv3 Management Protocol
RFC 2273 SNMPv3 Applications
RFC 2274 USM for SNMPv3
RFC 2275 VACM for SNMPv3
RFC 2575 SNMPv3 View-based Access Control
Model (VACM)
RFC 3164 BSD syslog Protocol

OSPF
RFC 1245 OSPF protocol analysis
RFC 1246 Experience with OSPF
RFC 1587 OSPF NSSA
RFC 1765 OSPF Database Overflow
RFC 1850 OSPFv2 Management Information Base
(MIB), traps
RFC 2328 OSPFv2
RFC 2370 OSPF Opaque LSA Option
RFC 3101 OSPF NSSA

QoS/CoS
IEEE 802.1P (CoS)
RFC 2474 DS Field in the IPv4 and IPv6 Headers
RFC 2475 DiffServ Architecture
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
RFC 3168 The Addition of Explicit Congestion
Notification (ECN) to IP

Security
IEEE 802.1X Port Based Network Access Control
RFC 1321 The MD5 Message-Digest Algorithm
RFC 2082 RIP-2 MD5 Authentication
RFC 2104 Keyed-Hashing for Message
Authentication
RFC 2138 RADIUS Authentication
RFC 2209 RSVP-Message Processing
RFC 2246 Transport Layer Security (TLS)
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting
RFC 3567 Intermediate System (IS) to IS
Cryptographic Authentication

VPN
RFC 2403 - HMAC-MD5-96
RFC 2404 - HMAC-SHA1-96
RFC 2405 - DES-CBC Cipher algorithm
RFC 2547 BGP/MPLS VPNs
RFC 2796 BGP Route Reflection - An Alternative to
Full Mesh IBGP
RFC 2842 Capabilities Advertisement with BGP-4
RFC 2858 Multiprotocol Extensions for BGP-4
RFC 2918 Route Refresh Capability for BGP-4
RFC 3107 Carrying Label Information in BGP-4

IPsec
RFC 1828 IP Authentication using Keyed MD5
RFC 2401 IP Security Architecture
RFC 2402 IP Authentication Header
RFC 2406 IP Encapsulating Security Payload
RFC 2407 - Domain of interpretation
RFC 2410 - The NULL Encryption Algorithm and its
use with IPsec
RFC 2411 IP Security Document Roadmap
RFC 2412 - OAKLEY
RFC 2865 - Remote Authentication Dial In User
Service (RADIUS)

HPE MSR50 Series accessories

Transceivers

HP X110 100M SFP LC FX Transceiver

JD102B

HP X110 100M SFP LC LX Transceiver

JD120B

HP X110 100M SFP LC LH40 Transceiver

JD090A

HP X110 100M SFP LC LH80 Transceiver

JD091A

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

HP X124 1G SFP LC LH40 1310nm Transceiver

JD061A

HP X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP LC LH100 Transceiver

JD103A

HP X120 1G SFP LC BX 10-U Transceiver

JD098B

HP X120 1G SFP LC BX 10-D Transceiver

JD099B

Cables

HP X200 V.24 DTE 3m Serial Port Cable

JD519A

HP X200 V.24 DCE 3m Serial Port Cable

JD521A

HP X200 V.35 DTE 3m Serial Port Cable

JD523A

HP X200 V.35 DCE 3m Serial Port Cable

JD525A

HP X200 X.21 DTE 3m Serial Port Cable

JD527A

HP X200 X.21 DCE 3m Serial Port Cable

JD529A

HP X260 RS449 3m DTE Serial Port Cable

JF825A

HP X260 RS449 3m DCE Serial Port Cable

JF826A

HP X260 RS530 3m DTE Serial Port Cable

JF827A

HP X260 RS530 3m DCE Serial Port Cable

JF828A

HP X260 Auxiliary Router Cable

JD508A

HP X260 E1 RJ45 3m Router Cable

JD509A

HP X260 E1 RJ45 20m Router Cable

JD517A

HP X260 E1 BNC 75 ohm 3m Router Cable

JD175A

HP X260 E1 BNC 20m Router Cable

JD514A

HP X260 E1 BNC 75 ohm 40m Router Cable

JD516A

HP X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable

JD511A

HP X260 2E1 BNC 3m Router Cable

JD643A

HP X260 T1 Router Cable

JD518A

HP X260 T1 Voice Router Cable

JD535A

HP X260 T3/E3 Router Cable

JD531A

HP X260 E3-30 E3/T3 Router Cable

JD533A

HP X260 E1 4-port IMA Router Cable

JD638A

HP X260 8E1 BNC 75 ohm 3m Router Cable

JD512A

HP X260 SIC-8AS RJ45 0.28m Router Cable

JD642A

HP X200 Transit Plug D25F MP8(S) Single Cable

JD636A

HP X200 Transit Cable RJ45 0.5m Single Cable

JD641A

HP X260 mini D-28 to 4-RJ45 0.3m Router Cable

JG263A

HP MSR 50 pin D-sub Male to 24 x RJ-11 Plug 15m Router Cable

JG318A

HP CAB-75ohm 8E1-3m-BNC-IMA

JD927A

HP X260 8T1 RJ45 3m Router Cable

JD639A

Power Supply

HP MSR50 350W AC Power Supply

JD650A

HP MSR50 350W DC Power Supply

JF443A

HP MSR50 500W PoE Power Module

JD652A

License

HP MSR50 Series Standard Version Router Software License

JD434A

Router Modules

HP MSR50 G2 Main Processing Unit

JD429B

HP MSR50 G2 Multi-Service Module

JD430A

HP MSR50 Main Processing Unit

JD653A

HP MSR50 Multi-Service Module

JD651A

HP MSR Advanced Network Data Encryption ESM Module

JD608A

HP MSR Standard Network Data Encryption ESM Module

JD609A

HP MSR Voice Co-processing Module

JD610A

HP MSR 32-Channel Voice Processing Module

JD598A

HP MSR 24-Channel Voice Processing Module

JD599A

HP MSR 16-Channel Voice Processing Module

JD600A

HP MSR 8-Channel Voice Processing Module

JD601A

HP MSR 9-port 10/100Base-T Switch DSIC Module

JD574B

HP MSR 9-port 10/100Base-T PoE Switch DSIC Module

JD621A

HP MSR 4-port 10/100Base-T Switch SIC Module

JD573B

HP MSR 4-port 10/100Base-T PoE Switch SIC Module

JD620A

HP MSR 1-port 10/100Base-T SIC Module

JD545B

HP MSR 1-port 100Base-X SIC Module

JF280A

HP MSR 1-port GbE Combo SIC Module

JD572A

HP MSR 2-port FXO SIC Module

JD558A

HP MSR 1-port FXO SIC Module

JD559A

HP MSR 2-port FXS SIC Module

JD560A

HP MSR 1-port FXS SIC Module

JD561A

HP MSR 2-port ISDN-S/T Voice SIC Module

JF821A

HP MSR 2-port FXS/1-port FXO SIC Module

JD632A

HP MSR 1-port E1 Voice SIC Module

JD575A

HP MSR 1-port T1 Voice SIC Module

JD576A

HP MSR 1-port E1/Fractional E1 (75ohm) SIC Module

JD634B

HP MSR 2-port E1/Fractional E1 (75ohm) SIC Module

JF842A

HP MSR 1-port T1/Fractional T1 SIC Module

JD538A

HP MSR 1-port ADSL over POTS SIC Module

JD537A

HP MSR 1-port ADSL over ISDN SIC Module

JG056B

HP MSR 1-port 8-wire G.SHDSL (RJ45) DSIC Module

JG191A

HP MSR 1-port Enhanced Sync/Async Serial SIC Module

JD557A

HP MSR 1-port ISDN-S/T SIC Module

JD571A

HP MSR 8-port Async Serial SIC Module

JF281A

HP MSR 16-port Async Serial SIC Module

JG186A

HP MSR 802.11b/g/n Wireless Access Point SIC Module

JF819A

HP MSR 802.11b/g/n Wireless Access Point SIC Module (NA)

JG211A

HP 3G Wireless GSM/WCDMA WAN SIC Module

JF820A

HP MSR 4-port 10/100Base-T FIC Module

JF824A

HP MSR 2-port 10/100Base-T FIC Module

JD577A

HP MSR 1-port Gig-T FIC Module

JD583B

HP MSR 1-port 1000Base-X FIC Module

JD582A

HP MSR 2-port Gig-T FIC Module

JF269B

HP MSR 2-port 1000BASE-X FIC Module

JF270B

HP 24-port 10/100 DFIC A-MSR Module

JD603A

HP MSR 16-port 10/100Base-T / 1-port GbE Combo Switch FIC Module

JD604A

HP 24-port 10/100 PoE DFIC Module

JD617A

HP MSR 16-port 10/100Base-T PoE / 1-port GbE Combo Switch FIC Module

JD616A

HP MSR 8-port Enhanced Sync/Async Serial FIC Module

JD580A

HP MSR 4-port Enhanced Sync/Async Serial FIC Module

JD584A

HP MSR 8-port Enhanced Async Serial FIC Module

JF260B

HP MSR 16-port Enhanced Async Serial FIC Module

JF265B

HP MSR 4-port FXO FIC Module

JD593A

HP MSR 4-port FXS FIC Module

JD594A

HP MSR 4-port E/M FIC Module

JD602A

HP MSR 2-port E1 Voice FIC Module

JD587A

HP MSR 1-port E1 Voice FIC Module

JD607A

HP MSR 2-port T1 Voice FIC Module

JD606A

HP MSR 1-port T1 Voice FIC Module

JD605A

HP MSR 8-port E1/CE1/PRI (75ohm) FIC Module

JD585A

HP MSR 4-port E1/CE1/PRI FIC Module

JD588A

HP MSR 2-port E1/CE1/PRI FIC Module

JD578A

HP MSR 4-port E1/Fractional E1 FIC Module

JD591A

HP MSR 4-port T1/Fractional T1 FIC Module

JD592A

HP MSR 1-port E3/CE3/FE3 FIC Module

JD625A

HP MSR 1-port T3/CT3/FT3 FIC Module

JD629A

HP MSR 1-port E3 ATM FIC Module

JD596A

HP MSR 1-port T3 ATM FIC Module

JD595A

HP MSR 4-port E1 IMA (75ohm) FIC Module

JD622A

HP MSR 4-port Enhanced ISDN-S/T FIC Module

JD589A

HP MSR 1-port OC-3c/STM-1c ATM SFP FIC Module

JD633A

HP MSR 1-port OC-3c/STM-1c POS FIC Module

JD581C

HP MSR 1-port OC-3/STM-1 (E1/T1) CPOS FIC Module

JG201A

HP MSR 24-port FXS FIC Module

JG197A

HP MSR 8-port T1/CT1/PRI FIC Module

JD586B

HP MSR 8-port T1 IMA FIC Module

JG200A

HP MSR 8-port E1 IMA (75ohm) FIC Module

JF278B

HP MSR 1-port E1/CE1/PRI SIC Module

JF253B

HP MSR 4-port FXS / 1-port FXO DSIC Module

JG189A

HP MSR HSPA/WCDMA SIC Module

JG187A

NEW HP MSR Open Application Platform (OAP) with VMware vSphere FIC Module

JG533A

Memory

HP Series 256MB DDR SDRAM

JD647A

HP Series 512MB DDR SDRAM

JD648A

HP 2GB DDR2 SDRAM Memory

JG205A

HP X600 1G Compact Flash Card

JC684A

HP X600 512M Compact Flash Card

JC685A

HP X600 256M Compact Flash Card

JC686A

NOTE: Details are not available for all accessories. The following specifications were available at the time of publication.
