HPE MSR30 Series

Product overview

HPE MSR30 Series routers are a component of the Hewlett Packard Enterprise FlexBranch solution, which is part of the Hewlett Packard Enterprise FlexNetwork architecture.

MSR30 Series routers are ideal for the branch and regional offices of medium to large enterprises that require high-performance integrated routing, switching, security, wireless, voice, and virtualized applications.

With a rich set of modular WAN, LAN, and voice interface connectivity options in a single device, these routers help reduce operating and capital costs and reduce complexity by enabling remote users in branch locations to securely and reliably access enterprise applications and corporate resources.

HP MSR30-10 Router

HP MSR30-16 Router

HP MSR30-20 Router

HP MSR30-40 Router

HP MSR30-60 Router

Models

HP MSR30-10 Router

JF816A

HP MSR30-10 DC Router

JG184A

HP MSR30-16 PoE Router

JF234A

HP MSR30-20 Router

JF284A

HP MSR30-20 PoE Router

JF802A

HP MSR30-20 DC Router

JF235A

HP MSR30-40 Router

JF229A

HP MSR30-40 PoE Router

JF803A

HP MSR30-40 DC Router

JF287A

HP MSR30-60 PoE Router

JF804A

HP MSR30-60 DC Router

JF801A

Key features

• Converged routing, switching, voice, security
• Embedded encryption, firewall, security features
• OAA with converged IP telephony solution
• Unified wired and wireless WAN/LAN
• Support for AC/DC power and PoE

Features and benefits

Quality of Service (QoS)

• Traffic policing:
  supports Committed Access Rate (CAR) and line rate
• Congestion management:
  supports FIFO, PQ, CQ, WFQ, CBQ, and RTPQ
• Weighted random early detection (WRED)/random early detection (RED)
  delivers congestion avoidance capabilities through the use of queue management algorithms
• Other QoS technologies
  support traffic shaping, FR QoS, MPLS QoS, and MP QoS/LFI

Management

• Management interface control
  provides management access through modem port and terminal interface; provides access through terminal interface, telnet, or SSH
• Industry-standard CLI with a hierarchical structure
  reduces training time and expenses, and increases productivity in multivendor installations
• Management security
  restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide Telnet and SNMP access; local and remote syslog capabilities allow logging of all access
• SNMPv1, v2, and v3
  provide complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption
• Remote monitoring (RMON)
  uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group
• FTP, TFTP, and SFTP support
  FTP allows bidirectional transfers over a TCP/IP network and is used for configuration updates; Trivial FTP is a simpler method using User Datagram Protocol (UDP)
• Debug and sampler utility
  supports ping and traceroute for both IPv4 and IPv6
• Network Time Protocol (NTP)
  synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
• Info center
  provides a central information center for system and network information; aggregates all logs, traps, and debugging information generated by the system and maintains them in order of severity; outputs the network information to multiple channels based on user-defined rules
• Network Quality Analyzer (NQA): analyzes network performance and service quality by sending test packets, and provides network performance and service quality parameters such as jitter, TCP, or FTP connection delays; allows network manager to determine overall network performance and diagnose and locate network congestion points or failures

Connectivity

• High-density port connectivity
  provides up to 10 interface module slots and up to 90 Fast Ethernet ports
• Multiple WAN and LAN interfaces
  provide a traditional link with E3, T3, E1, T1, ADSL, ADSL2, ADSL2+, G.SHDSL, OC-3, POS, ATM, and ISDN/AM backup; deliver high-density Ethernet access with WAN Fast Ethernet/Gigabit Ethernet, LAN Fast Ethernet, and PoE; offer mobility access with IEEE 802.11b/g/n Wi-Fi and 3G
• Ideal IP telephony solutions
  support FXO, FXS, T1, E1, and BRI in various densities; support SIP voice communications to VCX; provide Web browser-based administration, Smart Dial Routing, FXS and FXO 1:1 binding for all ports, Power to Escape to PSTN when IP failures occur, and Enhanced Local MSR Survivability
• Flexible port selection
  provides a combination of fiber and copper interface modules, 100/1000BASE-X auto-speed selection, and 10/100/1000BASE-T auto-speed detection plus auto duplex and MDI/MDI-X
• Packet storm protection
  protects against broadcast, multicast, or unicast storms with user-defined thresholds
• Loopback
  supports internal loopback testing for maintenance purposes and an increase in availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per-VLAN basis for added flexibility
• 3G access support
  provides 3G wireless access for primary or backup connectivity via a 3G SIC module certified on various cellular networks; optional carrier 3G USB modems are available

Performance

• Excellent forwarding performance
  provides forwarding performance from 220 Kpps to 360 Kpps; meets current and future bandwidth-intensive application demands of enterprise businesses
• Powerful encryption capacity
  includes embedded hardware encryption accelerator to improve encryption performance
• Flexible chassis selection
  offers a choice of more than five routers, meeting different requirements on enterprise branches

Resiliency and high availability

• Backup Center
  acts as a part of the management and backup function to provide backup for device interfaces; delivers reliability by switching traffic over to a backup interface when the primary one fails
• External redundant power supply
  provides high reliability
• Virtual Router Redundancy Protocol (VRRP)
  allows groups of two routers to dynamically back each other up to create highly available routed environments; supports VRRP load balancing

Layer 2 switching

• Spanning Tree Protocol (STP)
  fully supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• Internet Group Management Protocol (IGMP) and Multicast
  Listener Discovery (MLD) protocol snooping effectively control and manage the flooding of multicast packets in a Layer 2 network
• Port mirroring
  duplicates port traffic (ingress and egress) to a local or remote monitoring port
• VLANs
  support up to 4,094 port or IEEE 802.1Q-based VLANs
• sFlow
  allows traffic sampling

Layer 3 services

• Address Resolution Protocol (ARP)
  determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
• User Datagram Protocol (UDP) helper
  redirects UDP broadcasts to specific IP subnets to prevent server spoofing
• Dynamic Host Configuration Protocol (DHCP)
  simplifies the management of large IP networks and supports client and server; DHCP Relay enables DHCP operation across subnets

Layer 3 routing

• Static IPv4 routing
  provides simple manually configured IPv4 routing
• Routing Information Protocol (RIP)
  uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop
  protection
• Border Gateway Protocol 4 (BGP-4)
  delivers an implementation of the Exterior Gateway Protocol (EGP) utilizing path vectors; uses TCP for enhanced reliability for the route discovery process; reduces bandwidth consumption by advertising only incremental updates; supports extensive policies for increased flexibility; scales to very large networks
• Open Shortest Path First (OSPF)
  delivers faster convergence; uses this link-state routing Interior Gateway Protocol (IGP), which supports ECMP, NSSA, and MD5 authentication for increased security and graceful restart for faster failure recovery
• Intermediate system to intermediate system (IS-IS)
  uses a path vector Interior Gateway Protocol (IGP), which is defined by the ISO organization for IS-IS routing and extended by IETF RFC 1195 to operate in both TCP/IP and the OSI reference model (Integrated IS-IS)
• Static IPv6 routing
  provides simple manually configured IPv6 routing
• Dual IP stack
  maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network design
• Routing Information Protocol next generation (RIPng)
  extends RIPv2 to support IPv6 addressing
• OSPFv3
  provides OSPF support for IPv6
• BGP+
  extends BGP-4 to support Multiprotocol BGP (MBGP), including support for IPv6 addressing
• IS-IS for IPv6
  extends IS-IS to support IPv6 addressing
• IPv6 tunneling
  allows IPv6 packets to traverse IPv4-only networks by encapsulating the IPv6 packet into a standard IPv4 packet; supports manually configured, 6to4, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnels; is an important element for the transition from IPv4 to IPv6
• Multiprotocol Label Switching (MPLS)
  uses BGP to advertise routes across Label Switched Paths (LSPs), but uses simple labels to forward packets from any Layer 2 or Layer 3 protocol, thus reducing complexity and increasing performance; supports graceful restart for reduced failure impact; supports LSP tunneling and multilevel stacks
• Multiprotocol Label Switching (MPLS) Layer 3 VPN
  allows Layer 3 VPNs across a provider network; uses MP-BGP to establish private routes for increased security; supports RFC 2547bis multiple autonomous system VPNs for added flexibility; supports IPv6 MPLS VPN
• Multiprotocol Label Switching (MPLS) Layer 2 VPN
  establishes simple Layer 2 point-to-point VPNs across a provider network using only MPLS Label Distribution Protocol (LDP); requires no routing and therefore decreases complexity, increases performance, and allows VPNs of non-routable protocols; uses no routing information for increased security; supports Circuit Cross Connect (CCC), Static Virtual Circuits (SVCs), Martini draft, and Kompella-draft technologies
• Policy routing
  allows custom filters for increased performance and security; supports ACLs, IP prefix, AS paths, community lists, and aggregate policies

Security

• Access control list (ACL)
  supports powerful ACLs for both IPv4 and IPv6; ACLs are used for filtering traffic to prevent unauthorized users from accessing the network, or for controlling network traffic to save resources; rules can either deny or permit traffic to be forwarded; rules can be based on a Layer 2 header or a Layer 3 protocol header; rules can be set to operate on specific dates or times
• Terminal Access Controller Access-Control System (TACACS+)
  is an authentication tool using TCP with encryption of the full authentication request that provides additional security
• Media access control (MAC) authentication
  provides simple authentication based on a user's MAC address; supports local or RADIUS-based authentication
• Network login
  use standard IEEE 802.1X allowing authentication of multiple users per port
• RADIUS
  eases security access administration by using a password authentication server
• Network address translation (NAT)
  supports one-to-one NAT, many-to-many NAT, and NAT control, enabling NAT-PT to support multiple connections; supports blacklist in NAT/NAT-PT, a limit on the number of connections, session logs, and multi-instances
• Secure Shell (SSHv2)
  uses external servers to securely log in to a remote device or securely log in to the router from a remote location; with authentication and encryption, it protects against IP spoofing and plain text password interception; increases the security of SFTP transfers
• Unicast Reverse Path Forwarding (URPF)
  allows normal packets to be forwarded correctly, but discards the attaching packet due to lack of reverse path route or incorrect inbound interface; prevents source spoofing and distributed attacks
• IPSec VPN
  supports DES, 3DES, and AES 128/192/256 encryption, and MD5 and SHA-1 authentication
• Dynamic Virtual Private Network (DVPN)
  collects, maintains, and distributes dynamic public addresses through the VPN Address Management (VAM) protocol, making VPN establishment available between enterprise branches that use dynamic addresses to access the public network; compared to traditional VPN technologies, DVPN technology is more flexible and has richer features, such as NAT traversal of DVPN packets, AAA identity authentication, IPSec protection of data packets, and multiple VPN domains

Convergence

• Internet Group Management Protocol (IGMP)
  is used by IP hosts to establish and maintain multicast groups; supports IGMPv1, v2, and v3; utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4 multicast networks
• Protocol Independent Multicast (PIM)
  is used for IPv4 and IPv6 multicast applications; supports PIM Dense Mode (PIM-DM), Sparse Mode (PIM-SM), and Source-Specific Mode (PIM-SSM)
• Multicast Source Discovery Protocol (MSDP)
  is used for inter-domain multicast applications, allowing multiple PIM-SM domains to interoperate
• Multicast Border Gateway Protocol (MBGP)
  allows multicast traffic to be forwarded across BGP networks and kept separate from unicast traffic

Integration

• Embedded NetStream
  improves traffic distribution using powerful scheduling algorithms, including Layer 4 to 7 services; monitors the health status of servers and firewalls
• Embedded VPN firewall
  provides enhanced stateful packet inspection and filtering; delivers advanced VPN services with Triple DES (3DES) and Advanced Encryption Standard (AES) encryption at high performance and low latency, Web content filtering, and application prioritization and enhancement

Additional information

• OPEX savings
  simplifies and streamlines deployment, management, and training through the use of a common operating system, thereby cutting costs as well as reducing the risk of human errors associated with having to manage multiple operating systems across different platforms and network layers
• High reliability
  provides a state-of-the-art unified code base
• Faster time to market
  allows new and custom features to be brought rapidly to market through engineering efficiencies, delivering better initial and ongoing stability
• Green initiative support
  provides support for RoHS and WEEE regulations

Product architecture

• Ideal multiservice platform
  provides a WAN router, Ethernet switch, wireless LAN, 3G WAN, firewall, VPN, and SIP/voice gateway all in one box
• High-density voice interfaces
  provide flexible analog and digital voice interface options for easy integration within a wide range of deployments
• Embedded service modules for security and voice
  embedded voice co-processing modules (VCPMs) and voice processing modules (VPMs) accommodate digital signal processor (DSP) modules for voice packet processing; embedded hardware encryption modules, Standard Network Data Encryption (SNDE) cards, and Advanced Network Data Encryption (ANDE) cards do not occupy I/O slots
• Open Application Platform (OAP) and virtualization
  are available on Hewlett Packard Enterprise MSR Open Architecture Platform (OAP) Module with VMware vSphere; offer an industry-leading virtualization platform that integrates third-party applications with the MSR series routers; provides application and services flexibility; delivers the potential functionality of multiple devices, creating capital and operational expense savings and lasting investment protection
• USB interface
  uses USB memory disk to download and upload configuration/OS image files; supports an external USB 3G/4G modem for a 3G/4G WAN uplink
• Flexible modular design
  includes multiple types of modules that meet different requirements, such as Smart Interface Cards (SICs), which are small and cost-effective modules; Multi-functional Interface Modules (MIMs), which are more high-density and affordable modules; Flexible Interface Cards (FICs), which provide high reliability and are hot-swappable; and double-width modules, which provide high density
• SIP trunk
  the SIP trunk link can carry multiple concurrent calls, and the carrier authenticates only the link, rather than carrying each SIP call on this link

Warranty and support

• 1-year Warranty
  with advance replacement and 10-calendar-day delivery (available in most countries)
• Software releases
  to find software for your product, refer to http://www.hpe.com/networking/support ; for details on the software releases available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary

Build To Order:
BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

Standard Switch Enclosures

HP MSR30-10 2 FE /2 SIC /1 MIM MS Rtr

JF816A

• 2 autosensing 10/100 WAN ports
• 2 - SIC module slots
• 1 - MIM module slot
• 1 - HP MSR 256MB SDRAM Included
• 1 - ESM Slot
• 0 - VCPM slots
• 1 - VPM slot
• AC Power Supply included
• 1U - Height

See Configuration NOTE:2, 9

Russian Reduced Encryption

JF816A#A59

HP MSR30-10 DC Router

JG184A

• 2 autosensing 10/100 WAN ports
• 2 - SIC module slots
• 1 - MIM module slot
• 1 - HP MSR 256MB SDRAM Included
• 1 - ESM Slot
• 0 - VCPM slots
• 1  - VPM slot
• DC Power Supply included
• 1U - Height

See Configuration NOTE:2

Russian Reduced Encryption

JG184A#A59

HP MSR30-16 PoE Router

JF234A

• 2 autosensing 10/100 WAN ports
• 4 - SIC module slots
• 1 - MIM module slot
• 1 - HP MSR 256MB SDRAM Included
• 2 - ESM Slots
• 1 - VCPM slot
• 2 - VPM slots
• AC Power Supply included
• 1U - Height

See Configuration NOTE:2, 9

Russian Reduced Encryption

JF234A#A59

HP MSR30-20 Router

JF284A

• 2 autosensing 10/100/1000 ports
• 4 - SIC module slots
• 2 - MIM module slots
• 1 - 512MB HP MSR 512MB SDRAM Included
• 1 - 256MB HP X600 256M Compact Flash Card  Included
• 2 - ESM Slots
• 1 - VCPM slot
• 2 - VPM slots
• AC Power Supply included
• 1U - Height

See Configuration NOTE:2, 9

Russian Reduced Encryption

JF284A#A59

HP MSR30-20 DC Router

JF235A

• 2 autosensing 10/100/1000 ports
• 4 - SIC module slots
• 2 - MIM module slots
• 1 - 512MB HP MSR 512MB SDRAM Included
• 1 - 256MB HP X600 256M Compact Flash Card  Included
• 2 - ESM Slots
• 1 - VCPM slot
• 2 - VPM slot
• DC Power Supply included
• 1U - Height

See Configuration NOTE:2

Russian Reduced Encryption

JF235A#A59

HP MSR30-40 Router

JF229A

• 2 1000BASE-T ports
• 4 - SIC module slots
• 4 - MIM module slots
• min=0 \ max=2 SFP Transceivers
• 1 - 512MB HP MSR 512MB SDRAM Included
• 1 - 256MB HP X600 256M Compact Flash Card  Included
• 2 - fixed Gigabit Ethernet SFP ports
• 2 - ESM Slots
• 1 - VCPM slot
• 3 - VPM slot
• AC Power Supply included
• 2U - Height

See Configuration NOTE:1, 2, 9

Russian Reduced Encryption

JF229A#A59

HP MSR30-40 PoE Router

JF803A

• 2 1000BASE-T ports
• 4 - SIC module slots
• 4 - MIM module slots
• min=0 \ max=2 SFP Transceivers
• 1 - 512MB HP MSR 512MB SDRAM Included
• 1 - 256MB HP X600 256M Compact Flash Card  Included
• 2 - fixed Gigabit Ethernet SFP ports
• 2 - ESM Slots
• 1 - VCPM slot
• 3 - VPM slots
• AC Power Supply included
• 2U - Height

See Configuration NOTE:1, 2, 9

Russian Reduced Encryption

JF803A#A59

HP MSR30-40 DC Router

JF287A

• 2 1000BASE-T ports
• 4 - SIC module slots
• 4 - MIM module slots
• min=0 \ max=2 SFP Transceivers
• 1 - 512MB HP MSR 512MB SDRAM Included
• 1 - 256MB HP X600 256M Compact Flash Card  Included
• 2 - fixed Gigabit Ethernet SFP ports
• 2 - ESM Slots
• 1 - VCPM slot
• 3 - VPM slots
• DC Power Supply included
• 2U - Height

See Configuration NOTE:1, 2

Russian Reduced Encryption

JF287A#A59

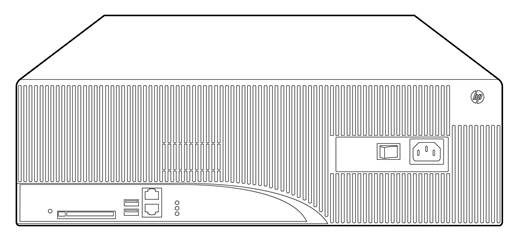

HP MSR30-60 PoE Router

JF804A

• 2 1000BASE-T ports
• 4 - SIC module slots
• 6 - MIM module slots
• min=0 \ max=2 SFP Transceivers
• 1 - 512MB HP MSR 512MB SDRAM Included
• 1 - 256MB HP X600 256M Compact Flash Card  Included
• 2 - fixed Gigabit Ethernet SFP ports
• 2 - ESM Slots
• 1 - VCPM slot
• 3 - VPM slots
• AC Power Supply included
• 3U - Height

See Configuration NOTE:1, 2, 9

Russian Reduced Encryption

JF804A#A59

HP MSR30-60 DC Router

JF801A

• 2 1000BASE-T ports
• 4 - SIC module slots
• 6 - MIM module slots
• min=0 \ max=2 SFP Transceivers
• 1 - 512MB HP MSR 512MB SDRAM Included
• 1 - 256MB HP X600 256M Compact Flash Card  Included
• 2 - fixed Gigabit Ethernet SFP ports
• 2 - ESM Slots
• 1 - VCPM slot
• 3 - VPM slots
• DC Power Supply included
• 3U - Height

See Configuration NOTE:1, 2

Russian Reduced Encryption

JF801A#A59

Configuration Rules:

Note 1

The following Transceivers install into this Module:

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

HP X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HP X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HP X125 1G SFP LC LH70 Transceiver

JD063B

Note 2

If this product is ordered for delivery to Russia, it must be ordered with the A59 option (also allowed for other countries desiring Low Encryption), then #A59 is the required option for BTO in addition to Localization or #B2x options (Localization or #B2x options on AC Chassis only), and must be added in addition to #0D1, and Localization or #B2x options (Localization or #B2x options on AC Chassis only) for CTO.

Note 4

Localization (Wall Power Cord) required on orders without #B2B (PDU Power Cord) or #B2E. (See Localization Menu)

Note 5

#B2E is Offered only in NA, Mexico, Taiwan and Japan.

Note 9

Localization required. (See Localization Menu)

 Box Level Integration CTO Models

CTO Solution Sku

HP MSR CTO Router Solution

JG500A

• SSP trigger sku

See Configuration NOTE:10

CTO Base Sku

HP MSR30-10 2 FE /2 SIC /1 MIM MS Rtr

JF816A

• 2 autosensing 10/100 WAN ports
• 2 - SIC module slots
• 1 - MIM module slot
• 1 - HP MSR 256MB SDRAM Included
• 1 - ESM Slot
• 0 - VCPM slots
• 1 - VPM slot
• AC Power Supply included
• 1U - Height

See Configuration NOTE:2, 9, 11

HP MSR30-20 Router

JF284A

• 2 autosensing 10/100/1000 ports
• 4 - SIC module slots
• 2 - MIM module slots
• 1 - 512MB HP MSR 512MB SDRAM Included
• 1 - 256MB HP X600 256M Compact Flash Card  Included
• 2 - ESM Slots
• 1 - VCPM slot
• 2 - VPM slots
• AC Power Supply included
• 1U - Height

See Configuration NOTE:2, 9, 11

HP MSR30-20 DC Router

JF235A

• 2 autosensing 10/100/1000 ports
• 4 - SIC module slots
• 2 - MIM module slots
• 1 - 512MB HP MSR 512MB SDRAM Included
• 1 - 256MB HP X600 256M Compact Flash Card  Included
• 2 - ESM Slots
• 1 - VCPM slot
• 2 - VPM slot
• DC Power Supply included
• 1U - Height

See Configuration NOTE:2, 11

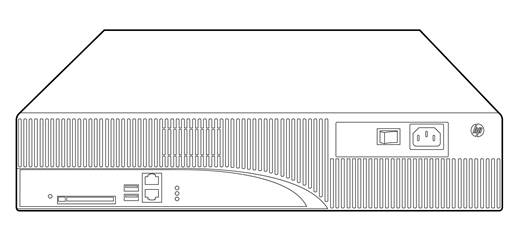

HP MSR30-40 Router

JF229A

• 2 1000BASE-T ports
• 4 - SIC module slots
• 4 - MIM module slots
• min=0 \ max=2 SFP Transceivers
• 1 - 512MB HP MSR 512MB SDRAM Included
• 1 - 256MB HP X600 256M Compact Flash Card  Included
• 2 - fixed Gigabit Ethernet SFP ports
• 2 - ESM Slots
• 1 - VCPM slot
• 3 - VPM slot
• AC Power Supply included
• 2U - Height

See Configuration NOTE:1, 2, 9, 11

Configuration Rules:

Note 1

The following Transceivers install into this Router:  (Use #0D1 if router is CTO) - if applicable

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

HP X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HP X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HP X125 1G SFP LC LH70 Transceiver

JD063B

Note 2

If this Switch is selected integrated to the  CTO Switch Solution, Then a Minimum of 1 factory integrated accessory must be ordered and integrated to CTO chassis.  See Menu below,  option must have a #0D1 to be integrated to the CTO Chassis.

Note 4

Localization (Wall Power Cord) required on orders without #B2B (PDU Power Cord) or #B2E. (See Localization Menu)

Note 5

#B2E is Offered only in NA, Mexico, Taiwan and Japan.

Note 9

Localization required. (See Localization Menu)

Note 10

This HPN CTO Router cannot be factory racked.  (Future Release)

Note 11

If the Router Chassis is to be Box Level Factory Integrated (CTO), Then the #0D1 is required on the Router Chassis and integrated to the JG500A - HP MSR CTO Enablement. (Min 1/Max 1 Router per SSP)

Enter the following menu selections as integrated to the CTO Model X server above if order is factory built.

Modules

SIC Modules

JF816A, JG184A Only System (std 0 // max 2) User Selection (min 0 // max 2) per enclosure

JF284A, JF229A, JF235A, JF287A, JF801A, JF234A, JF803A, JF804A, JG728A and JG729A Only
System (std 0 // max 4) User Selection (min 0 // max 4) per enclosure

HP MSR 4-port 10/100 SIC Module

JD573B

• None

See Configuration NOTE:14, 19

HP MSR 9-port 10/100 DSIC Module

JD574B

• None

See Configuration NOTE:2, 3, 19

HP A-MSR 4-port 10/100Base-T PoE Switch SIC Module

JD620A

• None

See Configuration NOTE:3, 19

HP A-MSR 9-port 10/100Base-T PoE Switch DSIC Module

JD621A

• None

See Configuration NOTE:2, 3, 19

HP MSR 1-port 10/100 SIC Module

JD545B

• None

See Configuration NOTE:3, 19

HP 1-port 100Mbt SFP SIC Router Module

JF280A

• min=0 \ max=1 SFP Transceivers

See Configuration NOTE:4, 14, 19

HP MSR 1-port 10/100/1000 SIC Module

JD572A

• min=0 \ max=1 SFP Transceivers

See Configuration NOTE:5, 14, 19

HP MSR 2-port FXO SIC Module

JD558A

• None

HP MSR 2-port FXS SIC Module

JD560A

• None

HP MSR 1-port FXS SIC Module

JD561A

• None

HP MSR 1-port E1-Voice SIC Module

JD575A

• min=0 \ max=1 E1 Cable

See Configuration NOTE:6, 11, 14

HP MSR 1-port T1-Voice SIC Module

JD576A

• min=0 \ max=1 T1 Cable

See Configuration NOTE:7, 14

HP 2p ISDN-S/T Voice Interface SIC Mod

JF821A

• None

See Configuration NOTE:3

HP MSR 2FXS + 1FXO Voice Intfc SIC Mod

JD632A

• None

See Configuration NOTE:3

HP MSR 1-port Fractional E1 SIC Module

JD634B

• min=0 \ max=1 E1 Cable

See Configuration NOTE:3, 6

HP MSR 1-port Fractional SIC Module

JD538A

• min=0 \ max=1 T1 Cable

See Configuration NOTE:3, 7

HP MSR 2-port Fractional E1 SIC Module

JF842A

• min=0 \ max=1 2E1 Cable

See Configuration NOTE:3, 12

HP MSR 1-port Enhanced Serial SIC Mod

JD557A

• min=0 \ max=1 Serial Port Cable

See Configuration NOTE:3, 8

HP A-MSR 1-port ADSL over POTS SIC Module

JD537A

• None

See Configuration NOTE:14,19

HP MSR 1-port ISDN-S/T SIC Module

JD571A

• None

See Configuration NOTE:3

HP A-MSR 8-port Async Serial SIC Module

JF281A

• Must select 1 8AS Communication Cable (min=1 \ max=1 cable)

See Configuration NOTE:3, 9

HP 802.11b/g/n Wireless AP SIC Module

JF819A

• None

See Configuration NOTE:14, 19

HP MSR 802.11b/g/n Wless AP SIC Mod (NA)

JG211A

• None

See Configuration NOTE:14, 19

HP MSR 1p 8-wire G.SHDSL (RJ45) DSIC Mod

JG191A

• None

See Configuration NOTE:2, 3

HP MSR 1-port ADSL over ISDN SIC Module

JG056B

• None

See Configuration NOTE:14, 19

HP MSR 16-port Async Serial SIC Module

JG186A

• Must select 4 HP X260 mini D-28/4-RJ45 0.3m Rtr Cables (min=4 \ max=4 cables)

See Configuration NOTE:3, 10

HP A-MSR 4-port FXS/1-port FXO DSIC Mod

JG189A

• None

See Configuration NOTE:2, 3

HP A-MSR HSPA/WCDMA SIC Module

JG187A

• None

See Configuration NOTE:14, 19

HP MSR 1-port E1/CE1/PRI SIC Module

JF253B

• None

See Configuration NOTE:14

HP MSR 4G LTE SIC Mod for Verizon

JG742A

See Configuration NOTE:13, 14, 19

HP MSR 4G LTE SIC Mod for ATT

JG743A

See Configuration NOTE:13, 14, 19

HP MSR 4G LTE SIC Mod for Global

JG744A

See Configuration NOTE:13, 14, 19

Configuration Rules:

Note 2

This Module takes up two slots.

Note 3

These Modules are NOT supported on the following routers:

HP MSR30-10 2 FE /2 SIC /1 MIM MS Rtr

JF816A

HP MSR30-10 DC Router

JG184A

Note 4

The following Transceivers install into this Module:  (Use #0D1 if router is CTO) - if applicable

HP X110 100M SFP LC LH40 Transceiver

JD090A

HP X110 100M SFP LC LH80 Transceiver

JD091A

HP X110 100M SFP LC FX Transceiver

JD102B

HP X110 100M SFP LC LX Transceiver

JD120B

Note 5

The following Transceivers install into this Module:  (Use #0D1 if router is CTO) - if applicable

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HP X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HP X120 1G SFP LC BX 10-U Transceiver

JD098B

HP X120 1G SFP LC BX 10-D Transceiver

JD099B

HP X120 1G SFP LC LH100 Transceiver

JD103A

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

Note 6

The following E1 Cables install into this Module:

HP X260 E1 (2) BNC 75 ohm 3m Rtr Cable

JD175A

HP X260 E1 BNC 20m Router Cable

JD514A

HP X260 E1/2 BNC 75 ohm 40m Router Cable

JD516A

Note 7

The following T1 Cables install into this Module:

T1 Cable RJ45/RJ45-3m

JD518A

Note 8

The following Cables install into this Module:

V.24 Serial Port Cable, DTE, 3m

JD519A

V.24 Serial Port Cable, DCE, 3m

JD521A

V.35 Serial Port Cable, DTE, 3m

JD523A

V.35 Serial Port Cable, DCE, 3m

JD525A

RS449 Serial Port Cable, DTE, 3m

JF825A

RS449 Serial Port Cable, DCE, 3m

JF826A

RS530 Serial Port Cable, DTE, 3m

JF827A

RS530 Serial Port Cable, DCE, 3m

JF828A

Note 9

If this module is selected Then 1 JD642A  -  HP X260 SIC-8AS RJ45 0.28m Router Cable is required.

Note 10

If this module is selected Then 4 - JG263A  HP X260 mini D-28/4-RJ45 0.3m Rtr Cable are required to be on the same order.

Note 11

The following E1 Cables install into this Module:

HP X260 E1 RJ45 3m Router Cable

JD509A

HP X260 E1 RJ45 20m Router Cable

JD517A

Note 12

The following 2E1 Cables install into this Module:

HP X260 2E1 BNC 3m Router Cable

JD643A

Note 13

The following Antenna Cables install into this Module:

HP MSR 3G RF 2.8m Antenna Cable

JG522A

HP MSR 3G RF 6m Antenna Cable

JG666A

HP MSR 3G RF 15m Antenna Cable

JG667A

Note 14

If these Modules are added to the following routers Then the  Module Max = 1:

HP MSR30-10 2 FE /2 SIC /1 MIM MS Rtr

JF816A

HP MSR30-10 DC Router

JG184A

Note 19

If this module is selected in the JF284A, JF229A, JG728A, JG729A Then the  Module Max = 2.

MIM Modules

JF816A, JG184A, JF234A, System (std 0 // max 1) User Selection (min 0 // max 1)

JF284A, JF235A, JG728A, JG729A System (std 0 // max 2) User Selection (min 0 // max 2)

JF229A, JF287A, JF803A  System (std 0 // max 4) User Selection (min 0 // max 4)

JF801A, and JF804A System (std 0 // max 6) User Selection (min 0 // max 6)

HP MSR 2-port 10/100 MIM Module

JD613A

• None

HP MSR 2-port Gig-T MIM Module

JD548A

• None

HP MSR 2-port Enhanced Serial MIM Mod

JD540A

• min=0 \ max=2 Serial Port Cable

See Configuration NOTE:6

HP MSR 4-port Enhanced Serial MIM Module

JD541A

• min=0 \ max=4 Serial Port Cable

See Configuration NOTE:6

HP MSR 8p Sync/Async Interface Enh Mod

JD552A

• min=0 \ max=8 Serial Port Cable

See Configuration NOTE:6

HP MSR 8p Async Serial Intrfc MIM Module

JF840A

• min=0 \ max=8 AUX Cables

See Configuration NOTE:7

HP MSR 16p Async Serial Intrfc MIM Mod

JF841A

• min=0 \ max=16 AUX Cables

See Configuration NOTE:7

HP MSR 4-port FXO MIM Module

JD542A

• None

HP MSR 4-port FXS MIM Module

JD553A

• None

HP MSR 2-port E1-Voice MIM Module

JD567A

• min=0 \ max=2 E1 Cable

See Configuration NOTE:14

HP MSR 2-port T1 Voice MIM Module

JD568A

• min=0 \ max=2 T1 Cable

See Configuration NOTE:8

HP 16p FXS Voice Interface MIM Module

JF822A

• None

HP 4p ISDN BRI S/T Voice Intrfc MIM Mod

JF837A

• None

HP MSR 4-port CE1/PRI MIM Module

JD550A

• min=0 \ max=4 E1 Cable

See Configuration NOTE:14

HP MSR 8-port E1/CE1/PRI (75ohm) MIM Mod

JD563A

• min=1 \ Max=1  8-port E1 Cable

See Configuration NOTE:9

HP A-MSR 8-port E1/Fractional E1 (75ohm) MIM Module

JF255A

• min=1 \ Max=1  8-port E1 Cable

See Configuration NOTE:9

HP MSR 1-port FT3/CT3 MIM Module

JD628A

• min=0 \ max=2 E3/T3 Cable

See Configuration NOTE:11

HP MSR 1-port FE3/CE3 MIM Module

JD630A

• min=0 \ max=2 E3/T3 Cable

See Configuration NOTE:11

HP MSR 1-port OC-3 ATM MIM Module

JD624A

• min=0 \ max=1 SFP Modules

See Configuration NOTE:12

HP A-MSR 4-port T1/Fractional T1 MIM Mod

JF254B

• min=0 \ max=4 T1 Cable

See Configuration NOTE:8

HP MSR OAP MIM Mod w/VMware vSphere

JG532A#B01

HP MSR SSB Com MIM Mod pwrby Msft Lync

JG587A#B01

See Configuration NOTE:15, 16, 17

HP MSR MSB Com MIM Mod pwrby Msft Lync

JG588A#B01

See Configuration NOTE:15, 16

Configuration Rules:

Note 6

The following Cables install into this Module:

V.24 Serial Port Cable, DTE, 3m

JD519A

V.24 Serial Port Cable, DCE, 3m

JD521A

V.35 Serial Port Cable, DTE, 3m

JD523A

V.35 Serial Port Cable, DCE, 3m

JD525A

RS449 Serial Port Cable, DTE, 3m

JF825A

RS449 Serial Port Cable, DCE, 3m

JF826A

RS530 Serial Port Cable, DTE, 3m

JF827A

RS530 Serial Port Cable, DCE, 3m

JF828A

Note 7

The following AUX Cables and Transit Cables install into this Module:

Aux Cable-3m (D25 Male)

JD508A

Single Cable, Transit Plug, D25F, MP8(S)

JD636A

Single Cable, Transit Cable, 0.5m (RJ45)

JD641A

Note 8

The following T1 Cable and Connector install into this Module:

T1 Cable RJ45/RJ45-3m

JD518A

Note 9

The following Cable install into this Module:

8-port E1 Cable, 16 BNC, 3m, 75ohm

JD512A

Note 11

The following E3/T3 Cable and Connector install into this Module:

HP X260 T3/E3 Router Cable

JD531A

HP X260 E3-30 E3/T3 Router Cable

JD533A

Note 12

The following Transceivers install into this Module:  (Use #0D1 if router is CTO) - if applicable

HP X110 100M SFP LC LH80 Transceiver

JD091A

HP X110 100M SFP LC FX Transceiver

JD102B

HP X110 100M SFP LC LX Transceiver

JD120B

Note 14

The following E1 Cables install into this Module:

HP X260 E1 (2) BNC 75 ohm 3m Rtr Cable

JD175A

HP X260 E1 BNC 20m Router Cable

JD514A

HP X260 E1/2 BNC 75 ohm 40m Router Cable

JD516A

HP X260 E1 RJ45 3m Router Cable

JD509A

HP X260 E1 RJ45 20m Router Cable

JD517A

Note 15

These Modules are ONLY supported on the following routers:
System (std 0 // max 1) User Selection (min 0 // max 1)

HP MSR30-16 PoE Router

JF234A

Note 16

These Modules are ONLY supported on the following routers:
System (std 0 // max 2) User Selection (min 0 // max 2)

HP MSR30-20 Router

JF284A

HP MSR30-20 TAA-compliant Router

JG729A

HP MSR30-20 DC Router

JF235A

HP MSR30-20 TAA-compliant DC Router

JG728A

HP MSR30-40 Router

JF229A

HP MSR30-40 PoE Router

JF803A

HP MSR30-40 DC Router

JF287A

HP MSR30-60 PoE Router

JF804A

HP MSR30-60 DC Router

JF801A

Note 17

These Modules are ONLY supported on the following routers:
System (std 0 // max 1) User Selection (min 0 // max 1)

HP MSR30-10 2 FE /2 SIC /1 MIM MS Rtr

JF816A

HP MSR30-10 DC Router

JG184A

ESM Modules

JF816A, JG184A Only System (std 0 // max 1) User Selection (min 0 // max 1) per enclosure

Rest of routers Only System (std 0 // max 4) User Selection (min 0 // max 2) per enclosure

HP MSR Encryption Accelerator Adv Mod

JD608A

HP MSR Std Encryption Accelerator Mod

JD609A

Voice Co-Processing Modules

JF816A, JG184A Only - Not Supported

JF234A, JF284A, JF235A, JF229A, JF803A, JF287A, JF804A, JF801A, JG728A, JG729A Only - System (std 0 // max 1) User Selection (min 0 // max 1) per enclosure

HP MSR Voice Co-processor Module

JD610A

Voice Processing Modules

JF816A and  JG184A Only - System (std 0 // max 1) User Selection (min 0 // max 1) per enclosure

JF234A, JF284A,  JF235A, JG728A, and JG729A System (std 0 // max 2) User Selection (min 0 // max 2) per enclosure

JF229A, JF287A, JF801A, JF803A, JF801A, and JF804A System (std 0 // max 3) User Selection (min 0 // max 3) per enclosure

HP MSR 32-channel Voice Processor Module

JD598A

HP MSR 24-channel Voice Processor Module

JD599A

Transceivers

SFP Transceivers

HP X115 100M SFP LC FX Transceiver

JD102B

HP X110 100M SFP LC LH40 Transceiver

JD120B

HP X110 100M SFP LC LH80 Transceiver

JD091A

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

HP X120 1G SFP LC LH40 1550nm XCVR

JD062A

HP X110 100M SFP LC LH40 Transceiver

JD090A

HP X125 1G SFP LC LH40 1310nm XCVR

JD061A

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP LC BX 10-D Transceiver

JD099B

HP X120 1G SFP LC BX 10-U Transceiver

JD098B

Internal Power Supplies

Internal Power supplies included

Cables

HP X260 mini D-28/4-RJ45 0.3m Rtr Cable

JG263A

HP X200 V.24 DTE 3m Serial Port Cable

JD519A

HP X200 V.24 DCE 3m Serial Port Cable

JD521A

HP X200 V.35 DTE 3m Serial Port Cable

JD523A

HP X200 V.35 DCE 3m Serial Port Cable

JD525A

HP X260 RS449 3m DTE Serial Port Cable

JF825A

HP X260 RS449 3m DCE Serial Port Cable

JF826A

HP X260 RS530 3m DTE Serial Port Cable

JF827A

HP X260 RS530 3m DCE Serial Port Cable

JF828A

HP X260 Auxiliary Router Cable

JD508A

HP X260 E1 RJ45 3m Router Cable

JD509A

HP X260 E1 RJ45 20m Router Cable

JD517A

HP X260 E1 (2) BNC 75 ohm 3m Rtr Cable

JD175A

HP X260 E1 BNC 20m Router Cable

JD514A

HP X260 E1/2 BNC 75 ohm 40m Router Cable

JD516A

HP X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable

JD511A

HP X260 2E1 BNC 3m Router Cable

JD643A

HP X260 T1 Router Cable

JD518A

HP X260 T3/E3 Router Cable

JD531A

HP X260 E3-30 E3/T3 Router Cable

JD533A

HP X260 8E1 BNC 75 ohm 3m Router Cable

JD512A

HP X260 SIC-8AS RJ45 0.28m Router Cable

JD642A

HP X200 Transit Plug D25F MP8(S) Single Cable

JD636A

HP X200 Transit Cable RJ45 0.5m Single Cable

JD641A

HP X260 8T1 RJ45 3m Router Cable

JD639A

Remarks:

The following cable is used for RJ45 BNC Conversion

HP X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable

JD511A

Router Specific Options

Antenna Cables

System (std 0 // max 2) User Selection (min 0 // max 2) per SIC Module (JG742A, JG743A, JG744A)

HP MSR 3G RF 2.8m Antenna Cable

JG522A

HP MSR 3G RF 6m Antenna Cable

JG666A

HP MSR 3G RF 15m Antenna Cable

JG667A

SDRAM

System (std 1 // max 2) User Selection (min 0 // max 1)

See Configuration NOTE:1

HP MSR 512MB SDRAM

JD648A

Configuration Rules:

Note 1

These Memory Modules are supported on the following routers only:

HP MSR30-20 Router

JF284A

HP MSR30-20 TAA-compliant Router

JG729A

HP MSR30-40 Router

JF229A

HP MSR30-20 DC Router

JF235A

HP MSR30-20 TAA-compliant DC Router

JG728A

HP MSR30-40 DC Router

JF287A

HP MSR30-60 DC Router

JF801A

HP MSR30-40 PoE Router

JF803A

HP MSR30-60 PoE Router

JF804A

Compact Flash cards

System (std 0 // max 1) User Selection (min 0 // max 1)

HP X600 1G Compact Flash Card

JC684A

HP X600 512M Compact Flash Card

JC685A

HP X600 256M Compact Flash Card

JC686A

Configuration Rules:

Note 1

These CF Cards are supported on the following routers only:

HP MSR30-20 Router

JF284A

HP MSR30-20 TAA-compliant Router

JG729A

HP MSR30-40 Router

JF229A

HP MSR30-20 DC Router

JF235A

HP MSR30-20 TAA-compliant DC Router

JG728A

HP MSR30-40 DC Router

JF287A

HP MSR30-60 DC Router

JF801A

HP MSR30-16 PoE Router

JF234A

HP MSR30-40 PoE Router

JF803A

HP MSR30-60 PoE Router

JF804A

External Redundant Power Supplies

System (std 0 // max 1) User Selection (min 0 // max 1)

HP RPS 800 Redundant Power Supply

JD183A

• Height = 1U

See Configuration NOTE:1, 2, 3

Configuration Rules:

Note 1

These CF Cards are supported on the following routers only:

HP MSR30-20 Router

JF284A

HP MSR30-20 TAA-compliant Router

JG729A

HP MSR30-40 Router

JF229A

HP MSR30-20 DC Router

JF235A

HP MSR30-20 TAA-compliant DC Router

JG728A

HP MSR30-40 DC Router

JF287A

HP MSR30-60 DC Router

JF801A

HP MSR30-16 PoE Router

JF234A

HP MSR30-40 PoE Router

JF803A

HP MSR30-60 PoE Router

JF804A

Note 2

Localization required. (See Localization Menu for list.)

Note 3

JD637A - HP X290 MSR30 1m RPS Cable is required if power supply is selected.

Power Cables

System (std 0 // max 1) User Selection (min 0 // max 1)

HP X290 MSR30 1m RPS Cable

JD637A

Opacity Shield Kit

HP MSR30-20 Opcty Shld Kit

JG579A#B01

Supported on JG729A, JG728A

See Configuration NOTE:1

Configuration Rules:

Note 1

If selected with a CTO Router Solution, Quantity 1 of JG585A#B01 must also be ordered.

Tamper Evidence Labels

HP 12mm x 60mm Tmpr-Evidence (30) Lbl

JG585A#B01

Supported on JG729A, JG728A

See Configuration NOTE:1

Configuration Rules:

Note 1

If selected with a CTO Router Solution, Quantity 1 of JG579A#B01 must also be ordered.

Remarks:

Each JG579A would use 1 of JG585A

HP MSR30-10 Router (JF816A)

I/O ports and slots

2 SIC slots
1 MIM slot
2 autosensing 10/100 WAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full

AP characteristics

Radios (via optional modules)

802.11b/g/n; 4G LTE

Physical characteristics

Dimensions

17.4(w) x 14.17(d) x 1.74(h) in (44.2 x 36 x 4.42 cm) (1U height)

Weight

10.58 lb (4.8 kg)

Memory and processor

Processor

RISC @ 333 MHz, 256 MB DDR SDRAM, 256 MB flash

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack

Performance

Throughput

up to 220 Kpps (64-byte packets)

Routing table size

30000 entries (IPv4), 30000 entries (IPv6)

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 90%, noncondensing

Electrical characteristics

Maximum heat dissipation

113 BTU/hr (119.21 kJ/hr)

Voltage

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

54 W

Frequency

50/60 Hz

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J

Emissions

EN 55022 Class A
ICES-003 Class A
ANSI C63.4 2003
ETSI EN 300 386 V1.3.3
AS/NZS CISPR 22 Class A
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-3-2:2006
EN 61000-3-3:1995 +A1:2001+A2:2005
EMC Directive 2004/108/EC
FCC (CFR 47, Part 15) Class A
EN 55024:1998+ A1:2001 + A2:2003
EN 61000-4-11:2004
EN 61000-4-8:2001

Telecom

FCC part 68

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB

Notes

The HP 3G Wireless GSM/WCDMA WAN SIC Module (JF820A) is not approved for use in the same chassis as a Wi-Fi interface (802.11b/g, 802.11b/g/n, etc.) in the European Union.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HP MSR30-10 DC Router (JG184A)

I/O ports and slots

2 SIC slots
1 MIM slot
2 autosensing 10/100 WAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full

AP characteristics

Radios (via optional modules)

802.11b/g/n; 4G LTE

Physical characteristics

Dimensions

17.4(w) x 14.17(d) x 1.74(h) in (44.2 x 35.99 x 4.42 cm) (1U height)

Weight

10.58 lb (4.8 kg)

Memory and processor

Processor

RISC @ 333 MHz, 256 MB DDR SDRAM, 256 MB flash

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack

Performance

Throughput

up to 220 Kpps (64-byte packets)

Routing table size

30000 entries

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 90%, noncondensing

Electrical characteristics

Maximum heat dissipation

113 BTU/hr (119.21 kJ/hr)

Maximum power rating

54 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J

Emissions

EN 55022 Class A
ICES-003 Class A
ANSI C63.4 2003
ETSI EN 300 386 V1.3.3
AS/NZS CISPR 22 Class A
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-3-2:2006
EN 61000-3-3:1995 +A1:2001+A2:2005
EMC Directive 2004/108/EC
FCC (CFR 47, Part 15) Class A
EN 55024:1998+ A1:2001 + A2:2003
EN 61000-4-11:2004
EN 61000-4-8:2001

Telecom

FCC part 68

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB

Notes

UL 60950-1

AS/NZS 60950

EN 60825-1 Safety of Laser Products-Part 1

EN 60825-2 Safety of Laser Products-Part 2

IEC 60950-1

CAN/CSA-C22.2 No. 60950-1-03

EN 60950-1/A11

FDA 21 CFR Subchapter J

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HP MSR30-16 PoE Router (JF234A)

I/O ports and slots

4 SIC slots
1 MIM slot
2 autosensing 10/100 WAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full

AP characteristics

Radios (via optional modules)

802.11b/g/n; 4G LTE

Physical characteristics

Dimensions

17.4(w) x 17.39(d) x 1.74(h) in (44.2 x 44.18 x 4.42 cm) (1U height)

Weight

13.23 lb. (6 kg)

Memory and processor

Processor

RISC @ 400 MHz, 256 MB DDR SDRAM, 256 MB compact flash

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack

Performance

Throughput

up to 240 Kpps (64-byte packets)

Routing table size

30000 entries (IPv4), 30000 entries (IPv6)

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 90%, noncondensing

Electrical characteristics

Maximum heat dissipation

341 BTU/hr (359.76 kJ/hr)

Voltage

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

100 W

PoE power

150 W PoE

Frequency

50/60 Hz

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS).

Safety

UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J

Emissions

EN 55022 Class A
ICES-003 Class A
ANSI C63.4 2003
ETSI EN 300 386 V1.3.3
AS/NZS CISPR 22 Class A
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-3-2:2006
EN 61000-3-3:1995 +A1:2001+A2:2005
EMC Directive 2004/108/EC
FCC (CFR 47, Part 15) Class A
EN 55024:1998+ A1:2001 + A2:2003
EN 61000-4-11:2004
EN 61000-4-8:2001

Telecom

FCC part 68

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB

Notes

The HP 3G Wireless GSM/WCDMA WAN SIC Module (JF820A) is not approved for use in the same chassis as a Wi-Fi interface (802.11b/g, 802.11b/g/n, etc.) in the European Union.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HP MSR30-20 Router (JF284A)

I/O ports and slots

4 SIC slots
2 MIM slots
2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

AP characteristics

Radios (via optional modules)

802.11b/g/n; 4G LTE

Physical characteristics

Dimensions

17.4(w) x 17.39(d) x 1.74(h) in (44.2 x 44.18 x 4.42 cm) (1U height

Weight

15.21 lb (6.9 kg)

Memory and processor

Processor

RISC @ 533 MHz, 512 MB DDR SDRAM, 256 MB compact flash

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack

Performance

Throughput

up to 300 Kpps (64-byte packets)

Routing table size

30000 entries (IPv4), 30000 entries (IPv6)

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 90%, noncondensing

Electrical characteristics

Maximum heat dissipation

426 BTU/hr (449.43 kJ/hr)

Voltage

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

125 W

Frequency

50/60 Hz

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J

Emissions

EN 55022 Class A
ICES-003 Class A
ANSI C63.4 2003
ETSI EN 300 386 V1.3.3
AS/NZS CISPR 22 Class A
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-3-2:2006
EN 61000-3-3:1995 +A1:2001+A2:2005
EMC Directive 2004/108/EC
FCC (CFR 47, Part 15) Class A
EN 55024:1998+ A1:2001 + A2:2003
EN 61000-4-11:2004
EN 61000-4-8:2001

Telecom

FCC part 68

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB

Notes

The HP 3G Wireless GSM/WCDMA WAN SIC Module (JF820A) is not approved for use in the same chassis as a Wi-Fi interface (802.11b/g, 802.11b/g/n, etc.) in the European Union.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HP MSR30-20 PoE Router (JF802A)

I/O ports and slots

4 SIC slots
2 MIM slots
2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

AP characteristics

Radios (via optional modules)

802.11b/g/n; 4G LTE

Physical characteristics

Dimensions

17.4(w) x 17.39(d) x 1.74(h) in (44.2 x 44.18 x 4.42 cm)
(1U height)

Weight

15.21 lb (6.9 kg)

Memory and processor

Processor

RISC @ 533 MHz, 512 MB DDR SDRAM, 256 MB compact flash

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack

Performance

Throughput

up to 300 Kpps (64-byte packets)

Routing table size

30000 entries (IPv4), 30000 entries (IPv6)

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 90%, noncondensing

Electrical characteristics

Maximum heat dissipation

426 BTU/hr (449.43 kJ/hr)

Voltage

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

125 W

PoE power

150 W PoE

Frequency

50/60 Hz

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated
PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS).

Safety

UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J

Emissions

EN 55022 Class A
ICES-003 Class A
ANSI C63.4 2003
ETSI EN 300 386 V1.3.3
AS/NZS CISPR 22 Class A
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-3-2:2006
EN 61000-3-3:1995 +A1:2001+A2:2005
EMC Directive 2004/108/EC
FCC (CFR 47, Part 15) Class A
EN 55024:1998+ A1:2001 + A2:2003
EN 61000-4-11:2004
EN 61000-4-8:2001

Telecom

FCC part 68

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB

Notes

The HP 3G Wireless GSM/WCDMA WAN SIC Module (JF820A) is not approved for use in the same chassis as a Wi-Fi interface (802.11b/g, 802.11b/g/n, etc.) in the European Union.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HP MSR30-20 DC Router (JF235A)

I/O ports and slots

4 SIC slots
2 MIM slots
2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

AP characteristics

Radios (via optional modules)

802.11b/g/n; 4G LTE

Physical characteristics

Dimensions

17.4(w) x 17.39(d) x 1.74(h) in (44.2 x 44.18 x 4.42 cm) (1U height)

Weight

15.21 lb (6.9 kg)

Memory and processor

Processor

RISC @ 533 MHz, 512 MB DDR SDRAM, 256 MB compact flash

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack

Performance

Throughput

up to 300 Kpps (64-byte packets)

Routing table size

30000 entries (IPv4), 30000 entries (IPv6)

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 90%, noncondensing

Electrical characteristics

Maximum heat dissipation

426 BTU/hr (449.43 kJ/hr)

Voltage

-48 to -60 VDC, rated

(depending on power supply chosen)

Maximum power rating

125 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J

Emissions

EN 55022 Class A
ICES-003 Class A
ANSI C63.4 2003
ETSI EN 300 386 V1.3.3
AS/NZS CISPR 22 Class A
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-3-2:2006
EN 61000-3-3:1995 +A1:2001+A2:2005
EMC Directive 2004/108/EC
FCC (CFR 47, Part 15) Class A
EN 55024:1998+ A1:2001 + A2:2003
EN 61000-4-11:2004
EN 61000-4-8:2001

Telecom

FCC part 68

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB

Notes

The HP 3G Wireless GSM/WCDMA WAN SIC Module (JF820A) is not approved for use in the same chassis as a Wi-Fi interface (802.11b/g, 802.11b/g/n, etc.) in the European Union.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HP MSR30-40 Router (JF229A)

I/O ports and slots

4 SIC slots
4 MIM slots
2 1000BASE-T ports (IEEE 802.3ab Type 1000BASE-T)
2 fixed Gigabit Ethernet SFP ports

AP characteristics

Radios (via optional modules)

802.11b/g/n; 4G LTE

Physical characteristics

Dimensions

17.4(w) x 16.63(d) x 3.47(h) in (44.2 x 42.23 x 8.82 cm) (2U height)

Weight

26.23 lb (11.9 kg)

Memory and processor

Processor

RISC @ 533 MHz, 512 MB DDR SDRAM, 256 MB compact flash

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack

Performance

Throughput

up to 360 Kpps (64-byte packets)

Routing table size

30000 entries (IPv4), 30000 entries (IPv6)

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 90%, noncondensing

Electrical characteristics

Maximum heat dissipation

717 BTU/hr (756.44 kJ/hr)

Voltage

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

210 W

Frequency

50/60 Hz

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J

Emissions

EN 55022 Class A
ICES-003 Class A
ANSI C63.4 2003
ETSI EN 300 386 V1.3.3
AS/NZS CISPR 22 Class A
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-3-2:2006
EN 61000-3-3:1995 +A1:2001+A2:2005
EMC Directive 2004/108/EC
FCC (CFR 47, Part 15) Class A
EN 55024:1998+ A1:2001 + A2:2003
EN 61000-4-11:2004
EN 61000-4-8:2001

Telecom

FCC part 68

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB

Notes

The HP 3G Wireless GSM/WCDMA WAN SIC Module (JF820A) is not approved for use in the same chassis as a Wi-Fi interface (802.11b/g, 802.11b/g/n, etc.) in the European Union.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HP MSR30-40 PoE Router (JF803A)

I/O ports and slots

4 SIC slots
4 MIM slots
2 1000BASE-T ports (IEEE 802.3ab Type 1000BASE-T)
2 fixed Gigabit Ethernet SFP ports

AP characteristics

Radios (via optional modules)

802.11b/g/n; 4G LTE

Physical characteristics

Dimensions

17.4(w) x 16.63(d) x 3.47(h) in (44.2 x 42.23 x 8.82 cm) (2U height)

Weight

26.23 lb (11.9 kg)

Memory and processor

Processor

RISC @ 533 MHz, 512 MB DDR SDRAM, 256 MB compact flash

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack

Performance

Throughput

up to 360 Kpps (64-byte packets)

Routing table size

30000 entries (IPv4), 30000 entries (IPv6)

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 90%, noncondensing

Electrical characteristics

Maximum heat dissipation

717 BTU/hr (756.44 kJ/hr)

Voltage

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

210 W

PoE power

375 W PoE

Frequency

50/60 Hz

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS).

Safety

UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J

Emissions
