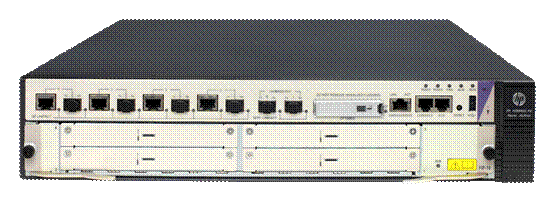

HPE FlexNetwork HSR6600 Router Series

Models

HPE FlexNetwork HSR6602 G Router

JG353A

HPE FlexNetwork HSR6602 XG Router

JG354A

Key features

• High-performance WAN routing up to 15 Mpps
• Compact, multi-core centralized processing architecture
• Comprehensive routing, VPN and security
• Modular WAN and LAN connectivity options
• Robust high availability and resiliency

Product overview

The HPE FlexNetwork HSR6600 Router Series is made up of high-performance services WAN routers that are ideal for small- to medium-sized campus WAN edge and aggregation, as well as high-end branch deployments.

These routers are built with a high performance multi-core networking processor that delivers, in a 2 RU form factor, robust routing, security, and modular WAN and LAN interface options, all integrated in a single compact and powerful routing platform.

In addition, these routers feature robust carrier-class reliability capabilities to reduce disruption from network or system failures.

Features and benefits

Connectivity

• Multiple WAN interfaces
  support Fast Ethernet/Gigabit Ethernet/10GbE ports, OC3~OC48 POS/CPOS, and ATM ports
• Flexible port selection
  provides a combination of fiber/copper interface modules, 100/1000BASE-X auto-speed selection, and 10/100/1000BASE-T auto-speed detection plus auto duplex and MDI/MDI-X; is speed adaptable between 155 M POS/622 M POS/Gigabit Eth
• Loopback
  supports internal loopback testing for maintenance purposes and an increase in availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per-VLAN basis for added flexibility

Performance

• High-performance platform
  provides up to 15 Mpps forwarding performance

Resiliency and high availability

• Separate data and control planes
  provide greater flexibility and enable continual services
• Hot-swappable modules
  facilitates the replacement of hardware interface modules without impacting the traffic flow through the system
• Optional redundant power supply
  provides uninterrupted power; allows hot-swapping of one of the two supplies when installed
• Virtual Router Redundancy Protocol (VRRP)
  allows groups of two routers to dynamically back each other up to create highly available routed environments
• Graceful restart
  supports graceful restart for OSPF, IS-IS, BGP, LDP, and RSVP; the network remains stable during the active-standby switchover; after the switchover, the device quickly learns the network routes by communicating with adjacent routers; forwarding remains uninterrupted during the switchover to achieve nonstop forwarding (NSF)
• Hitless software upgrades
  allow patches to be installed without restarting the device, increasing network uptime and simplifying maintenance
• IP Fast Reroute Framework (FRR)
  nodes are configured with backup ports and routes; local implementation requires no cooperation of adjacent devices, simplifying the deployment; solves the traditional convergence faults in IP forwarding; achieves restoration within 50 ms, with the restoration time independent of the number of routes and fast link switchovers without route convergence

Product architecture

• Multi-core CPU
  delivers multi-threaded processing, with eight cores and 32 hardware threads
• Distributed processing
  two kinds of engines are hardware separated: main controller engine (routing engine) and service engines (Flexible Interface Platform [FIP]); the main controller engine is used for route computing and system management, and service engines are used for processing services

Layer 3 routing

• Static IPv4 routing
  provides simple manually configured IPv4 routing
• Routing Information Protocol (RIP)
  uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop protection
• Open shortest path first (OSPF)
  delivers faster convergence; uses this link-state routing Interior Gateway Protocol (IGP), which supports ECMP, NSSA, and MD5 authentication for increased security and graceful restart for faster failure recovery
• Border Gateway Protocol 4 (BGP-4)
  delivers an implementation of the Exterior Gateway Protocol (EGP) utilizing path vectors; uses TCP for enhanced reliability for the route discovery process; reduces bandwidth consumption by advertising only incremental updates; supports extensive policies for increased flexibility; scales to very large networks
• Intermediate system to intermediate system (IS-IS)
  uses a path vector Interior Gateway Protocol (IGP), which is defined by the ISO organization for IS-IS routing and extended by IETF RFC 1195 to operate in both TCP/IP and the OSI reference model (Integrated IS-IS)
• Static IPv6 routing
  provides simple manually configured IPv6 routing
• Dual IP stack
  maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network design
• Routing Information Protocol next generation (RIPng)
  extends RIPv2 to support IPv6 addressing
• OSPFv3
  provides OSPF support for IPv6
• BGP+
  extends BGP-4 to support Multiprotocol BGP (MBGP), including support for IPv6 addressing
• IS-IS for IPv6
  extends IS-IS to support IPv6 addressing
• IPv6 tunneling
  allows IPv6 packets to traverse IPv4-only networks by encapsulating the IPv6 packet into a standard IPv4 packet; supports manually configured, 6to4, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnels; is an important element for the transition from IPv4 to IPv6
• Multiprotocol Label Switching (MPLS)
  uses BGP to advertise routes across Label Switched Paths (LSPs), but uses simple labels to forward packets from any Layer 2 or Layer 3 protocol, which reduces complexity and increases performance; supports graceful restart for reduced failure impact; supports LSP tunneling and multilevel stacks
• Multiprotocol Label Switching (MPLS) Layer 3 VPN
  allows Layer 3 VPNs across a provider network; uses MP-BGP to establish private routes for increased security; supports RFC 2547bis multiple autonomous system VPNs for added flexibility
• Multiprotocol Label Switching (MPLS) Layer 2 VPN
  establishes simple Layer 2 point-to-point VPNs across a provider network using only MPLS Label Distribution Protocol (LDP); requires no routing and therefore decreases complexity, increases performance, and allows VPNs of non-routable protocols; uses no routing information for increased security; supports Circuit Cross Connect (CCC), Static Virtual Circuits (SVCs), Martini draft, and Kompella-draft technologies
• Policy routing
  allows custom filters for increased performance and security; supports ACLs, IP prefix, AS paths, community lists, and aggregate policies
• Multicast VPN
  supports Multicast Domain (MD) multicast VPN, which can be distributed on separate service cards, providing high performance and flexible configuration
• Virtual Private LAN Service (VPLS)
  establishes point-to-multipoint Layer 2 VPNs across a provider network
• Bidirectional Forwarding Detection (BFD)
  enables link connectivity monitoring and reduces network convergence time for RIP, OSPF, BGP, IS-IS, VRRP, MPLS, and IRF
• IGMPv1, v2, and v3
  allow individual hosts to be registered on a particular VLAN
• PIM-SSM, PIM-DM, and PIM-SM (for IPv4 and IPv6)
  support IP Multicast address management and inhibition of DoS attacks
• Equal-Cost Multipath (ECMP)
  enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth
• OSPFv3 MCE
  Multi-VPN-Instance CE (MCE) binds different VPNs to different interfaces on one single CE; the OSPFv3 MCE feature creates and maintains separate OSPFv3 routing tables for each IPv6 VPN to isolate VPN services in the device

Layer 3 services

• Address Resolution Protocol (ARP)
  determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
• User Datagram Protocol (UDP) helper
  redirects UDP broadcasts to specific IP subnets to prevent server spoofing
• Domain Name System (DNS)
  provides a distributed database that translates domain names and IP addresses, which simplifies network design; supports client and server
• Dynamic Host Configuration Protocol (DHCP)
  simplifies the management of large IP networks

Security

• Dynamic Virtual Private Network (DVPN)
  collects, maintains, and distributes dynamic public addresses through the VPN Address Management (VAM) protocol, making VPN establishment available between enterprise branches that use dynamic addresses to access the public network; compared to traditional VPN technologies, DVPN technology is more flexible and has richer features, such as NAT traversal of DVPN packets, AAA identity authentication, IPSec protection of data packets, and multiple VPN domains
• Group Domain Virtual Private Network (GDVPN)
  a tunnel-less VPN technology that allows for native end-to-end security for a full meshed network; suitable for an enterprise
  running encryption over a private Multiprotocol Label Switching (MPLS)/IP-based core network, as well as to encrypt multicast traffic
• Stateful VPN Firewall
  provides enhanced stateful packet inspection and filtering; supports flexible security zones and virtual firewall containment; provides advanced VPN services with Triple DES (3DES) and Advanced Encryption Standard (AES) encryption at high performance and low latency, Web content filtering, and application prioritization and enhancement
• Access control list (ACL)
  supports powerful ACLs for both IPv4 and IPv6; ACLs are used for filtering traffic to prevent unauthorized users from accessing the network, or for controlling network traffic to save resources; rules can either deny or permit traffic to be forwarded; rules can be based on a Layer 2 header or a Layer 3 protocol header; rules can be set to operate on specific dates or times
• Unicast Reverse Path Forwarding (URPF)
  allows normal packets to be forwarded correctly, but discards the attaching packet due to lack of reverse path route or incorrect inbound interface; prevents source spoofing and distributed attacks; supports distributed UFPF
• Secure shell (SSHv2)
  uses external servers to securely log in to a remote device; with authentication and encryption, it protects against IP spoofing and plain-text password interception; increases the security of Secure FTP (SFTP) transfers
• Remote Authentication Dial-In User Service (RADIUS)
  eases switch security access administration by using a password authentication server
• Terminal Access Controller Access-Control System (TACACS+)
  delivers an authentication tool using TCP with encryption of the full authentication request, providing additional security
• Network address translation (NAT)
  supports repeated multiplexing of a port and automatic 5-tuple collision detection, enabling NAPT to support unlimited connections; supports blacklist in NAT/NAPT/internal server, a limit on the number of connections, session log, and multi-instance

Quality of Service (QoS)

• HQoS / Nested QoS
  allows for precise and flexible traffic classification and scheduling
• Traffic policing
  supports Committed Access Rate (CAR) and line rate
• Congestion management
  supports FIFO, PQ, CQ, WFQ, CBQ, and RTPQ
• Weighted random early detection (WRED)/random early detection (RED)
  delivers congestion avoidance capabilities through the use of queue management algorithms
• Other QoS technologies
  support traffic shaping, FR QoS, MPLS QoS, and MP QoS/LFI

Management

• Industry-standard CLI with a hierarchical structure
  reduces training time and expenses, and increases productivity in multivendor installations
• SNMPv1, v2, and v3
  provide complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption
• Management interface control
  enables or disables each of the following interfaces depending on security preferences: console port, Telnet port, or reset button
• Remote monitoring (RMON)
  uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group
• Management security
  restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide Telnet and SNMP access; local and remote syslog capabilities allow logging of all access
• FTP, TFTP, and SFTP support
  offers different mechanisms for configuration updates; FTP allows bidirectional transfers over a TCP/IP network; trivial FTP (TFTP) is a simpler method using User Datagram Protocol (UDP); Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional security
• Debug and sampler utility
  supports ping and traceroute for both IPv4 and IPv6
• Network Quality Analyzer (NQA)
  analyzes network performance and service quality by sending test packets, and provides network performance and service quality parameters such as jitter, TCP, or FTP connection delays and file transfer rates; allows a network manager to determine overall network performance and to diagnose and locate network congestion points or failures
• Network Time Protocol (NTP)
  synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
• Information center
  provides a central repository for system and network information; aggregates all logs, traps, and debugging information generated by the system and maintains them in order of severity; outputs the network information to multiple channels based on user-defined rules

Multicast support

• Internet Group Management Protocol (IGMP)
  utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4 multicast networks; supports IGMPv1, v2, and v3
• Protocol Independent Multicast (PIM)
  defines modes of Internet IPv4 and IPv6 multicasting to allow one-to-many and many-to-many transmission of information; PIM Dense Mode (DM), Sparse Mode (SM), and Source-Specific Mode (SSM) are supported
• Multicast Source Discovery Protocol (MSDP)
  allows multiple PIM-SM domains to interoperate; is used for inter-domain multicast applications
• Multicast Border Gateway Protocol (MBGP)
  allows multicast traffic to be forwarded across BGP networks separately from unicast traffic

Additional information

• Green initiative support
  provides support for RoHS and WEEE regulations

Warranty and support

• 1-year warranty
  See http://www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
• Software releases
  to find software for your product, refer to http://www.hpe.com/networking/support ; for details on the software releases available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary

Build To Order: BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

HPE FlexNetwork HSR6602 G Router

JG353A

• 4 SFP ports (Min 0 // Max 4 SFP 1G Transceivers)
• 1 Service Module Slot (FIP10 or FIP20 Modules only)
• 1 - 2G DDR3 SDRAM included (JG482A)
• 2 CF Memory slots: (Min 0 // Max 1)
• Must select min 1 Power Supply
• 2U High

See Configuration NOTE:1, 3

HPE HSR6602 G Router

JG353A#A59

HPE FlexNetwork HSR6602 XG Router

JG354A

• 4 SFP ports (Min 0 // Max 4 SFP 1G Transceivers)
• 2 10GbE SFP+ ports (Min 0 // Max 2 SFP+ 10G Transceivers)
• 1 Service Module Slot (FIP10 or FIP20 Modules only)
• 2 - 2G DDR3 SDRAM included (JG482A)
• 2 CF Memory slots: (Min 0 // Max 1)
• Must select min 1 Power Supply
• 2U High

See Configuration NOTE:1, 2, 3

HPE HSR6602 XG Router

JG354A#A59

Configuration Rules:

Note 1

The following Transceivers install into this Router:

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP LC LH100 Transceiver

JD103A

HPE X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE X120 1G SFP LC BX 10-D Transceiver

JD099B

Note 2

The following Transceivers install into this Router:

HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE X130 10G SFP+ LC ER 40km Transceiver

JG234A

Note 3

If this product is ordered for delivery to Russia, it must be ordered with the A59 option (also allowed for other countries desiring Low Encryption), then #A59 is the required option for BTO, and must be added in addition to #0D1 for CTO.

Box Level Integration CTO Models

CTO Solution Sku

HPE 66xx CTO Router Solution

JG498A

• SSP trigger sku

CTO Base Sku

HPE FlexNetwork HSR6602 G Router

JG353A

• 4 SFP ports (Min 0 // Max 4 SFP 1G Transceivers)
• 1 Service Module Slot (FIP10 or FIP20 Modules only)
• 1 - 2G DDR3 SDRAM included (JG482A)
• 2 CF Memory slots: (Min 0 // Max 1)
• Must select min 1 Power Supply
• 2U High

See Configuration NOTE:2, 10

HPE FlexNetwork HSR6602 XG Router

JG354A

• 4 SFP ports (Min 0 // Max 4 SFP 1G Transceivers)
• 2 10GbE SFP+ ports (Min 0 // Max 2 SFP+ 10G Transceivers)
• 1 Service Module Slot (FIP10 or FIP20 Modules only)
• 2 - 2G DDR3 SDRAM included (JG482A)
• 2 CF Memory slots: (Min 0 // Max 1)
• Must select min 1 Power Supply
• 2U High

See Configuration NOTE: 2, 3, 10

Configuration Rules:

Note 2

The following Transceivers install into this Router:

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP LC LH100 Transceiver

JD103A

HPE X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE X120 1G SFP LC BX 10-D Transceiver

JD099B

Note 3

The following Transceivers install into this Router:

HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE X130 10G SFP+ LC ER 40km Transceiver

JG234A

Note 10

If the Router Chassis is Box Level Factory Integrated (CTO), Then the #0D1 is required on the Router Chassis and integrated to the JG498A - HPE 6600 CTO Enablement.(Min 1/Max 1 Router per SSP)

Rack Level Integration CTO Models

HPE FlexNetwork HSR6602 G Router

JG353A

• 4 SFP ports (Min 0 // Max 4 SFP 1G Transceivers)
• 1 Service Module Slot (FIP10 or FIP20 Modules only)
• 1 - 2G DDR3 SDRAM included (JG482A)
• 2 CF Memory slots: (Min 0 // Max 1)
• Must select min 1 Power Supply
• 2U High

See Configuration NOTE:1, 4

HPE HSR6602 G Router

JG353A#A59

HPE FlexNetwork HSR6602 XG Router

JG354A

• 4 SFP ports (Min 0 // Max 4 SFP 1G Transceivers)
• 2 10GbE SFP+ ports (Min 0 // Max 2 SFP+ 10G Transceivers)
• 1 Service Module Slot (FIP10 or FIP20 Modules only)
• 2 - 2G DDR3 SDRAM included (JG482A)
• 2 CF Memory slots: (Min 0 // Max 1)
• Must select min 1 Power Supply
• 2U High

See Configuration NOTE:1, 2, 4

HPE HSR6602 XG Router

JG354A#A59

Configuration Rules:

Note 1

The following Transceivers install into this Router:

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP LC LH100 Transceiver

JD103A

HPE X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE X120 1G SFP LC BX 10-D Transceiver

JD099B

Note 2

The following Transceivers install into this Router:

HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE X130 10G SFP+ LC ER 40km Transceiver

JG234A

Note 4

If this product is ordered for delivery to Russia, it must be ordered with the A59 option (also allowed for other countries desiring Low Encryption), then #A59 is the required option for BTO, and must be added in addition to #0D1 for CTO.

Modules

Management  Module slots

(JG353A, JG776A, JG354A, JG777A Routers Only )  //  Not Supported

(JC496A, JC177B, JC178B Router) System (std 0 // max 2) User Selection (min 1 // max 2) install in Service Engine Module

HPE FlexNetwork 6600 MCP-X1 Router Main Processing Unit

JG355A

• Min 0 // Max 4 SFP 1G Transceivers
• 1 - 2GB DDR3 SDRAM Included (JG482A)

See Configuration NOTE:1, 4, 7, 8

HPE 6600 MCP-X1 Router MPU

JG355A#A59

HPE FlexNetwork 6600 MCP-X2 Router Main Processing Unit

JG356A

• Min 0 // Max 4 SFP 1G Transceivers
• Min 0 // Max 2 SFP+ 10G Transceivers
• 2 - 2GB DDR3 SDRAM Included (JG482A)

See Configuration NOTE:1, 4, 6, 7, 8

HPE 6600 MCP-X2 Router MPU

JG356A#A59

HPE FlexNetwork 6600 RPE-X1 Router Module

JC165A

• 1 - 1GB DDR2 SDRAM Included (JC701A)

See Configuration NOTE:1, 2, 4, 9

HPE 6600 RPE-X1 Router Module

JC165A#A59

HPE FlexNetwork 6600 RSE-X1 Main Processing Unit

JC566A

• 2 - 1GB DDR2 SDRAM Included (JC701A)

See Configuration NOTE:1, 4, 9

HPE 6600 RSE-X1 Main Processing Unit

JC566A#A59

Configuration Rules:

Note 1

No mixing of any type of MPU.  Must all be the same sku.

Note 2

If the RPE-X1 (JC165A or JG781A) is selected then the HPE 6600RPE-X1 Carrier Card (JC497A) must be added to order as well.

Note 4

If this product is ordered for delivery to Russia, it must be ordered with the A59 option (also allowed for other countries desiring Low Encryption), then #A59 is the required option for BTO, and must be added in addition to #0D1 for CTO.

Note 6

The following Transceivers install into this Module: (Use #0D1 if switch is CTO)

HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE X130 10G SFP+ LC ER 40km Transceiver

JG234A

Note 7

The following Transceivers install into this Module: (Use #0D1 if switch is CTO)

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP LC LH100 Transceiver

JD103A

HPE X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE X120 1G SFP LC BX 10-D Transceiver

JD099B

Note 8

FIP-10 or FIP-20 Modules Only work with these MPUs: JG355A, JG778A, JG356A

Note 9

FIP-110 or FIP-210 Modules Only work with these MPUs: JC165A, JG781A, JC566A, JG780A

Remark:

RSE-X1 (JC566A, JG780A) occupies a full-width slot.

RPE-X1 (JC165A, JG781A) occupies half-width slot.

Service Module slots

(JG353A, JG776A, JG354A, JG777A Routers Only )  System (std 0 // max 1) User Selection (min 0 // max 1) per router

(JC178B Router Only )  System (std 0 // max 2) User Selection (min 0 // max 2) per router

(JC177B Router Only )  System (std 0 // max 4) User Selection (min 0 // max 4) per router

(JC496A Router Only )  System (std 0 // max 8) User Selection (min 0 // max 8) per router

HPE FlexNetwork 6600 FIP-10 Flexible Interface Platform Router Module

JG357A

• Min=0 \ Max=4 MIM Modules

See Configuration NOTE:4, 8

HPE FlexNetwork 6600 FIP-20 Flexible Interface Platform Router Module

JG358A

• Min=0 \ Max=2  HIM Modules or 2 MIM Modules  or 1 Each

See Configuration NOTE:8, 9

HPE FlexNetwork 6600 FIP-110 Flexible Interface Platform Module

JC166B

• min=0 \ max=2 SFP 1G \\   Min=0 \ Max=4 MIM Modules
• 2 - 1GB DDR2 SDRAM Included (JC071A)

See Configuration NOTE: 2, 4, 7

HPE FlexNetwork 6600 FIP-210 Flexible Interface Platform Module

JC167B

• min=0 \ max=2 SFP 1G  \\   Min=0 \ Max=2  HIM Modules or 2 MIM Modules  or 1 Each
• 2 - 1GB DDR2 SDRAM Included (JC071A)

See Configuration NOTE:2, 5, 7

HPE FlexNetwork 6600 48-port Gig-T Service Aggregation Platform Module

JC567A

• min=0 \ max=2 SFP 1G  \\   Min=0 \ Max=2  HIM Modules or 2 MIM Modules  or 1 Each
• 2 - 1GB DDR2 SDRAM Included (JC071A)

See Configuration NOTE:6, 7

HPE FlexNetwork 6600 24-port GbE SFP Service Aggregation Platform Module

JC568A

• min=0 \ max=2 SFP 1G  \\   Min=0 \ Max=2  HIM Modules or 2 MIM Modules  or 1 Each
• 2 - 1GB DDR2 SDRAM Included (JC071A)

See Configuration NOTE:3, 6, 7

HPE FlexNetwork 6600 48-port GbE SFP Service Aggregation Platform Module

JG556A

• min=0 \ max=2 SFP 1G  \\   Min=0 \ Max=2  HIM Modules or 2 MIM Modules  or 1 Each
• 2 - 1GB DDR2 SDRAM Included (JC071A)

See Configuration NOTE:3, 6, 7

Configuration Rules:

Note 2

The following Transceivers installs  into this Service Module: (Use #0D1 if router is CTO) - if applicable

 HPE X120 1G SFP LC SX Transceiver

JD118B

 HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

 HPE X125 1G SFP LC LH70 Transceiver

JD063B

 HPE X120 1G SFP LC LH100 Transceiver

JD103A

HPE X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE X120 1G SFP LC BX 10-D Transceiver

JD099B

Note 3

The following Transceivers install into this Service Module: (Use #0D1 if router is CTO) - if applicable

 HPE X120 1G SFP LC SX Transceiver

JD118B

 HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

 HPE X125 1G SFP LC LH70 Transceiver

JD063B

 HPE X120 1G SFP LC LH100 Transceiver

JD103A

HPE X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE X120 1G SFP LC BX 10-D Transceiver

JD099B

 HPE X115 100M SFP LC FX Transceiver

JD102B

 HPE X110 100M SFP LC LX Transceiver

JD120B

 HPE X110 100M SFP LC LH40 Transceiver

JD090A

 HPE X110 100M SFP LC LH80 Transceiver

JD091A

HPE X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE X115 100M SFP LC BX 10-D Transceiver

JD101A

 HPE X120 1G SFP RJ45 T Transceiver

JD089B

Note 4

The following Modules installs  into this Service Module: Max = 4 (Use #0D1 if router is CTO) - if applicable

HPE FlexNetwork MSR 2-port Enhanced Serial MIM Module

JD540A

HPE FlexNetwork MSR 4-port Enhanced Serial MIM Module

JD541A

HPE FlexNetwork MSR 8-port Sync/Async Interface Enhanced Module

JD552A

HP MSR 1-port FT3/CT3 MIM Module

JD628A

HPE FlexNetwork 6600 8-port T1 MIM Router Module

JC160A

HPE FlexNetwork 6600 8-port Fractional T1 MIM Router Module

JC159A

HPE FlexNetwork MSR 8-port E1/CE1/PRI (75ohm) MIM Module

JD563A

HPE MSR 8-port Fractional E1 MIM Module

JF255A

HP MSR 1-port FE3/CE3 MIM Module

JD630A

Note 5

The following Modules installs  into this Service Module: Max = 2  (Use #0D1 if router is CTO) - if applicable

HPE FlexNetwork MSR 2-port Enhanced Serial MIM Module

JD540A

HPE FlexNetwork MSR 4-port Enhanced Serial MIM Module

JD541A

HPE FlexNetwork 6600 8-port T1 MIM Router Module

JC160A

HPE FlexNetwork 6600 8-port Fractional T1 MIM Router Module

JC159A

HPE FlexNetwork 6600 1-port OC-3 (E1/T1) CPOS HIM Router Module

JC161A

HPE FlexNetwork 6600 2-port OC-3 E1/T1 CPOS HIM Router Module

JC162A

HPE FlexNetwork 6600 4GbE WAN HIM Router Module

JC163A

HPE FlexNetwork 6600 8GbE WAN HIM Router Module

JC164A

HPE FlexNetwork 6600 4-port GbE SFP HIM Router Module

JC171A

HPE FlexNetwork 6600 4-port OC-3/2-port OC-12 POS HIM Router Module

JC172A

HPE FlexNetwork 6600 1-port OC-48/STM-16 POS (SFP) Router Module

JC494A

HPE FlexNetwork 6600 2-port OC-3/1-port OC-12 POS HIM Router Module

JC173A

HPE FlexNetwork 6600 8-port GbE SFP HIM Router Module

JC174A

HPE FlexNetwork 6600 1-port 10GbE XFP HIM Router Module

JC168A

HP 6600 2-port OC-3c/STM-1c ATM SFP Router Module

JC495A

HPE FlexNetwork 6600 8-port 10/100BASE-T HIM Module

JC575A

HPE MSR 8-port Fractional E1 MIM Module

JF255A

HP MSR 1-port FE3/CE3 MIM Module

JD630A

HPE FlexNetwork MSR 8-port E1/CE1/PRI (75ohm) MIM Module

JD563A

HPE FlexNetwork 6600 8-port OC-3c/OC-12c POS/GbE SFP HIM Module

JG673A

Note 6

If this Module is selected, Then the JC566A - HPE A6600 RSE-X1 Main Processing Unit or JG780A - HPE 6600 RSE-X1 Router TAA MPU is required.

Note 7

This module is only supported in the following routers:

HPE FlexNetwork 6616 Router Chassis

JC496A

HPE FlexNetwork 6608 Router Chassis

JC177B

HPE FlexNetwork 6604 Router Chassis

JC178B

Note 8

If this Module is selected with a legacy router (JC178B, JC177B, and JC496A), then one of the following Management Module is required:

HPE FlexNetwork 6600 MCP-X1 Router Main Processing Unit

JG355A

HPE FlexNetwork 6600 MCP X2 Router TAA-compliant Main Processing Unit

JG778A

HPE FlexNetwork 6600 MCP-X2 Router Main Processing Unit

JG356A

Note 9

The following Modules installs  into this Service Module: Max = 2  (Use #0D1 if router is CTO) - if applicable

HPE FlexNetwork MSR 2-port Enhanced Serial MIM Module

JD540A

HPE FlexNetwork MSR 4-port Enhanced Serial MIM Module

JD541A

HPE FlexNetwork 6600 8-port T1 MIM Router Module

JC160A

HPE FlexNetwork 6600 8-port Fractional T1 MIM Router Module

JC159A

HPE FlexNetwork 6600 1-port OC-3 (E1/T1) CPOS HIM Router Module

JC161A

HPE FlexNetwork 6600 2-port OC-3 E1/T1 CPOS HIM Router Module

JC162A

HPE FlexNetwork 6600 4GbE WAN HIM Router Module

JC163A

HPE FlexNetwork 6600 8GbE WAN HIM Router Module

JC164A

HPE FlexNetwork 6600 4-port GbE SFP HIM Router Module

JC171A

HPE FlexNetwork 6600 4-port OC-3/2-port OC-12 POS HIM Router Module

JC172A

HPE FlexNetwork 6600 1-port OC-48/STM-16 POS (SFP) Router Module

JC494A

HPE FlexNetwork 6600 2-port OC-3/1-port OC-12 POS HIM Router Module

JC173A

HPE FlexNetwork 6600 8-port GbE SFP HIM Router Module

JC174A

HPE FlexNetwork 6600 1-port 10GbE XFP HIM Router Module

JC168A

HP 6600 2-port OC-3c/STM-1c ATM SFP Router Module

JC495A

HPE FlexNetwork 6600 8-port 10/100BASE-T HIM Module

JC575A

HPE MSR 8-port Fractional E1 MIM Module

JF255A

HP MSR 1-port FE3/CE3 MIM Module

JD630A

HPE FlexNetwork MSR 8-port E1/CE1/PRI (75ohm) MIM Module

JD563A

HPE FlexNetwork 6600 8-port OC-3c/OC-12c POS/GbE SFP HIM Module

JG673A

HPE FlexNetwork HSR6800 16-port GbE SFP HIM Module

JH142A

HPE FlexNetwork HSR6800 2-port 10GbE SFP+ HIM Module

JH143A

Remarks:

CONFIGURATOR BLUE TEXT:

JG357A - HPE 6600 FIP-10 Flex Intf Pltfrm Rtr Mod is only supported on Comware V5. It is not supported when using Comware V7.

CONFIGURATOR BLUE TEXT:

Him Modules JH142A – HPE HSR6800 16-p GbE SFP HIM Mod and JH143A - HP HSR6800 2-p 10GbE SFP+ HIM Mod are only supported in JG358A - HPE 6600 FIP-20 Flex Intf Pltfrm Rtr Mod when using Comware V7.

MIM and HIM router Modules

System (std 0 // max 2 or 4) User Selection (min 0 // max 2 or 4) per Service Module (See Service Modules for Port information)

HPE FlexNetwork 6600 1-port OC-3 (E1/T1) CPOS HIM Router Module

JC161A

• min=0 \ max=1 SFP

See Configuration NOTE:1, 2

HPE FlexNetwork 6600 2-port OC-3 E1/T1 CPOS HIM Router Module

JC162A

• min=0 \ max=2 SFP

See Configuration NOTE:1, 2

HPE FlexNetwork 6600 4-port GbE SFP HIM Router Module

JC171A

• min=0 \ max=4 SFP

See Configuration NOTE:1, 3

HPE FlexNetwork 6600 4-port OC-3/2-port OC-12 POS HIM Router Module

JC172A

• min=0 \ max=4 SFP

See Configuration NOTE:1, 2, 4, 7

HPE FlexNetwork 6600 2-port OC-3/1-port OC-12 POS HIM Router Module

JC173A

• min=0 \ max=2 SFP

See Configuration NOTE:1, 2, 4, 8

HPE FlexNetwork 6600 1-port OC-48/STM-16 POS (SFP) Router Module

JC494A

• min=0 \ max=1 SFP

See Configuration NOTE:1, 5

HPE FlexNetwork 6600 8-port GbE SFP HIM Router Module

JC174A

• min=0 \ max=8 SFP

See Configuration NOTE:1, 3

HPE FlexNetwork HSR6800 16-port GbE SFP HIM Module

JH142A

• min=0 \ max=1 SFP

See Configuration NOTE:3, 14

HP 6600 2-port OC-3c/STM-1c ATM SFP Router Module

JC495A

• min=0 \ max=2 SFP

See Configuration NOTE:1, 2

HPE FlexNetwork 6600 1-port 10GbE XFP HIM Router Module

JC168A

• min=0 \ max=1 XFP

See Configuration NOTE:1, 6

HPE FlexNetwork HSR6800 2-port 10GbE SFP+ HIM Module

JH143A

• min=0 \ max=2 SFP+

See Configuration NOTE:5, 14

HPE FlexNetwork MSR 2-port Enhanced Serial MIM Module

JD540A

• min=0 \ max=2 Serial Port Cable

See Configuration NOTE:1, 9

HPE FlexNetwork MSR 4-port Enhanced Serial MIM Module

JD541A

• min=0 \ max=4 Serial Port Cable

See Configuration NOTE:1, 9

HPE FlexNetwork MSR 8-port Sync/Async Interface Enhanced Module

JD552A

• min=0 \ max=8 Serial Port Cable

See Configuration NOTE:1, 9

HP MSR 1-port FT3/CT3 MIM Module

JD628A

• min=0 \ max=2 E3/T3 Cable

See Configuration NOTE:1, 11

HPE FlexNetwork 6600 8-port T1 MIM Router Module

JC160A

• No Transceivers

See Configuration  NOTE:1

HPE FlexNetwork 6600 8-port Fractional T1 MIM Router Module

JC159A

• No Transceivers

See Configuration  NOTE:1

HPE FlexNetwork 6600 4GbE WAN HIM Router Module

JC163A

• No Transceivers

See Configuration NOTE:1

HPE FlexNetwork 6600 8GbE WAN HIM Router Module

JC164A

• No Transceivers

See Configuration NOTE:1

HPE FlexNetwork 6600 8-port 10/100BASE-T HIM Module

JC575A

• No Transceivers

See Configuration NOTE:1

HPE FlexNetwork MSR 8-port E1/CE1/PRI (75ohm) MIM Module

JD563A

• must select 1 8-port E1 Cable

See Configuration NOTE:1, 10

HPE MSR 8-port Fractional E1 MIM Module

JF255A

• must select 1 8-port E1 Cable

See Configuration NOTE:1, 10

HP MSR 1-port FE3/CE3 MIM Module

JD630A

• min=0 \ max=2 E3/T3 Cable

See Configuration NOTE:1, 11

HPE FlexNetwork 6600 8-port OC-3c/OC-12c POS/GbE SFP HIM Module

JG673A

• min=0 \ max=8 SFP

See Configuration NOTE:1, 4, 13

Configuration Rules:

Note 1

Routers JC177B, JC178B, JC496A Requires JC166B, JC167B, JG357A or JG358A Flex Int Platform Module to install HIM or MIM modules.
Routers JG353A, JG776A, JG354A, JG777A Requires the JG357A or JG358A Flex Int Platform Module to install HIM or MIM modules.

Note 2

The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if applicable

HPE X115 100M SFP LC FX Transceiver

JD102B

HPE X110 100M SFP LC LX Transceiver

JD120B

HPE X110 100M SFP LC LH40 Transceiver

JD090A

HPE X110 100M SFP LC LH80 Transceiver

JD091A

Note 3

The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if applicable

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP LC LH100 Transceiver

JD103A

HPE X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE X115 100M SFP LC BX 10-D Transceiver

JD101A

HPE X115 100M SFP LC FX Transceiver

JD102B

HPE X110 100M SFP LC LX Transceiver

JD120B

HPE X110 100M SFP LC LH40 Transceiver

JD090A

HPE X110 100M SFP LC LH80 Transceiver

JD091A

HPE X120 1G SFP RJ45 T Transceiver

JD089B

Note 4

The following Transceivers install into this Module (Use #0D1 if router is CTO) - if applicable

HPE X120 622M SFP LC LX 15km Transceiver

JF829A

HPE X120 622M SFP LC LH 40km 1310 Transceiver

JF830A

Note 5

The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if applicable

HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE X130 10G SFP+ LC ER 40km Transceiver

JG234A

Note 6

The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if applicable

HPE X135 10G XFP LC ER Transceiver

JD121A

HPE X130 10G XFP LC LR Single Mode 10km 1310nm Transceiver

JD108B

HPE X130 10G XFP LC SR Transceiver

JD117B

Note 7

min=0 \ max=4 SFP (JD102B,JD120B,JD090A,JD091A)

min=0 \ max=2 SFP (JF829A,JF830A)

X110 100M LC Transceiver (JD102B,JD120B,JD090A and JD091A) and X120 622M LC Transceiver (JF829A and JF830A) cannot be used at the same time

Note 8

min=0 \ max=2 SFP (JD102B,JD120B,JD090A,JD091A)
min=0 \ max=1 SFP (JF829A,JF830A)
X110 100M LC Transceiver (JD102B,JD120B,JD090A and JD091A) and X120 622M LC Transceiver (JF829A and JF830A) cannot be used at the same time

Note 9

The following Cables install into this Module:

HPE FlexNetwork X200 V.24 DTE 3m Serial Port Cable

JD519A

HPE FlexNetwork X200 V.24 DCE 3m Serial Port Cable

JD521A

HPE FlexNetwork X200 V.35 DTE 3m Serial Port Cable

JD523A

HPE FlexNetwork X200 V.35 DCE 3m Serial Port Cable

JD525A

HPE FlexNetwork X260 RS449 3m DTE Serial Port Cable

JF825A

HPE FlexNetwork X260 RS449 3m DCE Serial Port Cable

JF826A

HPE FlexNetwork X260 RS530 3m DTE Serial Port Cable

JF827A

HPE FlexNetwork X260 RS530 3m DCE Serial Port Cable

JF828A

Note 10

The following Cable install into this Module:

HPE FlexNetwork X260 8E1 BNC 75 ohm 3m Router Cable

JD512A

Note 11

The following E3/T3 Cable and Connector install into this Module:

HPE FlexNetwork X260 T3/E3 Router Cable

JD531A

HP X260 E3-30 E3/T3 Router Cable

JD533A

Note 12

If this Module is selected, Then one of the following routers is required:

HPE FlexNetwork 6616 Router Chassis

JC496A

HPE FlexNetwork 6608 Router Chassis

JC177B

HPE FlexNetwork 6604 Router Chassis

JC178B

Note 13

The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if applicable

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP LC LH100 Transceiver

JD103A

HPE X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE X115 100M SFP LC FX Transceiver

JD102B

HPE X110 100M SFP LC LX Transceiver

JD120B

HPE X110 100M SFP LC LH40 Transceiver

JD090A

HPE X110 100M SFP LC LH80 Transceiver

JD091A

HPE X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE X115 100M SFP LC BX 10-D Transceiver

JD101A

Note 14

Routers JG353A, JG354A, JG776A, JG777A Requires JG358A - HP 6600 FIP-20 Flex Intf Pltfrm Rtr Mod to install Him Modules JH142A - HP HSR6800 16-p GbE SFP HIM Mod and JH143A - HP HSR6800 2-p 10GbE SFP+ HIM Mod.

Transceivers

SFP Transceivers

HPE X110 100M SFP LC LX Transceiver

JD120B

HPE X110 100M SFP LC LH40 Transceiver

JD090A

HPE X110 100M SFP LC LH80 Transceiver

JD091A

HPE X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE X115 100M SFP LC BX 10-D Transceiver

JD101A

HPE X115 100M SFP LC FX Transceiver

JD102B

HPE X120 622M SFP LC LX 15km Transceiver

JF829A

HPE X120 622M SFP LC LH 40km 1310 Transceiver

JF830A

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X120 1G SFP LC LH100 Transceiver

JD103A

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP RJ45 T Transceiver

JD089B

HPE X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE X120 1G SFP LC BX 10-D Transceiver

JD099B

SFP+ Transceivers

HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE X130 10G SFP+ LC ER 40km Transceiver

JG234A

XFP Transceivers

HPE X135 10G XFP LC ER Transceiver

JD121A

HPE X130 10G XFP LC LR Single Mode 10km 1310nm Transceiver

JD108B

HPE X130 10G XFP LC SR Transceiver

JD117B

Internal Power Supplies

(JC496A Only) System (std 0 // max 4) User Selection (min 2 // max 4) per router

(JC177B and JC178B Only) - System (std 0 // max 2) User Selection (min 1 // max 2) per router

(JG353A, JG776A, JG354A, JG777A Only) - System (std 0 // max 2) User Selection (min 1 // max 2) per router

HPE FlexNetwork 7500 650W DC Power Supply

JD209A

See Configuration NOTE:1, 2

HPE FlexNetwork 7500 650W AC Power Supply

JD217A

• includes 1 x c13,  650w

See Configuration NOTE:1, 2, 5

PDU Cable NA/MEX/TW/JP

JD217A#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JD217A#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch/Router to Wall Power Cord

JD217A#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE FlexNetwork 6616 650W DC Router Power Supply

JC493A

See Configuration NOTE:1, 3

HPE FlexNetwork 6616 650W AC Router Power Supply

JC492A

• includes 1 x c13,  650w

See Configuration NOTE:1, 3, 5

PDU Cable NA/MEX/TW/JP

JC492A#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC492A#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch/Router to Wall Power Cord

JC492A#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE 5800 300W DC Power Supply

JC090A

See Configuration NOTE:4

HPE 5800 300W AC Power Supply

JC087A

• includes 1 x c13,  650w

See Configuration NOTE:1, 4, 5, 6

PDU Cable NA/MEX/TW/JP

JC087A#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC087A#B2C

• C15 PDU Jumper Cord (ROW)

Configuration Rules:

Note 1

If 2 power supplies are selected they must be the same SKU number.

Note 2

Only supported on the 6604 (JC178B) and (JC177B) 6608 routers. (Watson Default JD217A)

Note 3

Only supported on the 6616 (JC496A) routers. (Watson Default JC492A)

Note 4

Only supported on the new JG353A, JG776A, JG354A, JG777A routers. (Watson Default JC087A)

Note 5

Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) or #B2E. (See Localization Menu)

Note 6

When Switches/Routers are Factory Racked, Then #B2B, or #B2C should be the Defaulted Power Cable option on the Switches/Routers.

Remarks:

Drop down under power supply should offer the following options and results:

Switch/Router/Power Supply to PDU Power Cord -  #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)

Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)

High Volt Switch/Router/Power Supply to Wall Power Cord -  #B2E Option. (Offered only in North America, Mexico, Taiwan, and  Japan)

Cables

HPE FlexNetwork X200 V.24 DTE 3m Serial Port Cable

JD519A

HPE FlexNetwork X200 V.24 DCE 3m Serial Port Cable

JD521A

HPE FlexNetwork X200 V.35 DTE 3m Serial Port Cable

JD523A

HPE FlexNetwork X200 V.35 DCE 3m Serial Port Cable

JD525A

HPE FlexNetwork X260 RS449 3m DTE Serial Port Cable

JF825A

HPE FlexNetwork X260 RS449 3m DCE Serial Port Cable

JF826A

HPE FlexNetwork X260 RS530 3m DTE Serial Port Cable

JF827A

HPE FlexNetwork X260 RS530 3m DCE Serial Port Cable

JF828A

HPE FlexNetwork X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable

JD511A

HPE FlexNetwork X260 8E1 BNC 75 ohm 3m Router Cable

JD512A

HPE FlexNetwork X260 T3/E3 Router Cable

JD531A

HP X260 E3-30 E3/T3 Router Cable

JD533A

Remarks:

The following cable is used for RJ45 BNC Conversion
JD511A  -  HPE FlexNetwork X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable

Router Enclosure Options

Carrier Card

System (std 0 // max 1) User Selection (min 0 // max 1) per routers

HPE FlexNetwork 6616 Router Chassis Accessory Kit

JC497A

See Configuration NOTE:1

Configuration Rules:

Note 1

RPE-X1 (JC165A, JG781A) is supported with HPE 6600RPE-X1 Carrier Card   (JC497A)

Dustproof Frames

User Selection (min 0 // max 1) per router

HPE FlexNetwork 6604 Dustproof Frame

JC572A

See Configuration NOTE:3

HPE FlexNetwork 6608 Dustproof Frame

JC573A

See Configuration NOTE:2

HPE FlexNetwork 6616 Dustproof Frame

JC574A

See Configuration NOTE:1

Configuration Rules:

Note 1

This Frame installs to the following routers only:

HPE FlexNetwork 6616 Router Chassis

JC496A

Note 2

This Frame installs to the following routers only:

HPE FlexNetwork 6608 Router Chassis

JC177B

Note 3

This Frame installs to the following routers only:

HPE FlexNetwork 6604 Router Chassis

JC178B

Router Software License

User Selection (min 1 // max 1) per router

HPE FlexNetwork 6600 Router Software LTU

JC180A

See Configuration NOTE:1

Configuration Rules:

Note 1

This License installs to the following routers only:

HPE FlexNetwork 6616 Router Chassis

JC496A

HPE FlexNetwork 6608 Router Chassis

JC177B

HPE FlexNetwork 6604 Router Chassis

JC178B

Spare Fan Assembly

User Selection (min 0 // max 1) per router

HPE FlexNetwork HSR6602 Router Spare Fan Assembly

JG359A

See Configuration NOTE:4

HPE FlexNetwork 6604 Spare Fan Assembly

JC569A

See Configuration NOTE:3

HPE FlexNetwork 6608 Spare Fan Assembly

JC570A

See Configuration NOTE:2

HPE FlexNetwork 6616 Spare Fan Assembly

JC571A

See Configuration NOTE:1

Configuration Rules:

Note 1

This Fan Assembly installs to the following routers only:

HPE FlexNetwork 6616 Router Chassis

JC496A

Note 2

This Fan Assembly installs to the following routers only:

HPE FlexNetwork 6608 Router Chassis

JC177B

Note 3

This Fan Assembly installs to the following routers only:

HPE FlexNetwork 6604 Router Chassis

JC178B

Note 4

This Fan Assembly installs to the following routers only:

HPE FlexNetwork HSR6602 G Router

JG353A

HPE FlexNetwork HSR6602 G TAA-compliant Router

JG776A

HPE FlexNetwork HSR6602 XG Router

JG354A

HPE FlexNetwork HSR6602 XG TAA-compliant Router

JG777A

Memory

HPE X610 2G VLP DDR3 SDRAM Memory

JG482A

See Configuration NOTE:1

HPE FlexNetwork 6600 1GB SDRAM

JC179A

See Configuration NOTE:2

HP X610 1GB DDR2 SDRAM Memory

JC071A

See Configuration NOTE:3

Configuration Rules:

Note 1

System (std 1 // max 2) User Selection (min 0 // max 1)
Only supported on:

HPE FlexNetwork HSR6602 G Router

JG353A

HPE FlexNetwork HSR6602 G TAA-compliant Router

JG776A

HPE FlexNetwork 6600 MCP-X1 Router Main Processing Unit

JG355A

Note 2

This memory installs to the following routers only:

HPE FlexNetwork 6616 Router Chassis

JC496A

HPE FlexNetwork 6608 Router Chassis

JC177B

HPE FlexNetwork 6604 Router Chassis

JC178B

Note 3

System (std 1 // max 2) User Selection (min 0 // max 1)
Only supported on:

HPE FlexNetwork 6600 RPE-X1 Router Module

JC165A

HPE FlexNetwork 6600 RPE-X1 TAA-compliant Main Processing Unit

JG781A

Compact Flash

JG353A, JG776A, JG354A, JG777A only - System (std 1 // max 2) User Selection (min 0 // max 1) per router

HPE X600 512M Compact Flash Card

JC685A

See Configuration NOTE:1

HPE X600 1G Compact Flash Card

JC684A

See Configuration NOTE:1

Configuration Rules:

Note 1

This Compact Flash installs to the following routers only:

HPE FlexNetwork HSR6602 G Router

JG353A

HPE FlexNetwork HSR6602 G TAA-compliant Router

JG776A

HPE FlexNetwork HSR6602 XG Router

JG354A

HPE FlexNetwork HSR6602 XG TAA-compliant Router

JG777A

Opacity Shield Kit

System (std 0 // max 1) User Selection (min 0 // max 1)

HPE FlexNetwork HSR6602 Router Opacity Shield Kit

JG674A

• Supported on JG776A, JG777A

See Configuration NOTE:1

HPE 6616 Router Opacity Shield Kit

JG576A

• Supported on JC496A

See Configuration NOTE:2

HPE 6608 Router Opacity Shield Kit

JG577A

• Supported on JC177B

See Configuration NOTE:1

HPE 6604 Router Opacity Shield Kit

JG578A

• Supported on JC178B

See Configuration NOTE:1

Configuration Rules:

Note 1

If selected with a CTO Router Solution, Quantity 1 of JG585A#B01 must also be ordered.

Note 2

If selected with a CTO Router Solution, Quantity 1 of JG586A#B01 must also be ordered.

Tamper Evidence Labels

System (std 0 // max 1) User Selection (min 0 // max 1)

HPE 12mm x 60mm Tamper Evidence (30) Labels

JG585A

• Supported on JG776A, JG777A, JC496A, JC177B, JC178B

See Configuration NOTE:1

HPE 12mm x 60mm Tamper Evidence (100) Labels

JG586A

• Supported on JC496A

See Configuration NOTE:2

Configuration Rules:

Note 1

If selected with a CTO Router Solution, Quantity 1 of JG674#B01, JG577A#B01 or JG578A#B01 must also be ordered.

Note 2

If selected with a CTO Router Solution, Quantity 1 of JG576A#B01 must also be ordered.

Remarks:

Each JG674A, JG575A, JG577A or JG578A would use 1 of JG585A.

Each JG576A would use 1 of JG586A.

HPE FlexNetwork HSR6602 G Router (JG353A)

I/O ports and slots

4 Combo GbE (SFP and RJ45)
1 port expansion module slot

Additional ports and slots

2 RJ-45 serial console ports

1 USB 2.0

1 RJ-45 out-of-band management port

1 Compact Flash port

Physical characteristics

Dimensions

17.32(w) x 18.9(d) x 3.46(h) in (44 x 48 x 8.8 cm) (2U height)

Weight

26.68 lb (12.1 kg) shipping weight

Memory and processor

Processor

Multi-core PowerPC @ 1500 MHz, 8 MB flash, 2 GB SDRAM, 512 MB compact flash

Mounting and enclosure

EIA standard 19 in. rack

Performance

IPv6 Ready Certified

Latency

13.5 µs (FIFO 64-byte packets)

Throughput

up to 9 Mpps (64-byte packets)

Switch fabric speed

80 Gbps

Routing table size

1000000 entries (IPv4), 1000000 entries (IPv6)

Forwarding table size

1000000 entries (IPv4), 1000000 entries (IPv6)

Backplane bandwidth

80 Gbps

Environment

Operating temperature

32ºF to 113ºF (0ºC to 45ºC)

Operating relative humidity

5% to 95%, noncondensing

Altitude

up to 13,123 ft (4 km)

Electrical characteristics

Frequency

50/60 Hz

Maximum heat dissipation

505 BTU/hr (532.78 kJ/hr)

Voltage

100 - 240 VAC, rated

-48 to -60 VDC, rated

(depending on power supply chosen)

Maximum power rating

300 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 1950; UL 60950; CAN/CSA 22.2 No. 60950; EN 60825; AS/NZS 60950; KN 60950; GOST R MEK60950; IEC 60950; EN 60950; IEC 60825; ROHS Compliance

Emissions

VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; AS/NZS CISPR 22
Class A; CSA 2.22 60950; EN 61000-3-2; EN 61000-3-3; UL 60950; EN 60950-1; IEC 60950-1; FCC (CFR 47, Part 15) Subpart B Class A; ETSI EN 300 386 Class A; KN22 Class A; GB 9254 Class A; AS/NZS 60950-1

Immunity

Generic

ETSI EN 300 386 V1.3.3; KN24

EN

EN 55024, CISPR 24

Management

command-line interface; out-of-band management; SNMP Manager; Telnet; RMON1; terminal interface (serial RS-232C); Ethernet Interface MIB

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE FlexNetwork HSR6602 XG Router (JG354A)

I/O ports and slots

4 Combo GbE (SFP and RJ45)

2 SFP+ 10GbE ports (IEEE 802.3ae Type 10GBASE-SR)

1 port expansion module slot

Additional ports and slots

2 RJ-45 serial console ports

1 USB 2.0

1 RJ-45 out-of-band management port

1 Compact Flash port

Physical characteristics

Dimensions

17.32(w) x 18.9(d) x 3.46(h) in (44 x 48 x 8.8 cm) (2U height)

Weight

26.68 lb (12.1 kg) shipping weight

Memory and processor

Processor

Multi-core PowerPC @ 1500 MHz, 8 MB flash, 4 GB SDRAM, 512 MB compact flash

Mounting and enclosure

EIA standard 19 in. rack

Performance

IPv6 Ready Certified

Latency

13.5 µs (FIFO 64-byte packets)

Throughput

up to 15 Mpps (64-byte packets)

Switch fabric speed

80 Gbps

Routing table size

4000000 entries (IPv4), 2000000 entries (IPv6)

Forwarding table size

1000000 entries (IPv4), 1000000 entries (IPv6)

Backplane bandwidth

80 Gbps

Environment

Operating temperature

32ºF to 113ºF (0ºC to 45ºC)

Operating relative humidity

5% to 95%, noncondensing

Altitude

up to 13,123 ft (4 km)

Electrical characteristics

Frequency

50/60 Hz

Maximum heat dissipation

512 BTU/hr (540.16 kJ/hr)

Voltage

100 - 240 VAC, rated

-48 to -60 VDC, rated

(depending on power supply chosen)

Maximum power rating

300 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950; CAN/CSA 22.2 No. 60950; EN 60825; AS/NZS 60950; GOST R MEK60950; IEC
60950; EN 60950; IEC 60825; ROHS Compliance

Emissions

VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; AS/NZS CISPR 22
Class A; CSA 2.22 60950; EN 61000-3-2; EN 61000-3-3; UL 60950; EN 60950-1; IEC 60950-1; FCC (CFR 47, Part 15) Subpart B Class A; ETSI EN 300 386 Class A; KN22 Class A; GB 9254 Class A; AS/NZS 60950-1

Immunity

Generic

ETSI EN 300 386 V1.3.3; KN24

EN

EN 55024, CISPR 24

Management

command-line interface; out-of-band management; SNMP Manager; Telnet; RMON1; terminal interface (serial RS-232C); Ethernet Interface MIB

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Standards and protocols (applies to all products in series)

BGP

RFC 1657 Definitions of Managed Objects for BGPv4

RFC 1772 Application of the BGP

RFC 1773 Experience with the BGP-4 Protocol

RFC 1774 BGP-4 Protocol Analysis

RFC 1965 BGP-4 confederations

RFC 1966 BGP Route Reflection An alternative to full mesh IBGP

RFC 1997 BGP Communities Attribute

RFC 1998 An Application of the BGP Community Attribute in Multi-home Routing

RFC 2385 BGP Session Protection via TCP MD5

RFC 2439 BGP Route Flap Damping

RFC 2842 Capability Advertisement with BGP-4

RFC 2858 BGP-4 Multi-Protocol Extensions

RFC 2918 Route Refresh Capability

RFC 4271 A Border Gateway Protocol 4 (BGP-4)

RFC 4272 BGP Security Vulnerabilities Analysis

RFC 4274 BGP-4 Protocol Analysis

RFC 4275 BGP-4 MIB Implementation Survey

RFC 4276 BGP-4 Implementation Report

RFC 4277 Experience with the BGP-4 Protocol

RFC 4360 BGP Extended Communities Attribute

RFC 4451 BGP MULTI_EXIT_DISC (MED) Considerations

RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP)

RFC 4486 Subcodes for BGP Cease Notification Message

RFC 4724 Graceful Restart Mechanism for BGP

RFC 4760 Multiprotocol Extensions for BGP-4

RFC 4893 BGP Support for Four-octet AS Number Space

RFC 5065 Autonomous System Confederations for BGP

RFC 5291 Outbound Route Filtering Capability for BGP-4

RFC 5292 Address-Prefix-Based Outbound Route Filter for BGP-4

RFC 5398 Autonomous System (AS) Number Reservation for Documentation Use

RFC 5883 BFD for Multihop Paths

Denial of service protection

CPU DoS Protection

Rate Limiting by ACLs

Device Management

RFC 1155 Structure and Mgmt Information (SMIv1)

RFC 1157 SNMPv1/v2c

RFC 1305 NTPv3

RFC 1901 (Community based SNMPv2)

RFC 1901-1907 SNMPv2c, SMIv2 and Revised MIB-II

RFC 1902 (SNMPv2)

RFC 1908 (SNMP v1/2 Coexistence)

RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0

RFC 2068 Hypertext Transfer Protocol -- HTTP/1.1

RFC 2271 Framework

RFC 2452 MIB for TCP6

RFC 2454 MIB for UDP6

RFC 2573 (SNMPv3 Applications)

RFC 2576 (Coexistence between SNMP V1, V2, V3)

RFC 2578-2580 SMIv2

RFC 2579 (SMIv2 Text Conventions)

RFC 2580 (SMIv2 Conformance)

RFC 2819 (RMON groups Alarm, Event, History and Statistics only)

RFC 2819 RMON

RFC 3410 (Management Framework)

RFC 3416 (SNMP Protocol Operations v2)

RFC 3417 (SNMP Transport Mappings)

Multiple Configuration Files

Multiple Software Images

SNMP v3 and RMON RFC support

SSHv1/SSHv2 Secure Shell

TACACS/TACACS+

General Protocols

IEEE 802.1ad Q-in-Q

IEEE 802.1ag Service Layer OAM

IEEE 802.1ah Provider Backbone Bridges

IEEE 802.1AX-2008 Link Aggregation

IEEE 802.1D MAC Bridges

IEEE 802.1p Priority

IEEE 802.1Q (GVRP)

IEEE 802.1Q VLANs

IEEE 802.1s (MSTP)

IEEE 802.1s Multiple Spanning Trees

IEEE 802.1v VLAN classification by Protocol and Port

IEEE 802.1w Rapid Reconfiguration of Spanning Tree

IEEE 802.1X PAE

IEEE 802.3 Type 10BASE-T

IEEE 802.3ab 1000BASE-T

IEEE 802.3ac (VLAN Tagging Extension)

IEEE 802.3ad Link Aggregation (LAG)

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

IEEE 802.3ae 10-Gigabit Ethernet

IEEE 802.3ag Ethernet OAM

IEEE 802.3ah Ethernet in First Mile over Point to Point Fiber - EFMF

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-X

IEEE 802.3x Flow Control

IEEE 802.3z 1000BASE-X

RFC 768 UDP

RFC 783 TFTP Protocol (revision 2)

RFC 791 IP

RFC 792 ICMP

RFC 793 TCP

RFC 826 ARP

RFC 854 TELNET

RFC 855 Telnet Option Specification

RFC 856 TELNET

RFC 857 Telnet Echo Option

RFC 858 Telnet Suppress Go Ahead Option

RFC 894 IP over Ethernet

RFC 896 Congestion Control in IP/TCP Internetworks

RFC 906 TFTP Bootstrap

RFC 925 Multi-LAN Address Resolution

RFC 950 Internet Standard Subnetting Procedure

RFC 951 BOOTP

RFC 959 File Transfer Protocol (FTP)

RFC 1006 ISO transport services on top of the TCP: Version 3

RFC 1027 Proxy ARP

RFC 1034 Domain Concepts and Facilities

RFC 1035 Domain Implementation and Specification

RFC 1042 IP Datagrams

RFC 1058 RIPv1

RFC 1071 Computing the Internet Checksum

RFC 1091 Telnet Terminal-Type Option

RFC 1093 NSFNET routing architecture

RFC 1122 Host Requirements

RFC 1141 Incremental updating of the Internet checksum

RFC 1142 OSI IS-IS Intra-domain Routing Protocol

RFC 1144 Compressing TCP/IP headers for low-speed serial links

RFC 1191 Path MTU discovery

RFC 1195 OSI ISIS for IP and Dual Environments

RFC 1213 Management Information Base for Network Management of TCP/IP-based internets

RFC 1256 ICMP Router Discovery Protocol (IRDP)

RFC 1305 NTPv3

RFC 1315 Management Information Base for Frame Relay DTEs

RFC 1321 The MD5 Message-Digest Algorithm

RFC 1332 The PPP Internet Protocol Control Protocol (IPCP)

RFC 1333 PPP Link Quality Monitoring

RFC 1334 PPP Authentication Protocols (PAP)

RFC 1349 Type of Service

RFC 1350 TFTP Protocol (revision 2)

RFC 1377 The PPP OSI Network Layer Control Protocol (OSINLCP)

RFC 1381 SNMP MIB Extension for X.25 LAPB

RFC 1382 SNMP MIB Extension for the X.25 Packet Layer

RFC 1471 The Definitions of Managed Objects for the Link Control Protocol of the Point-to-Point Protocol

RFC 1473 The Definitions of Managed Objects for the IP Network Control Protocol of the Point-to-Point Protocol

RFC 1483 Multiprotocol Encapsulation over ATM Adaptation Layer 5

RFC 1490 Multiprotocol Interconnect over Frame Relay

RFC 1519 CIDR

RFC 1534 DHCP/BOOTP Interoperation

RFC 1542 BOOTP Extensions

RFC 1542 Clarifications and Extensions for the Bootstrap Protocol

RFC 1552 The PPP Internetworking Packet Exchange Control Protocol (IPXCP)

RFC 1577 Classical IP and ARP over ATM

RFC 1613 Cisco Systems X.25 over TCP (XOT)

RFC 1619 PPP over SONET/SDH (Synchronous Optical Network/Synchronous Digital Hierarchy)

RFC 1624 Incremental Internet Checksum

RFC 1631 NAT

RFC 1638 PPP Bridging Control Protocol (BCP)

RFC 1661 The Point-to-Point Protocol (PPP)

RFC 1662 PPP in HDLC-like Framing

RFC 1695 Definitions of Managed Objects for ATM Management Version 8.0 using SMIv2

RFC 1700 Assigned Numbers

RFC 1701 Generic Routing Encapsulation

RFC 1702 Generic Routing Encapsulation over IPv4 networks

RFC 1721 RIP-2 Analysis

RFC 1722 RIP-2 Applicability

RFC 1723 RIP v2

RFC 1795 Data Link Switching: Switch-to-Switch Protocol AIW DLSw RIG: DLSw Closed Pages, DLSw Standard Version 1

RFC 1812 IPv4 Routing

RFC 1829 The ESP DES-CBC Transform

RFC 1853 IP in IP Tunneling

RFC 1877 PPP Internet Protocol Control Protocol Extensions for Name Server Addresses

RFC 1944 Benchmarking Methodology for Network Interconnect Devices

RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0

RFC 1973 PPP in Frame Relay

RFC 1974 PPP Stac LZS Compression Protocol

RFC 1981 Path MTU Discovery for IP version 6

RFC 1990 The PPP Multilink Protocol (MP)

RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP)

RFC 2003 IP Encapsulation within IP

RFC 2082 RIP-2 MD5 Authentication

RFC 2091 Trigger RIP

RFC 2104 HMAC: Keyed-Hashing for Message Authentication

RFC 2131 DHCP

RFC 2132 DHCP Options and BOOTP Vendor Extensions

RFC 2138 Remote Authentication Dial In User Service (RADIUS)

RFC 2205 Resource ReSerVation Protocol (RSVP) - Version 1 Functional Specification

RFC 2209 Resource ReSerVation Protocol (RSVP) -- Version 1 Message Processing Rules

RFC 2225 Classical IP and ARP over ATM

RFC 2236 IGMP Snooping

RFC 2246 The TLS Protocol Version 1.0

RFC 2251 Lightweight Directory Access Protocol (v3)

RFC 2252 Lightweight Directory Access Protocol (v3): Attribute Syntax Definitions

RFC 2283 MBGP

RFC 2284 EAP over LAN

RFC 2338 VRRP

RFC 2364 PPP Over AAL5

RFC 2374 An Aggregatable Global Unicast Address Format

RFC 2390 Inverse Address Resolution Protocol

RFC 2427 Multiprotocol Interconnect over Frame Relay

RFC 2451 The ESP CBC-Mode Cipher Algorithms

RFC 2453 RIPv2

RFC 2510 Internet X.509 Public Key Infrastructure Certificate Management Protocols

RFC 2514 Definitions of Textual Conventions and OBJECT-IDENTITIES for ATM Management

RFC 2515 Definitions of Managed Objects for ATM Management

RFC 2516 A Method for Transmitting PPP Over Ethernet (PPPoE)

RFC 2519 A Framework for Inter-Domain Route Aggregation

RFC 2529 Transmission of IPv6 over IPv4 Domains without Explicit Tunnels

RFC 2544 Benchmarking Methodology for Network Interconnect Devices

RFC 2581 TCP Congestion Control

RFC 2615 PPP over SONET/SDH (Synchronous Optical Network/Synchronous Digital Hierarchy)

RFC 2616 HTTP Compatibility v1.1

RFC 2617 HTTP Authentication: Basic and Digest Access Authentication

RFC 2622 Routing Policy Specification Language (RPSL)

RFC 2644 Directed Broadcast Control

RFC 2661 L2TP

RFC 2663 NAT Terminology and Considerations

RFC 2684 Multiprotocol Encapsulation over ATM Adaptation Layer 5

RFC 2694 DNS extensions to Network Address Translators (DNS_ALG)

RFC 2702 Requirements for Traffic Engineering Over MPLS

RFC 2716 PPP EAP TLS Authentication Protocol

RFC 2747 RSVP Cryptographic Authentication

RFC 2763 Dynamic Name-to-System ID mapping

RFC 2765 Stateless IP/ICMP Translation Algorithm (SIIT)

RFC 2766 Network Address Translation - Protocol Translation (NAT-PT)

RFC 2782 A DNS RR (DNS Resource Record) for specifying the location of services (DNS SRV) Domain Name System Server

RFC 2784 Generic Routing Encapsulation (GRE)

RFC 2787 Definitions of Managed Objects for VRRP

RFC 2833 RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals

RFC 2856 Textual Conventions for Additional High Capacity Data Types

RFC 2865 Remote Authentication Dial In User Service (RADIUS)

RFC 2866 RADIUS Accounting

RFC 2868 RADIUS Attributes for Tunnel Protocol Support

RFC 2869 RADIUS Extensions

RFC 2878 PPP Bridging Control Protocol (BCP)

RFC 2915 The Naming Authority Pointer (NAPTR) DNS Resource Record

RFC 2916 E.164 number and DNS P. Faltstrom

RFC 2961 RSVP Refresh Overhead Reduction Extensions

RFC 2965 HTTP State Management Mechanism

RFC 2966 Domain-wide Prefix Distribution with Two-Level IS-IS

RFC 2973 IS-IS Mesh Groups

RFC 2976 The SIP INFO Method

RFC 3022 Traditional IP Network Address Translator (Traditional NAT)

RFC 3027 Protocol Complications with the IP Network Address Translator

RFC 3031 Multiprotocol Label Switching Architecture

RFC 3032 MPLS Label Stack Encoding

RFC 3036 LDP Specification

RFC 3046 DHCP Relay Agent Information Option

RFC 3063 MPLS Loop Prevention Mechanism

RFC 3065 Support AS confederation

RFC 3137 OSPF Stub Router Advertisement

RFC 3209 RSVP-TE Extensions to RSVP for LSP Tunnels

RFC 3210 Applicability Statement for Extensions to RSVP for LSP-Tunnels

RFC 3212 Constraint-Based LSP setup using LDP (CR-LDP)

RFC 3214 LSP Modification Using CR-LDP

RFC 3215 LDP State Machine

RFC 3246 Expedited Forwarding PHB

RFC 3268 Advanced Encryption Standard (AES) Ciphersuites for Transport Layer Security (TLS)

RFC 3272 Overview and Principles of Internet Traffic Engineering

RFC 3277 IS-IS Transient Blackhole Avoidance

RFC 3279 Algorithms and Identifiers for the Internet X.509 Public Key Infrastructure Certificate and Certificate Revocation List (CRL) Profile

RFC 3280 Internet X.509 Public Key Infrastructure Certificate and Certificate Revocation List (CRL) Profile

RFC 3359 Reserved Type, Length and Value (TLV) Codepoints in Intermediate System to Intermediate System

RFC 3392 Support BGP capabilities advertisement

RFC 3410 Applicability Statements for SNMP

RFC 3416 Protocol Operations for SNMP

RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP)

RFC 3442 The Classless Static Route Option for Dynamic Host Configuration Protocol (DHCP) version 4

RFC 3479 Fault Tolerance for the Label Distribution Protocol (LDP)

RFC 3509 OSPF ABR Behavior

RFC 3526 More Modular Exponential (MODP) Diffie-Hellman groups for Internet Key Exchange (IKE)

RFC 3562 Key Management Considerations for the TCP MD5 Signature Option

RFC 3564 Requirements for Support of Differentiated Services-aware MPLS Traffic Engineering

RFC 3567 Intermediate System to Intermediate System (IS-IS) Cryptographic Authentication

RFC 3590 Source Address Selection for the Multicast Listener Discovery (MLD) Protocol

RFC 3602 The AES-CBC Cipher Algorithm and Its Use with IPSec

RFC 3623 Graceful OSPF Restart

RFC 3706 A Traffic-Based Method of Detecting Dead Internet Key Exchange (IKE) Peers

RFC 3768 Virtual Router Redundancy Protocol (VRRP)

RFC 3784 ISIS TE support

RFC 3786 Extending the Number of IS-IS LSP Fragments Beyond the 256 Limit

RFC 3811 Definitions of Textual Conventions (TCs) for Multiprotocol Label Switching (MPLS) Management

RFC 3812 Multiprotocol Label Switching (MPLS) Traffic Engineering (TE) Management Information Base (MIB)

RFC 3847 Restart signaling for IS-IS

RFC 3879 Deprecating Site Local Addresses

RFC 3906 Calculating Interior Gateway Protocol (IGP) Routes Over Traffic Engineering Tunnels

RFC 3917 Requirements for IP Flow Information Export (IPFIX)

RFC 3954 Cisco Systems NetFlow Services Export Version 9

RFC 4213 Basic IPv6 Transition Mechanisms

RFC 4884 Extended ICMP to Support Multi-Part Messages

RFC 5082 The Generalized TTL Security Mechanism (GTSM)

RFC 5286 Basic Specification for IP Fast Reroute: Loop-Free Alternates

RFC 5880 Bidirectional Forwarding Detection

RFC 5882 Generic Application of BFD

IP Multicast

RFC 1112 IGMP

RFC 2236 IGMPv2

RFC 2283 Multiprotocol Extensions for BGP-4

RFC 2362 PIM Sparse Mode

RFC 2365 Administratively Scoped IP Multicast

RFC 2934 Protocol Independent Multicast MIB for IPv4

RFC 3376 IGMPv3

RFC 3446 Anycast Rendezvous Point (RP) mechanism using Protocol Independent Multicast (PIM) and Multicast Source Discovery Protocol (MSDP)

RFC 3569 An Overview of Source-Specific Multicast (SSM)

RFC 3618 Multicast Source Discovery Protocol (MSDP)

RFC 3973 PIM Dense Mode

RFC 4601 PIM Sparse Mode

RFC 4604 Using Internet Group Management Protocol Version 3 (IGMPv3) and Multicast Listener Discovery Protocol Version 2 (MLDv2) for Source-Specific Multicast

RFC 4605 IGMP/MLD Proxying

RFC 4607 Source-Specific Multicast for IP

RFC 4608 Source-Specific Protocol Independent Multicast in 232/8 (PIM SSM)

RFC 4611 Multicast Source Discovery Protocol (MSDP) Deployment Scenarios

RFC 4950 ICMP Extensions for Multiprotocol Label Switching

RFC 5015 Bidirectional Protocol Independent Multicast (BIDIR-PIM)

RFC 5059 Bootstrap Router (BSR) Mechanism for Protocol Independent Multicast (PIM)

RFC 5060 Protocol Independent Multicast MIB

RFC 5240 Protocol Independent Multicast (PIM) Bootstrap Router MIB

IPv6

RFC 1350 TFTP

RFC 1886 DNS Extension for IPv6

RFC 1887 IPv6 Unicast Address Allocation Architecture

RFC 1981 IPv6 Path MTU Discovery

RFC 2080 RIPng for IPv6

RFC 2292 Advanced Sockets API for IPv6

RFC 2373 IPv6 Addressing Architecture

RFC 2375 IPv6 Multicast Address Assignments

RFC 2460 IPv6 Specification

RFC 2461 IPv6 Neighbor Discovery

RFC 2462 IPv6 Stateless Address Auto-configuration

RFC 2463 ICMPv6

RFC 2464 Transmission of IPv6 over Ethernet Networks

RFC 2472 IP Version 6 over PPP

RFC 2473 Generic Packet Tunneling in IPv6

RFC 2475 IPv6 DiffServ Architecture

RFC 2529 Transmission of IPv6 Packets over IPv4

RFC 2545 Use of MP-BGP-4 for IPv6

RFC 2553 Basic Socket Interface Extensions for IPv6

RFC 2710 Multicast Listener Discovery (MLD) for IPv6

RFC 2711 IPv6 Router Alert Option

RFC 2740 OSPFv3 for IPv6

RFC 2893 Transition Mechanisms for IPv6 Hosts and Routers

RFC 2894 Router Renumbering for IPv6

RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only)

RFC 3056 Connection of IPv6 Domains via IPv4 Clouds

RFC 3162 RADIUS and IPv6

RFC 3306 Unicast-Prefix-based IPv6 Multicast Addresses (v2 models only)

RFC 3307 IPv6 Multicast Address Allocation

RFC 3315 DHCPv6 (client and relay)

RFC 3363 DNS support

RFC 3484 Default Address Selection for IPv6

RFC 3493 Basic Socket Interface Extensions for IPv6 (v2 models only)

RFC 3513 IPv6 Addressing Architecture

RFC 3542 Advanced Sockets API for IPv6

RFC 3587 IPv6 Global Unicast Address Format

RFC 3596 DNS Extension for IPv6

RFC 3646 DNS Configuration options for Dynamic Host Configuration Protocol for IPv6

RFC 3736 Stateless Dynamic Host Configuration Protocol (DHCP) Service for IPv6

RFC 3810 MLDv2 (host joins only)

RFC 3810 MLDv2 for IPv6

RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6

RFC 3956 Embedding the Rendezvous Point (RP) Address in an IPv6 Multicast Address

RFC 4001 Textual Conventions for Internet Network Addresses

RFC 4007 IPv6 Scoped Address Architecture

RFC 4022 MIB for TCP

RFC 4113 MIB for UDP

RFC 4251 SSHv6 Architecture

RFC 4252 SSHv6 Authentication

RFC 4252 SSHv6 Transport Layer

RFC 4253 SSHv6 Transport Layer

RFC 4254 SSHv6 Connection

RFC 4291 IP Version 6 Addressing Architecture

RFC 4293 MIB for IP

RFC 4419 Key Exchange for SSH

RFC 4443 ICMPv6

RFC 4541 IGMP & MLD Snooping Switch

RFC 4552 Authentication/Confidentiality for OSPFv3

RFC 4798 Connecting IPv6 Islands over IPv4 MPLS Using IPv6 Provider Edge Routers (6PE)

RFC 4861 IPv6 Neighbor Discovery

RFC 4862 IPv6 Stateless Address Auto-configuration

RFC 4940 IANA Considerations for OSPF

RFC 5072 IP Version 6 over PPP

RFC 5095 Deprecation of Type 0 Routing Headers in IPv6

RFC 5340 OSPF for IPv6

RFC 5340 OSPFv3 for IPv6

RFC 5722 Handling of Overlapping IPv6 Fragments

RFC 5881 BFD for IPv4 and IPv6 (Single Hop)

MIBs

IEEE 8021-PAE-MIB

IEEE 8023-LAG-MIB

RFC 1156 (TCP/IP MIB)

RFC 1212 Concise MIB Definitions

RFC 1213 MIB II

RFC 1229 Interface MIB Extensions

RFC 1286 Bridge MIB

RFC 1493 Bridge MIB

RFC 1573 SNMP MIB II

RFC 1643 Ethernet MIB

RFC 1650 Ethernet-Like MIB

RFC 1657 BGP-4 MIB

RFC 1724 RIPv2 MIB

RFC 1757 Remote Network Monitoring MIB

RFC 1850 OSPFv2 MIB

RFC 1907 SNMPv2 MIB

RFC 2011 SNMPv2 MIB for IP

RFC 2012 SNMPv2 MIB for TCP

RFC 2013 SNMPv2 MIB for UDP

RFC 2021 RMONv2 MIB

RFC 2096 IP Forwarding Table MIB

RFC 2233 Interfaces MIB

RFC 2273 SNMP-NOTIFICATION-MIB

RFC 2452 IPV6-TCP-MIB

RFC 2454 IPV6-UDP-MIB

RFC 2465 IPv6 MIB

RFC 2466 ICMPv6 MIB

RFC 2571 SNMP Framework MIB

RFC 2572 SNMP-MPD MIB

RFC 2574 SNMP USM MIB
